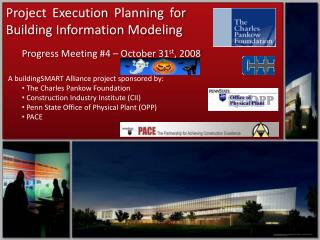

slide1

Project Execution Planning for Building Information Modeling

Progress Meeting #4 – October 31st, 2008

  • A buildingSMART Alliance project sponsored by:
    • The Charles Pankow Foundation
    • Construction Industry Institute (CII)
    • Penn State Office of Physical Plant (OPP)
    • PACE
slide2

Conference Call Agenda

Introductions

Project Overview

Progress Report

Discussion of Project and Progress

Set Up Next Meeting Time

slide3

Team Members

  • Board of Advisory
    • Deke Smith – Executive Director of buildingSMART Alliance (Industry Champion)
    • Victor Sanvido – Ph.D., Senior Vice President, Southland Industries
    • Francois Grobler – Ph.D., US Army CERL and IAI - North America
    • Steve Hagan – Project Knowledge Center, U.S. General Services Administration
    • SoadKousheshi – President, AEC Strategy
    • Ed Gannon – Manager of Design Services, Penn State Office of Physical Plant
    • Mark Falzarano – Barton Malow Company
    • Mark Butler – HDR
    • Derek Cunz– Director of Project Development, Mortenson Construction
    • Mark Konchar- Vice President – Balfour Beatty Construction
  • CIC Research Program Team Members
    • John Messner – Director of the CIC Research Program
    • ChimayAnumba – Professor and Head of Architectural Engineering
    • Sam Hunter – Assist. Professor of Psychology
    • Craig Dubler – PhD Student, Architectural Engineering (Construction)
    • Colleen Kasprzak – MS Student, Architectural Engineering (Operations)
    • Chitwan Saluja – MS Student, Architectural Engineering (Planning)
    • Nevena Zikic – MS Student, Architectural Engineering (Design)
    • Shane Goodman – BAE/MAE Student, Architectural Engineering
  • Sponsor Represenatives
    • Bob Tener – Director, The Charles Pankow Foundation
    • Steve Thomas – Director of Research, The Construction Industry Institute
slide4

Project Overview

  • Identify BIM methods and implementation strategies organized by project phase
    • Planning, Design, Construction, Operations
  • Develop implementation guidelines and best practice methods
  • Disseminate the results
    • BIM Execution Planning Guide
    • Interactive execution planning computer tool
    • Presentations at national conferences e.g. buildingSMART, AIA, AGC BIMForum, etc.
    • Articles in industry and academic publications
slide5

Progress Report

  • Continuously developing concept for BIM Execution Planning Process.
  • Wrapping-up Interview process.
  • Conducted focus group discussion at PACE (10.16.2008)
  • Reviewing additional resources with similar scopes for collaborative efforts and/or additional value to our guide.
  • BIM Ex Class
    • Developed BIM uses on wiki through interviews and lit review
    • Currently investigating case study projects
slide6

Design Communication

System Analysis

Estimation

Scheduling

Plan

  • Existing Conditions
  • Modeling
  • Programming
  • Site Selection
  • Preliminary Cost Estimation
  • Phase Planning

Design

  • Design Authoring
  • Design Reviews (Constructability, 3D Design Coordination, Virtual Mock-ups)
  • Site Analysis
  • Engineering Analysis (Structural, Energy, Lighting , CFD, IAQ Evaluation, Thermal Performance)
  • Code Validation (Emergency Evacuation, Security Analysis)
  • LEED Evaluation
  • Cost Estimation
  • Phase Planning (Tenant Fit-out)

Construct

  • 3D MEP Coordination
  • Digital Fabrication
  • 3D Control and
  • Planning
  • 3D System Design
  • Unit Price Estimating
  • 4D Planning
  • Site Utilization Planning

Operate

  • Record Model
  • Asset Management
  • Space Management/
  • Tracking
  • Disaster/Emergency
  • Planning
  • Building Performance Analysis
  • Maintenance Cost Estimation
  • Building Maintenance
  • Renovation Coordination
slide7

BIM USE

from WIKI

CLICK HERE

(Link to WIKI)

slide8

Execution Planning Process Concept:

“Begin with the End in Mind”

Operation

Construction

Design

Planning

D

S

E

S

D

S

E

S

D

S

E

S

D

S

E

S

First Pass = Use

Operation

Construction

Design

Planning

D

S

E

S

D

S

E

S

D

S

E

S

D

S

E

S

Second Pass = Who creates it? What Platform?

slide9

Execution Planning Process

Project X

BIM Execution Plan

slide12

BIM Use Identification Process

Project Input

Project Characteristics +

BIM Objectives

Decision Support

Tool

Decision Matrix

BIM GOALS

slide15

Next Tasks

  • Develop detailed execution planning process model
  • Complete the content analysis of interviews for each phase and for BIM uses
  • Perform Case Studies
  • Develop detailed list of content for BIM Execution Plan
  • Identify next focus group locations
    • buildingSMART Alliance Conf (?)
    • PACE Seminar in Spring 09
slide17

Additional Resources

  • Autodesk Communication Specifications
  • AIA BIM Exhibit
  • AGC Guide to BIM
  • Australian BIM National Guidelines
  • Key success factors for adopting BIM (Gang Lee)
  • Board Members:
    • Feel free to add more if they come to mind.
slide18

Discussion

  • Ways that you can help us:
    • Feedback:
      • BIM Uses (posted at bimex.wikispace.com)
      • Process overview / format
    • Identify potential case study projects for BIM Execution Planning course
    • Projects to test drive BIM Execution Plan Process
    • Share BIM Execution Plans if you have them and can share them
slide19

Thank You

  • Next Meeting Time?
    • Video conferencing during meetings – need friend of PSU Account
    • SIGN UP HERE:
    • https://fps.psu.edu/mkuser/index.html
