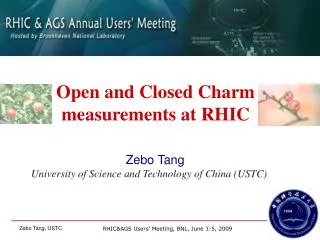

  1. Open and Closed Charm measurements at RHIC Zebo Tang University of Science and Technology of China (USTC) RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  2. Open charm measurements at RHIC STAR measurements: • Signal/Spectra D0 K • c   + X (y=0, low pT) • c  e + X • Flow & energy loss Radial flow from NPE RAA from NPE • Correlations D*-jet, e-h, e-D0 PHENIX measurements: • Signal/Spectra D0 K-+0 • c   + X (<y>=1.65, pT>1 GeV/c) • c  e + X • e+e- • Flow & energy loss Elliptic flow from NPE RAA from NPE • Correlations e-h, e-m RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  3. STAR:PRL98(2007) 192301 Energy loss PHENIX:PRL98(2007)172301 Strong suppress, energy loss Similar magnitude as light hadrons Bottom yields and bottom energy loss? RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  4. Heavy flavor feeddown Carla M. Vale, QM2009 Good high pT J/y measurements are needed Small effect on RAA No conclusion change RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  5. Correlation Bertrend Biritz, QM2009 arXiv:0903.4851 B is also suppressed Radiative energy loss unfavored PHENIX, arXiv:0903.4851 RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  6. path length L Quark path length L STAR preliminary hard parton Quark pT (GeV/c) Quark Jet flavor conversion? Yichun Xu, QM2009 hard parton gluon Kaon consistent with Jet conversion How about charm and bottom? How about LHC energy? RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  7. Forward rapidity Carla M. Vale, QM2009 More suppression at forward rapidity? need more statistics, better systematic control, and in Au+Au RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  8. ? Quarkonium melting in medium Ágnes Mócsy, QM2009 • Suppression has long be proposed as a signature of QGP formation • Plasma thermometer • Quarkonium production mechanism RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  9. Color octet Color singlet NRQCD Charmonium production mechanism • Color singlet model (CSM),LO underpredicted CDF data by order of magnitude • Color octet model (COM), LO good agreement with CDF cross section disagreement with CDF polarization • CSM*, NLO better agreement NNLO* applicable at pT>5-7 GeV/c • COM* improvement of polarization, NLO will come, valid at pT>3 GeV/c • CSM+s-channel cut valid at low pT LO Decay feeddown (CDF): y(2s): 7%-15%, slightly increase with pT cc0,1,2: ~30%, slightly decrease with pT B: Strong pT dependence Know your reference! RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  10. Charmonium measurements at RHIC STAR measurements: • Mid-rapidity (ee) L2 J/y trigger: low pT in p+p EMC trigger: high pT in p+p, Cu+Cu, d+Au BJ/y in p+p Minbias: low pT in Au+Au, Cu+Cu, d+Au • Forward rapidity (ee) J/y and cc in p+p (2.5<h<4.0) PHENIX measurements: • Mid-rapidity (ee) J/y in p+p, d+Au, Cu+Cu, Au+Au (low and intermediate pT) y’ and cc in p+p • Forward rapidity (mm) J/y in p+p, d+Au, Cu+Cu, Au+Au (1.2<|h|<2.2) RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  11. Low pT spectra in p+p CSM+s-channel cut works well at intermediate pT RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  12. STAR Preliminary High pT spectra in p+p Significantly extend previous measurements from 5 to 14 GeV/c CEM, LO COM describe overall trend, leave little to no room for feeddown NNLO* CSM, steeper than data RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  13. pT>2 GeV/c pT>5 GeV/c STAR Preliminary xT scaling n is related to the number of point-like constituents taking an active role in the interaction n=8: diquark scattering n=4: QED-like scattering  and proton at pT>2 GeV/c: n=6.6±0.1 (PLB 637, 161(2006)) J/ at high pT: n=5.6±0.2 (close to CS+CO prediction) Soft processes affect low pT J/ production RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  14. Forward rapidity Chris Perkins, QM2009 J/y ccJ/y Further constrain models High xF intrinsic heavy flavor RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  15. Polarization Cesar Luiz da Silva, QM2009 RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  16. Feeddown Susumu X. Oda, QM2008 R(ψ’) =8.6±2.5% PHENIX R(c) <42% (90%C.L.) PHENIX c→J/ +  RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  17. BJ/y STAR Preliminary arXiv:0904.0439 No significant near side correlation B contribution (13  5) % Little room for parton fragmentation RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

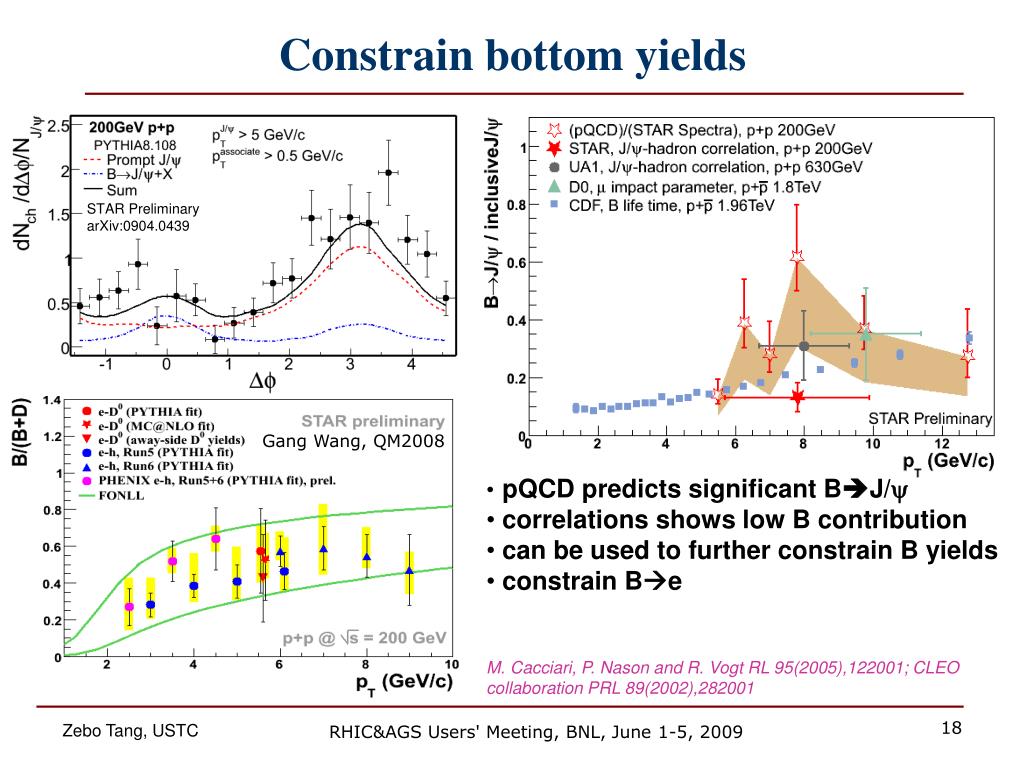

  18. Constrain bottom yields STAR Preliminary arXiv:0904.0439 Gang Wang, QM2008 • pQCD predicts significant BJ/ • correlations shows low B contribution • can be used to further constrain B yields • constrain Be • M. Cacciari, P. Nason and R. Vogt RL 95(2005),122001; CLEO collaboration PRL 89(2002),282001 RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  19. RAA at low pT J/y PHENIX, PRL98, 232301 • Similar suppression as that at SPS • More suppression at forward rapidity • Regeneration? Sequential suppression? RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  20. RAA(pT~5.5)>AdS/CFT+Hydro (93% C.L.) RAA(pT~7.0)>AdS/CFT+Hydro (94% C.L.) Combined: 99% Contrast to AdS/CFT+Hydro prediction PHENIX Spectra not available, prevents statistics analysis No way PHENIX can make conclusion contrasting to STAR RAA at high pT STAR Cu+Cu 0-20%: RAA(pT>5) = 1.40.40.2 No suppression RAA(pT~5.5)>0.6 (86% C.L.) RAA(pT~7.0)>0.6 (82% C.L.) Combined: 97% Indicates increase of RAA RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  21. RAA at high pT • Consistent with no suppression at high pT: RAA(pT>5 GeV/c) = 1.4± 0.4±0.2 • Indicates RAA increase from low pT to high pT • How does production mechanism (CS vs. CO) affect energy loss? • Contrast to AdS/CFT+ Hydro prediction • (H. Liu, K. Rajagopal and U.A. WiedemannPRL 98, 182301(2007),T. Gunji, JPG 35, 104137(2008) • Good jobs: • two-component model, leakage and B feeddown is important • (R. Rapp, X. Zhao, arXiv:0806.1239) • transport+hydro, from initial produced instead of regenerated • (Y.Liu, Zhen Qu, N. Xu and P. Zhuang, arXiv:0901.2757) RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  22. Elliptic flow pT integrated v2 = (-10±10)% @ |y|<0.35 and(-9.3 ± 9.2)% @ -1.2<|y|<1.2 Ermias T. Atomssa QM2009 Inherit open charm flow or not? Regeneration? Too early to compare to models, need more statistics RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  23. PHENIX J/ymm 500 GeV p+p Future STAR J/yee L3 trigger, Online tracking More and more statistics Better and better detectors Better and better techniques Bright future, better understanding RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  24. backup RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  25. Why heavy flavor Muller nucl-th/0404015 Wicks et al,NPA 784 (2007) 426 • Heavy quark masses are not modified by QCD vacuum. Strong interactions do not affect them. • Important tool for studying properties of the hot-dense matter created at RHIC energy. RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  26. Flow STAR: nucl-ex/0805.0364, Y. Zhang, QM2008 PRL, 98, 172301 (2007), D. Hornback, QM2008 STAR Preliminary • Tfo = 220 MeV (best fit) – freeze out earlier • <t> = 0.23 (best fit), <0.42 (1-) • favor moderate or small radial flow. • 2. Sizable v2  strong-interacting Quark Gluon Plasma RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  27. STAR Preliminary Beam pipe + SVT + SSD+ Dalitz Count Beam pipe + Dalitz TPC Inner Field cage Outlook: HF-lepton Run-3 Projection (0.4/nb) Run-8 Run 8 data compared to run3 Material in front of TPC reduced by an order of magnitude Final charm cross section is in progress RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  28. D0 Phys. Rev. Lett. 94 (2005) Outlook: Direct reconstruction Before background Small signal to background ratio Precise vertexing will helps a lot Still long way to go HFT Simulation S. Butyk (QM2008 poster) PHENIX Preliminary Year5 pp 200 GeV RHIC&AGS Users' Meeting, BNL, June 1-5, 2009

  29. Open charm Radial flow (thermal) Sizeable elliptic flow Strong suppression at high pT (energy loss) Total charm cross section Be Charmonium Regeneration possible Inherit elliptic flow Lose energy (CO) No energy loss (CS) Model input BJ/y How does open affect closed RHIC&AGS Users' Meeting, BNL, June 1-5, 2009
