  1. Ultima 3 Product Family Presentation

  2. Presentation Outline • Product Family Overview • Competitive Advantages • Applications • Competitive Analysis

  3. Product Family Overview Ultima 3

  4. Ultima 3 Series High Value Point-to-Point and Point-to-Multi-Point solutions in the 5.8 GHz ISM band.

  5. Ultima 3 Series • Rapid Deployment (RD, Point-to-Point) • Extended Range (ER, Point-to-Point) • Multi-Point (MP, Point-to-Multipoint) • Access Point (AP) • Customer Premises Equipment (CPE)

  6. Ultima 3 Specifications Key Specifications: Modulation Method: Multi-Code Direct Sequence Spread Spectrum Wireless Data Rate: 12 Mbps raw, 10 Mbps effective data rate RF Frequency Range: 5.725 – 5.850 GHz (unlicensed ISM band) Physical: Weather-proof design with integrated/separate antenna Weight: 3.5 kg (with integrated antenna) / 3 kg (without antenna) Antenna: Integrated: 23dBi, Non Integrated: 16 - 37.5dBi Output Power: -10 dBm to +21 dBm (SW controlled) Receiver Sensitivity: -80 dBm (@ 1 x 10-6 BER)

  7. Ultima 3 RD

  8. Ultima 3 RD Specifications • Fully Integrated Weather Proof Unit • Integrated Antenna (23 dBi, 9°) • 10/100 BaseT Interface • 12 Mbps of Throughput in 33 MHz • Range up to 25 km (16 Miles) • TDD with Low Latency (3 ms Ethernet to Ethernet)

  9. Ultima 3 ER

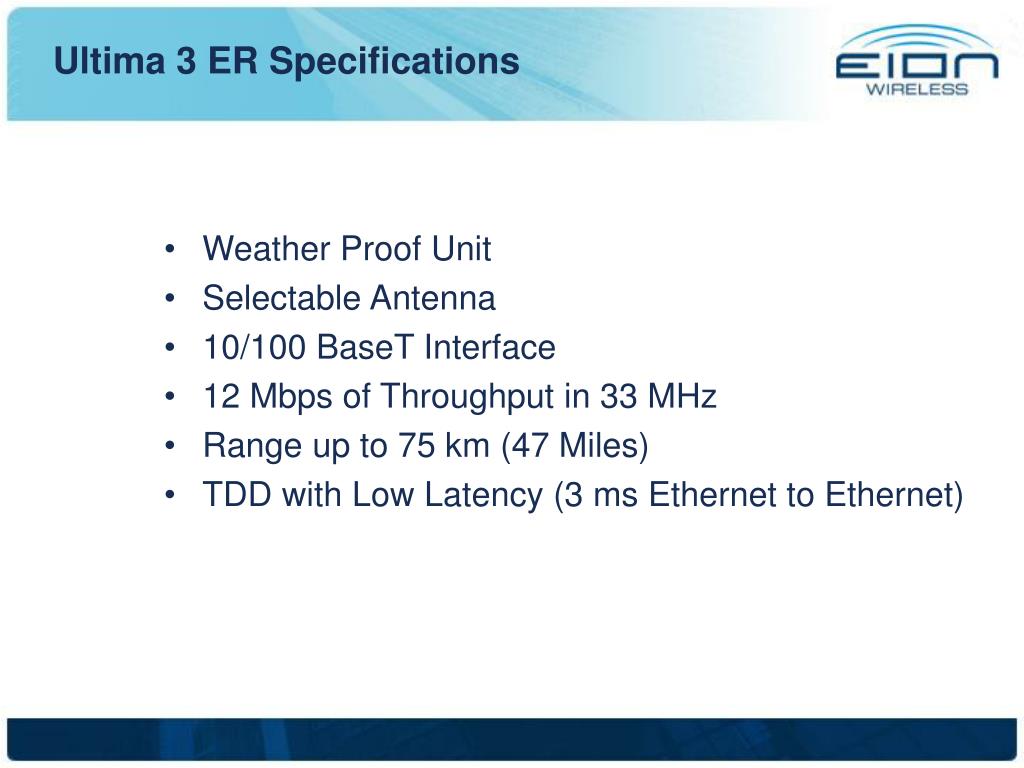

  10. Ultima 3 ER Specifications • Weather Proof Unit • Selectable Antenna • 10/100 BaseT Interface • 12 Mbps of Throughput in 33 MHz • Range up to 75 km (47 Miles) • TDD with Low Latency (3 ms Ethernet to Ethernet)

  11. Ultima 3 MP

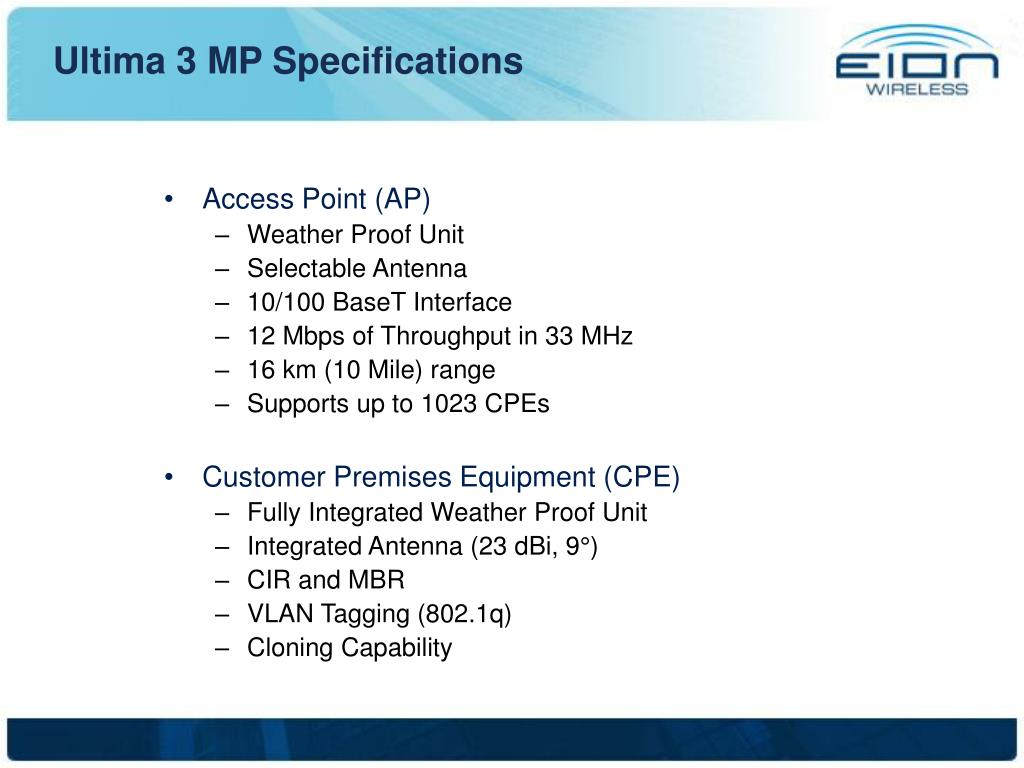

  12. Ultima 3 MP Specifications • Access Point (AP) • Weather Proof Unit • Selectable Antenna • 10/100 BaseT Interface • 12 Mbps of Throughput in 33 MHz • 16 km (10 Mile) range • Supports up to 1023 CPEs • Customer Premises Equipment (CPE) • Fully Integrated Weather Proof Unit • Integrated Antenna (23 dBi, 9°) • CIR and MBR • VLAN Tagging (802.1q) • Cloning Capability

  13. Sample Link Budget

  14. Competitive Advantages Ultima 3 Product Family

  15. Ultima 3 Value Proposition • Proven Technology • Scalability • Integrated Rugged Design • Low Cost Ownership • High Security • Efficient Bandwidth Allocation • Branching Operation • Dynamic Power Control

  16. Proven Technology • Ten Years of Innovative R & D • Eight Years of Field Proven Experience • Three Generations of Evolving Product • Thousands of Successful Deployments • The Ultimate Solution Ultima 3 Series

  17. Scalability One 360° Sector Four Sectors Cell Site Deployment You can always start your network with ONE AP.

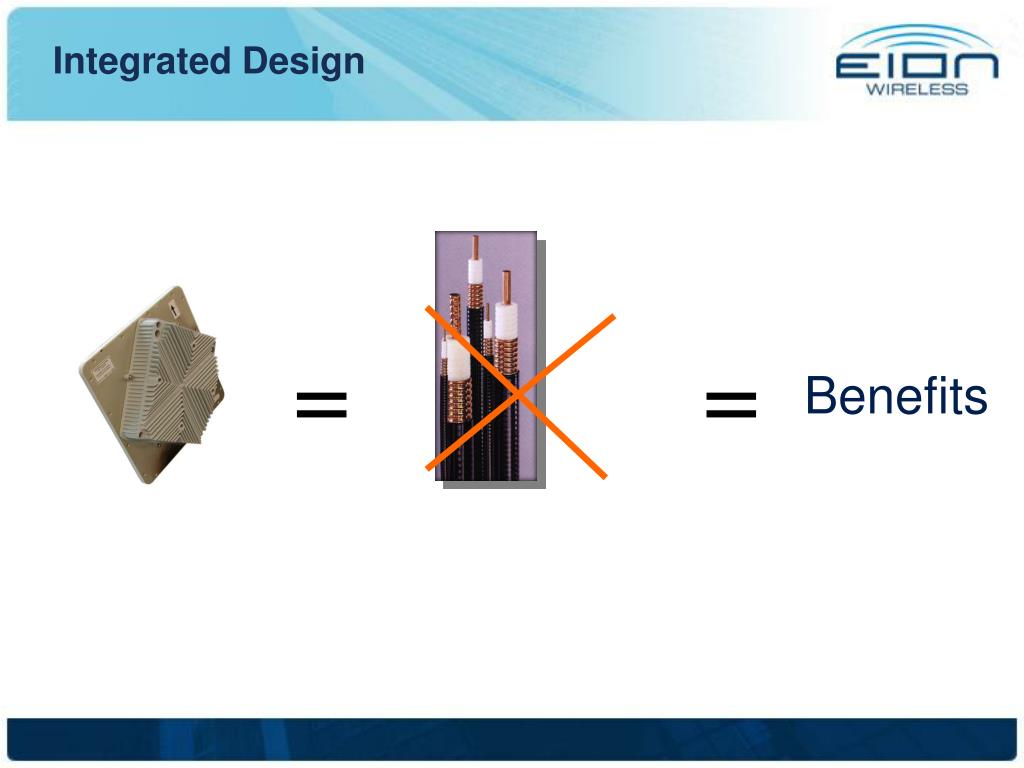

  18. Integrated Design = = Benefits

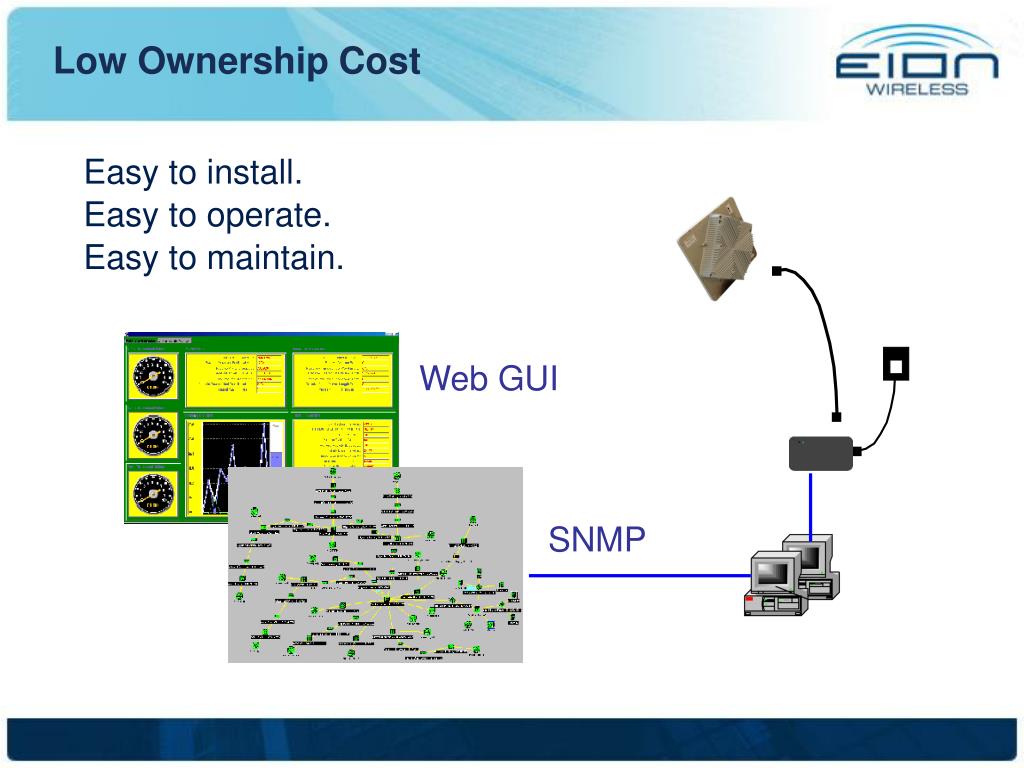

  19. Low Ownership Cost Easy to install. Easy to operate. Easy to maintain. Web GUI SNMP

  20. High Security The multi-layer approach virtually makes impossible for anyone to decode. • Inherently Secure with DSSS • Built on Proprietary Technology, MC-DSSS • User Configurable Physical Layer Modulation • More Security Added by VLAN, IP Filter & RF Group ID • Standard Security on Application Layer can be added by End Users, if necessary

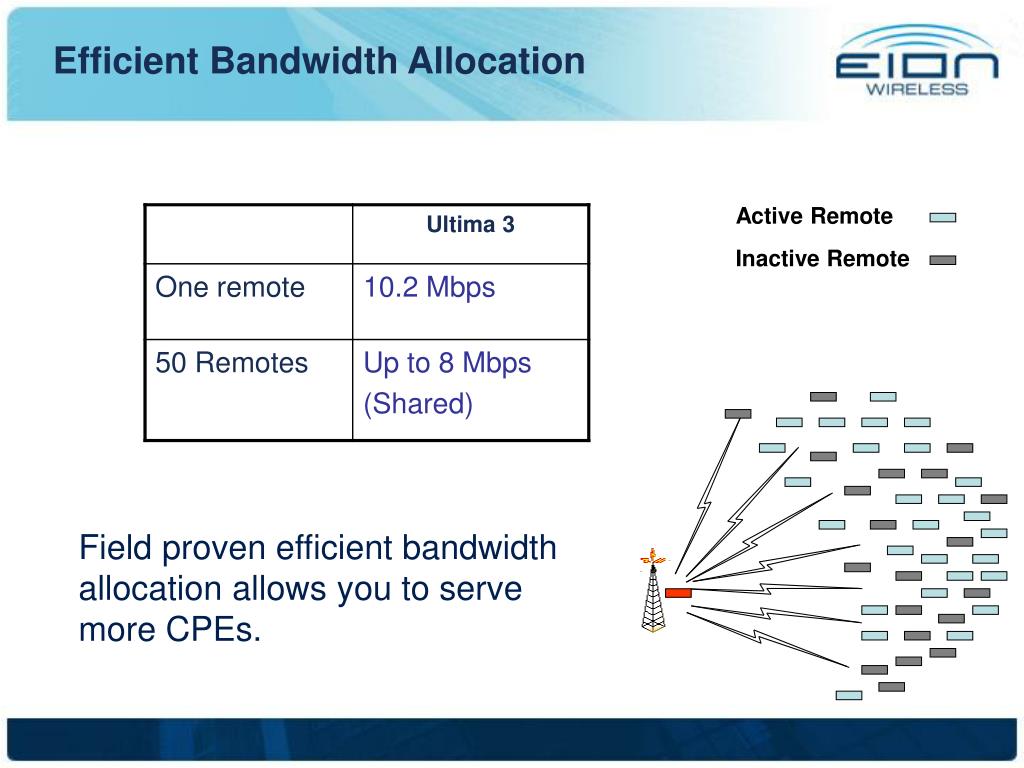

  21. Efficient Bandwidth Allocation Active Remote Inactive Remote Field proven efficient bandwidth allocation allows you to serve more CPEs.

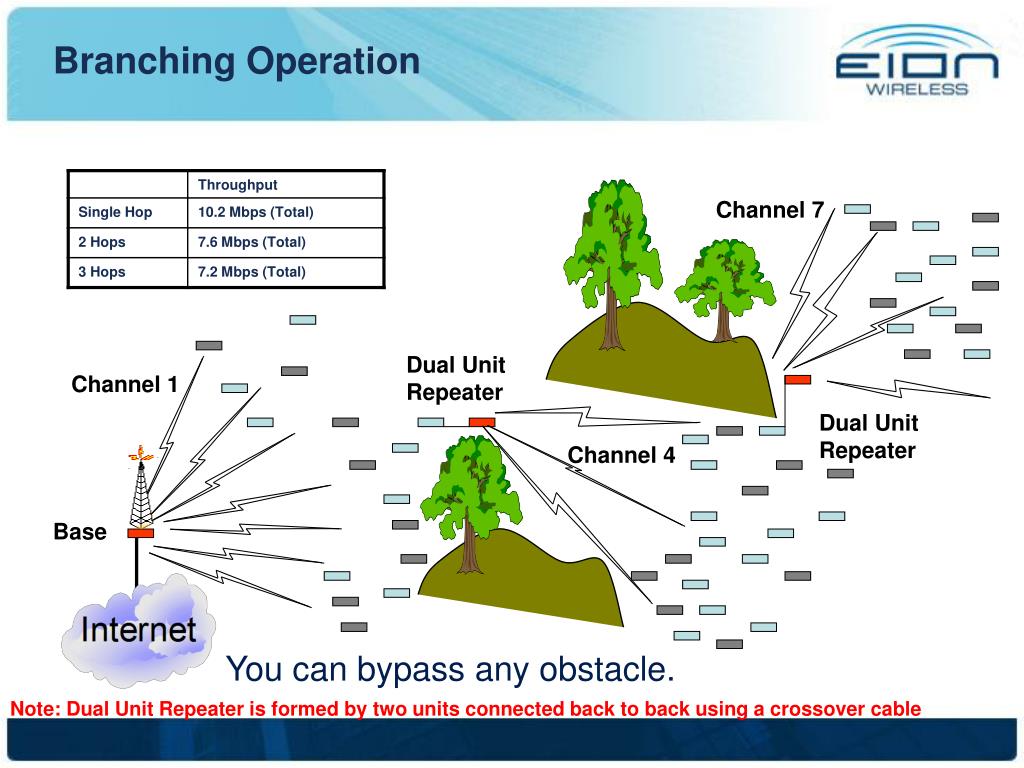

  22. Branching Operation Channel 7 Dual Unit Repeater Channel 1 Dual Unit Repeater Channel 4 Base You can bypass any obstacle. Note: Dual Unit Repeater is formed by two units connected back to back using a crossover cable

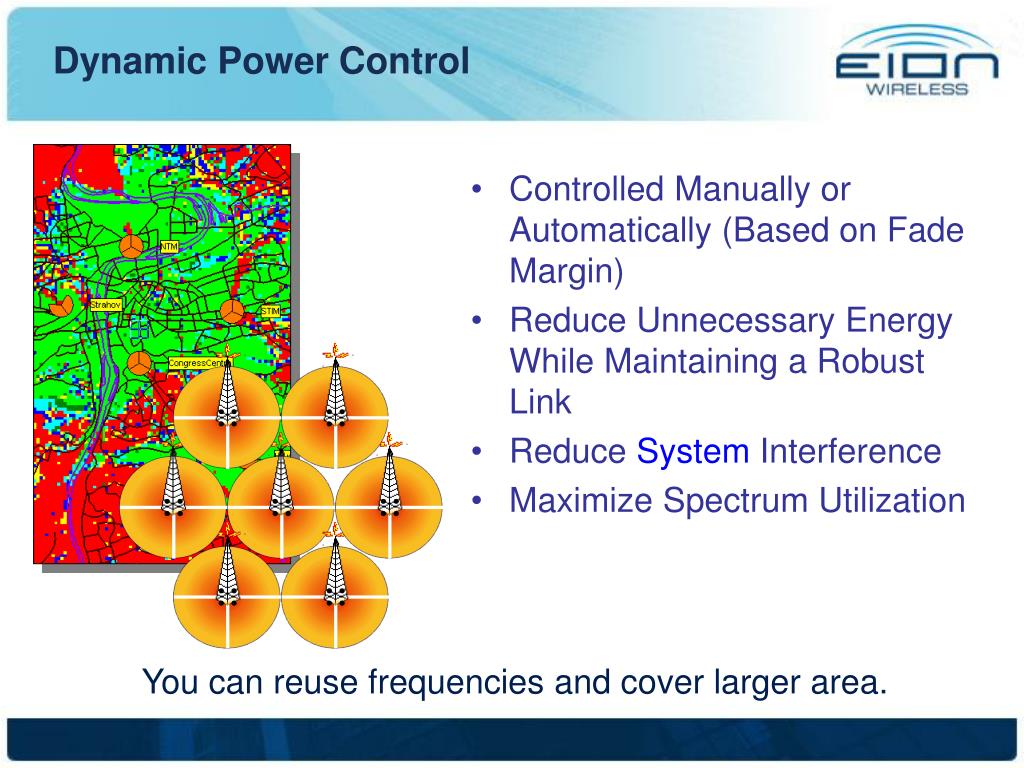

  23. Dynamic Power Control • Controlled Manually or Automatically (Based on Fade Margin) • Reduce Unnecessary Energy While Maintaining a Robust Link • Reduce System Interference • Maximize Spectrum Utilization You can reuse frequencies and cover larger area.

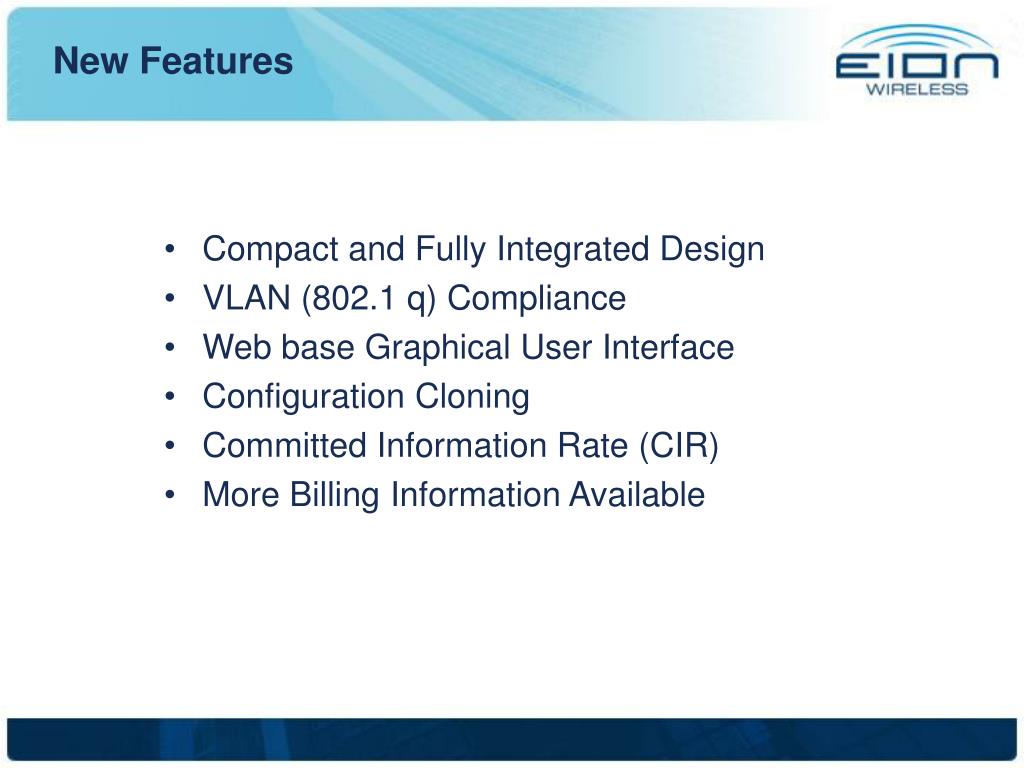

  24. New Features • Compact and Fully Integrated Design • VLAN (802.1 q) Compliance • Web base Graphical User Interface • Configuration Cloning • Committed Information Rate (CIR) • More Billing Information Available

  25. Applications Ultima 3 Product Family

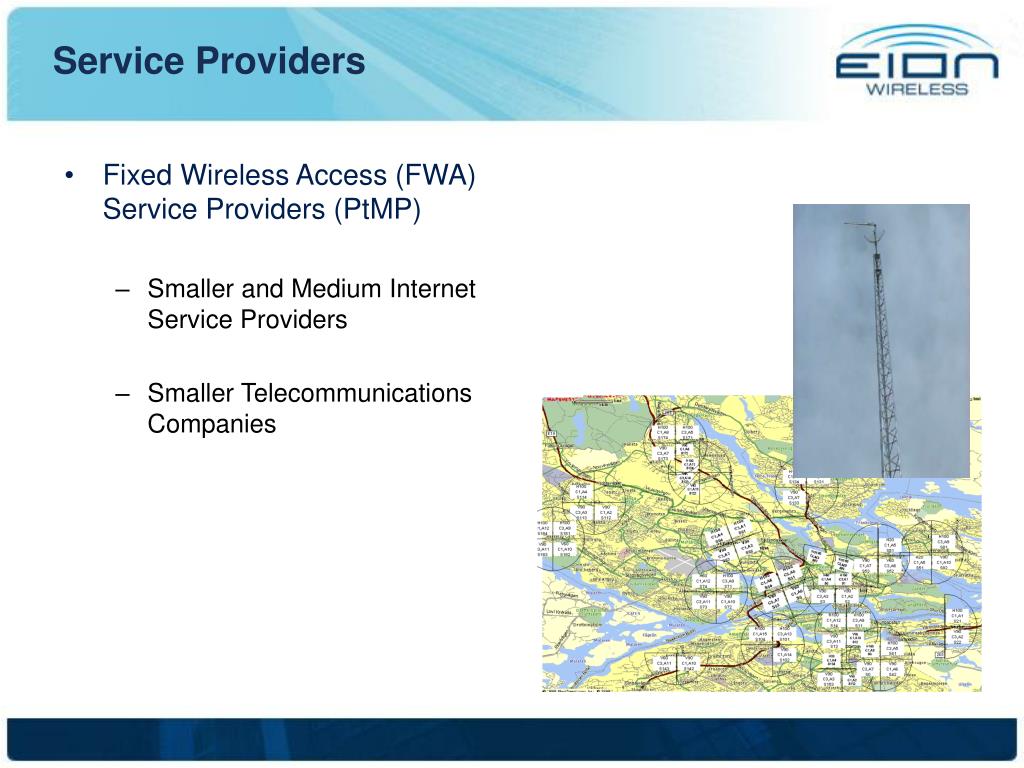

  26. Fixed Wireless Access (FWA) Service Providers (PtMP) Smaller and Medium Internet Service Providers Smaller Telecommunications Companies Service Providers

  27. Enterprise Market • Small and Medium Corporate Enterprises in (PtP and PtMP) • Enterprises with Virtual Private Networks • Vertical Markets such as Government, Education, Transportation, Manufacturing
