  1. VTizer www.darim.com Encode/Capture Products PCI/PCI-e/USB/IP

  2. Group Capture Board Inventing a New Global Culture • www.darim.com

  3. VTizer H/W & S/W To realize 24/7 broadcasting Darim Vision empowers you with VT boards to make scheduling, multilayer titling and logo insertion while continuously playing out and switching live/recorded video. Just plug the VT board in your PC and realize professional broadcasting immediately! The minimum software package includes OS-specific hardware drivers and configuration/preview utility. VT series boards are compatible with any existing video capture/editing software supporting Direct Show or Video for Windows standard capture and codec drivers. Inventing a New Global Culture • www.darim.com

  4. VTizer H/W Series

  5. VTizer H/W Series

  6. VTizer H/W Series • VT210 : ASI capture Board • VT300 : SD Dual capture/Dual Output • VT416 : 16 Ch D1 Flash/H.264 IP/USB Box • VT500 : DVI/VGA capture • VT600 : Full D1 SDI/Component Uncompressed USB capture • VT800 : 2ch HD SDI Input/Output Duplex • VT901 : 1ch HD Flash/H.264 IP/USB Box

  7. VTizer H/W Series VT416 IP/USB 48Ch. SD Flash/H.264 VT800 6Ch. HD SDI VT600 USB, 3 Ch D1 Capture 16ch D1 H.264 Capture USB/IP, 3 units make 48ch 2CH HD SDI IN 3 for 6ch IN 1ch D1 SDI uncompressed, 3 USB units make 3ch capture

  8. VTizer Main Software VTizer H/W Input TV/IP Output QIngest Direct Air QPlayOut S/W QTitleDesigner

  9. VT210 ASI Capture Features • 10 bit A/D for CVBS, S-Video and YUV/RGB (interlaced or progressive) inputs • SDI and ASI digital input are standard • Embedded SDI, AES/EBU or analog audio inputs (2 stereo channels) • Composite video and stereo audio outputs • Hardware video de-interlacing and adaptive 3D noise reduction filter

  10. VT300 H/W Feature • Unique Hardware • Multi-formats support • Optimized software • Input video switcher/selector • Time Base Correction (TBC) • Adaptive 3D noise reduction video filter • Advanced de-interlacing filter • 3 Stereo pairs Audio I/O ( Balanced ) • DSP TriMedia processor • PAL/NTSC Video Encoder / Decoder • SDI digital video input and output (optional)

  11. VT300 Provides Uniqueness of Hardware • Simultaneous ingest of up to 2 channels of video with frame synchronization and switching of sources • Simultaneous record and playback of video and audio (up to 6 audio mono-channels) • Pass-through one of several sources of video and an audio-signals (software switching) with an adjustable audio delay • Exact synchronization of video and audio • Mix of two streams of video data with simultaneous titling • Support of all analog video signals • Synchronization of a video output to any external source (genlock) • Generation of a signal of a mask ("chroma key") for input channels • Additional video output of the alpha - channel for mixing on an external mixer • Options for digital video signals as SDI and ASI

  12. VT300 H/W Functional Diagram

  13. Technology Innovation VT416 16ch Flash/H.264 H/W encoder with IP/USB capture • DirectShow Filter for capture H.264 for Full D1 video • USB DS filter capture, simultaneous Full D1 Capture • IP Network DS Filter, simultaneous Capture • Flash H.264 direct streaming

  14. VT416 16ch Flash/H.264 H/W IP/USB Encoder/Streamer • Real-time hardware H.264 video compression • Simultaneous use of RTSP (over UDP, TCP) and RTMP protocols for video and audio streaming over a network • Remote client control and management via web interface • Easy to integrate into almost any existing system • Easy to upgrade the firmware by downloading a newer version from our ftp site • Individual TBC & Advanced Kalman filtering for noise reduction • Supports various standard player applications: • Adobe® Flash® Player, VLC Media Player, QuickTime Player, MPlayer, etc. • 19’’ rack mount case, 1U • Connection to external alarm sensors and relay outputs • Available models for encoding 8/12/16 video channels

  15. H/W Architecture

  16. H/W Architecture USB Capture mode : 3 VT416 3x16 channel : TOTAL 1440 FPS H.264 Capture & Streaming USB2.0

  17. VT416 IP mode Unlimited Ch. Streaming & Recording by using Spider VMS( can do USB Spider and Streaming by internal DSP) 16Ch(8+8ch) Full D1 H.264 Encode&Streaming Server PC Server I SCSI Network Storage 8ch internally connected to make dual Stream from one input video. So it make 8 input connector but 16 h.264 streams which can be managed Independently from remote clients. All the videos can be recorded directly to Network I SCSI storage , and do managed by one Video Spider server at each LAN Segment.

  18. VT500 Professional quality PCI VGA/DVI video capture card for live capture, encoding, and streaming • DVI/VGA capture • Absolute reliability and data quality • Single DVI-I connector support for both analog and digital connections • Auto-detection of screen resolution and precise pixel positions • Suitable for capturing movies played on PC screen using hardware overlay

  19. VT500 VT500 H/W Features • Video input: Digital DVI or analog RGB 1Vp-p (DVI-I connector) • Compression: No • Resolution: SVGA (800x600), XGA (1024x768), WXGA+ (1280x960), SXGA (1280x1024) • Frame rate: 1 - 30 fps, depends on PC speed and PCI bus (130 Mbps) and video resolution • Interfaces: PCI • Input voltage: 1 Vp-p • Resistance: 75 Ohm • Power source: +/-12V/0.1A DC, + 3.3V/0.7A DC, -3.3V/0.15A DC, +5V/0.07A DC. • Dimensions: 95x165x18mm PCI 2.2 card (32-bit, 5V/3.3V universal)

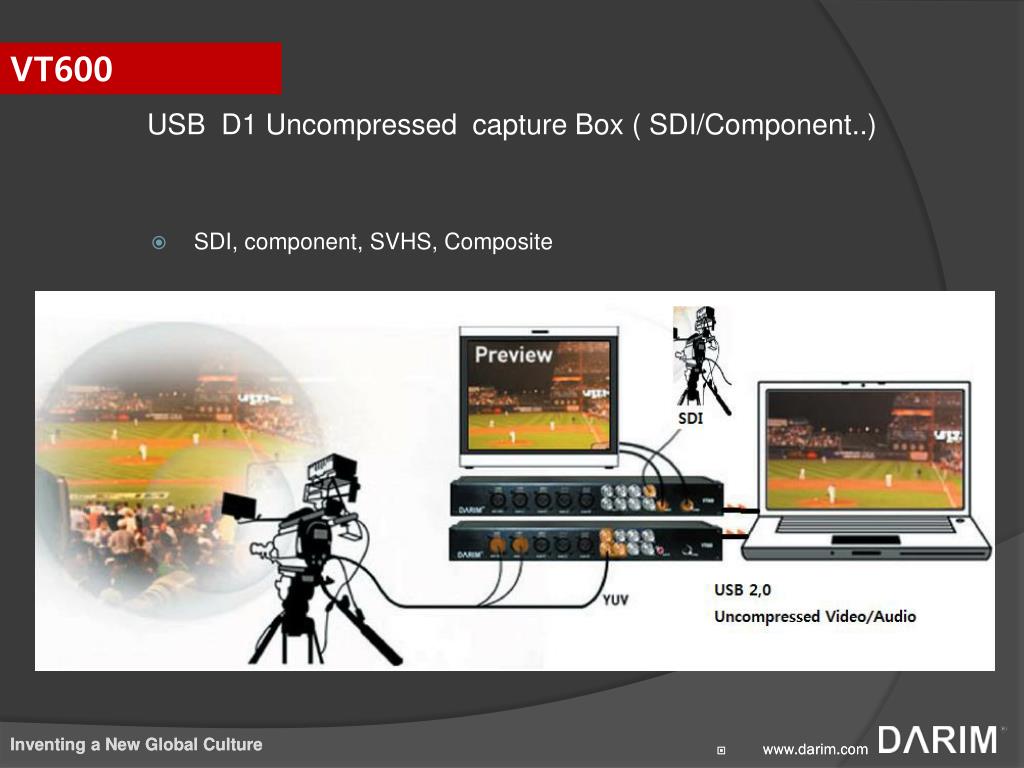

  20. USB D1 Uncompressed capture Box ( SDI/Component..) VT600 • SDI, component, SVHS, Composite

  21. VT600 USB D1 Uncompressed capture Box ( SDI/Component..) Preview USB 2.0 Uncompressed Video/Audio VT600 SDI

  22. VT600 Features • Full frame rate video capturing (NTSC 29.97 fps, PAL 25 fps) • Full image size capturing (NTSC 720x480, PAL 720x576) • 10 bits digital video processing • Adaptive de-interlacing • Adaptive median filter • 48KHz 16-bit stereo dual independent audio channels • Up to 4 VT600 can be connected to one PC Hardware diagram

  23. VT800 2ch HD SDI Input/Output Duplex • PCI-Express 4x lane interface • Full Duplex for receiver/transmitter SD/HD SDI • DVB-ASI receiver • Genlocksupport • Automatic video standards detection • Deinterlacing • SDI receiver and transmitter: • Compliance with SMPTE259M (270Mb, 360Mb), SMPTE292M, • SMPTE274M (1.485Gb, 1.483 Gb), SMPTE344M (540Mb) , • SMPTE372M(Dual Link) standards • Support of 8 and10 bit data capturing • Built-in support of SMPTE299M, SMPTE272M audio • Compliance with the EN50083-9:1998 standard • Robust synchronization engine • Automatic packet size detection (188 or 204 bytes) • Hardware PID filtration & TS error detection Break-out box: 8 HD/SD-SDI Inputs 2 RGB/YUV inputs 2 Balanced Audio inputs 1 SDI embedded stereo (integrated audio up to 8 channels of 48 kHz audio) AES/EBU

  24. VT800 2ch HD SDI Input/Output Duplex • Unique functionality. VT800 is the only capture card which combines DVB-ASI • and SD/HD SDI interfaces operating in Full Duplex mode, thus saving money on • hardware units for specified projects. • • Scalability. Break-out box interface available on the board makes it possible to • connect to additional inputs. • • Delivery. The product can be delivered as a ready-to-use board or a reference • design, thus optimizing time to market and resource consumption or saving • money. • • Flexibility. The device can be easily tailored to your needs. Color Space • Conversion, Scaling, Remultiplexing and the other features are available upon • request. • • Development: New functions are constantly added to VT800 to meet current • and future customer requirements.

  25. VT901 - HD 1ch HD Flash/H.264 IP/USB Box • H/W based Encoder 720P H.264 • HDMI, HD SDI, YUV • Preview ( decoder output ) • Flash, H.264 Web Server • RTSP Streaming • CMS Software support , Record, Multiview, Web Remote • Dual Stream – High and Low bitrate or with MJPEG

  26. Application : Your OWN IP Broadcasting Easily !! Free Channel , Even HD with minimum cost VTizerwill work with Live stream – Broadcasting WireCast from TeleStream ???? VTizerwith Livestream, VTizerwith WireCast !!

  27. VT300 라이브방송 – All-in-One 스위쳐/타이틀/비디오삽입/녹화/스트리밍

  28. VT300 Live Broadcasting with Titling

  29. VTizer Software examples

  30. VTizerApplication of MultiViewer VT416 SD -16ch SD Encoder SS7000 Video Logger VT901 HD encoder SM2000 Viewer SM2000 Viewer

  31. VT300 IP-TV SETOPBOX
