Presentation Transcript
abcl 11

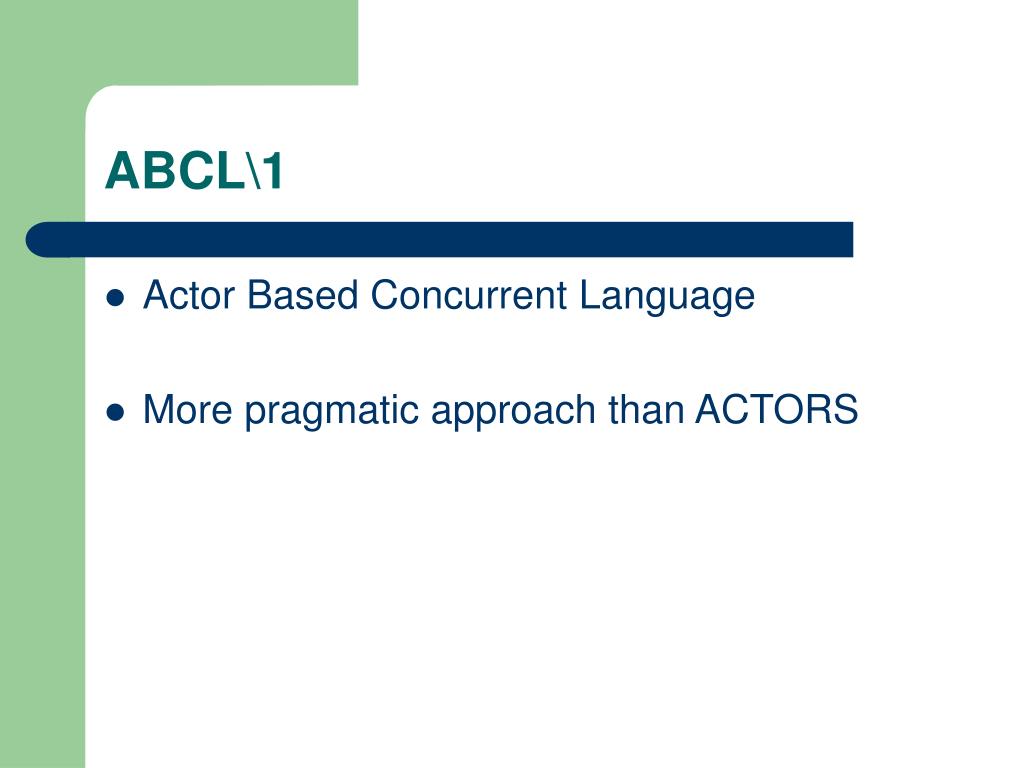

ABCL\1
  • Actor Based Concurrent Language
  • More pragmatic approach than ACTORS
types of message passing in abcl
Types of Message Passing in ABCL
  • Message sending order from one object to another is preserved in ABCL.
  • Three types of message passing mechanisms
    • Past

Non-blocking messages without a reply

    • Now

Blocking messages with sender waiting for a reply

    • Future

Non-blocking messages with a reply expected in the future

mode of message passing
Mode of Message Passing
  • Two mode of message passing
    • Express
      • Higher priority
        • Interrupting current message processing
        • Non interrupting current message processing
    • Ordinary
the concept of future
The Concept of Future

EObject subclass: #Future

instanceVariables: ‘value semaphore’

initialize

semaphore := Semaphore new

value

semaphore wait.

^value

reply: aValue

value := aValue.

semaphore signal

doesNotUnderstand: aMessage

^self value performMessage: aMessage

Future class

new

^super new initialize

eager communication
Eager Communication

Actor subclass: #ABCLActor

futureCall: aMessage

| aFuture |

aFuture := Future new.

aMessage arguments

at: aMessage arguments size

put: aFuture.

self asynchronousSend: aMessage.

^aFuture

  • The future is transmitted as the reply destination of the message
  • We assume that the reply destination is always specified as the last argument of the message
synchronous communication
Synchronous Communication

Actor subclass: #ABCLActor

nowCall: aMessage

^(self futureCall: aMessage) value

implementation of the 3 types of message passing

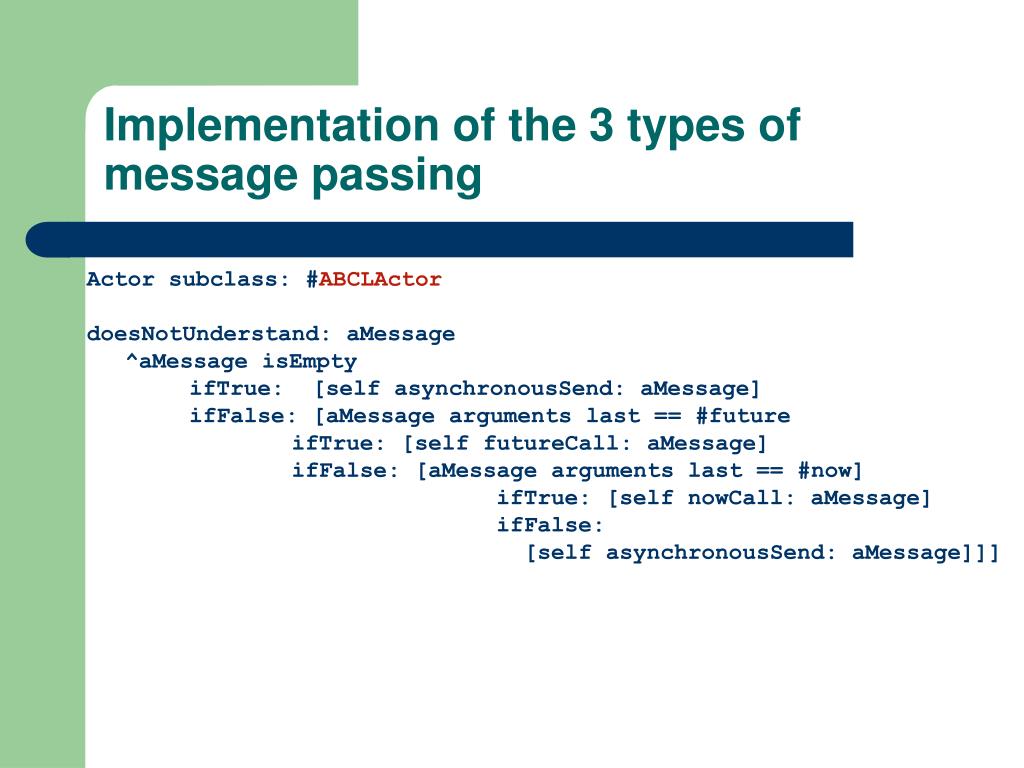

Implementation of the 3 types of message passing

Actor subclass: #ABCLActor

doesNotUnderstand: aMessage

^aMessage isEmpty

ifTrue: [self asynchronousSend: aMessage]

ifFalse: [aMessage arguments last == #future

ifTrue: [self futureCall: aMessage]

ifFalse: [aMessage arguments last == #now]

ifTrue: [self nowCall: aMessage]

ifFalse:

[self asynchronousSend: aMessage]]]

references
References
  • Yonezawa, A., et al., Object-Oriented Concurrent Programming in ABCL/1, OOPSLA 86 Proceedings,  SIGPLAN Notices, vol. 21, no 11, pp. 258-268
