  1. TeRvendav EHF generaator Aleksandr Pjatibratov IAEM105052 Tallinn 2010

  2. Mis on EHF? • See on raadiosagedus (Extremely high frequency – ülikõrgesagedus) • Sagedus: 30-300 Ghz • Lainepikkus: 10-1 mm • “point-to-point” side, “point-to-multipoint” side, sateliit vaheline side

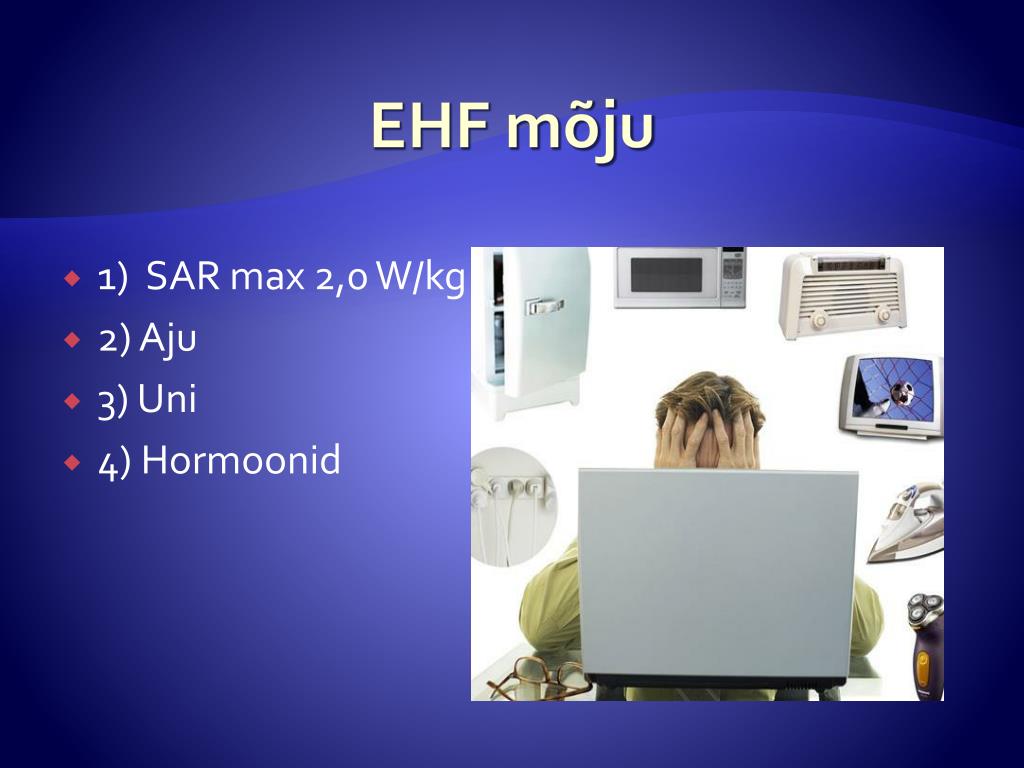

  3. EHF mõju • 1) SAR max 2,0 W/kg • 2) Aju • 3) Uni • 4) Hormoonid

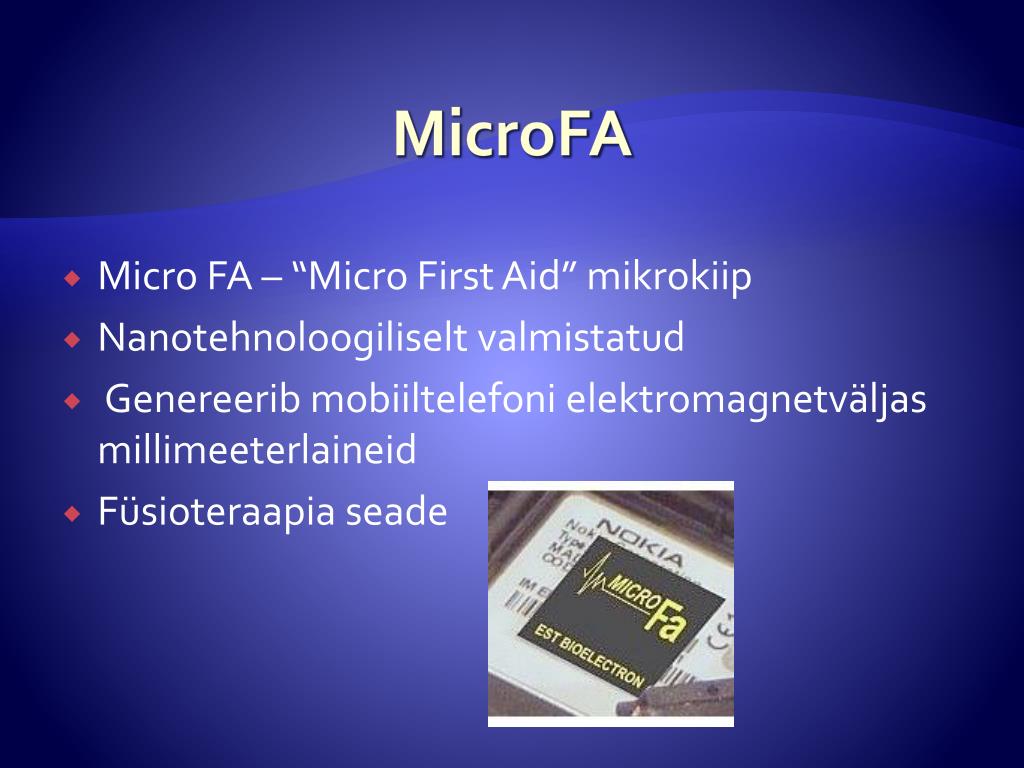

  4. MicroFA • Micro FA – “Micro First Aid” mikrokiip • Nanotehnoloogiliselt valmistatud •  Genereerib mobiiltelefoni elektromagnetväljas millimeeterlaineid • Füsioteraapia seade

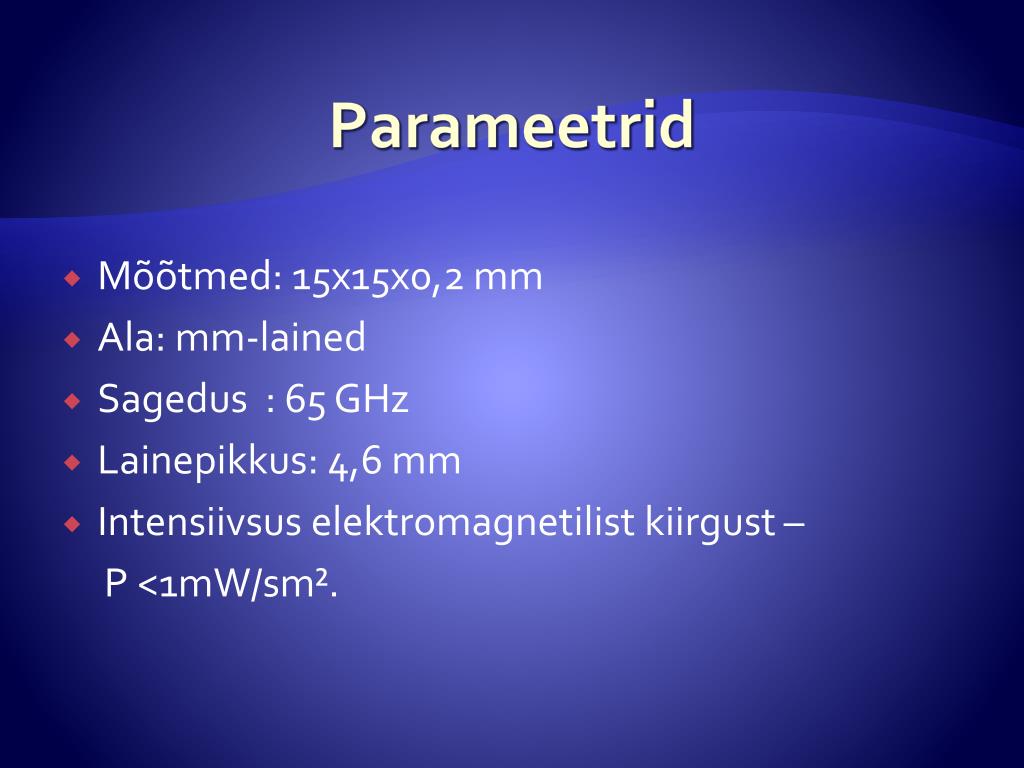

  5. Parameetrid • Mõõtmed: 15x15x0,2 mm • Ala: mm-lained • Sagedus : 65 GHz • Lainepikkus: 4,6 mm • Intensiivsus elektromagnetilist kiirgust – P <1mW/sm².

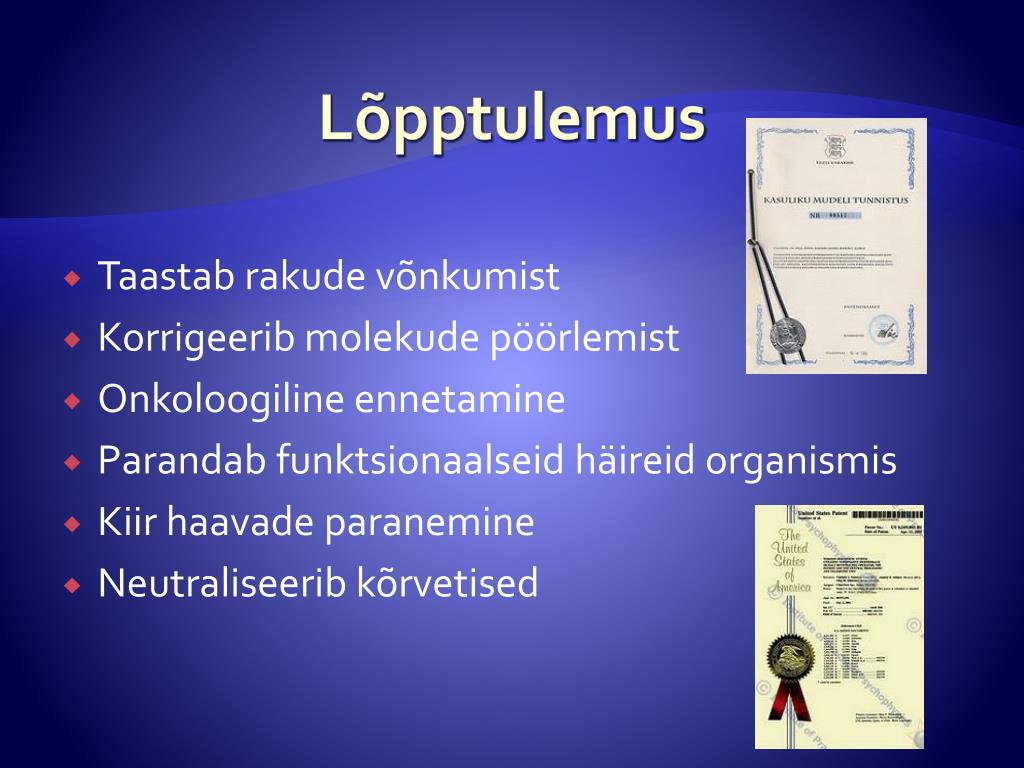

  6. Lõpptulemus • Taastab rakude võnkumist • Korrigeerib molekude pöörlemist • Onkoloogiline ennetamine • Parandab funktsionaalseid häireid organismis • Kiir haavade paranemine • Neutraliseerib kõrvetised

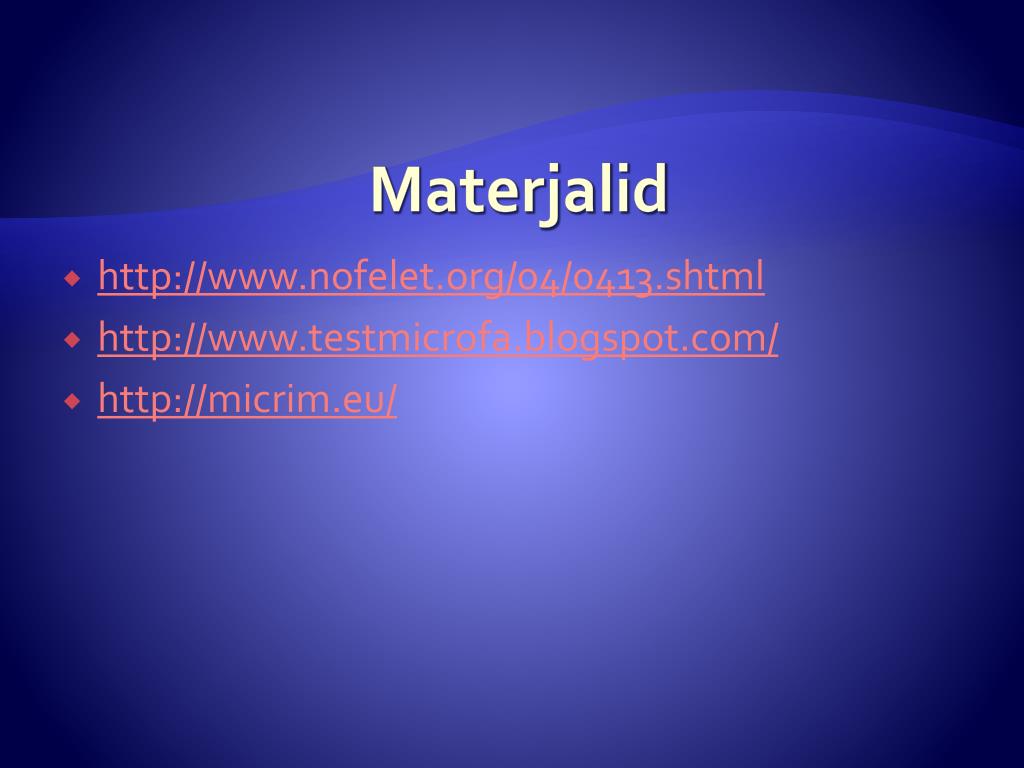

  7. Materjalid • http://www.nofelet.org/04/0413.shtml • http://www.testmicrofa.blogspot.com/ • http://micrim.eu/

  8. Tänan!
