  1. Points, Lines, Planes, and Angles 5-1 Warm Up Problem of the Day Lesson Presentation Pre-Algebra

  2. 5-1 Points, Lines, Planes, and Angles Pre-Algebra Warm Up Solve. 1. x + 30 = 90 2. 103 + x = 180 3. 32 + x = 180 4. 90 = 61 + x 5. x + 20 = 90 x = 60 x = 77 x = 148 x = 29 x = 70

  3. objective for today Learn to classify and name figures.

  4. Vocabulary point line plane segment ray angle right angle acute angle obtuse angle complementary angles supplementary angles vertical angles congruent

  5. Points, lines, and planes are the building blocks of geometry. Segments, rays, and angles are defined in terms of these basic figures.

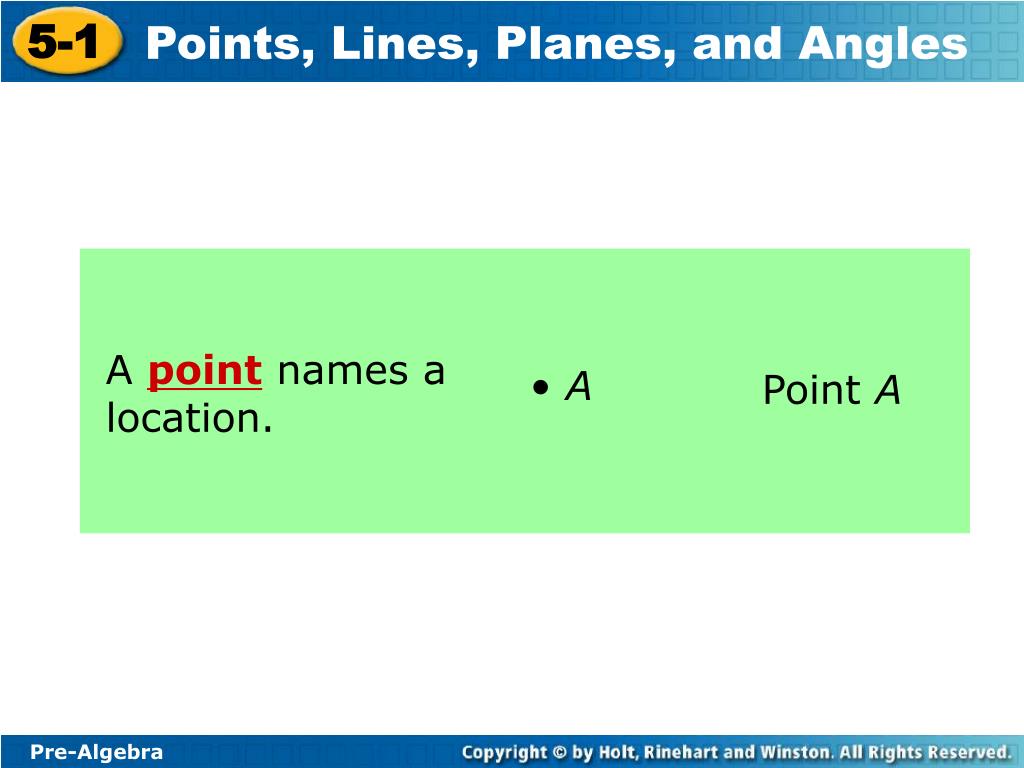

  6. A point names a location. • A Point A

  7. C l B line l, or BC A line is perfectly straight and extends forever in both directions.

  8. A plane is a perfectly flat surface that extends forever in all directions. P E plane P, or plane DEF D F

  9. GH A segment, or line segment, is the part of a line between two points. H G

  10. A ray is a part of a line that starts at one point and extends forever in one direction. J KJ K

  11. Points, Lines, Planes, and Angles

  12. KL or JK Additional Example 1A & 1B: Naming Points, Lines, Planes, Segments, and Rays A. Name 4 points in the figure. Point J, point K, point L, and point M B. Name a line in the figure. Any 2 points on a line can be used.

  13. Plane , plane JKL Additional Example 1C: Naming Points, Lines, Planes, Segments, and Rays C. Name a plane in the figure. Any 3 points in the plane that form a triangle can be used.

  14. JK, KL, LM, JM KJ, KL, JK, LK Additional Example 1D & 1E: Naming Points, Lines, Planes, Segments, and Rays D. Name four segments in the figure. E. Name four rays in the figure.

  15. BC DA or Try This: Example 1A & 1B A. Name 4 points in the figure. Point A, point B, point C, and point D B. Name a line in the figure. Any 2 points on a line can be used. B A C D

  16. Plane , plane ABC, plane BCD, plane CDA, or plane DAB Try This: Example 1C C. Name a plane in the figure. Any 3 points in the plane that form a triangle can be used. B A C D

  17. AB, BC, CD, DA DA, AD, BC, CB Try This: Example 1D & 1E D. Name four segments in the figure E. Name four rays in the figure B A C D

  18. An angle (<) is formed by two rays with a common endpoint called the vertex (plural, vertices). Angles can be measured in degrees. One degree, or 1°, is of a circle. m1 means the measure of 1. The angle can be named XYZ, ZYX, 1, or Y. The vertex must be the middle letter. X 1 1 360 m1 = 50° Y Z

  19. G H J F K The measures of angles that fit together to form a straight line, such as FKG, GKH, and HKJ, add to 180°.

  20. P N R Q M The measures of angles that fit together to form a complete circle, such as MRN, NRP, PRQ, and QRM, add to 360°.

  21. A right angle measures 90°. An acute angle measures less than 90°. An obtuse angle measures greater than 90° and less than 180°. Complementary angles have measures that add to 90°. Supplementary angles have measures that add to 180°.

  22. Reading Math A right angle can be labeled with a small box at the vertex.

  23. Types of Angles

  24. Types of Angles

  25. Additional Example 2A & 2B: Classifying Angles A. Name a right angle in the figure. TQS B. Name two acute angles in the figure. TQP, RQS

  26. Additional Example 2C: Classifying Angles C. Name two obtuse angles in the figure. SQP, RQT

  27. Additional Example 2D: Classifying Angles D. Name a pair of complementary angles. mTQP + mRQS = 47° + 43° = 90° TQP, RQS

  28. Additional Example 2E: Classifying Angles E. Name two pairs of supplementary angles. TQP, RQT mTQP + mRQT = 47° + 133° = 180° mSQP + mRQS = 137° + 43° = 180° SQP, RQS

  29. C B 90° A D 75° 15° E Try This: Example 2A A. Name a right angle in the figure. BEC

  30. C B 90° A D 75° 15° E Try This: Example 2B & 2C B. Name two acute angles in the figure. AEB, CED C. Name two obtuse angles in the figure. BED, AEC

  31. C B 90° A D 75° 15° E Try This: Example 2D D. Name a pair of complementary angles. AEB, CED mAEB + mCED = 15° + 75° = 90°

  32. C B 90° A D 75° 15° E Try This: Example 2D & 2E E. Name two pairs of supplementary angles. mAEB + mBED = 15° + 165° = 180° AEB, BED mCED + mAEC = 75° + 105° = 180° CED, AEC

  33. Congruent figures have the same size and shape. • Segments that have the same length are congruent. • Angles that have the same measure are congruent. • The symbol for congruence is , which is read “is congruent to.” • Intersecting lines form two pairs of vertical angles. Vertical angles are always congruent, as shown in the next example.

  34. Vertical Angles

  35. Additional Example 3A: Finding the Measure of Vertical Angles In the figure, 1 and 3 are vertical angles, and 2 and 4 are vertical angles. A. If m1 = 37°, find m3. The measures of 1 and 2 add to 180° because they are supplementary, so m2 = 180° – 37° = 143°. The measures of 2 and 3 add to 180° because they are supplementary, so m3 = 180° – 143° = 37°.

  36. Try This: Example 3A In the figure, 1 and 3 are vertical angles, and 2 and 4 are vertical angles. 2 3 A. If m1 = 42°, find m3. 1 4 The measures of 1 and 2 add to 180° because they are supplementary, so m2 = 180° – 42° = 138°. The measures of 2 and 3 add to 180° because they are supplementary, so m3 = 180° – 138° = 42°.

  37. Possible answer: AD and BE Lesson Quiz In the figure, 1 and 3 are vertical angles, and 2 and 4 are vertical angles. 1. Name three points in the figure. Possible answer: A, B, and C 2. Name two lines in the figure. 3. Name a right angle in the figure. Possible answer: AGF 4. Name a pair of complementary angles. Possible answer: 1 and 2 5. If m1 = 47°, then find m3. 47°

  38. What we learned today! Learned to classify and name figures.
