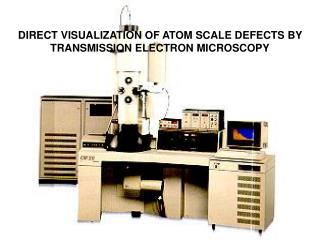

DIRECT VISUALIZATION OF ATOM SCALE DEFECTS BY TRANSMISSION ELECTRON MICROSCOPY - PowerPoint PPT Presentation


  • 140 Views
  • Uploaded on

DIRECT VISUALIZATION OF ATOM SCALE DEFECTS BY TRANSMISSION ELECTRON MICROSCOPY. VISUALIZING MISFIT DISLOCATIONS AT INTERFACE BETWEEN MBE DEPOSITED Si AND GaAs SUBSTRATE . MISFIT DISLOCATION. 111 FAULTS. O 2-. Mg 2+. Mg 2+. O 2-. O 2-. Mg 2+. Mg 2+. Mg 2+. O 2-. O 2-. O 2-.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'DIRECT VISUALIZATION OF ATOM SCALE DEFECTS BY TRANSMISSION ELECTRON MICROSCOPY' - kateb


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
visualizing misfit dislocations at interface between mbe deposited si and gaas substrate
VISUALIZING MISFIT DISLOCATIONS AT INTERFACE BETWEEN MBE DEPOSITED Si AND GaAs SUBSTRATE

MISFIT DISLOCATION

111 FAULTS

surface structure and reactivity effects on direct reaction of solids

O2-

Mg 2+

Mg 2+

O2-

O2-

Mg 2+

Mg 2+

Mg 2+

O2-

O2-

O2-

Mg 2+

Mg 2+

Mg 2+

Mg 2+

Mg 2+

Mg 2+

Mg 2+

Mg 2+

O2-

O2-

O2-

O2-

O2-

O2-

O2-

O2-

Mg 2+

O2-

Mg 2+

O2-

O2-

O2-

Mg 2+

{100} face

{111} face

{111} face

Mg 2+

Mg 2+

SURFACE STRUCTURE AND REACTIVITY EFFECTS ON DIRECT REACTION OF SOLIDS

Nucleation depends on surface structure of reacting phases - crystal faces in contact - MgO rock salt - different Miller index faces exposed - ion arrangements in crystal face different - also distinct crystal habits (octahedral, cubooctahedral, cubic) possible depending on growth conditions and additives - {100} alternating Mg(2+), O(2-) at corners of square grid - {111} Mg(2+) or O(2-) in hexagonal arrangement - implies different surface structures and reactivities

slide4

Needle growth

Platelet growth

{111} vs {100} growth rates: cube, cubooctahedral or octahedral shape

FACTORS WHICH CONTROL CRYSTAL GROWTH AND MORPHOLOGY

Most prominent surfaces exhibit slower growth

Growth rate of specific surfaces controls morphology of crystal

Depends on area of a face - structure of exposed face - accessibility of a face - surface energy - surface reconstruction - adsorption at surface sites - surface defects

slide5

Needle growth

Platelet growth

{111} vs {100} growth rates: cube, cubooctahedral or octahedral shape

FACTORS WHICH CONTROL CRYSTAL GROWTH AND MORPHOLOGY

All types of defects, intrisic or extrinsic, vacancies, interstitials, lines, planes, dislocations, grain boundaries, enhance diffusion of ions and crystal growth rates

Defects play major rolein reactivity, nucleation, crystal growth, materials properties (electronic, optical, magnetic, charge-transport, mechanical, thermal)

crystal nucleation and growth
CRYSTAL NUCLEATION AND GROWTH
  • DG°(crystal) = DG° (surface) - DG° (bulk)
  • Induction period - growth of viable crystal nuclei
  • Growth and dissolution of seed
  • Equilibrium growth condition whenDG°(crystal) = 0
  • DG° (surface) = DG° (bulk)
  • Condition to creates critical size nuclei
  • Crystal growth favored when DG° (surface) < DG° (bulk)
  • Sigmoid-shaped nucleation-growth-depletion curve
  • Large crystals grow at expense of small ones
  • Crystal growth ceases when nutrients depleted
abalone shell biomineralization vectorial control of crystal nucleation growth and form in nature
ABALONE SHELL - BIOMINERALIZATION - VECTORIAL CONTROL OF CRYSTAL NUCLEATION, GROWTH AND FORM IN NATURE

95wt% inorganic - site specific calcite platelet oriented growth

5wt% b-sheet protein organic structure directing matrix

Organic-inorganic nanocomposite 1000x fracture toughness of bulk calcite – impact energy on shell dissipated in soft protein layers rather than in hard calcite preventing cracking - learning from Nature - biomimetic inorganic materials chemistry - technology transfer from biology

shake and bake solid state synthesis
“SHAKE-AND-BAKE” SOLID STATE SYNTHESIS
  • Although this approach may seem to be ad hoc and a little irrational at times, the technique has served solid state chemistry well over the past 50 years
  • It has given birth to the majority of high technology devices and products that we take for granted every day of our lives
  • Thus it behooves us to look critically and carefully at the methods used if one is to move beyond to the new chemistry and a rational synthesis of materials
thinking about reagents
THINKING ABOUT REAGENTS
  • Drying reagents MgO/Al2O3 200-800°C, maximum SA
  • In situ decomposition of precursors at 600-800°C MgCO3/Al(OH)3MgO/Al2O3
  • Intimate mixing of precursor reagents
  • Homogenization of reactants using organic solvents, grinding, ball milling, ultrasonification
container materials
CONTAINER MATERIALS
  • Chemically inert crucibles, boats
  • Noble metals Nb, Ta, Au, Pt, Ni, Rh, Ir
  • Refractories, alumina, zirconia, silica, boron nitride, graphite
  • Reactivity with containers at high temperatures needs to be carefully evaluated for each system
solid state synthesis heating program
SOLID STATE SYNTHESIS HEATING PROGRAM
  • Furnaces, RF, microwave, lasers, ion and electron beams
  • Prior decompositions and frequent cooling, grinding, boost SA of reacting grains
  • Overcoming sintering, grain growth, brings up SA, fresh surfaces, enhanced contact area
  • Pellet and hot press reagents - higher surface contact area, enhances rate, extent of reaction
  • Care with unwanted preferential component volatilization if T too high, composition dependent
  • Need controlled atmosphere for unstable oxidation states
precursor solid state synthesis method
PRECURSOR SOLID STATE SYNTHESIS METHOD
  • Co-precipitation, high degree of homogenization, high reaction rate - applicable to nitrates, acetates, oxalates, alkoxides, b-diketonates
  • Concept: precursors to magnetic spinels - recording media
  • Zn(CO2)2/Fe2[(CO2)2]3/H2O 1 : 1 mixing
  • H2O evaporation, salts co-precipitated - solid-solution mixing on atomic scale, filter, calcine in air
  • Zn(CO2)2 + Fe2[(CO2)2]3 ZnFe2O4 + 4CO + 4CO2
  • High degree of homogenization, lower reaction temperature, faster rate
problems with co precipitation method
PROBLEMS WITH CO-PRECIPITATION METHOD
  • Co-precipitation applicable to nitrates, acetates, oxalates, alkoxides, b-diketonates and so forth requires:
  • Similar salt solubilities
  • Similar precipitation rates
  • Avoid super-saturation as poor control of co-precipitation
  • Useful for spinels
  • Disadvantage: difficult to prepare high purity, accurate stoichiometric phases
double salt precursors
DOUBLE SALT PRECURSORS
  • Known stoichiometry double salts having controlled stoichiometry
  • Ni3Fe6(CH3CO2)17O3(OH).12Py
  • Basic double acetate pyridinate
  • Burn off organics at 200-300oC, then calcine at 1000oC in air for 2-3 days
  • Product highly crystalline phase pure NiFe2O4 spinel
slide15

Good way to make chromite spinels, important tunable magnetic materials - juggling electronic-magnetic properties of the A Oh and B Td ions in the spinel lattice

DOUBLE SALT PRECURSORS

  • Chromite spinel Precursor compound Ignition T, oC
  • MgCr2O4 (NH4)2Mg(CrO4)2.6H2O 1100-1200
  • NiCr2O4 (NH4)2Ni(CrO4)2.6H2O 1100
  • MnCr2O4 MnCr2O7.4C5H5N 1100
  • CoCr2O4 CoCr2O7.4C5H5N 1200
  • CuCr2O4 (NH4)2Cu(CrO4)2.2NH3 700-800
  • ZnCr2O4 (NH4)2Zn(CrO4)2. 2NH3 1400
  • FeCr2O4 (NH4)2Fe(CrO4)2 1150
perovskite ferroelectrics barium titanate
PEROVSKITE FERROELECTRICS BARIUM TITANATE
  • Control of grain size determines ferroelectric properties, important for capacitors, microelectronics
  • Direct heating of solid state precursors is of limited value in this respect
  • BaCO3(s) + TiO2(s)  BaTiO3(s)
  • Sol-gel reagents useful to create single source barium titanate precursor with correct stoichiometry
slide17

BASICS: FERROELECTRIC BARIUM TITANATE

Cubic perovskite BaTiO3

Tetragonal perovskite BaTiO3

Small grains, tetragonal to cubic surface gradients, ferroelectricity particle size dependent

Multidomain ferroelectric below Tc

Multidomain paraelectric above Tc Cooperative electric dipole interactions within each domain

Single domain superparaelectric

single source precursor synthesis of barium titanate ferroelectric material
SINGLE SOURCE PRECURSOR SYNTHESIS OF BARIUM TITANATE - FERROELECTRIC MATERIAL
  • Ti(OBu)4(aq) + 4H2O  Ti(OH)4(s) + 4BuOH(aq)
  • Ti(OH)4(s) + (COO)22-(aq)  TiO(COO)(aq) + 2OH-(aq) + H2O
  • Ba2+(aq) + (COO)22-(aq) + TiO(COO)(aq)  Ba[TiO(COO)2](s)
  • Precipitate contains barium and titanium in correct ratio and at 920C decomposes to barium titanate according to:
  • Ba[TiO(COO)2](s) BaTiO3(s) + 2CO(g)
  • Grain size important for control of ferroelectric properties
  • Used to grow single crystals hydrothermally
sol gel single source precursors to lithium niobate nlo material
SOL-GEL SINGLE SOURCE PRECURSORS TO LITHIUM NIOBATE - NLO MATERIAL
  • LiOEt + EtOH + Nb(OEt)5 LiNb(OEt)6 LiNbO3
  • LiNb(OEt)6 + H2O  LiNb(OEt)n(OH)6-n   gel
  • LiNb(OEt)n(OH)6-n + D + O2LiNbO3
  • Lithium niobate, ferroelectric perovskite, nonlinear optical NLO material, used as electrooptical switch
  • Bimetallic alkoxides - single source precursor
  • Sol-gel chemistry - hydrolytic polycondensation
  • MOH + M’OH  MOM’ + H2O
  • Yields glassy product
  • Sintering product in air - induces crystallization
indium tin oxide ito
INDIUM TIN OXIDE -ITO
  • Indium sesquioxide In2O3 (wide band gap semiconductor) electrical conductivity enhanced by p-doping with (10%) Sn(4+), ITO is SnnIn2-nO3
  • ITO is optically transparent, electrically conducting, thin films are vital as electrode material for solar cells, electrochromic windows/mirrors, LEDs, electronic ink
  • Precursors - EtOH solution of (2-n)In(OBu)3/nSn(OBu) 4
  • Hydrolytic poly-condensation to form gel, spin coat gel onto glass substrate to make thin film
  • Dry gel at 50-100C, heat at 350C in air to produce ITO
slide21
SUB -10 NM NANOSCALE DIRECT SOLID STATE REACTION Electron Beam Nanolithography Using Spin-Coatable TiO2 Resists
  • Utilization of spin-coatable sol gel based TiO2 resists by chemically reacting titanium n-butoxide with benzoylacetone in methyl alcohol.
  • They have an electron beam sensitivity of 35 mC cm-2 and are >107 times more sensitive to an electron beam than sputtered TiOxand crystalline TiO2 films.

Choosing the right solid state precursor

sub 10 nm electron beam nanolithography using spin coatable tio 2 resists
Sub-10 nm Electron Beam Nanolithography Using Spin-Coatable TiO2 Resists
  • Fourier transform infrared studies suggest that exposure to an electron beam results in the gradual removal of organic material from the resist.
  • This makes the exposed resist insoluble in organic solvents such as acetone, thereby providing high-resolution negative patterns as small as 8 nm wide. Such negative patterns can be written with a pitch as close as 30 nm.

Choosing the right solid state precursor

slide23

Nanometer scale precision structures

Nanoscale TiO2 structures offer new opportunities for developing next generation solar cells, optical waveguides, gas sensors, electrochromic displays, photocatalysts, photocatalytic mCP, battery materials

magnetic garnets y x gd 3 x fe 5 o 12 tunable magnetic materials
MAGNETIC GARNETS, YxGd3-xFe5O12TUNABLE MAGNETIC MATERIALS
  • Y(NO3)3 + Gd(NO3)3 + FeCl3 + NaOH YxGd3-xFe5O12
  • Mixed metal hydroxide aqueous precursor synthesis method, reactants red brown, solid products olive green
  • Firing pellets at 900oC, 18-24 hrs, regrinding, repelletizing, repeated firings, removes REFeO3 perovskite impurity
  • PXRD used to identify garnet phase, detects any crystalline impurity phase like REFeO3, enablesUC dimensions to be determined as a function of Y: Ga ratio over range 0 < x < 3
hydrothermal synthesis and crystal growth of yttrium aluminum garnet

aqueous basic medium, mineralizes, temperature gradient, transports, deposits reactants on seed crystal to grow product yttrium aluminum oxide crystal

baffles

T2

T1

T2

Y2O3

Al2O3

Seed crystal to grow Y3Al5O12 crystal

HYDROTHERMAL SYNTHESIS AND CRYSTAL GROWTH OF YTTRIUM ALUMINUM GARNET
garnets display interesting cooperative magnetic behavior
GARNETS DISPLAY INTERESTING COOPERATIVE MAGNETIC BEHAVIOR
  • Tunable magnet by varying magnetic superlattice components without disrupting garnet structure
  • Similar idea to magnetic spinel AB2O4 solid solution behavior - in which one has magnetically tunable Td (A) and Oh (B) metal sites
  • Rare earth garnets R3Fe5O12
  • General Formula C3A2D3O12 (8 formula units per cubic unit cell - total 160 atoms)
one octant of cubic unit cell of yag
ONE OCTANT OF CUBIC UNIT CELL OF YAG

Faces 3 dodecahedral Y(3+) sites

Corners and center 2Oh AlO6 sites

Faces 3Td AlO4 sites

One octant of cubic unit cell of garnet

garnets display interesting cooperative magnetic behavior1
GARNETS DISPLAY INTERESTING COOPERATIVE MAGNETIC BEHAVIOR
  • C3A2D3O12 isomorphous replacement of Y(3+) for Gd(3+) on dodecahedral C cation sites (works for all rare earths except La, Ce, Pr, Nd)
  • Forms solid solution as similar ionic radii,
  • R(Gd(3+) = 0.938Å > R(Y(3+) = 0.900Å
  • Complete family accessible, YxGd3-xFe5O12, 0  x  3
  • 2Fe(3+) Oh A-sites, 3Fe(3+) D-Td sites, 3RE(3+) C dodecahedral sites
models for determining the y 3 gd 3 distribution in y x gd 3 x fe 5 o 12
MODELS FOR DETERMINING THE Y(3+)/Gd(3+) DISTRIBUTION IN YxGd3-xFe5O12

1. Solid solution - random distribution of two components - EDX mapping

2. Physical mixture of two end members - phase segregation - PXRD

3. Compositional gradients - STEM imaging - EDX mapping

4. Core-corona - cherry model - surface free energy driven - EDX mapping

5. Domains smaller than 10 nm - PXRD line broadening

6. Ordered superlattice - ED

models for determining the y 3 gd 3 distribution in y x gd 3 x fe 5 o 121
MODELS FOR DETERMINING THE Y(3+)/Gd(3+) DISTRIBUTION IN YxGd3-xFe5O12
  • Interesting problem in solid state materials characterization
  • If any measured physical property P of the product follows Vegard law behavior this defines a solid solution for the Y(3+)/Gd(3+) distribution
  • P(YxGd3-xFe5O12) = Px/3(Y3Fe5O12) + P(3-x)/3(Gd3Fe5O12)
  • Measured P of product is the atomic/mole fraction weighted averageP of the end-member materials
magnetic garnets y x gd 3 x fe 5 o 12 tunable magnetic materials1
MAGNETIC GARNETS, YxGd3-xFe5O12TUNABLE MAGNETIC MATERIALS
  • Cubic unit cell parameter a versus x for YxGd3-xFe5O12
  • CompositionLattice parameter, nm
  • Y3Fe5O12 1.2370
  • Y2.5Gd0.5Fe5O12 1.2382
  • Y2Gd1Fe5O12 1.2402
  • Y1.5Gd1.5Fe5O12 1.2423
  • Y1Gd2Fe5O12 1.2437
  • Y0.5Gd2.5Fe5O12 1.2450
  • Gd3Fe5O12 1.2468

R(Gd(3+)) = 0.938Å > R(Y(3+)) = 0.900Å

magnetic garnets y x gd 3 x fe 5 o 12 tunable magnetic materials2
MAGNETIC GARNETS, YxGd3-xFe5O12TUNABLE MAGNETIC MATERIALS
  • Isomorphous random replacement of Y3+ for Gd3+on dodecahedral sites of cubic lattice
  • Vegard law behavior
  • P(YxGd3-xFe5O12) = Px/3(Y3Fe5O12) + P(3-x)/3(Gd3Fe5O12)
  • Any property of a solid-solution member is the atom/mole fraction weighted average of the end-members - distinguishes statistical from other types of mixtures (core-corona, phase separation, domains, gradients, superlattices)
  • Cubic lattice parameter a shows linear Vegard law behavior with x
tunable magnetic properties by varying x in the binary garnet y x gd 3 x fe 5 o 12
TUNABLE MAGNETIC PROPERTIES BY VARYING x IN THE BINARY GARNET YxGd3-xFe5O12
  • Counting electrons and unpaired electron spins
  • x dodec Y(3+) sites 4d0, 4f0 0 UPEs
  • (3-x) dodec Gd(3+) sites HS 4f7 7 UPEs
  • 3 Td Fe(3+) sites HS 3d5 5 UPEs
  • 2 Oh Fe(3+) sites HS 3d5 5UPEs
tunable magnetic properties by varying x in the binary garnet y x gd 3 x fe 5 o 121
TUNABLE MAGNETIC PROPERTIES BY VARYING x IN THE BINARY GARNET YxGd3-xFe5O12
  • Ferrimagnetically coupled material, oppositely aligned electron spins on Td and Oh Fe(3+) magnetic sub-lattices
  • Counting spins Y3Fe5O12 ferrimagnetic at low T
  • 3 x 5 - 2 x 5 = 5UPEs
  • Counting spins Gd3Fe5O12 ferrimagnetic at low T
  • 3 x 7 -3 x 5 + 2 x 5 = 16UPEs
  • Tunable magnetic garnet from 16 to 5 UPEs
slide37
VEGARD LAW AT THE NANOSCALE SYNTHESIS OF COMPOSITION TUNABLE MONODISPERSE CAPPED ZnxCd1-xSe ALLOY NANOCRYSTALS
