  1. DP-0206 Digital Signal Processor

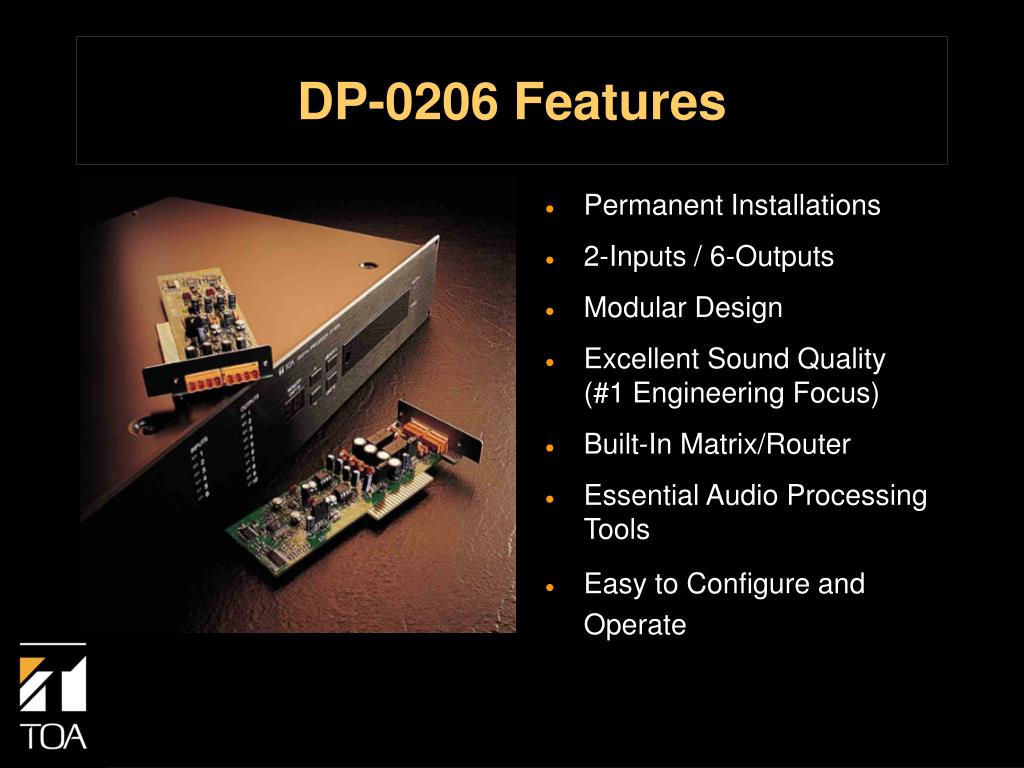

  2. DP-0206 Features • Permanent Installations • 2-Inputs / 6-Outputs • Modular Design • Excellent Sound Quality (#1 Engineering Focus) • Built-In Matrix/Router • Essential Audio Processing Tools • Easy to Configure and Operate

  3. DP-0206 Features • 24 Bit A/D and D/A • 110 dB Dynamic Range • Patented CLEAR Conversion Technology(Cross-Linked Exact A/DResolution) • FLASH Memory Storage • Control Up to 30 Units from One PC • Remote ProtocolAvailable

  4. DP-0206 Features • Matrix/Router • Crossovers • Variable-Q • Smaart / TEF Data File Import • Filters • Parametric • High/Low-Pass • All-Pass • Notch • CD Horn EQ

  5. DP-0206 Features • Dynamics • Compressors • Limiters • Noise Gates • Delays • Driver Alignment • Cluster Alignment

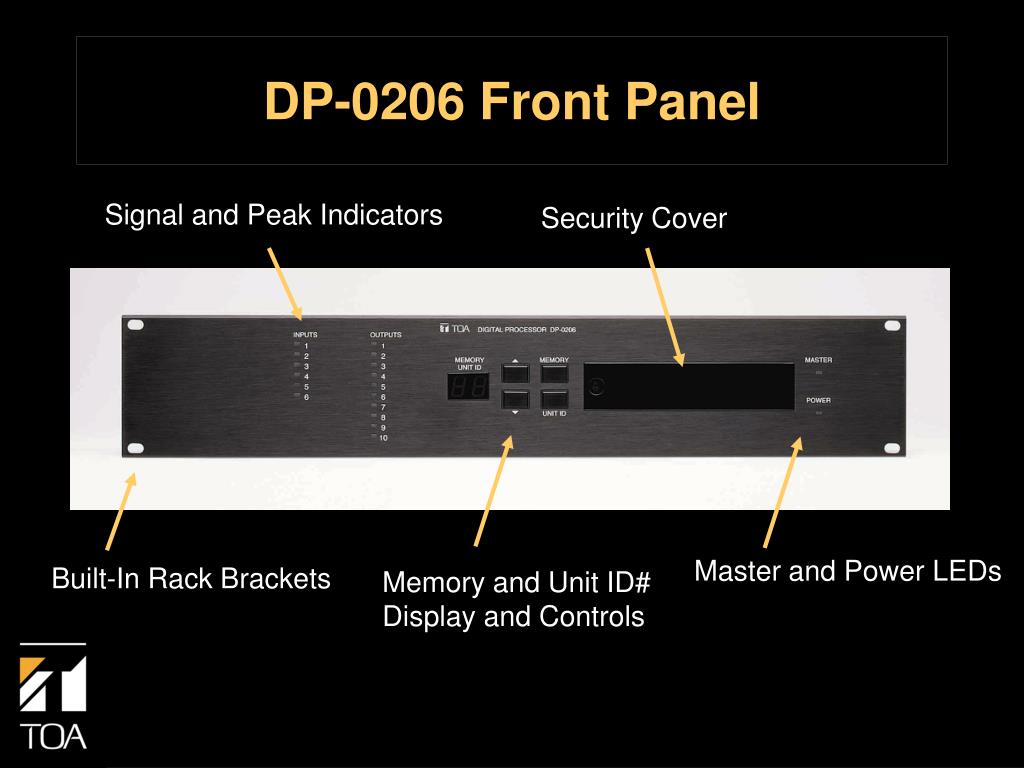

  6. DP-0206 Front Panel Signal and Peak Indicators Security Cover Master and Power LEDs Built-In Rack Brackets Memory and Unit ID# Display and Controls

  7. DP-0206 Rear Panel RS-232/485 Connections Control Module Slot 2-Inputs and 6-Outputs (Balanced) Two I/O Module Slots

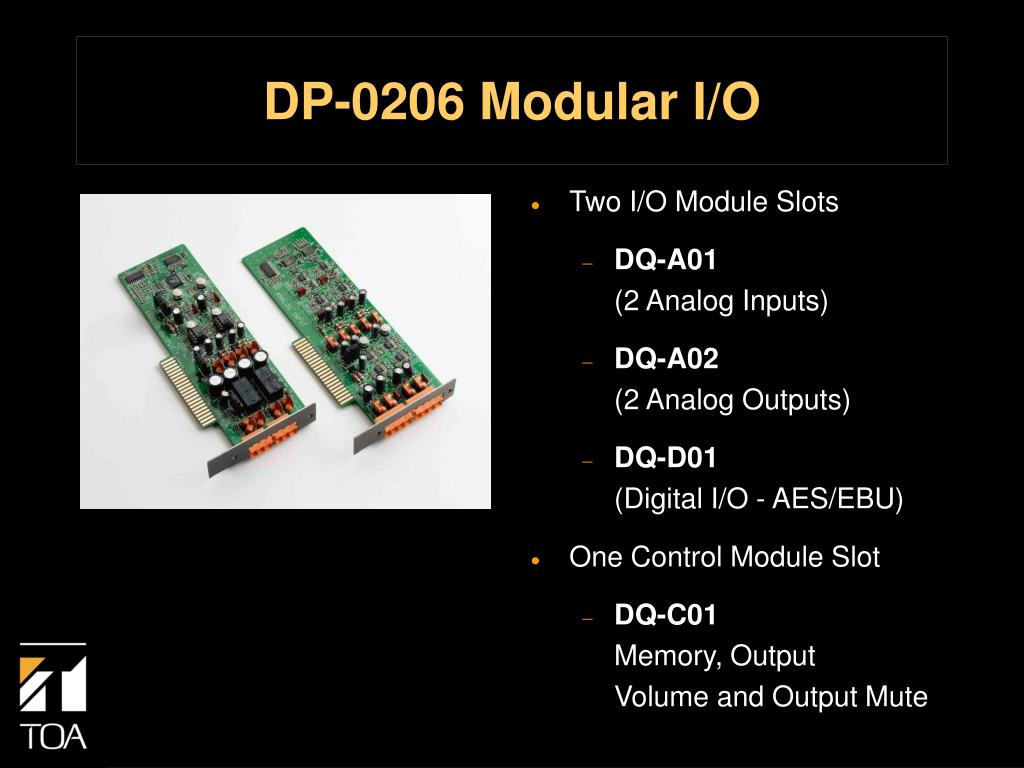

  8. DP-0206 Modular I/O • Two I/O Module Slots • DQ-A01 (2 Analog Inputs) • DQ-A02(2 Analog Outputs) • DQ-D01 (Digital I/O - AES/EBU) • One Control Module Slot • DQ-C01 Memory, Output Volume and Output Mute

  9. 2 Inputs 6 Outputs DP-0206 Modular I/O

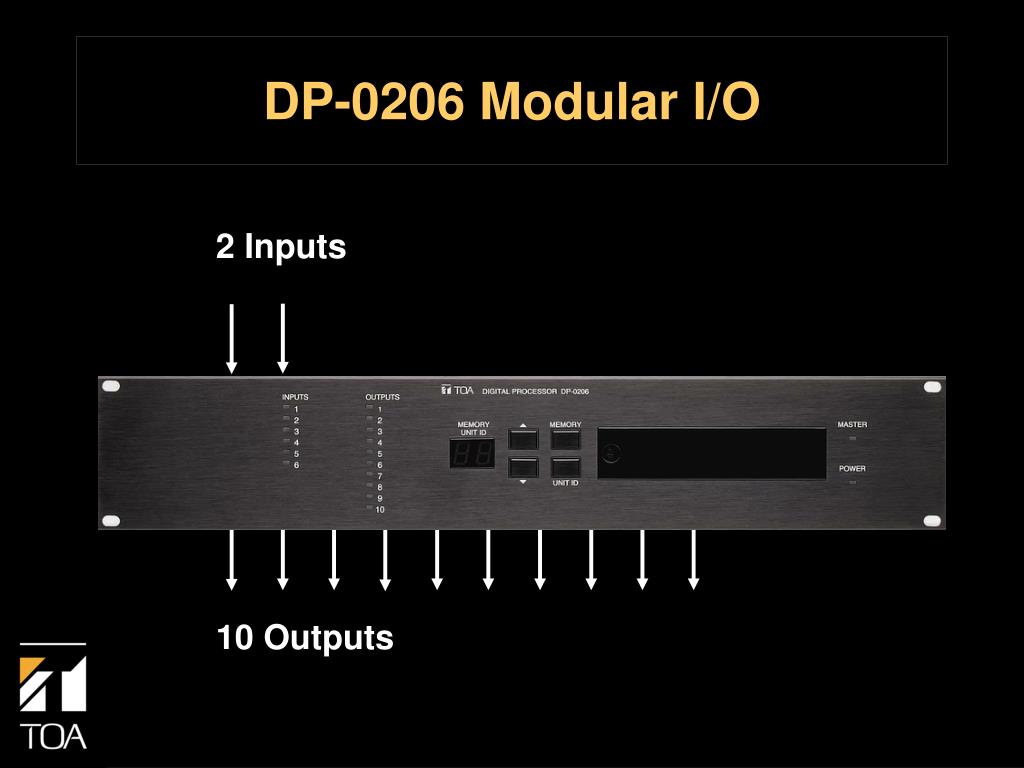

  10. 2 Inputs 8 Outputs DP-0206 Modular I/O

  11. 2 Inputs 10 Outputs DP-0206 Modular I/O

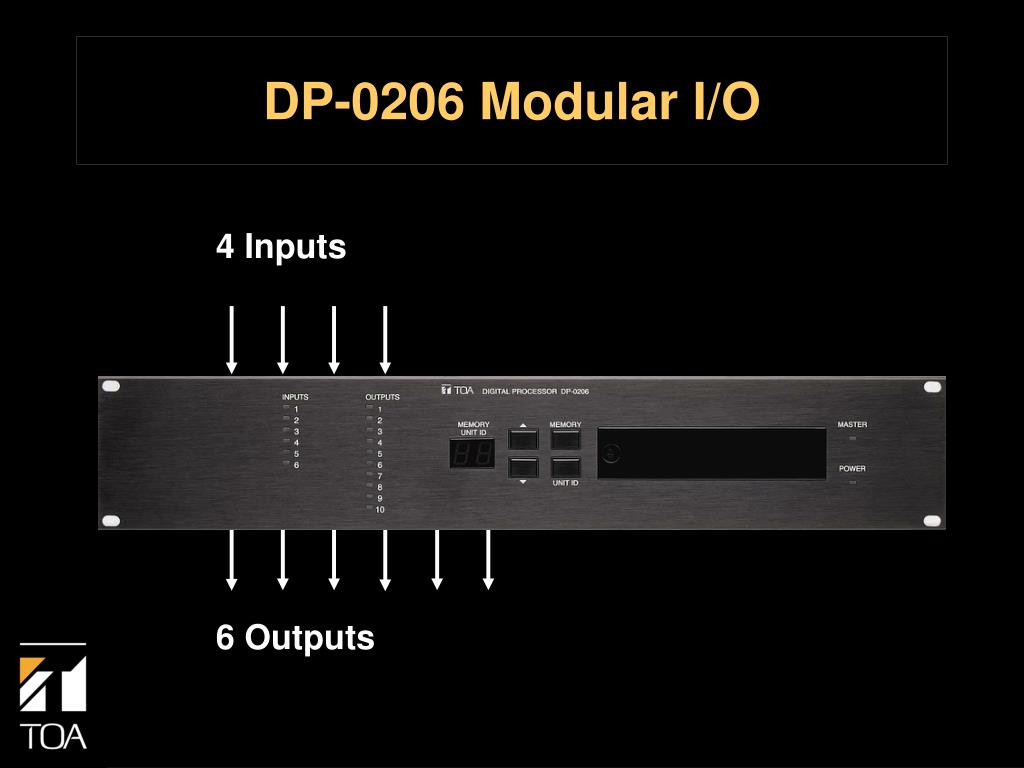

  12. 4Inputs 6Outputs DP-0206 Modular I/O

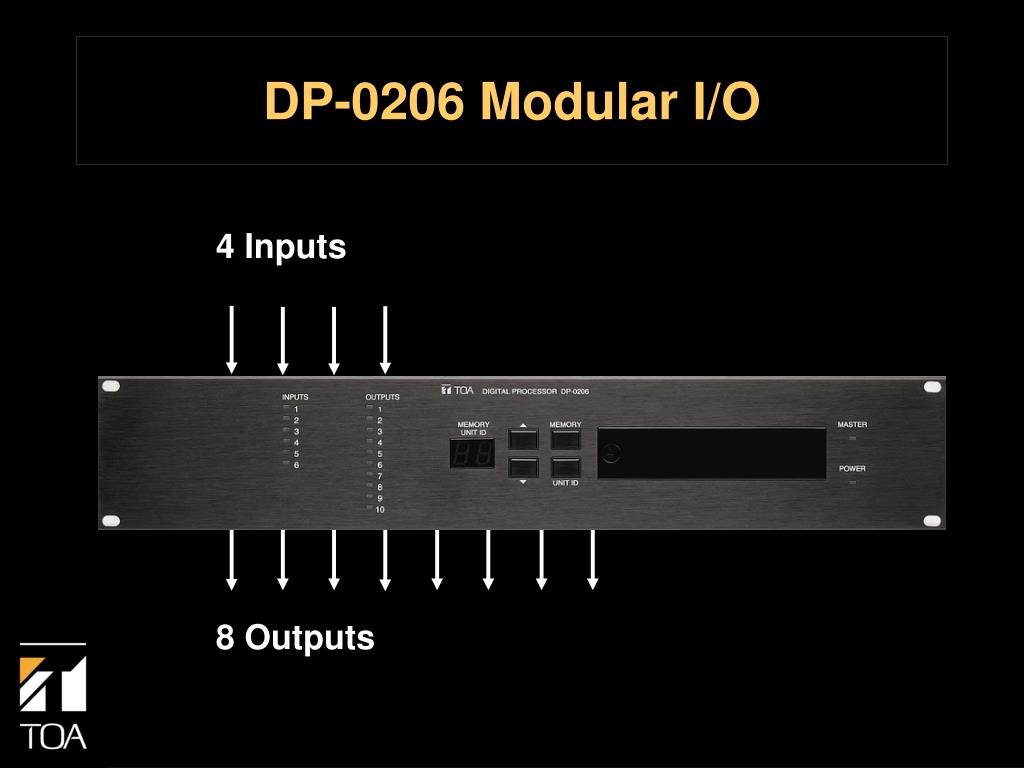

  13. 4 Inputs 8 Outputs DP-0206 Modular I/O

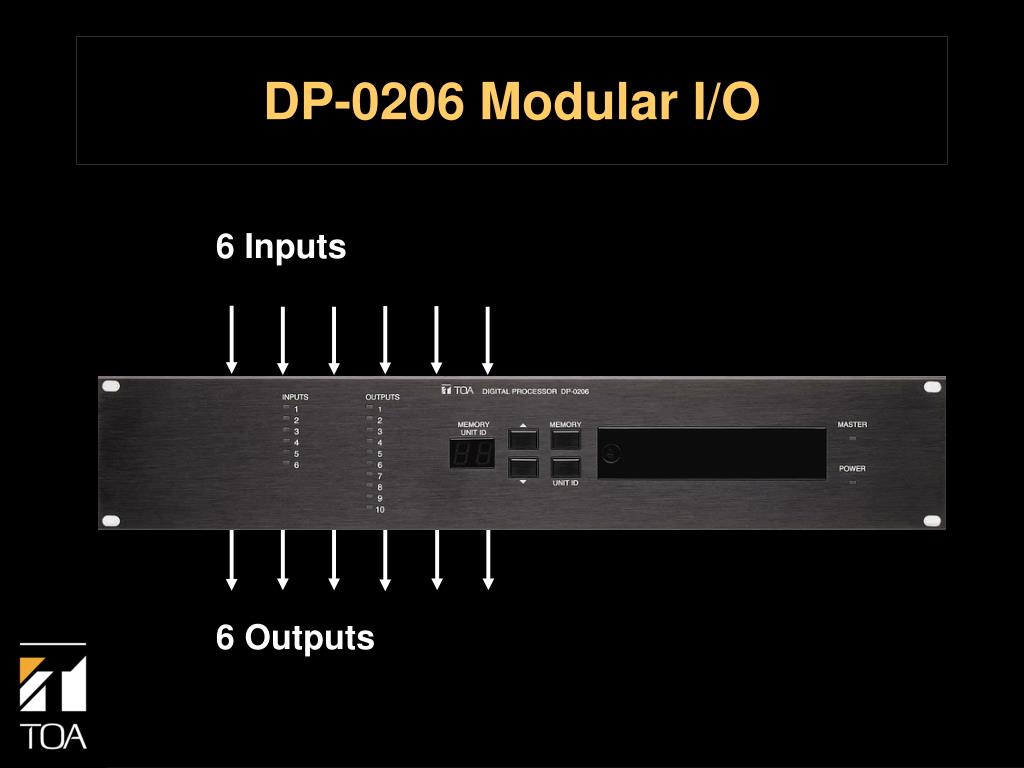

  14. 6 Inputs 6 Outputs DP-0206 Modular I/O

  15. Level Detector High level signals SW A-to-D Converter 0101010101010101101 digital signal analog signal Gain Attn A-to-D Converter Low level signals CLEAR Conversion

  16. DP-0206 Software

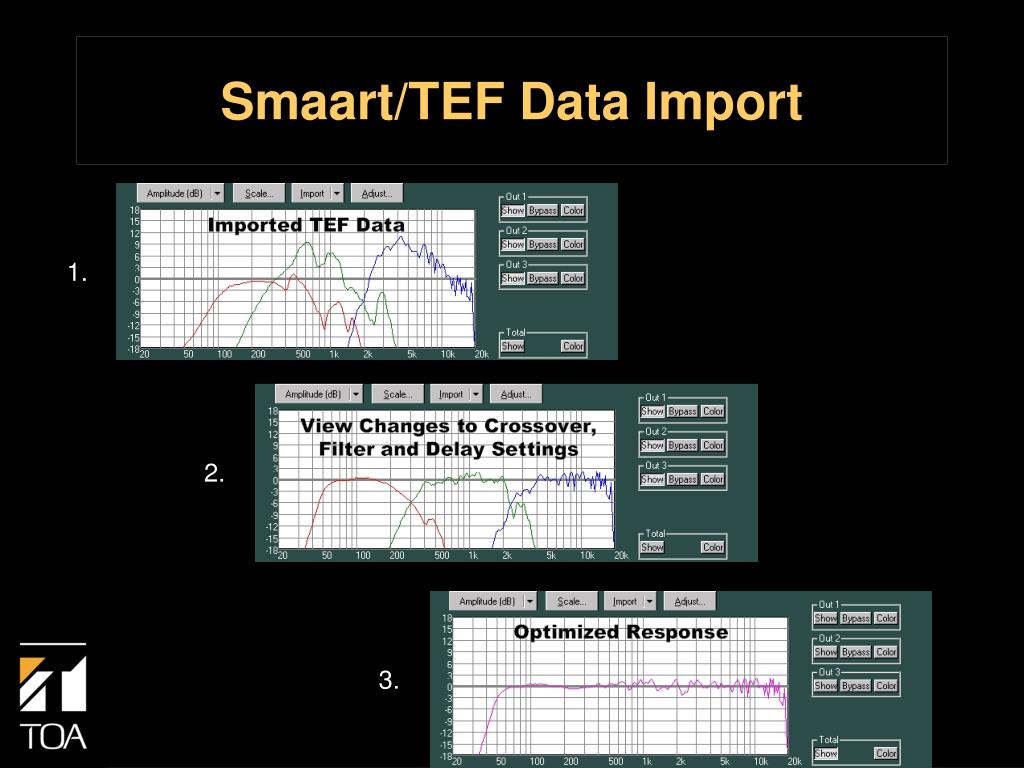

  17. Smaart/TEF Data Import 1. 2. 3.

  18. DP-0206 Digital Signal Processor
