  1. ASH: A Substrate for Scalable Architectures Mihai Budiu Seth Copen Goldstein http://www.cs.cmu.edu/~phoenix CALCM Seminar, March 19, 2002

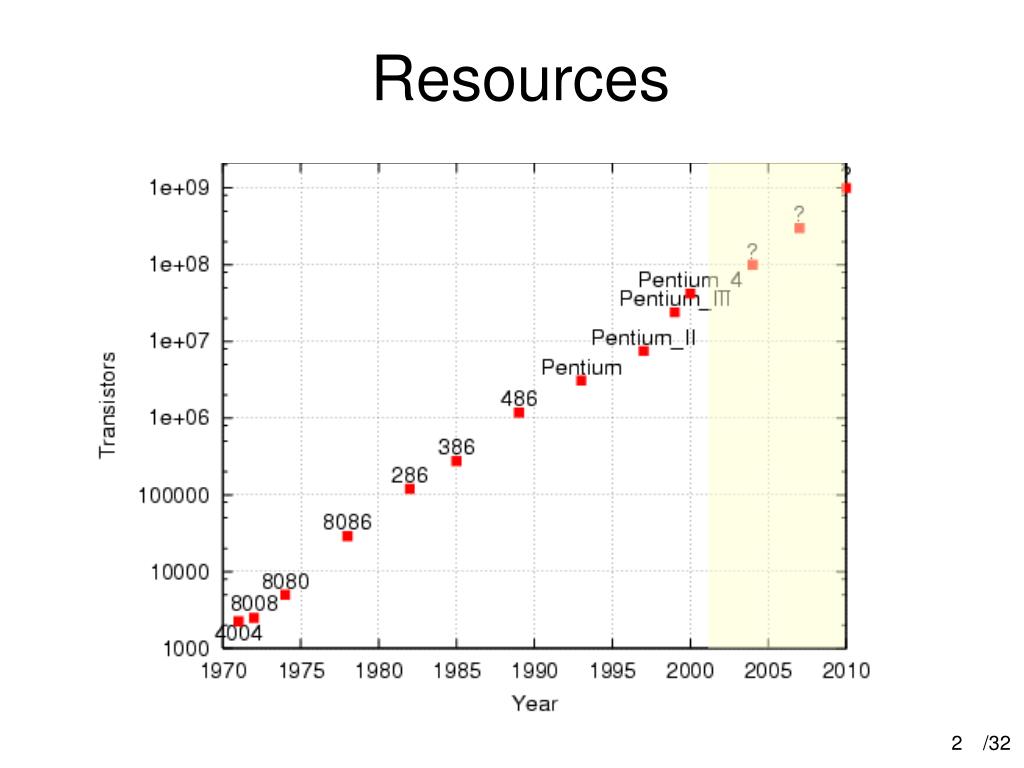

  2. Resources /32

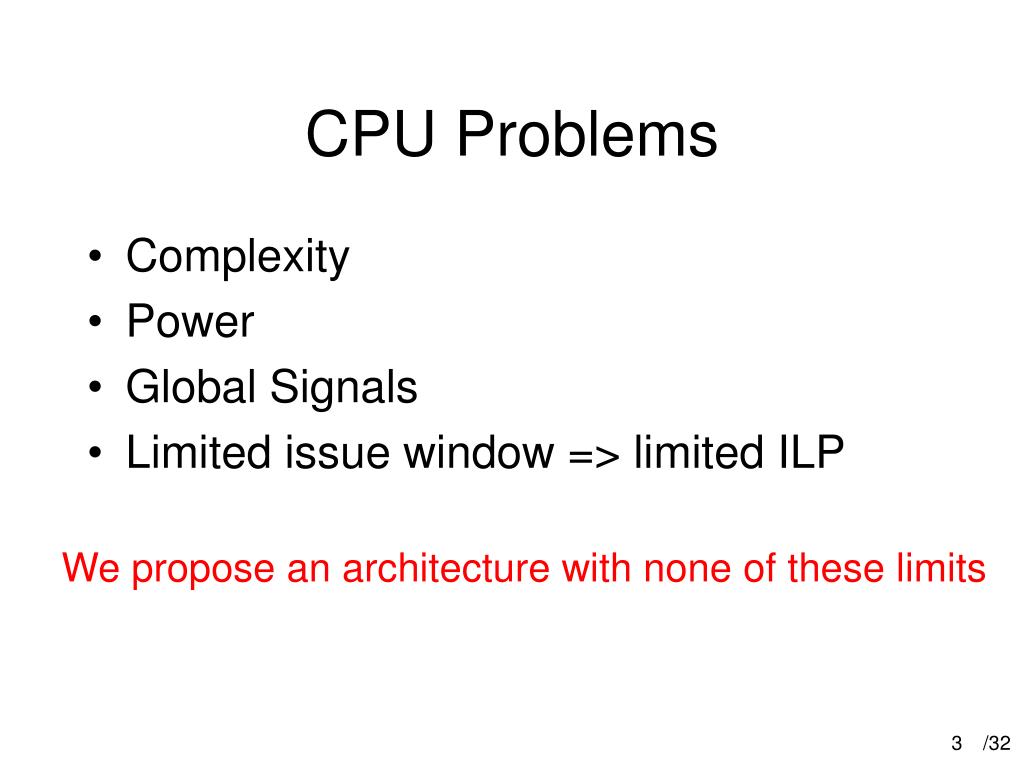

  3. CPU Problems • Complexity • Power • Global Signals • Limited issue window => limited ILP We propose an architecture with none of these limits /32

  4. Outline • Scalability • Reconfigurable hardware advantages • A hybrid RH + CPU architecture • CPU and RH as peers • Application Specific Hardware /32

  5. Unbounded * a=a+b b=b+c + / RH Computational Bandwidth FU * clock freq CPU /32

  6. i j k l m sp[0] spill Registers Unbounded Fixed eax ebx ecx edx CPU RH /32

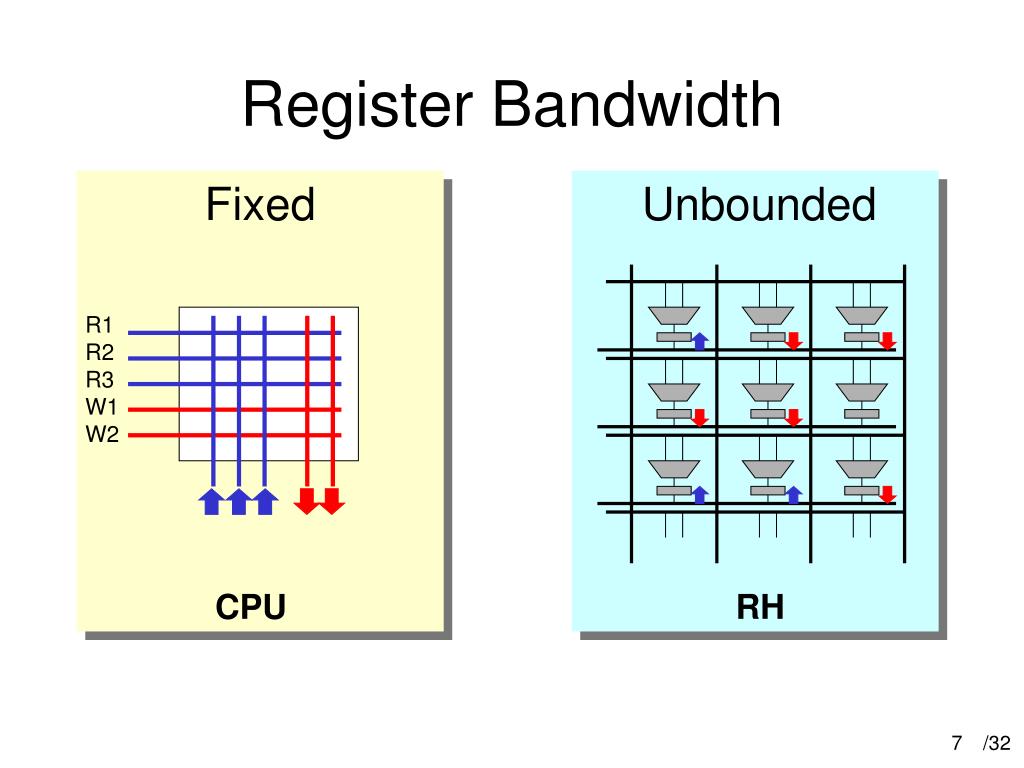

  7. Unbounded RH Register Bandwidth Fixed R1 R2 R3 W1 W2 CPU /32

  8. Out-of-Order Execution In-order Fetch Decode Execute Dispatch Commit Limited by window CPU RH Compiler’s window is unbounded /32

  9. Outline • Scalability • Reconfigurable hardware advantages • A hybrid RH + CPU architecture • CPU and RH as peers • Application Specific Hardware /32

  10. Hybrid system: CPU+RH Tight coupling Low ILP + OS + VM generic CPU RH High ILP application-specific Memory /32

  11. CPU RH Memory Problem HLL Program Compiler /32

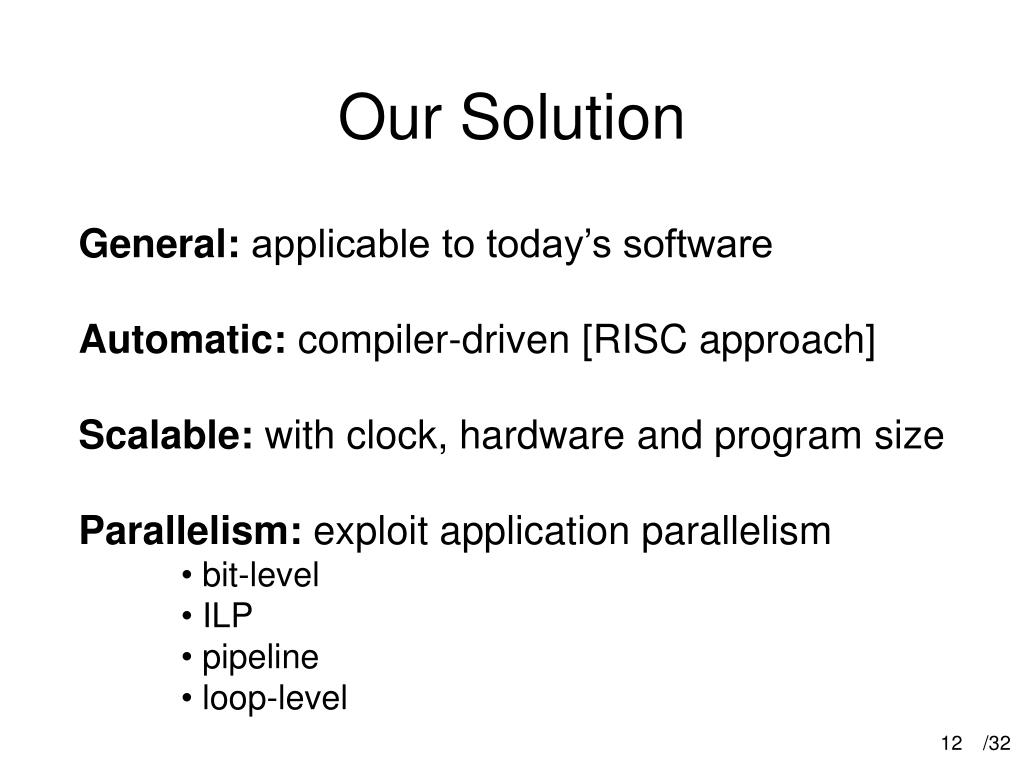

  12. Our Solution • General: applicable to today’s software • Automatic: compiler-driven [RISC approach] • Scalable: with clock, hardware and program size • Parallelism: exploit application parallelism • bit-level • ILP • pipeline • loop-level /32

  13. Outline • Scalability • Reconfigurable hardware advantages • A hybrid RH + CPU architecture • CPU and RH as peers • Application Specific Hardware /32

  14. Peering Program a( ) { b( ); } b( ) { c( ); } c( ) { d( ) } d( ) { } a CPU RH b c d /32

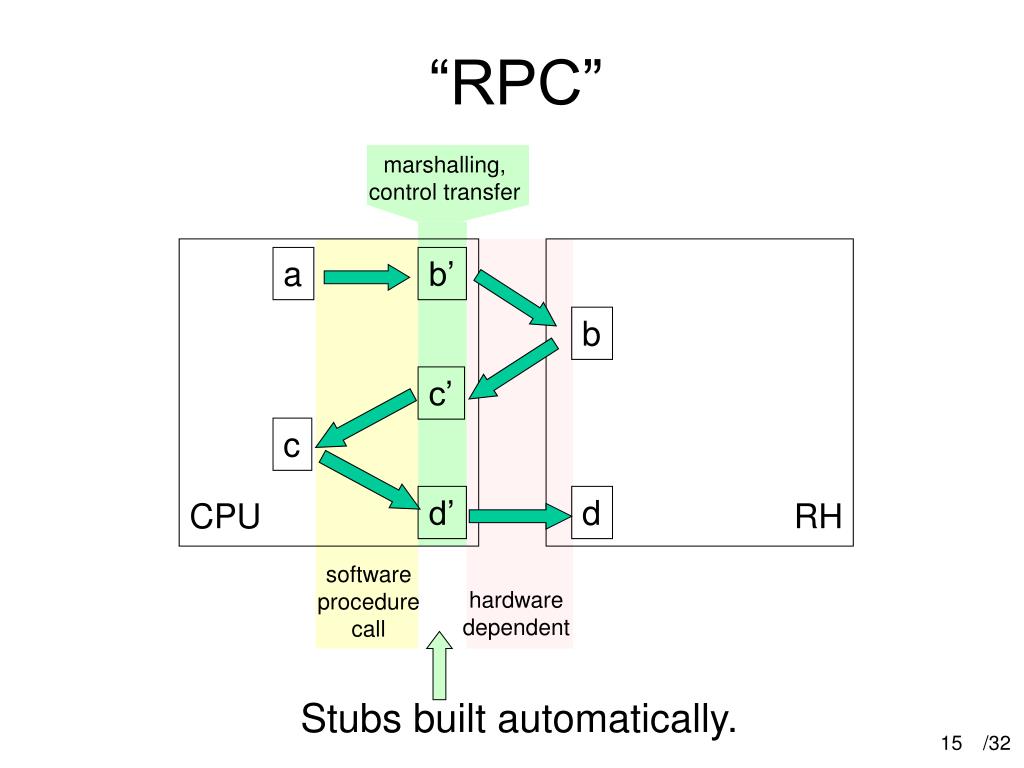

  15. marshalling, control transfer software procedure call hardware dependent Stubs built automatically. “RPC” CPU RH a b’ b c’ c d’ d /32

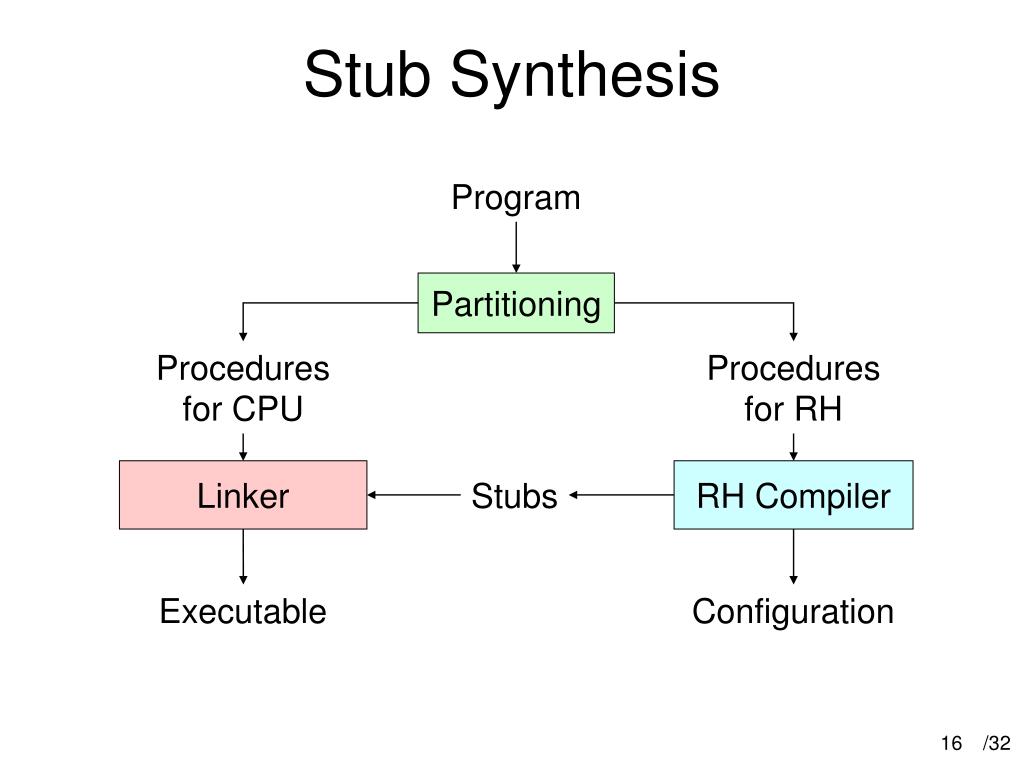

  16. Program Partitioning Procedures for CPU Procedures for RH Linker RH Compiler Stubs Executable Configuration Stub Synthesis /32

  17. Outline • Scalability • Reconfigurable hardware advantages • A hybrid RH + CPU architecture • CPU and RH as peers • Application Specific Hardware /32

  18. CPU RH Memory Application-Specific Hardware HLL program HLL Program Compiler Compiler Circuit Reconfigurablehardware /32

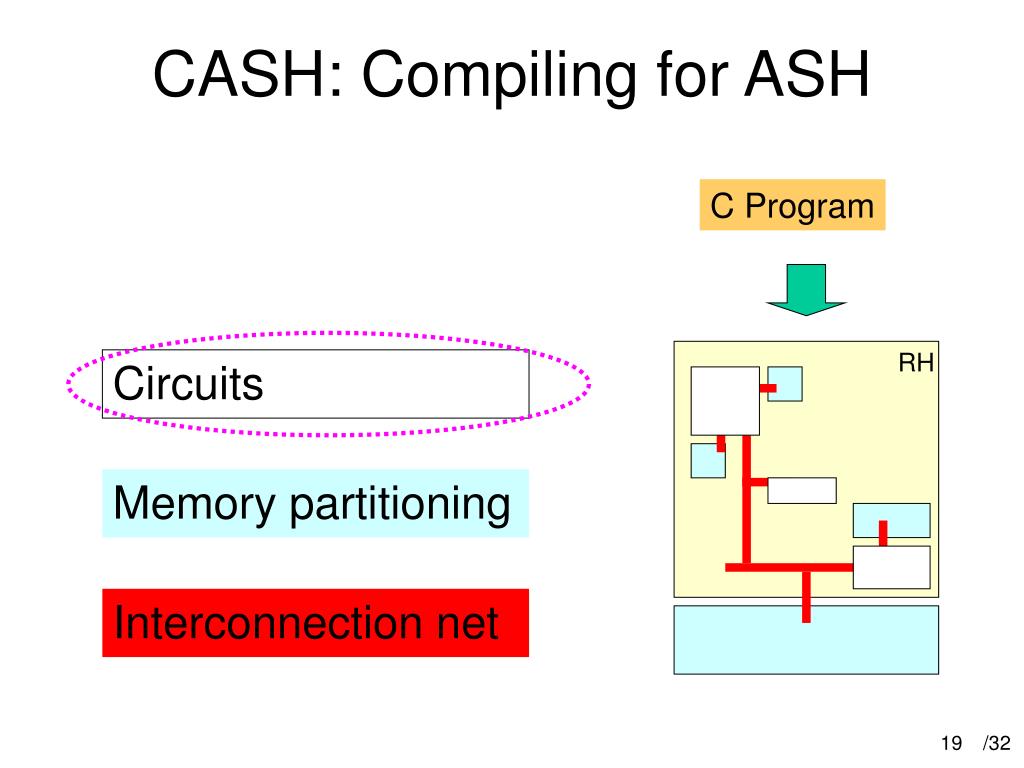

  19. Circuits Memory partitioning Interconnection net CASH: Compiling for ASH C Program RH /32

  20. Asynchronous Computation + ack data data ready Can extend to locally synchronous, globally asynchronous /32

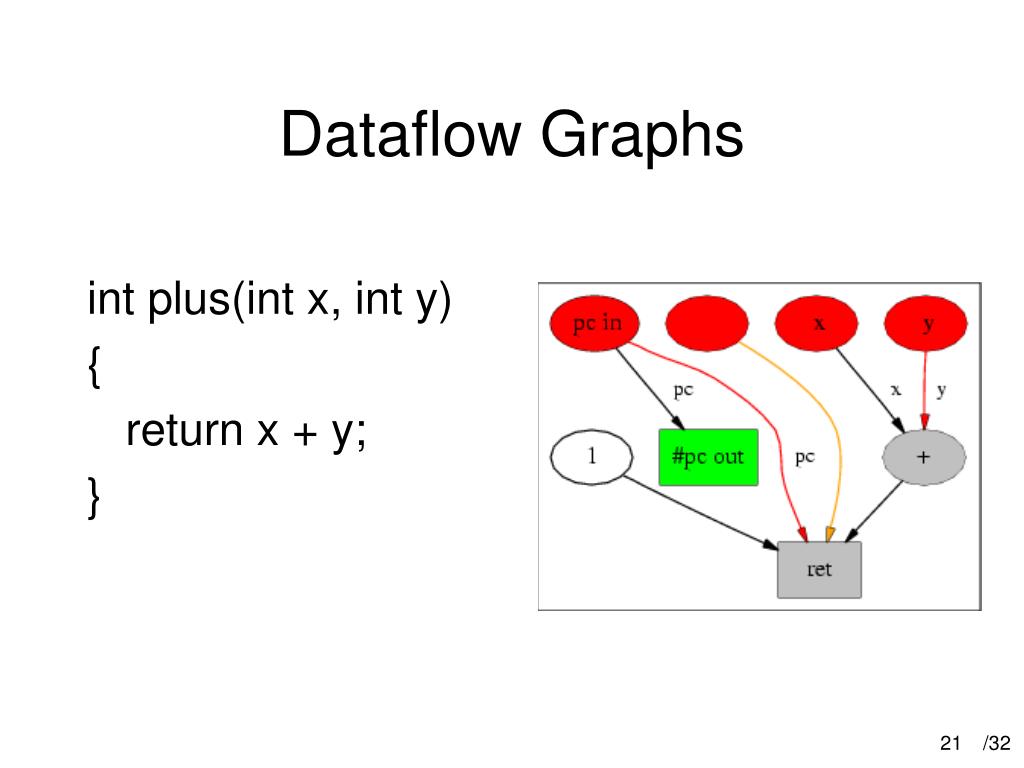

  21. Dataflow Graphs int plus(int x, int y) { return x + y; } /32

  22. From Control Flow to Data Flow /32

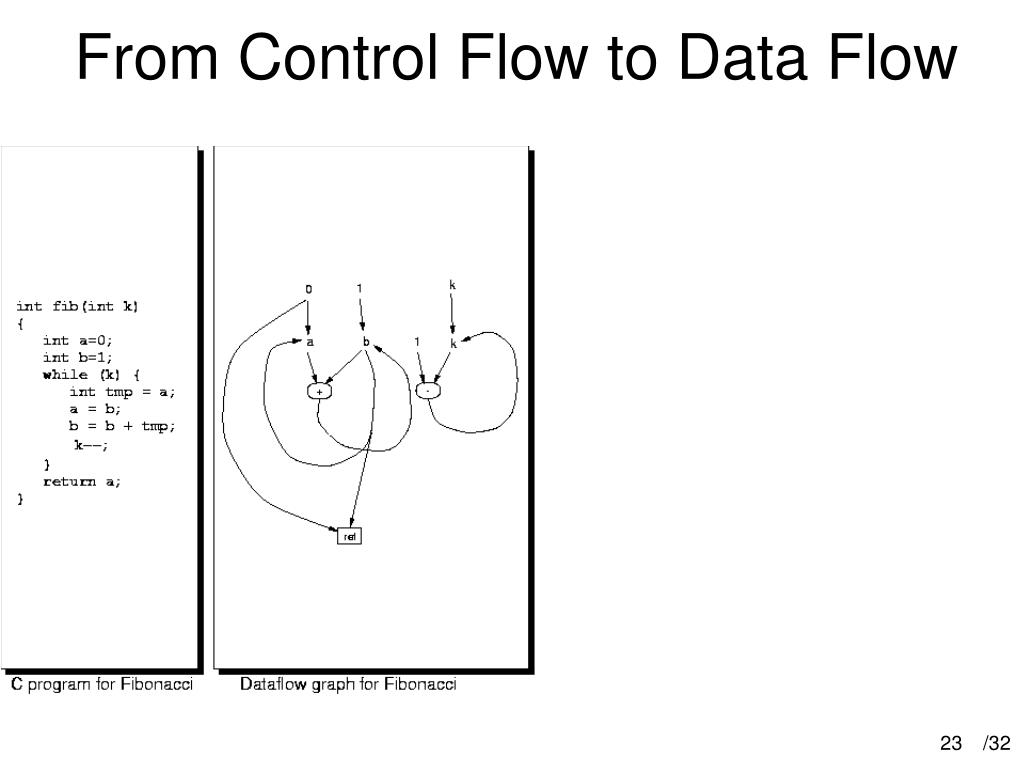

  23. From Control Flow to Data Flow /32

  24. From Control Flow to Data Flow /32

  25. Conditionals = Speculation int cond(int p, int x, int y) { int z; if (p) z = x; else z = y; return z; } /32

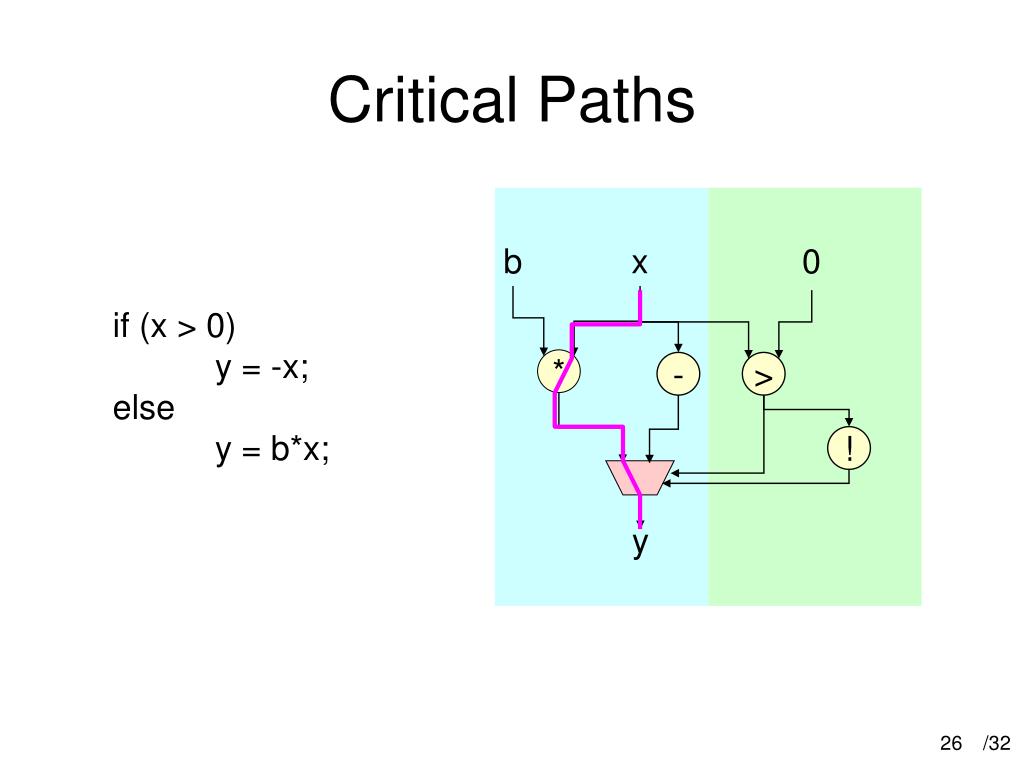

  26. - > Critical Paths b x 0 if (x > 0) y = -x; else y = b*x; * ! y /32

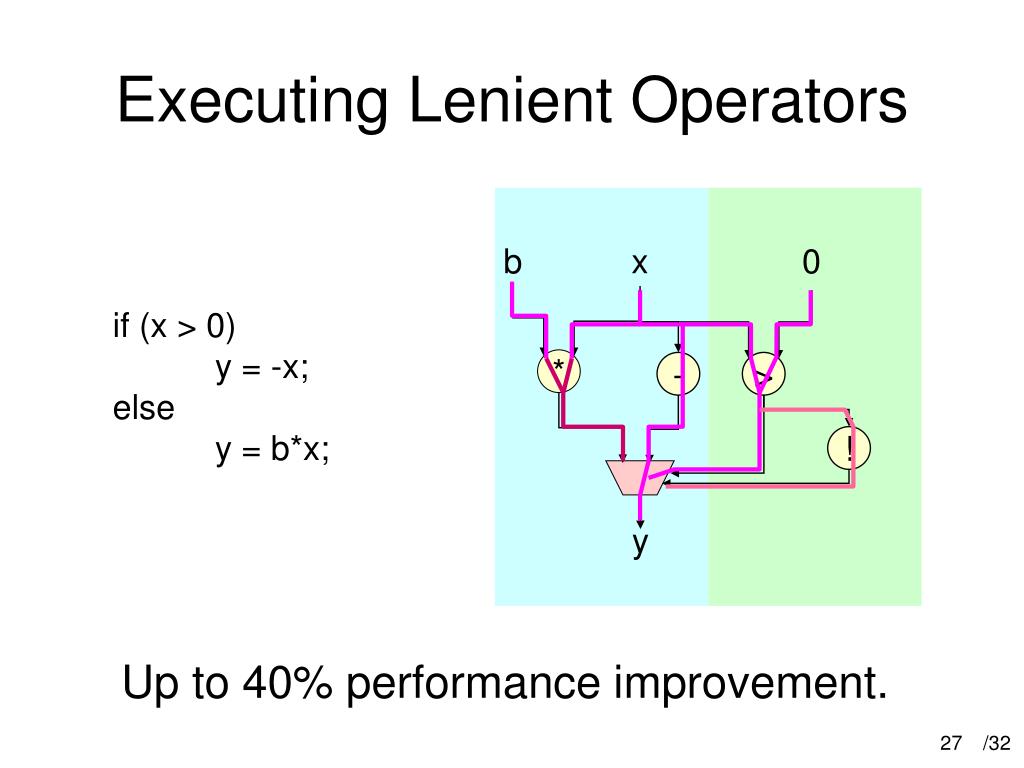

  27. - > Executing Lenient Operators b x 0 if (x > 0) y = -x; else y = b*x; * ! y Up to 40% performance improvement. /32

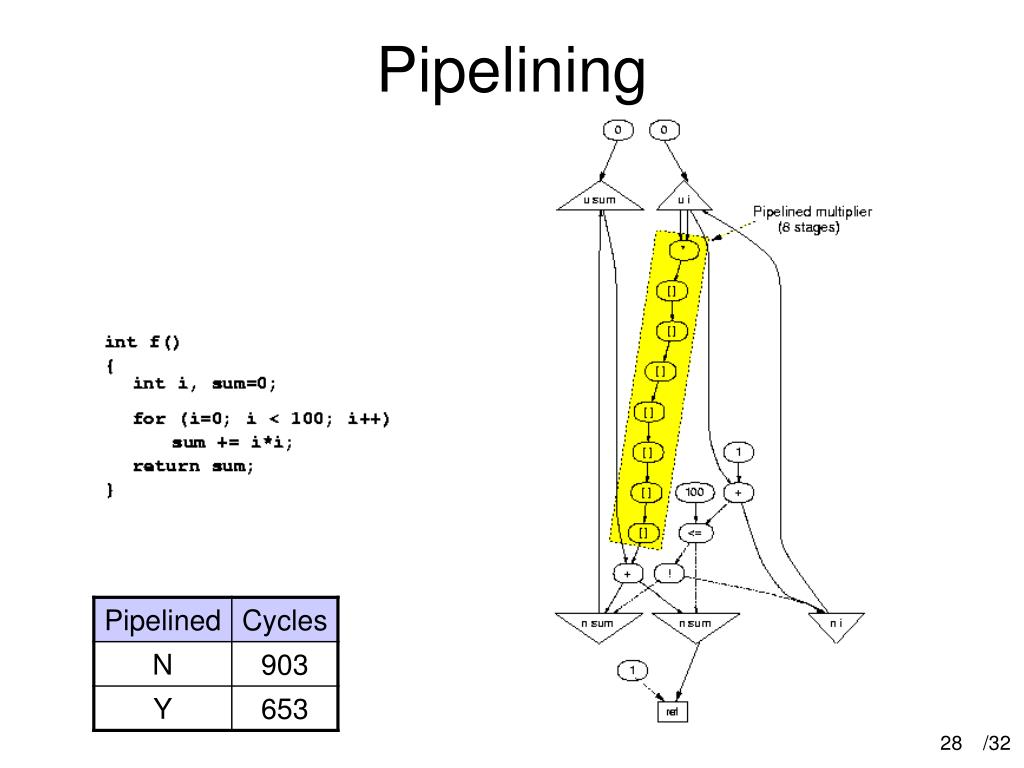

  28. Pipelining /32

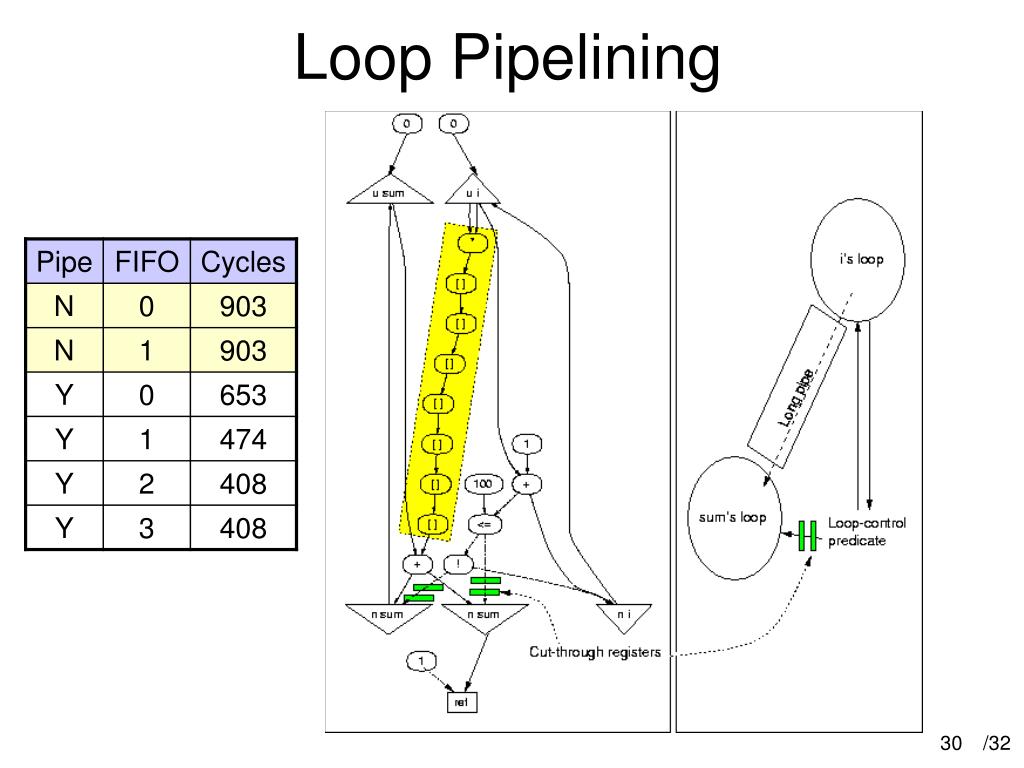

  29. Loop Pipelining /32

  30. Loop Pipelining /32

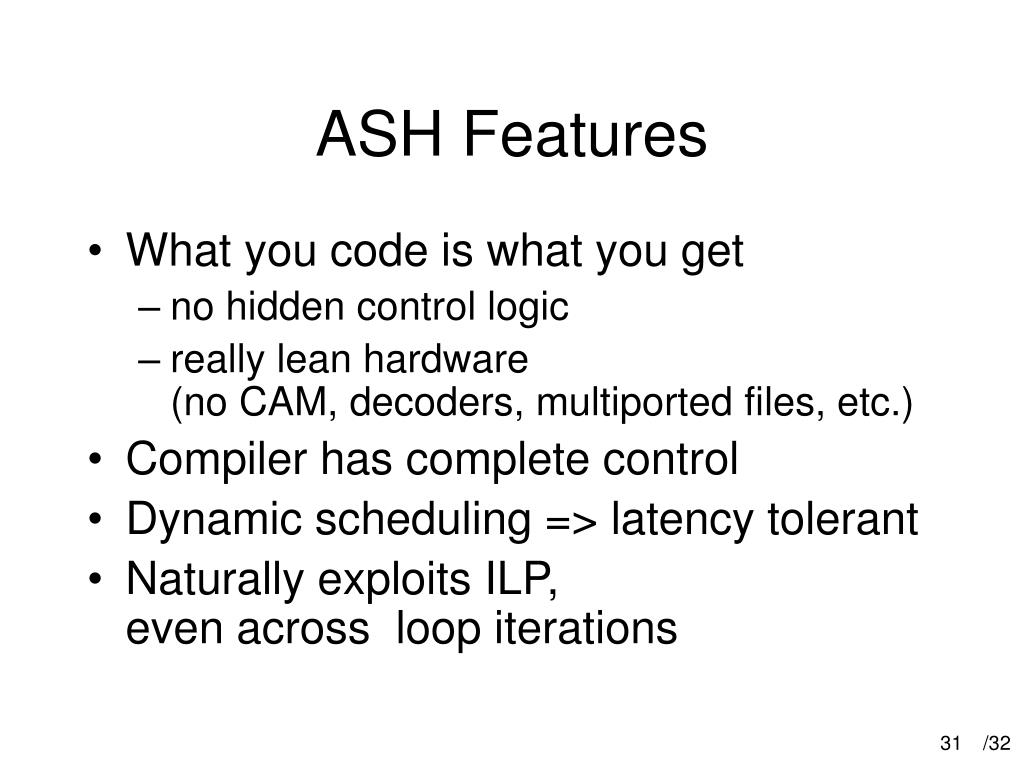

  31. ASH Features • What you code is what you get • no hidden control logic • really lean hardware (no CAM, decoders, multiported files, etc.) • Compiler has complete control • Dynamic scheduling => latency tolerant • Naturally exploits ILP,even across loop iterations /32

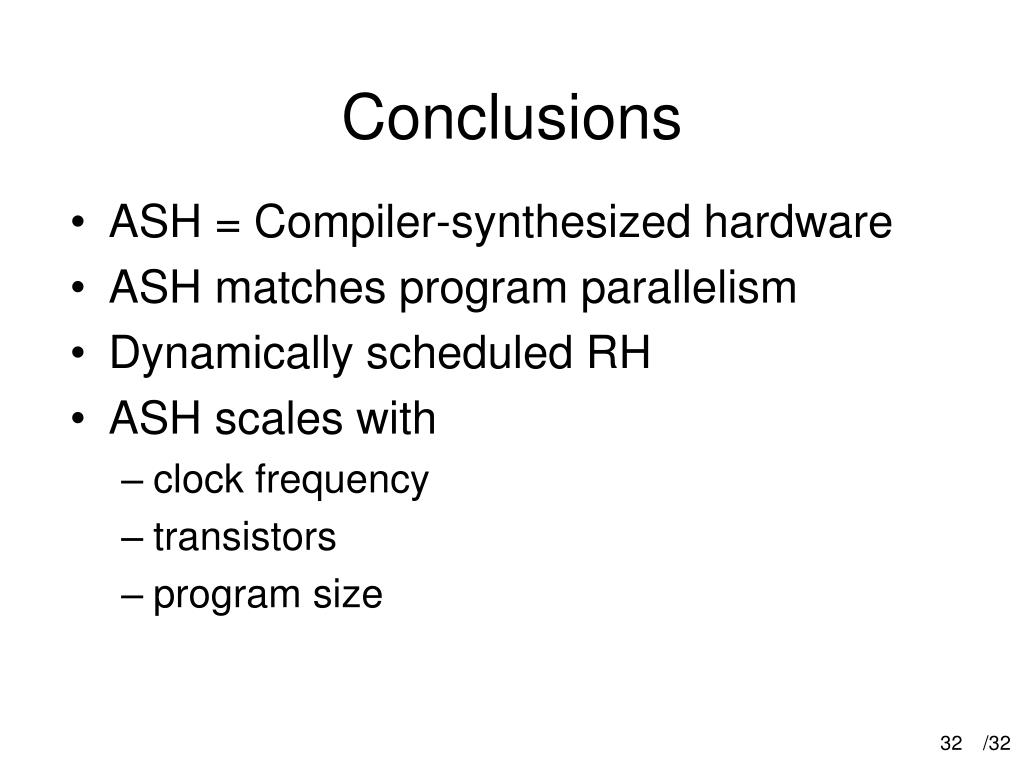

  32. Conclusions • ASH = Compiler-synthesized hardware • ASH matches program parallelism • Dynamically scheduled RH • ASH scales with • clock frequency • transistors • program size /32

  33. Backup Slides /32

  34. Interconnection network Universal gates and/or storage elements Programmable switches Reconfigurable Hardware /32

  35. Main RH Ingredient: RAM Cell 0 0 0 1 a0 data a0 a1 & a2 a1 a1 Universal gate = RAM data in 0 control Switch controlled by a 1-bit RAM cell /32

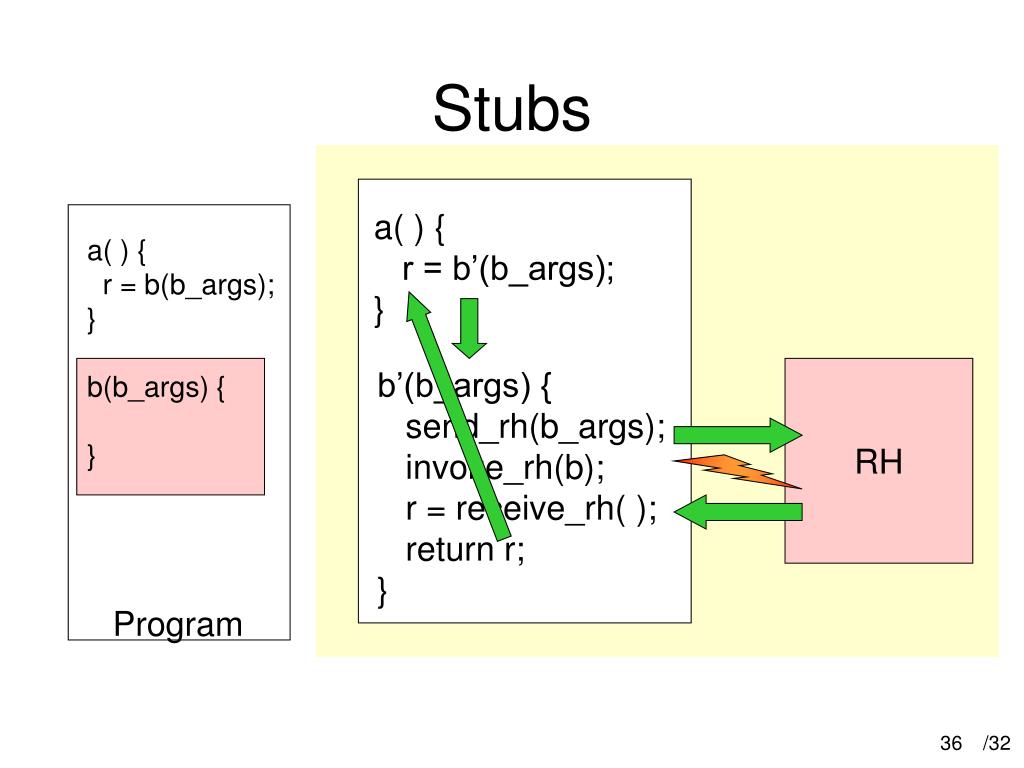

  36. Stubs a( ) { r = b’(b_args); } a( ) { r = b(b_args); } b(b_args) { } b’(b_args) { send_rh(b_args); invoke_rh(b); r = receive_rh( ); return r;} RH Program /32

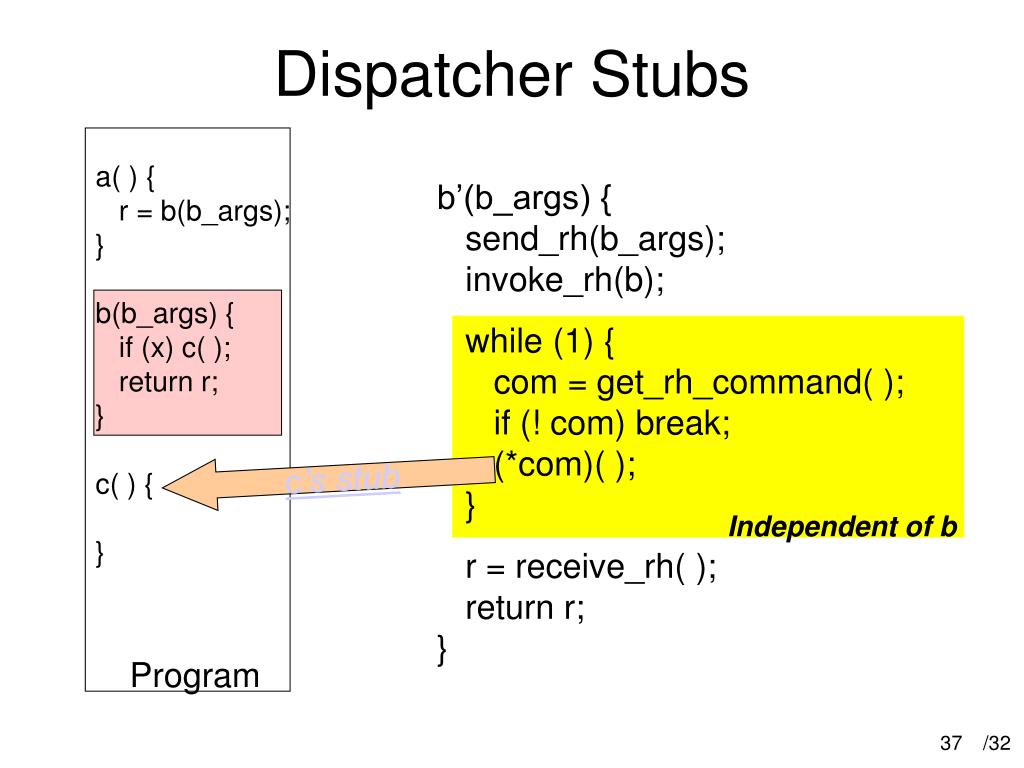

  37. Independent of b Dispatcher Stubs a( ) { r = b(b_args); } b(b_args) { if (x) c( ); return r; } c( ) { } b’(b_args) { send_rh(b_args); invoke_rh(b); while (1) { com = get_rh_command( ); if (! com) break; (*com)( ); } r = receive_rh( ); return r;} c’s stub Program /32

  38. C’s Stub a( ) { r = b(b_args); } b(b_args) { if (x) c( ); return r; } c( ) { } c’( ) { receive_rh(c_args); r = c(c_args); send_rh(r); invoke_rh(return_to_rh);} Program back /32

  39. Input to Output int io(int x) { return x; } /32

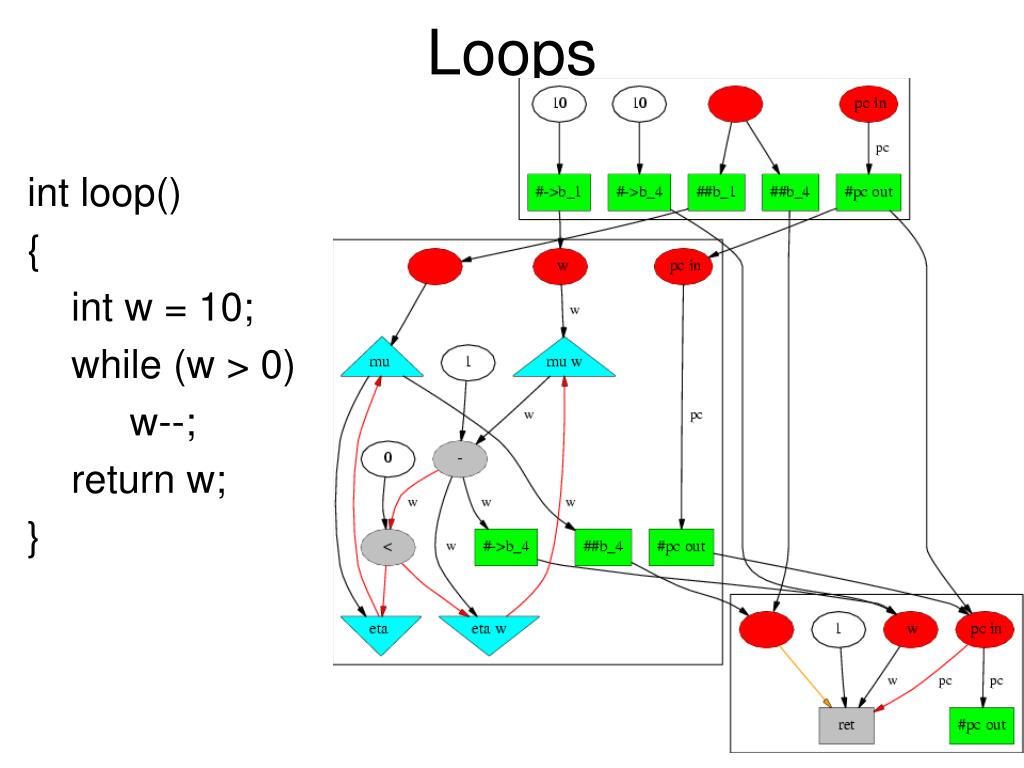

  40. Loops int loop() { int w = 10; while (w > 0) w--; return w; } /32

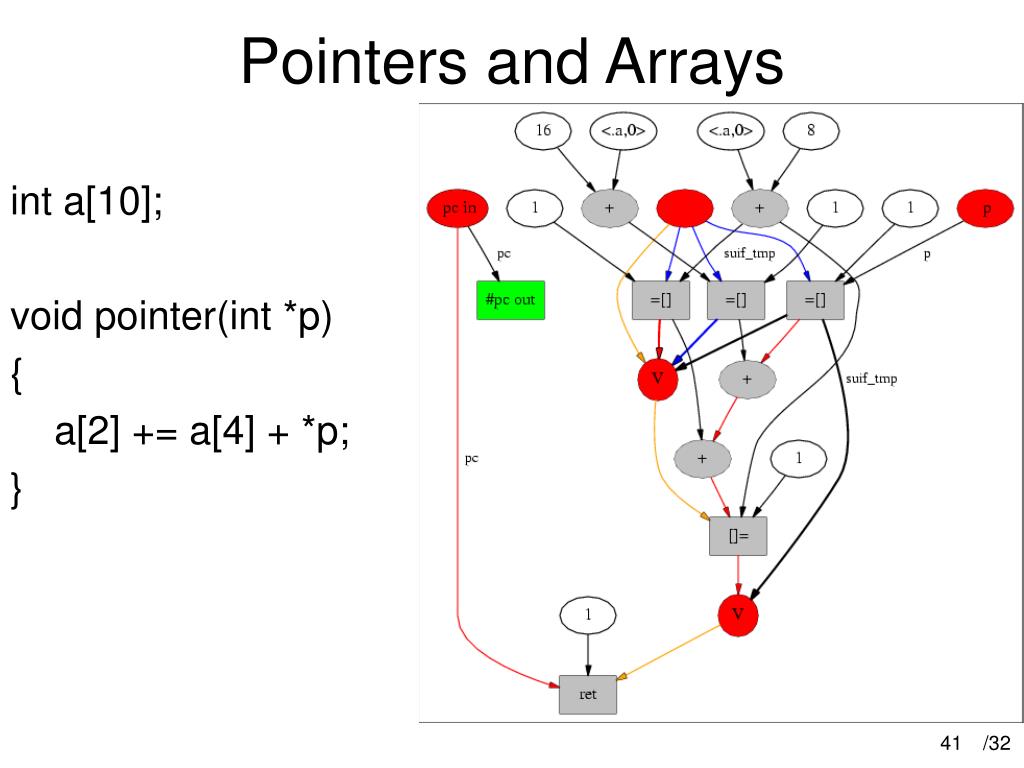

  41. Pointers and Arrays int a[10]; void pointer(int *p) { a[2] += a[4] + *p; } /32

  42. Pointers and Loops int sum() { int s = 0; int i; for (i=0; i < 10; i++) s += a[i]; return s; } /32
