presentation overview

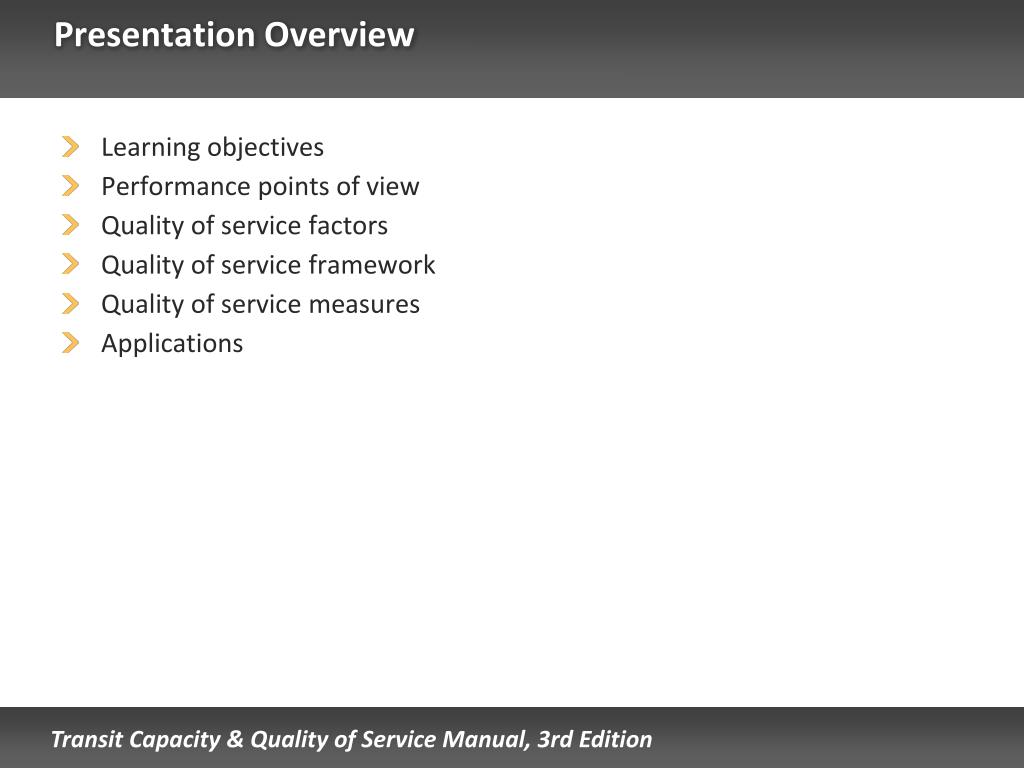

Presentation Overview

Learning objectives

Performance points of view

Quality of service factors

Quality of service framework

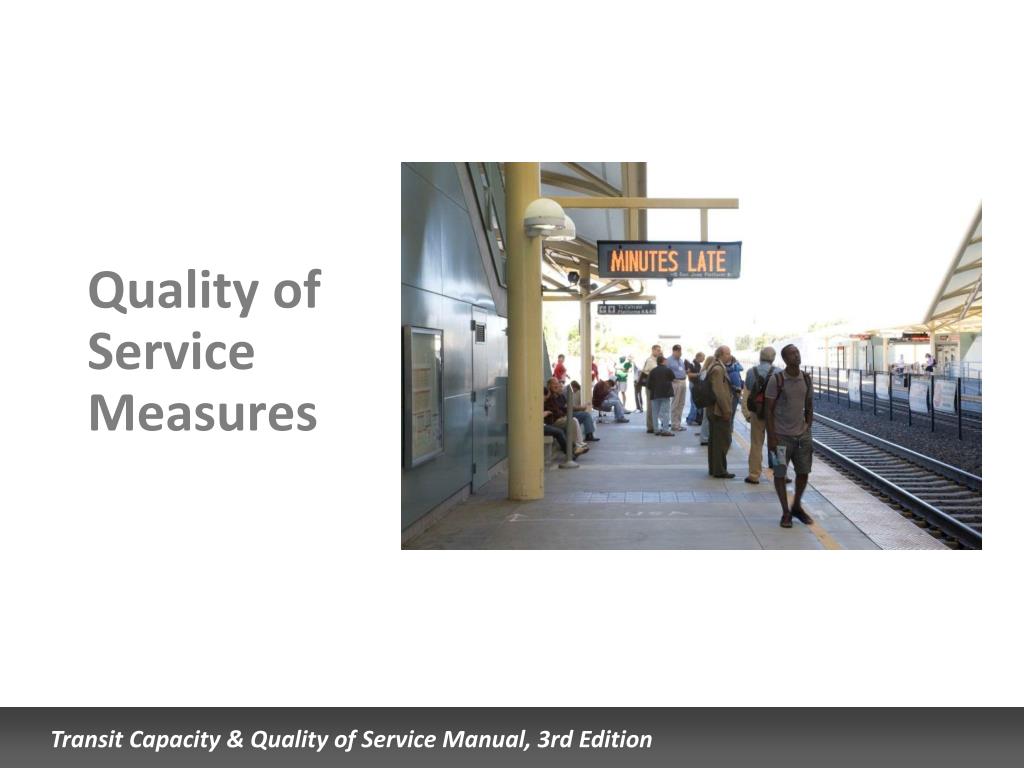

Quality of service measures

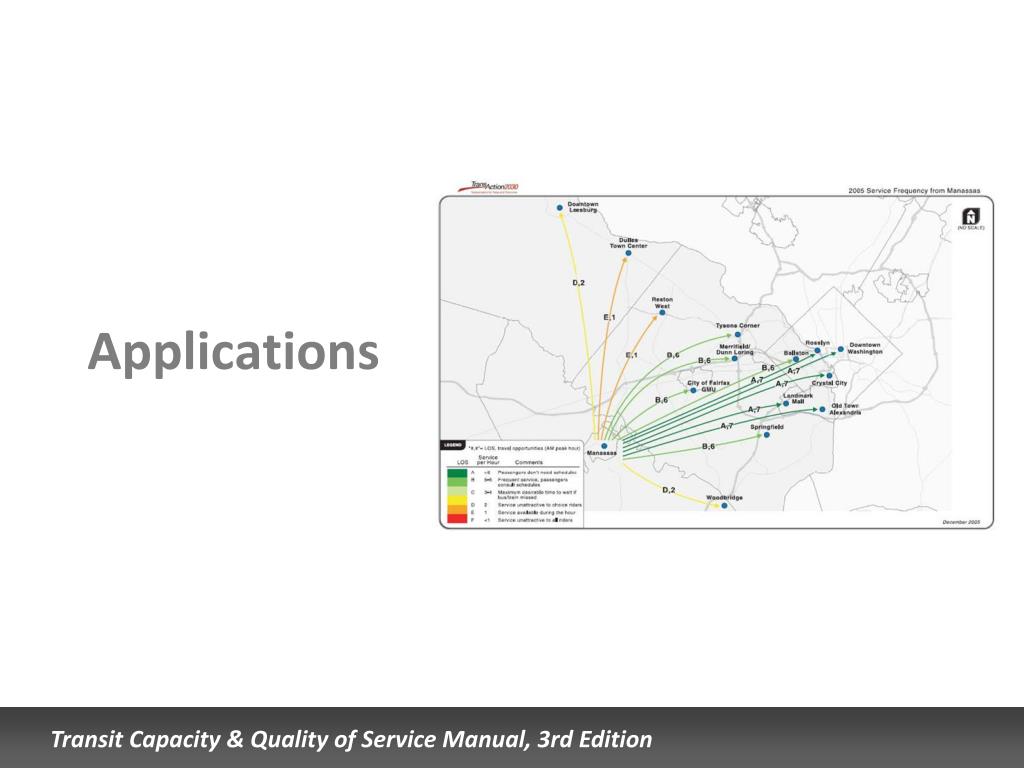

Applications

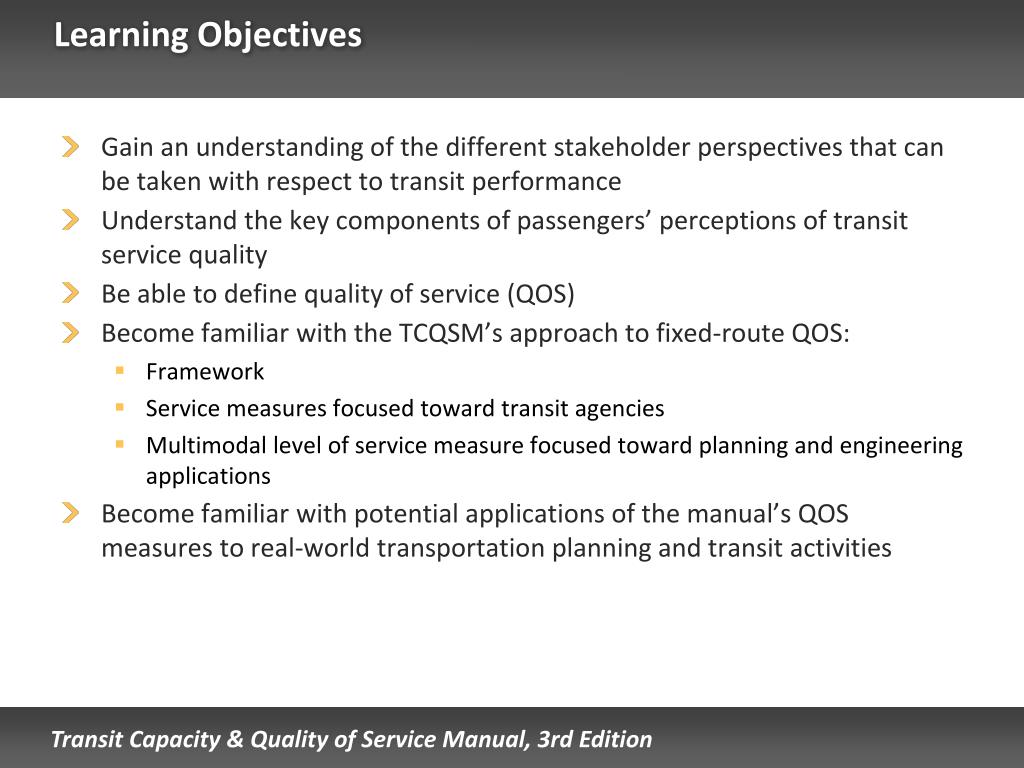

learning objectives
Learning Objectives
  • Gain an understanding of the different stakeholder perspectives that can be taken with respect to transit performance
  • Understand the key components of passengers’ perceptions of transit service quality
  • Be able to define quality of service (QOS)
  • Become familiar with the TCQSM’s approach to fixed-route QOS:
    • Framework
    • Service measures focused toward transit agencies
    • Multimodal level of service measure focused toward planning and engineering applications
  • Become familiar with potential applications of the manual’s QOS measures to real-world transportation planning and transit activities
changes from the 2nd edition
Changes from the 2nd Edition
  • Reorganized transit quality of service framework
    • Clearer guidance on performance measures that can be applied to stop, route/street segment, and system levels of analysis
  • Removed level of service (LOS) letters from QOS tables
    • Responding to transit agency concerns about being “graded”
    • Allows more or fewer service levels, as appropriate for a given measure
  • Added a new “multimodal transit LOS measure”
    • Responding to planning agency needs for multimodal LOS evalution
    • Can be used in conjunction with corresponding measures for the auto, pedestrian, and bicycle modes
    • Spreadsheet tool provided to help calculate the measure
  • New section on potential applications of QOS to real-world transit and transportation planning activities

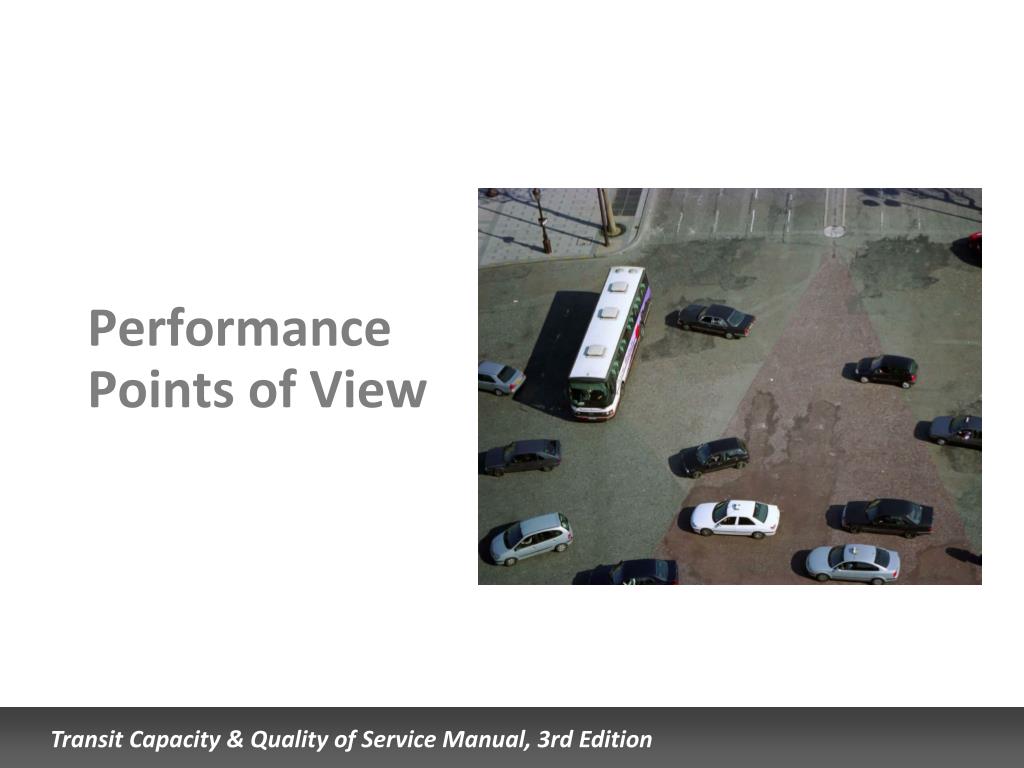

transit performance viewpoints

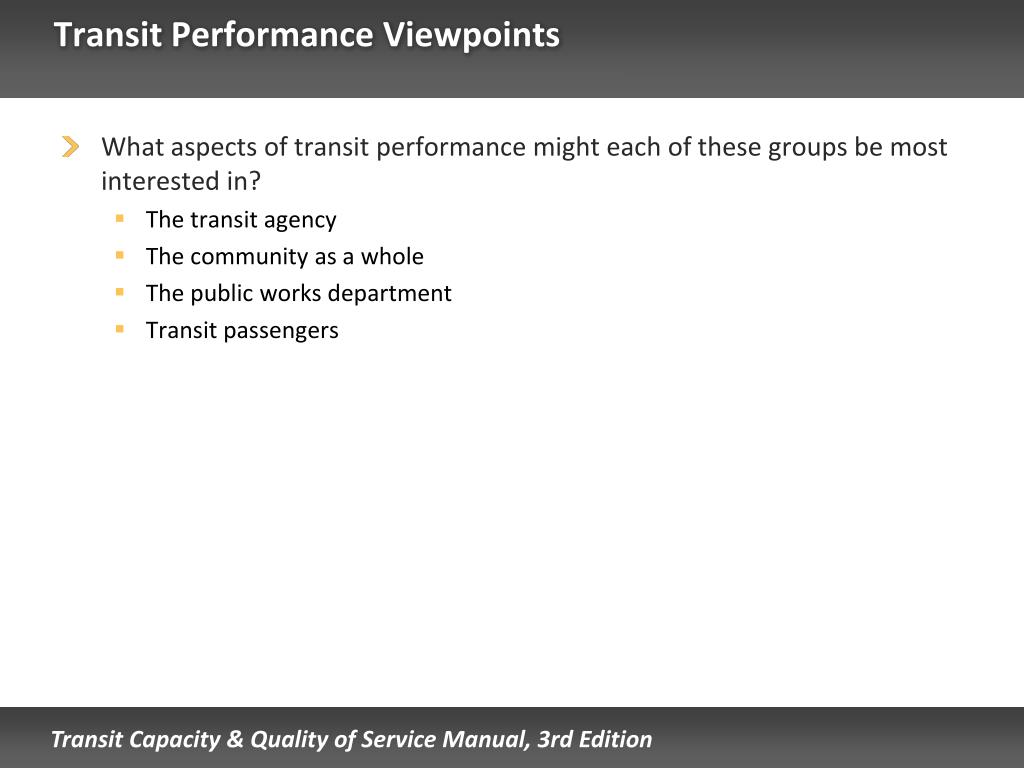

Transit Performance Viewpoints
  • What aspects of transit performance might each of these groups be most interested in?
    • The transit agency
    • The community as a whole
    • The public works department
    • Transit passengers
the ultimate transit service
The Ultimate Transit Service

As a passenger, what would your ideal transit service be like?

the ultimate transit service1
The Ultimate Transit Service

Since we can’t have the ultimate transit service, what trade-offs do we make?

transit performance viewpoints1
Transit Performance Viewpoints
  • Quality of service focuses on the passenger point of view
  • Other points of view are also valid and need to be considered
    • May have conflicting objectives (e.g., passenger comfort vs. agency resources)
    • Best-quality passenger service may not be feasible or desirable
what matters to customers

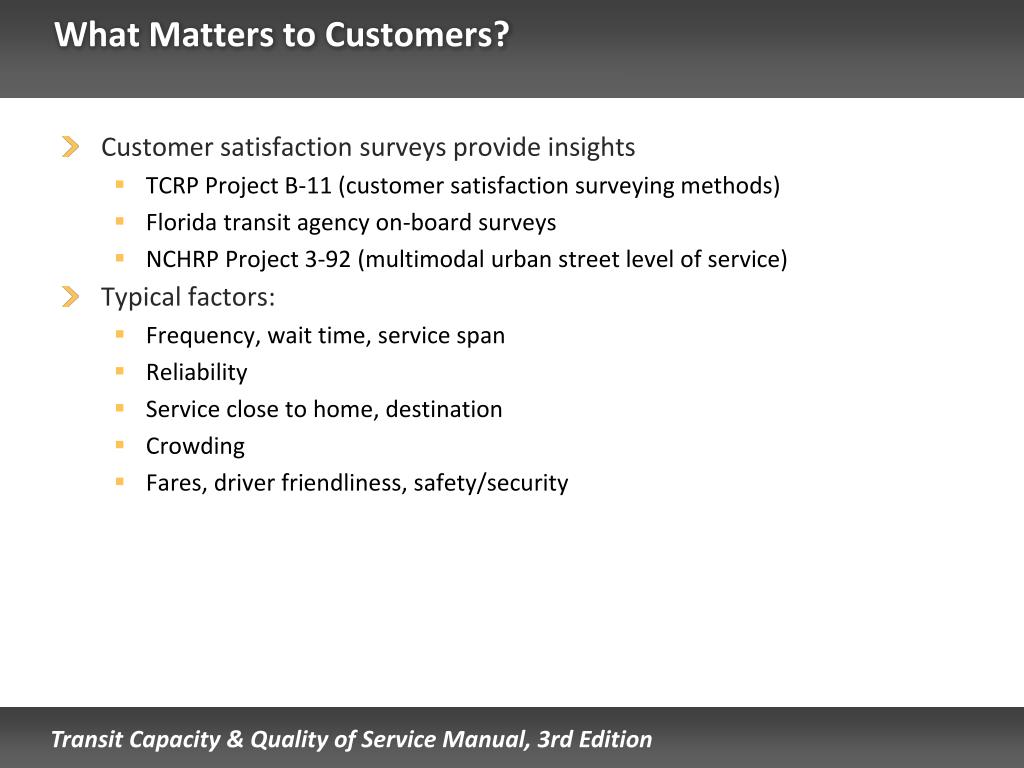

What Matters to Customers?
  • Customer satisfaction surveys provide insights
    • TCRP Project B-11 (customer satisfaction surveying methods)
    • Florida transit agency on-board surveys
    • NCHRP Project 3-92 (multimodal urban street level of service)
  • Typical factors:
    • Frequency, wait time, service span
    • Reliability
    • Service close to home, destination
    • Crowding
    • Fares, driver friendliness, safety/security
what matters to customers1

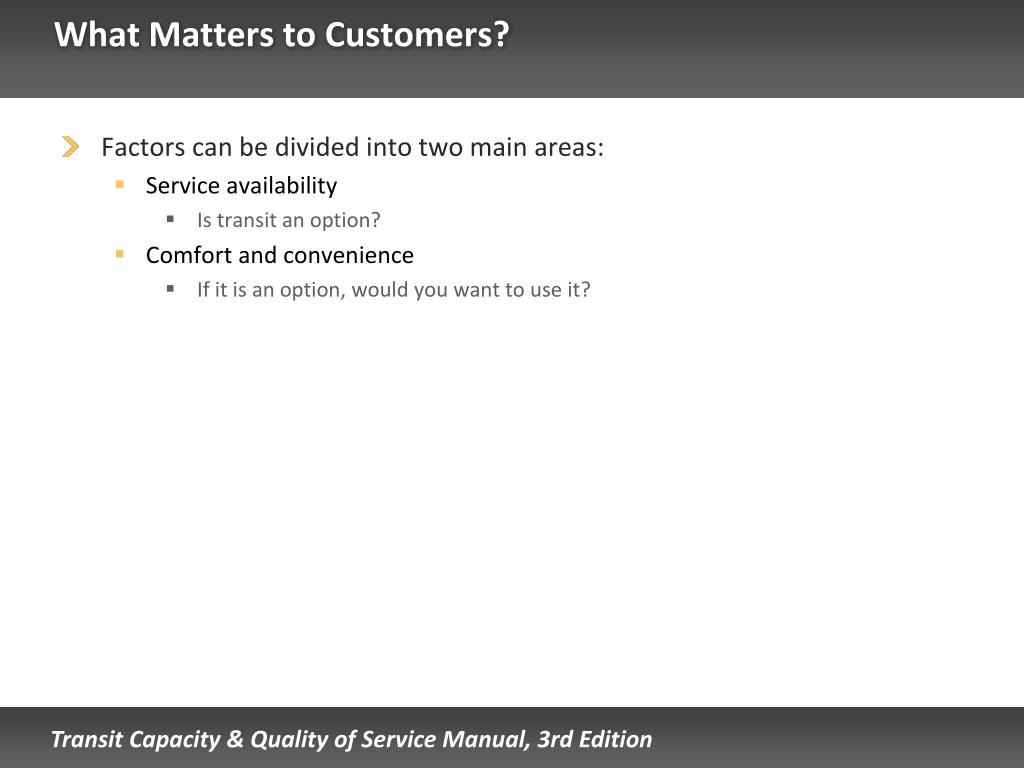

What Matters to Customers?
  • Factors can be divided into two main areas:
    • Service availability
      • Is transit an option?
    • Comfort and convenience
      • If it is an option, would you want to use it?
service availability
Service Availability

Spatial Availability(Origin)

Spatial Availability(Destination)

Temporal

Availability

Information

Availability

Capacity

Availability

Is transit an option for a particular trip?

All five of these factors must be satisfied

service availability1
Service Availability

Spatial Availability(Origin)

Spatial Availability(Destination)

Temporal

Availability

Information

Availability

Capacity

Availability

Is there a transit stop within walking distance?

OR is demand responsive orprivate shuttle service available?

OR is a car AND a convenientpark-and-ride available?

OR is a bicycle AND bicycle storage available?

OR is a bicycle available AND can it be brought onboard?

service availability2

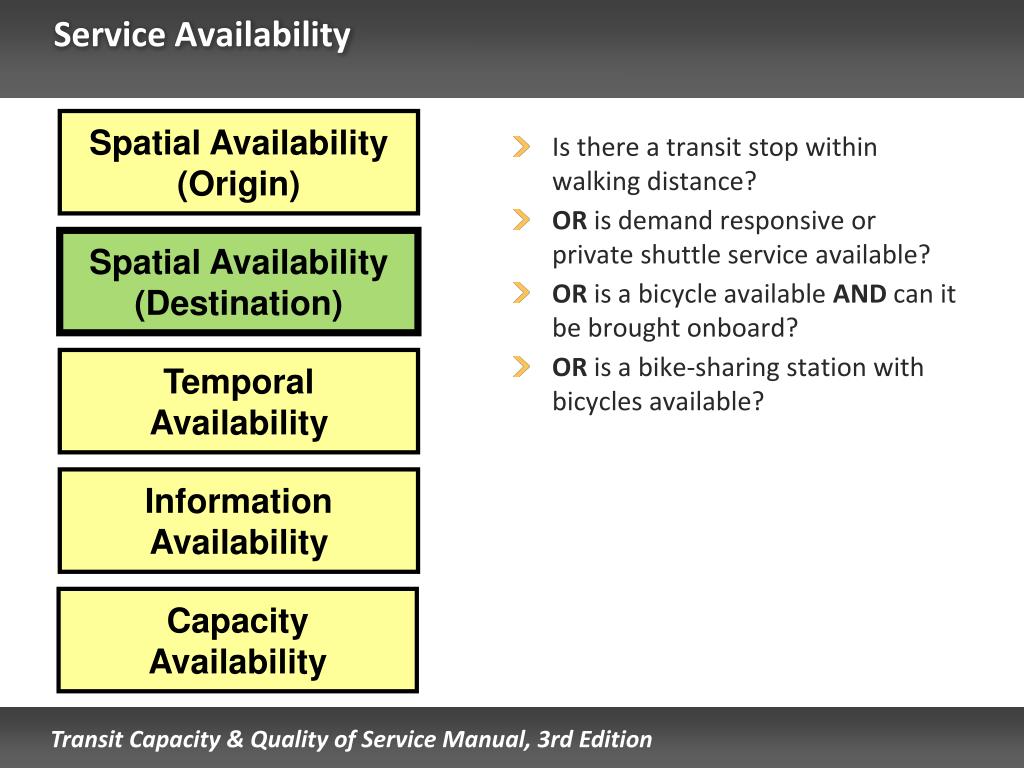

Service Availability

Spatial Availability(Origin)

Spatial Availability(Destination)

Temporal

Availability

Information

Availability

Capacity

Availability

Is there a transit stop within walking distance?

OR is demand responsive orprivate shuttle service available?

OR is a bicycle available AND can it be brought onboard?

OR is a bike-sharing station with bicycles available?

service availability3
Service Availability

Spatial Availability(Origin)

Spatial Availability(Destination)

Temporal

Availability

Information

Availability

Capacity

Availability

Is service offered at or near the times required?

service availability4
Service Availability

Spatial Availability(Origin)

Spatial Availability(Destination)

Temporal

Availability

Information

Availability

Capacity

Availability

Are the schedule and routing known?

OR is telephone, text, or Internet information offered, the service available when customers use it, and the information accurately provided?

service availability5

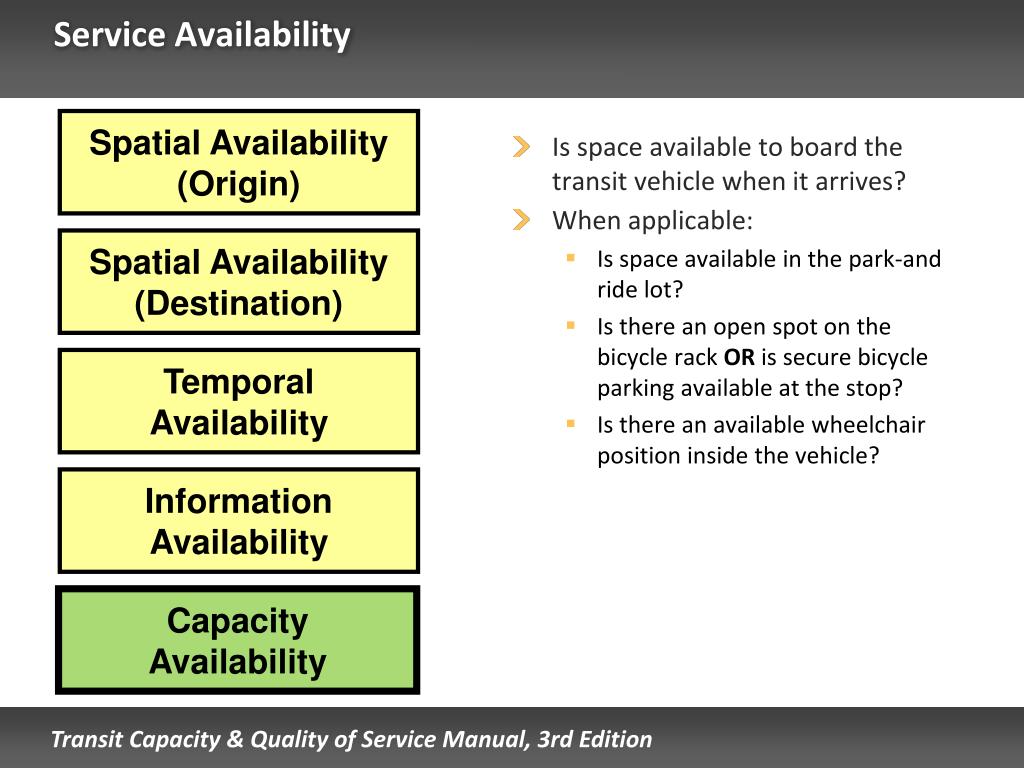

Service Availability

Spatial Availability(Origin)

Spatial Availability(Destination)

Temporal

Availability

Information

Availability

Capacity

Availability

  • Is space available to board the transit vehicle when it arrives?
  • When applicable:
    • Is space available in the park-and ride lot?
    • Is there an open spot on the bicycle rack OR is secure bicycle parking available at the stop?
    • Is there an available wheelchair position inside the vehicle?
typical comfort and convenience factors
Typical Comfort and Convenience Factors
  • In-vehicle crowding
    • Can I get a seat, will I have to stand & for how long, how crowded is it?
  • Reliability
    • Can I expect to get to my destination at the scheduled time, or do I need to allow extra time?
  • Travel time
    • How long will my door-to-door trip take? How long would the same trip take using other modes? Will I have to transfer, and how easy is it?
  • Pedestrian and bicycle environment
    • Can I get to and from transit stops safely and directly?
  • Cost
    • How much will my trip cost? How easy is it to pay my fare? How much do would other travel options cost?
  • Safety and security
  • Amenities, appearance, maintenance, driver friendliness
developing the qos framework

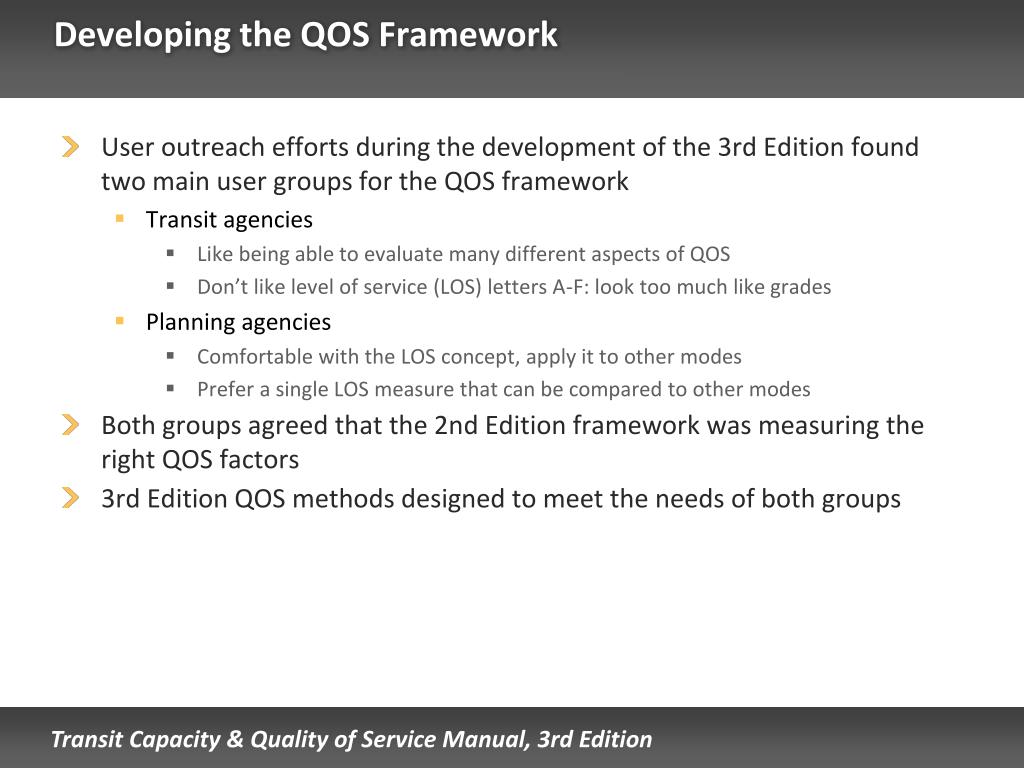

Developing the QOS Framework
  • User outreach efforts during the development of the 3rd Edition found two main user groups for the QOS framework
    • Transit agencies
      • Like being able to evaluate many different aspects of QOS
      • Don’t like level of service (LOS) letters A-F: look too much like grades
    • Planning agencies
      • Comfortable with the LOS concept, apply it to other modes
      • Prefer a single LOS measure that can be compared to other modes
  • Both groups agreed that the 2nd Edition framework was measuring the right QOS factors
  • 3rd Edition QOS methods designed to meet the needs of both groups
qos framework changes

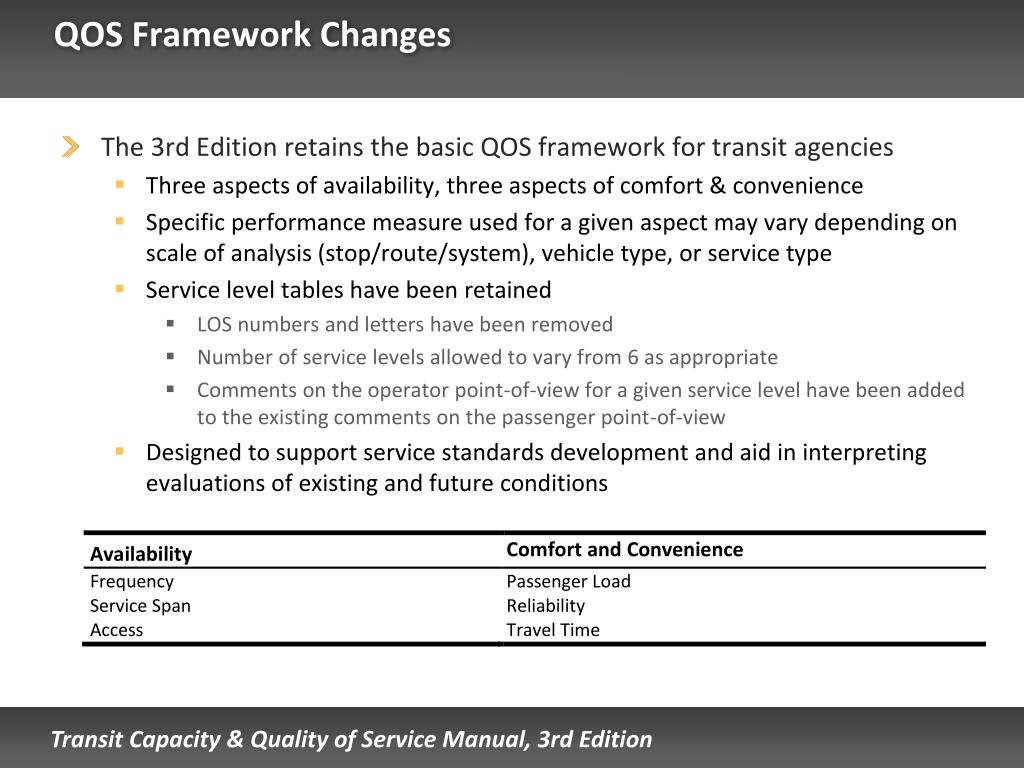

QOS Framework Changes
  • The 3rd Edition retains the basic QOS framework for transit agencies
    • Three aspects of availability, three aspects of comfort & convenience
    • Specific performance measure used for a given aspect may vary depending on scale of analysis (stop/route/system), vehicle type, or service type
    • Service level tables have been retained
      • LOS numbers and letters have been removed
      • Number of service levels allowed to vary from 6 as appropriate
      • Comments on the operator point-of-view for a given service level have been added to the existing comments on the passenger point-of-view
    • Designed to support service standards development and aid in interpreting evaluations of existing and future conditions
los approach 1st and 2nd editions
LOS Approach: 1st and 2nd Editions

TSA = transit supportive area (≥3 households/gross acre or ≥4 jobs/gross acre)

  • Service coverage example
multimodal transit los measure

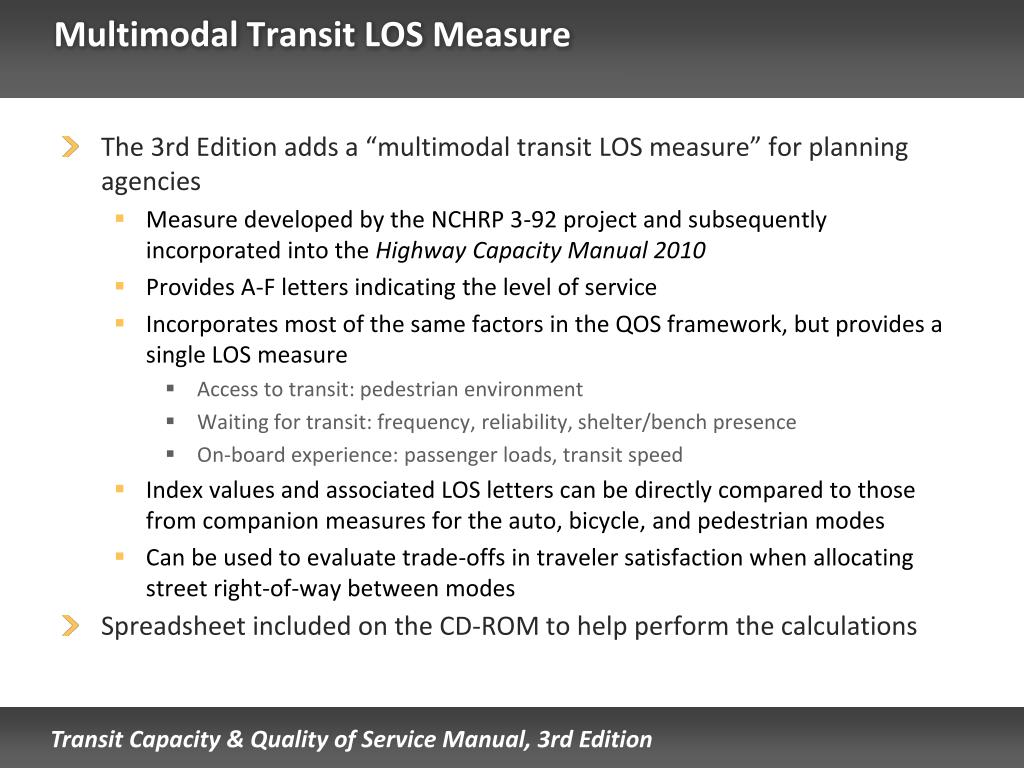

Multimodal Transit LOS Measure
  • The 3rd Edition adds a “multimodal transit LOS measure” for planning agencies
    • Measure developed by the NCHRP 3-92 project and subsequently incorporated into the Highway Capacity Manual 2010
    • Provides A-F letters indicating the level of service
    • Incorporates most of the same factors in the QOS framework, but provides a single LOS measure
      • Access to transit: pedestrian environment
      • Waiting for transit: frequency, reliability, shelter/bench presence
      • On-board experience: passenger loads, transit speed
    • Index values and associated LOS letters can be directly compared to those from companion measures for the auto, bicycle, and pedestrian modes
    • Can be used to evaluate trade-offs in traveler satisfaction when allocating street right-of-way between modes
  • Spreadsheet included on the CD-ROM to help perform the calculations
frequency

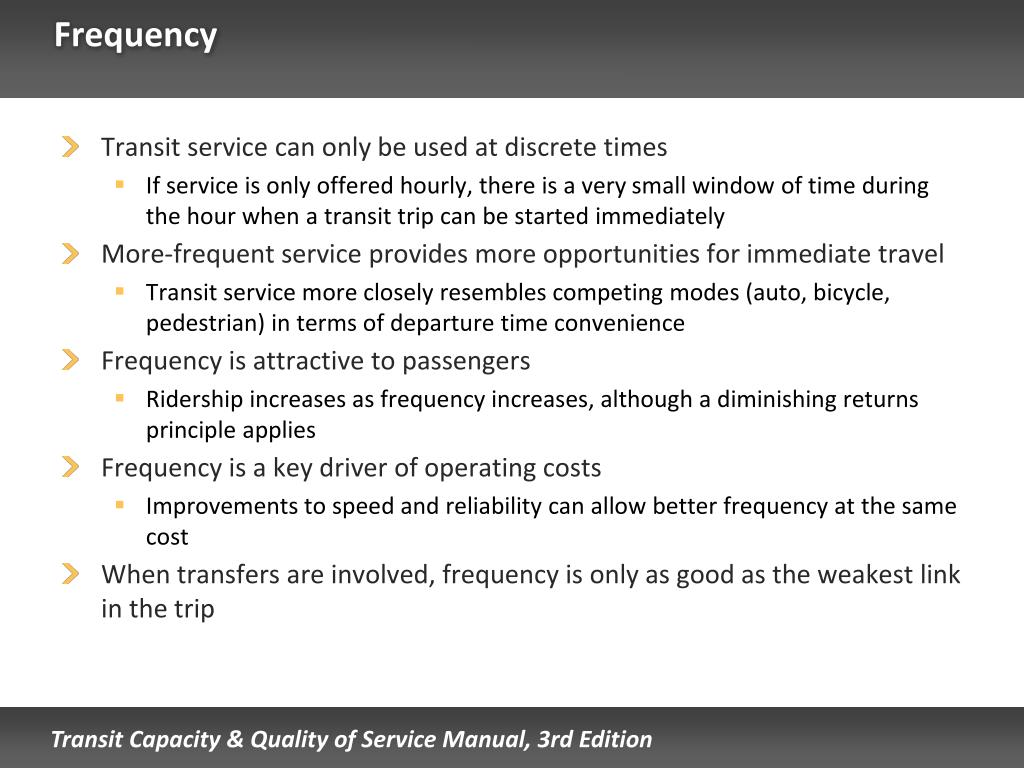

Frequency
  • Transit service can only be used at discrete times
    • If service is only offered hourly, there is a very small window of time during the hour when a transit trip can be started immediately
  • More-frequent service provides more opportunities for immediate travel
    • Transit service more closely resembles competing modes (auto, bicycle, pedestrian) in terms of departure time convenience
  • Frequency is attractive to passengers
    • Ridership increases as frequency increases, although a diminishing returns principle applies
  • Frequency is a key driver of operating costs
    • Improvements to speed and reliability can allow better frequency at the same cost
  • When transfers are involved, frequency is only as good as the weakest link in the trip
frequency qos

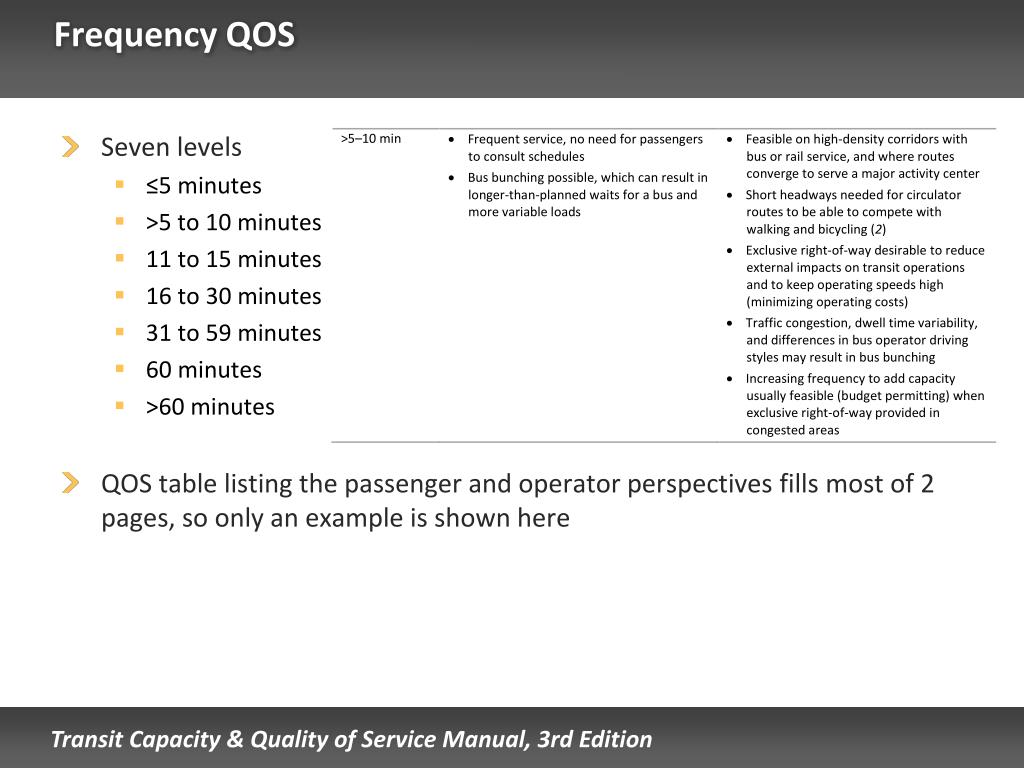

Frequency QOS
  • Seven levels
    • ≤5 minutes
    • >5 to 10 minutes
    • 11 to 15 minutes
    • 16 to 30 minutes
    • 31 to 59 minutes
    • 60 minutes
    • >60 minutes
  • QOS table listing the passenger and operator perspectives fills most of 2 pages, so only an example is shown here
service span

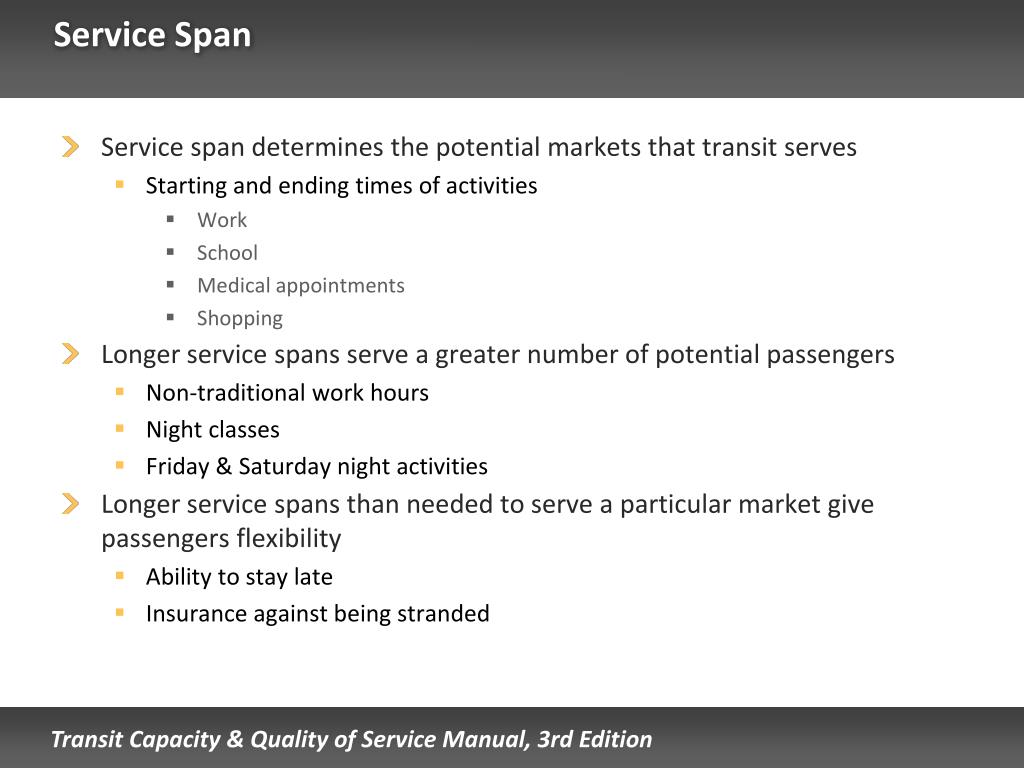

Service Span
  • Service span determines the potential markets that transit serves
    • Starting and ending times of activities
      • Work
      • School
      • Medical appointments
      • Shopping
  • Longer service spans serve a greater number of potential passengers
    • Non-traditional work hours
    • Night classes
    • Friday & Saturday night activities
  • Longer service spans than needed to serve a particular market give passengers flexibility
    • Ability to stay late
    • Insurance against being stranded
service span qos
Service Span QOS
  • Based on number of hours when service offered at least hourly
  • Six levels
    • >18 hours
    • 15 to 18 hours
    • 12 to 14 hours
    • 7 to 11 hours
    • 4 to 6 hours
    • <4 hours
service coverage
Service Coverage
  • Mode used to access transit depends on distance to travel and facilities provided along the way and at the transit stop
  • Walking is the most common access mode for urban transit service
    • 50-80% of persons walk ¼ mile or less to a local bus stop
    • 50% of persons walk ½ mile or less to rail and BRT service
    • Terrain, street connectivity, street-crossing difficulty, demography are factors
  • Bicycling can extend a stop’s market area
    • A person can cover 4 times the distance in the same time,compared to walking
  • Autos used in lower-density areas to access commuter/express bus and rail transit service when park-and-ride facilities are provided
    • Market area depends on area topography and access road network
    • Typical: 50% of demand comes from within 2.5 miles of lot, 35% of demand comes from upstream up to 10 miles away from lot
transit supportive densities
Transit-supportive Densities
  • Ridership increases with density
    • More people (potential customers) located within a given area
    • Greater propensity for a given person to use transit
  • TCQSM provides guidance on densities capable of supporting particular service and modes
    • Values dependent on how much one subsidizes transit service
    • TCQSM values assume 33% farebox recovery (2010 US average was 27%)

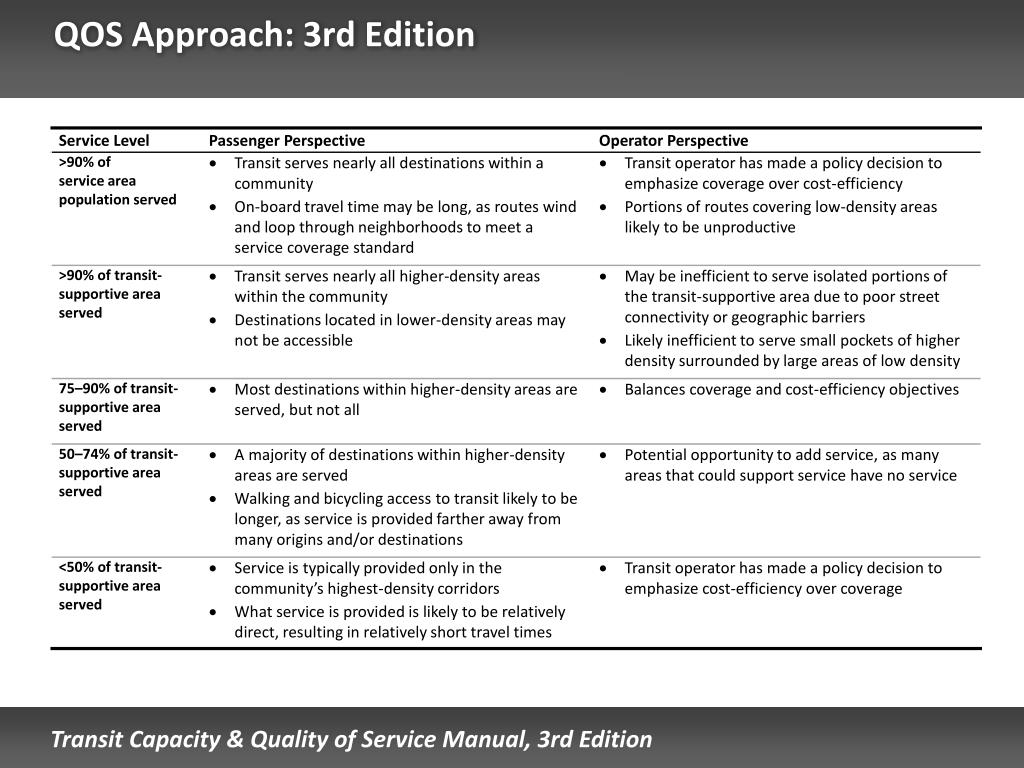

service coverage qos

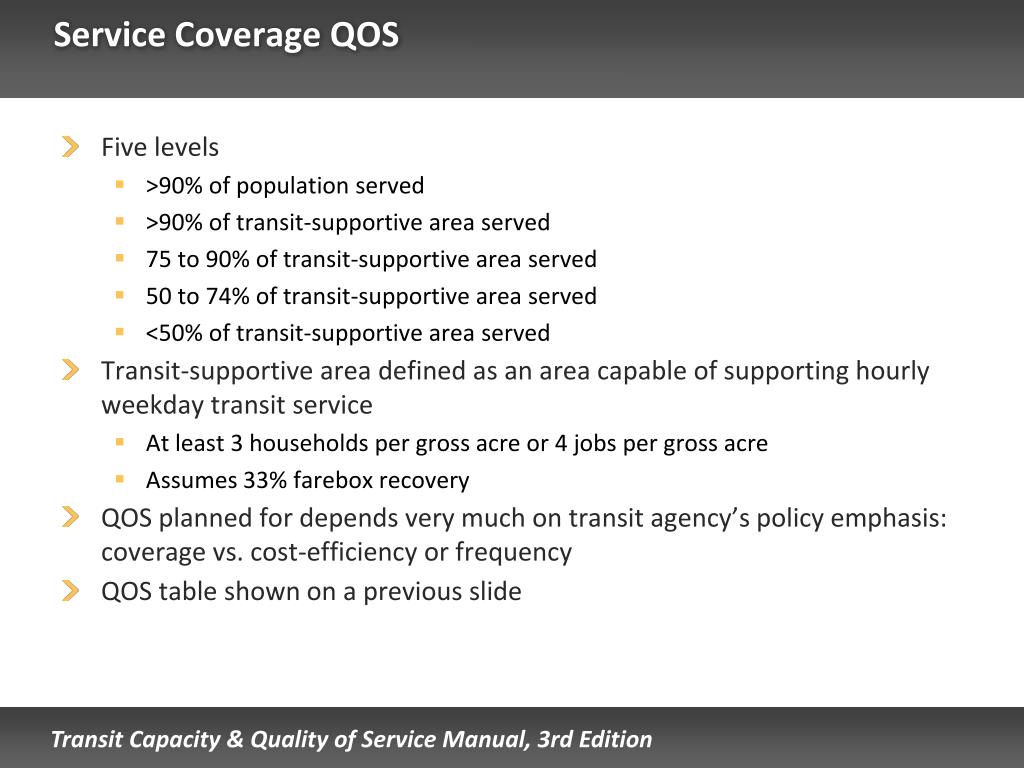

Service Coverage QOS
  • Five levels
    • >90% of population served
    • >90% of transit-supportive area served
    • 75 to 90% of transit-supportive area served
    • 50 to 74% of transit-supportive area served
    • <50% of transit-supportive area served
  • Transit-supportive area defined as an area capable of supporting hourly weekday transit service
    • At least 3 households per gross acre or 4 jobs per gross acre
    • Assumes 33% farebox recovery
  • QOS planned for depends very much on transit agency’s policy emphasis: coverage vs. cost-efficiency or frequency
  • QOS table shown on a previous slide
passenger loads
Passenger Loads
  • Passengers perceive travel in crowded conditions as being more onerous than travel in less-crowded conditions, even when they have a seat
    • Value of time begins to increase when 80% of seats are occupied
    • Standing passengers’ perceived value of time considerably higher than seated passengers’
  • Cost-effectiveness improves as passenger loads increase
  • Passenger throughput generally improves as passenger loads increase
  • Passenger boarding & alighting times increase as the number of standing passengers on-board increases

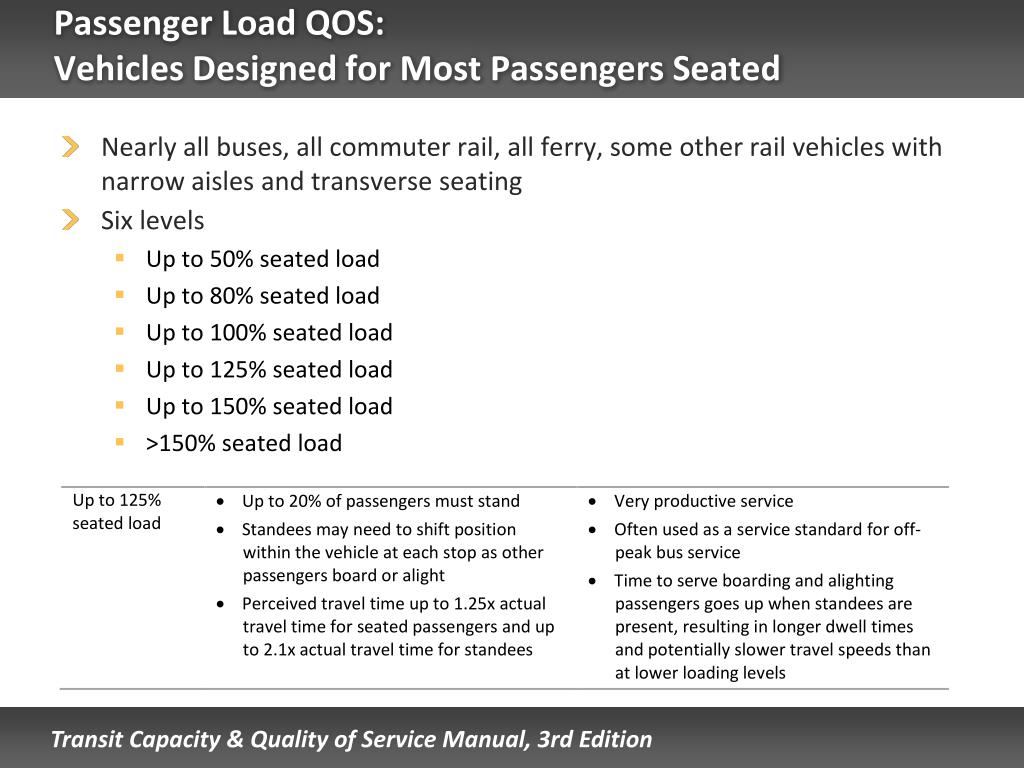

passenger load qos vehicles designed for most passengers seated
Passenger Load QOS:Vehicles Designed for Most Passengers Seated
  • Nearly all buses, all commuter rail, all ferry, some other rail vehicles with narrow aisles and transverse seating
  • Six levels
    • Up to 50% seated load
    • Up to 80% seated load
    • Up to 100% seated load
    • Up to 125% seated load
    • Up to 150% seated load
    • >150% seated load

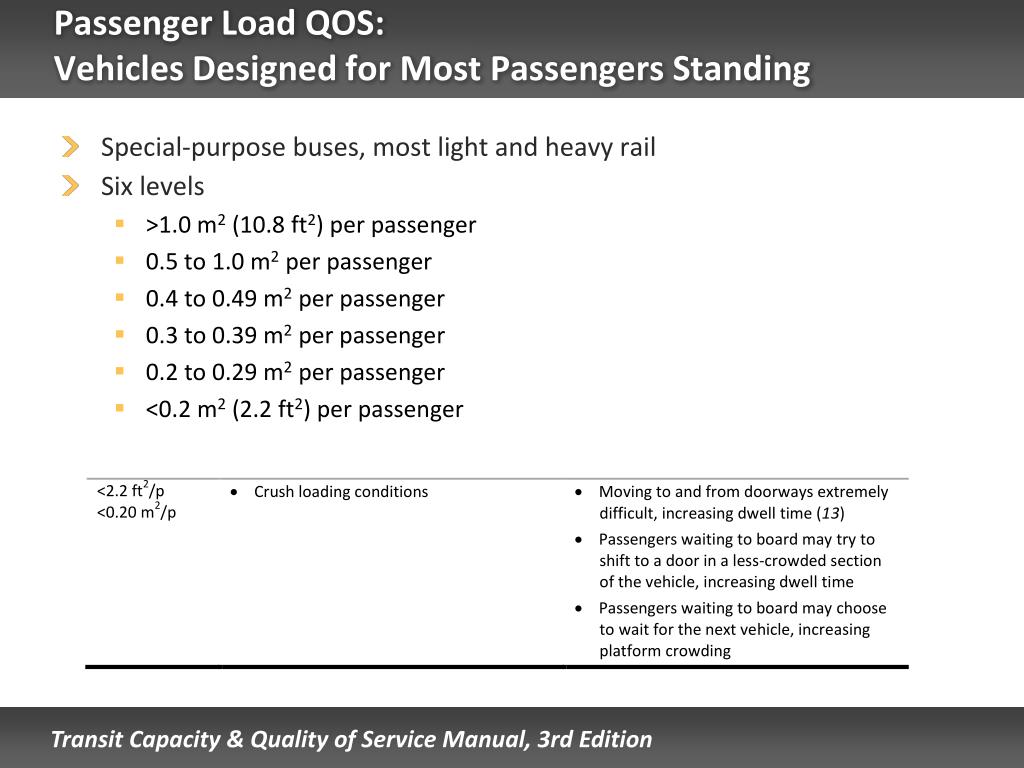

passenger load qos vehicles designed for most passengers standing
Passenger Load QOS:Vehicles Designed for Most Passengers Standing
  • Special-purpose buses, most light and heavy rail
  • Six levels
    • >1.0 m2(10.8 ft2) per passenger
    • 0.5 to 1.0 m2 per passenger
    • 0.4 to 0.49 m2 per passenger
    • 0.3 to 0.39 m2 per passenger
    • 0.2 to 0.29 m2 per passenger
    • <0.2 m2(2.2 ft2) per passenger
reliability
Reliability
  • The more unreliable the service, the more extra time passengers have to allow for their trip
    • Arriving at stops earlier than necessary
    • Taking an earlier trip than necessary
  • The more unreliable the service, the more recovery time that agencies need to insert into the schedule to compensate
    • Time could be better used in service (operating the route more frequently, operating a longer route)
  • Reliability issues depend in part on the scheduled headway
    • Short headways: bus bunching and train stopping/starting
    • Long headways: on-time performance, early departures
reliability qos headway based service
Reliability QOS:Headway-based Service
  • Applicable to service that operates at 10-min headways or better,or to service without fixed departure times
  • Based on headway variability (standard deviation of headways divided by the scheduled headway)
    • Described in terms of the probability that a passenger arriving at a stop will experience a vehicle more than ½ headway off the scheduled headway
  • Six service levels
reliability qos schedule based service
Reliability QOS:Schedule-based Service
  • Applicable to service that operates to a fixed schedule
  • Based on on-time performance
    • Defined as a departure no more than 1 minute early and up to 5 minutes late
  • Five service levels
    • 95-100%
    • 90-94%
    • 80-89%
    • 70-79%
    • <70%
travel time
Travel Time
  • Travel time is an important consideration in mode choice
  • Travel time impacts operating costs: the slower the route, the more vehicles that are required to be in service to provide a given headway
travel time qos
Travel Time QOS

Based on the ratio of in-vehicle transit time to in-vehicle auto time

Six service levels

multimodal transit los
Multimodal Transit LOS
  • Measure draws from research into ridership response to QOS changes and passenger values of time
  • Three main elements:
    • Frequency (average % increase in ridership as frequency improves)
    • Travel time (average % increase in ridership as travel time decreases)
    • Pedestrian environment (adjusts LOS up or down based on particularly good or bad pedestrian access to a stop)
  • Travel times are based on perceived travel times, expressed as a travel time rate (minutes per mile)
    • Bus stop amenities (value of time of shelter, bench)
    • Reliability (excess wait time)
    • Passenger load (perceived travel time rate)
    • Travel speed (actual travel time rate)
multimodal transit los1
Multimodal Transit LOS
  • Transit wait-ride score represents ridership for the route being evaluated, relative to a route with hourly headways and a baseline speed (typically 15 mph, 10 mph in major city downtown areas)
    • Score of 2.0 indicates a route would be expected to attract twice the ridership of the same route operating hourly with a 15 mph average speed
  • Transit LOS score incorporates the wait-ride score and the pedestrian LOS score and adjusts the result to use the same scale as the other modal LOS scores:

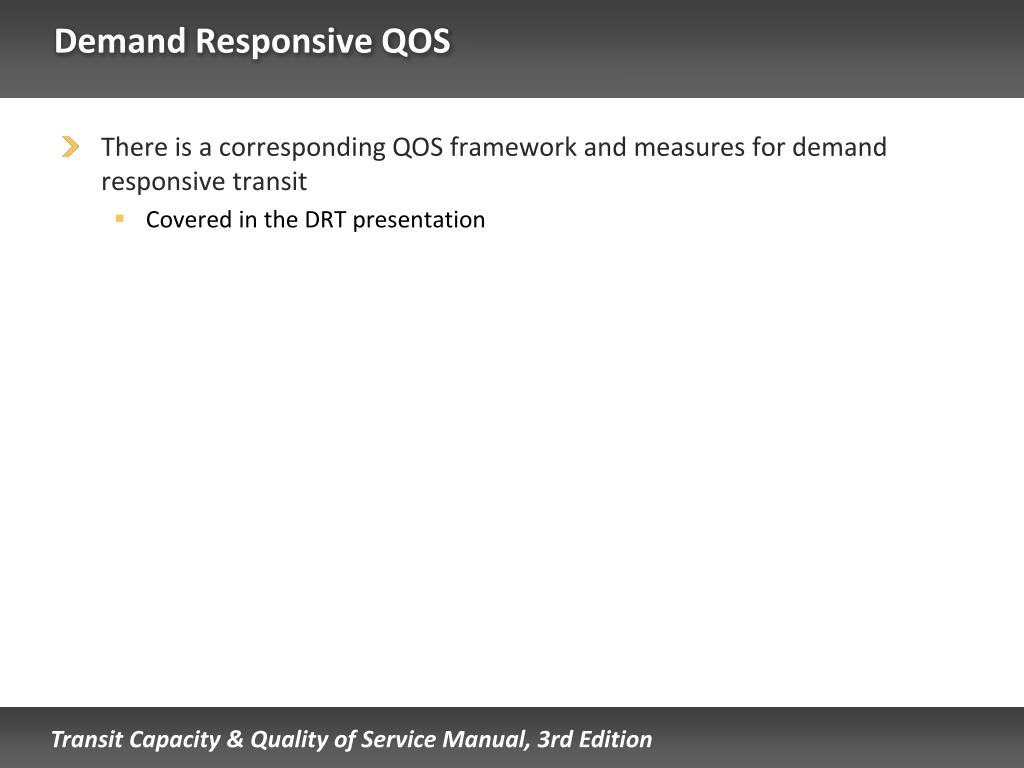

demand responsive qos
Demand Responsive QOS
  • There is a corresponding QOS framework and measures for demand responsive transit
    • Covered in the DRT presentation

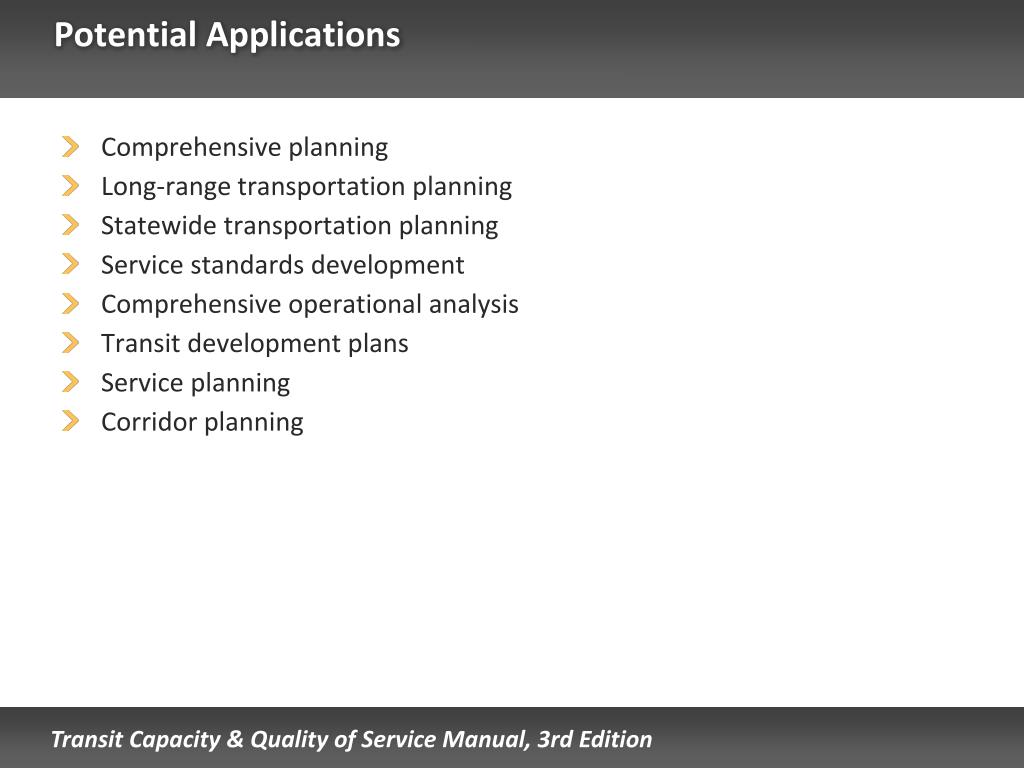

potential applications
Potential Applications
  • Comprehensive planning
  • Long-range transportation planning
  • Statewide transportation planning
  • Service standards development
  • Comprehensive operational analysis
  • Transit development plans
  • Service planning
  • Corridor planning
comprehensive planning
Comprehensive Planning
  • Multimodal comprehensive plans provide goals, policies, and objectives for the transit service provided, or desired to be provided, within a city or county
    • Service goals may be aspirational (city/county is not the service provider)
    • Service goals may become the basis for service standards (city/county is the service provider)
  • QOS measures relating to availability can be used in setting objectives
    • For example, minimum span of service for trunk and local routes
  • Information in QOS chapters can be used to demonstrate the impact of different land use densities, street connectivity, and sidewalk provision policies on transit access
    • Impact on ridership
    • Impact on number of households/persons with transit access
    • Impact on transit operating costs (e.g., number of route miles required to meet a service coverage goal)
long range transportation planning
Long-range Transportation Planning
  • LRTPs identify city- or region-wide transportation needs over a longer period of time (e.g., 20 years)
    • If plan preparer is not the service provider, LRTPs often focus on the actions that can be taken to support transit (e.g., sidewalk improvements)
    • If plan preparer is the service provider, the transit element may be more specific and contain many of the elements of a transit development plan
  • A common application of the TCQSM 1st and 2nd Editions was to evaluate existing transit service quality
  • Much more valuable to also use it to evaluate service quality provided by various future alternatives, to aid decision-making
  • Possible types of analysis:
    • Activity center analysis (origin–destination trips)
    • Corridor analysis (transit streets, priority/frequent bus network)
    • Service coverage analysis (areawide, corridor)
statewide transportation planning
Statewide Transportation Planning
  • QOS measures derivable from National Transit Database data can be used to track trends in fixed-route transit provision across the state
    • Statewide, or broken out into population ranges
  • Example measures
    • Average system peak-period headway
    • Average system speed (revenue miles/revenue hours)
    • System service span
  • Measures require no special data collection
service standards development
Service Standards Development
  • Service standards are used to state the QOS the transit agency intends to deliver and to compare actual performance to promised/targeted performance
  • The redesign of the QOS framework for the 3rd Edition was done with service standards development in mind
  • Set service standards based on desired passenger QOS to be delivered and available agency resources
  • The comments on the passenger and operator perspectives for each service level in the QOS tables can be used to match agency goals to a corresponding service level
comprehensive operational analysis
Comprehensive Operational Analysis
  • COAs provide a detailed, route-by-route evaluation of existing service and an evaluation of systemwide operations
    • May be conducted in conjunction with, or immediately prior to, a transit development plan update
  • QOS measures can be incorporated into a COA to:
    • Describe evaluation results in terms of passenger experiences
    • Compare results to established service standards
    • Compare changes in results from the previous analysis
  • When archived AVL and APC data are not available to an agency, COAs provide a rare opportunity to evaluate in detail the comfort and convenience aspects of transit service
    • Passenger loads, reliability, travel time/speed
  • Availability measures can be used as part of an environmental justice analysis, comparing relative service quality between areas
transit development plans
Transit Development Plans
  • TDPs set out a transit agency’s near-term service strategy
  • Example applications:
    • Mapping current and/or planned conditions (route-by-route, street-by-street)
      • Frequency, hours of service, loading, reliability, coverage
      • Service levels help to group routes on the basis of similar service quality
    • Prioritizing improvments
      • Loading, reliability, transit–auto travel time
    • Service equity & environmental justice comparisons
      • Comparing relative service quality between communities
    • Peer reviews
      • Relatively few QOS measures derivable from National Transit Database data(see statewide transportation planning slide for examples)
      • May be possible to directly contact peers to obtain additional QOS-related information
      • Exhibit 5-42 gives examples of potential measures and data sources
service planning
Service Planning
  • Service monitoring
    • Regularly compare existing service to adopted service standards, and make adjustments as needed when service falls outside the standards
    • Loading, reliability are commonly monitored
    • QOS tables can be used to set realistic expectations
  • Service development
    • Identify service requirements for new/future developments when fully built out
    • Identify and prioritize origin–destination patterns that may require quicker transit connections
    • Prioritize locations/corridors for transit prefererential treatments and/or operations measures to improve speed and reliability
corridor planning
Corridor Planning
  • Corridor master plans, preliminary design/project development studies, and premium transit studies address improvements over an extended section of roadway
    • Transit may the focus of the study, or one of multiple modes addressed
  • Example applications:
    • Scoping transit improvements (guideways, spot improvements)
    • Identifying access improvements to transit stops
    • Determining required service frequency to meet a given ridership demand at a given passenger load service standard
more information
More Information
  • TCRP Report 165: TCQSM
    • Chapter 4, Quality of Service Concepts
    • Chapter 5, Quality of Service Methods
  • The TCQSM is available as:
    • Free individual printed copies and PDF downloads through the TCRP Dissemination Programhttp://www.tcrponline.org
    • Free PDF downloads directly from TCRPhttp://www.trb.org/TCRP/Public/TCRP.aspx (Publications section)or simply do an Internet search for the report number (e.g., TCRP Report 165)
    • Individual or multiple copy purchases from the TRB Bookstorehttp://books.trbbookstore.org/
acknowledgments and permissions
Acknowledgments and Permissions
  • Presentation author
    • Paul Ryus (Kittelson & Associates, Inc.)
  • Photo credits
    • All photos: Paul Ryus
  • This presentation was developed through TCRP Project A-15C
    • Research team: Kittelson & Associates; Parsons Brinkerhoff, Quade & Douglass; KFH Group; Texas A&M Transportation Institute; and Arup
    • This presentation and its contents may be freely distributed and used, with appropriate credit to the presentation authors and photographers, and the Transit Cooperative Research Program
