management of open fractures

Management of Open Fractures

Christine Kennedy

Pediatric Emergency Fellow

October 22, 2009

  • Review the different types of open fractures
  • Discuss the current treatment of open fractures
  • Review the literature supporting non-operative management of Type 1 open fractures
introductory case
Introductory Case
  • 8 yr boy with a midshaft radius & ulna #
  • Obvious deformity on clinical exam
  • Small scab on volar surface of forearm
    • not actively bleeding
  • Xray….
  • Question was…Does this need to go to the OR?
  • Ortho consulted…advised to attempt a closed reduction and give a dose of Ancef
  • If successful, mark wound area on cast, send home on Keflex and F/U in ortho clinic
  • During the reduction…wound started to ooze on my foot…
open fracture classification gustilo and anderson
Open Fracture ClassificationGustilo and Anderson
  • Type I
    • Clean wound <1 cm in length
    • # is simple, transverse or oblique with little comminution
  • Type II
    • Laceration >1cm without extensive soft tissue damage, flaps or avulsions
  • Type III
    • Extensive soft tissue damage, crushing or a traumatic amputation
      • Subtypes 3A, 3B, 3C
open fracture classification
Open Fracture Classification
  • Type 3 subtypes
    • 3A: Adequate soft tissue coverage
    • 3B: Inadequate soft tissue coverage
    • 3C: Arterial injury requiring repair


open fracture classification2
Open Fracture Classification

Type I

Type I

Type IIIc

Type IIIb

open fracture classification gustilo and anderson1
Open Fracture ClassificationGustilo and Anderson
  • Type I Infection rate 0-2%
    • Clean wound <1 cm in length
    • # is simple, transverse or oblique with little comminution
  • Type II Infection rate 2-7%
    • Laceration >1cm without extensive soft tissue damage, flaps or avulsions
  • Type III Infection rate 10-25%
    • Extensive soft tissue damage, crushing or a traumatic amputation

Gustilo et al. Current Concepts Review The Management of Open Fractures.

Journal of Bone and Joint Surgery. 1990;72:299-304.

open fracture vs abrasion1

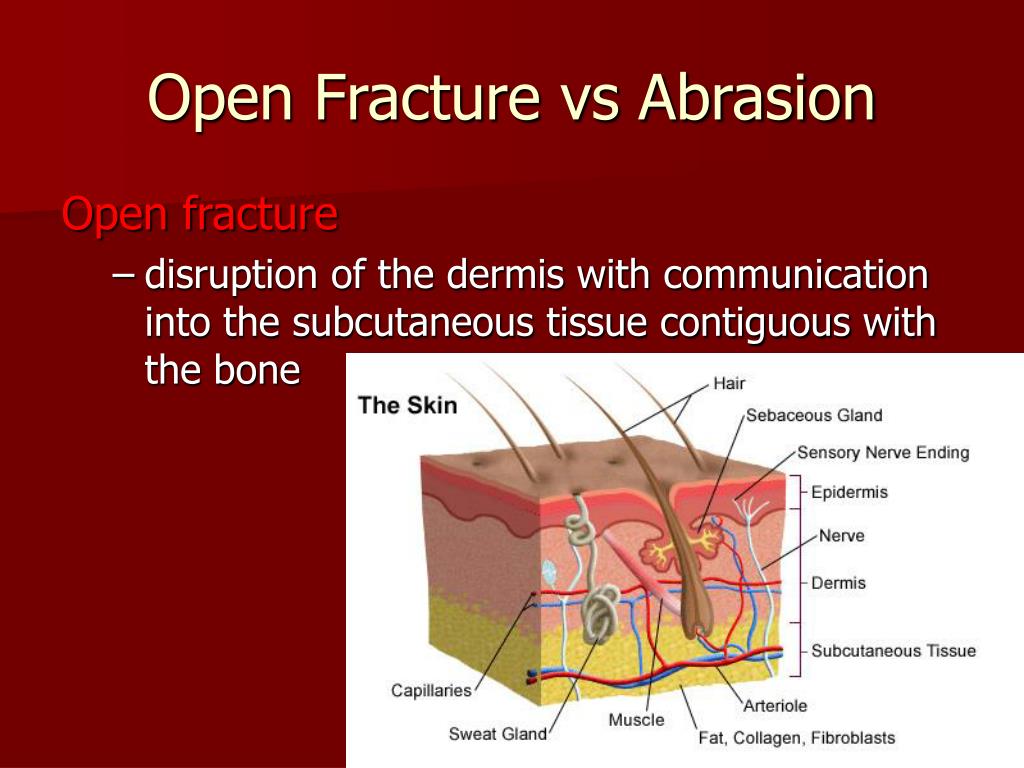

Open Fracture vs Abrasion

Open fracture

  • disruption of the dermis with communication into the subcutaneous tissue contiguous with the bone
open fracture vs abrasion2

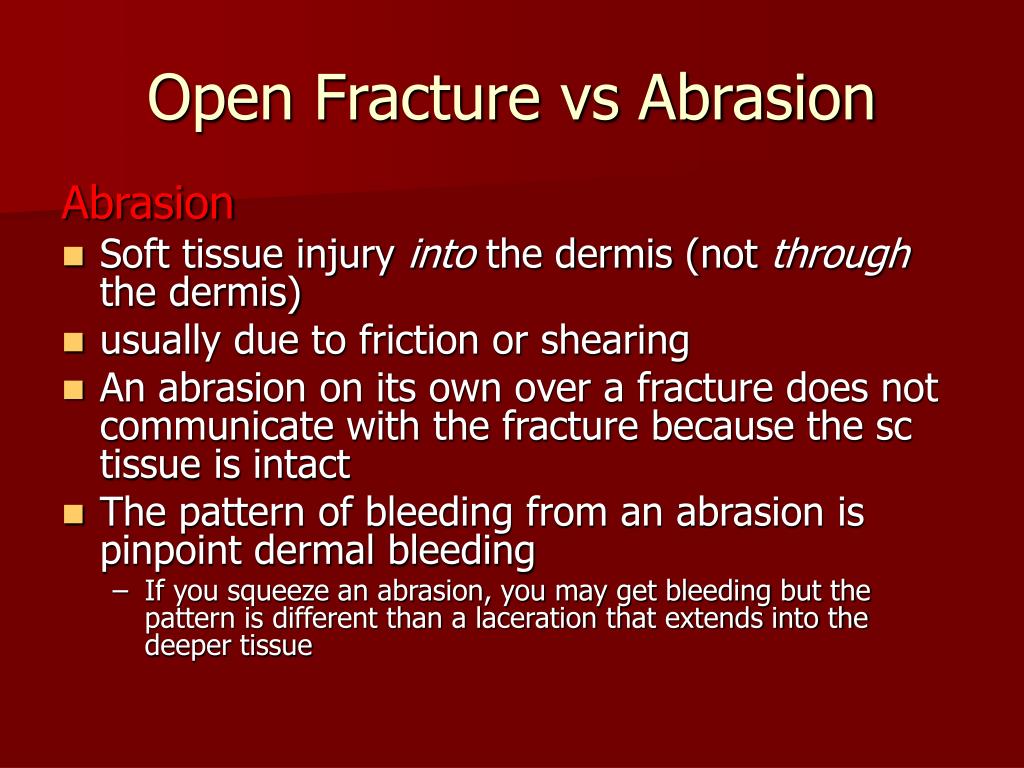

Open Fracture vs Abrasion


  • Soft tissue injury into the dermis (not through the dermis)
  • usually due to friction or shearing
  • An abrasion on its own over a fracture does not communicate with the fracture because the sc tissue is intact
  • The pattern of bleeding from an abrasion is pinpoint dermal bleeding
    • If you squeeze an abrasion, you may get bleeding but the pattern is different than a laceration that extends into the deeper tissue
how do the orthopedic surgeons decide

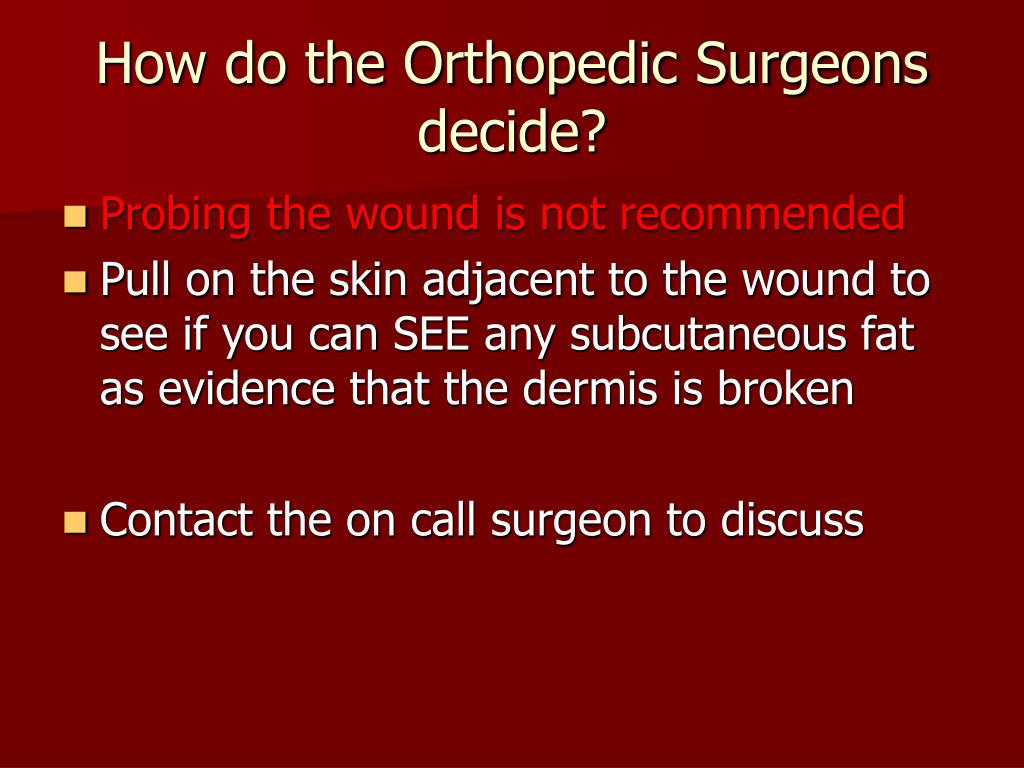

How do the Orthopedic Surgeons decide?
  • Probing the wound is not recommended
  • Pull on the skin adjacent to the wound to see if you can SEE any subcutaneous fat as evidence that the dermis is broken
  • Contact the on call surgeon to discuss
how common are open fractures
How Common are Open Fractures?
  • For forearm fractures (most common fracture pattern in children)
    • 0.5%-4.5% are open

Luhmann et al. Complications and Outcome of Open Pediatric Forearm Fractures. J Pediatr Orthop 2004;24:1-6.

management of open fractures1
Management of Open Fractures
  • Traditionally
    • Considered a “true surgical emergency”
    • Required operative debridement and fracture stabilization
    • “Golden Period” was 6-12 hours from time of patient arrival
management of open fractures2
Management of Open Fractures
  • Now….
  • Type II & III
    • Require surgical debridement
  • Wounds with high energy injuries result in devitalized tissue, local edema & ischemia
  • This alters the ability of local host defenses to resist infection
management of open fractures3
Management of Open Fractures
  • Type 1
    • Operative vs non-operative, why the controversy?
type 1 open fractures
Type 1 Open Fractures
  • Maintain a relatively intact soft tissue envelope therefore the vascular supply to the zone of injury is preserved
  • This decreases the risk factors for development of infection
    • Devitalized tissue
    • Ischemia
    • Edema
type 1 open fractures1
Type 1 Open Fractures
  • Allows adequate penetrance of the host defense mechanisms and IV antibiotics to protect further against possible infection
type 1 open fractures2
Type 1 Open Fractures
  • Routine operative debridement might cause increased soft tissue trauma, periosteal stripping and osseous devascularization
type 1 open fractures3
Type 1 Open Fractures
  • Children have better healing potential than adults
    • Differences in the malleability & strength of the bone
    • Better vascular supply to the extremities
    • Thicker periosteum

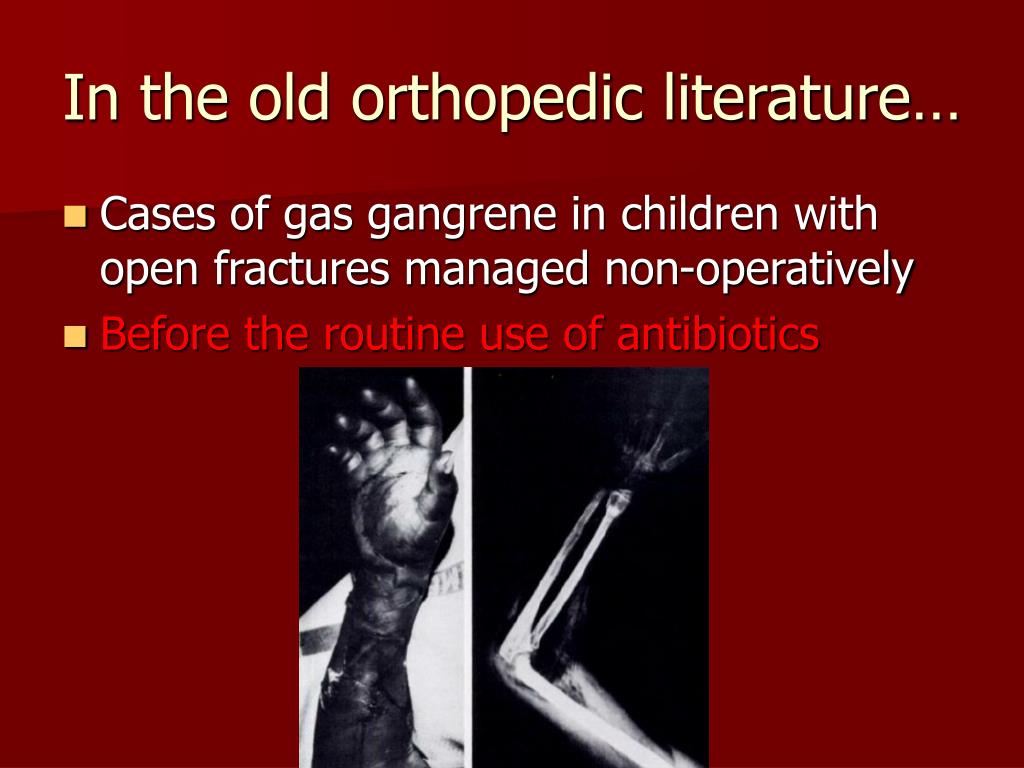

in the old orthopedic literature
In the old orthopedic literature…
  • Cases of gas gangrene in children with open fractures managed non-operatively
  • Before the routine use of antibiotics
infection rate with operative management
Infection Rate with Operative Management
  • Literature’s infection rate for type 1 open fractures treated operatively is an average of 1.9%*
organisms cultured from open fractures
Organisms Cultured from Open Fractures
  • The majority of bacteria cultured are normal skin flora
    • Staphylococcus epidermidis
    • Proprionibacterium acnes
    • Corynebacterium species
organisms cultured from open fractures1

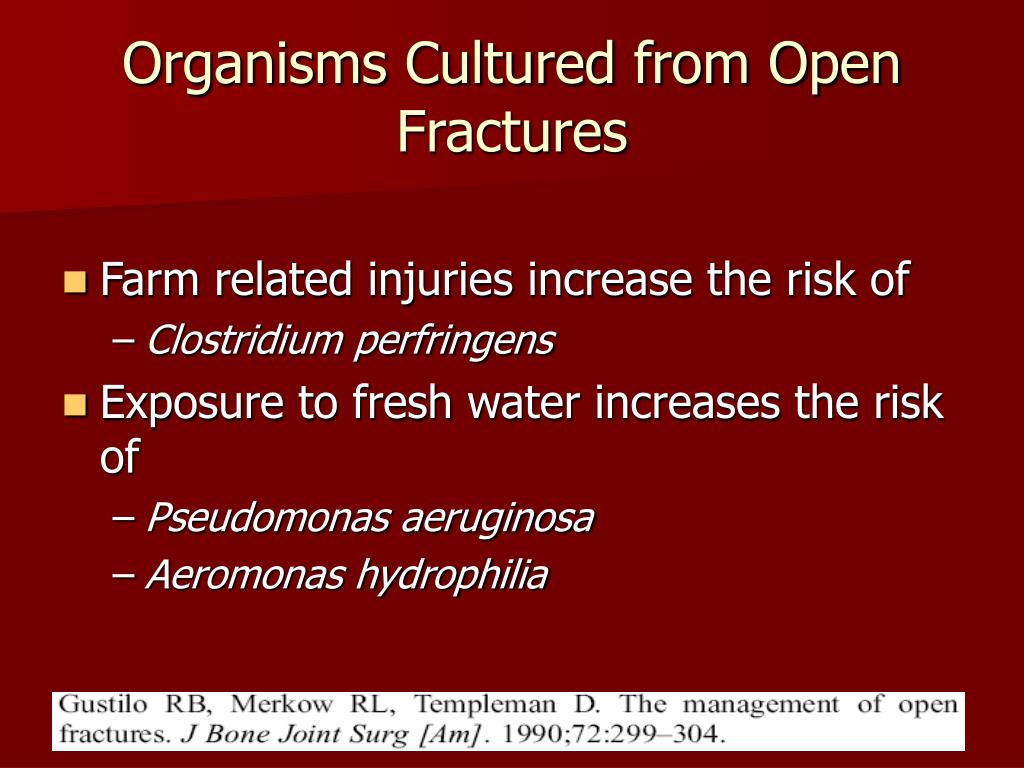

Organisms Cultured from Open Fractures
  • Farm related injuries increase the risk of
    • Clostridium perfringens
  • Exposure to fresh water increases the risk of
    • Pseudomonas aeruginosa
    • Aeromonas hydrophilia
organisms cultured from open fractures2
Organisms Cultured from Open Fractures
  • The frequent growth of S. aureus & P. aeruginosa from patients who have an infection contrasts with the infrequent growth of these organisms on initial wound culture
  • Suggests that these infections are acquired in the hospital
importance of antibiotics
Importance of Antibiotics
  • Prospective, double blind, randomized study
  • Infection rate was
    • 13.9% in placebo group
    • 9.7% in group treated with Penicillin & Streptomycin
    • 2.3% in group treated with a 1st generation cephalosporin

Patzakis et al. The Role of Antibiotics in the Management of Open Fractures. The Journal of Bone and Joint Surgery 1974;56:532-541.

importance of antibiotics1

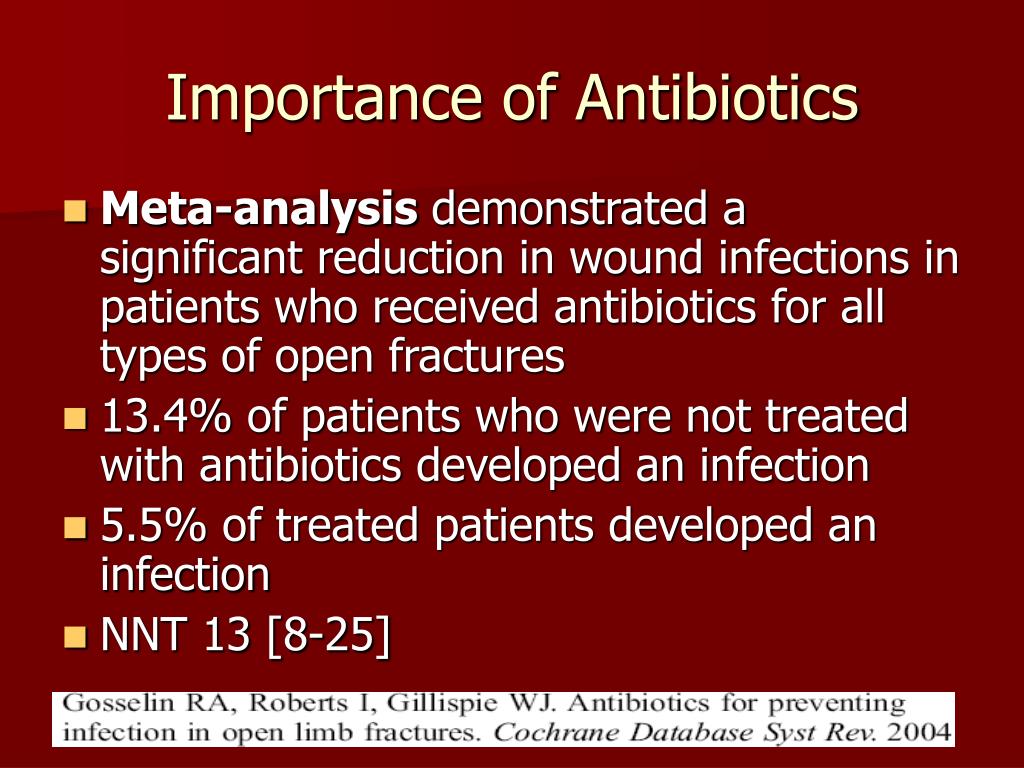

Importance of Antibiotics
  • Meta-analysis demonstrated a significant reduction in wound infections in patients who received antibiotics for all types of open fractures
  • 13.4% of patients who were not treated with antibiotics developed an infection
  • 5.5% of treated patients developed an infection
  • NNT 13 [8-25]
which antibiotic
Which Antibiotic?
  • Most common pathogens causing infections after open fractures
    • Staphylococcus aureus
    • Facultative gram-negative bacilli
  • In type I open fractures
    • 1st generation cephalosporin sufficient
  • In type II & III
    • Combinations therapy with a cephalosporin and an aminoglycoside OR 3rd generation cephalosporin
timing of antibiotics is important
Timing of Antibiotics is Important
  • One study with over 1000 open fractures found that starting antibiotics within 3 hours of injury lowered the infection rate*
    • Infection rate 4.7% if antibiotics w/in 3 hours
    • Infection rate 7.4% if antibiotics started >3h after injury
  • Of note, surgical debridement was performed for all open fractures in this study
guidelines for antibiotic length
Guidelines for Antibiotic Length?
  • No standardized protocol for length of Abx following open fractures
  • One report published which demonstrated no difference b/w 1 & 5 days of IV Abx
  • In the adult literature, anywhere from 1-3 days of antibiotics is the recommendation

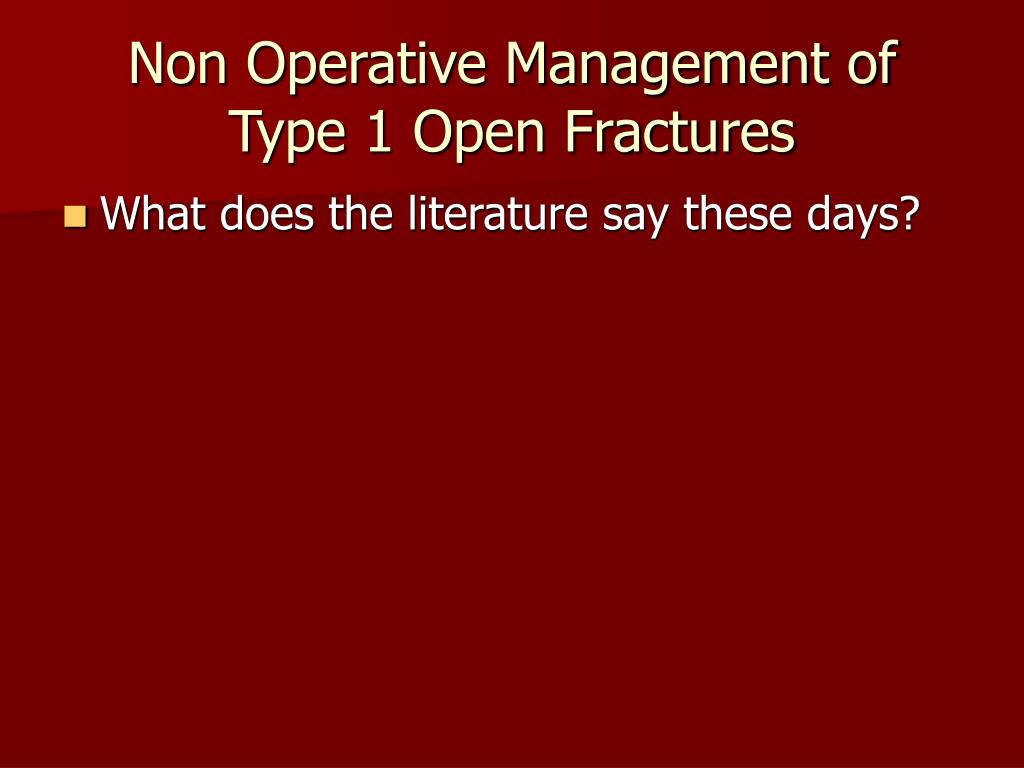

non operative management of type 1 open fractures
Non Operative Management of Type 1 Open Fractures
  • What does the literature say these days?
Reviews the results of non operative management of type I open fractures in children
  • Retrospective chart review (1998-2003)
  • 40 patients followed until healed
    • clinically & radiographically
  • 1 deep infection occurred
    • overall infection rate 2.5%
0% infection rate in the 32 upper extremity type I open fractures
  • 0% infection rate in the 23 patients under 12 years
details of study 1
Details of Study #1
  • 40 patients diagnosed with type 1 open fracture
    • 33 boys, 7 girls
  • Age 10 years [range 4-15y]
  • Fracture distribution
    • 8 tibia
    • 18 diaphyseal radius & ulna
    • 14 distal radius & ulna
  • Mechanism
    • Most low-moderate energy
      • Falls from bikes, skateboards, rollarblades, scooters
    • 7 kids hit by motor vehicle
details of study 11
Details of Study #1

Treatment: Initiated in the ED

  • Initiation of IV antibiotics
  • Cleansing and/or irrigation of the open wound with Betadine & saline
  • Protecting the wound with Xeroform & sterile gauze
  • Tetanus prophylaxis if needed
  • Closed reduction & immobilization
details of study 12

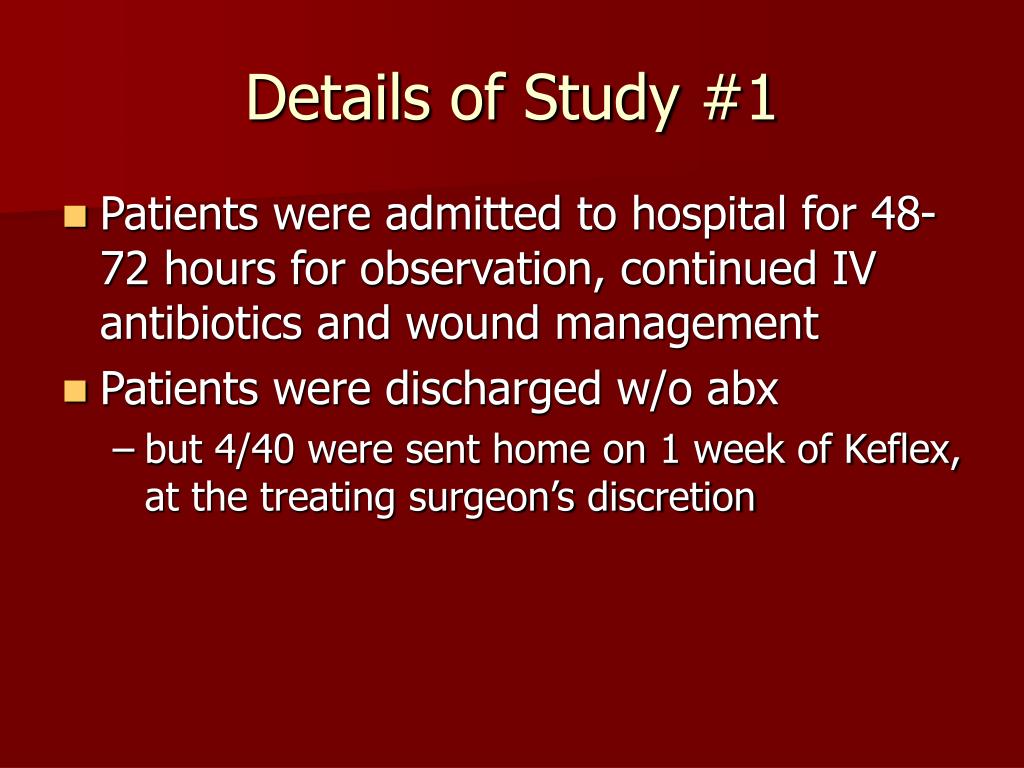

Details of Study #1
  • Patients were admitted to hospital for 48-72 hours for observation, continued IV antibiotics and wound management
  • Patients were discharged w/o abx
    • but 4/40 were sent home on 1 week of Keflex, at the treating surgeon’s discretion
details of study 13
Details of Study #1
  • Patients were followed until fracture union
    • Clinically: no longer tender at fracture site
    • Radiologically: bridged by sufficient callus
details of study 14

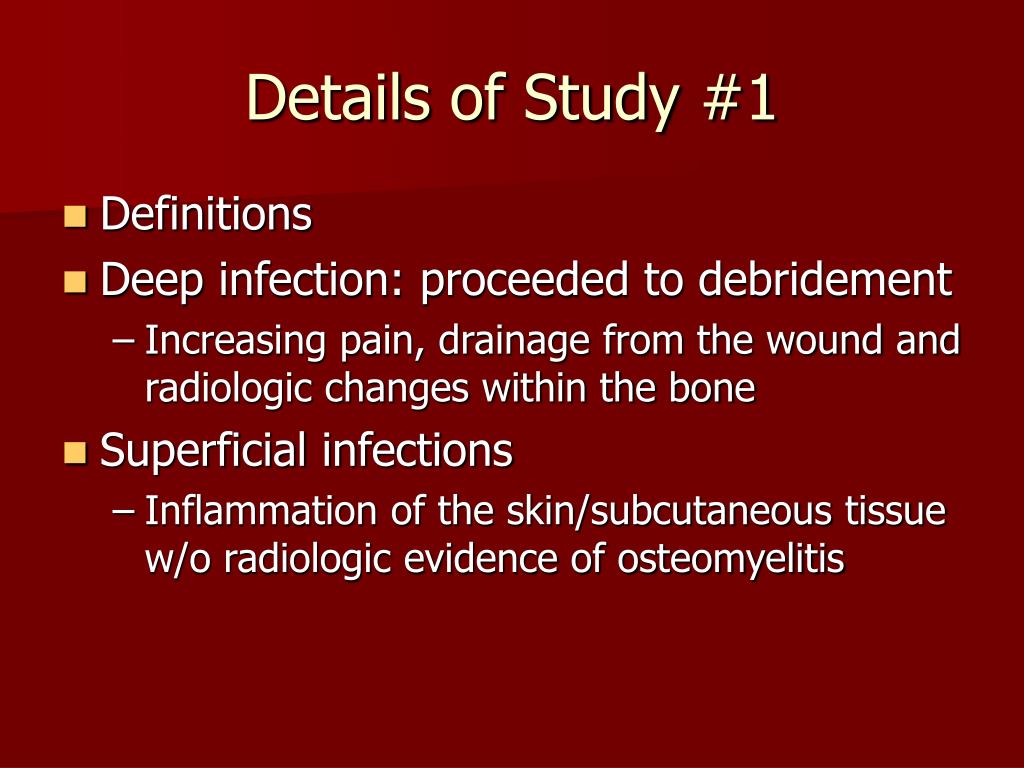

Details of Study #1
  • Definitions
  • Deep infection: proceeded to debridement
    • Increasing pain, drainage from the wound and radiologic changes within the bone
  • Superficial infections
    • Inflammation of the skin/subcutaneous tissue w/o radiologic evidence of osteomyelitis
results of study 1
Results of Study #1
  • Average hospital stay: 2.5 days (1-5)
  • No documented fevers
  • No patients developed malunion/nonunion
  • No patients developed osteomyelitis
  • No wound complications during admission
  • No superficial infections
  • 1 deep infection of the tibia (at 3 months)
results of study 112
Results of Study #1
  • The 1 infection
    • 15 yr male, comminuted midshaft tibia #
    • Fall down the stairs
    • Small nidus of dead bone found anterior to the fracture site--->caused a draining sinus to form over the anterior tibia
    • Sinus tract was excised & the dead bone debrided in the OR
    • Patient made a full recovery
conclusions study 1
Conclusions Study #1
  • Non operative management of Pediatric type I open fractures is safe and effective
  • Non operative management does not appear to affect the healing potential
  • Children over age 12 with lower extremity type I open fractures are at risk for failing non-operative management
    • Should consider traditional irrigation and debridement of the wound in the OR
Evaluates the results of non operative management of grade 1 open fractures treated in the ED or with a <24hour admission (for IV antibiotics)
  • Retrospective chart review (2000-2006)
  • 25 patients followed until healed (clinically and radiographically)
  • 1 patient had persistent draining from the wound site & fever (overall infection rate 4%)
details of study 2
Details of study #2
  • 25 patients diagnosed with type 1 open fracture
    • 20 boys, 5 girls
  • Age range 2-15y
  • Fracture distribution
    • 5 tibial shaft +/- fibula
    • 18 radius & ulna
    • 2 Monteggia fracture/dislocations
details of study 21
Details of study #2
  • 14 patients were admitted (<24h)
  • 11 were treated exclusively in the ED
details of study 22
Details of study #2

Treatment: Initiated in the ED

  • Initiation of IV antibiotics
  • Irrigation of the wound with sterile saline
  • Protecting the wound with Xeroform or Betadine soaked gauze
  • Tetanus prophylaxis if needed
  • Closed reduction & immobilization
details of study 23
Details of study #2
  • IV antibiotics used
    • 20/25 patients received Ancef
    • Others
      • Ampicillin/sulbactam
      • Ceftriaxone
      • Gentamicin
details of study 24
Details of study #2
  • Patients who were admitted overnight remained on IV antibiotics until discharge
  • At discharge oral antibiotics were given to 20 of 25 patients
    • 19 received Keflex
    • 1 received Clindamycin
    • Duration ranged from 1-7 days
details of study 25
Details of study #2

Follow up schedule:

  • 7-10 days: radiograph & wound check (windowing)
  • 14-17 days: radiograph in cast
  • 6-8 weeks: radiograph out of cast
  • Followed until healed
    • Non-tender, full ROM at joint above & below
    • Bridging bone on radiograph
results of study 2
Results of study #2
  • 1 patient diagnosed clinically with an infection (culture negative)
  • 8 yr boy
  • Tibia fracture (from football tackle)
  • At F/U on day 6:erythema & serosanguineous drainage from wound
  • Admitted and treated with 2 days of IV Clinda*
  • Complete resolution of drainage/erythema
  • Discharged with 1 week course of oral Clinda
  • Fracture union at 11 weeks (no further complications)
results of study 21
Results of study #2

Average time to union

  • Tibia fractures: 67 days
  • Forearm fractures: 45 days
  • Monteggia fracture/dislocations: 29 days
  • Non-operative management of grade 1 open fractures is safe in pediatrics
  • Eliminates any possible general anesthetic risk
  • Significantly decreases the cost of caring for these patients in the health care system
    • OR costs
    • Cost of prolonged hospital admissions
    • Social costs of a hospitalized child
Current protocol
  • Treat low energy grade 1 open fractures
    • sustained in a clean environment with no gross contamination
  • In the ED as an outpatient
  • Conscious sedation and reduction
  • Superficial cleansing
  • Single dose of IV Abx
  • 3-5 days of oral antibiotics
adult literature
Adult Literature
  • There is precedent for non-operative treatment of grade 1 open fractures
details of study 3
Details of Study #3
  • Retrospective review (1990-1997)
  • 91 patients with isolated Type I open fractures
    • 78 adults, 13 children
    • 60 males, 31 females
  • Exclusion criteria:
    • multiple injuries
    • gunshot wounds
    • hand injuries
    • compartment syndrome
    • Intra-articular fractures
details of study 31
Details of Study #3
  • All received antibiotics and were followed until fracture union
  • Charts were reviewed for
    • Type of fracture
    • Mechanism of injury
    • Type of treatment
    • Length of hospital stay
    • Complications encountered
details of study 36
Details of Study #3
  • All patients received antibiotics (within 6h)
    • Adults 1g cefazolin
    • Children 1g (11), 750mg (1), 500 mg (1)
  • All were admitted for at least 48 hours
  • Wounds greater than a puncture site were irrigated with several liters of saline
    • Majority did not receive irrigation
  • Wounds were dressed with sterile gauze
details of study 37
Details of Study #3
  • 32 pts had surgery for definitive treatment of their fracture
    • 1 pt had surgery w/in 8 hours “golden period”
    • All others had surgery after 12 hours
      • Average time was 5 days [12h-15days]
  • None of the wounds had evidence of infection
  • Open wound was not debrided unless it was included in the operative exposure
results of study 3
Results of Study #3
  • Hospital stay
    • 9 days on average
    • 11 days for those who had surgery*
    • 4.5 days for those without surgery
  • Follow up
    • Averaged 7 months [2mo - 5y]
results of study 31
Results of Study #3
  • Complications
    • Developed in 10 pts (8 in lower extremities)
    • 6/10 pts needed surgery for definitive treatment
  • Infection rate
    • 0%
conclusions study 3
Conclusions Study #3
  • Immediate operative debridement may not be necessary in isolated, low-energy Type 1 open fractures with stable fracture patterns
results of study 32
Results of Study #3

Current Protocol:

  • Low energy type 1 open fracture do not need operative debridement
  • Do not classify open fractures by the size of the soft tissue wound alone
    • Comminuted fractures are taken to the OR and reclassified after operative debridement
guidelines for antibiotic length1
Guidelines for antibiotic length?
  • In the 2 pediatric studies we just reviewed
    • 1 dose of IV antibiotics was sufficient in 1 study (20/25 d/c’d on 1-7 days of PO Abx)
    • ~48 hours of IV antibiotics was sufficient for the other study (only 4/40 were d/c’d on PO Abx)
calgary consensus
Calgary Consensus
  • Call on call surgeon for personal preference
  • 1 dose of IV Ancef, then 3-7 days PO antibiotics
  • Routine windowing of the cast is not done
    • Surgeon dependent
  • Have the patient return to the ED if there are any problems within the first 3 days for urgent evaluation (pain, fever, tachycardia, odour)
  • The size of the wound by itself is not indication for non-operative debridement
back to the objectives
Back to the Objectives
  • Review the different types of open fractures
  • Discuss the current treatment of open fractures
  • Review the literature supporting non-operative management of Type 1 open fractures
  • The literature suggest that treating type 1 open fractures with IV antibiotics and closed reductions is safe
    • But no randomized controlled trials
  • Different surgeons ---> different approaches, therefore discuss with the on call surgeon first
  • Use of antibiotics is not advocated as a substitute for proper clinical judgment
