1 / 3

SMOS LEOP Summary M. Venet

SMOS LEOP Summary M. Venet. LEOP summary. Negative chronology : As planned . Launch occurred 02/11@01:50:51 Injection orbit : OK Sma : less than 1 km above ICD req Inclination : 98,451° (ICD : 98, 445°) Payload deployment : Nov 3rd. OK Nominal attitude acquisition : Nov 6th. OK

karma
Download Presentation

SMOS LEOP Summary M. Venet

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

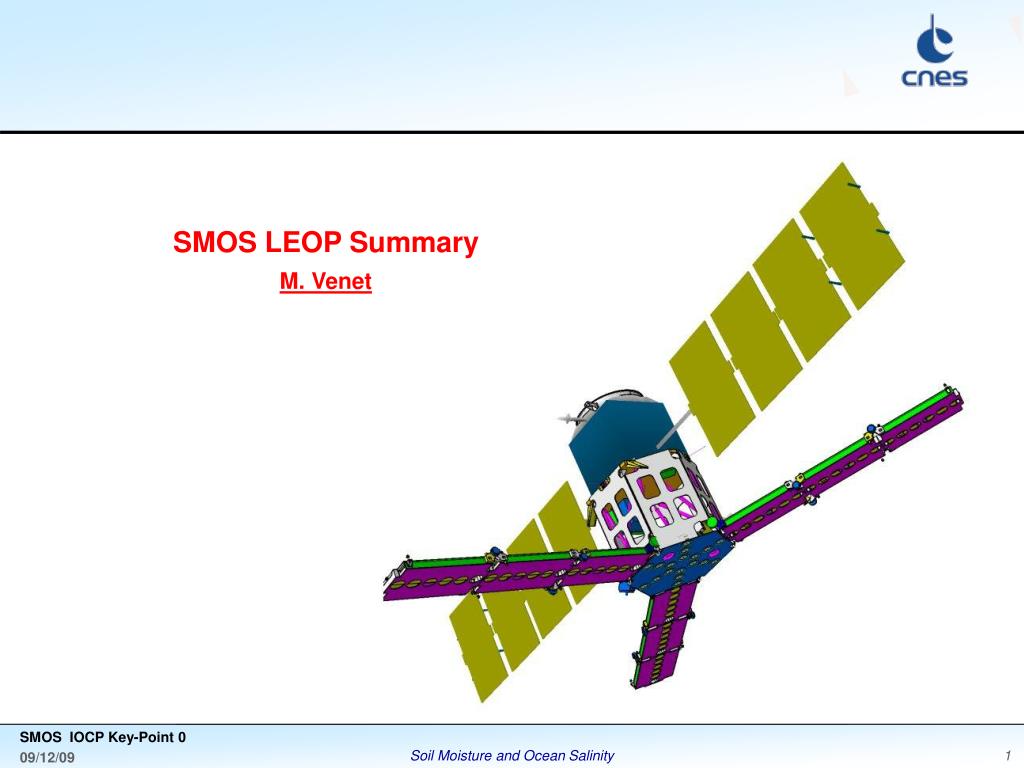

  1. SMOS LEOP Summary M. Venet

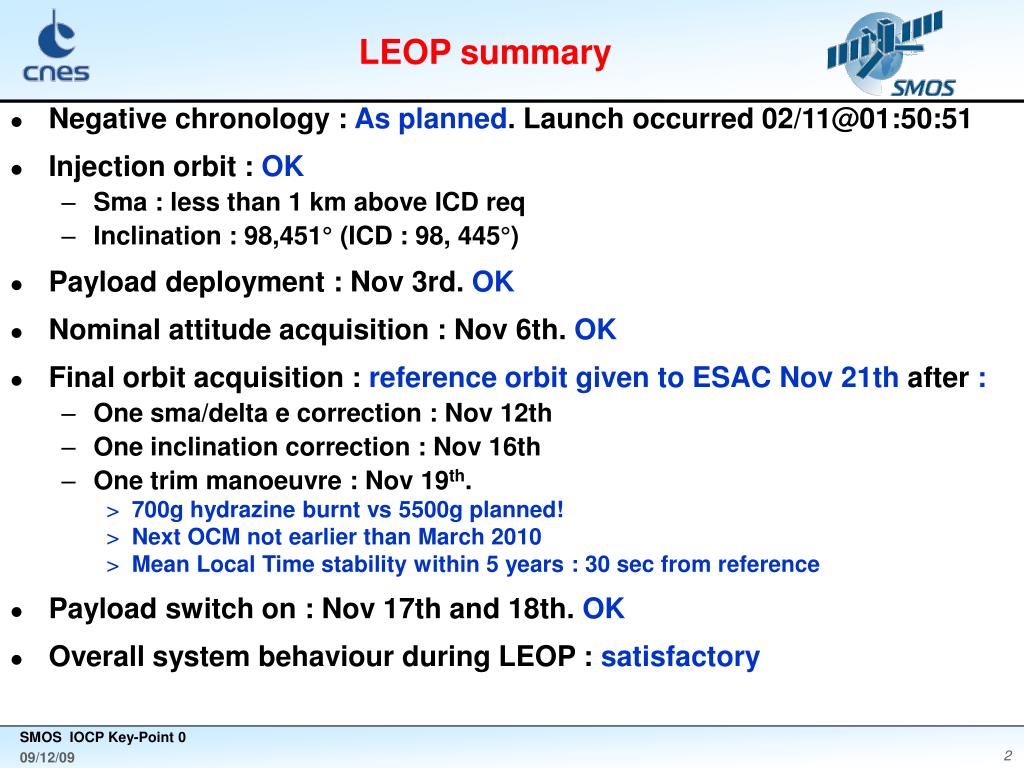

  2. LEOP summary • Negative chronology : As planned. Launch occurred 02/11@01:50:51 • Injection orbit : OK • Sma : less than 1 km above ICD req • Inclination : 98,451° (ICD : 98, 445°) • Payload deployment : Nov 3rd. OK • Nominal attitude acquisition : Nov 6th. OK • Final orbit acquisition : reference orbit given to ESAC Nov 21th after : • One sma/delta e correction : Nov 12th • One inclination correction : Nov 16th • One trim manoeuvre : Nov 19th. • 700g hydrazine burnt vs 5500g planned! • Next OCM not earlier than March 2010 • Mean Local Time stability within 5 years : 30 sec from reference • Payload switch on : Nov 17th and 18th. OK • Overall system behaviour during LEOP : satisfactory

  3. Satellite/System assesment • Achieved tasks • STR2/Gyro3 destocking : Nov 20th and 23th. OK • SADM control laws assessment : Nov 24th and 25th. OK • Calibration manoeuvre assessment : Nov 30th to Dec 3rd. OK • Inertial 2’, 30’ • Zenithal 110’ • PLPC IF : OK • E_HKTM delivery rhythm modified • Minor exchanges issues on PLTM • Remaining tasks • STR1 additional expertise requested by Thales : to be replanned (1 orbit) • RF masking computation assessment : to compare G2 computation vs actual : transparent to PLM activity • Sband signature, SA movements interference & STR shielding verification (part of Payload commissioning) : to be replanned • Satellite, SOGS & Team are ready for Payload Commissioning activity : In Orbit assessment review foreseen January 21 in CNES
