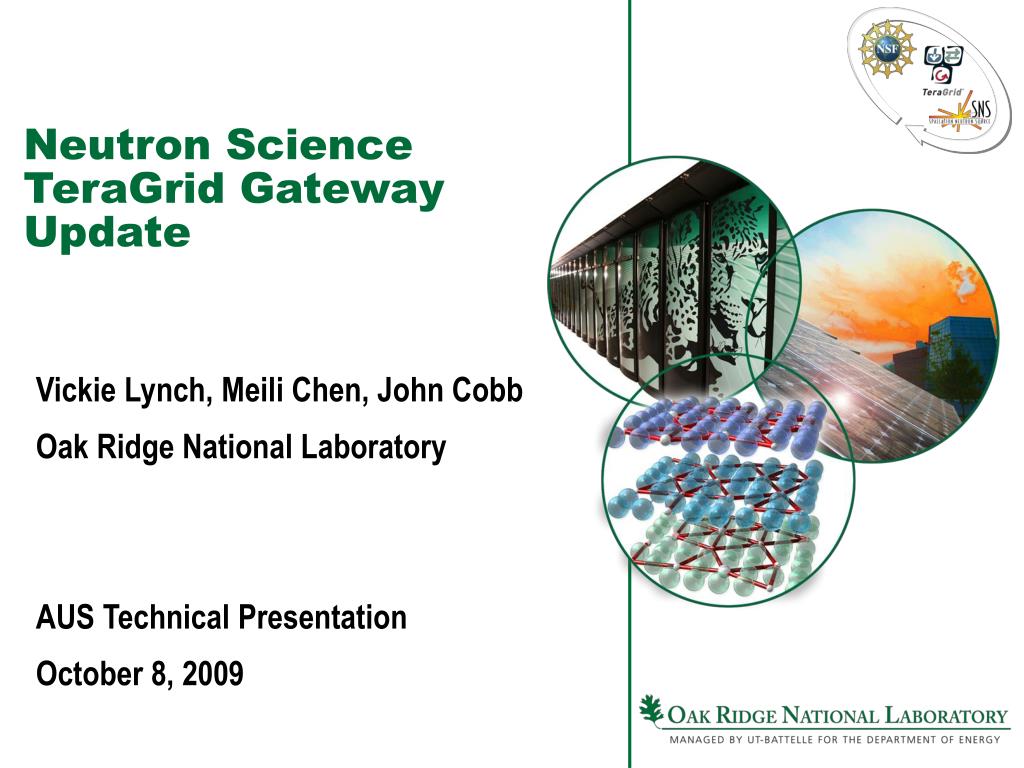

  1. Neutron Science TeraGrid Gateway Update Vickie Lynch, Meili Chen, John Cobb Oak Ridge National Laboratory AUS Technical Presentation October 8, 2009

  2. Outline • Sinergia Startup Project • Fitting Service • Transition to SNS

  3. Sinergia Startup Project • Collaboration between the University of Zürich, ETH Zürich and Oak Ridge National Laboratory (ORNL) • Swiss Sinergia grant supports PostDoc at Zürich and graduate student at ORNL

  4. Diffuse Scattering Modeling • 3D fitting of large datasets • Needed for Single Crystal instruments • Topaz (SNS) • Snap (SNS) • MaNDi (SNS) • Corelli (SNS) • Four-circle Diffractometer (HFIR) • Imagine (HFIR)

  5. Sinergia July 09 Kickoff in Zurich • Organized by Hans-Beat Bürgi • Michel Chodkiewicz (PostDoc at Zürich) will develop new C++ diffuse scattering code over 3 years • Tara Clark (Grad student at ORNL) working with Vickie Lynch will get previous code running on TeraGrid and test • Jürg Hauser from University of Bern will provide a reference dataset with less noise

  6. Original diffuse scattering code • Used for publications: • Weber T.,Bürgi H.B., Determination and refinement of disordered crystal structures using evolutionary algorithms in combination with Monte Carlo methods, Acta Crystallographica A 58, 526-540 (2002) • H.B. Bürgi, J. Hauser, T. Weber, R.B. Neder, Supramolecular Architecture in a Disordered Perhydrotriphenylene Inclusion Compound from Diffuse X-ray Diffraction Data. Crystal Growth & Design, 5 2073-2083 (2005) • Master/slave code was written mainly in Perl with telnet to communicate between workstations (Calls Fortran and C codes for FFTs) • Much file communication between master and slave • Code assumed unique disk space for each slave • One run for over 200 generations took ~30 days on ~10 workstations

  7. VOP code by Phil Bentley • Vitess Optimisation Program written for optimizing parameters in instrument simulations • Genetic algorithm with tournament selection; Swarms • Written in C++ using MPI for parallel computing (Allreduce to find min; Bcast to sent best parameters) • Command line input for Vitess with parameters to be optimized preceded by @ • Limits file read by code • Written to maximize flux from Vitess, but easily modified to minimize c2

  8. Code port to TeraGrid • Replaced master telnet code with VOP MPI code • VOP calls Perl slaves with pipes • Unique directories created for each slave • Ported and ran successfully on NSTG • Needed faster turnaround and 1048 clones • Got Kraken Startup allocation • Popen for Perl slaves did not work with CNL

  9. Code port to Ranger • Tested that popen worked on Ranger • Transferred part of Startup to Ranger • Too much file communication in Perl slaves for 16 cores/node • Put OpenMP directives in FFT codes • Using 4 slaves/node with 4 OpenMP threads/slave

  10. VOP results with Perl slaves

  11. Sinergia accomplishments • Add differential evolution option to vop master • Compared differential evolution, genetic algorithm and swarm for disordered crystal data. Genetic algorithm converged fasted, but each generation takes twice as long using tournament selection • Added hybrid OpenMP directives • Have code running on NSTG and Ranger • Have Levenberg-Marquardt nonlinear least squares driver for slaves for further optimization • Running using reference dataset on Ranger now (160 cores)

  12. Future Sinergia work • Install PGPLOT Perl module and helper scripts • Testing with reference dataset • Number of individuals • Number of clones • Optimize mutation and crossover constants • Scale to thousands of cores • Automatically switch between genetic algorithms and least squares using history of chisq • Write slave code in C++, not Perl • Communicate between modules with memory, not files

  13. Fitting Service • Fast data fitting, the major and the most time consuming procedure of the data analysis, is the key of high performance data analysis and real-time data processing. • Uses NL2SOL or Dakota to fit experimental data • http://www.ornl.teragrid.org/fitting/FitSrv_method.doc • Instrument scientists writes functions • Read data • Model to fit data • http://www.ornl.teragrid.org/fitting/FitSrv_Portal_uInterface.pdf

  14. Fitting Service results • Fitting service used for experimental reflectometer data is shown • NL2SOL results show 5 times smaller Chisq than previous fitting code used for this data

  15. Fitting Service uses TeraGrid • New fitting service • going into production • available from the development portal • will be “monitored” for health in the future • Calculation scales linearly on TeraGrid on Mercury at NCSA • See TG09 slides by Meili Chen for more details.

  16. Fitting Service GUI in Portal

  17. NSTG Cluster Transition to SNS • Cluster: dual processor 3.06 GHz Intel Xeon nodes • 14 nodes with 2.5GB of memory are compute nodes • 4 nodes with 4GB memory are dedicated to GridFTP • Transitioning to Scientific Linux 5.2 • Move planned from ORNL to SNS machine room (~ 3 miles) • Cluster will link SNS with TeraGrid
