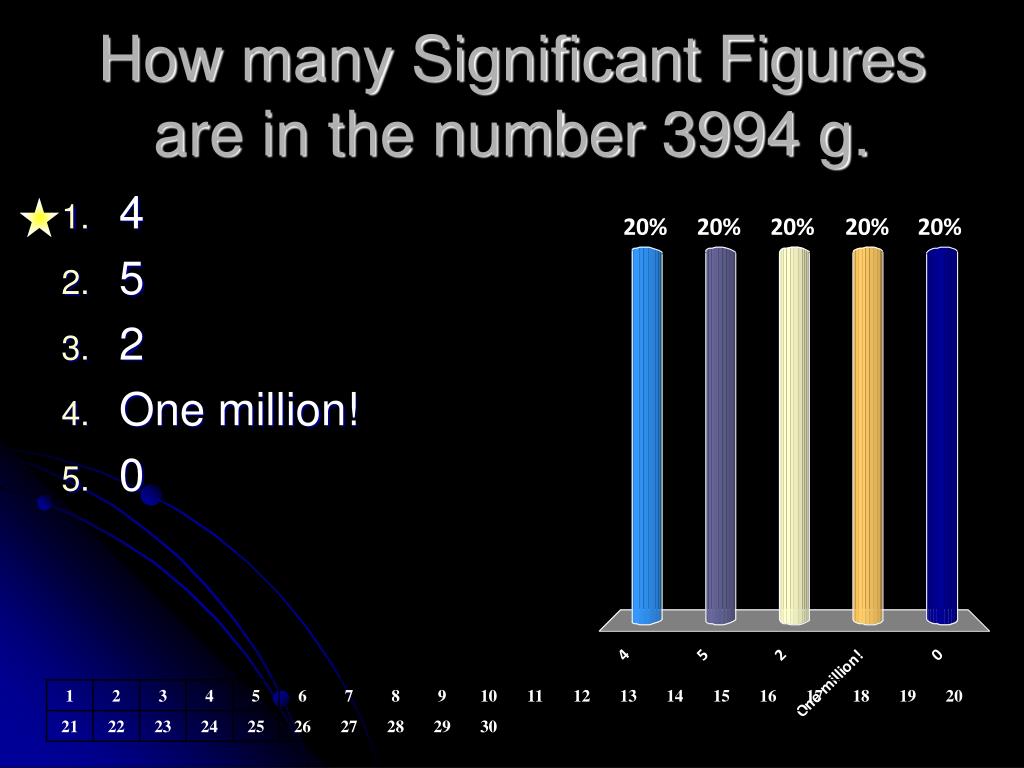

Significant Figures. Used to report all precisely known numbers + one estimated digit. Rule #1. Every nonzero digit is significant Examples: 24 = 2 3.56 = 3 7 = 1. How many Significant Figures are in the number 3994 g. 4 5 2 One million! 0. Rule #2.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Significant Figures' - karli


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
significant figures

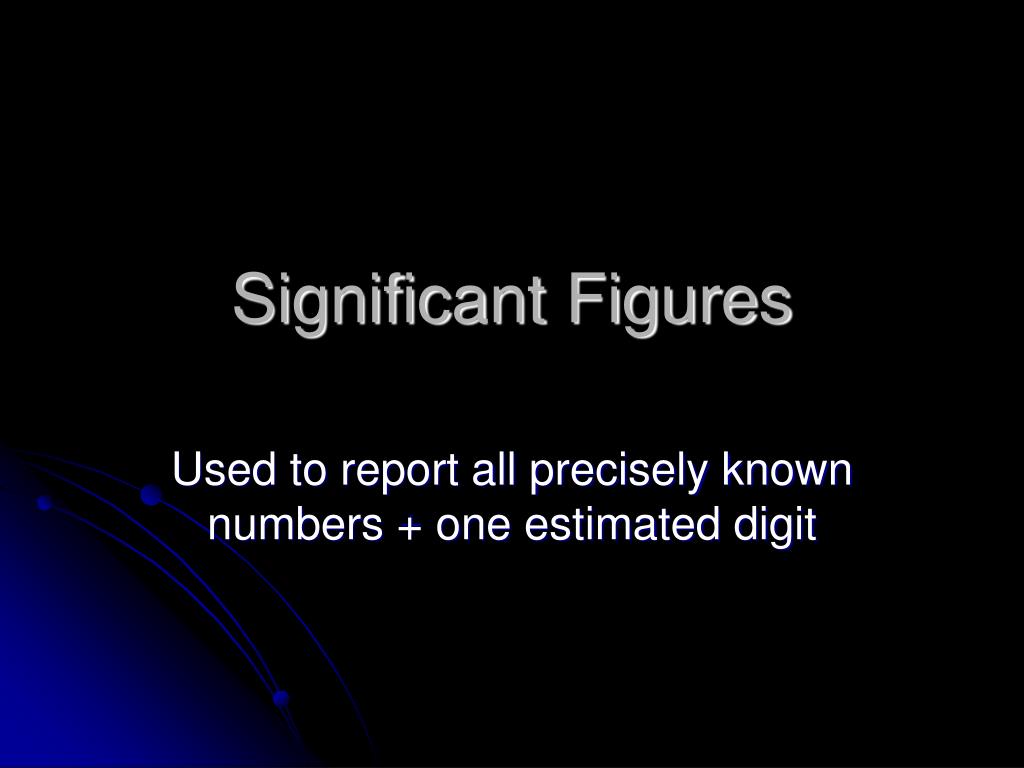

Significant Figures

Used to report all precisely known numbers + one estimated digit

rule 1

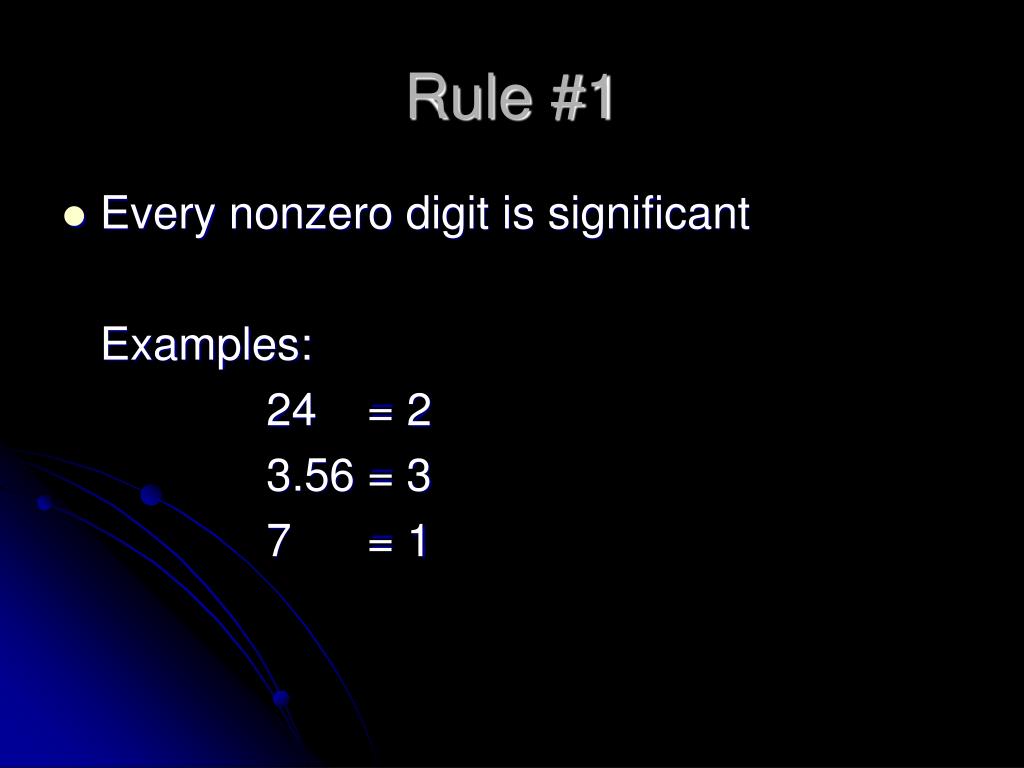

Rule #1
  • Every nonzero digit is significant

Examples:

24 = 2

3.56 = 3

7 = 1

rule 2

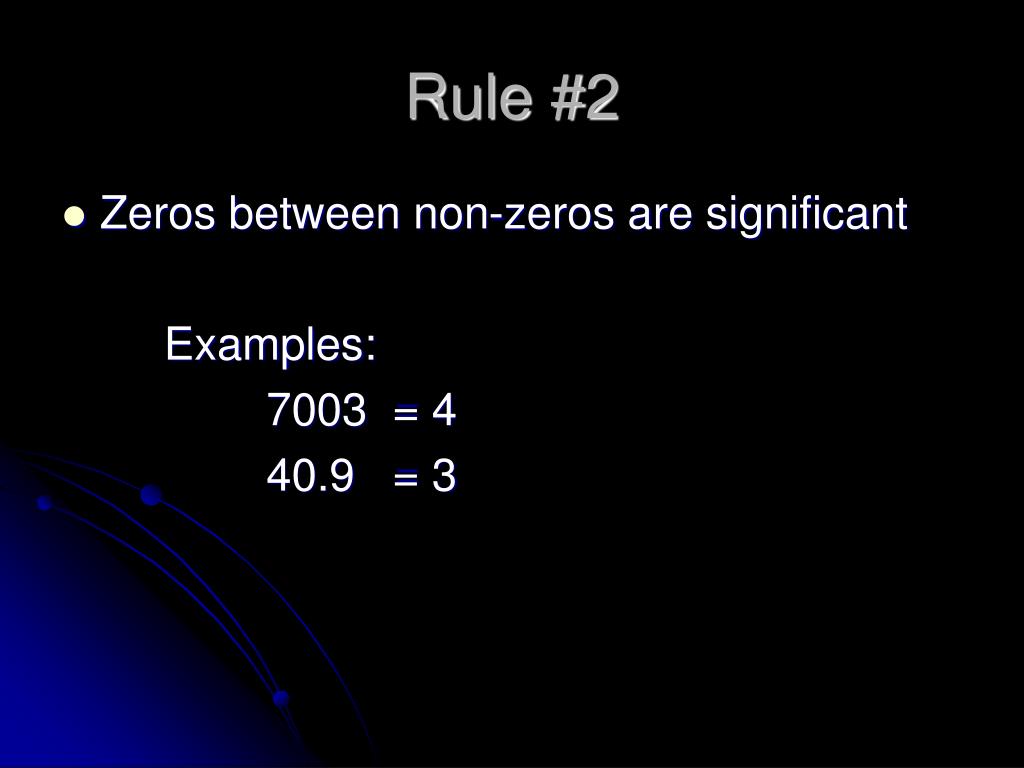

Rule #2
  • Zeros between non-zeros are significant

Examples:

7003 = 4

40.9 = 3

rule 3

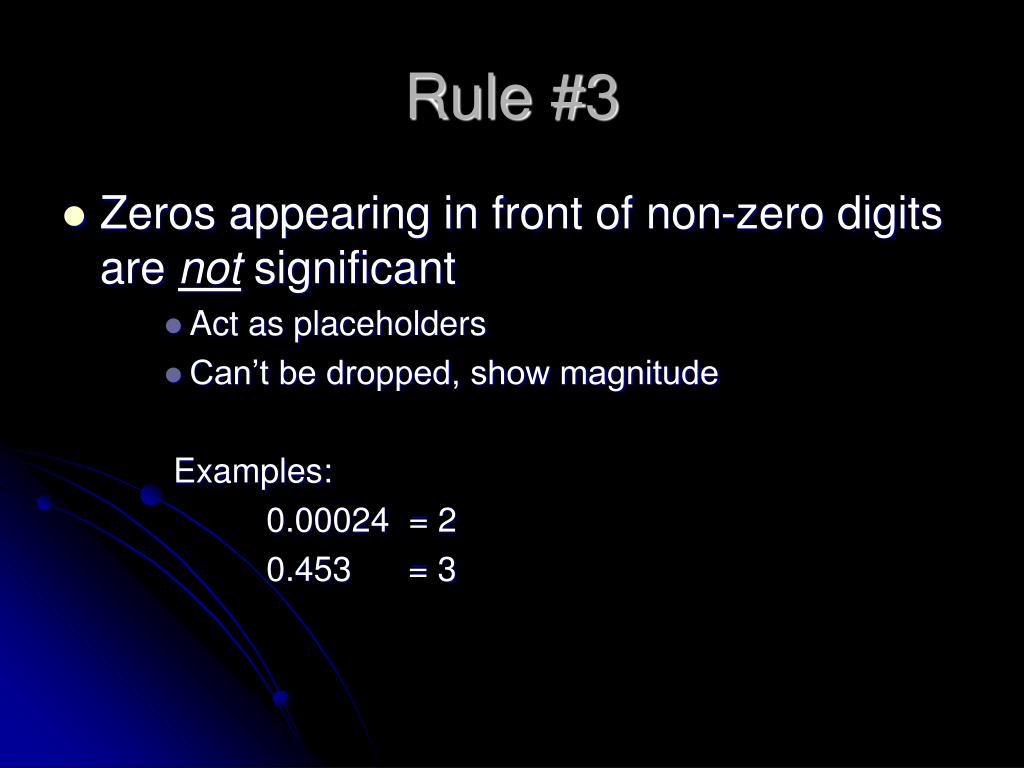

Rule #3
  • Zeros appearing in front of non-zero digits are not significant
      • Act as placeholders
      • Can’t be dropped, show magnitude

Examples:

0.00024 = 2

0.453 = 3

rule 4

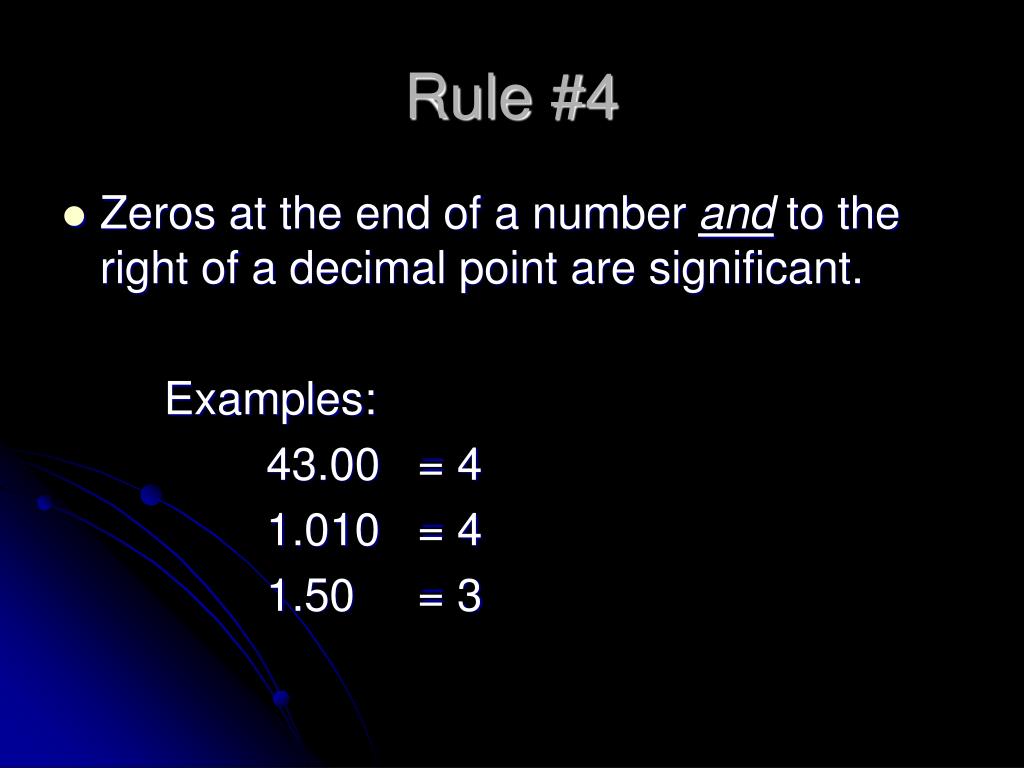

Rule #4
  • Zeros at the end of a number and to the right of a decimal point are significant.

Examples:

43.00 = 4

1.010 = 4

1.50 = 3

rule 5

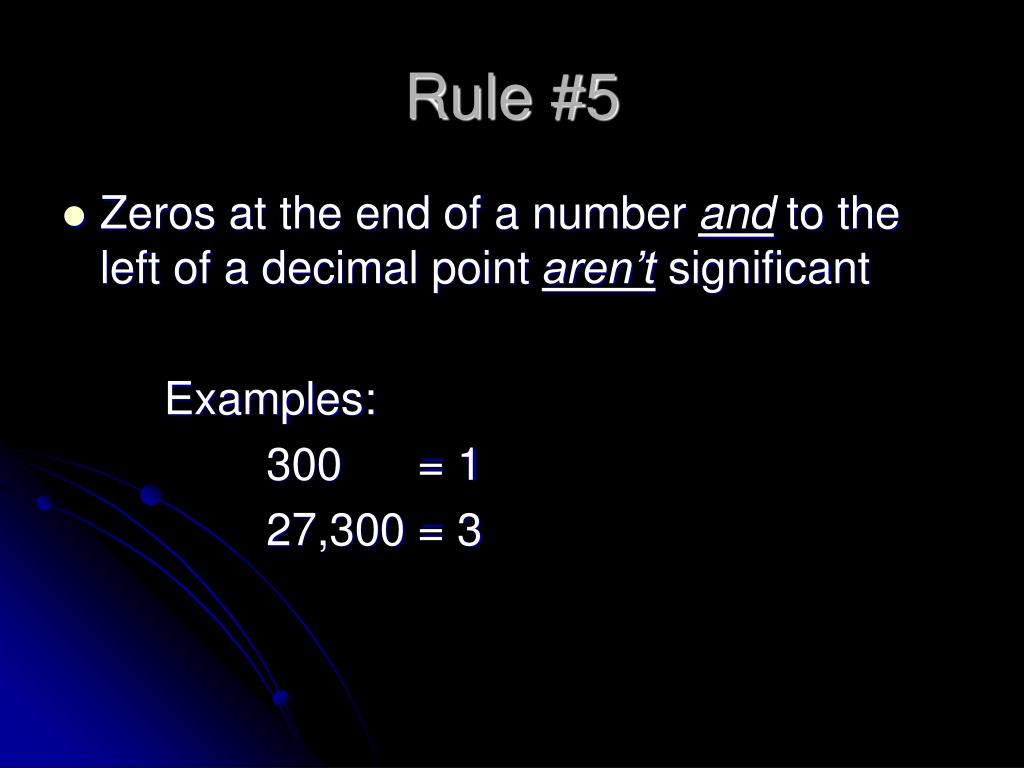

Rule #5
  • Zeros at the end of a number and to the left of a decimal point aren’t significant

Examples:

300 = 1

27,300 = 3

special rule

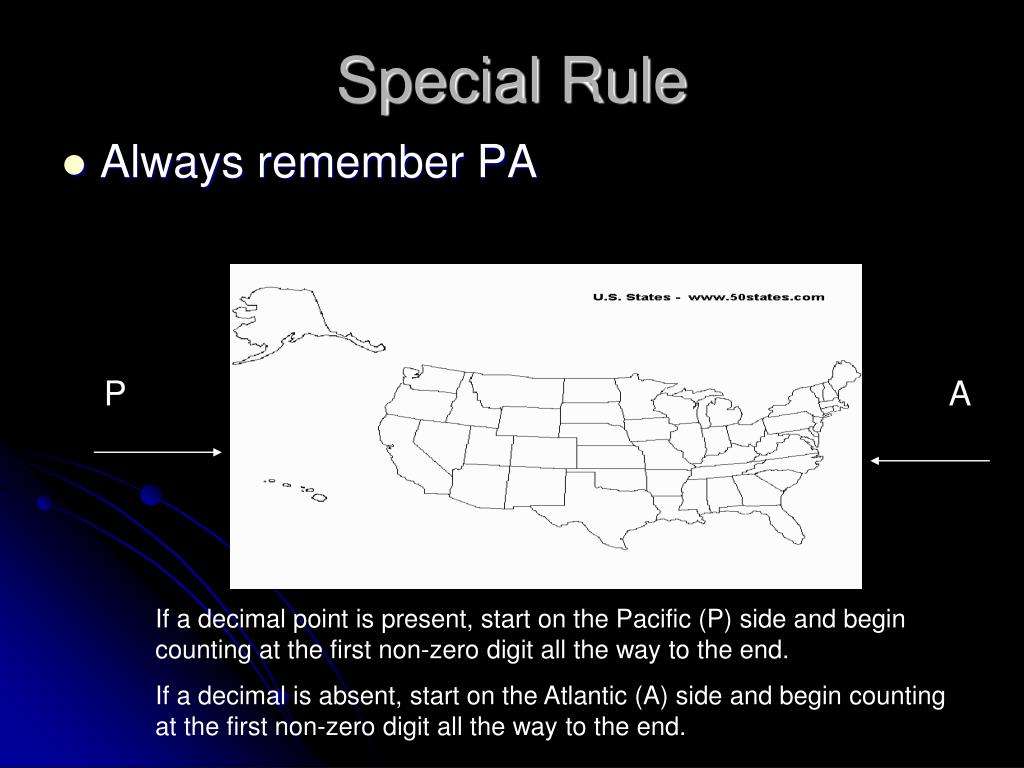

Special Rule
  • Always remember PA

P

A

If a decimal point is present, start on the Pacific (P) side and begin counting at the first non-zero digit all the way to the end.

If a decimal is absent, start on the Atlantic (A) side and begin counting at the first non-zero digit all the way to the end.

special rule cont

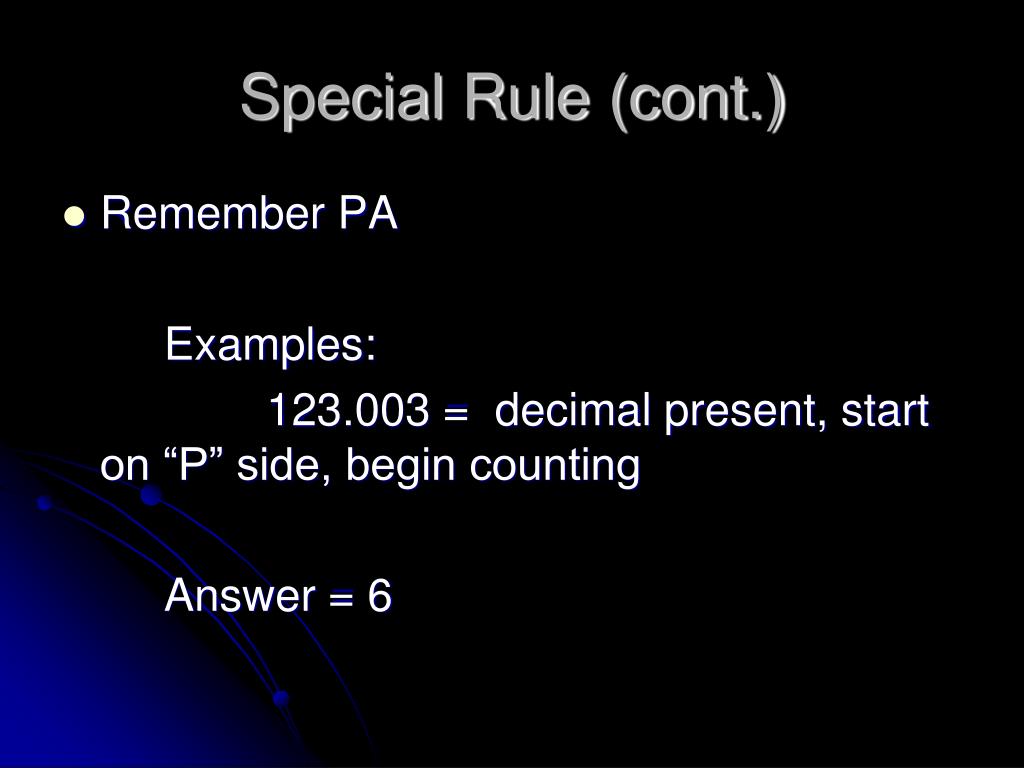

Special Rule (cont.)
  • Remember PA

Examples:

123.003 = decimal present, start on “P” side, begin counting

Answer = 6

special rule cont12

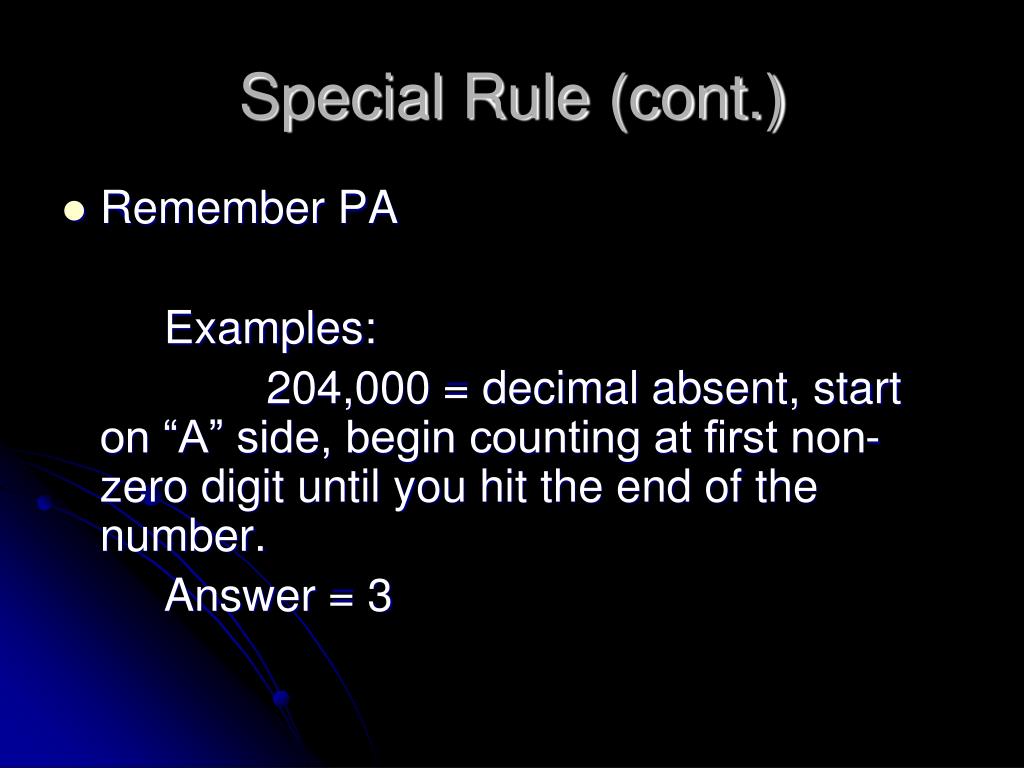

Special Rule (cont.)
  • Remember PA

Examples:

204,000 = decimal absent, start on “A” side, begin counting at first non-zero digit until you hit the end of the number.

Answer = 3

sig fig math rules

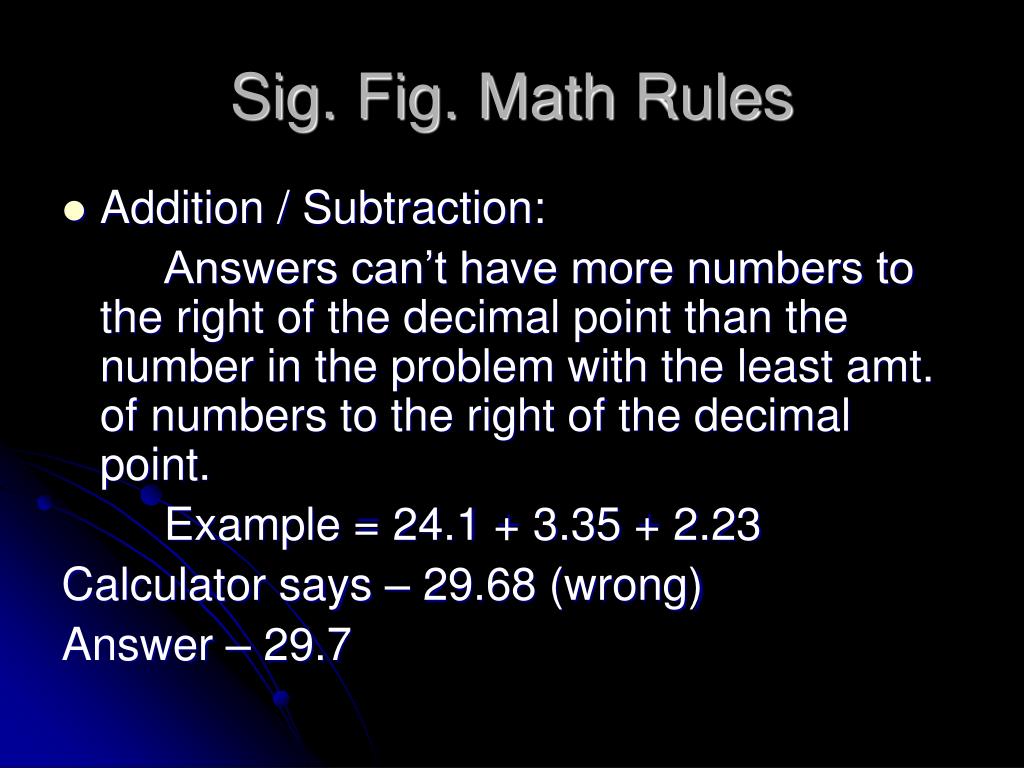

Sig. Fig. Math Rules
  • Addition / Subtraction:

Answers can’t have more numbers to the right of the decimal point than the number in the problem with the least amt. of numbers to the right of the decimal point.

Example = 24.1 + 3.35 + 2.23

Calculator says – 29.68 (wrong)

Answer – 29.7

sig fig math rules16

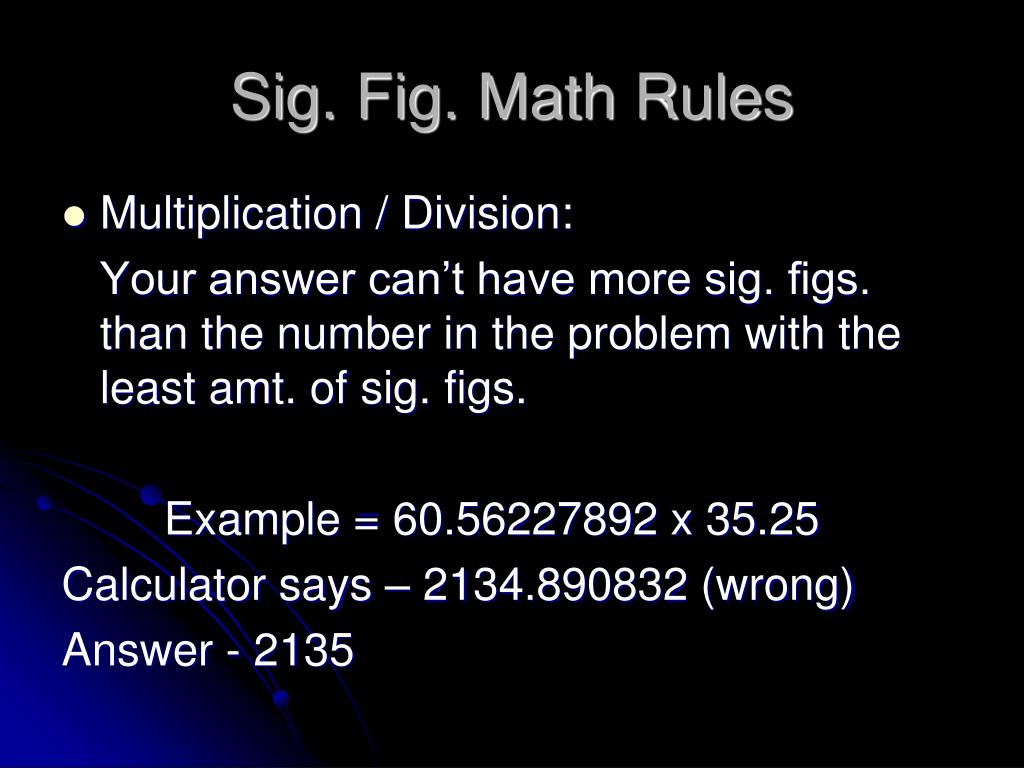

Sig. Fig. Math Rules
  • Multiplication / Division:

Your answer can’t have more sig. figs. than the number in the problem with the least amt. of sig. figs.

Example = 60.56227892 x 35.25

Calculator says – 2134.890832 (wrong)

Answer - 2135
