Assessment Problem #4.7. Determine the power delivered by the 80 V source and the power dissipated in the 8 Ω resistor using the mesh-current method. Identify the mesh currents. I 3. I 2. I 1. Assign the voltage polarities. +. -. I 3. -. +. -. +. +. -. +. -. -. +. +. I 2.

karina-webster
Download Presentation

Assessment Problem #4.7

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

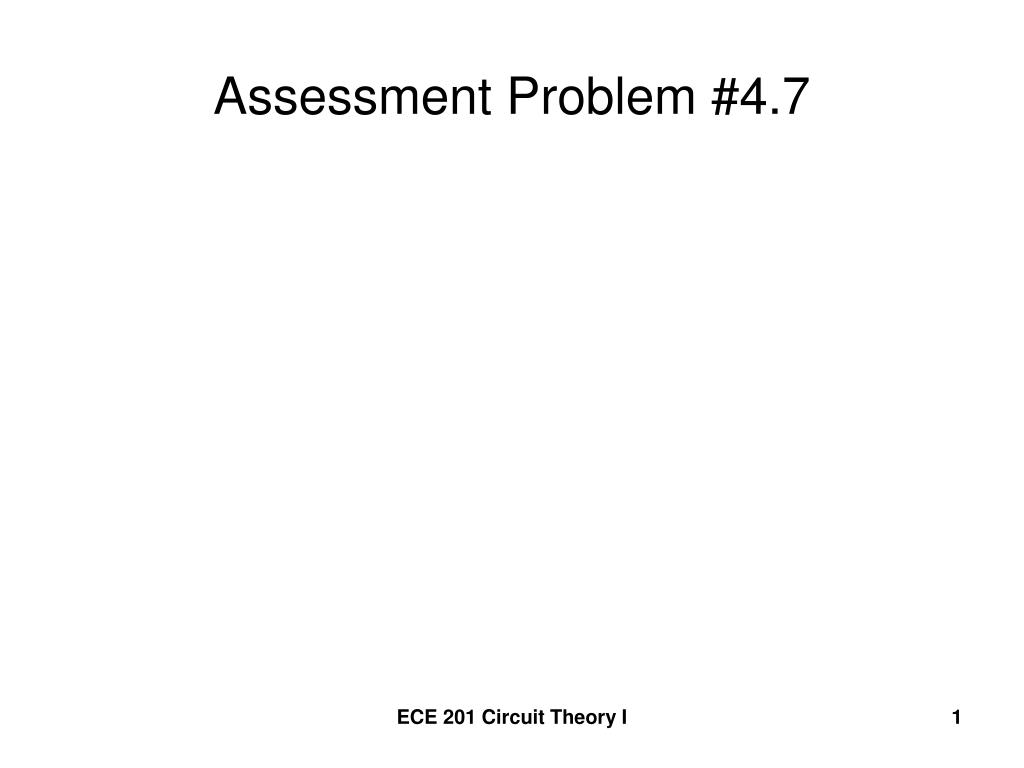

  1. Assessment Problem #4.7 ECE 201 Circuit Theory I

  2. Determine the power delivered by the 80 V source and the power dissipated in the 8 Ω resistor using the mesh-current method. ECE 201 Circuit Theory I

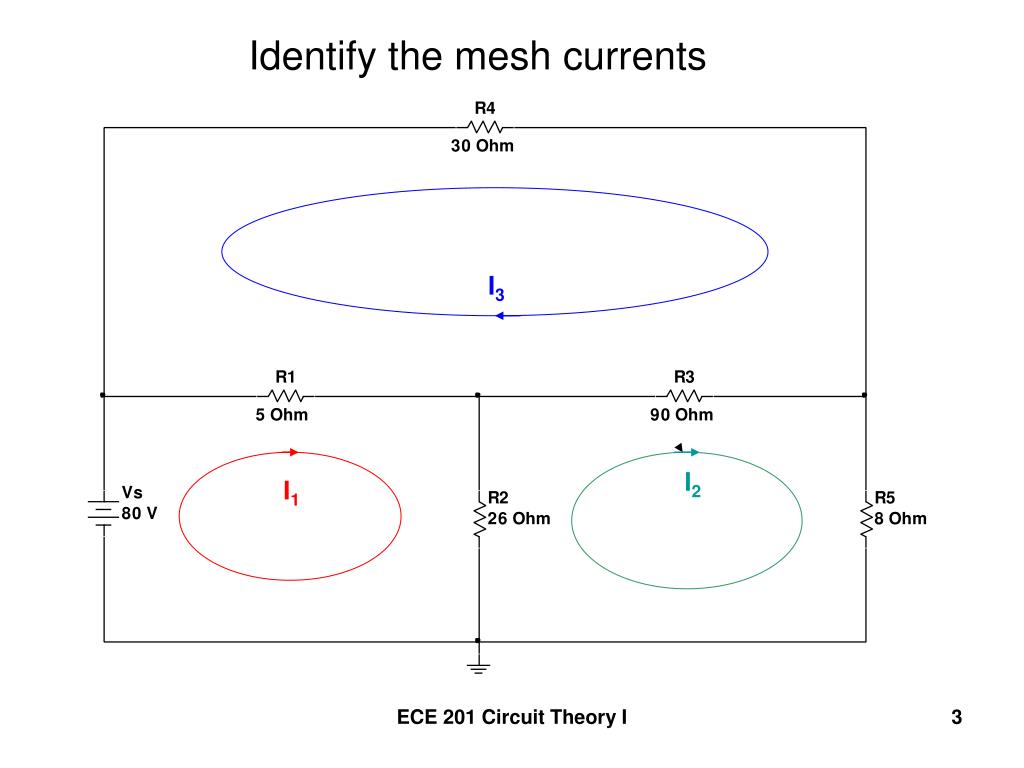

  3. Identify the mesh currents I3 I2 I1 ECE 201 Circuit Theory I

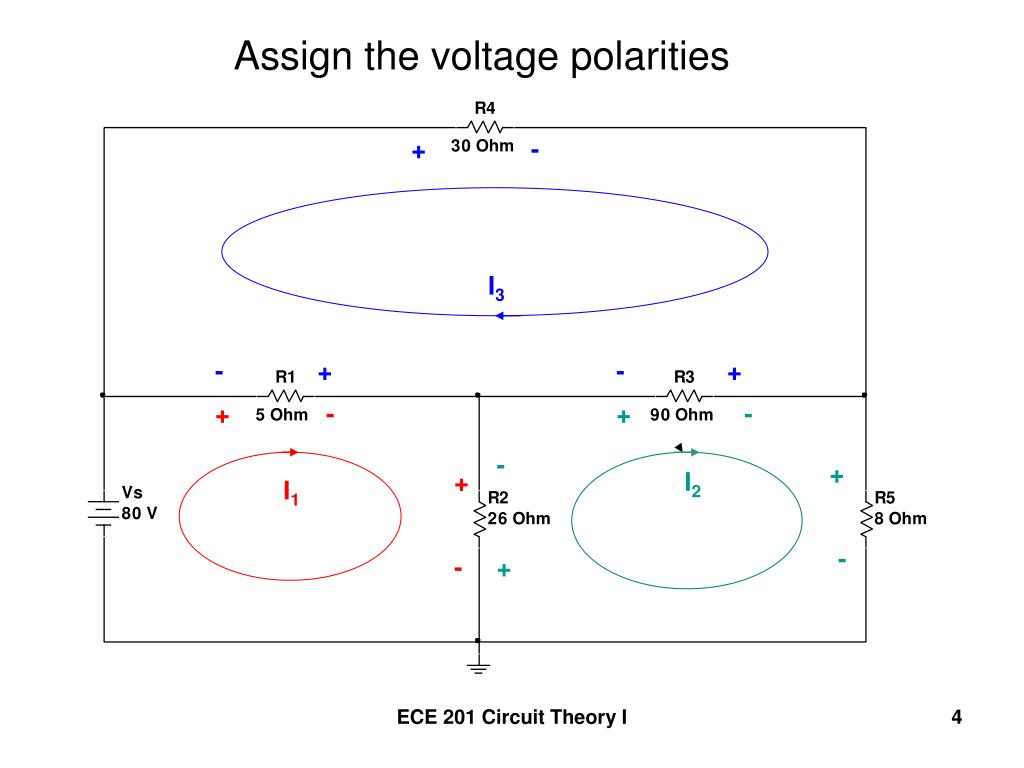

  4. Assign the voltage polarities + - I3 - + - + + - + - - + + I2 I1 - - + ECE 201 Circuit Theory I

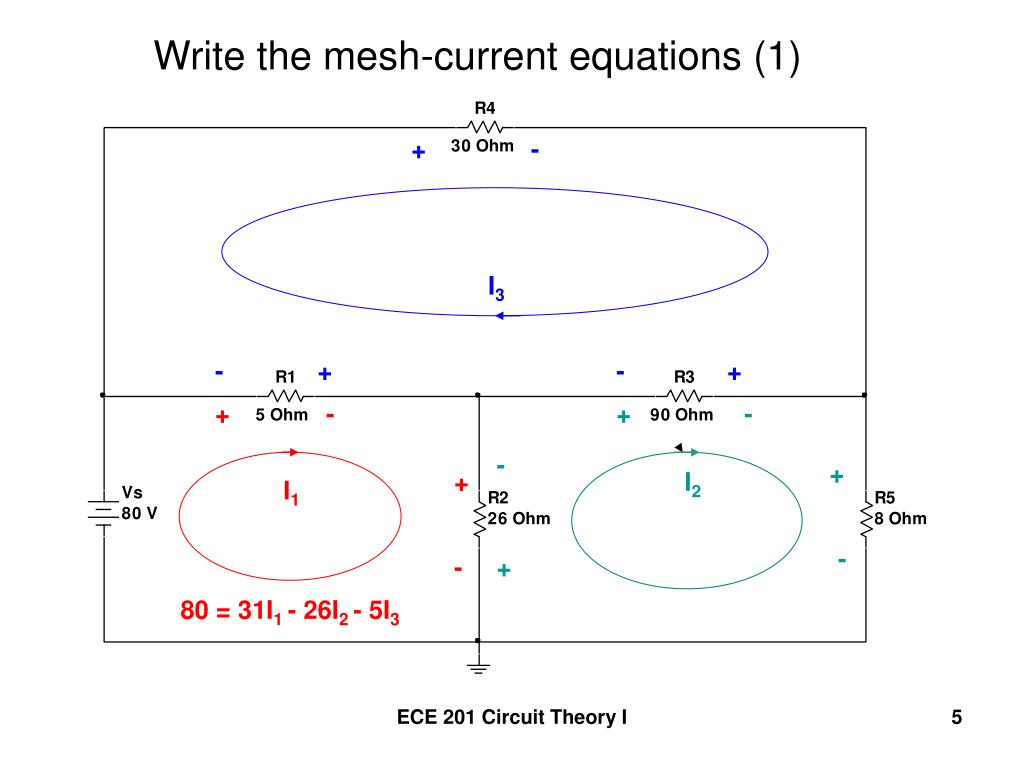

  5. Write the mesh-current equations (1) + - I3 - + - + + - + - - + + I2 I1 - - + 80 = 31I1 - 26I2 - 5I3 ECE 201 Circuit Theory I

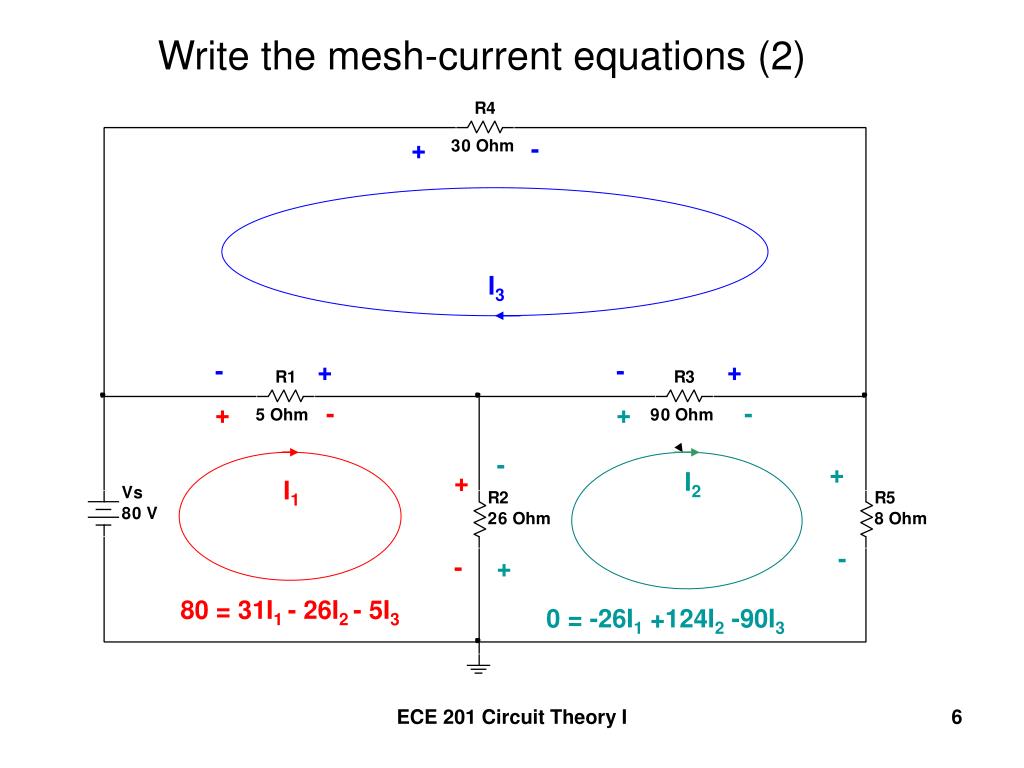

  6. Write the mesh-current equations (2) + - I3 - + - + + - + - - + + I2 I1 - - + 80 = 31I1 - 26I2 - 5I3 0 = -26I1 +124I2 -90I3 ECE 201 Circuit Theory I

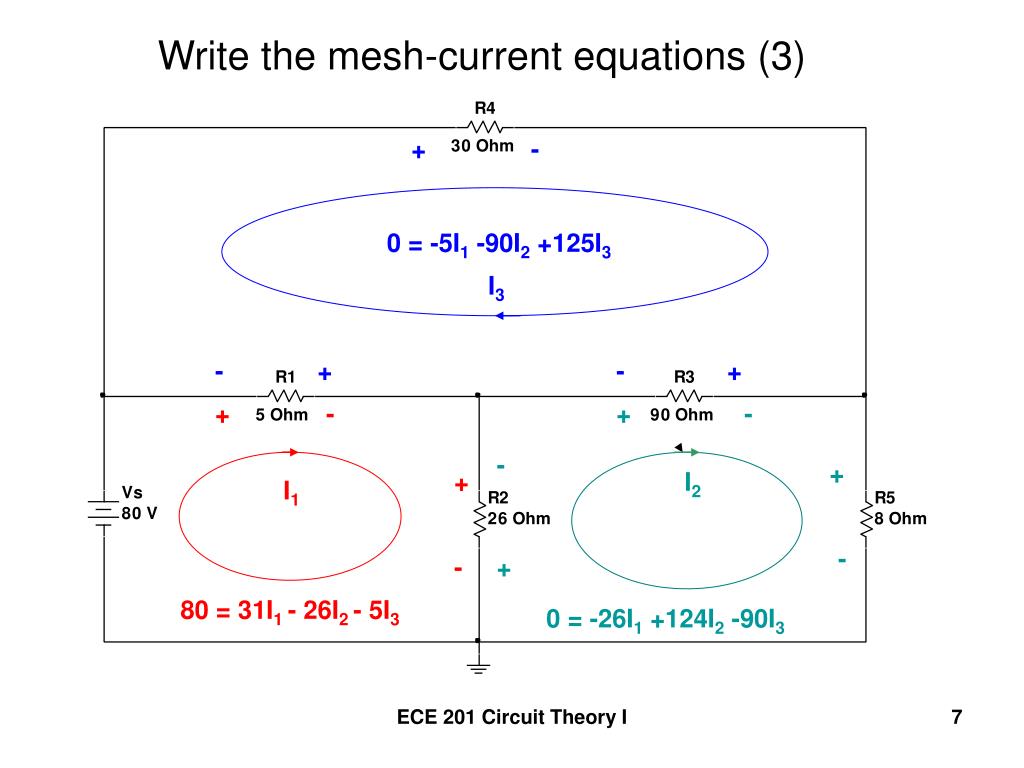

  7. Write the mesh-current equations (3) + - 0 = -5I1 -90I2 +125I3 I3 - + - + + - + - - + + I2 I1 - - + 80 = 31I1 - 26I2 - 5I3 0 = -26I1 +124I2 -90I3 ECE 201 Circuit Theory I

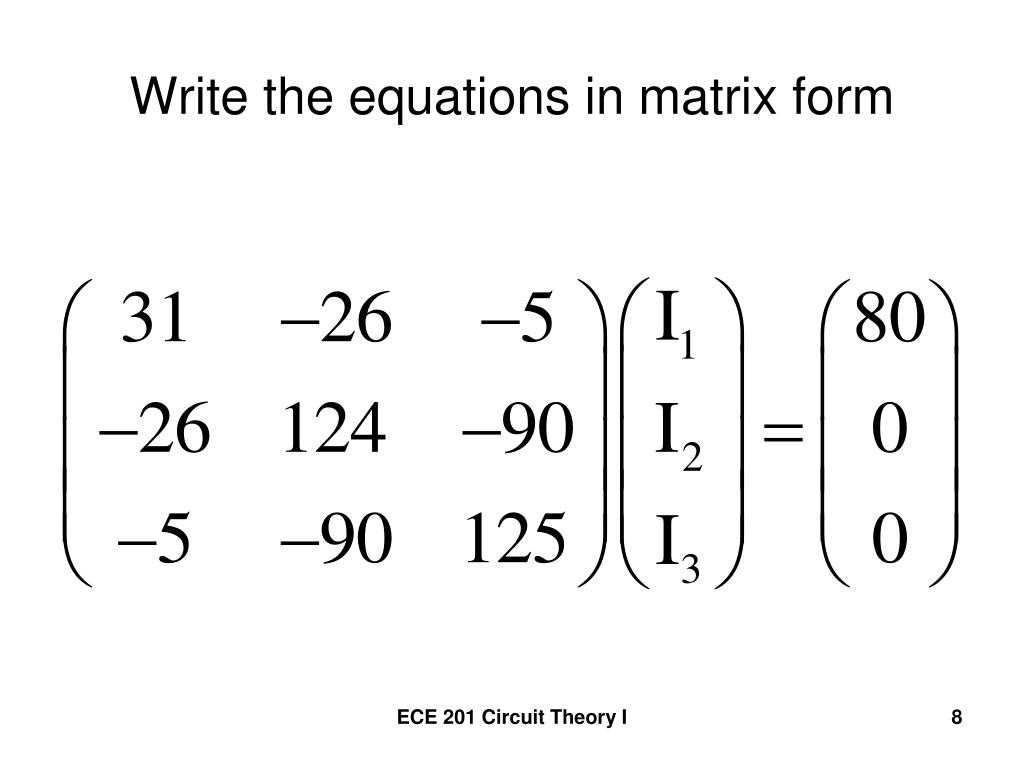

  8. Write the equations in matrix form ECE 201 Circuit Theory I

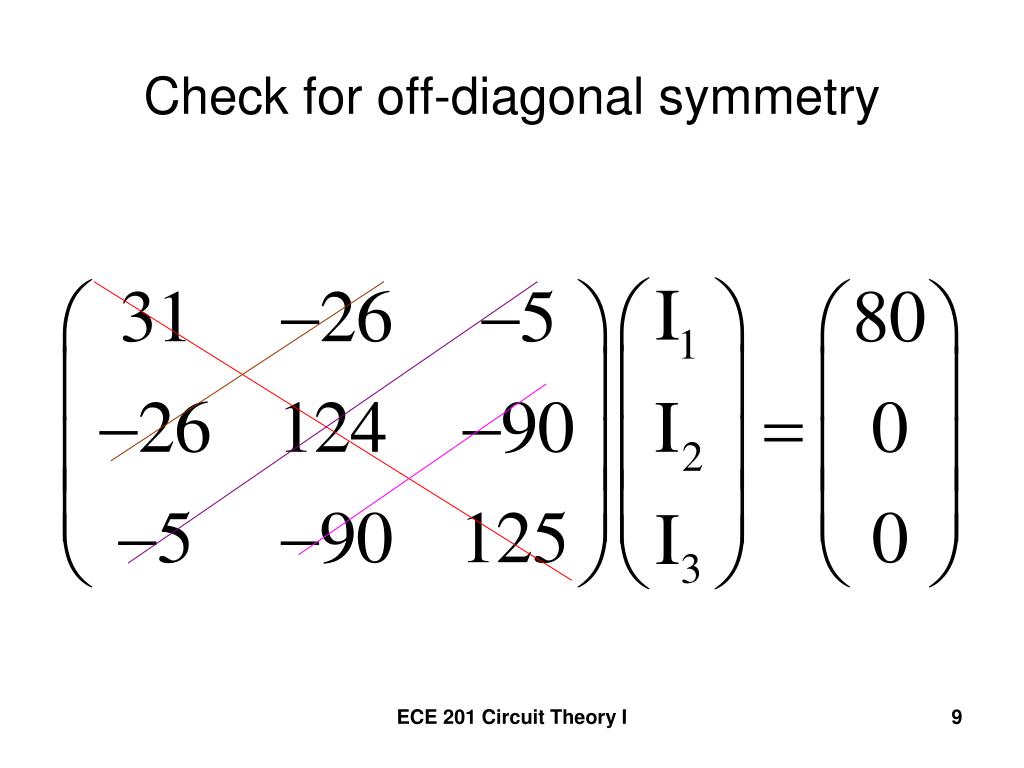

  9. Check for off-diagonal symmetry ECE 201 Circuit Theory I

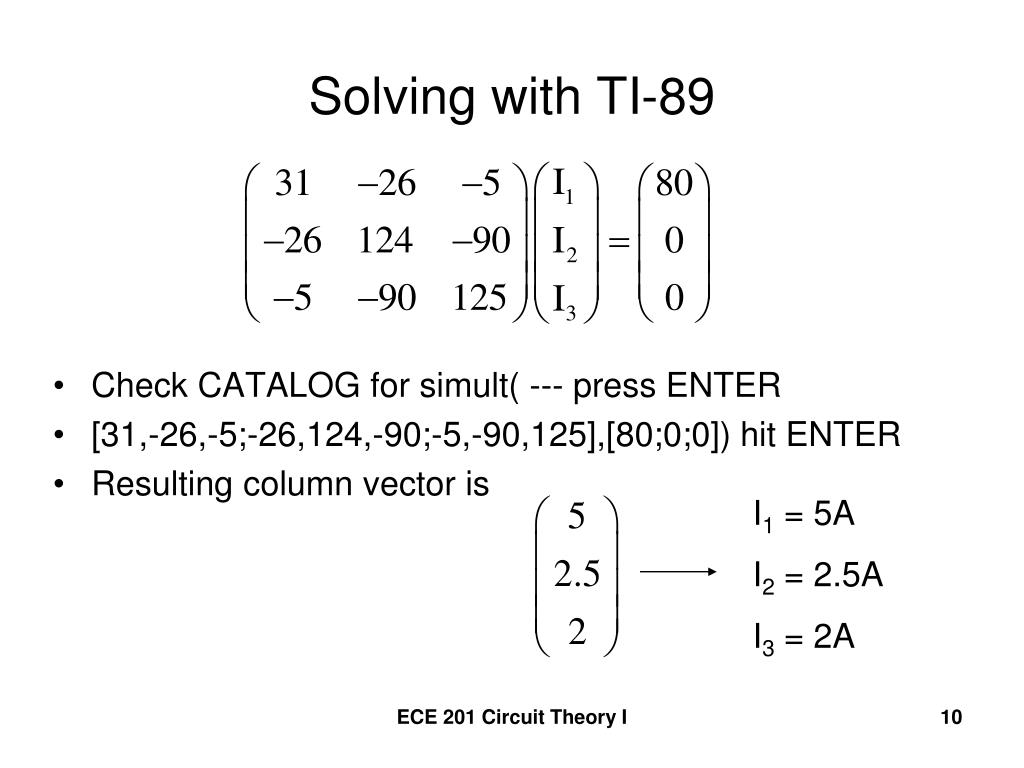

  10. Solving with TI-89 • Check CATALOG for simult( --- press ENTER • [31,-26,-5;-26,124,-90;-5,-90,125],[80;0;0]) hit ENTER • Resulting column vector is I1 = 5A I2 = 2.5A I3 = 2A ECE 201 Circuit Theory I

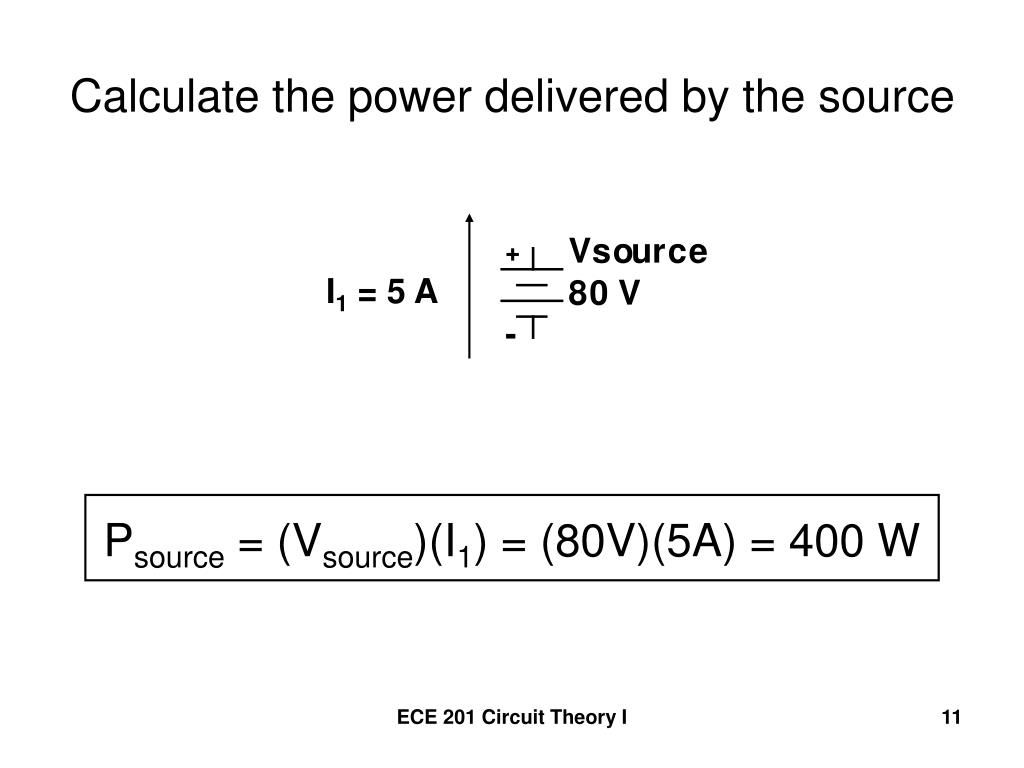

  11. Calculate the power delivered by the source Psource = (Vsource)(I1) = (80V)(5A) = 400 W + I1 = 5 A - ECE 201 Circuit Theory I

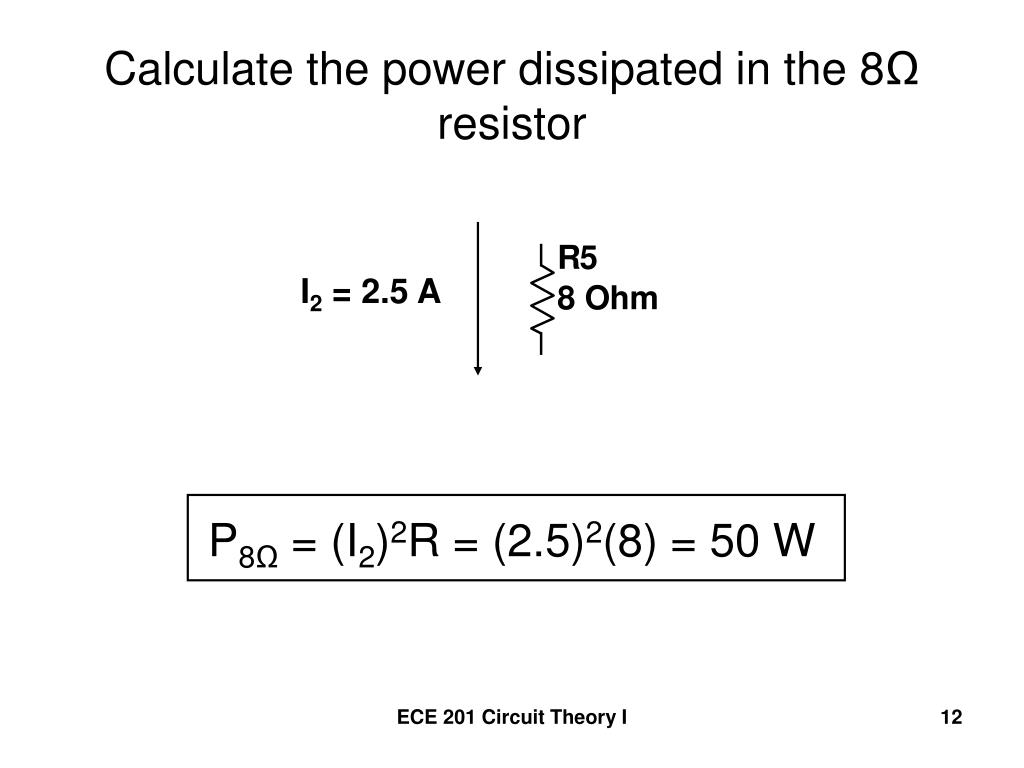

  12. Calculate the power dissipated in the 8Ω resistor P8Ω = (I2)2R = (2.5)2(8) = 50 W I2 = 2.5 A ECE 201 Circuit Theory I
