networked software systems laboratory department of electrical enginnering technion

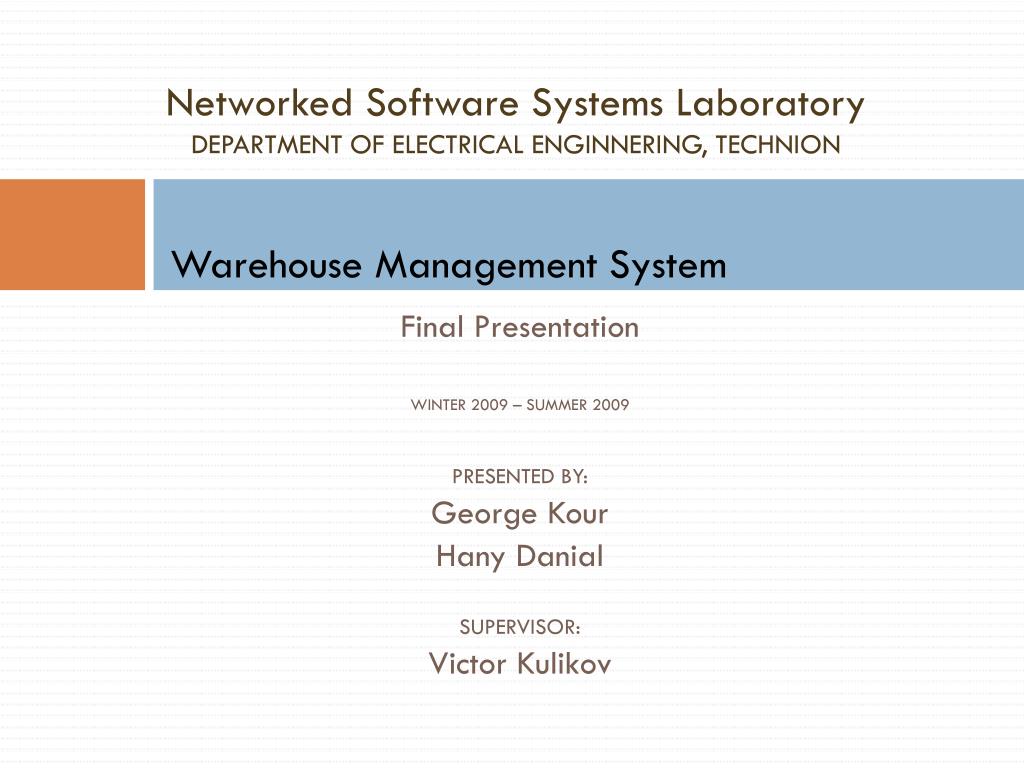

Networked Software Systems LaboratoryDEPARTMENT OF ELECTRICAL ENGINNERING, TECHNION

Warehouse Management System

Final Presentation

WINTER 2009 – SUMMER 2009

PRESENTED BY:

George Kour

HanyDanial

SUPERVISOR:

Victor Kulikov

abstract
Abstract
  • Warehouse Management System is a multi-purpose solution enables full control of the warehouse assets, customers and users.
agenda

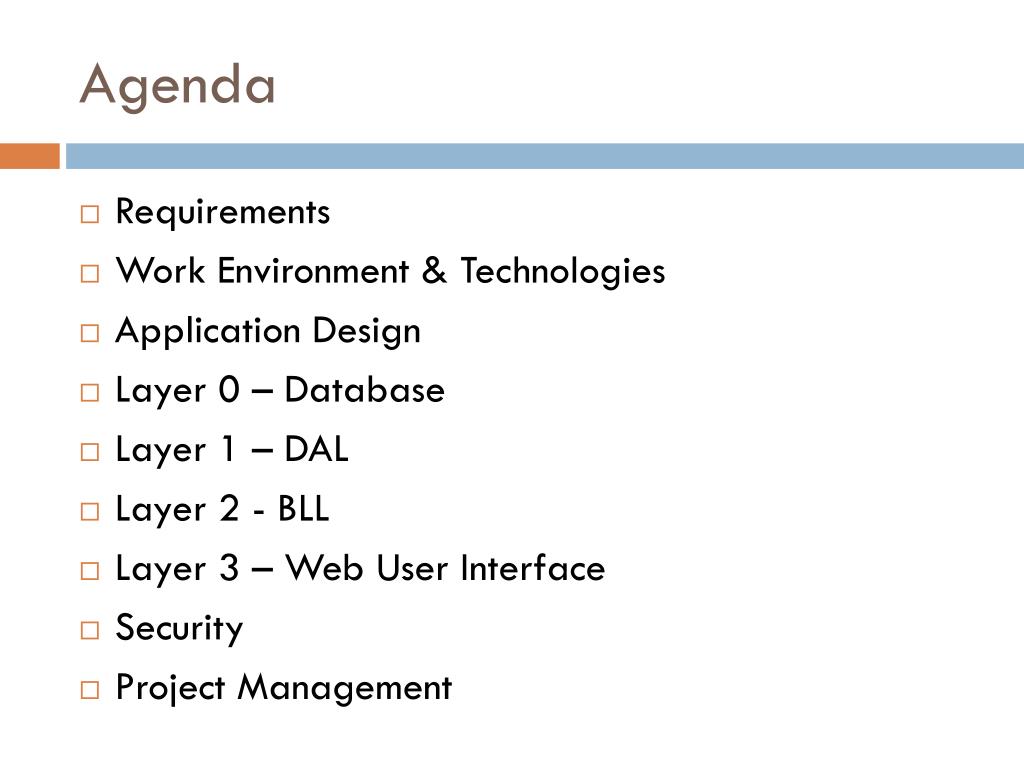

Agenda
  • Requirements
  • Work Environment & Technologies
  • Application Design
  • Layer 0 – Database
  • Layer 1 – DAL
  • Layer 2 - BLL
  • Layer 3 – Web User Interface
  • Security
  • Project Management
project requirements

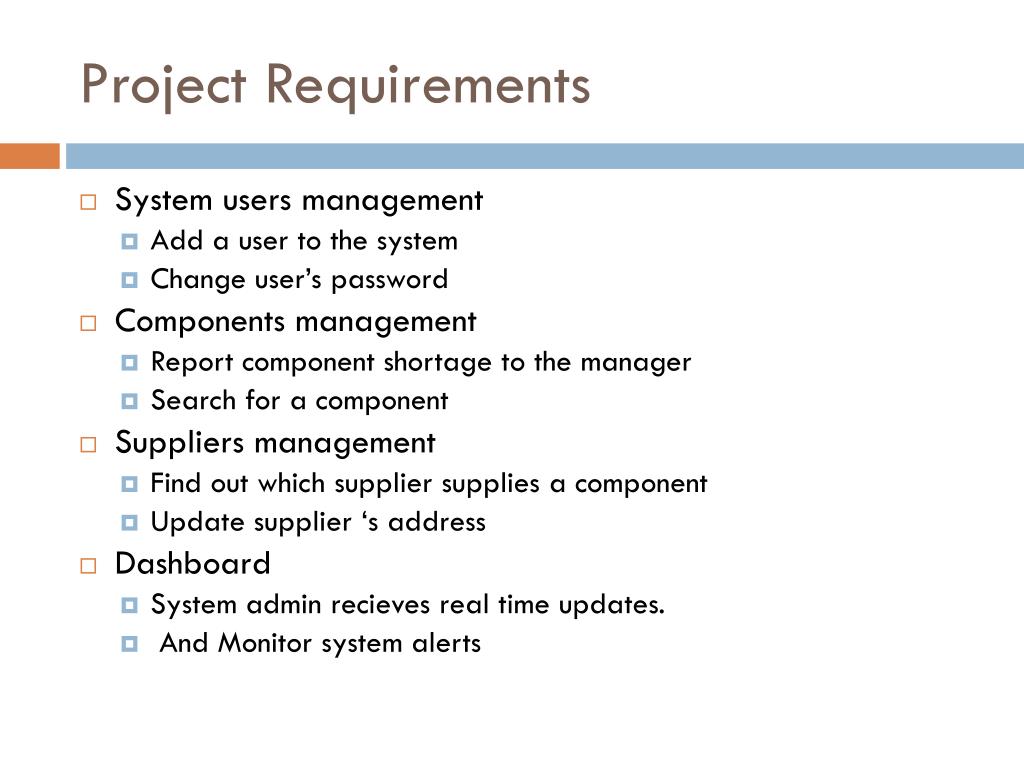

Project Requirements
  • System users management
    • Add a user to the system
    • Change user’s password
  • Components management
    • Report component shortage to the manager
    • Search for a component
  • Suppliers management
    • Find out which supplier supplies a component
    • Update supplier ‘s address
  • Dashboard
    • System admin recievesreal time updates.
    • And Monitor system alerts
project requirements cont

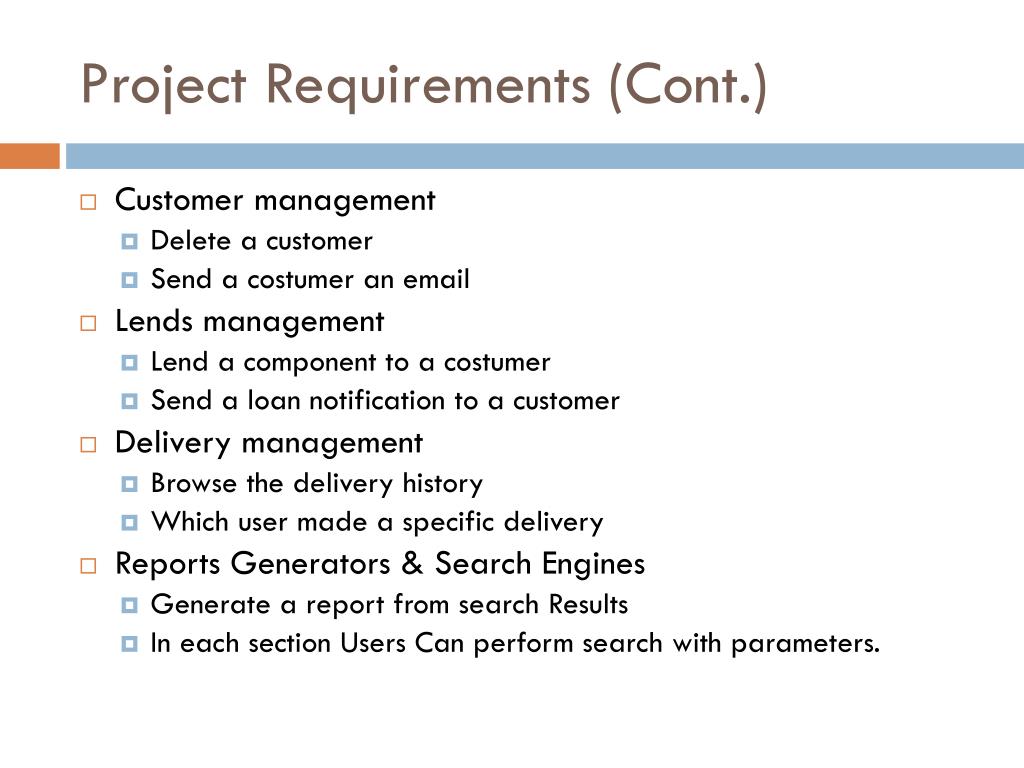

Project Requirements (Cont.)
  • Customer management
    • Delete a customer
    • Send a costumer an email
  • Lends management
    • Lend a component to a costumer
    • Send a loan notification to a customer
  • Delivery management
    • Browse the delivery history
    • Which user made a specific delivery
  • Reports Generators & Search Engines
    • Generate a report from search Results
    • In each section Users Can perform search with parameters.
work environment technologies

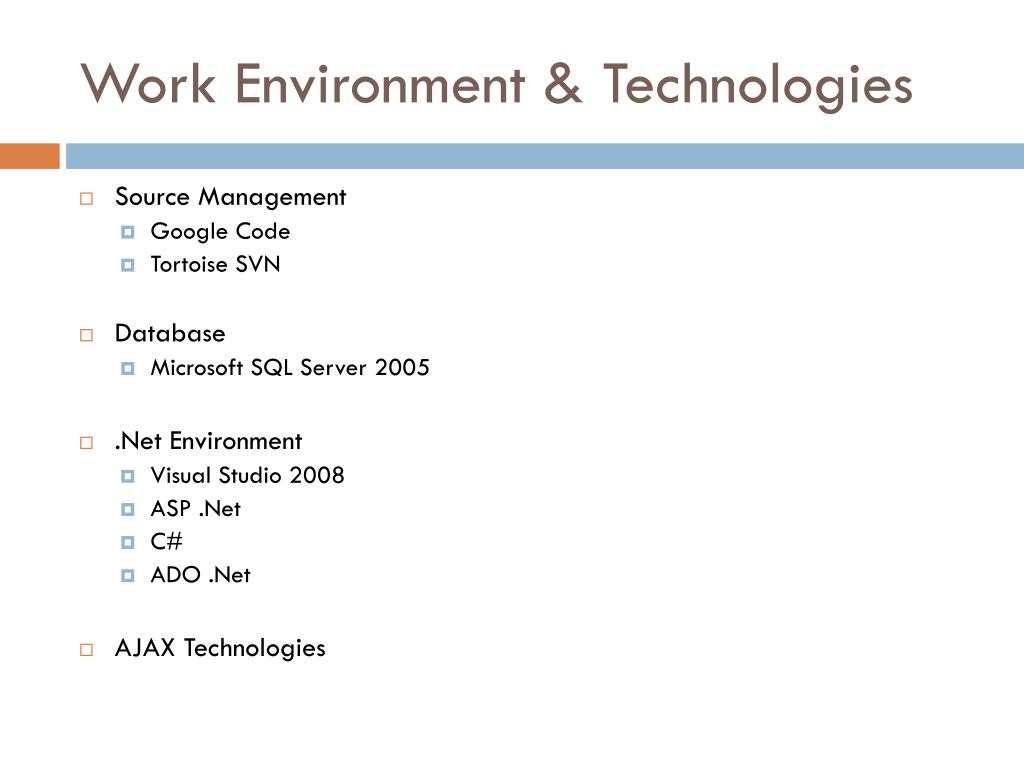

Work Environment & Technologies
  • Source Management
    • Google Code
    • Tortoise SVN
  • Database
    • Microsoft SQL Server 2005
  • .Net Environment
    • Visual Studio 2008
    • ASP .Net
    • C#
    • ADO .Net
  • AJAX Technologies
application design

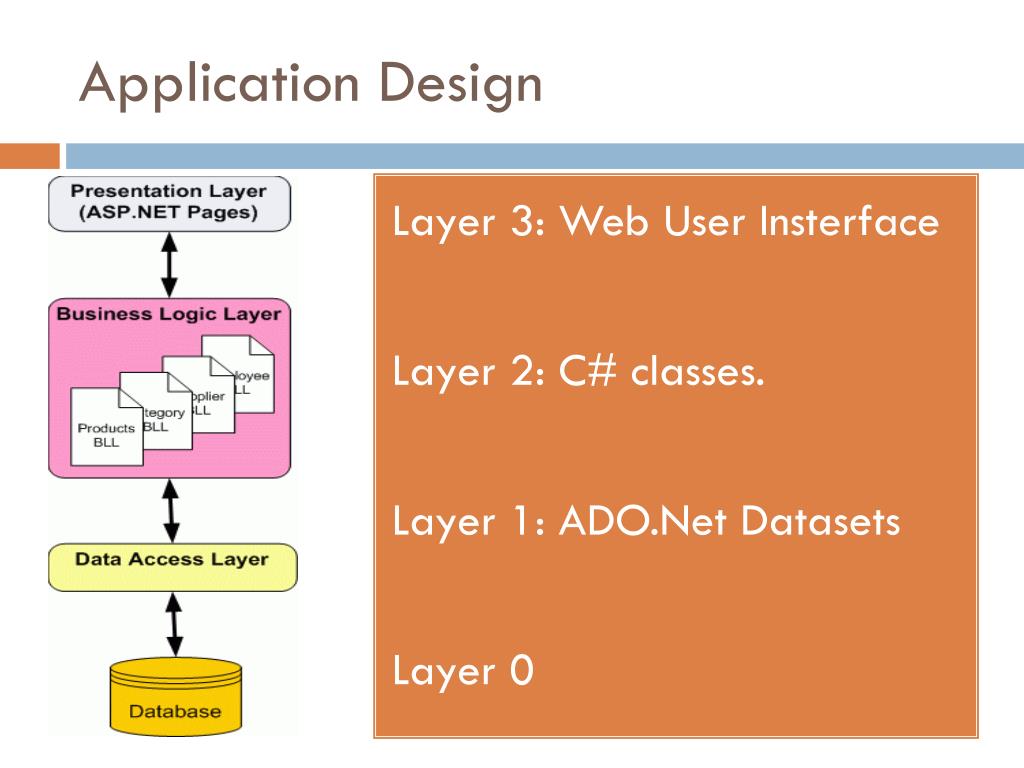

Application Design

Layer 3: Web User Insterface

Layer 2: C# classes.

Layer 1: ADO.Net Datasets

Layer 0

layer 0 database
Layer 0 - Database

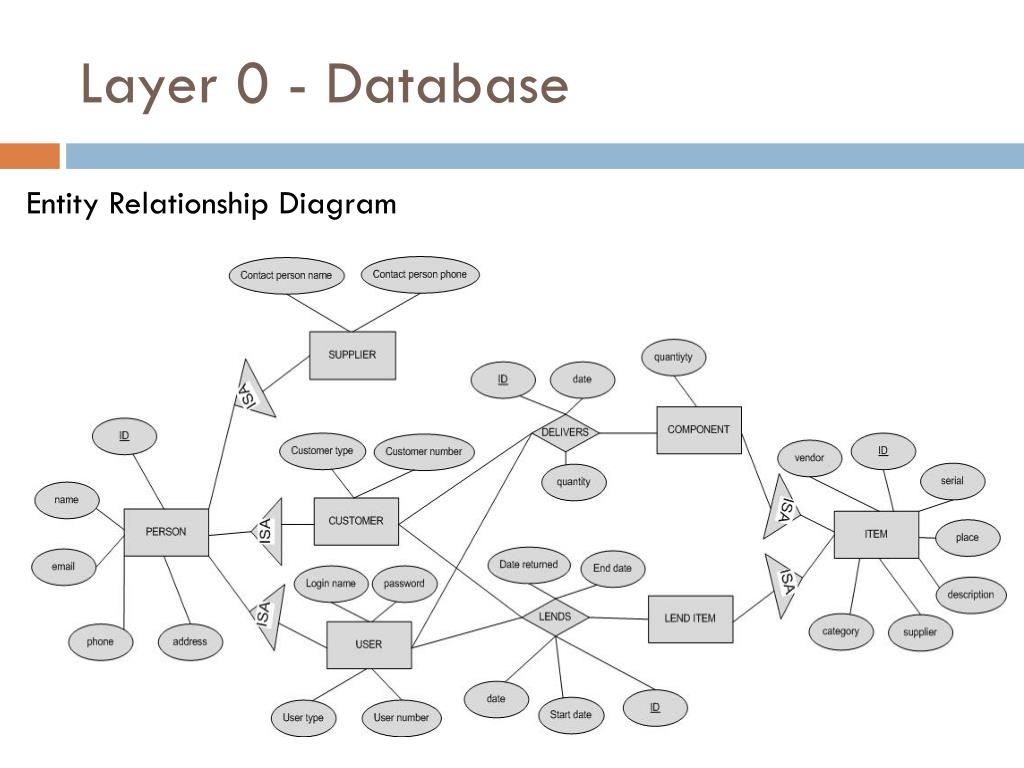

Entity Relationship Diagram

layer 0 database cont

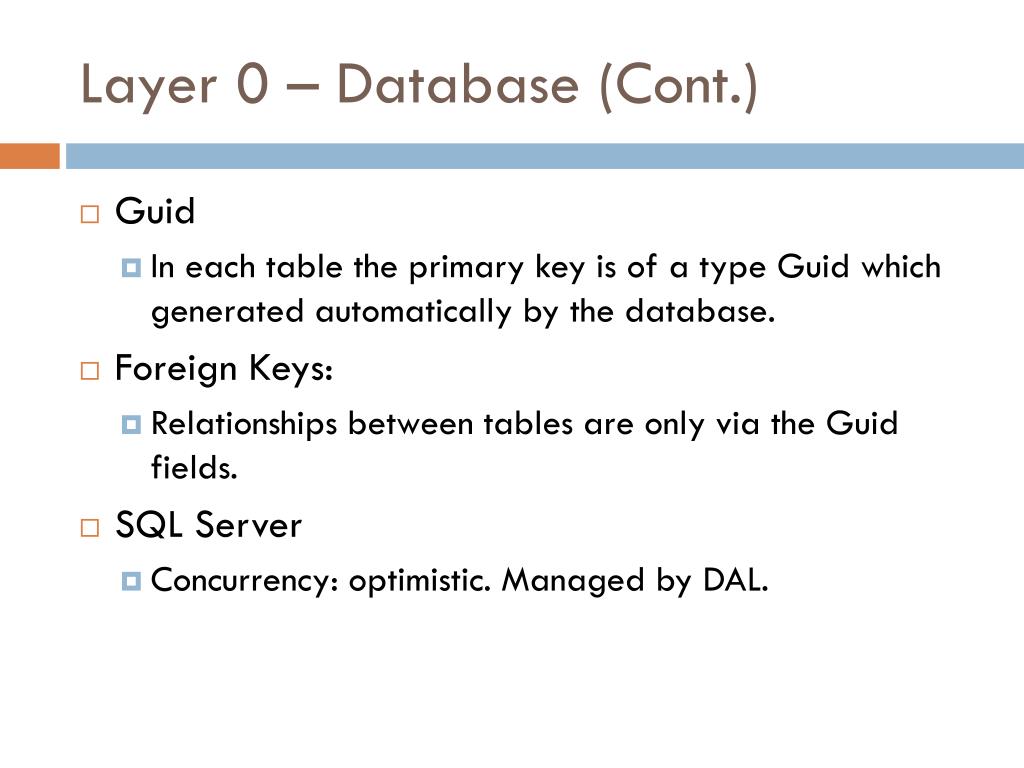

Layer 0 – Database (Cont.)
  • Guid
    • In each table the primary key is of a type Guid which generated automatically by the database.
  • Foreign Keys:
    • Relationships between tables are only via the Guid fields.
  • SQL Server
    • Concurrency: optimistic. Managed by DAL.

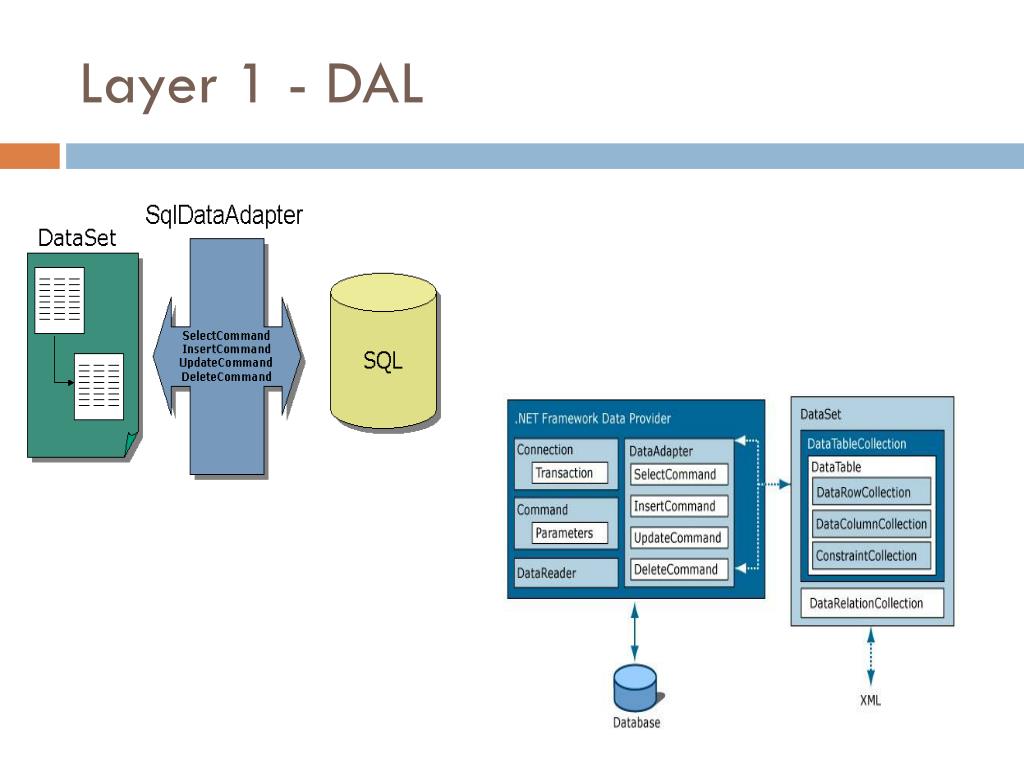

layer 2 bll

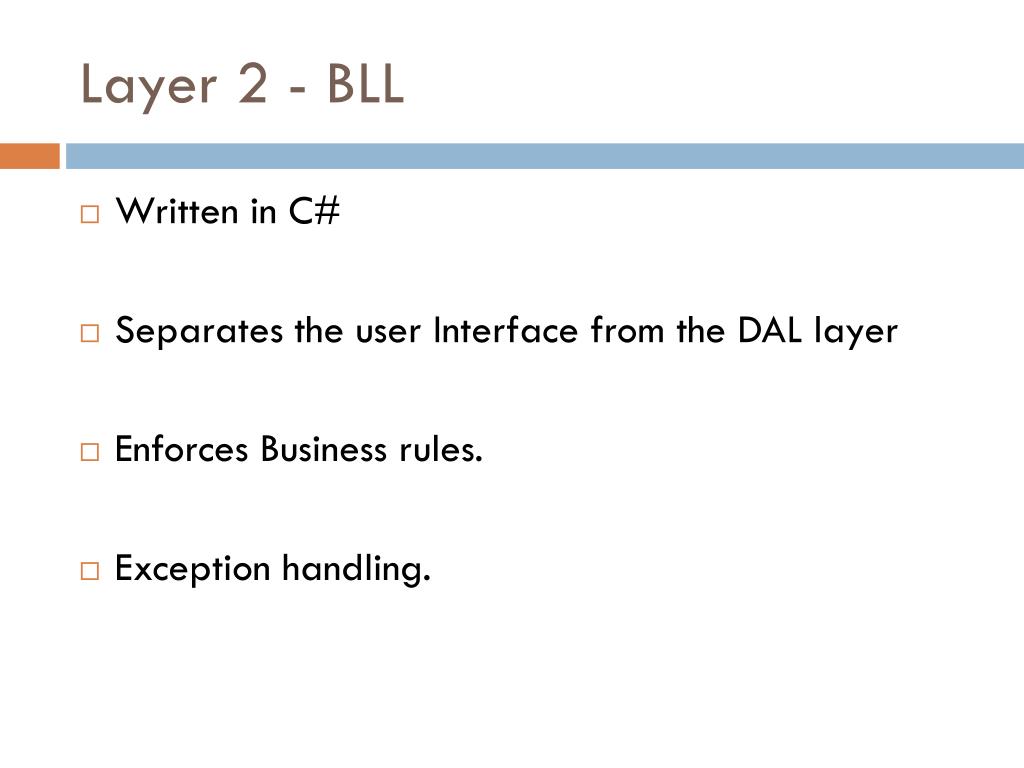

Layer 2 - BLL
  • Written in C#
  • Separates the user Interface from the DAL layer
  • Enforces Business rules.
  • Exception handling.
layer 3 web user interface

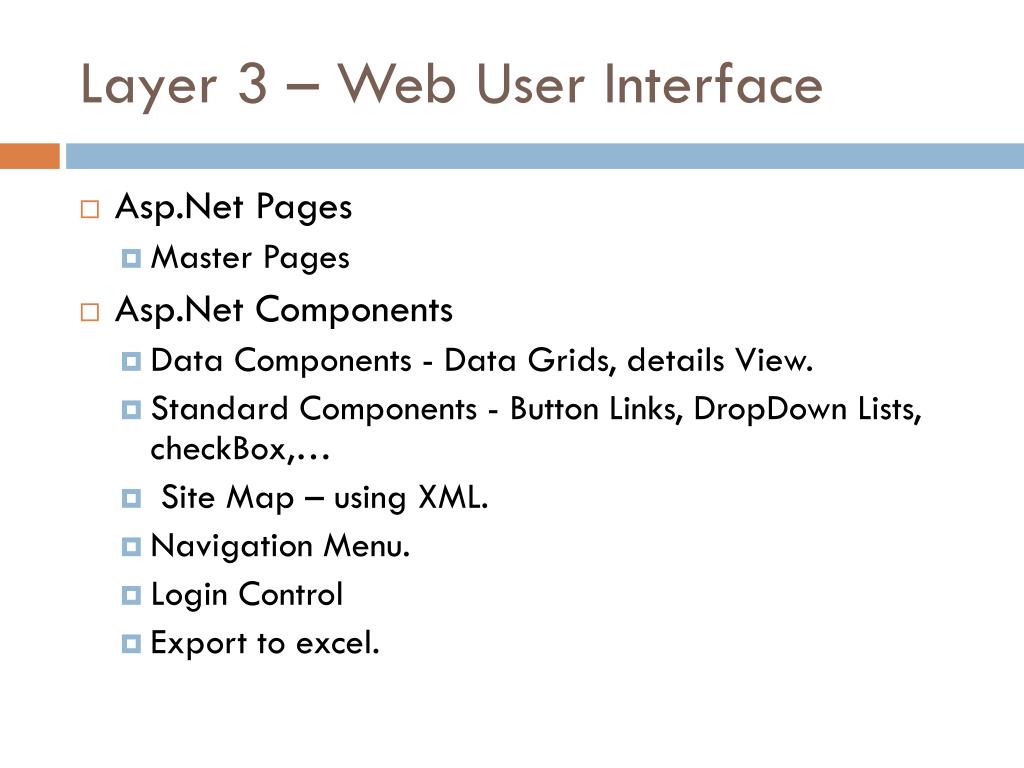

Layer 3 – Web User Interface
  • Asp.Net Pages
    • Master Pages
  • Asp.Net Components
    • Data Components - Data Grids, details View.
    • Standard Components - Button Links, DropDown Lists, checkBox,…
    • Site Map – using XML.
    • Navigation Menu.
    • Login Control
    • Export to excel.
layer 3 web user interface cont

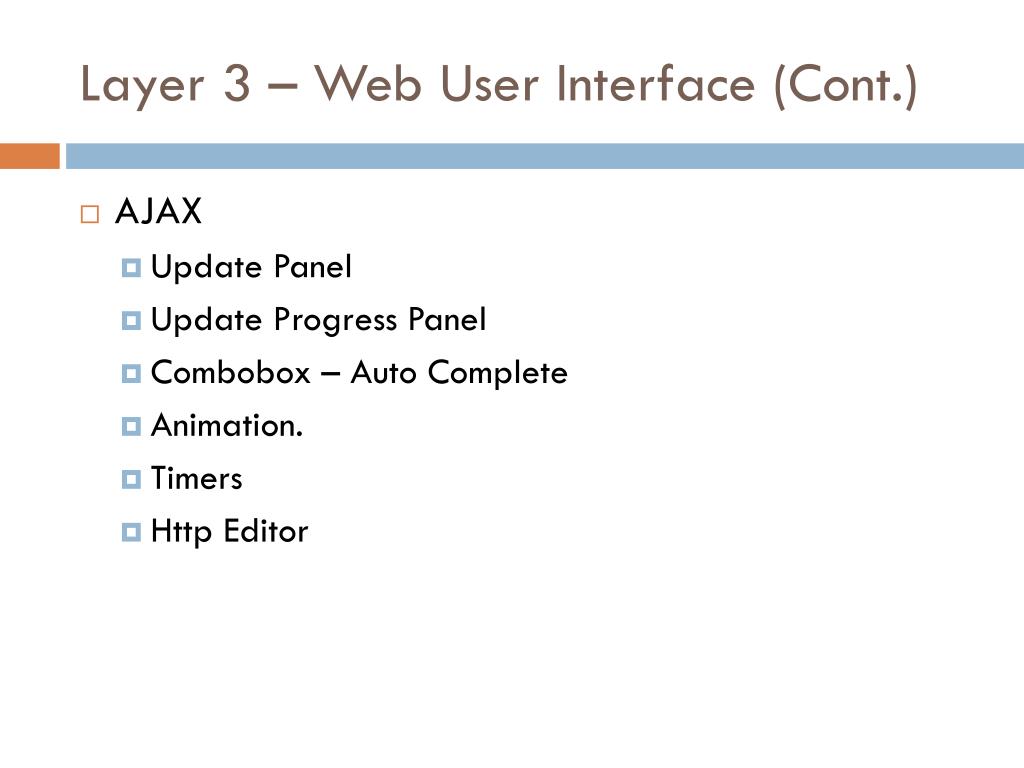

Layer 3 – Web User Interface (Cont.)
  • AJAX
    • Update Panel
    • Update Progress Panel
    • Combobox – Auto Complete
    • Animation.
    • Timers
    • Http Editor
security
Security
  • Separating Users from Admin module.
  • Only Admin can perform Application metadata changes.
  • Session: The Application Manages the connected users by state full sessions.
  • Cookies: Used to remember information about the user.
  • Passwords: All passwords are hashed into the database using one way hashing functions (SHA-1)
project management
Project Management
  • Working Procedures.
  • Screen Recording - WebEx.
  • Google Code
    • Defects/Issues Handling.
    • Wiki Pages
    • Downloads Sections
  • SVN
    • Revisions Management
    • working simultaneously
