  1. 제목이 한 줄인 경우 날짜 KoFNet - Korea Future Network Testbed u-Infrastructure Planning Team Sun-Moo Kang

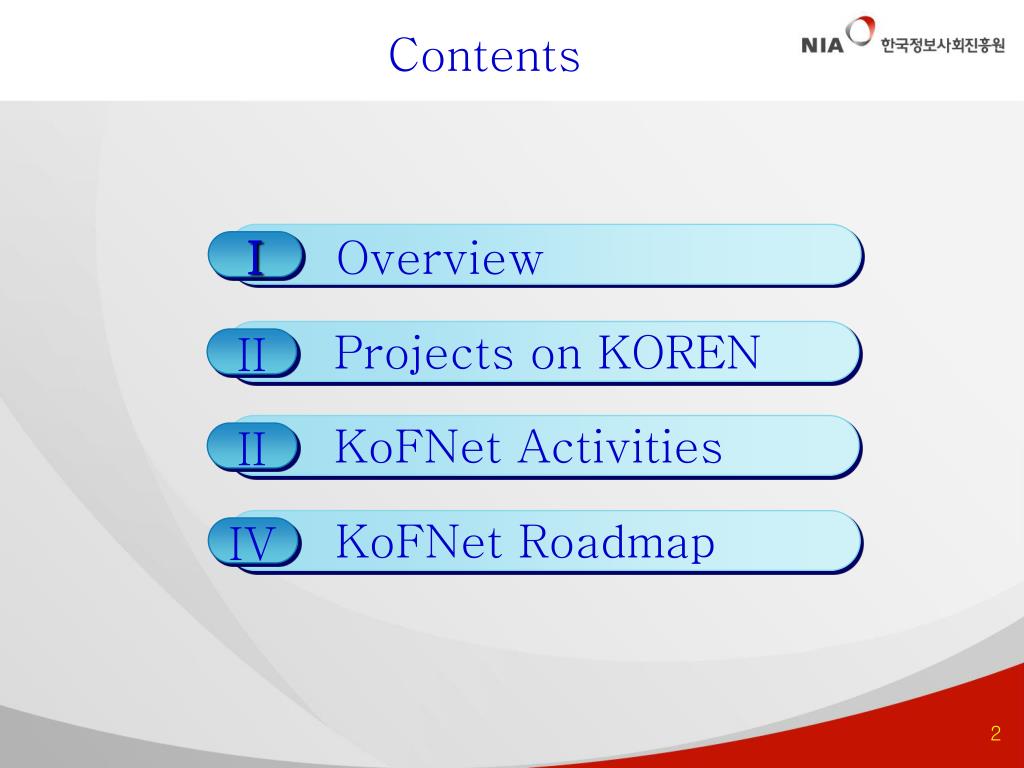

  2. Overview Ⅰ KoFNet Roadmap Projects on KOREN KoFNet Activities IV II II Contents

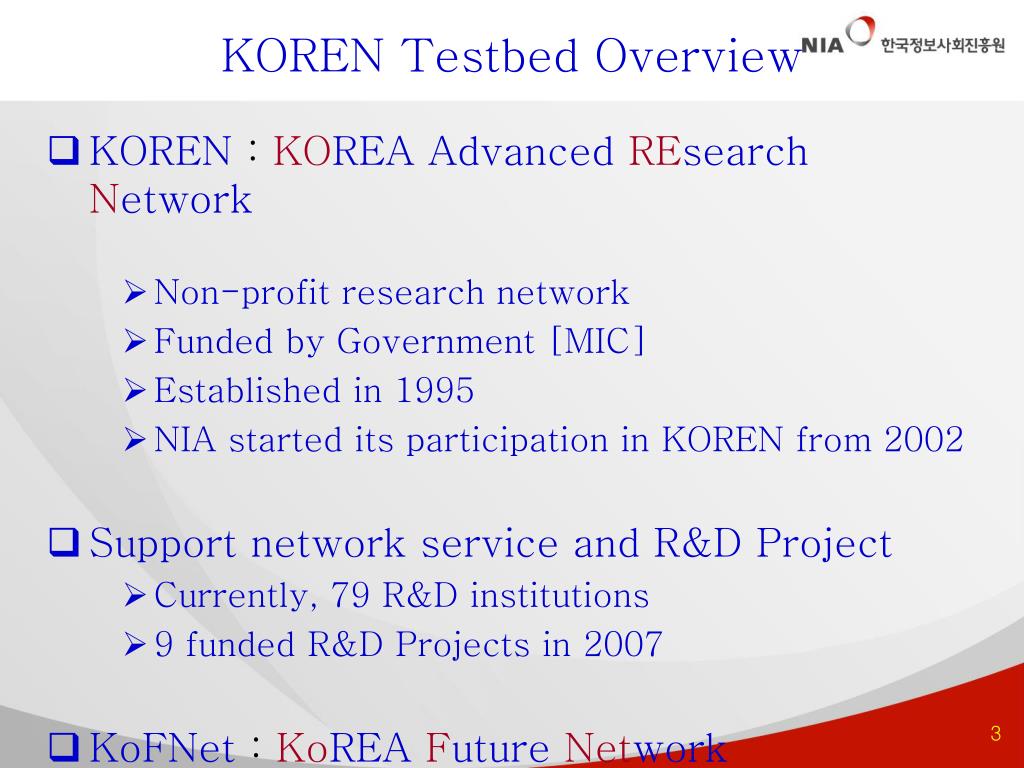

  3. KOREN Testbed Overview • KOREN :KOREA AdvancedREsearchNetwork • Non-profit research network • Funded by Government [MIC] • Established in 1995 • NIA started its participation in KOREN from 2002 • Support network service and R&D Project • Currently, 79 R&D institutions • 9 funded R&D Projects in 2007 • KoFNet :KoREA Future Network

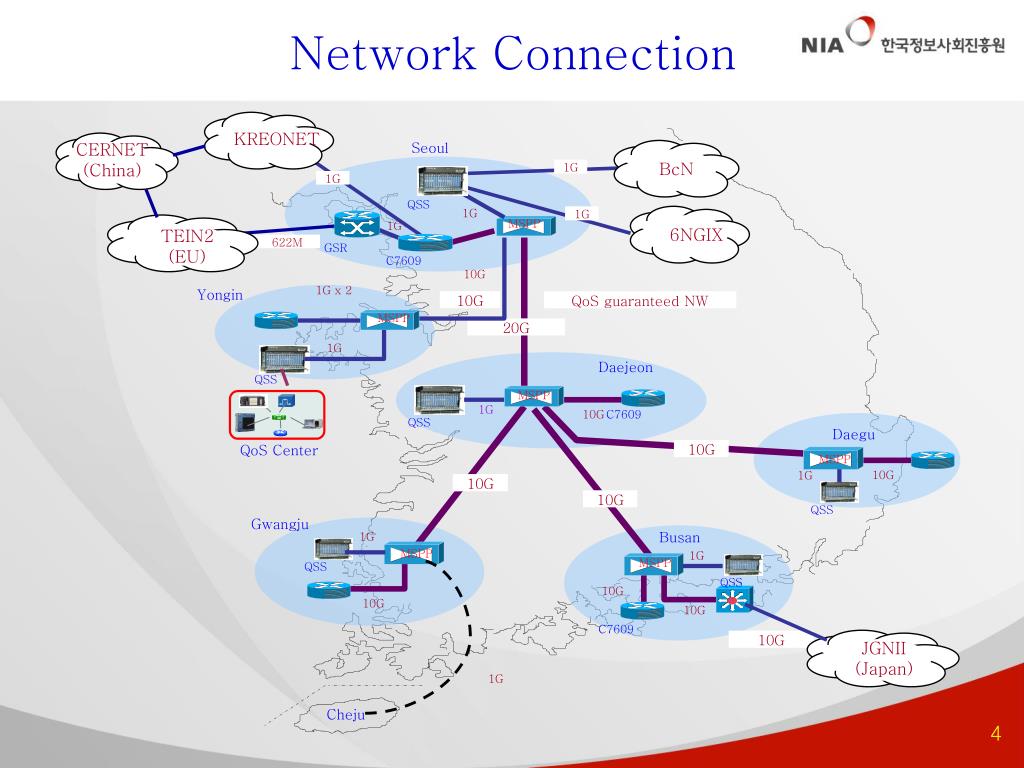

  4. C7609 Network Connection KREONET Seoul CERNET (China) BcN 1G 1G QSS 1G 1G MSPP 1G 6NGIX TEIN2 (EU) 622M GSR 10G Yongin 1G x 2 10G QoS guaranteed NW MSPP 20G 1G ○ Daejeon QSS MSPP C7609 1G 10G QSS Daegu QoS Center 10G MSPP 10G 1G 10G 10G QSS Gwangju Busan 1G MSPP 1G QSS MSPP QSS 10G 10G 10G C7609 10G JGNII (Japan) 1G Cheju

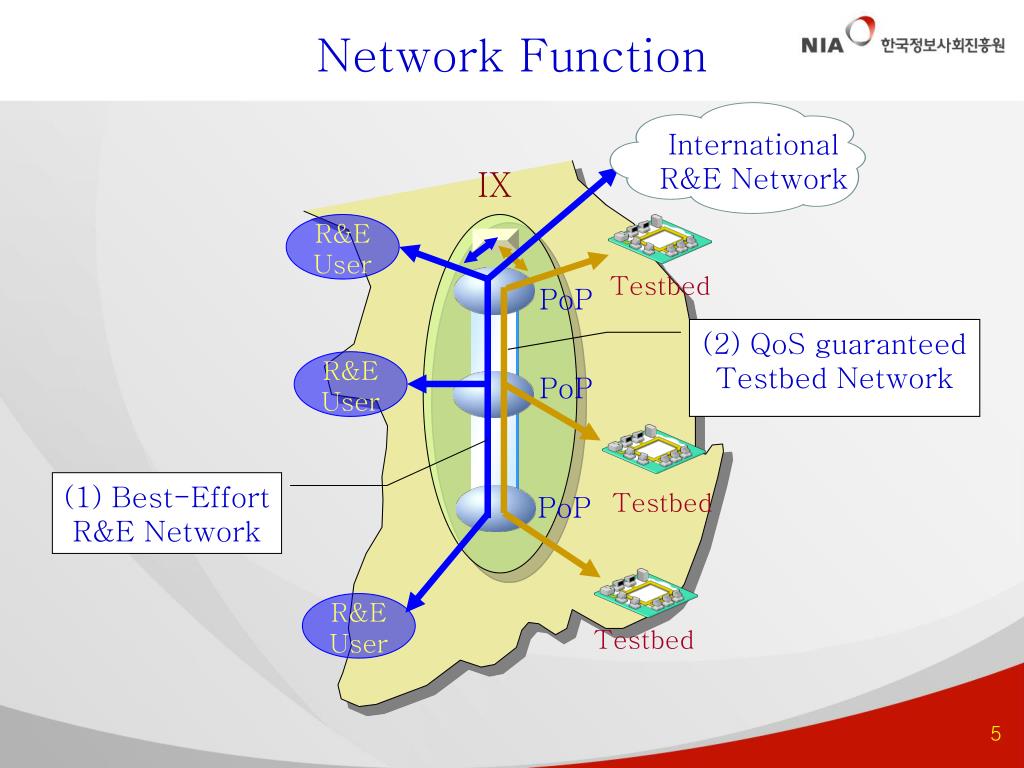

  5. Network Function International R&E Network IX R&E User Testbed PoP (2) QoS guaranteed Testbed Network R&E User PoP (1) Best-Effort R&E Network Testbed PoP R&E User Testbed

  6. 자재함 자재함 자재함 자재함 자재함 Open Lab Testbed Seoul Suwon 10G Open Testbed (NIA) BcN QoS Measurement, (VoIP), BcN Pilot Service Internetworking 20G DJ Daegu 10G Open Testbed (ICU) Mobility, Security, Charging, AAA, Service Architecture Open Testbed (’07) Application Service Architecture 10G 10G 10G PS KJ Open Testbed (’07) u-Mobile, Wibro, WiFi,CDMA, Ad-hoc, Mesh, u-Sensor Open Testbed (‘07) IPTV test, UCC, FTTH, Motion Deection

  7. Mesh network Interworking

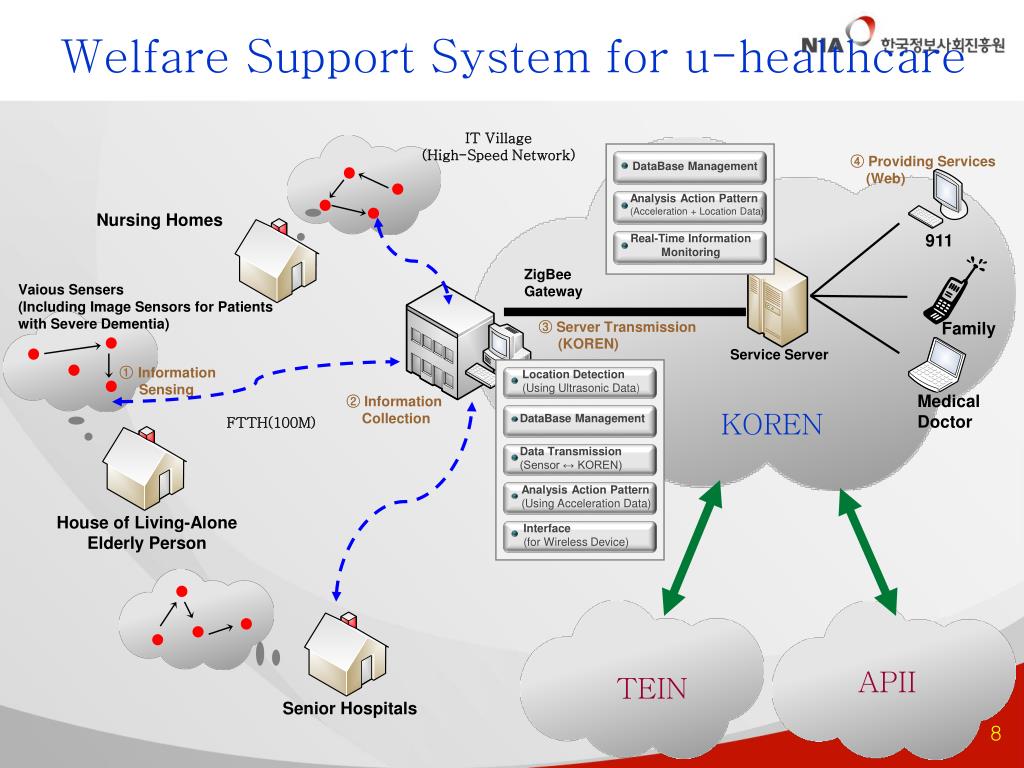

  8. Welfare Support System for u-healthcare IT Village (High-Speed Network) DataBase Management Analysis Action Pattern (Acceleration + Location Data) ④ Providing Services (Web) Nursing Homes Real-Time Information Monitoring 911 Vaious Sensers (Including Image Sensors for Patients with Severe Dementia) ZigBee Gateway ③Server Transmission (KOREN) Family ① Information Sensing Location Detection (Using Ultrasonic Data) Service Server FTTH(100M) DataBase Management Medical Doctor KOREN Data Transmission (Sensor ↔ KOREN) Analysis Action Pattern (Using Acceleration Data) House of Living-Alone Elderly Person ②Information Collection Interface (for Wireless Device) TEIN APII Senior Hospitals

  9. Performance of Heterogeneous Wireless Networks i) Power, rate, and carrier sense threshold control: To increase the level of spatial reuse in multi-hop wireless networks. ii) Interference aware routing and scheduling: To improve overall network capacity by exploiting temporal-spatial diversity.iii) Contention control for wireless sensor networks: To utilize the wireless channel effectively by adjusting the channel access probability. Web interface model i) Remote control: Online upload or scenario files and application files on wireless node ii) Automation of experiment process: Real time auto collection of traffic traces and debugging messages.

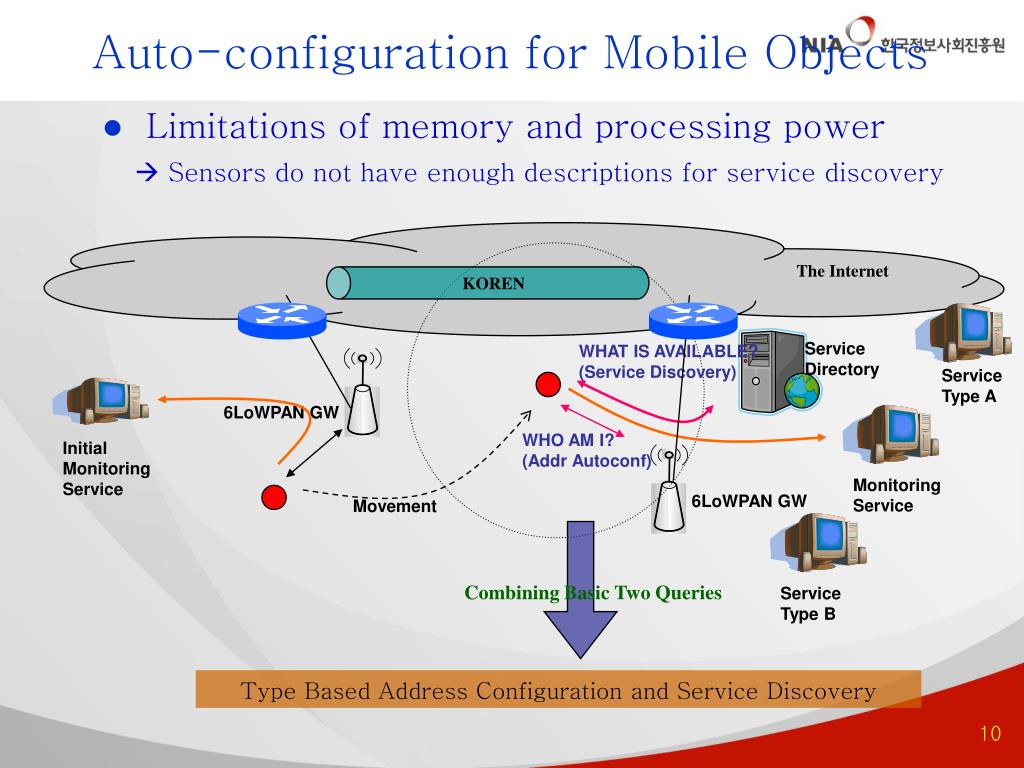

  10. Auto-configuration for Mobile Objects • Limitations of memory and processing power  Sensors do not have enough descriptions for service discovery KOREN The Internet Service Directory WHAT IS AVAILABLE? (Service Discovery) Service Type A 6LoWPAN GW WHO AM I? (Addr Autoconf) Initial Monitoring Service Monitoring Service 6LoWPAN GW Movement Combining Basic Two Queries Service Type B Type Based Address Configuration and Service Discovery

  11. IP-USN and 6LowPAN

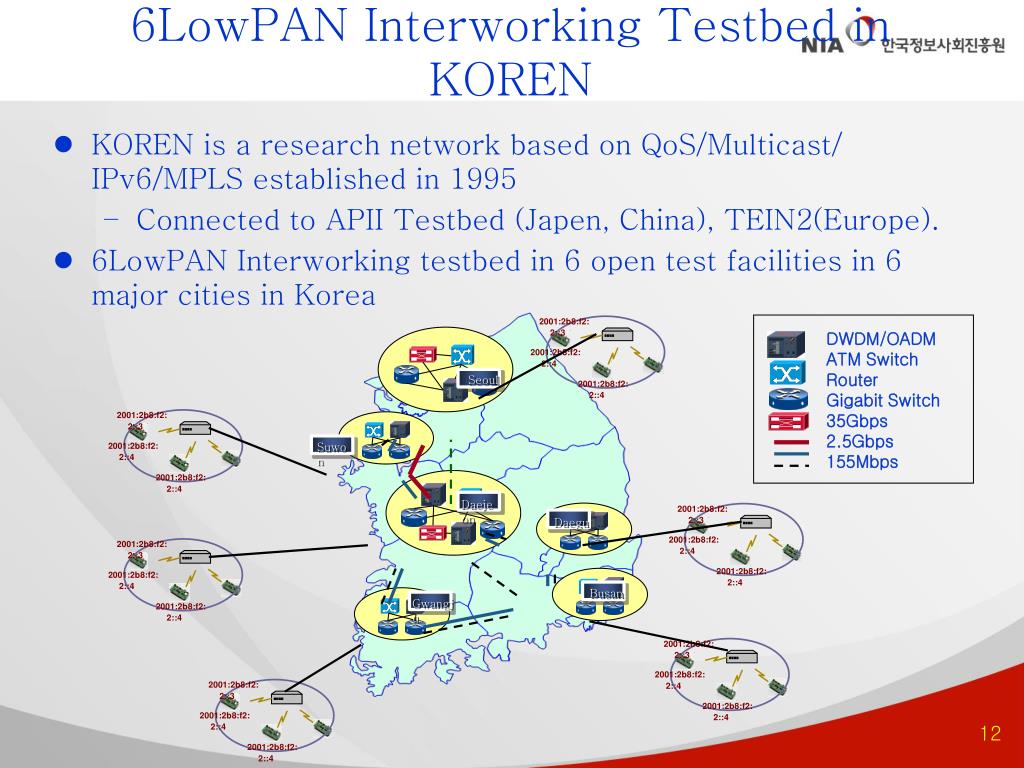

  12. 6LowPAN Interworking Testbed in KOREN 2001:2b8:f2:2::3 2001:2b8:f2:2::3 2001:2b8:f2:2::3 2001:2b8:f2:2::3 2001:2b8:f2:2::3 2001:2b8:f2:2::3 2001:2b8:f2:2::4 2001:2b8:f2:2::4 2001:2b8:f2:2::4 2001:2b8:f2:2::4 2001:2b8:f2:2::4 2001:2b8:f2:2::4 2001:2b8:f2:2::4 2001:2b8:f2:2::4 2001:2b8:f2:2::4 2001:2b8:f2:2::4 2001:2b8:f2:2::4 2001:2b8:f2:2::4 • KOREN is a research network based on QoS/Multicast/ IPv6/MPLS established in 1995 • Connected to APII Testbed (Japen, China), TEIN2(Europe). • 6LowPAN Interworking testbed in 6 open test facilities in 6 major cities in Korea DWDM/OADM ATM Switch Router Gigabit Switch 35Gbps 2.5Gbps 155Mbps Seoul Suwon Daejeon Daegu Busan Gwangju

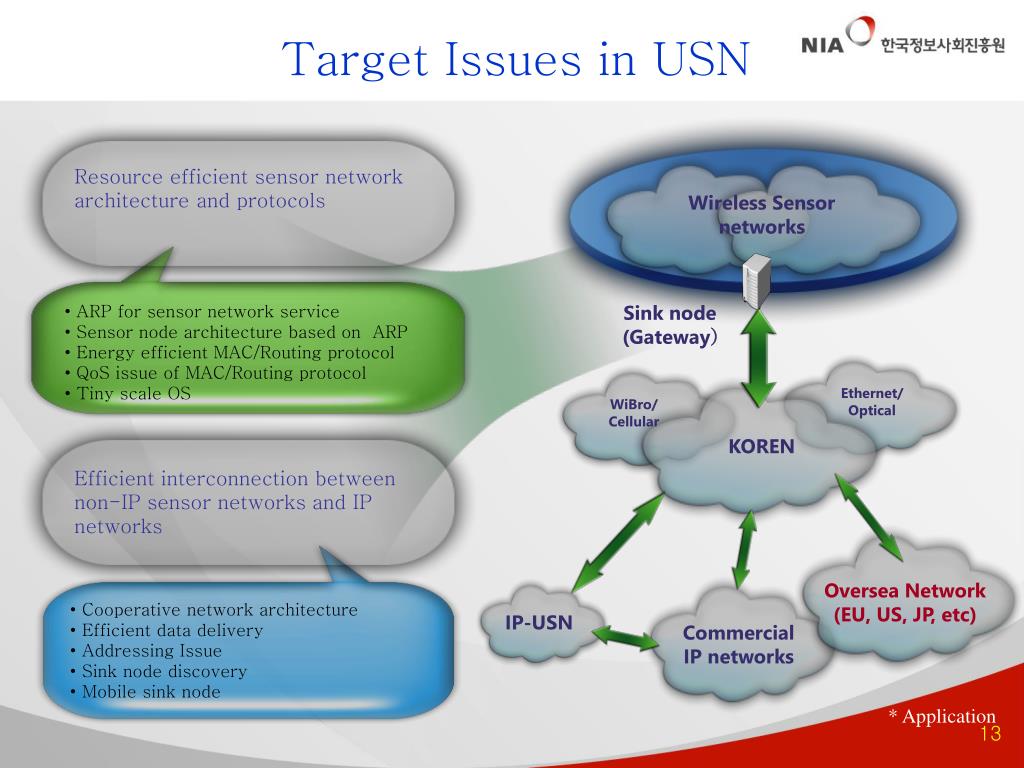

  13. Target Issues in USN Resource efficient sensor network architecture and protocols Wireless Sensor networks • ARP for sensor network service • Sensor node architecture based on ARP • Energy efficient MAC/Routing protocol • QoS issue of MAC/Routing protocol • Tiny scale OS Sink node (Gateway) Ethernet/ Optical WiBro/ Cellular KOREN Efficient interconnection between non-IP sensor networks and IP networks Oversea Network (EU, US, JP, etc) • Cooperative network architecture • Efficient data delivery • Addressing Issue • Sink node discovery • Mobile sink node IP-USN Commercial IP networks * Application

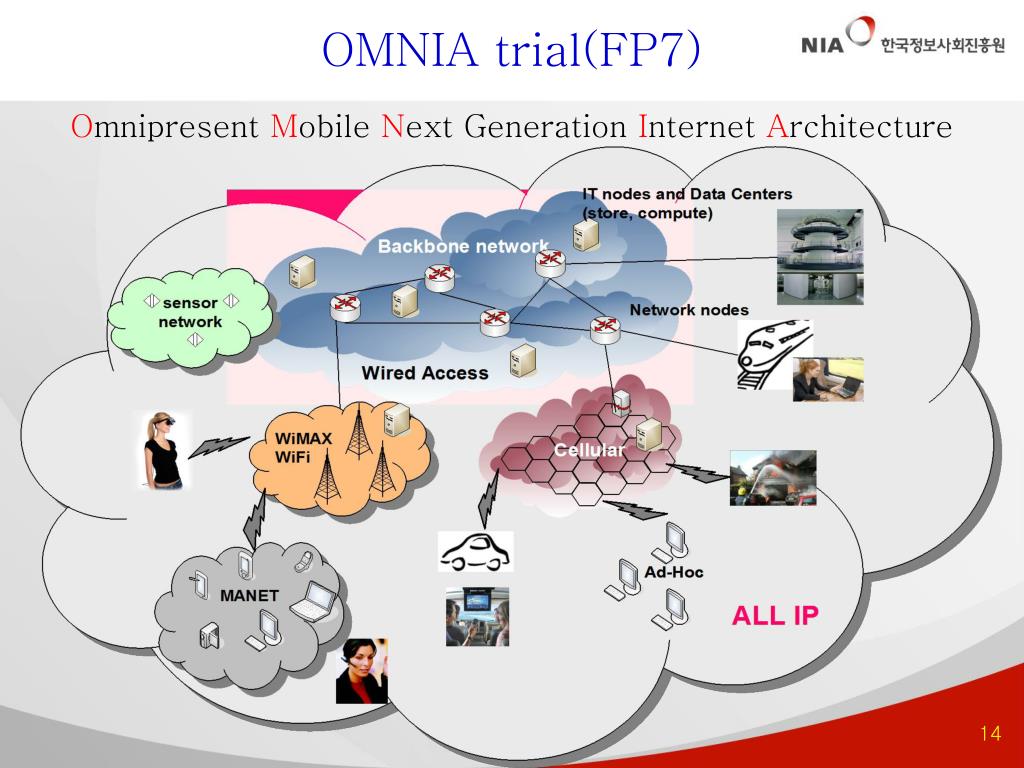

  14. OMNIA trial(FP7) Omnipresent Mobile Next Generation Internet Architecture

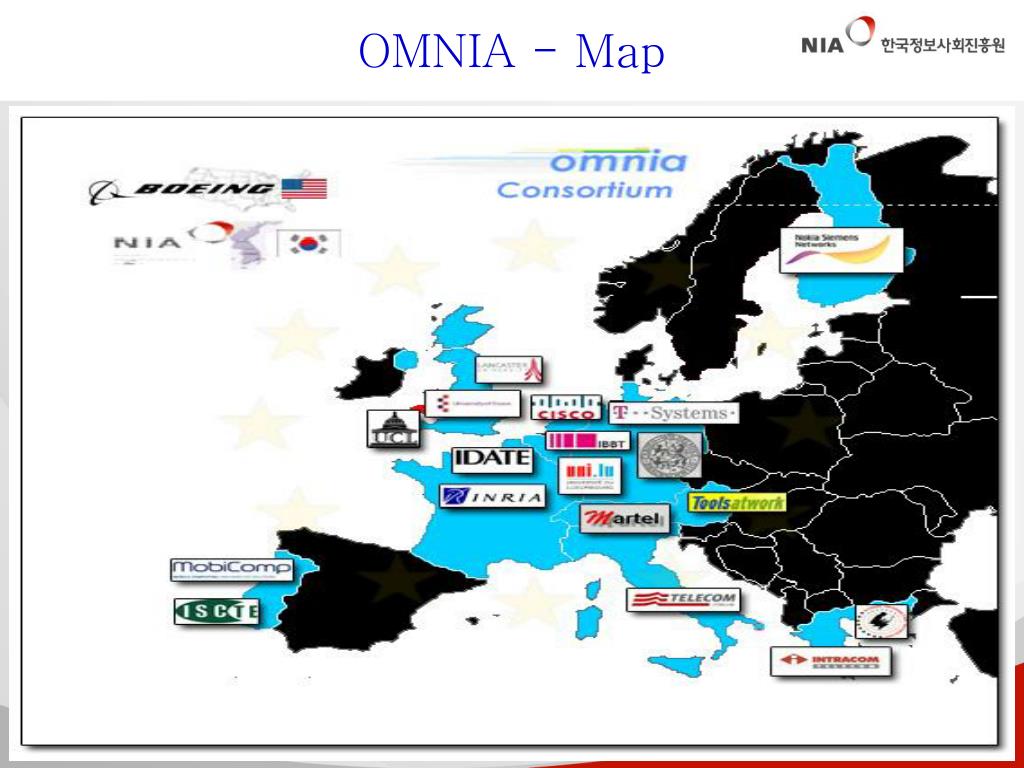

  15. OMNIA - Map

  16. Global Interconnection Testing for 6LowPAN(FP7)

  17. UNITE – Universal Interoperability Testingfor 6LowPAN

  18. Future Internet Forum • Established in 2006 to promote R&D collaborations in Future networking • Building research communities • Architecture • Wireless • Service • Testbed • Policy • http://anf.ne.kr/fif/

  19. Testbed Working Group • Research areas include : developing Future Internet testbed (e.g. KOREN] in order to perform end-to-end experiments over diverse, advanced technologies : interoperability, manageability, customization, accessibility,virtualization, and sliceability

  20. KoFNet Testbed Activities • Define the need for Future Network Testbed • Purpose of the Future Network Testbed • Various Requirements on the FN testbed • Agenda for research using FN Testbed • R&D Topics on the FN testbed • The anticipated range of experiments • International Cooperation • Various R&D projects with foreign institutions • OMNIA – FP7 Trial, … • Conceptual design • Set-up a reference model for FN testbed • Refer to world FN testbed architectures • Realizing of ideas (Substrates, Network control, etc…) -

  21. KoFNet Testbed Roadmap 2004 2006 2008 2010 2012 2015 2020 BcN Expansion BcN Commercial Network BcN II Pilot Network BcN III Pilot Service Commercial BcN Post-BcN Conceptual Design TBD Network Construction Operation and Upgrade New Internet Architecture Supporting High availability, Security Enhanced, Advanced Service Architecture on the Mobile, Ad-hoc, Ubiquitous Sensor Network R&D 2009 2007 2008 2010 Conceptual Design Preliminary & Final Design Construction Starts up FN Testbed Operation & Upgraded Plan

  22. Thank You !!etxkang@nia.or.kr
