1255 technical training service tools overview presentation

1255 Technical TrainingService Tools Overview Presentation

NMP-CDMA; San Diego

Jan, 2006

CompanyConfidential

slide2

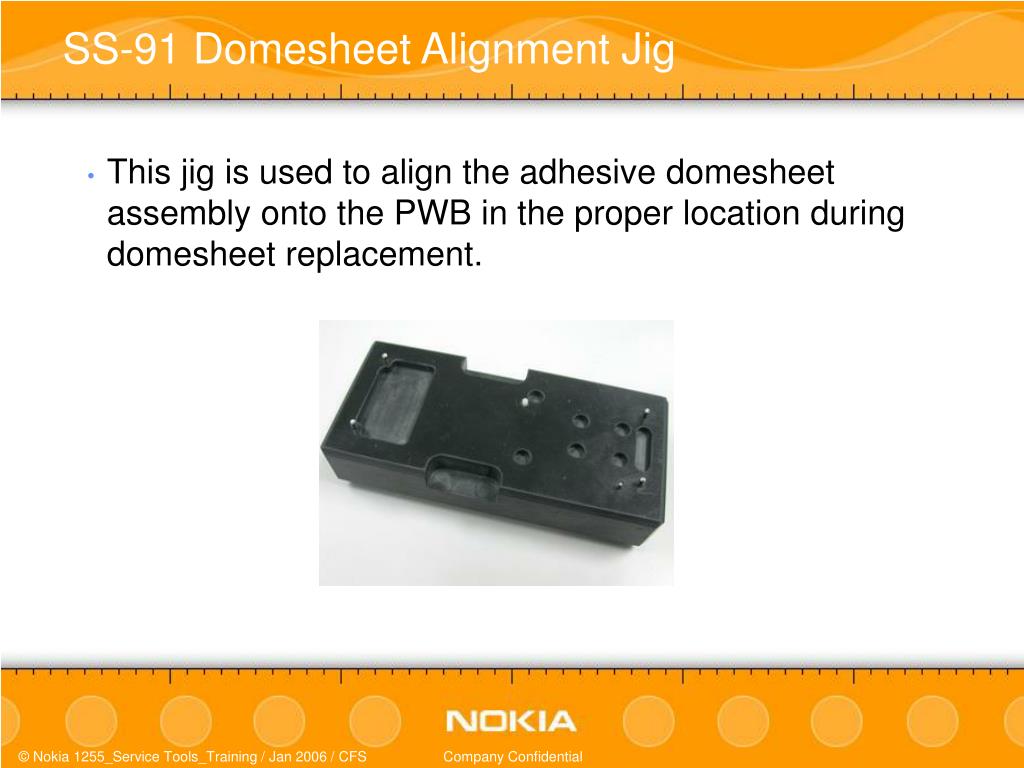

SS-91 Domesheet Alignment Jig

  • This jig is used to align the adhesive domesheet assembly onto the PWB in the proper location during domesheet replacement.

CompanyConfidential

slide3

SF-93 Flash Adapter (1/2)

  • This device allows Point of Sale (POS) locations to flash the mobile terminal.

CompanyConfidential

slide4

SF-93 Flash Adapter (2/2)

CompanyConfidential

slide5

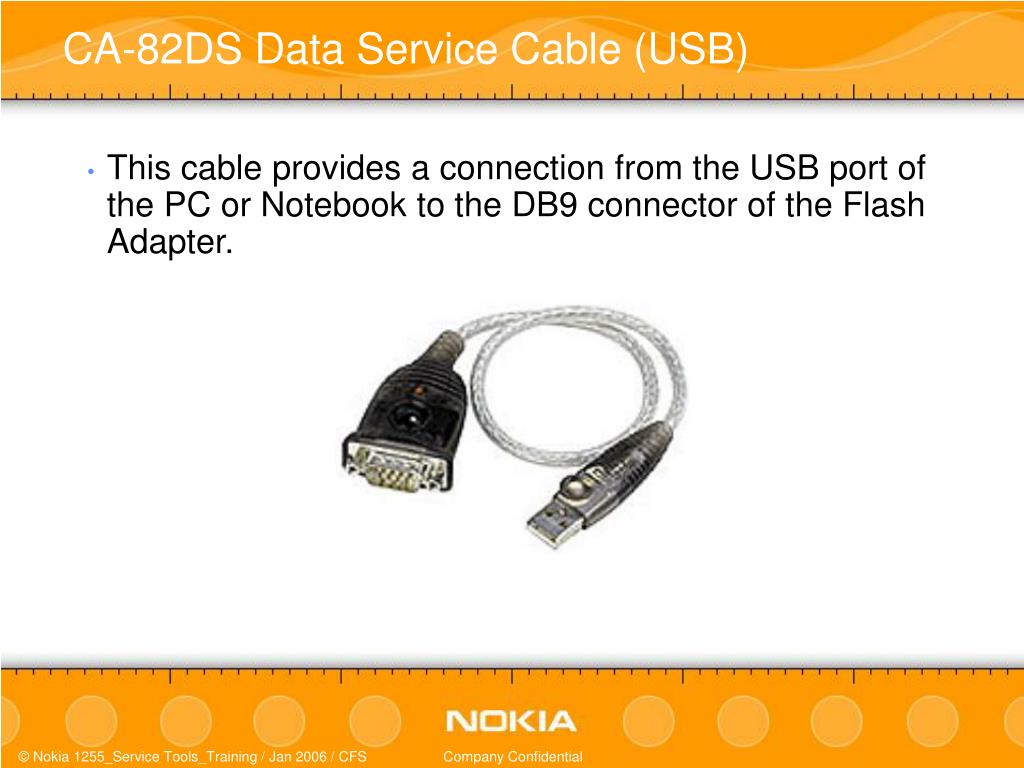

CA-82DS Data Service Cable (USB)

  • This cable provides a connection from the USB port of the PC or Notebook to the DB9 connector of the Flash Adapter.

CompanyConfidential

slide6

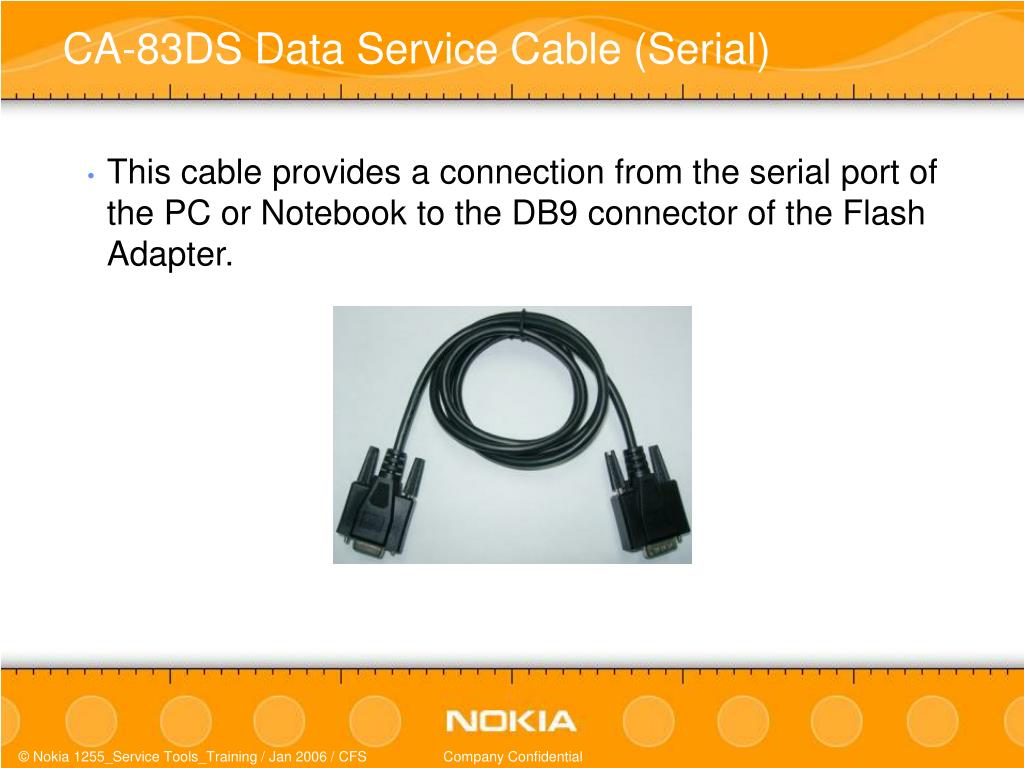

CA-83DS Data Service Cable (Serial)

  • This cable provides a connection from the serial port of the PC or Notebook to the DB9 connector of the Flash Adapter.

CompanyConfidential

slide7

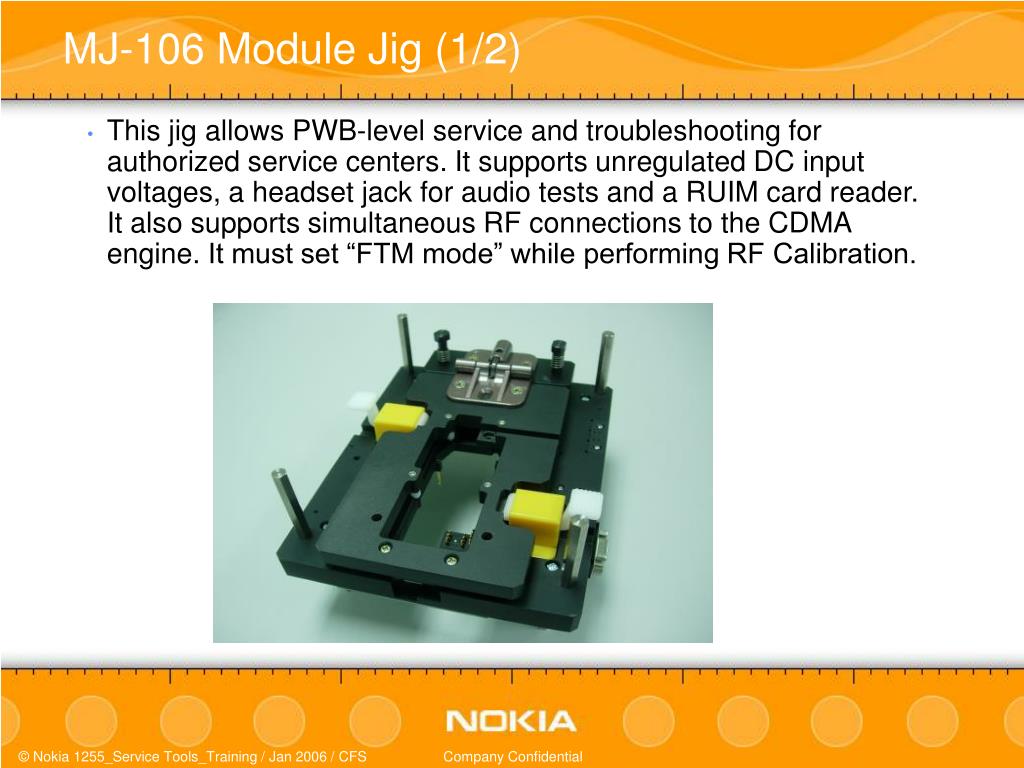

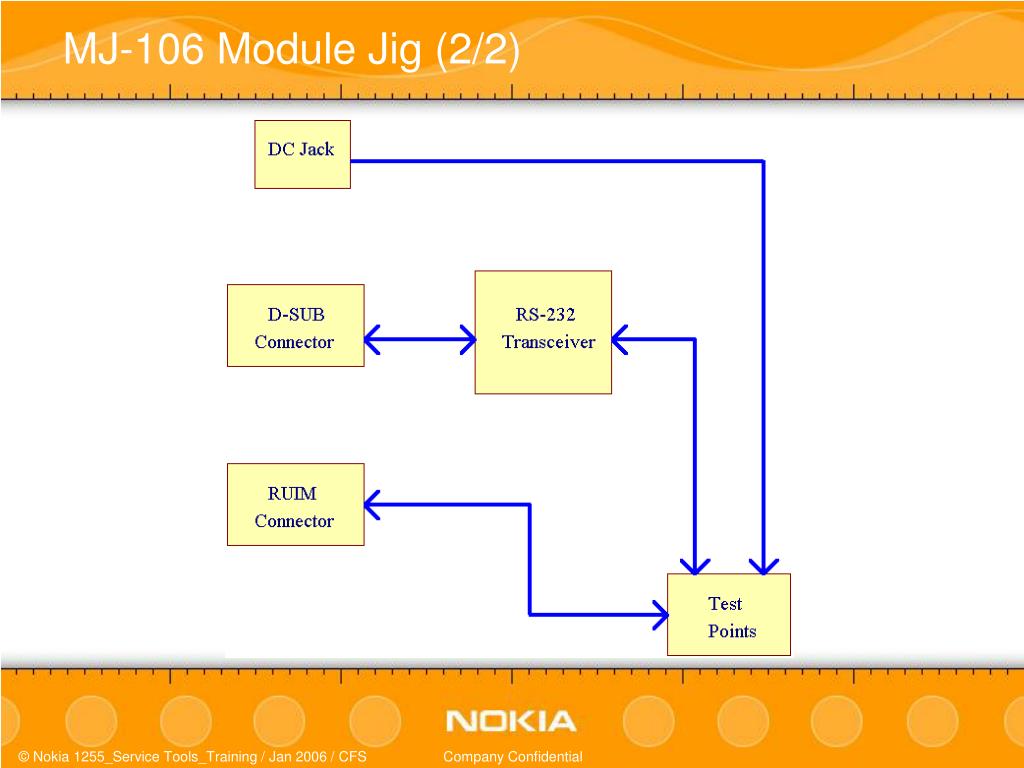

MJ-106 Module Jig (1/2)

  • This jig allows PWB-level service and troubleshooting for authorized service centers. It supports unregulated DC input voltages, a headset jack for audio tests and a RUIM card reader. It also supports simultaneous RF connections to the CDMA engine. It must set “FTM mode” while performing RF Calibration.

CompanyConfidential

slide8

MJ-106 Module Jig (2/2)

CompanyConfidential

slide9

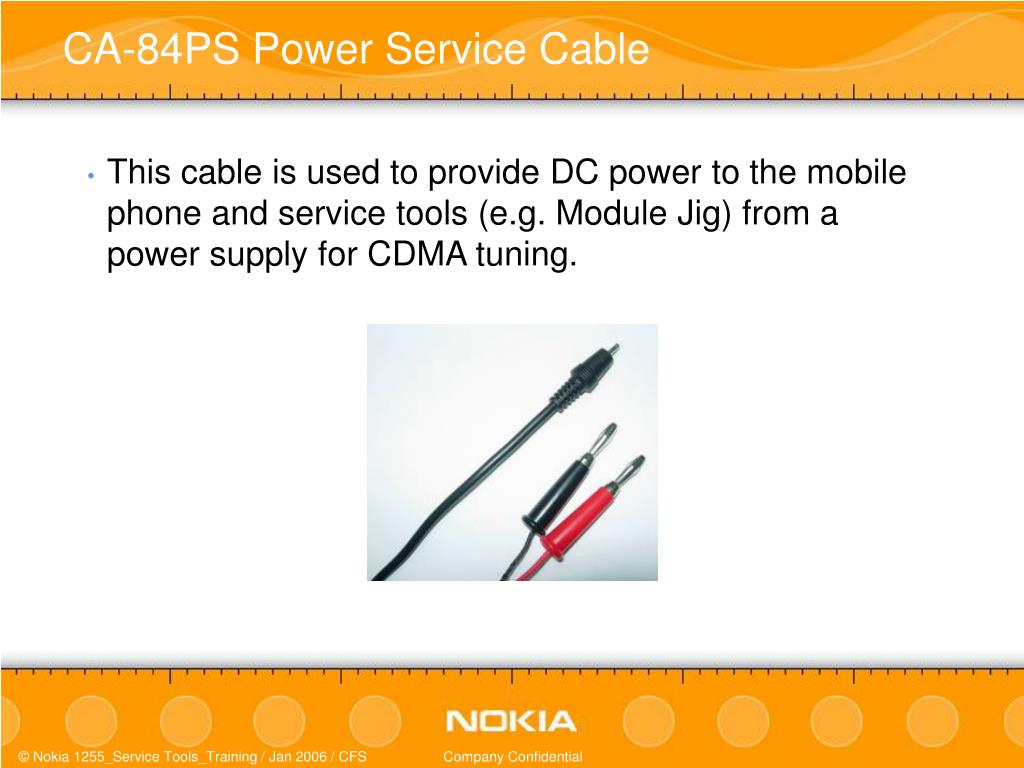

CA-84PS Power Service Cable

  • This cable is used to provide DC power to the mobile phone and service tools (e.g. Module Jig) from a power supply for CDMA tuning.

CompanyConfidential

slide10

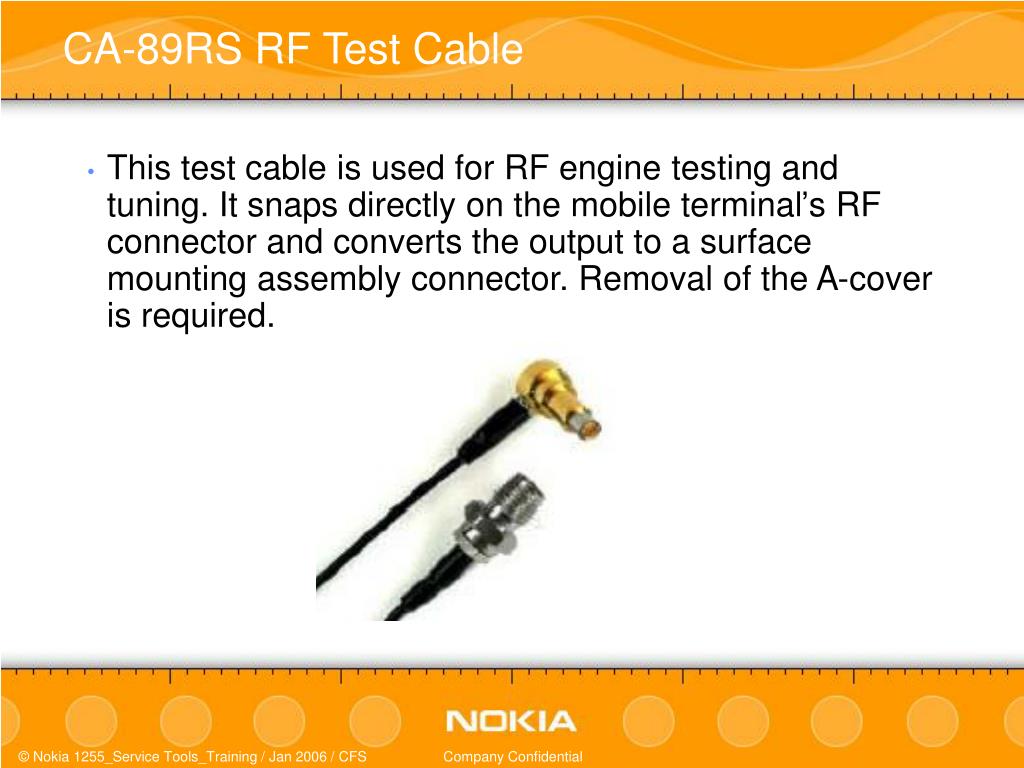

CA-89RS RF Test Cable

  • This test cable is used for RF engine testing and tuning. It snaps directly on the mobile terminal’s RF connector and converts the output to a surface mounting assembly connector. Removal of the A-cover is required.

CompanyConfidential

slide11

RJ-123 Soldering Jig

  • This jig serves as a holder for PWB component de-soldering and soldering.

CompanyConfidential

slide12

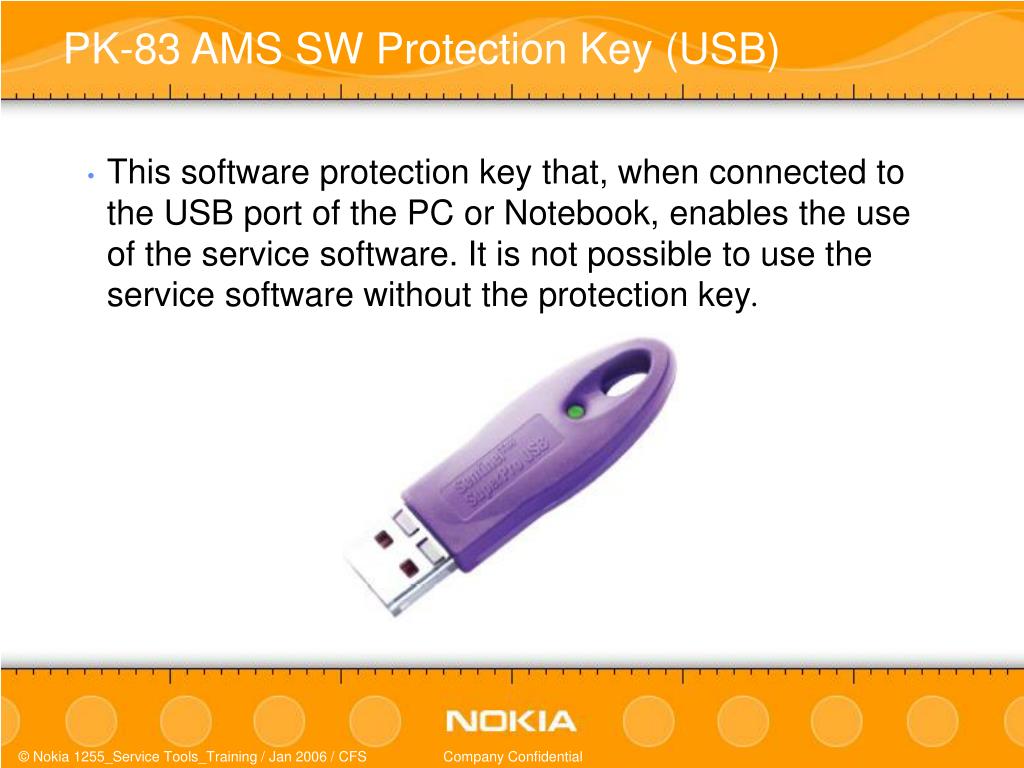

PK-83 AMS SW Protection Key (USB)

  • This software protection key that, when connected to the USB port of the PC or Notebook, enables the use of the service software. It is not possible to use the service software without the protection key.

CompanyConfidential

slide13

Module installed in the CMU200 or Agilent 8960

  • R&S CMU-B83/K84 module

This cdma2000 1x signaling unit and cellular band test software installed in the R&S CMU200 instrument. The R&S CMU200 provides critical capabilities to verify the cdma2000 devices.

  • Agilent E5515C-003/E1962B module

This E5515C-003/E1962B base station emulator and cdma2000/IS-95 mobile test application installed in the Agilent 8960 instrument. The Agilent 8960 provides critical capabilities to verify the cdma2000 devices.

CompanyConfidential

slide14

Item

Name

Type

1

Flash Adapter

SF-93

2

Data Service Cable (USB)

CA-82DS

3

3

AC Charger

AC-3

2

2

4

Service software for Level 3 service

1

4

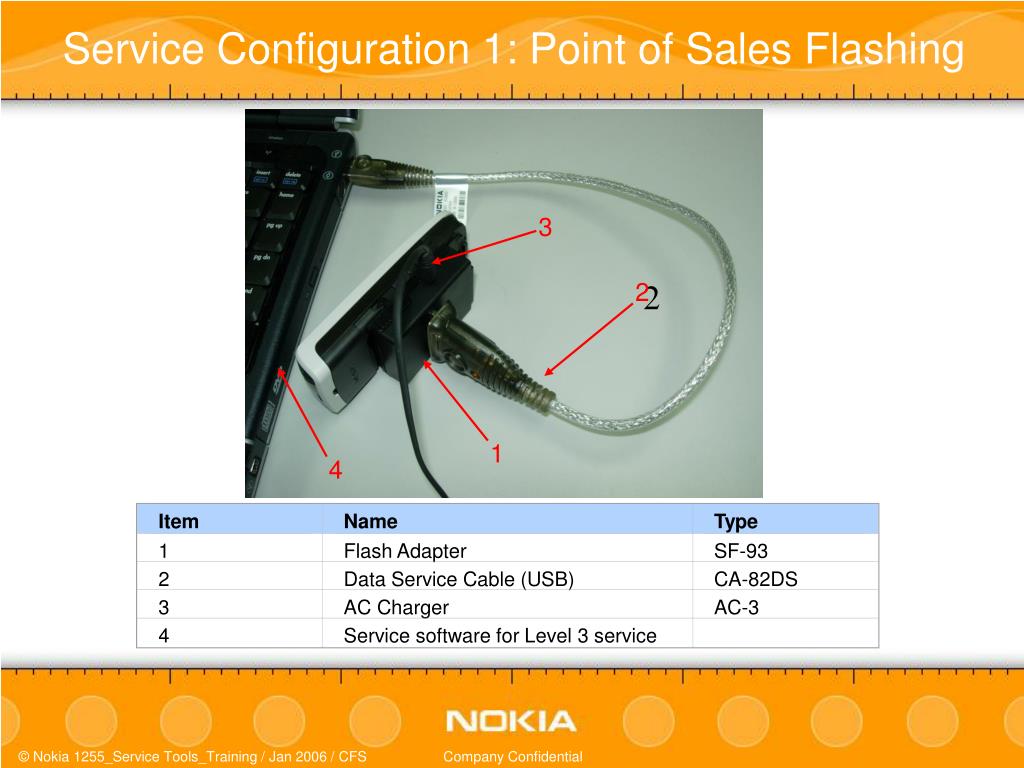

Service Configuration 1: Point of Sales Flashing

CompanyConfidential

slide15

Item

Name

Type

1

Module Jig (set to “FTM mode)

MJ-106

2

Power Service Cable

CA-84PS

3

RF Test Cable

CA-89RS

4

Data Service Cable (USB)

CA-82DS

5

AMS SW Protection Key (USB)

PK-83

Service software for Level 3 service

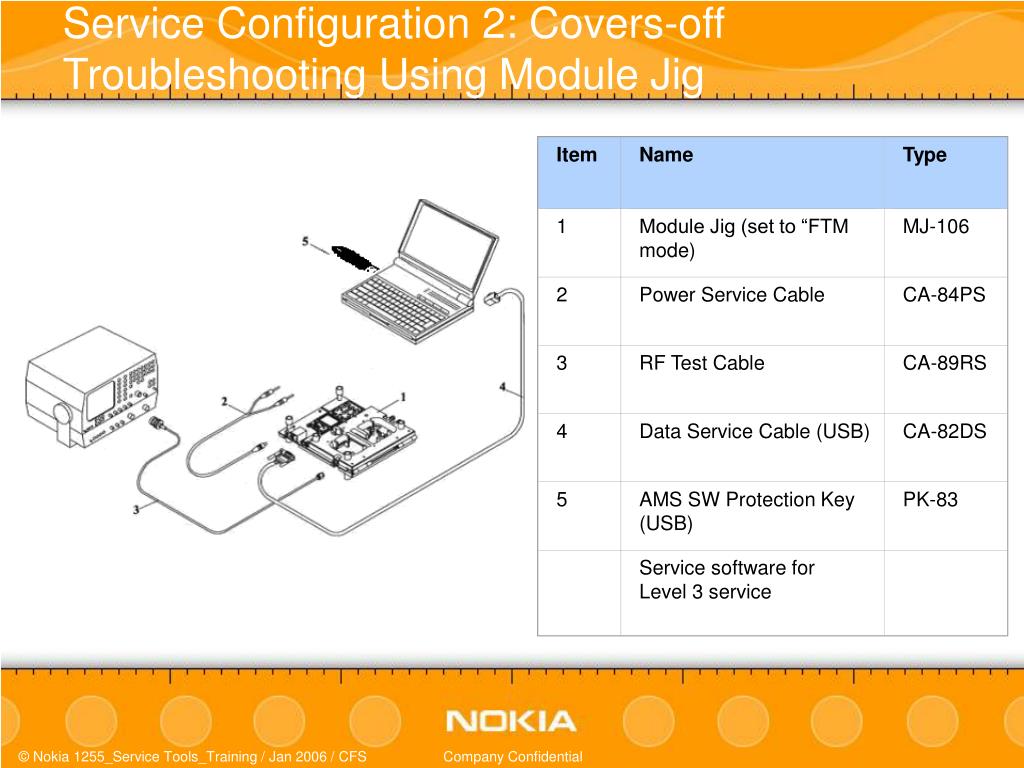

Service Configuration 2: Covers-offTroubleshooting Using Module Jig

CompanyConfidential

slide16

Item

Name

Type

1

R&S/Agilent CDMA CALL BOX

R&S CMU2000

Agilent 8960

2

Keithley 2306 Power Supply

Keithley 2306

3

Computer

4

RF Test Cable

CA-89RS

5

Power Service Cable

CA-84PS

6

Data Service Cable (USB)

CA-82DS

7

GPIB cable x 2

8

Flash Adapter and Mobile Terminal

SF-93 and 1255

9

AMS SW Protection Key (USB)

PK-83

Service software for Level 3 service

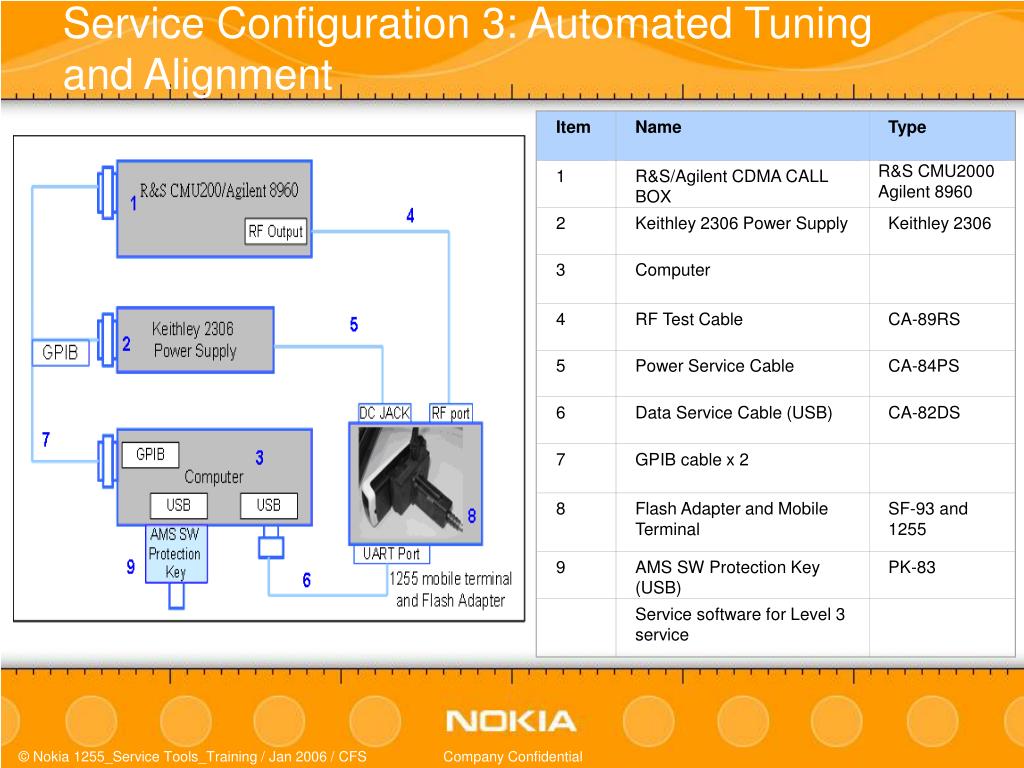

Service Configuration 3: Automated Tuningand Alignment

CompanyConfidential
