Radiological Category:. Neuroradiology. Principal Modality (1): Principal Modality (2):. CT. MRI. Case Report # 1. Submitted by:. Brian Deuell, MS IV. Faculty reviewer:. Sandra Oldham, M.D. Date accepted:. 29 August, 2007. Case History.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Case Report # 1' - kareem-livingston


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1

Radiological Category:

Neuroradiology

Principal Modality (1):

Principal Modality (2):

CT

MRI

Case Report # 1

Submitted by:

Brian Deuell, MS IV

Faculty reviewer:

Sandra Oldham, M.D.

Date accepted:

29 August, 2007

case history
Case History

A four year old male presented with seizures. The patient has a history of infantile spasms, but had been seizure free for two years before this presentation.

slide11

Test Your Diagnosis

Which one of the following is your choice for the appropriate diagnosis?

  • Gray Matter Heterotopia
  • Metastatic disease
  • Tuberous sclerosis complex
  • TORCH infection
slide12

MR of the head without contrast shows multiple nodules with increased T1 signal seen along the subependymal regions. There is a large area of encephalomalacia seen in the right frontal lobe consistent with a prior surgical procedure. The T2 weighted images show some increased signal in the left occipital lobe.CT of the head without contrast shows an area of encephalomalacia as described above. A parenchymal nodule is seen adjacent to the encephalomalacia. Multiple hyperdense subependymal nodules are seen in both lateral ventricles.Renal ultrasound shows multiple cystic lesions. In the upper pole of the right kidney a small echogenic focus with a hypoechoic center is seen

Findings and Differentials

Findings:

Differentials:

  • Gray Matter Heterotopia
  • Tuberous Sclerosis Complex
  • Astrocytoma
  • Infection
  • Brain metastases
slide13
Tuberous Sclerosis (TS) is a genetic disorder associated with a clinical triad of cutaneous lesions, seizures, and mental retardation. Proteins that regulate cellular proliferation are disrupted (hamartin and tuberin), predisposing the affected individuals towards formation of benign tumors containing disorganized arrays of tissue elements appropriate to that body site, called hamartomas.

Hamartomas of TS are commonly seen radiographically in the brain, heart, kidneys, retina, lung, and retina. Lesions in the brain are classified as cortical/subcortical tubers, subependymal nodules, or subependymal giant cell astrocytomas. There is a high incidence of seizures with these lesions and many patients require seizure medications and/or resection of tuberous lesions.

Subependymal Giant Cell Astrocytomas (SGCA) are a Grade I neoplasm of TS that most often occurs near the foramen of Monroe with intermediate signal on T1, high signal on T2-weighted images and intense contrast enhancement. Complications can include obstructive hydrocephalus.

Discussion

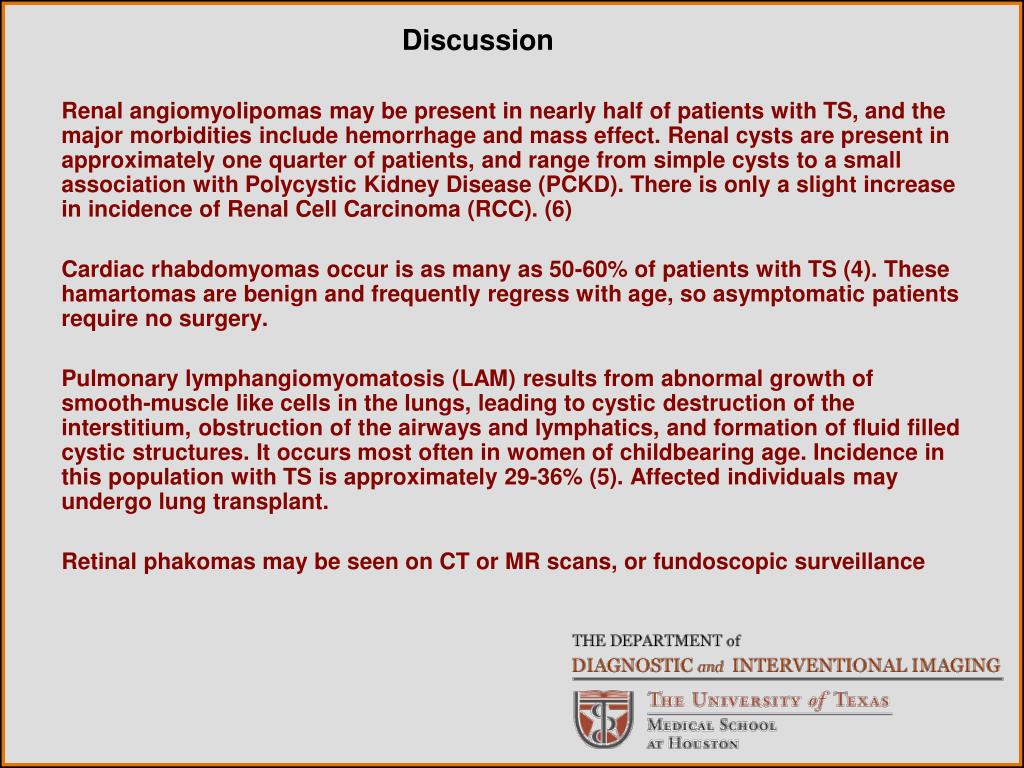

slide14
Renal angiomyolipomas may be present in nearly half of patients with TS, and the major morbidities include hemorrhage and mass effect. Renal cysts are present in approximately one quarter of patients, and range from simple cysts to a small association with Polycystic Kidney Disease (PCKD). There is only a slight increase in incidence of Renal Cell Carcinoma (RCC). (6)

Cardiac rhabdomyomas occur is as many as 50-60% of patients with TS (4). These hamartomas are benign and frequently regress with age, so asymptomatic patients require no surgery.

Pulmonary lymphangiomyomatosis (LAM) results from abnormal growth of smooth-muscle like cells in the lungs, leading to cystic destruction of the interstitium, obstruction of the airways and lymphatics, and formation of fluid filled cystic structures. It occurs most often in women of childbearing age. Incidence in this population with TS is approximately 29-36% (5). Affected individuals may undergo lung transplant.

Retinal phakomas may be seen on CT or MR scans, or fundoscopic surveillance

Discussion

slide15
Radiologic evaluation for suspected cases or initial diagnostic evaluation should include a brain MRI, a renal ultrasound/CT/MRI, and a cardiac echo.

An asymptomatic patient should have follow-up brain MRI every 1-3 years in children and less frequently in adults.

They kidneys should be followed once every three years.

Cardiac echo and Pulmonary CT are recommended only if symptoms arise in these organ systems.

Non-radiologic follow up includes neurological testing, dermatologic screening, EEG if seizures occur, and fundoscopic exams.

Asymptomatic first degree relatives are recommended for screening via brain CT/MRI and renal ultrasound/CT/MRI.

Discussion

slide16
Gray Matter Heterotopia (GMH) can present with seizures and developmental delay and will show similar subependymal nodules on T1 weighted images. To distinguish this from TS, GMH may have a ribbon of tissue isointense with gray matter along neuronal migration paths. In addition, the lesions rarely calcify or enhance (as the lesions in TS do), and are isointense with gray matter.

TORCH infections – congenital CMV may present with neurological deficits such as seizures and developmental delay, and periventricular calcifications can be seen, appearing similar to nodules of TS on certain modalities. However, there are usually other manifestations such as microcephaly, migration defects, and ventricular enlargement.

Metastatic lesions present commonly as multiple, enhancing solid lesions at the gray-white matter junction with prominent surrounding edema.

Discussion

slide17
Definite TSC: Either 2 major features or 1 major feature with 2 minor features

Probable TSC: One major feature and one minor feature

Possible TSC: Either 1 major feature or 2 or more minor features

Major Features

Facial angiofibromas or forehead plaque

Non-traumatic ungual or periungual fibroma

Hypomelanotic macules (more than three)

*Shagreen patch (connective tissue nevus)

*Multiple retinal nodular hamartomas

*Cortical tuber

*Subependymal nodule

*Subependymal giant cell astrocytoma

*Cardiac rhabdomyoma, single or multiple

*Lymphangiomyomatosis

*Renal angiomyolipoma

Discussion

slide18
Minor Features

Multiple randomly distributed pits in dental enamel

Hamartomatous rectal polyps

*Bone cysts

*Cerebral white matter migration lines

Gingival fibromas

*Non-renal hamartoma (histology)

Retinal achromic patch

"Confetti" skin lesions

*Multiple renal cysts

Discussion

slide19

Tuberous Sclerosis Complex, s/p right frontal lobe resection with multiple subependymal tubers, retinal hamartoma, and renal cysts. Surgical pathology after resection of the patient’s large right frontal hamartoma confirmed early diagnostic suspicions by showing disorganization of the cortex, large neurons, calcifications, and abnormal astrocytes.

Diagnosis

slide20

1. Tuberous Sclerosis Alliance website www.tsalliance.org2. Kasper, DL, et al (eds). Harrison’s Principles of Internal Medicine, 16e, New York., McGraw-Hill, 2005. 3. Schwartz, Robert A., et. al. Tuberous Sclerosis Complex: Advances in Diagnosis, Genetics, and Management. Journal of American Academy of Dermatology. Volume 57, Issue 2; August 2007. p. 189-202.4. Ibrahim, C.P.H., et. al. Cardiac rhabdomyoma presenting as left ventricular outflow tract obstruction in a neonate. Interactive Cardiovascular and Thoracic Surgery 2:572-574(2003) 5. Goncharova, Elena A., Pulmonary lymphangioleiomyomatosis (LAM): Progress and current challenges. Journal of Cellular Biochemistry. Published Online: 31 May 2007 6. Rakowski, S.K., et. al. Renal manifestations of tuberous sclerosis complex: Incidence, prognosis, and predictive factors. Kidney International (2006) 70, 1777–1782.

References
