  1. Database Access From the Web [Textbook Chapter 13]

  2. Relational Databases • - A database is a collection of data organized for easy, fast, andworry-freeretrievals & modification, managed by DBMS • A relationaldatabase is based on the relational data model – • - Tables representing relations, with columns and rows • - rows also called entities/records, while columns as attributes • - We’ll design an example database, usedCorvettesfor sale • - Could just put all data in a single table, leading to redundant store • - Better to put the equipment in a separate table and use another • cross-reference table to relate cars to equipment • - To save space, use yet another table for state names, and other • tables just hold references to the stored state name entries

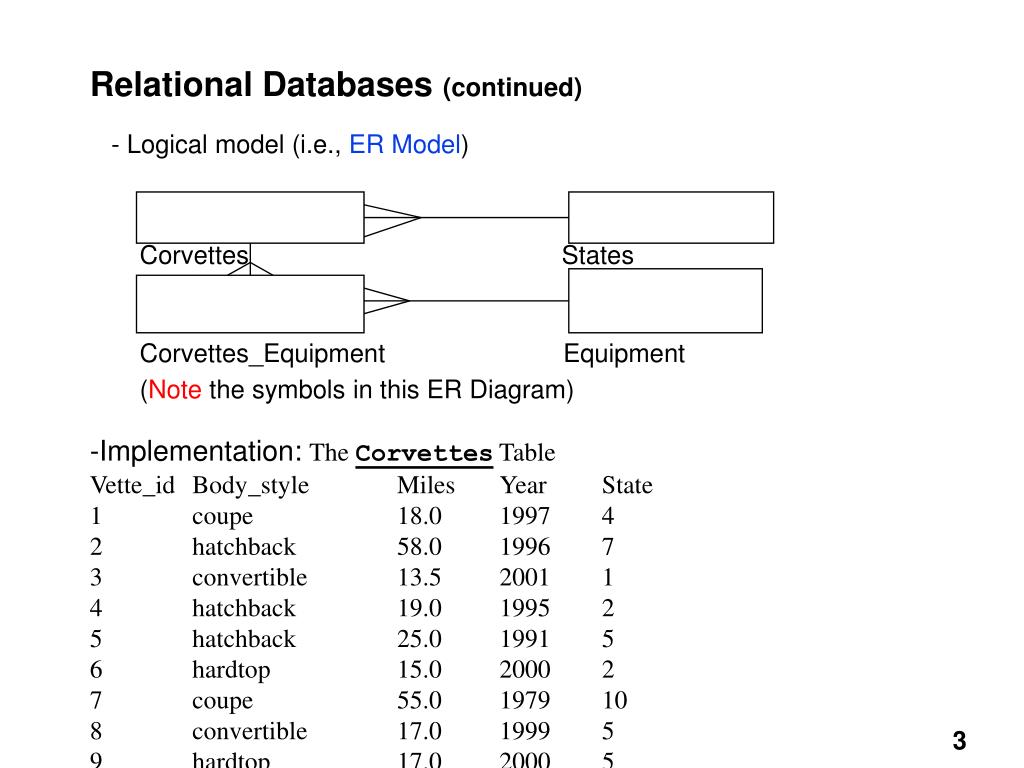

  3. Relational Databases (continued) • - Logical model (i.e., ER Model) • Corvettes States • Corvettes_Equipment Equipment • (Note the symbols in this ER Diagram) • Implementation: The Corvettes Table • Vette_id Body_style Miles Year State • 1 coupe 18.0 1997 4 • 2 hatchback 58.0 1996 7 • 3 convertible 13.5 2001 1 • 4 hatchback 19.0 1995 2 • 5 hatchback 25.0 1991 5 • 6 hardtop 15.0 2000 2 • 7 coupe 55.0 1979 10 • 8 convertible 17.0 1999 5 • 9 hardtop 17.0 2000 5 • 10 hatchback 50.0 1995 7

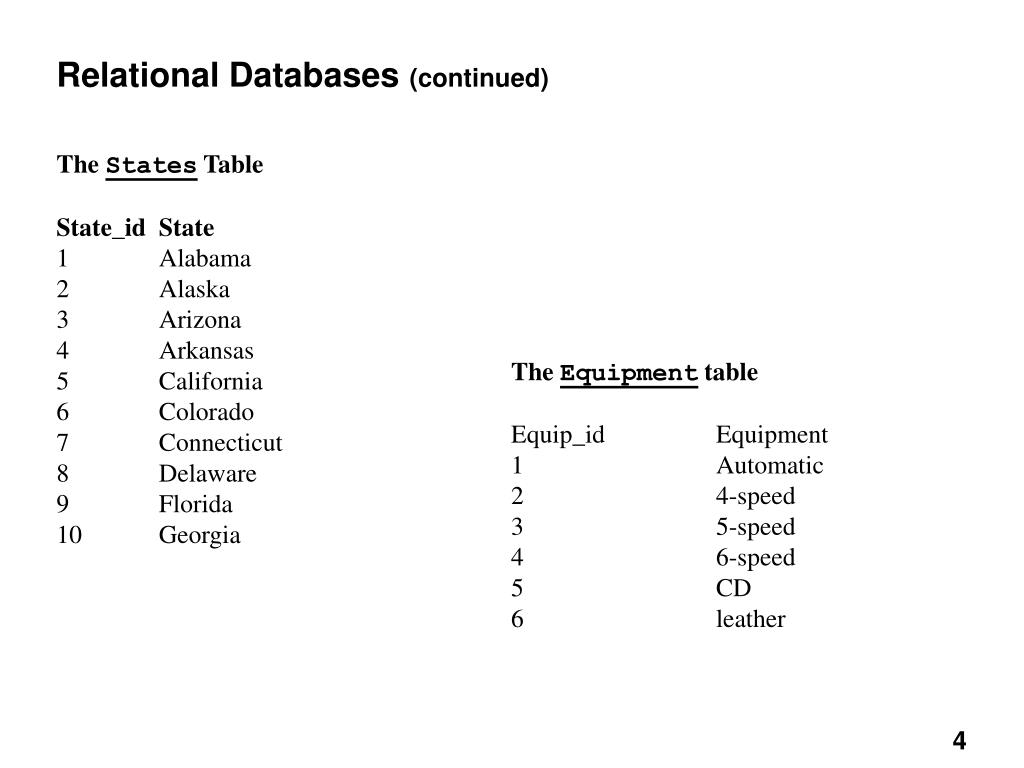

  4. Relational Databases (continued) • The States Table • State_id State • 1 Alabama • 2 Alaska • 3 Arizona • 4 Arkansas • 5 California • 6 Colorado • 7 Connecticut • 8 Delaware • 9 Florida • 10 Georgia The Equipment table Equip_id Equipment 1 Automatic 2 4-speed 3 5-speed 4 6-speed 5 CD 6 leather

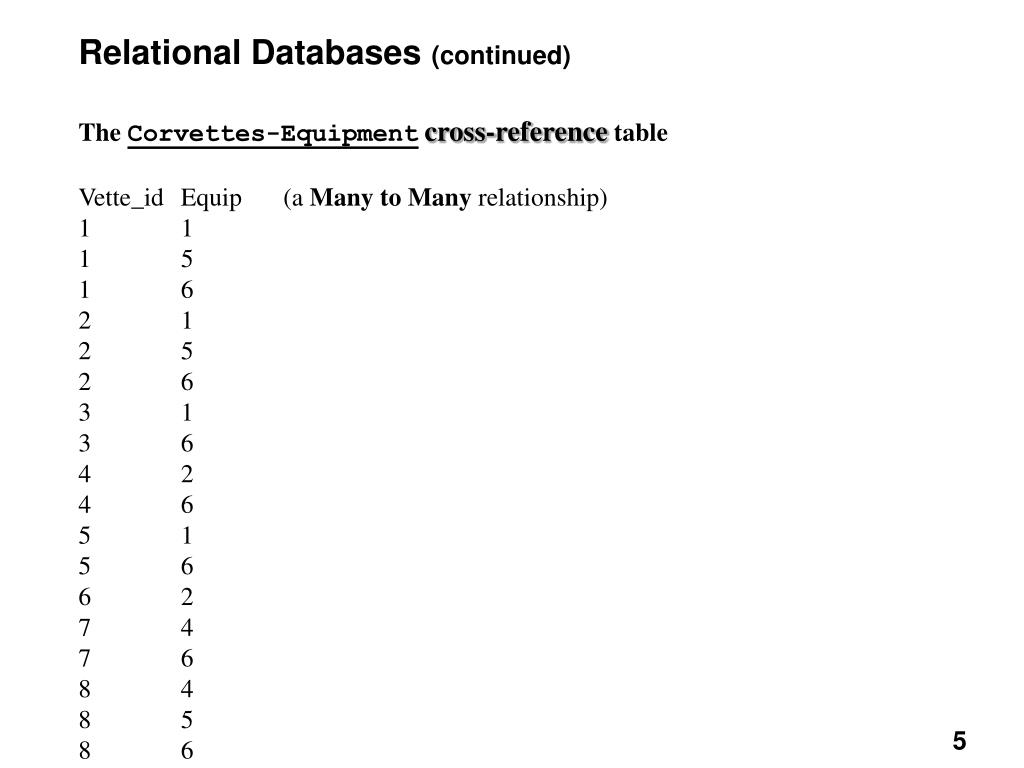

  5. Relational Databases (continued) The Corvettes-Equipmentcross-reference table Vette_id Equip (a Many to Many relationship) 1 1 1 5 1 6 2 1 2 5 2 6 3 1 3 6 4 2 4 6 5 1 5 6 6 2 7 4 7 6 8 4 8 5 8 6 9 4 9 5 9 6 10 1 10 5

  6. Intro to SQL • A standard language to create, query, and modify relational DBs • - More like a structured English than a programming language • - We cover only six basic commands/clauses: • CREATE TABLE, SELECT, INSERT, UPDATE, DELETE, and DROP • SQL reserved words are case insensitive • The SELECT command specifies what you want • - General form: • SELECTcolumn names • FROMtable names • WHEREcondition • - Example: • SELECT Body_style FROM Corvettes • WHERE Year > 1994

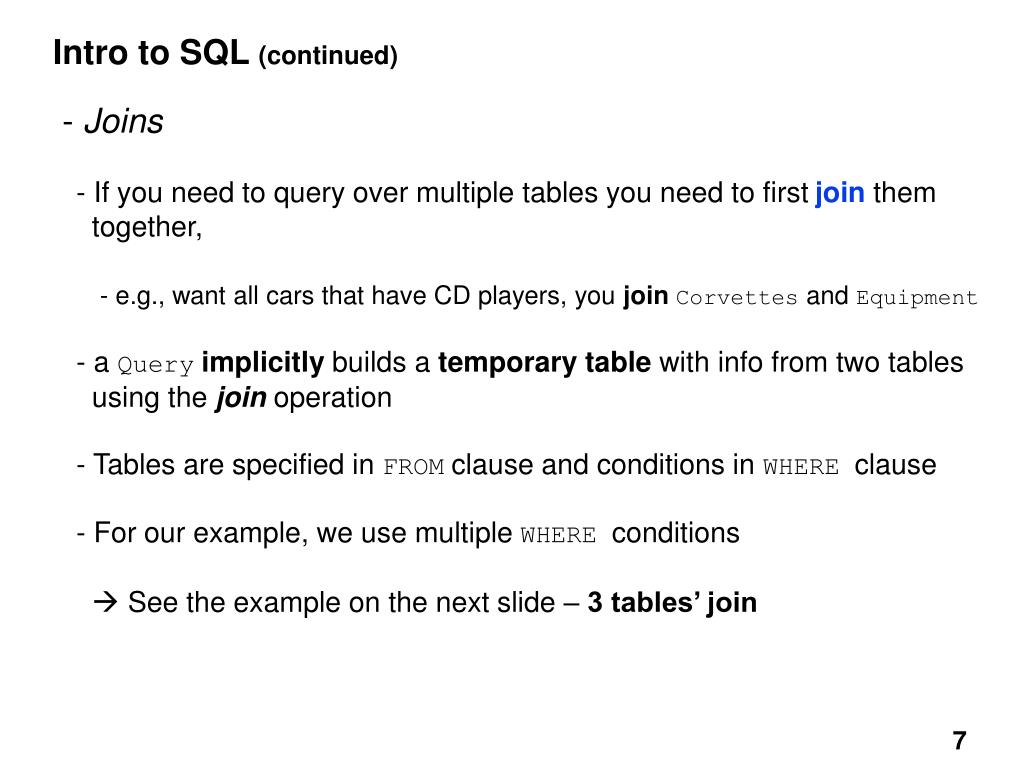

  7. Intro to SQL (continued) - Joins - If you need to query over multiple tables you need to first jointhem together, - e.g., want all cars that have CD players, you joinCorvettes and Equipment - a Queryimplicitly builds a temporary table with info from two tables using the joinoperation - Tables are specified in FROM clause and conditions in WHERE clause - For our example, we use multiple WHERE conditions  See the example on the next slide – 3 tables’ join

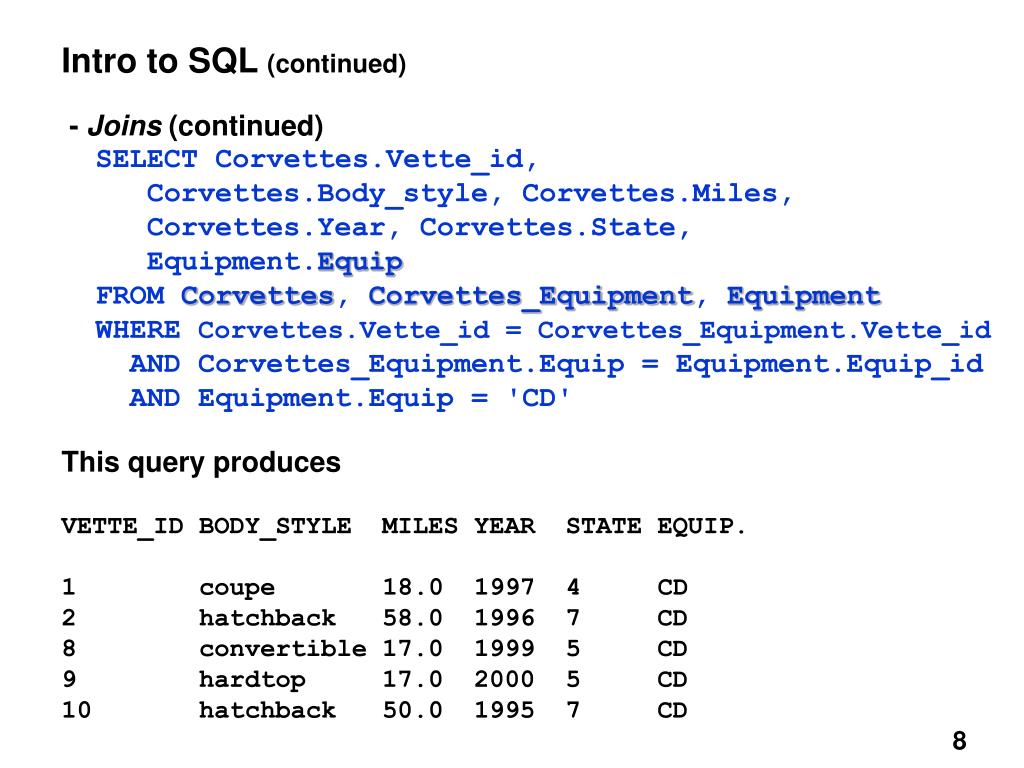

  8. Intro to SQL (continued) - Joins (continued) SELECT Corvettes.Vette_id, Corvettes.Body_style, Corvettes.Miles, Corvettes.Year, Corvettes.State, Equipment.Equip FROM Corvettes, Corvettes_Equipment, Equipment WHERE Corvettes.Vette_id = Corvettes_Equipment.Vette_id AND Corvettes_Equipment.Equip = Equipment.Equip_id AND Equipment.Equip = 'CD' This query produces VETTE_ID BODY_STYLE MILES YEAR STATE EQUIP. 1 coupe 18.0 1997 4 CD 2 hatchback 58.0 1996 7 CD 8 convertible 17.0 1999 5 CD 9 hardtop 17.0 2000 5 CD 10 hatchback 50.0 1995 7 CD

  9. Intro to SQL (continued) • - The INSERT Command • INSERT INTOtable_name(col_name1, … col_namen) • VALUES(value1, …, valuen) • - The correspondence between column names and values is important • INSERT INTO Corvettes(Vette_id, Body_style, Miles, Year, State) • VALUES (37, 'convertible', 25.5, 1986, 17) • - The UPDATE Command • - To change one or more values of a row in a table • UPDATEtable_name • SETcol_name1=value1, • … • col_namen=valuen • WHEREcol_name=value • - The WHERE clause decides which (one or more) rows to be updated!

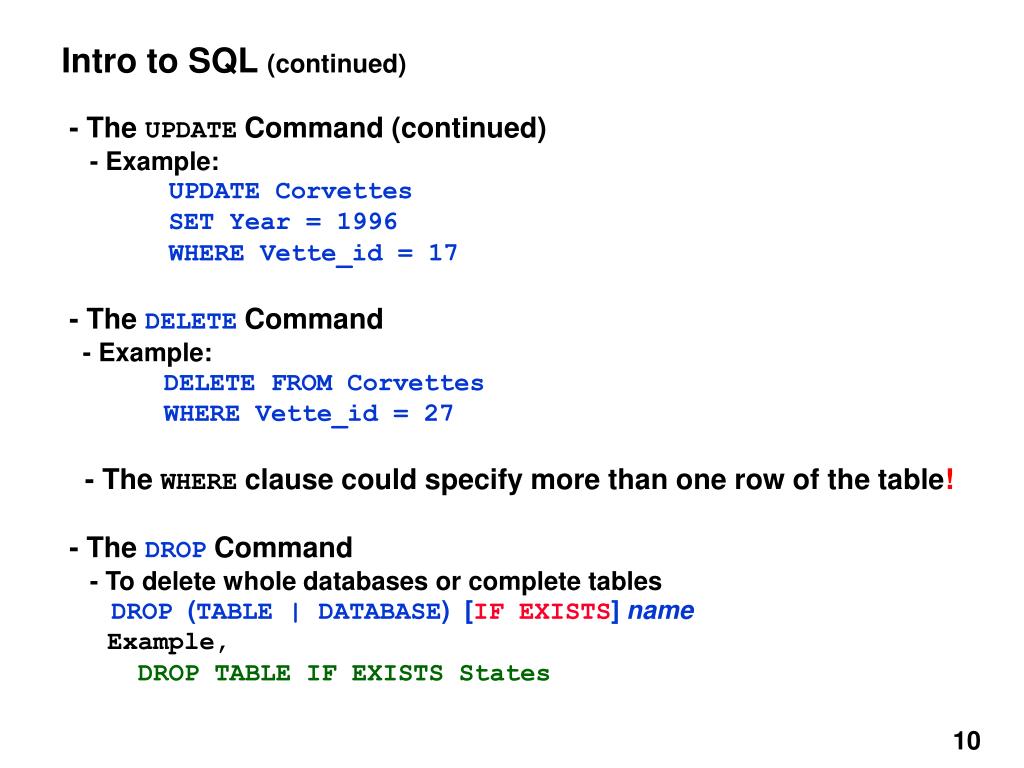

  10. Intro to SQL (continued) - The UPDATE Command (continued) - Example: UPDATE Corvettes SET Year = 1996 WHERE Vette_id = 17 - The DELETE Command - Example: DELETE FROM Corvettes WHERE Vette_id = 27 - The WHERE clause could specify more than one row of the table! - The DROP Command - To delete whole databases or complete tables DROP (TABLE | DATABASE)[IF EXISTS] name Example, DROP TABLE IF EXISTS States

  11. Intro to SQL (continued) - The CREATE TABLEcommand: CREATE TABLEtable_name( column_name1data_typeconstraints, … column_namendata_typeconstraints) - There are many different data types (not really standardized) (INTEGER, REAL, CHAR(length), …) - There are several constraintspossible e.g., NOT NULL, PRIMARY KEY, and much more CREATE TABLE States ( State_id INTEGER PRIMARY KEY NOT NULL, State CHAR(20))

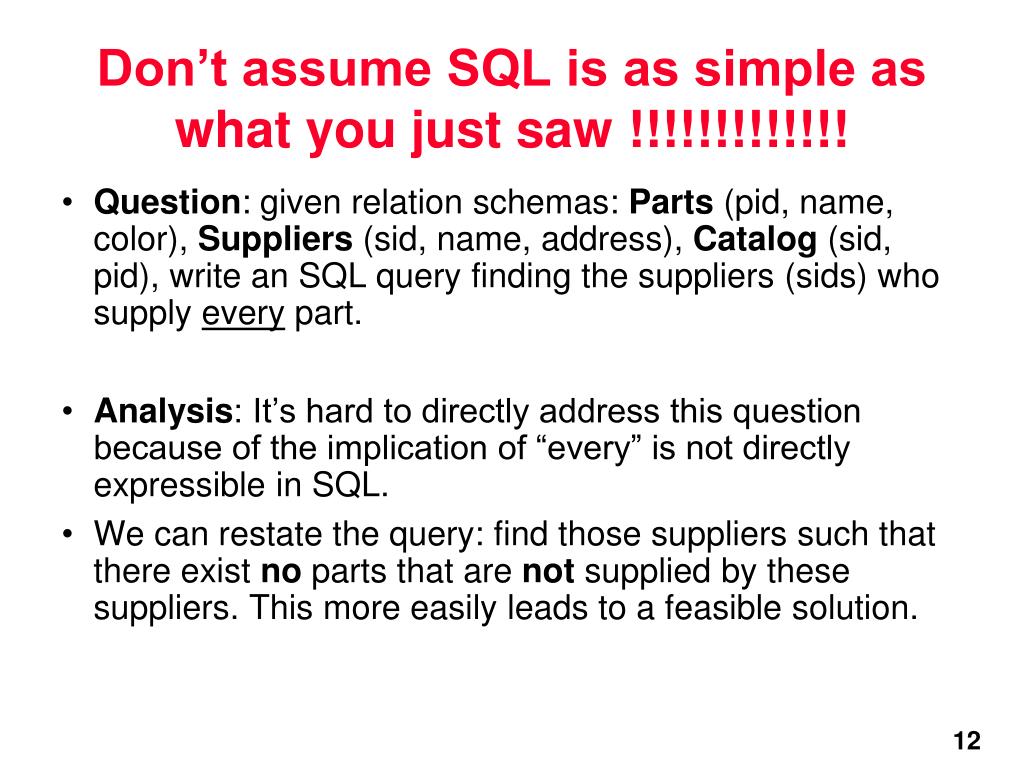

  12. Don’t assume SQL is as simple as what you just saw !!!!!!!!!!!!! • Question: given relation schemas: Parts (pid, name, color), Suppliers (sid, name, address), Catalog (sid, pid), write an SQL query finding the suppliers (sids) who supply every part. • Analysis: It’s hard to directly address this question because of the implication of “every” is not directly expressible in SQL. • We can restate the query: find those suppliers such that there exist no parts that are not supplied by these suppliers. This more easily leads to a feasible solution.

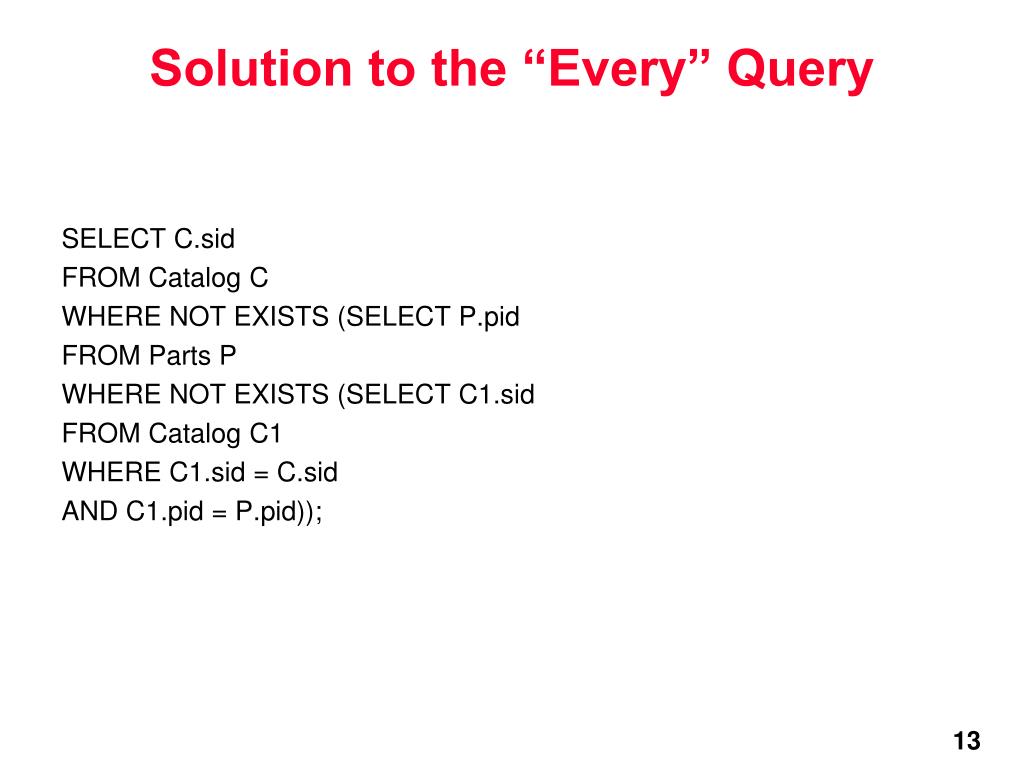

  13. Solution to the “Every” Query SELECT C.sid FROM Catalog C WHERE NOT EXISTS (SELECT P.pid FROM Parts P WHERE NOT EXISTS (SELECT C1.sid FROM Catalog C1 WHERE C1.sid = C.sid AND C1.pid = P.pid));

  14. Architectures for Database Access • Two-Tier Client-Server Architectures • - Client tasks: • - Provide a way for users to submit queries • - Run applications that use the results of queries • - Display results of queries • - Server tasks: • - Implement the core functions of a DBMS: store, query, update, … • - A two-tier system that clients are connected directly to the server • - Problems with a two-tier system: • Because the relative power of clients has grown considerably, we could shift processing to the client, but keeping all clients current with application updated is difficult  fat client undesired!!

  15. Architectures for Database Access (continued) - A solution to the problems of two-tier systems is to add a component in the middle - create a three-tier system - For Web-based database access, the middle tier runs applications (and client just gets results) DB Client Middle tier Server Browser Web Server Database & Apps System

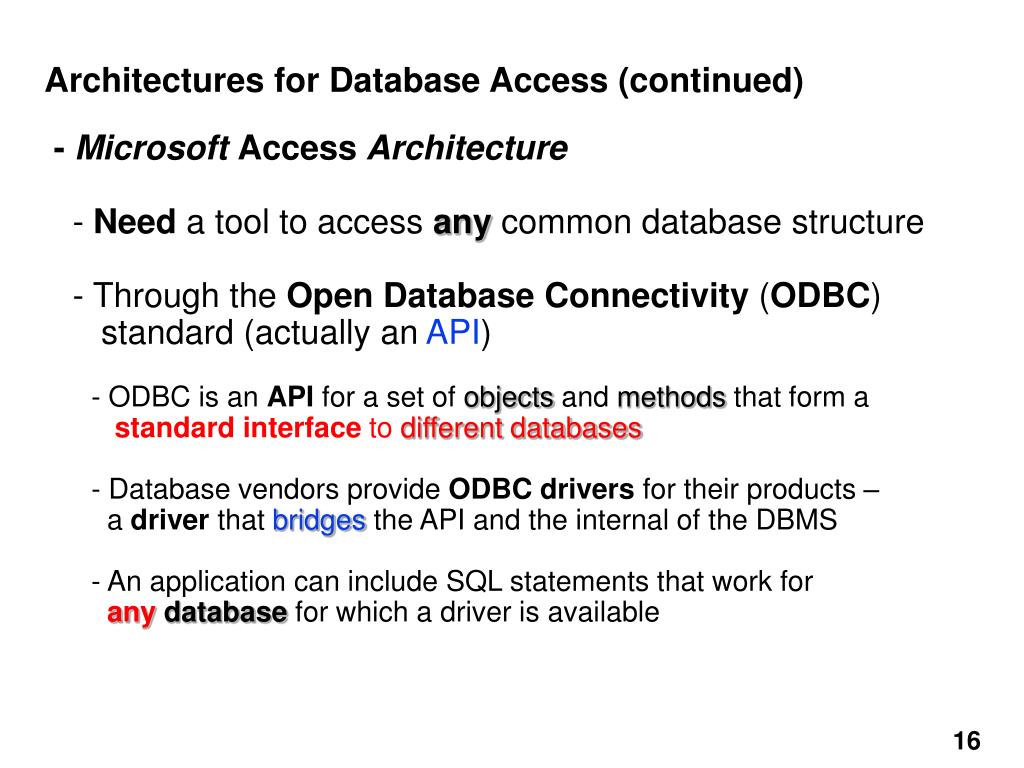

  16. Architectures for Database Access (continued) - Microsoft Access Architecture - Need a tool to access anycommon database structure - Through the Open Database Connectivity (ODBC) standard (actually an API) - ODBC is an API for a set of objects and methods that form a standard interface to different databases - Database vendors provide ODBC drivers for their products – a driver that bridgesthe API and the internal of the DBMS - An application can include SQL statements that work for any database for which a driver is available

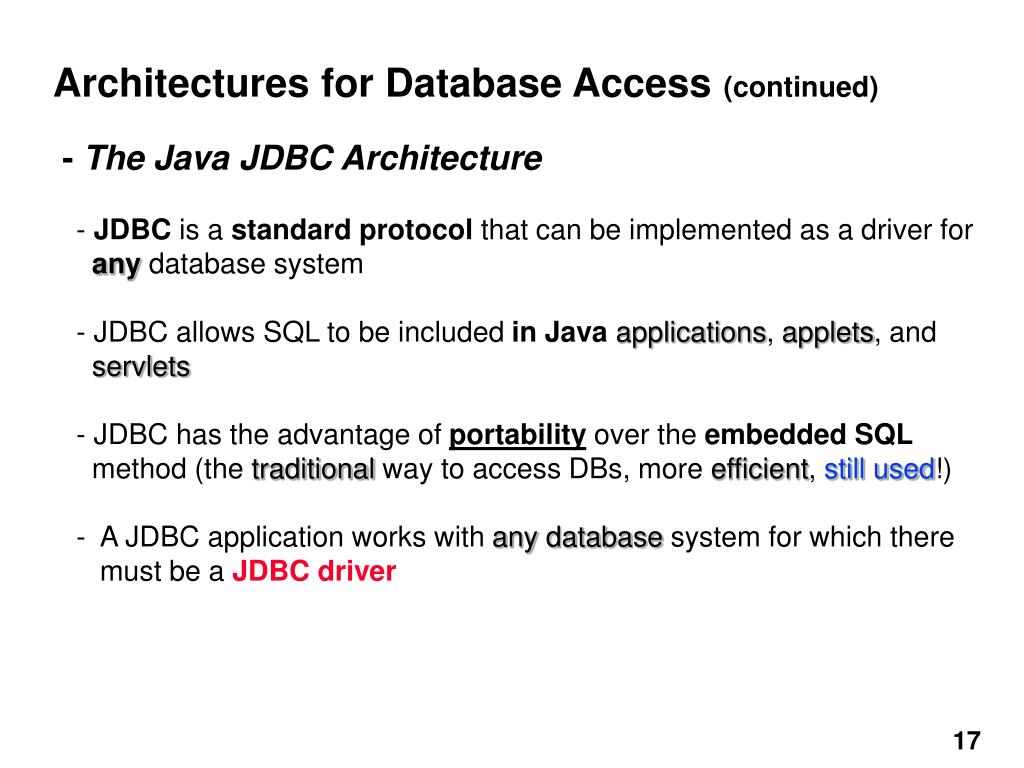

  17. Architectures for Database Access (continued) • - The Java JDBC Architecture • - JDBC is a standard protocol that can be implemented as a driver for • anydatabase system • - JDBC allows SQL to be included in Java applications, applets, and • servlets • - JDBC has the advantage of portability over the embedded SQL • method (the traditional way to access DBs, more efficient, still used!) • - A JDBC application works with any database system for which there • must be a JDBC driver

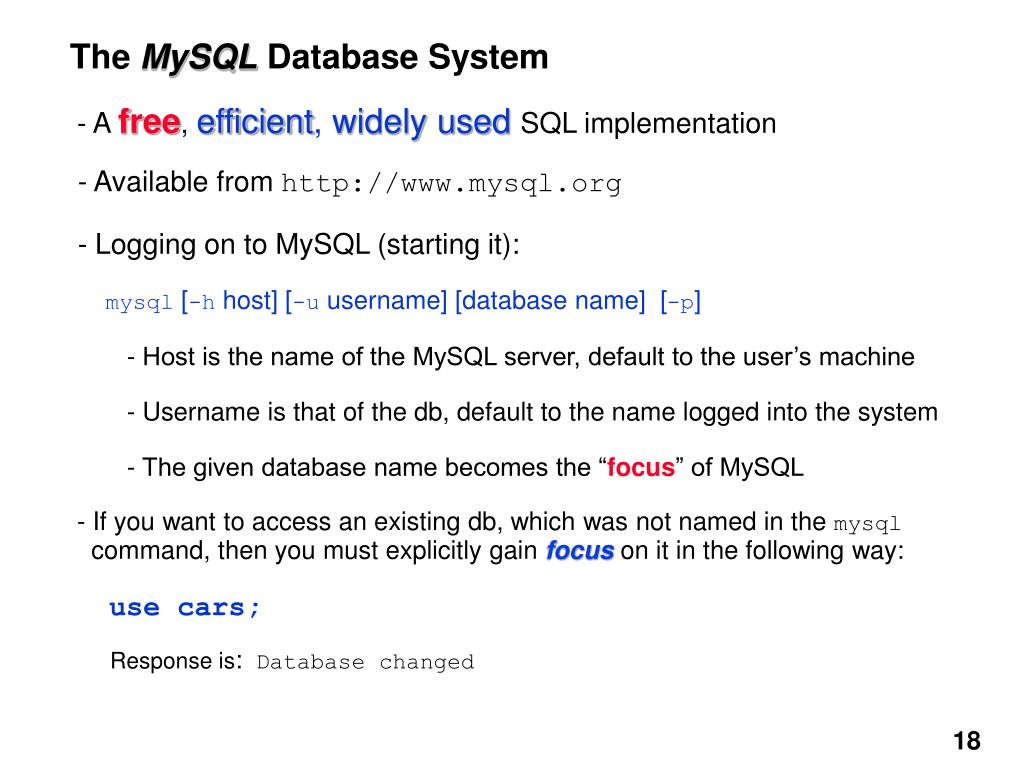

  18. The MySQLDatabase System - A free, efficient, widely usedSQL implementation - Available from http://www.mysql.org - Logging on to MySQL (starting it): mysql [-h host] [-u username] [database name] [-p] - Host is the name of the MySQL server, default to the user’s machine - Username is that of the db, default to the name logged into the system - The given database name becomes the “focus” of MySQL - If you want to access an existing db, which was not named in the mysql command, then you must explicitly gain focuson it in the following way: use cars; Response is: Database changed

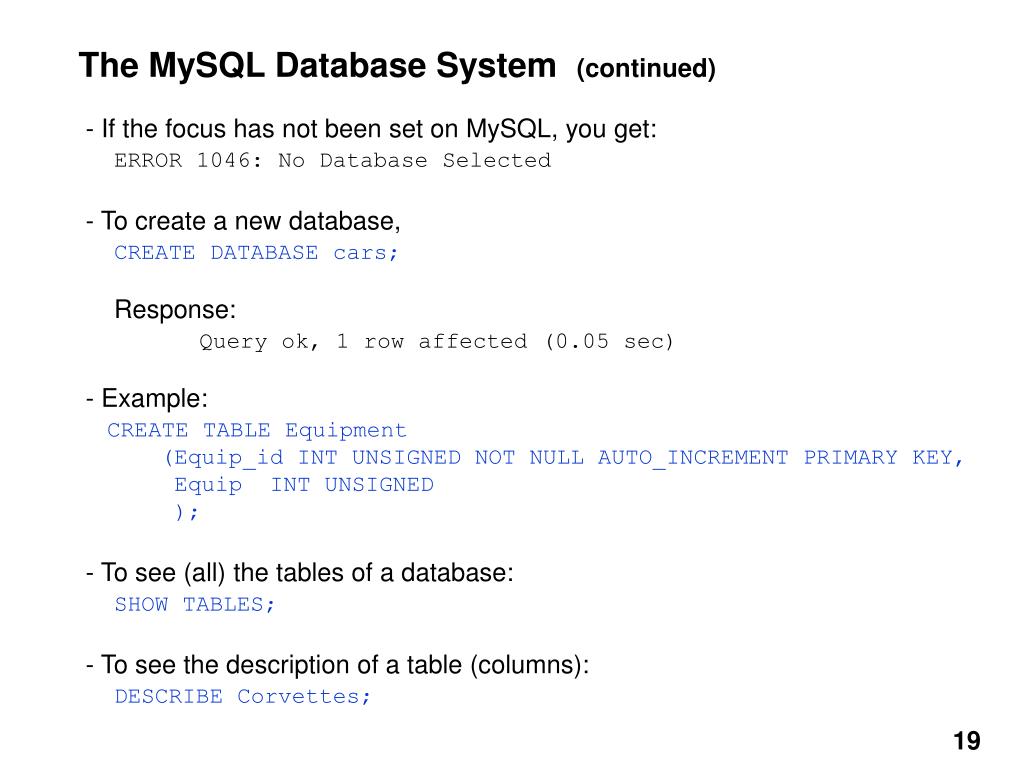

  19. The MySQL Database System (continued) - If the focus has not been set on MySQL, you get: ERROR 1046: No Database Selected - To create a new database, CREATE DATABASE cars; Response: Query ok, 1 row affected (0.05 sec) - Example: CREATE TABLE Equipment (Equip_id INT UNSIGNED NOT NULL AUTO_INCREMENT PRIMARY KEY, Equip INT UNSIGNED ); - To see (all) the tables of a database: SHOW TABLES; - To see the description of a table (columns): DESCRIBE Corvettes;

  20. Database Access with PHP/MySQL - When values from a DB need be put into XHTML, be careful with XHTML special characters, &, <, and > - htmlspecialchars($str)replaces them with corresponding HTML entities, &amp, &lt, and &gt, respectively - Reversely, special characters (″, ", \, and NULL), coming from Web (via $_GETand$_POST) may interfere with server side processing - For example, the quotesmay prematurely terminate a query string. - To fix this, magic_quotes_gpc in the PHP.ini file is set to ON (by default) which automatically escape (backslash) these special characters - However, when later applied to DB, these slashes must be removed: $query = stripslashes($query);

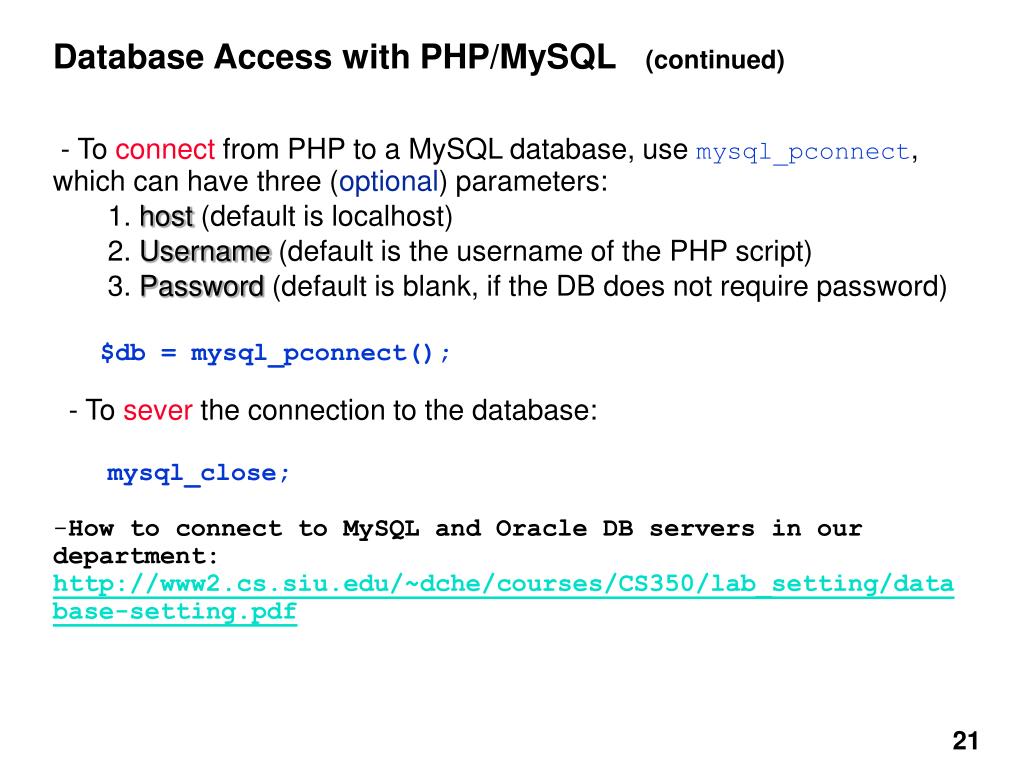

  21. Database Access with PHP/MySQL (continued) • - To connect from PHP to a MySQL database, use mysql_pconnect, which can have three (optional) parameters: • 1. host (default is localhost) • 2. Username (default is the username of the PHP script) • 3. Password (default is blank, if the DB does not require password) • $db = mysql_pconnect(); • - To sever the connection to the database: • mysql_close; • How to connect to MySQL and Oracle DB servers in our department: http://www2.cs.siu.edu/~dche/courses/CS350/lab_setting/database-setting.pdf

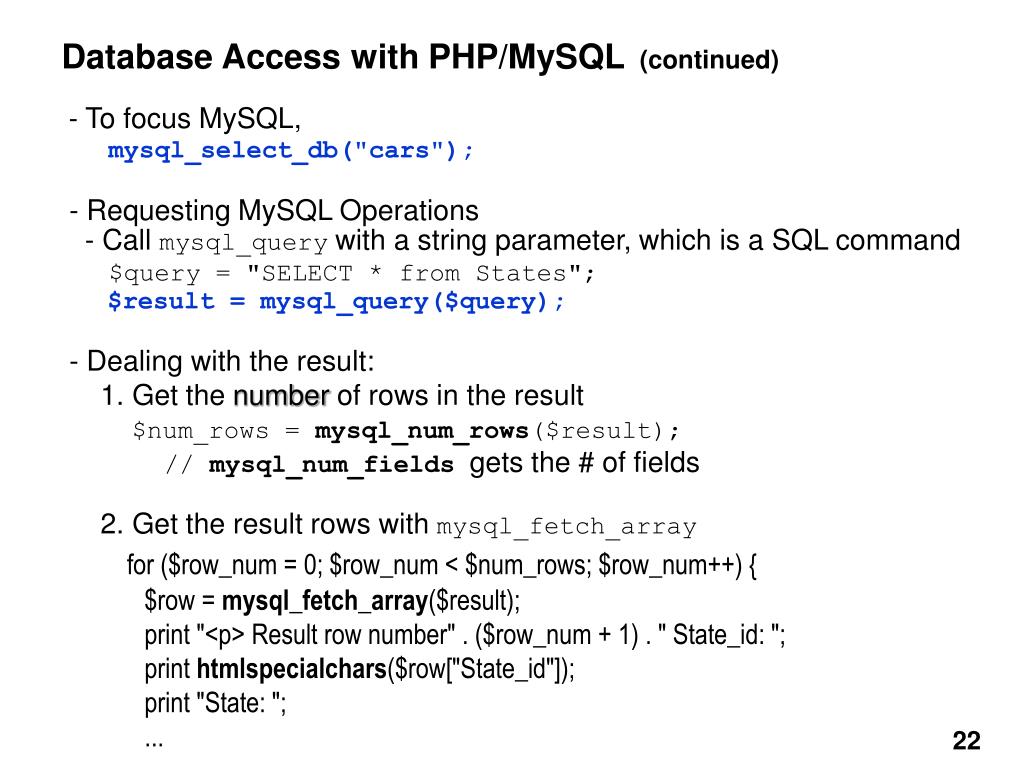

  22. Database Access with PHP/MySQL (continued) • - To focus MySQL, • mysql_select_db("cars"); • - Requesting MySQL Operations • - Call mysql_query with a string parameter, which is a SQL command • $query = "SELECT * from States"; • $result = mysql_query($query); • - Dealing with the result: • 1. Get the number of rows in the result • $num_rows = mysql_num_rows($result); • // mysql_num_fieldsgets the # of fields • 2. Get the result rows with mysql_fetch_array • for ($row_num = 0; $row_num < $num_rows; $row_num++) { • $row = mysql_fetch_array($result); • print "<p> Result row number" . ($row_num + 1) . " State_id: "; • print htmlspecialchars($row["State_id"]); • print "State: "; • ...

  23. Database Access with PHP/MySQL (continued) - We have had it easy – the column titles were known, e.g., State_id - If they are not known, we must get them - The result rows are in PHP arrays with double sets of elements - one uses a numeric key and one uses a string key - E.g., if the result has the field values (1, Alabama), the array has: ((0, 1), (State_id, 1), (1, Alabama), (State, Alabama)) K[0] V[0] k[1] v[1] k[2] v[2] k[3] v[3] - If the row is indexed with numbers, the element values are returned - To display all field values (marked as bold blue above) from $row $values = array_values($row); for ($index = 0; $index < $num_fields; $index++) print "$values[2 * $index + 1] <br />";

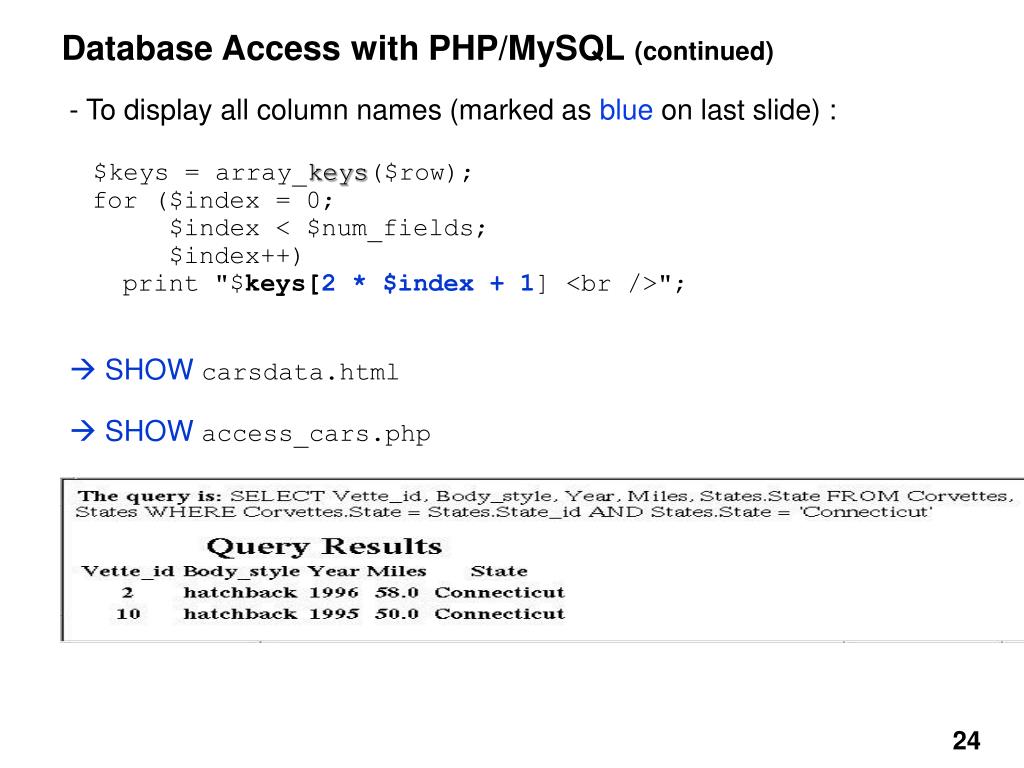

  24. Database Access with PHP/MySQL (continued) - To display all column names (marked as blue on last slide) : $keys = array_keys($row); for ($index = 0; $index < $num_fields; $index++) print "$keys[2 * $index + 1] <br />";  SHOW carsdata.html  SHOW access_cars.php

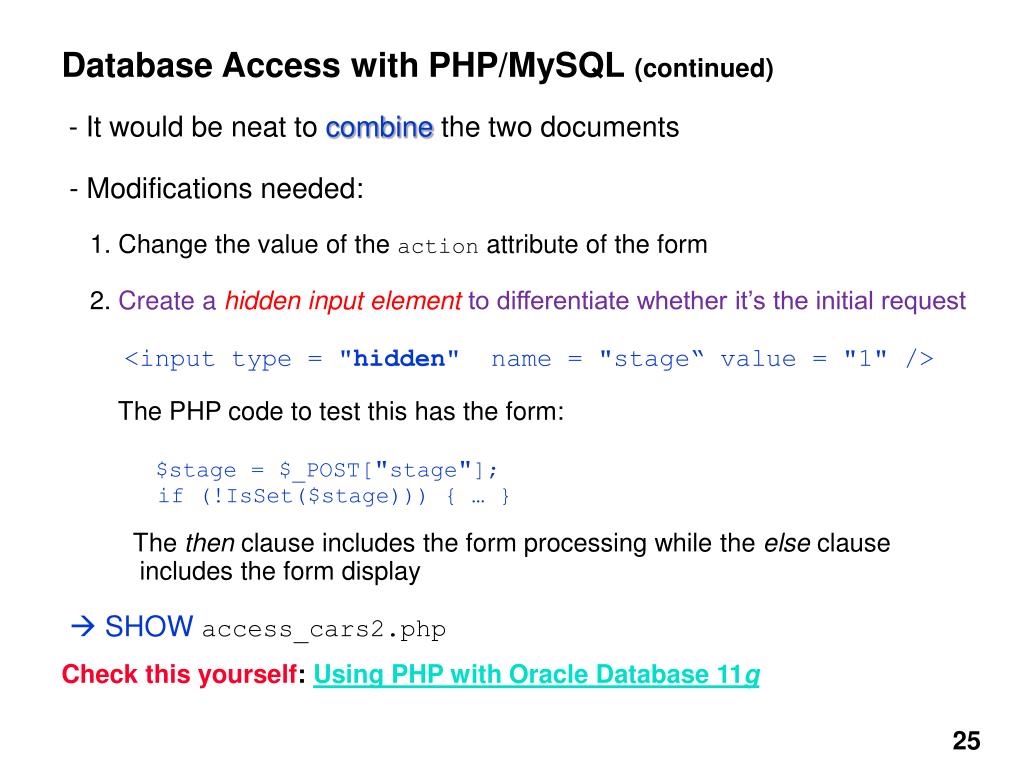

  25. Database Access with PHP/MySQL (continued) - It would be neat to combinethe two documents - Modifications needed: 1. Change the value of the action attribute of the form 2. Create a hidden input element to differentiate whether it’s the initial request <input type = "hidden" name = "stage“ value = "1" /> The PHP code to test this has the form: $stage = $_POST["stage"]; if (!IsSet($stage))) { … } The then clause includes the form processing while the else clause includes the form display  SHOW access_cars2.php Check this yourself: Using PHP with Oracle Database 11g

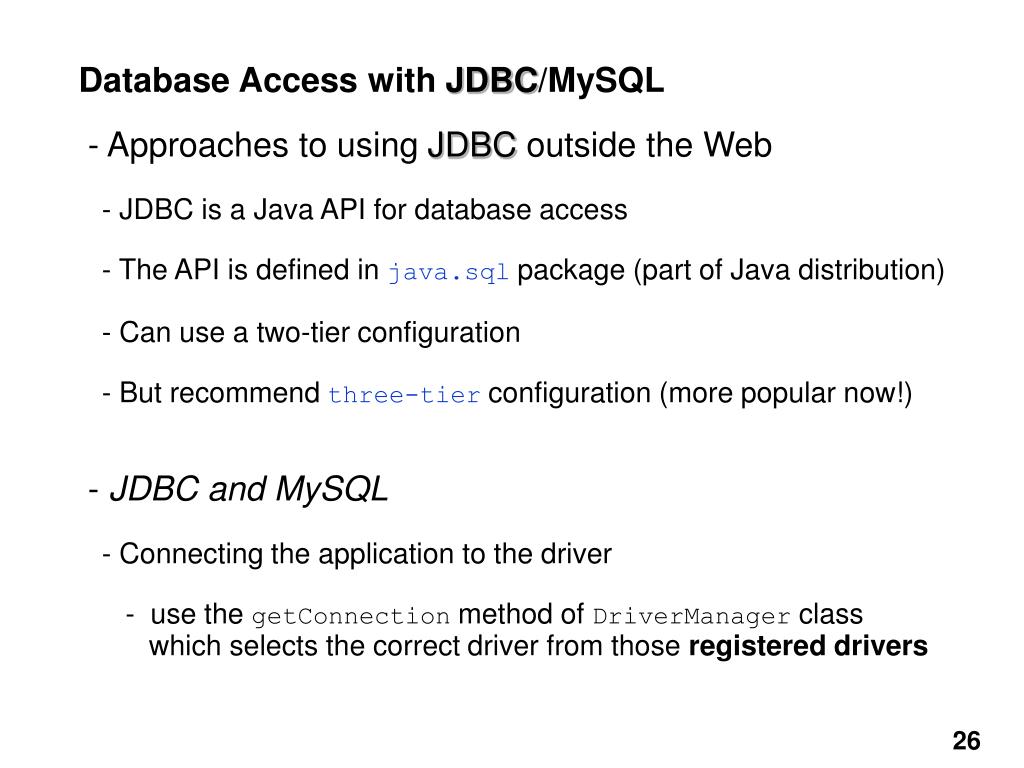

  26. Database Access with JDBC/MySQL - Approaches to using JDBC outside the Web - JDBC is a Java API for database access - The API is defined in java.sql package (part of Java distribution) - Can use a two-tier configuration - But recommend three-tier configuration (more popular now!) - JDBC and MySQL - Connecting the application to the driver - use the getConnection method of DriverManager class which selects the correct driver from those registered drivers

  27. Database Access with JDBC/MySQL (continued) - The general form of a reference to a database is: jdbc:subprotocol_name:more_info - The subprotocol specifies the driver (often product/vender name) - For the MySQL, it is mysql - The “more info” part depends on the specific database being used - For MySQL and the cars database, the reference is: jdbc:mysql://localhost/cars?user=root - Two ways to register a database driver: 1. The general way is to have the system property jdbc.drivers maintain a list of registered drivers (accessible to all users/applications) - now add one entry for mysql with jdbc.drivers = org.gjt.mm.mysql.Driver;

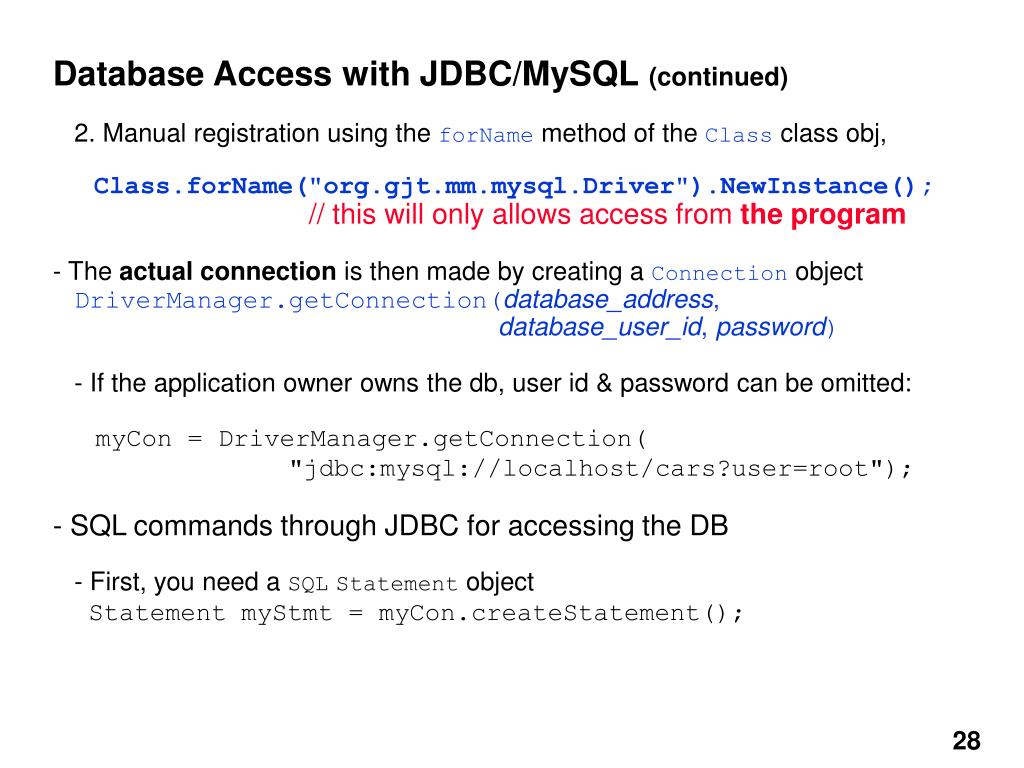

  28. Database Access with JDBC/MySQL (continued) 2. Manual registration using the forName method of the Class class obj, Class.forName("org.gjt.mm.mysql.Driver").NewInstance(); // this will only allows access from theprogram - The actual connection is then made by creating a Connection object DriverManager.getConnection(database_address, database_user_id, password) - If the application owner owns the db, user id & password can be omitted: myCon = DriverManager.getConnection( "jdbc:mysql://localhost/cars?user=root"); - SQL commands through JDBC for accessing the DB - First, you need a SQLStatement object Statement myStmt = myCon.createStatement();

  29. Database Access with JDBC/MySQL (continued) • - SQL commands are String objects • final String sql_com = "UPDATE Corvettes " + • "Year = 1991 WHERE Vette_id = 7"; • - Categories of SQL commands • - Action - INSERT, UPDATE, DELETE, CREATE TABLE, and DROP TABLE • - Query - SELECT • The actions are executed with the executeUpdate method of Statement: • myStmt.executeUpdate(sql_com); • - which returns the number of affected rows • A purequery is executed by sending it as the actual parameter to the • executeQuery method of Statement • - The executeQuery method returns an object of class ResultSet • - Get rows from ResultSet with the next iterator

  30. Database Access with JDBC/MySQL (continued) ResultSet result; final String sql_com = "SELECT * FROM Corvettes WHERE Year <= 1990" result = myStmt.executeQuery(sql_com); while(result.next()) { // access and process the current element } - Query result is extracted from the ResultSet object with an access method defined with each data type For example, If an extracted row is as follows 3, "convertible", 13.5, 2001, 1 String style; style = result.getString("Body_style"); or style = result.getString(2);// for the 2nd column

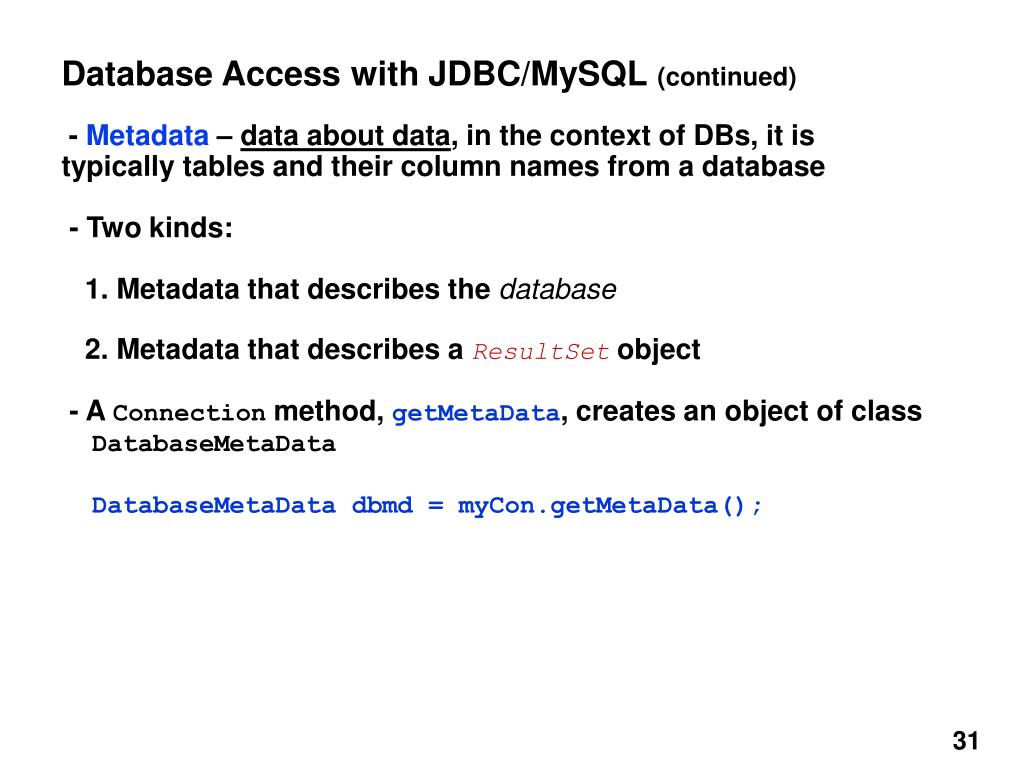

  31. Database Access with JDBC/MySQL (continued) - Metadata – data about data, in the context of DBs, it is typically tables and their column names from a database - Two kinds: 1. Metadata that describes the database 2. Metadata that describes a ResultSetobject - A Connection method, getMetaData, creates an object of class DatabaseMetaData DatabaseMetaData dbmd = myCon.getMetaData();

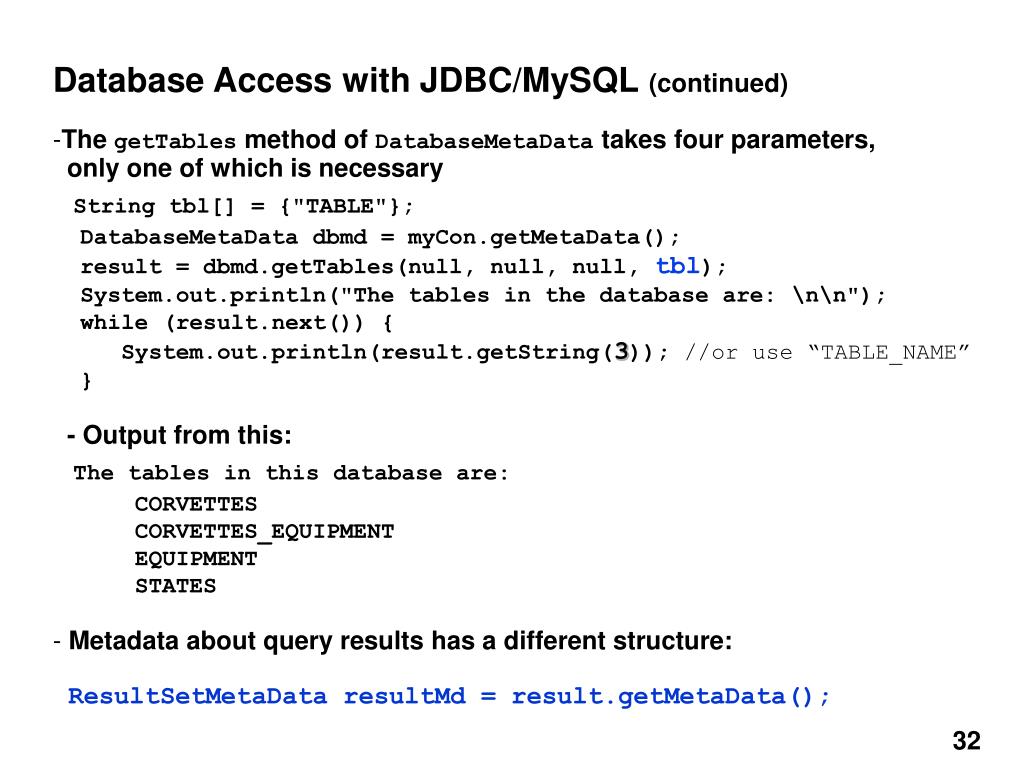

  32. Database Access with JDBC/MySQL (continued) • The getTables method of DatabaseMetaData takes four parameters, • only one of which is necessary • String tbl[] = {"TABLE"}; • DatabaseMetaData dbmd = myCon.getMetaData(); • result = dbmd.getTables(null, null, null, tbl); • System.out.println("The tables in the database are: \n\n"); • while (result.next()) { • System.out.println(result.getString(3)); //or use “TABLE_NAME” • } • - Output from this: • The tables in this database are: • CORVETTES • CORVETTES_EQUIPMENT • EQUIPMENT • STATES • Metadata about query results has a different structure: • ResultSetMetaData resultMd = result.getMetaData();

  33. Database Access with JDBC/MySQL (continued) - We can get the number of columns, their names, types, and sizes from the resultMd object, using its methods - getColumnCount returns the number of columns - getColumnLable(i)returns the ith column’s name // Create an object for the metadata ResultSetMetaData resultMd = result.getMetaData(); // Loop to fetch and display the column names for (int i = 1; i <= resultMd.getColumnCount(); i++) { String columnName = resultMd.getColumnLabel(i); System.out.print(columnName + "\t"); } System.out.println("\n"); Output would be: Vette_id Body_style Miles Year State

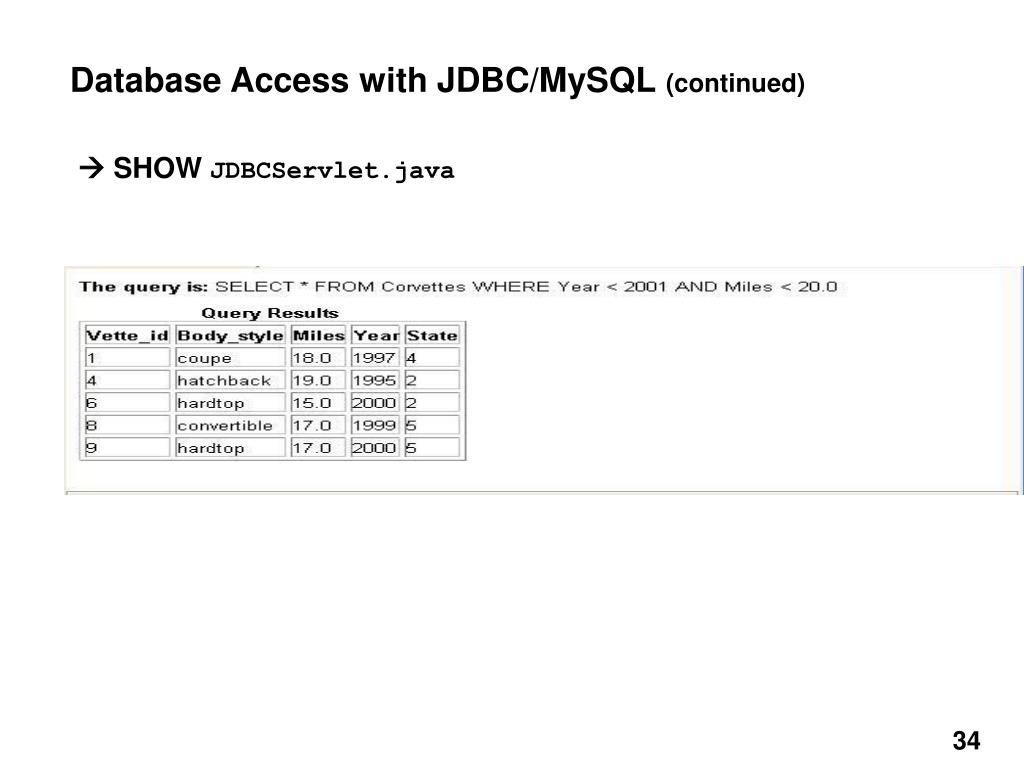

  34. Database Access with JDBC/MySQL (continued)  SHOW JDBCServlet.java

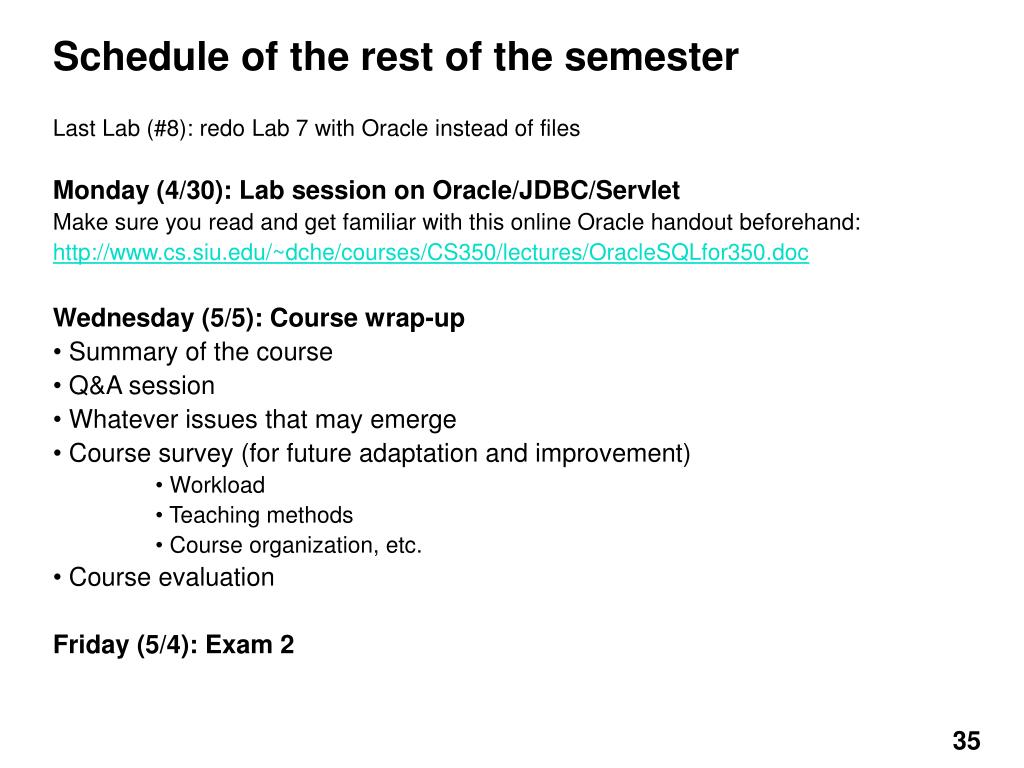

  35. Schedule of the rest of the semester • Last Lab (#8): redo Lab 7 with Oracle instead of files • Monday (4/30): Lab session on Oracle/JDBC/Servlet • Make sure you read and get familiar with this online Oracle handout beforehand: http://www.cs.siu.edu/~dche/courses/CS350/lectures/OracleSQLfor350.doc • Wednesday (5/5): Course wrap-up • Summary of the course • Q&A session • Whatever issues that may emerge • Course survey (for future adaptation and improvement) • Workload • Teaching methods • Course organization, etc. • Course evaluation • Friday (5/4): Exam 2

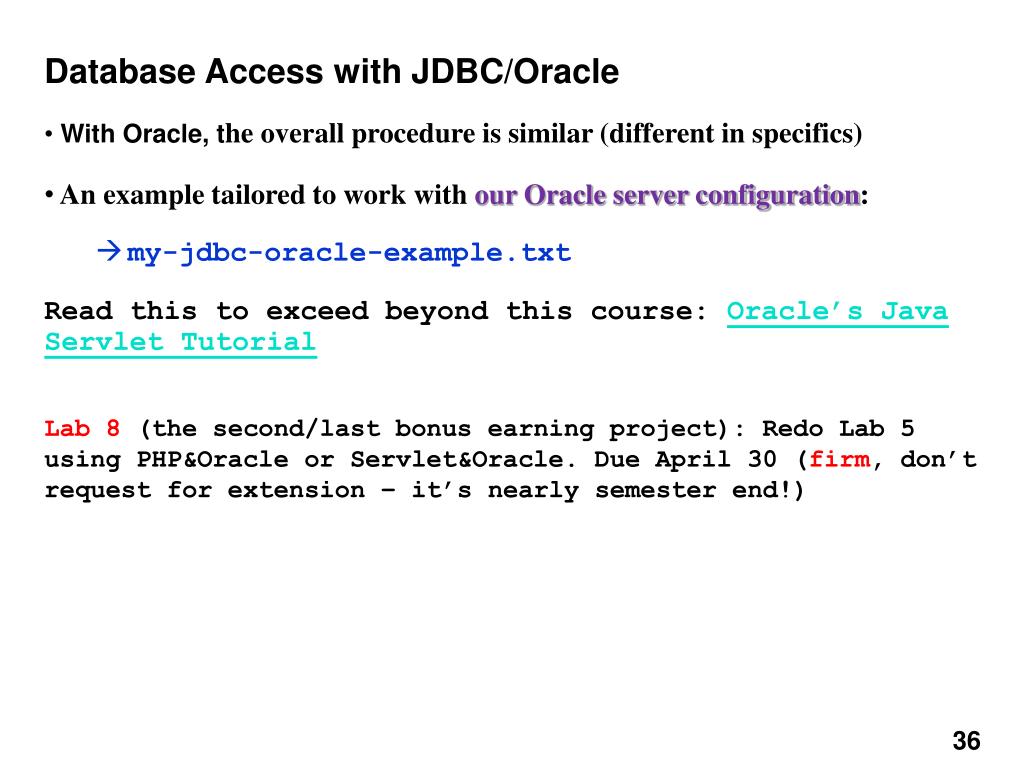

  36. Database Access with JDBC/Oracle • With Oracle, the overall procedure is similar (different in specifics) • An example tailored to work with our Oracle server configuration: • my-jdbc-oracle-example.txt • Read this to exceed beyond this course:Oracle’s Java Servlet Tutorial • Lab 8 (the second/last bonus earning project): Redo Lab 5 using PHP&Oracle or Servlet&Oracle. Due April 30 (firm, don’t request for extension – it’s nearly semester end!)
