Air Pollution

Air Pollution. Outline . Classification Composition of air Sources of air pollution Effects Controls Major air pollution problems Air policy and Legislation Air Pollution Index (API). Types of air pollution . Personal air pollution Occupational pollution

kanoa
Download Presentation

Air Pollution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Air Pollution

  2. Outline • Classification • Composition of air • Sources of air pollution • Effects • Controls • Major air pollution problems • Air policy and Legislation • Air Pollution Index (API)

  3. Types of air pollution • Personal air pollution • Occupational pollution • Community / environmental air pollution

  4. Sources • Natural • Man-made

  5. Natural • Wind-blow dust • Smoke • Gases from swamp • Fog • volcanic

  6. Natural Pollutants • SO2 • H2S • CO • NO,NO2 • NH3 • Hydrocarbon • CH4 • CO2 • O3

  7. Man-made • Dust • Combustion • Manufacturing • Agricultural • Nuclear energy

  8. Man-made Pollutants • Particulates • Oxides of sulphur and nitrogen • CO2 • Organic vapour • Vapour with traces of heavy metal • H2S • Radioactive

  9. Effects • Vegetation • Human beings and animals • Materials • Health

  10. Materials • Abrasion • Deposition • Chemical attack • Corrosion

  11. Health • Particulates – respiratory tracts • SO2 – respiratory, asthematic • CO2, CO - • No2 - respiratory • O3 - respiratory • Pb – nervous and cardiovascular

  12. Control • Zoning • Control at source • Use device and equipment • Use high stacks • vegetation

  13. Zoning

  14. Control at source • Replace • Reengineering • Redesign • Reduce

  15. By device • Gravitational settling chamber • Inertial collectors • Wet collectors • Fabric • Electrostatic precipitators

  16. Control at construction site • Legislation • Dust reduction measures • Stop malpractice • Notify Environmental Protection Dept

  17. Dust reduction measures • Wet by water spray • Provide hoarding to fence off the site • Product dust screen • Cover dusty materials on site and vehicles • Dispose dusty materials correctly • Cover unfinished site formation work • Provide vehicle wash basin

  18. Stop malpractice • Do not use compress air for cleaning • Do not operate without any controls • Do not stockpile dusty materials without proper procedures • Do not blast on strong wind signals

  19. Notify EPD • Site formation • Reclamation • Building demolition • Tunnel work • Building construction • Road construction

  20. Major Problems Acid Rain Ozone depletion Green House Effect Indoor Air Pollution

  21. Acid Rain • pH as low as 3 • Mainly due to Industrial pollutants • No2, So2 and volatile organic vapour are converted to acidic compounds

  22. Effects of Acid Rain • Natural life • Building materials • Crops and vegetation • Cause deteriation of soil

  23. Ozone depletion • Ozone exist in stratosphere (outer atmosphere) • Ozone is used to shield ultra-violet light (short-wave length) • Ozone is depleted by CFC (carbo-halogen-compound) • Nitrous oxide contribute to depletion of ozone

  24. Effects of Ozone depletion • Skin cancer • Eye sickness • Kill phytoplankton • Decrease in food supplies • More CO2

  25. Green House Effects • Absorb long-wave (ultra-red) • Let in short-wave and absorb long wave • Acts like a glass in a green house • Cause global warmness

  26. Effects of Green house • Rise of water temperature and causing global climate changes

  27. Indoor Air Pollution • CO • Formaldehyde • Radon • NO2

  28. Effects of indoor air quality • Sick building syndrome

  29. Control

  30. Control • Land use planning • Enforcement of Air Pollution Ordinance • AQO • Restrict certain specified process/trades

  31. Hong Kong Air Quality Objective • SO2 • TSP • RSP • NO2 • CO • Ozone • Lead

  32. AQO • Exposure in hours • Exposure quantity

  33. Air Pollution Index

  34. What is API ? • The API is an index that converts several pollutants into a value ranging from 0 – 500 • API forecast serves as a warning to the public

  35. How is it determined • It is calculated by comparing the measured concentration of major air pollutants with their respective health related AQO. • These pollutants are NO2, SO2, ozone, CO, and RSP. • APIs for each of these pollutants are calculated and the highest API number is reported. • API’s are reported hourly.

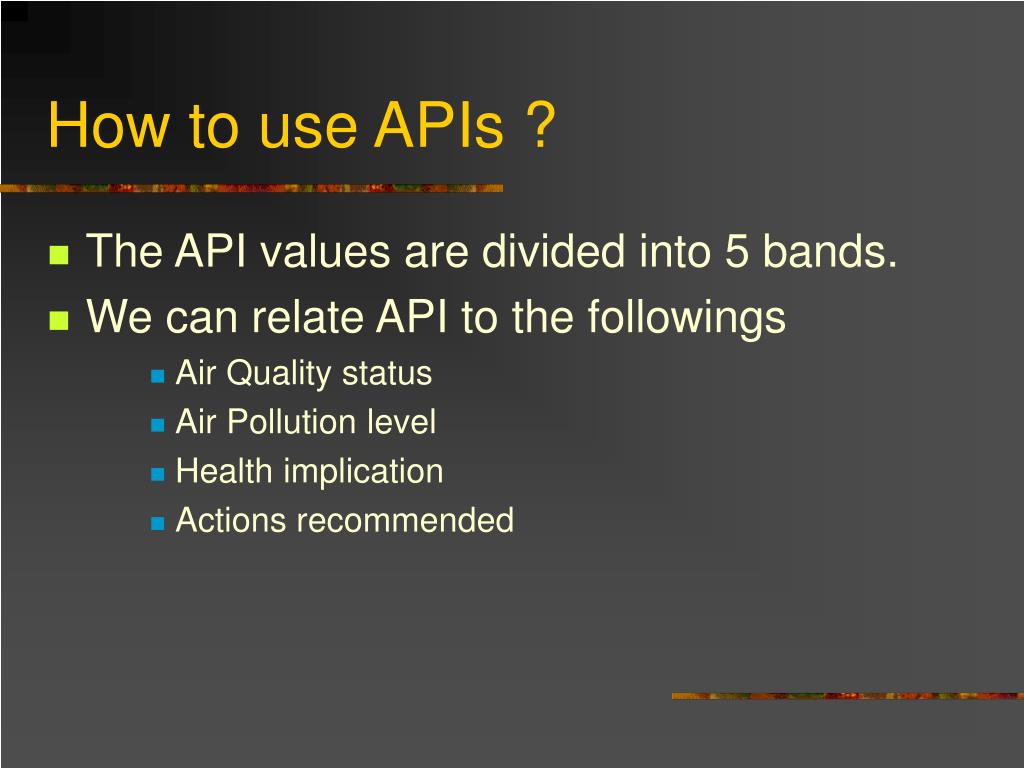

  36. How to use APIs ? • The API values are divided into 5 bands. • We can relate API to the followings • Air Quality status • Air Pollution level • Health implication • Actions recommended

  37. Locations of monitoring

  38. Roadside API
