CEN/WS XBRL: Improving transparency in financial and business reporting

1. CEN/WS XBRL: Improving transparency in financial and business reporting CWA2 Situation & latest evolutions Present situation - DRAFT Emile Bartolé CWA2

2. Objectives of CWA2 CWA2 Dual objective of CWA2: standardize • The way of submitting instances, a container with standardized • Encryption • Digital signature • Compression • … • The way of transmitting the usual metadata that determine the context of an xbrl reporting instance • the sender of the document • contact details • date and time of submission • …

3. Deliverables Specification document(s) Delivered (draft) Header XML schema Delivered (draft) Instance Feedback XML schema Delivered (draft) Container Feedback XML schema Delivered (draft) Container Test tools In progress (draft) CBV in dimensional XBRL In progress (draft)

4. Enhanced workflow Submission container header.xml nationalinstance1.xbrl nationalinstance2.xbrl Subcontainer Subcontainer Declarer Feedback Feedback European / Other Supervision Authority National Supervision Authority

5. Submission container Multiple XBRL instance documents packed with one xml header file Header is the only file with a naming convention: “header.xml”; it is located on top-level of the compression package Header lists xbrl instances contained in the container Instances should always have extension .xbrl Use of folders is optional; in case they are used, all references (in header to XBRL instances; in XBRL instances to taxonomy files) must respect them. Folder names used here (“Instances”, “Taxonomy”) are given as examples Authorities may define “their” naming convention (files, folders) Multiple compression packages per security envelope are allowed “Other” files in adequate file formats (e.g. an audit report to prove the validity of the figures) are allowed, particularly also valid subcontainers, whether up to the ZIP, the Xades-EPES (“SignedSubContainers”) or to the encryption structure (“FullSubContainers”) Encryption (XML Encryption) Signature (XADES-EPES) Package & Compress (zip) header.xml Instances instance1.xbrl instance2.xbrl … instancen.xbrl Taxonomy taxonomy-file1.xml | .xsd taxonomy-file2.xml | .xsd … taxonomy-filen.xml | .xsd SignedSubContainers XadesSignedSubcontainer.xml FullSubContainers EncryptedSubcontainer.xml Attachment AuditReport.pdf Page 5

6. Single collection - multiple dispatching Encryption (public key of the first destinee) National Supervision Authority Other Authority: e.g. EBA Other Authority: BIS / ESRB / Banking Union / … Signature 1 (contributor 1 - private key) Zip • Header • Instance 1 • Instance 2 • ... • Instance n • SignedSubContainers • XadesSignedSubcontainer.xml • not encrypted • potentially signed by a different contributor • FullSubContainers • EncryptedSubcontainer.xml • encrypted for final destinee • potentially signed by a different contributor • usual container structure Encryption (next destinee) & transfer Transfer only Page 6

7. EBA requirement: Ensure integrity Solution: use signed subcontainers! Integrity of data is guaranteed for both receivers respectively, for NSA in the Instances integrity area, for subsequent institutions in their respective subcontainer’s integrity area If InstanceAn.xbrl is meant to have identical content as InstanceAn.xbrl, enhanced services possible are possible by NSA: guarantee identity of information delivered to NSA and ESA (via simple file comparison) Encryption (XML Encryption) Signature (XADES-EPES) Package & Compress (zip) header.xml Instances InstanceA1.xbrl InstanceA2.xbrl … InstanceAn.xbrl SignedSubContainers SignedSubcontainer.xml Header.xml InstanceB1.xbrl InstanceB2.xbrl … InstanceBn.xbrl N S A E S A Integrity areas Page 7

8. EBA requirement: use with secure transport Unsecure or undefined transport: Secure transport: Encryption (XML Encryption) Signature (XADES-EPES) Package & Compress (zip) Package & Compress (zip) header.xml Instances InstanceA1.xbrl InstanceA2.xbrl … InstanceAn.xbrl SignedSubContainers SignedSubcontainer.xml Header.xml InstanceB1.xml InstanceB2.xml … InstanceBn.xml header.xml Instances InstanceA1.xbrl InstanceA2.xbrl … InstanceAn.xbrl SignedSubContainers SignedSubcontainer.xml Header.xml InstanceB1.xml InstanceB2.xml … InstanceBn.xml Page 8

9. Feedback container One XML feedback file per XBRL instance in the original submission container Feedback files will be generated systematically, even if no errors at validation time occurred (also positive acknowledge) The XML schema for the feedback files will contain a hash code for the original file guaranteeing non-repudiation of the submitted XBRL instances The feedback file will have the same name as the original instance it refers to (but with extension .xml instead of the original .xbrl) Folder name used here (“Feedback”) is given as an example Encryption (XML Encryption) Signature (XADES-EPES) Package & Compress (zip) Feedback instance1.xml instance2.xml … instancen.xml Page 9

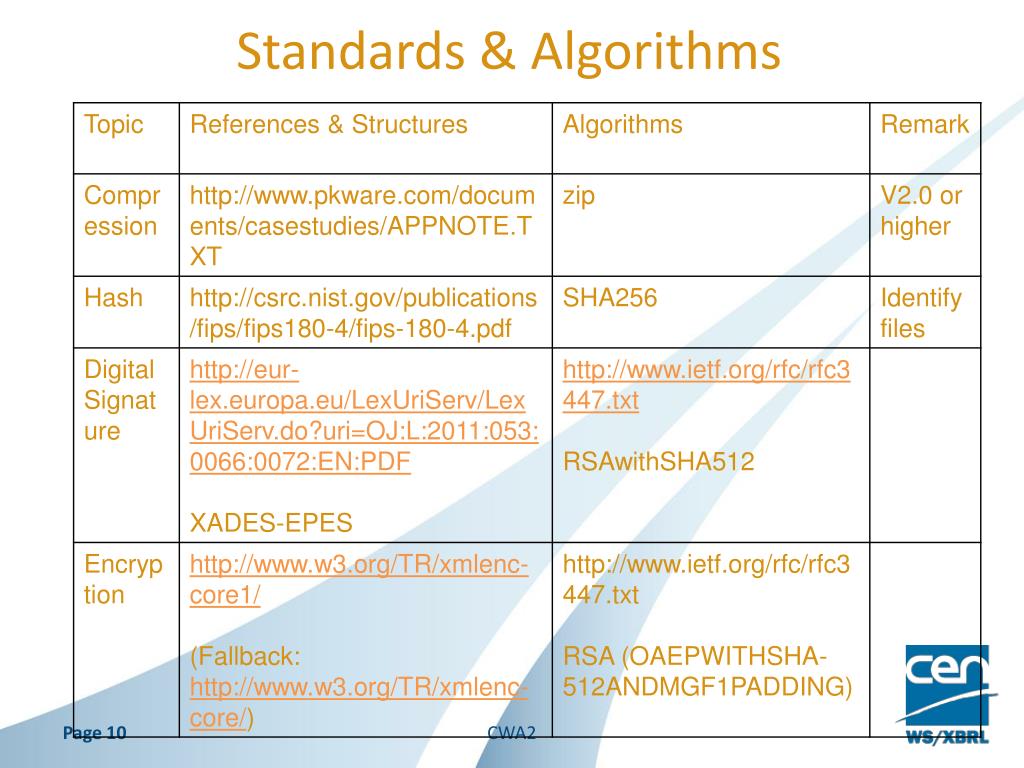

10. Standards & Algorithms Page 10 CWA2

11. Tools developement: Environment: Java

12. CWA2 Header XML Direct import of the core business vocabulary into the draft header schema Support of initial & update submissions Full support of signed as well as signed & encrypted subcontainers

13. Header Orientations Page 13 CWA2 Types of header fields

14. Core business vocabulary in XBRL Re-implementation of the EU Core business vocabulary Dimensional XBRL DPM (with Tables) being developed First taxonomy version available

15. Thanks for your attention emile.bartole@cssf.lu Comments or questions? Page 15 CWA2
