  1. P 12029Biomimetic “Robo” Ant

  2. The Team • Sponsor • Dr. Lamkin-Kennard • Consultant • Mike Zona (Xerox) Chris Anderson, Jon Gibson, Kurt Stratton, Josh Koelle

  3. agenda

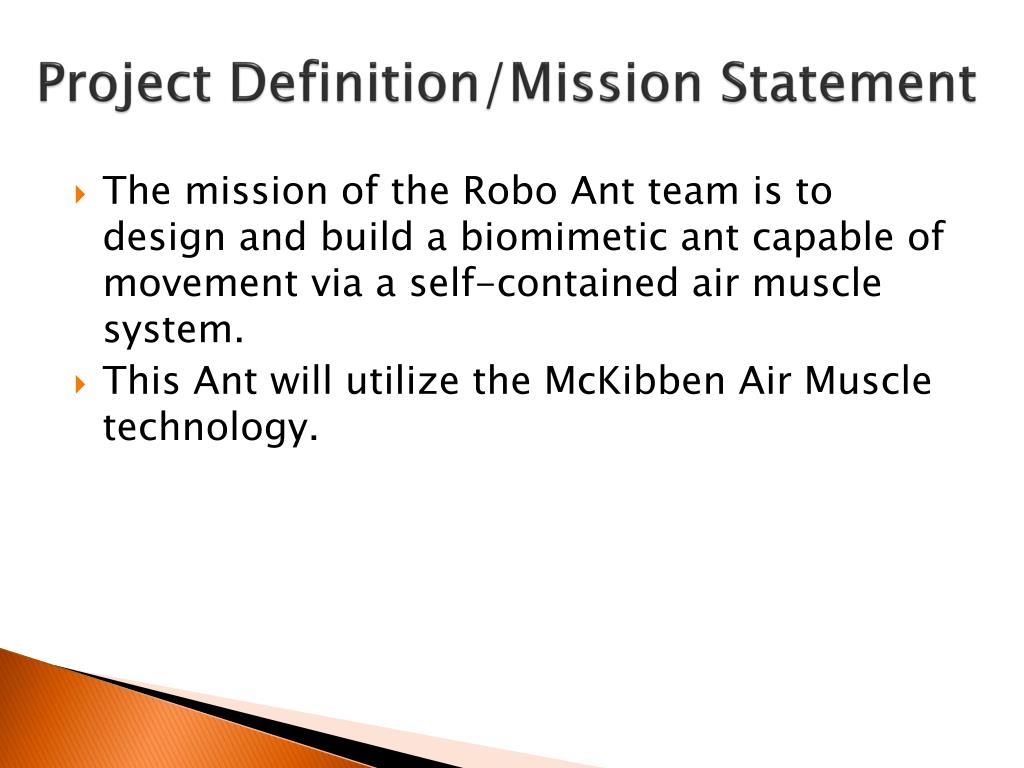

  4. Project Definition/Mission Statement • The mission of the Robo Ant team is to design and build a biomimetic ant capable of movement via a self-contained air muscle system. • This Ant will utilize the McKibben Air Muscle technology.

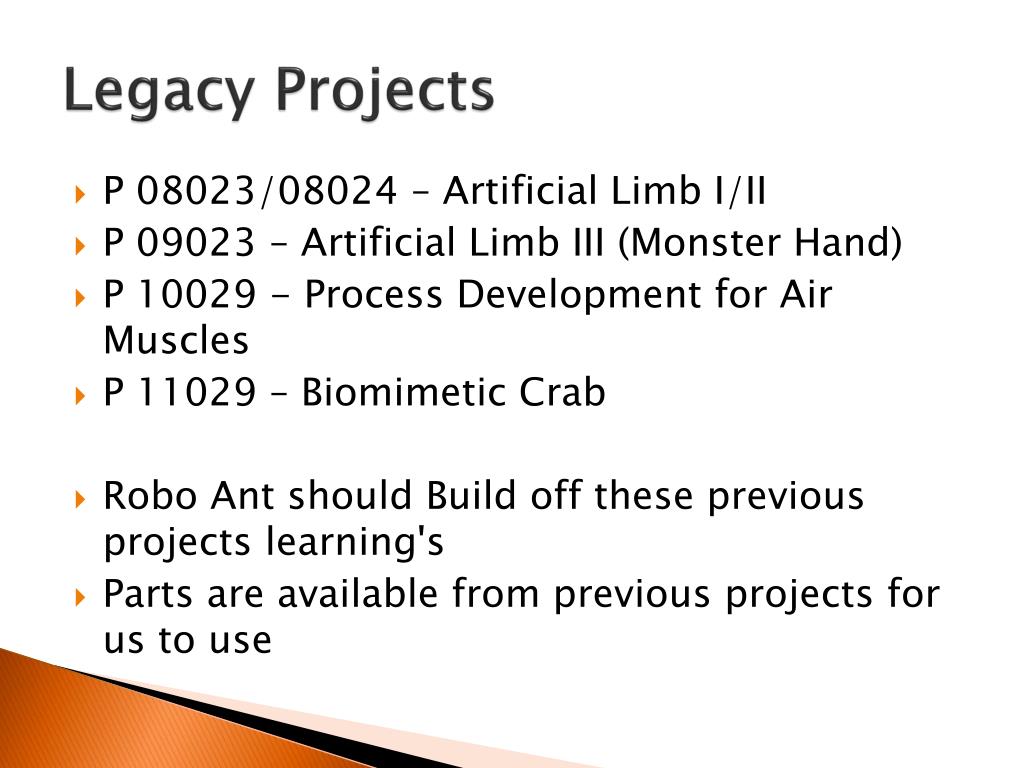

  5. Legacy Projects • P 08023/08024 – Artificial Limb I/II • P 09023 – Artificial Limb III (Monster Hand) • P 10029 - Process Development for Air Muscles • P 11029 – Biomimetic Crab • Robo Ant should Build off these previous projects learning's • Parts are available from previous projects for us to use

  6. McKibben Muscle Technology • First developed in the 1950’s • Constructed of surgical tubing surrounded by wire sleeving. • When the tubing is inflated, the sleeving contracts. http://www.anupamtimes.com/2010/03/robotic-arms-biorobotics.html

  7. McKibben Muscle Historic Data • Long history at RIT, data on senior design projects since 2007-2008 school year. • All groups research and findings have been well documented. • Muscle selection will be based on historic data • Theoretical equations exist as outlined by Chou and Hannaford in Measurement and Modeling of McKibben Pneumatic Artificial Muscles

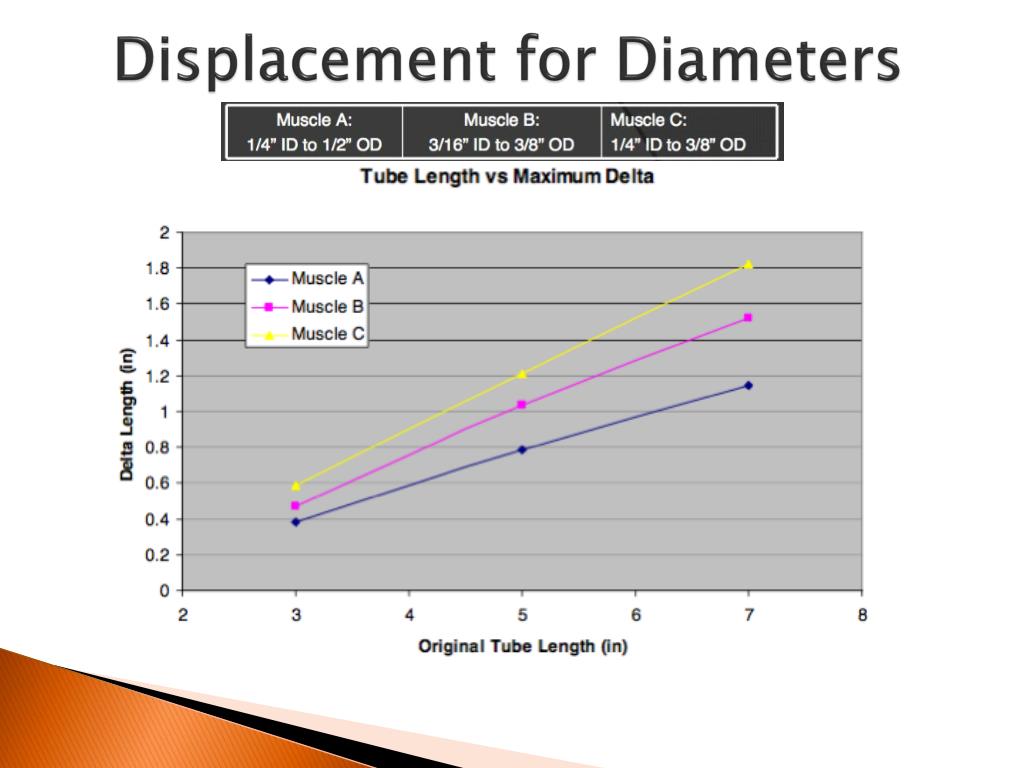

  8. Displacement for Diameters

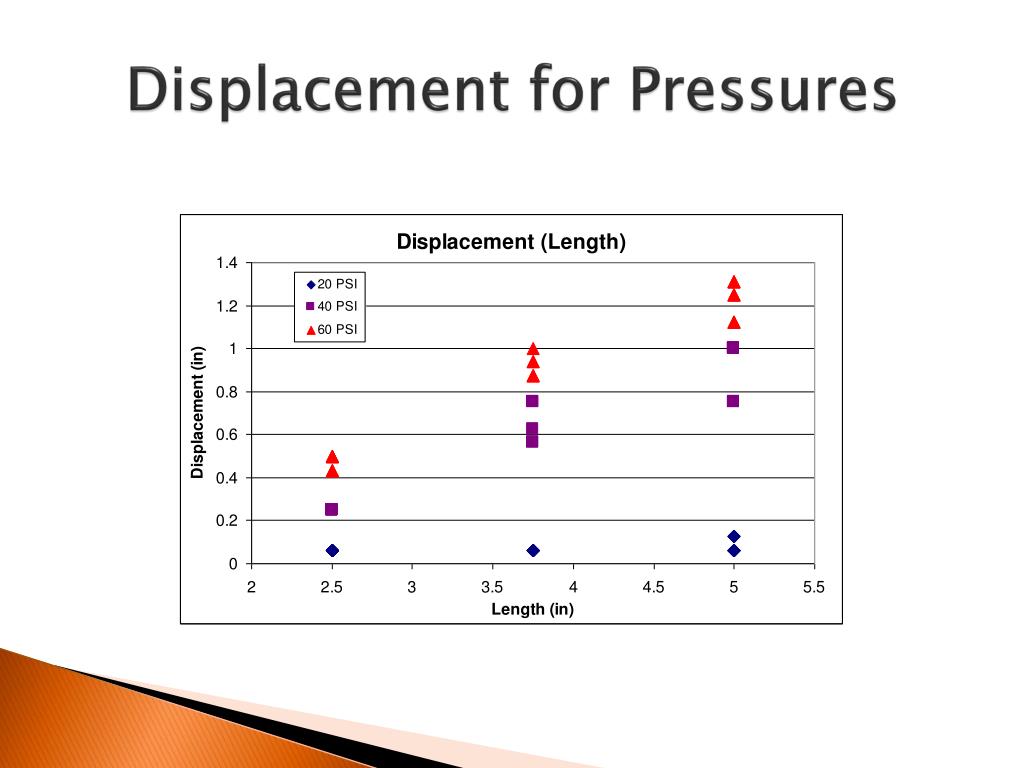

  9. Displacement for Pressures

  10. Tripod Layout Ant Locomotion http://www.clker.com/clipart-11220.html • The ant’s use of a tripod cadence allows for simplifications in our design: • Possible reduction in number of McKibben air muscles • Simplification in logic

  11. Ant Locomotion Tripod Layout Ant Cadence http://www.clker.com/clipart-11220.html Real-time control of walking By Marc D. Donner

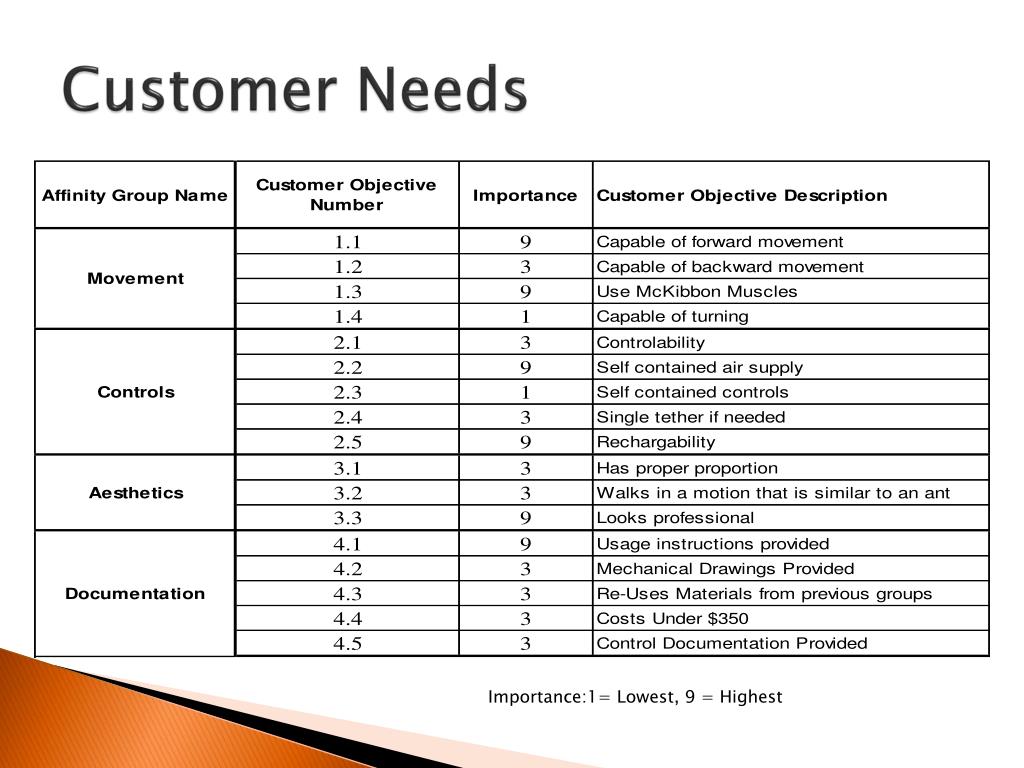

  12. Customer Needs Importance:1= Lowest, 9 = Highest

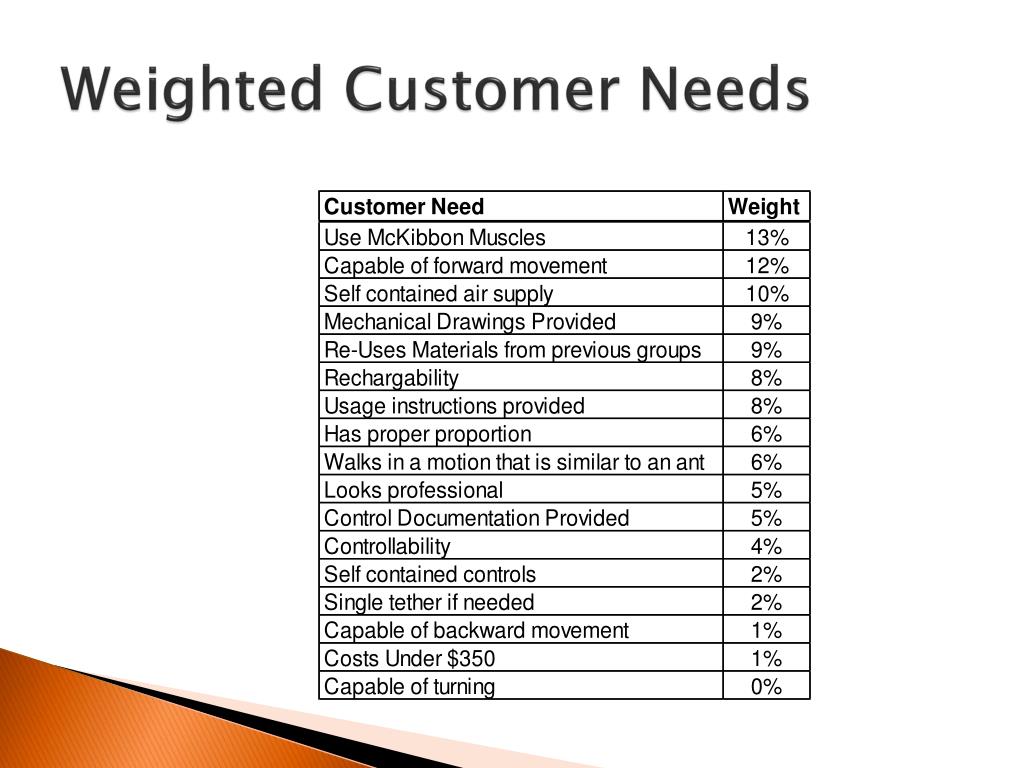

  13. Weighted Customer Needs

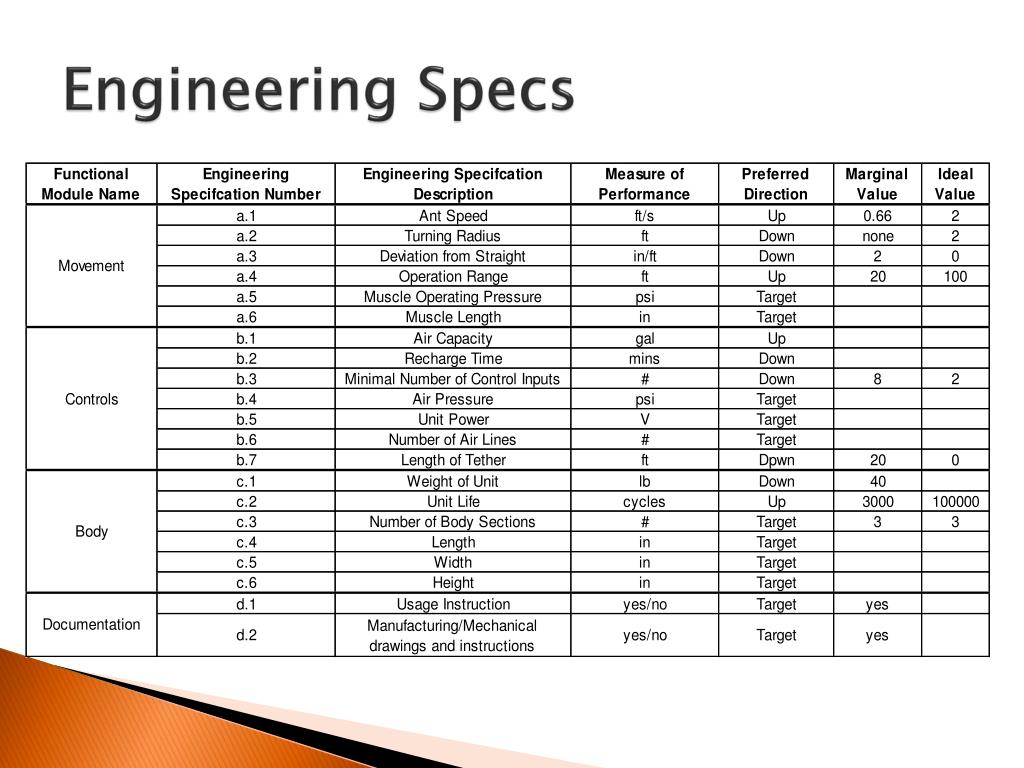

  14. Engineering Specs

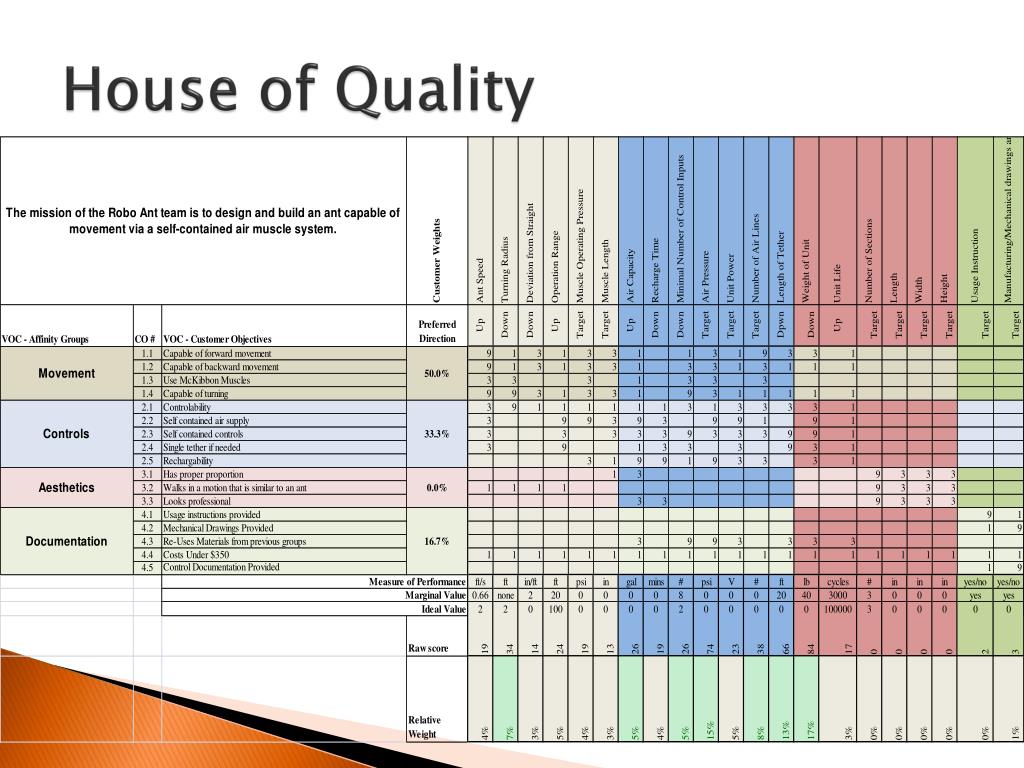

  15. House of Quality

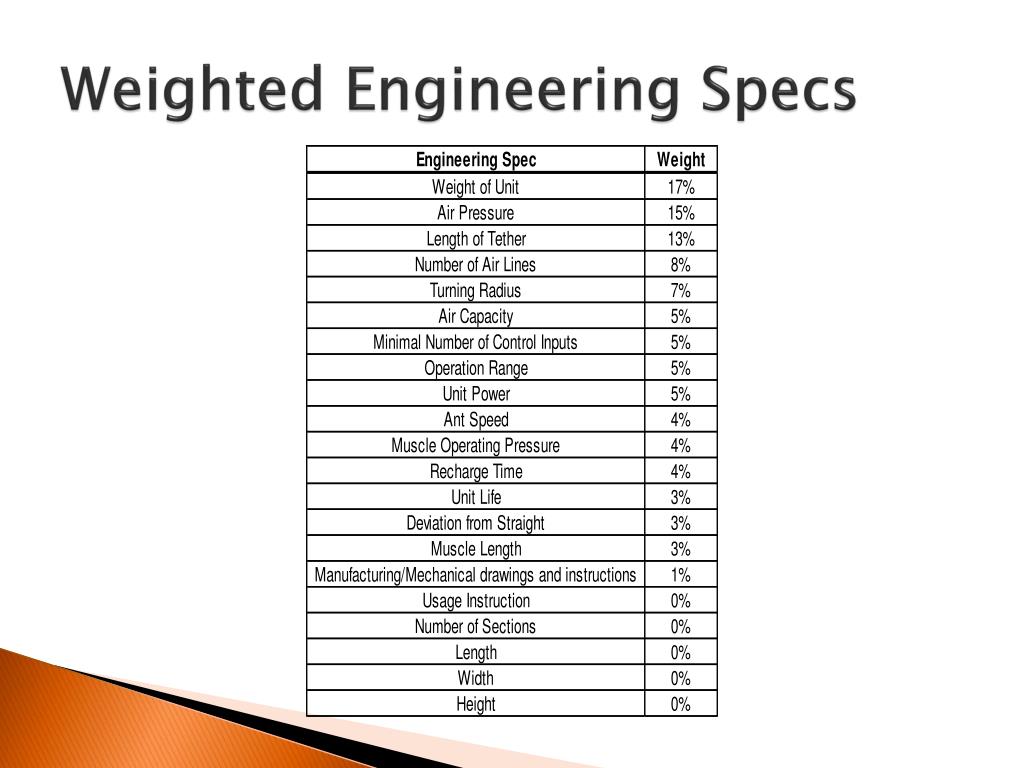

  16. Weighted Engineering Specs

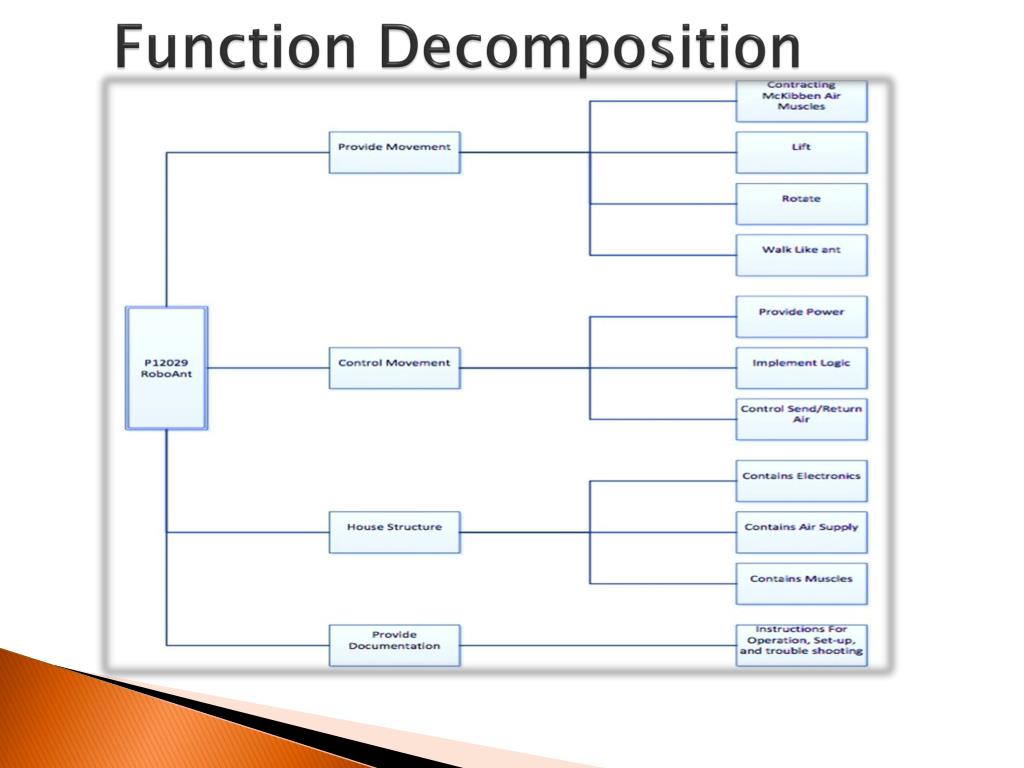

  17. Function Decomposition

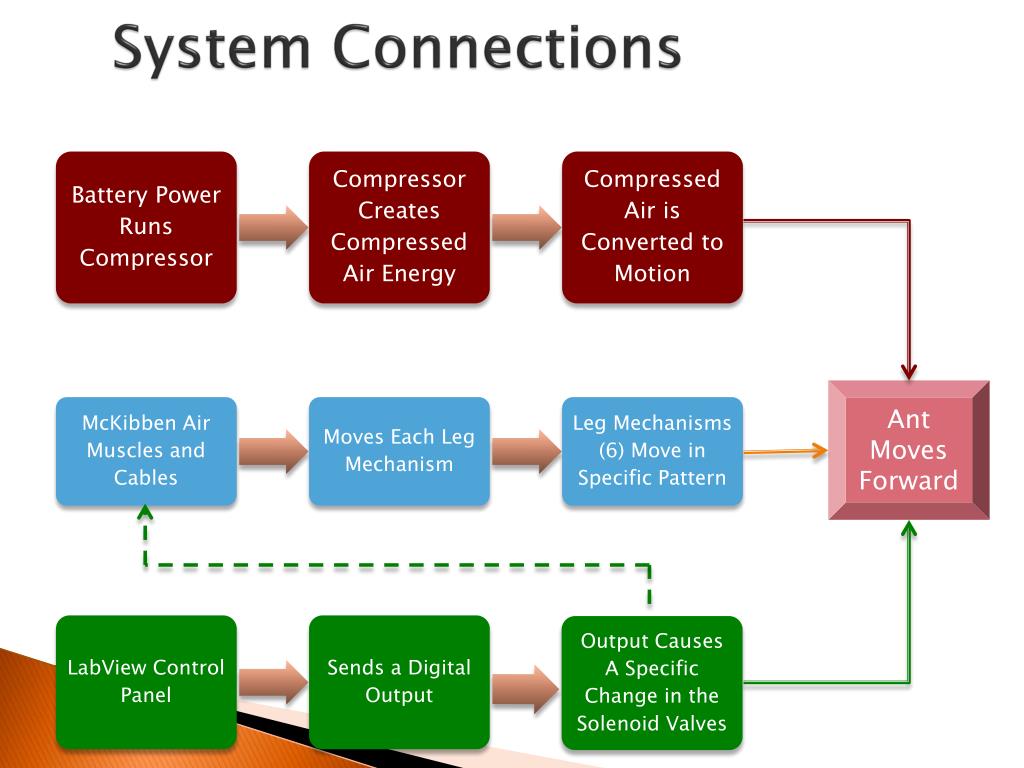

  18. System Connections Ant Moves Forward

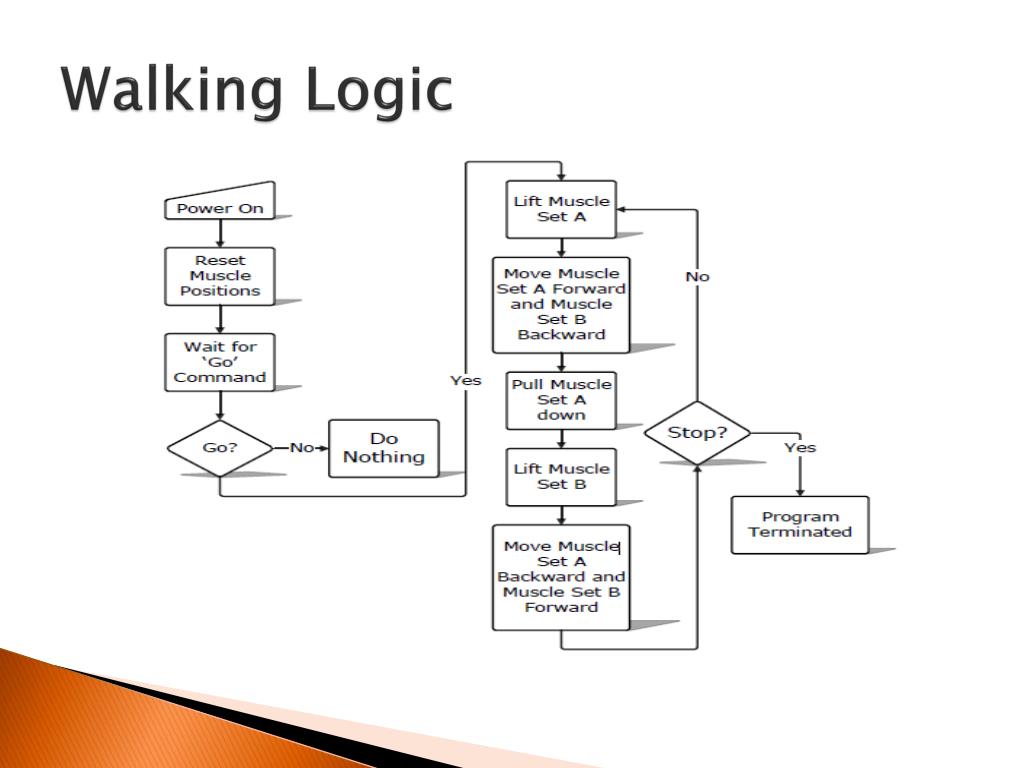

  19. Walking Logic

  20. Morph Chart

  21. Morph Chart

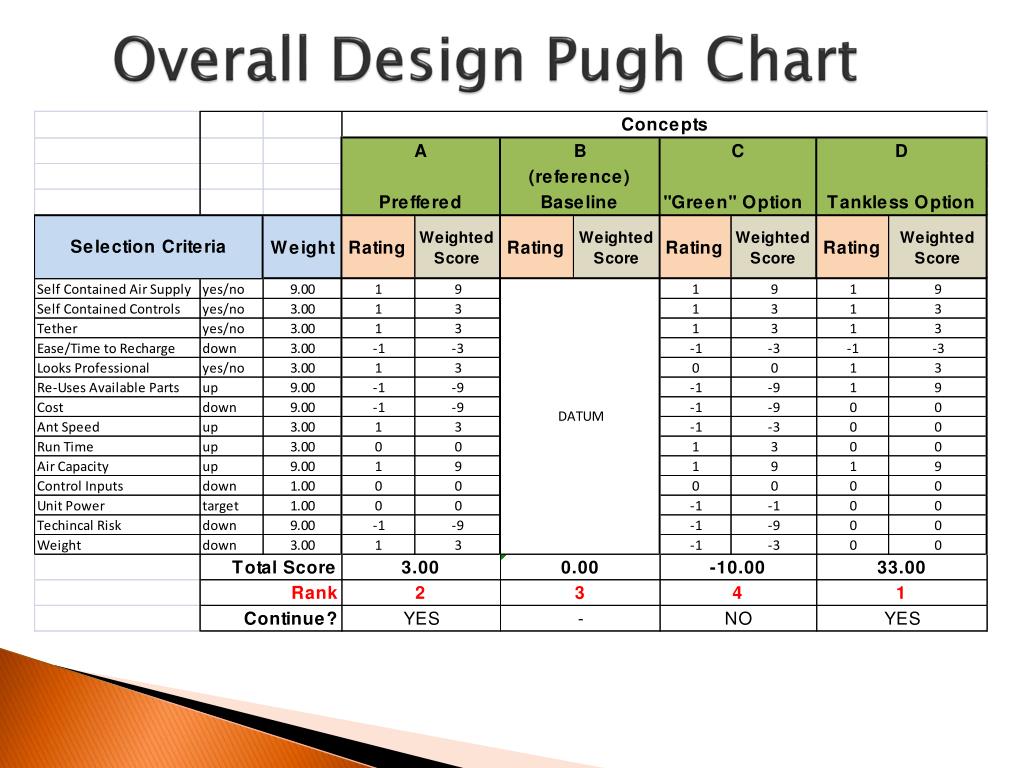

  22. Overall Design Pugh Chart

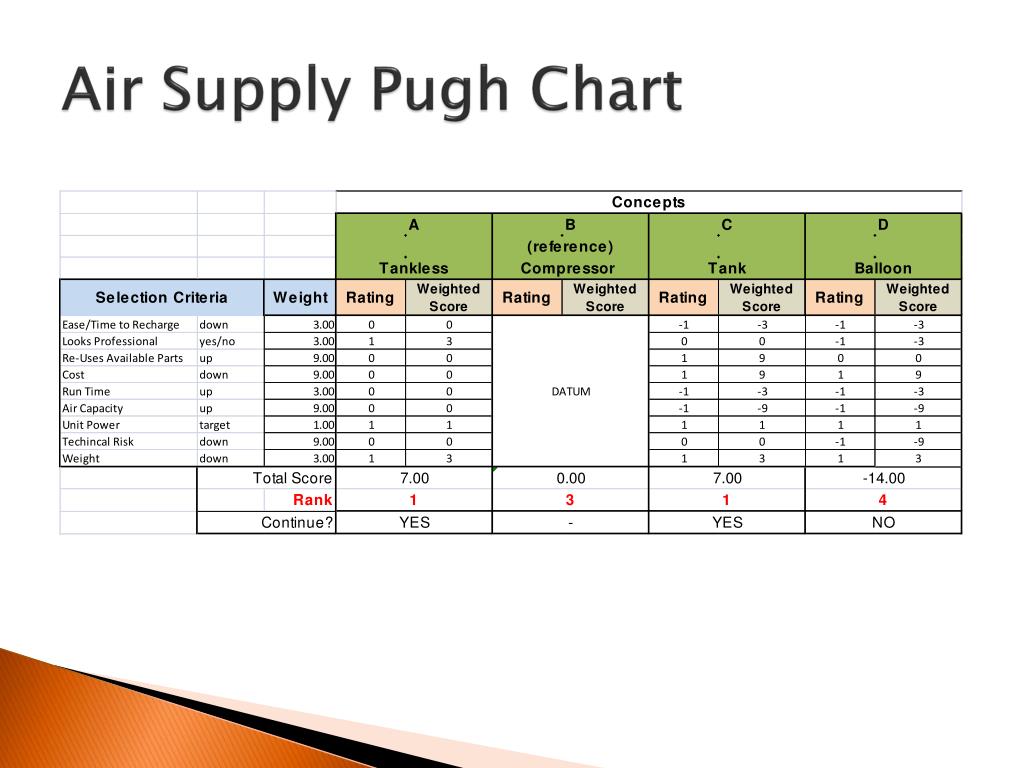

  23. Air Supply Pugh Chart

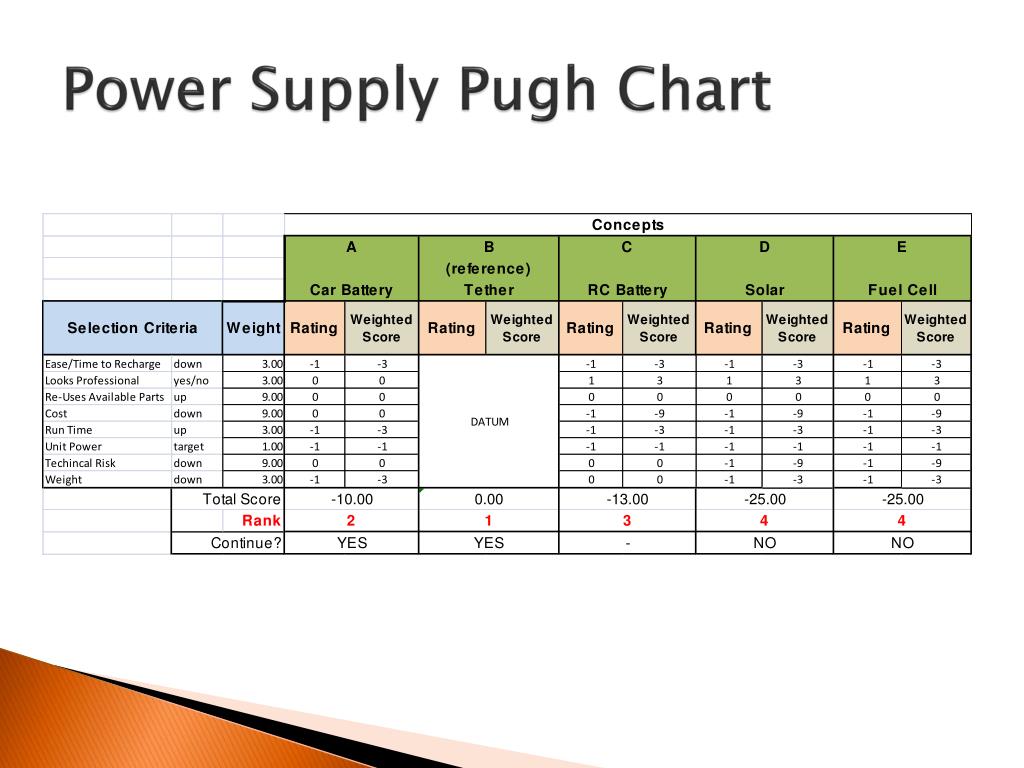

  24. Power Supply Pugh Chart

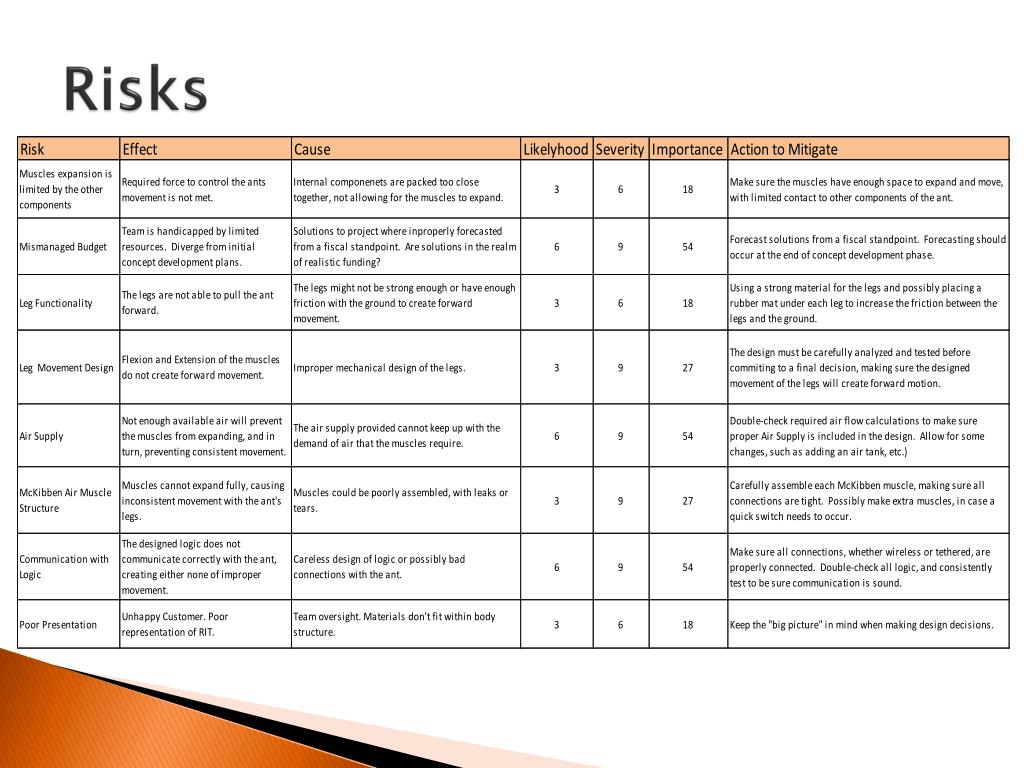

  25. Risks

  26. Risks

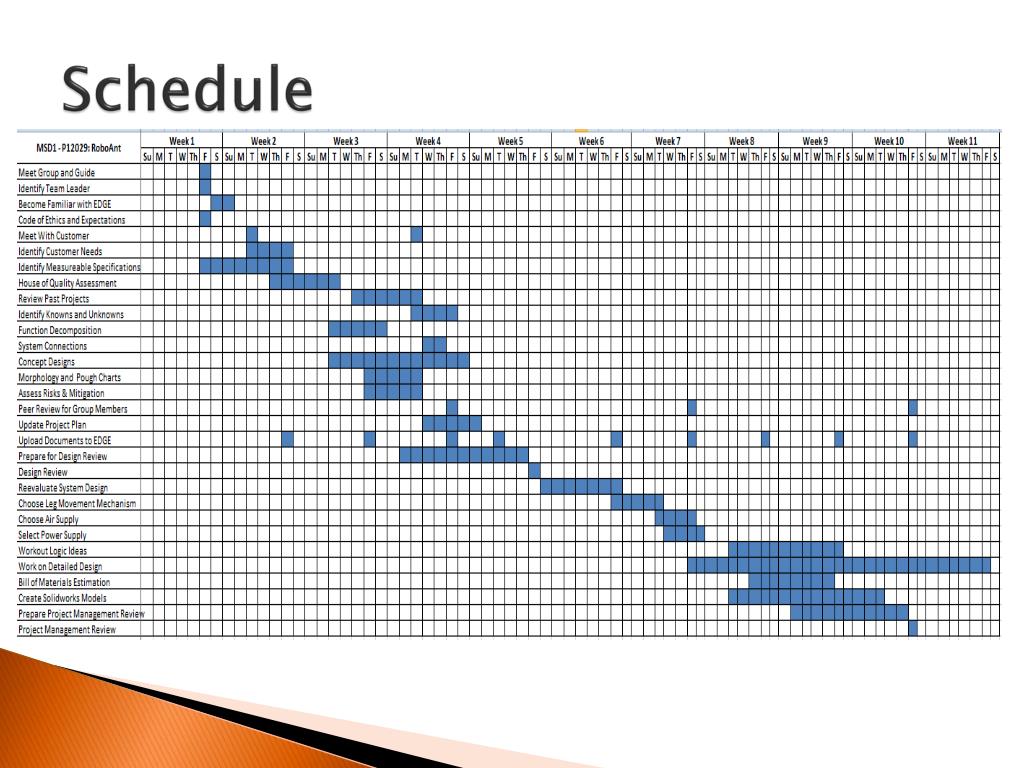

  27. Schedule
