Decibel ( dB)

Decibel ( dB) . dB is a logarithmic value that expresses difference and not absolute values A corresponding reference scale is required For sound, sound-pressure level ( SPL ) is used as the reference scale (dB SPL) The threshold of hearing (0 dB SPL) is used as the reference or zero point.

kamea
Download Presentation

Decibel ( dB)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Decibel (dB) • dB is a logarithmic value that expresses difference and not absolute values • A corresponding reference scale is required • For sound, sound-pressure level (SPL) is used as the reference scale (dB SPL) • The threshold of hearing (0 dB SPL) is used as the reference or zero point

  2. Decibel (dB) • Example dB levels (approximate) • 0 dB = threshold of hearing • 30 dB = soft whisper (5 ft.) • 70 dB = conversation (1 ft.) • 90 dB = subway train (20 ft.) • 130 dB = pain threshold

  3. Changes in Decibels (dB)

  4. Changes in Decibels (dB)

  5. Decibel (dB) and Distance • Doubling (2x) the distance = decreases the apparent signal level by 6-10 dB • Halving (1/2) the distance = increases the apparent signal level by 6-10 dB • There is a 6-10 dB change for every doubling or halving of the distance • For example • 4x the distance = 12-20 dB decrease • 8x the distance = 18-30 dB decrease • 1/4 the distance = 12-20 dB increase • 1/8 the distance = 18-30 dB increase

  6. Auditory Perception • Human ears are non-linear • The sound arriving at your ears is not the sound you actually “hear” (psycho acoustic effects) • Frequency response is not flat and humans hear mid-range frequencies better especially at lower sound levels

  7. Response Variation by Frequency

  8. Auditory Perception • Harmonic distortion is added at louder levels – perceived tones change with sound level • Frequency response changes with sound level • Lower sensitivity to low and high frequencies at low listening levels • Fletcher-Munson Equal Loudness Contour Curves illustrate the difference in sensitivity to different frequencies at various sound levels

  9. Fletcher-Munson Equal Loudness Contour Curves

  10. Equal Loudness Examples • At 50 dB SPL, compared to a 1 kHz pure tone • 40 Hz tone will be 30 dB lower and 10 kHz tone 13 dB lower • At 110 dB SPL, compared to a 1 kHz pure tone • 40 Hz tone will be 6 dB lower and 10 kHz tone 4 dB lower • *1 phon = 1 dB SPL at 1 kHz for a pure tone

  11. Sound – Loudness and Pitch • Loudness of a tone affects perceived pitch • A 100 Hz tone at 100 dB SPL will sound 10% lower in pitch than at 40 dB SPL • A 500 Hz tone at 100 dB SPL will sound 2% lower in pitch than at 40 dB SPL • Loud headphones or room sound levels can make vocalists sing flat and instrument tuning more difficult

  12. Sound Level Considerations and Warnings • Often monitor at 75-85 dB to minimize equal loudness effect, reduce pitch errors, reduce hearing loss with prolonged exposure and to mimic common listening levels • Prolonged exposure above 85 dB can cause gradual hearing loss • Regular exposure for more than 1 minute above 100 dB can result in permanent hearing loss

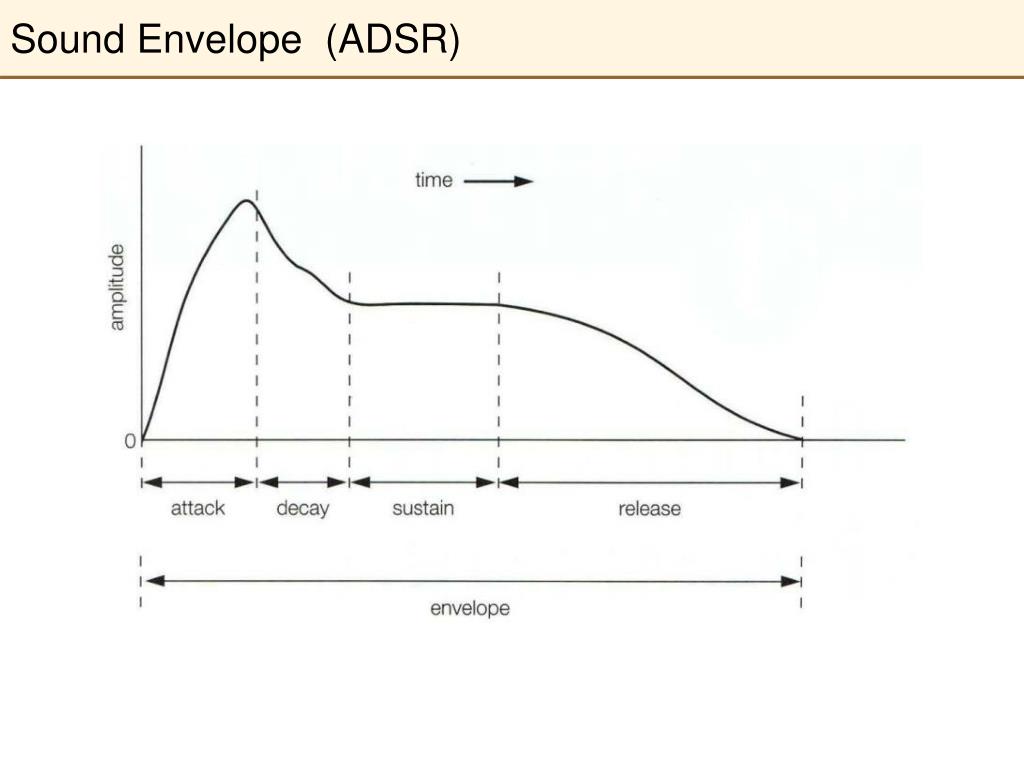

  13. Sound Envelope (ADSR)

  14. Sound Envelope • Attack – how quickly the sound reaches full volume after the sound source is activated • Decay – how quickly the sound drops to the sustain level after reaching the peak or full volume • Sustain – how long the sound remains at near constant volume after decaying (may not be present) • Release – how quickly the sound fades to zero

  15. Speed of Sound • Speed of sound in air at 70°F is 1130 ft/sec (343 m/s) • Two sounds <15 msec apart will be heard as one distinct sound • ~15-35 msec apart will sound doubled • ~25-35 msec or more apart will be heard as two distinct sounds

  16. Frequency and Wavelength • Wavelength = 1130 feet per sec* / Frequency (cycles/sec) • For a 40 Hz sound wave: 1130 / 40 = 28.3 feet per cycle • * at 70°F

  17. Standing Waves and Room Nodes • If any room dimension is less than a wavelength, generation of standing waves at the corresponding frequency and below will occur • Standing waves result in room nodes which can boost or attenuate frequencies, thus changing the perceived sound • Rarely a problem for high frequencies because of their very small wavelengths • The room nodes change as you move in the room (i.e., location dependent)
