제품특징

장 비 사 양 서. 제품특징. 방송용 Triax 카메라 카메라 케이블 은으로 도금처리된 내부 전도체 + 내부쉴드 폴리우레탄 재질의 외부커버 최대전송길이 ca.900m -1,400m. 제품사양. Inner Conductor : solid silver plated copper sire, 1.4㎜ Insulation : Foam-Re, 6.5㎜ shield : silver p[lated copper braid, coverage > 90% Insulation : PE, 8.5㎜

kamali
Download Presentation

제품특징

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

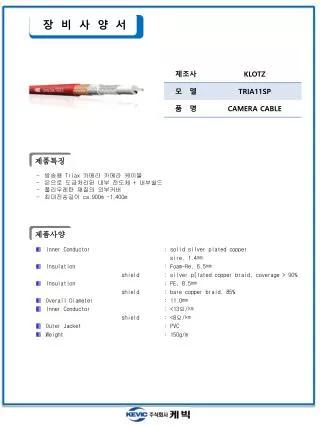

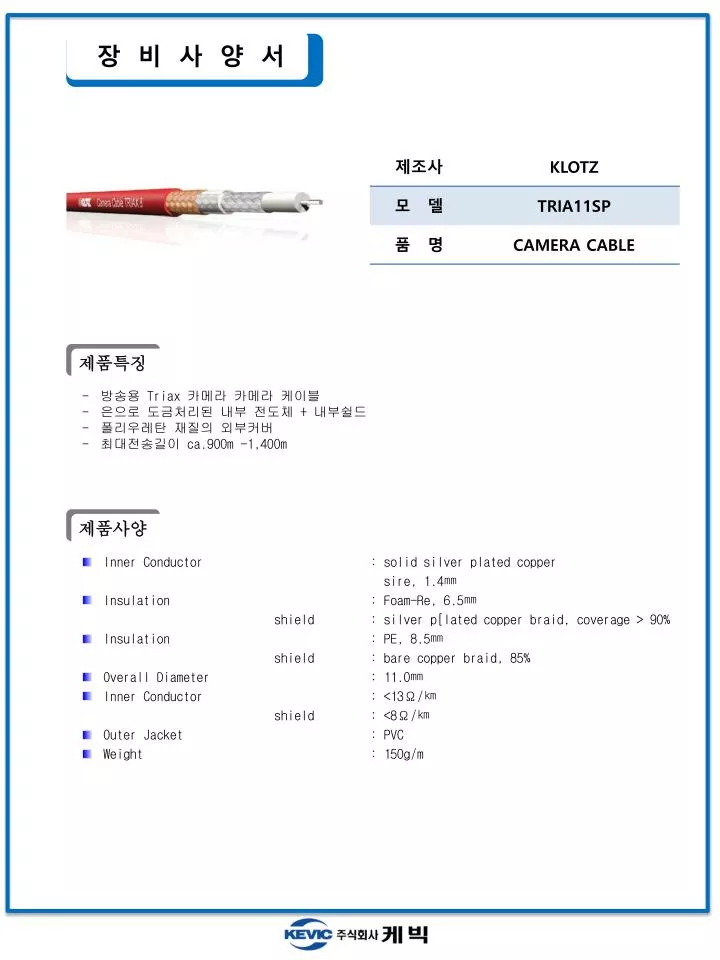

  1. 장 비 사 양 서 제품특징 • 방송용 Triax 카메라 카메라 케이블 • 은으로 도금처리된 내부 전도체 + 내부쉴드 • 폴리우레탄 재질의 외부커버 • 최대전송길이 ca.900m -1,400m 제품사양 • Inner Conductor : solid silver plated copper • sire, 1.4㎜ • Insulation : Foam-Re, 6.5㎜ • shield : silver p[lated copper braid, coverage > 90% • Insulation : PE, 8.5㎜ • shield : bare copper braid, 85% • Overall Diameter : 11.0㎜ • Inner Conductor : <13Ω/㎞ • shield : <8Ω/㎞ • Outer Jacket : PVC • Weight : 150g/m
