distributed objects
Distributed Objects
  • The benefits of an object oriented approach to software development are greatly enhanced when they can be distributed over a network.
  • A classical object encapsulates code and data.
  • A distributed object is an object that can live anywhere on a network, and can be invoked by remote clients via method invocations.
components
Components
  • Distributed objects are independent software components. Components are not bound to a particular program, computer language, or implementation.
  • Components are packaged as the basic unit of work and distribution for an application made up of distributed objects.
key characteristic
Key Characteristic
  • Possibly the most important distinguishing characteristic between an application and a component is that components can be used in unpredictable combinations, while applications tend to be focused on a particular task or environment.
why components
Why Components?
  • Interoperability between:
    • Different Languages
    • Different Compilers
    • Different Vendors
    • Different Operating Systems
    • Different Tools
    • Different Networks
    • Different Applications
    • Different Address Spaces

(Microsoft doesn’t believe in Vendor independence.)

properties of components
Properties of Components
  • A marketable entity
  • Not a complete application
  • Usable in unpredictable combinations
  • Well specified interface
  • Toolability
  • Event notification
  • Configuration and property management
  • Scripting
  • Metadata and Inspection
  • Interoperability
  • Ease of Use
server side components
Server Side Components
  • Components on the Server side need added intelligence. They need to be more concerned with Security, Licensing, Versioning, Life Cycle Management, Transaction Control and Locking, Persistence, Relationships, Self-Testing, Semantic Messaging and Self-installation than Client side components.
server security issues
Server Security Issues
  • Distributed Objects create special security problems for Servers:
    • They can play both Client and Server roles
    • Distributed objects evolve constantly
    • Their interactions are not well understood
    • Distributed objects are less predictable
    • Distributed objects are polymorphic
    • Distributed objects can scale without limit
    • Distributed objects are very dynamic
  • Most of these problems can be solved by moving security into the CORBA ORB.
distributed object technologies
Distributed Object Technologies
  • CORBA
  • Enterprise Java Beans
  • COM+
  • Object Oriented Databases
  • JINI
component standards
Component Standards
  • On the desktop, Java Beans and ActiveX are competing component standards.
  • On the server, component standards include Enterprise Java Beans, CORBA Beans, and COM+.
  • CORBA Internet Inter-ORB Protocol (IIOP) provides a transactional pipe for EJBs, linking Java and CORBA.
distributed object topics
Distributed Object Topics
  • Object Brokers
  • Object Services
  • Object Transaction Monitors
  • Object Groupware
  • Object Databases
  • Object Web Technology
  • Object Linking
  • Object Frameworks
object request brokers
Object Request Brokers
  • An Object Request Broker (ORB) provides the connections that allow components to interoperate.
  • An ORB must be augmented with a high-level component infrastructure that defines how the objects can work together.
  • This component infrastructure defines how object operate within containers (or frameworks).
object transaction monitors
Object Transaction Monitors
  • OTMs are the state of the art in component management. Instead of the ORB approach, where you need to write separate code to call each needed service separately, an OTM provides a suite of services with a common call structure.
enterprise java beans
Enterprise Java Beans
  • Possibly the most fashionable components today are Enterprise Java Beans, a component structure in Java that has been designed from the ground up to be compatible with CORBA.
  • EJBs use the RMI/IDL CORBA subset for their distributed object model, and the Java Transaction Service, a subset of the CORBA OTS, for distributed transactions.
internet inter orb protocol
Internet Inter-ORB Protocol
  • Enterprise Java Beans use the CORBA IIOP (Internet Inter-ORB Protocol) to
    • Operate across multi-vendor servers
    • Propagate transaction and security contexts
    • Service multilingual clients
    • Support ActiveX clients with DCOM to CORBA bridges
javabeans component model
JavaBeans Component Model

BeanInfo

Customizer

JavaBean

Component

Methods

Events

Properties

JAR

(.jar)

the promise of distributed objects
The Promise of Distributed Objects
  • Assemble complex client/server applications with reusable software components
  • Objects can be modified or replaced without affecting the rest of the components in the system or their interactions.
packaging distributed objects
Packaging Distributed Objects
  • Components will be delivered in suites that run within application frameworks.
  • Within an application framework, all pieces are known to work together to perform domain level applications.
benefits of distributed objects
Benefits of Distributed Objects
  • Visual tools and other applications can discover an object’s interfaces, events, and properties dynamically.
  • Granular components can be visually assembled with tools, interoperate across networks, run on different platforms, and manage themselves and their resources.
benefits of distributed objects 2
Benefits of Distributed Objects (2)
  • Object Oriented client server applications can be more flexible than traditional approaches.
  • Components can be mixed and matched without sacrificing robustness.
  • Interfaces are separated from implementations, so you can use an object wrapper to make an existing legacy application look like an object.
defining standards
Defining Standards
  • The Object Management Group and Microsoft Corporation are the key competitors that are driving the movement toward distributed objects.
  • OMG is the force behind CORBA and its integration with Java.
  • Microsoft is trying to establish its own proprietary standard based on DCOM, ActiveX, COM+ and .NET
what is corba
What is CORBA?
  • CORBA is a middleware that that sits between the application and the system.
  • CORBA is based on the OO model.
  • CORBA allows software reusability.
  • CORBA uses a broker to handle messages.
  • The broker provides the ability to choose servers that best fill the client’s request.
comparing corba to dce
Comparing CORBA to DCE
  • DCE uses a procedure-oriented distributed model (RPC), while CORBA is based on objects.
  • DCE clients need to know what servers are available. CORBA clients request from the ORB, which connects them to a server.
  • CORBA provides a more abstract level of programming
oma orfali harkey edwards figure 22 2
OMA (Orfali, Harkey, Edwards, Figure 22-2)

Common Facilities

Vertical Common Facilities

Horizontal Common Facilities

Application

Objects

Distributed

Documents

Information

Management

Systems

Management

Task

Management

Object Request Broker

Collection

Naming

Persistence

Life Cycle

Concurrency

Properties

Time

Trader

Externalization

Events

Relationships

Security

Transactions

Startup

Licensing

Query

Common Object Services (CORBA Services)

the object request broker orb
The Object Request Broker (ORB)
  • ORB is the object bus.
  • ORB is the middleware that establishes the client/server relationship between objects.
  • ORB lets objects communicate transparently without concern for :
    • the hosts where the objects run
    • the operating systems
    • the programming languages
rpc vs orb

Data

RPC vs. ORB

(Orfali, Harkey, Edwards, Figure 22-4)

Server

Client

Server

Client

Object X

Object Y

Invoke

foo on

Object X

Invoke

foo on

Object Y

foo

foo

Code

Call foo

RPC link

Object Request Broker

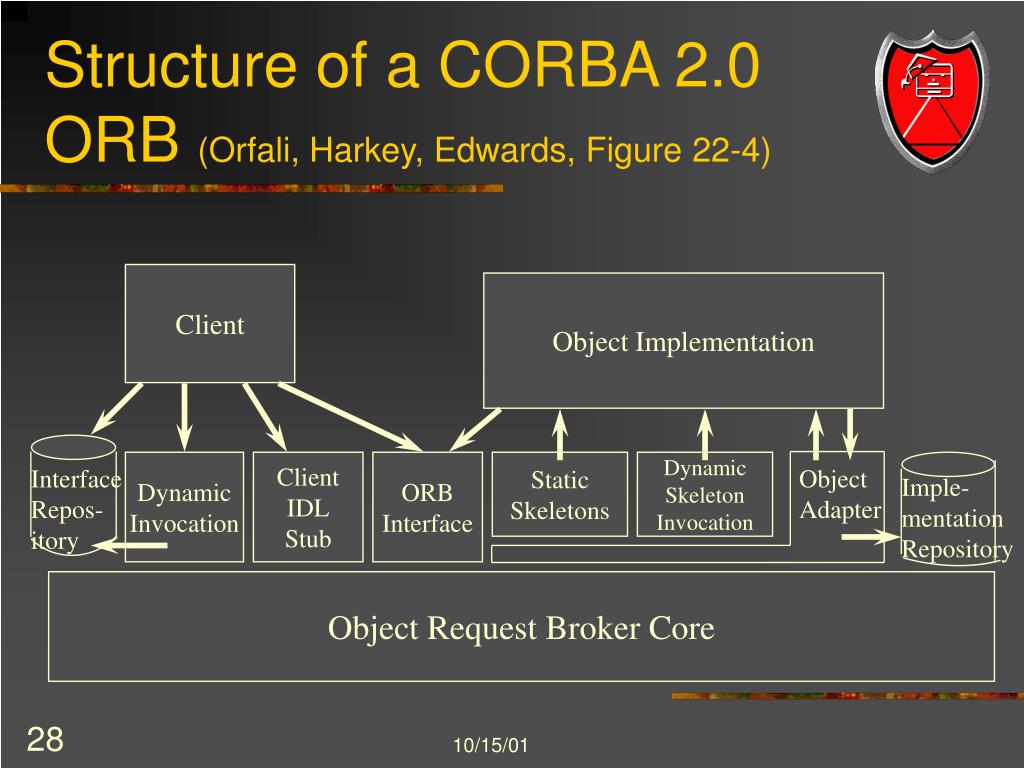

structure of a corba 2 0 orb orfali harkey edwards figure 22 4
Structure of a CORBA 2.0 ORB (Orfali, Harkey, Edwards, Figure 22-4)

Client

Object Implementation

Dynamic

Invocation

Client

IDL

Stub

ORB

Interface

Static

Skeletons

Dynamic

Skeleton

Invocation

Interface

Repos-

itory

Object

Adapter

Imple-

mentation

Repository

Object Request Broker Core

corba beans
CORBA Beans
  • The CORBA 3.0 Components model will include an extension of Enterprise Java Beans to CORBA’s language independent model, so that you are not locked into Java for all your components.
corba beans component model
CORBA Beans Component Model

Component Info/IDL

Customizer

CORBA

Component

Methods

Events

Properties

CAR (XML)

(.car)

This model should

look familiar!

general inter orb protocol
General Inter-ORB Protocol
  • Key to the interoperability of CORBA is the bus structure that allows different Object Request Brokers on different hosts in different networks to communicate with each other.
  • The CORBA specification anticipates several of these, all based on the General Inter-ORB Protocol. (GIOP)
  • GIOP specifies seven message formats to cover all ORB request reply formats and a Common Data Representation (CDR).

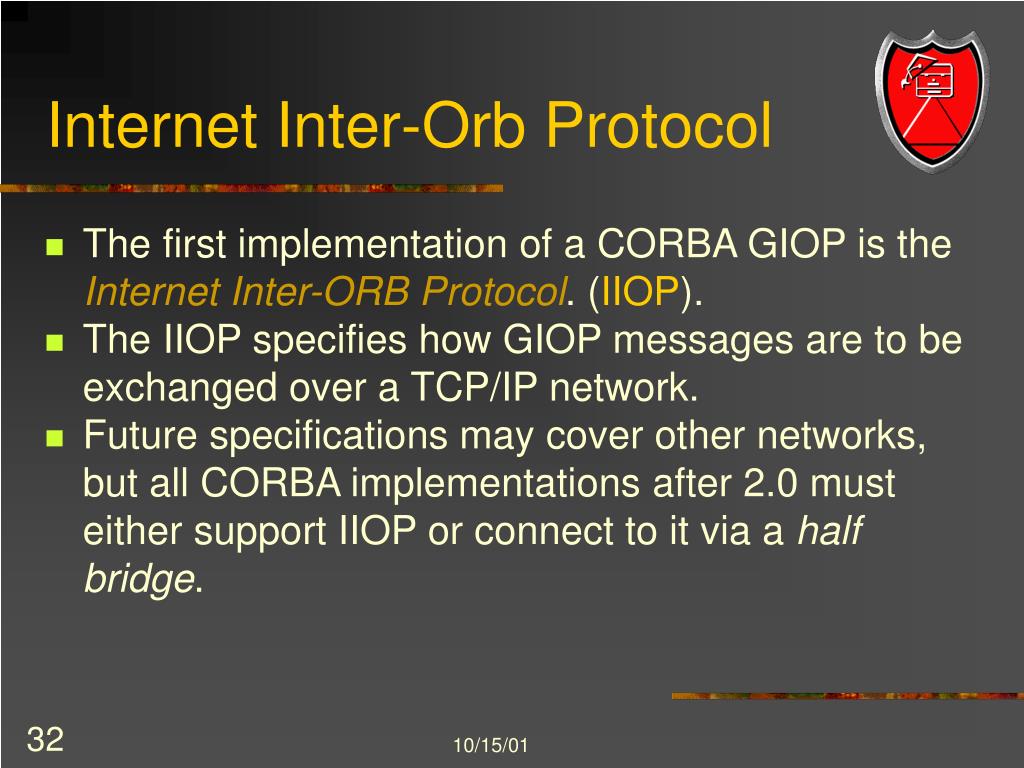

internet inter orb protocol32
Internet Inter-Orb Protocol
  • The first implementation of a CORBA GIOP is the Internet Inter-ORB Protocol. (IIOP).
  • The IIOP specifies how GIOP messages are to be exchanged over a TCP/IP network.
  • Future specifications may cover other networks, but all CORBA implementations after 2.0 must either support IIOP or connect to it via a half bridge.
slide34

COM+

The Component Bus

From Microsoft

the other component model
The other component model
  • Microsoft, as one of the world’s largest and most profitable companies, must protect and increase its revenues to survive.
  • Its primary approach has been to attempt to make all computing within most corporations dependent upon proprietary products for which high fees must be paid to Microsoft.
  • It has already succeeded in capturing the desktop with Windows and Microsoft Office. Now it wants to capture the Network and the Internet.

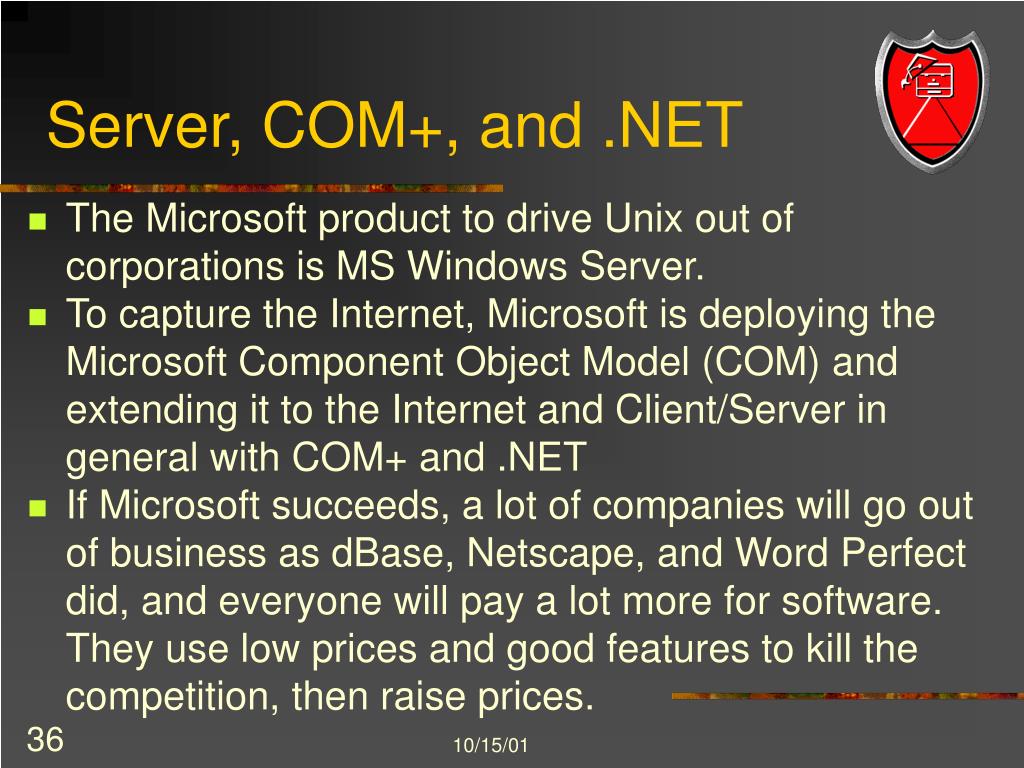

server com and net
Server, COM+, and .NET
  • The Microsoft product to drive Unix out of corporations is MS Windows Server.
  • To capture the Internet, Microsoft is deploying the Microsoft Component Object Model (COM) and extending it to the Internet and Client/Server in general with COM+ and .NET
  • If Microsoft succeeds, a lot of companies will go out of business as dBase, Netscape, and Word Perfect did, and everyone will pay a lot more for software. They use low prices and good features to kill the competition, then raise prices.
parallels between com and corba
Parallels between COM and CORBA
  • CORBA and COM provide competing Object Request Brokers (ORB).
  • Both attempt to provide a universal approach to connecting components
  • Both require interfaces to be standardized through an IDL. The COM IDL is based on DCE and is not CORBA compliant.
com interfaces
COM Interfaces
  • A COM interface is a collection of function calls (methods or member functions) based on a table of pointers. A COM client uses pointers to a virtual table or vtable, which is an array of function pointers. The functions addressed through those pointers are the server object’s implementation methods.
com plug in jacks
COM Plug-in Jacks
  • COM traditionally uses bullet-and-stick diagrams, or plug-in jacks, to represent the vtable in Interface descriptions, because they are less intimidating.

Plug-in Jack

Client

Application

Component

Object

Interface Pointer

com iids
COM IIDs
  • By convention, an interface in COM is given a name beginning with I, such as IFoo. This name is only a symbol for a source level programming tool. At run time each interface is known by a unique Interface Identifier (IID). An IID is a COM generated 128-bit globally-unique identifier (GUID) for interfaces.
dcom objects
DCOM Objects
  • A COM object, also known as an ActiveX object, is a component that supports one or more interfaces defined by the object’s class.
  • A COM interface refers to a predefined group of related functions.
  • A COM Interface implements one or more interfaces and has a unique 128 bit Class ID (CLSID).
iunknown
IUnknown
  • All COM objects must implement the IUnknown interface to control the lifetime of the object and handle interface negotiations.

IUnknown

Interface A

DCOM

Object

Interface B

Interface C

a key difference
A Key Difference
  • In CORBA, Objects have unique IDS.
  • COM does not support Object IDs. With COM, clients obtain a pointer to an interface. DCOM clients cannot reconnect to the same object instance at a later time with the same state. This greatly reduces the role of object instances in COM as opposed to classic object systems.
com server functions
COM Server Functions
  • Implement a class factory interface
  • Register the supported classes
  • Initialize the COM Library
  • Verify compatibility of the library
  • Provide an unloading mechanism
  • Uninitialize the COM library after use

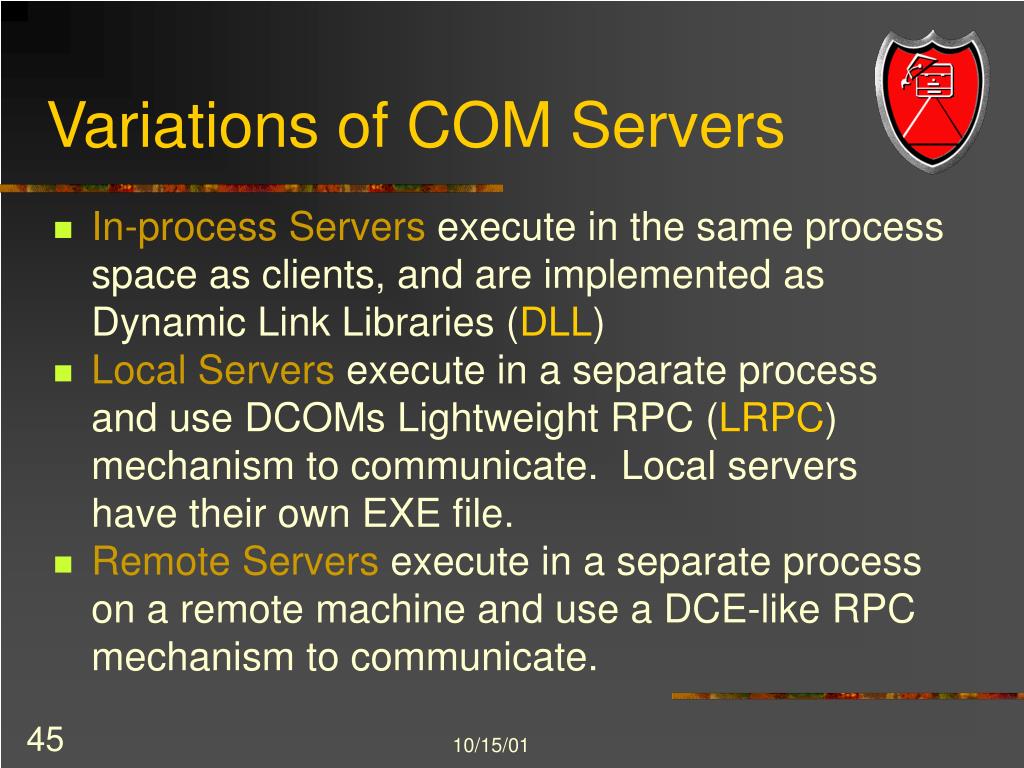

variations of com servers
Variations of COM Servers
  • In-process Servers execute in the same process space as clients, and are implemented as Dynamic Link Libraries (DLL)
  • Local Servers execute in a separate process and use DCOMs Lightweight RPC (LRPC) mechanism to communicate. Local servers have their own EXE file.
  • Remote Servers execute in a separate process on a remote machine and use a DCE-like RPC mechanism to communicate.
dcom client server boundaries figure 23 5

Stub

Stub

DCOM

DCOM

Client Process

Local Server Process

In-Process

Object

Local

Object

Local

Server

Client

Application

In-Process Server

Local

Object

Proxy

LRPC

Remote Machine

Remote Server Process

DCOM

Remote Server Process

Remote

Object

Proxy

RPC

Remote

Object

Remote

Server

DCOM Client Server Boundaries (Figure 23-5)
iunknown member functions
IUnknown member functions
  • Every COM interface must implement three key IUnknown functions:
    • QueryInterface for interface negotiations
    • AddRef to create an interface instance
    • Release to destroy an interface instance
  • IUnknown is the base interface from which all other interfaces inherit.
midl the com idl
MIDL, the COM IDL
  • To develop a COM interface, you create a file that describes the interface’s methods and their arguments and run that file through the Microsoft IDL (MIDL) Compiler.
  • The MIDL Compiler is actually a precompiler that turns text descriptions of the interface into code for proxies and stubs, and creates header files with the interface definition.
net products and services
.NET Products and Services
  • Microsoft offers:
    • Visual Studio .NET, a web development platform using multiple languages, but the programs will only run on .NET
    • .NET myServices, that developers can use to create services. Microsoft will use those as a base to offer “user experiences” that will capture data and get people to subscribe.
    • A .NET version of Office by subscription
    • bCentral for small business by subscription
slide50

A Comparison of 3 most popular distributed object paradigms

Microsoft's Distributed Component Object Model (DCOM),

OMG's Common Object Request Broker Architecture (CORBA) and JavaSoft's Java/Remote Method Invocation (Java/RMI).

Source: A Detailed Comparison of CORBA, DCOM and Java/RMI by Gopalan Suresh Raj

object databases

Object Databases

The Next Step in Components?

object databases55
Object Databases
  • An Object Database Management System provides a persistent store for objects in a multi-user client/server environment.
  • The intent is to avoid mangling objects and tearing them apart to store their data in relational tables by storing objects in their natural form.
odbms features
ODBMS Features
  • Freedom to create new forms of information
  • Fast access
  • Flexible views of composite structures
  • Tight integration with OO Languages
  • Support customizable information structures with multiple inheritance
  • Support versioning, nesting, long-lived transactions
  • Repositories for distributed objects
  • Life cycle management for composite objects
slide57
ODMG
  • There is an Object Database Management Group that is working on a standard that will be the ODBMS answer to SQL for Relational Databases.
  • They have already released standards for ODBMS built on the OMG object model.
odbms standards
ODBMS Standards
  • Object Definition Language (ODL)
  • Object Query Language (OQL)
  • C++, Smalltalk and Java Language bindings
example java code accessing odbms
Example: Java code accessing ODBMS
  • This example uses the ODMG Java Binding and the ODMG Object Query Language (OQL). Notice that all the code is Java, with the exception of the query string. You will not find a database sub-language in this example.

import org.odmg.*;

import java.util.Collection;

Implementation impl = new com.vendor.odmg.Implementation();

Database db = impl.newDatabase();

example java code accessing odbms60
Example: Java code accessing ODBMS

Transaction txn = impl.newTransaction();

try {

db.open("addressDB", Database.OPEN_READ_WRITE);

txn.begin();

// perform query

OQLQuery query = new OQLQuery(

"select x from Person x where x.name = \"Doug Barry\"");

Collection result = (Collection) query.execute();

Iterator iter = result.iterator();

example java code accessing odbms61
Example: Java code accessing ODBMS

// iterate over the results

while ( iter.hasNext() )

{

Person person = (Person) iter.next();

// do some addition processing on the person (now shown)

// now traverse to the address object and update its value

person.address.street = "13504 4th Avenue South";

}

txn.commit();

db.close();

}

//exception handling would go here ...

reference
Reference
  • Robert Orfali, Dan Harkey, Jeri Edwards, Client Server Survival Guide, Third Edition, Wiley, 1999.
