a framework for p2p botnets

A Framework for P2P Botnets

Su Chang, Linfeng Zhang, Yong Guan, Thomas E. Daniels

Dept of Electrical and Computer Engineering

Iowa State University

Ames, Iowa 50011, USA

Speaker:Chi-Sheng Chen

Date:2010/11/16

introduction
Introduction

Previously, DDoS and spamming were the primary concern, but now applications such as keylogging and click fraud and other “for profit” purposes are becoming a focus of botnets. To make effective countermeasures against botnets, it is very important to not only study the existing ones of various kinds separately,but the inherent relationships among different botnets/worms (since most current botnets make use of worms to propagate), as well as the ones to appear in the

introduction1
Introduction

In this paper, we address the above issues and makecontributions in

1) proposing a general framework for understanding botnet of different kinds;

2) predicting a new botnet from the framework and comparing its performance with known ones.

To the best of our knowledge, we are the first to propose the framework for botnets/worms, the lcbot concept in botnet and related fields

related work1
Related Work

Many schemes are proposed in the literature to detect botnets of centralized structure. To summarize, those schemes are based on one or more of the following techniques:

DNS inspection

DNSBL inspection

traffic pattern recognition

tempro or spatial correlation

related work2
Related Work

Encryption, C&C structure (P2P), commonly used protocols

for C&C are the main directions of their evolution.Encryption

makes identifying botnets more difficult resulting in the

inefficacy of schemes based on signatures or abnormal

detections using character distribution.

C&C by other commonly used protocols makes the

communication among bots more covert as it hides its

messages among legitimate traffic. Consequently, there are

reports of botnets using VoIP, Skype, Gmail, and HTTP in

C&C.

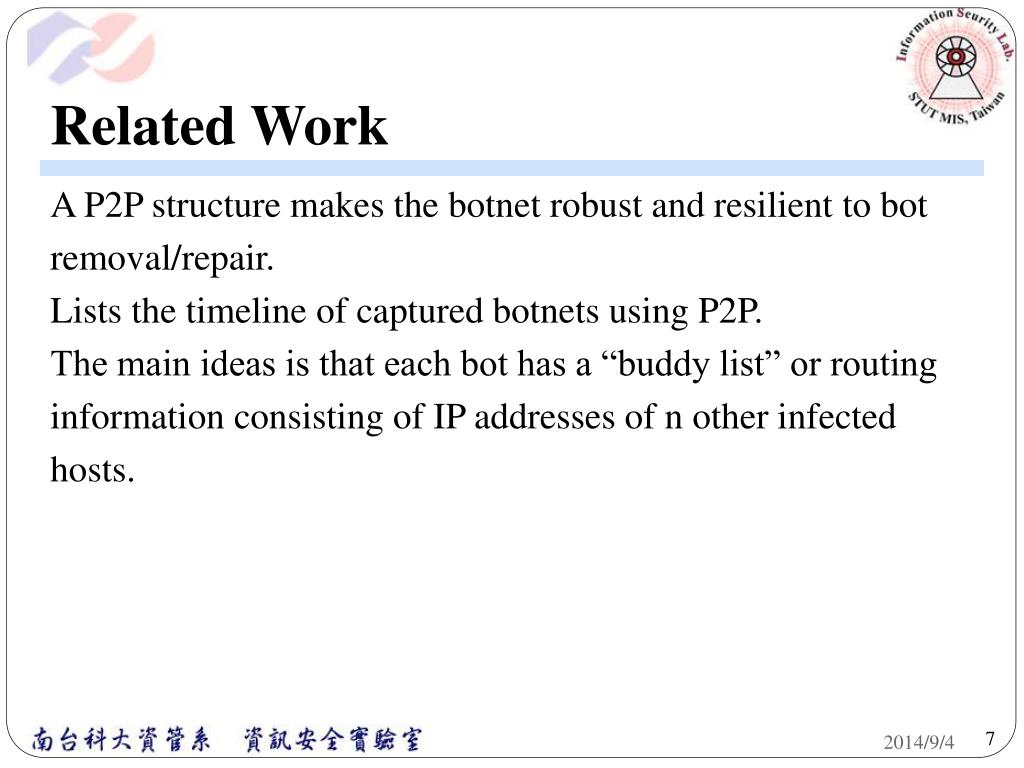

related work3
Related Work

A P2P structure makes the botnet robust and resilient to bot

removal/repair.

Lists the timeline of captured botnets using P2P.

The main ideas is that each bot has a “buddy list” or routing

information consisting of IP addresses of n other infected

hosts.

related work4
Related Work

PUSH” based botnets

The peerlist construction of supernode in is similar to except that only exchange of peerlist is needed, there is no replacement of newly infected supernodes’ IPs, and only client nodes can infect supernodes.

PULL” based botnet

The idea of botnet structure in is similar to , except that the clients periodically communicate with any servant bot in their peerlist to grab the command.

predicting the new botnet
Predicting the New Botnet

For a network composed of either a worm or a botnet, each

infected host i is associated with three parameters psi, pci, and

ki, which are defined as follows:

  • • psi ∈ {0, 1}: “Can the infected host i be a server in the botnet?”
  • • pci ∈ {0, 1}: “Can infected host i be a client in the

botnet?”

  • • ki: the number of hosts with which an infected host i can communicate.
predicting the new botnet1
Predicting the New Botnet

From the viewpoint of communication in command delivery,

we can integrate various botnets/worms into a framework

by setting different value

predicted botnet lcbot
Predicted Botnet (lcbot)

The values of psi and ki are important to current botnets.

On one hand, the botmaster wants the number of bots having psi = 1 and ki as low as possible to make the C&C control more covert.

On the other hand, given certain portion of bots in the botnet will be turned off or cleaned at any time, these values have to be large enough to maintain connectivity with the remaining botnet. Normally it is expected that attackers can adjust the above values to balance the tradeoff in these proposed botnets under specific situations.

predicted botnet lcbot1
Predicted Botnet (lcbot)

The basic concept of lcbot is to consider the botnet being

composed of many groups of different group codes, and

decouple psi into pisi and posi.

Any bot in the lcbot have pisi equal to 1, and the peerlist

contains all the other bots in the same group.

Within each group, a small number of bots in have posi equal

to 1, each of these bots has only one out link to another bot in

different groups.
