ETHERNET FRAME CONSTRUCTION. LAYER 2. 64 to 1518 Bytes long. preamble/SD. destination mac address. source mac address. TYPE/LENGTH. 802.2 SSAP/DSAP. DATA. FCS. 8. 6. 6. 2. 4 (+5). 4. 41 to 1500 Bytes long. L E N G T H I N B Y T E S.

kalin
Download Presentation

DATA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ETHERNET FRAME CONSTRUCTION LAYER 2 64 to 1518 Bytes long preamble/SD destination mac address source mac address TYPE/LENGTH 802.2 SSAP/DSAP DATA FCS 8 6 6 2 4 (+5) 4 41 to 1500 Bytes long L E N G T H I N B Y T E S ISL ETHERNET FRAME CONSTRUCTION LAYER 2 64 to 1548 Bytes long preamble/SD multicast ISL DA mac TYPE USR source mac address LENGTH chk SNAP HSA VLAN SP IND T DATA CRC FCS 64 40 4 4 48 16 24 24 15 1 16+ 8 32 32 11 to 1500 Bytes long L E N G T H I N B I T S NOTE.. The ISL header adds up to 26 bytes to the standard Ethernet frame and 4 bytes to the trailer, extending the frame size by upto 30 bytes. Multicast ISL DA address is defined as Cisco Catalyst ISL = 0x0100.000C.0000 TYPE is a 4 bit value to indicate the source (0000=Ethernet, 0001=Token, 0010=FDDI, 0011=ATM….) USR is a 4 bit value used on Token Ring switching LENGTH chk is a 16 bit value to indicate the length of user data and ISL header less DA, TYPE, USR, SA, LENGTH chk and CRC SNAP is a 3 byte fixed value 0xAA-AA-03 HSA is 3 byte value that duplicates the high order of the ISL SA field VLAN is the VLAN id as a 15 bit value bu tonly 10 bits are used (VLAN = 0 to 1023) SP is a single bit flag to indicate VTP, CDP or Spanning Tree Protocol content IND is the port value of the source as a 16 bit value T 2 bits for AC/FC Token Ring flags (T=0 for Ethernet) CRC is the 32 bit CRC used for double check of data integrity

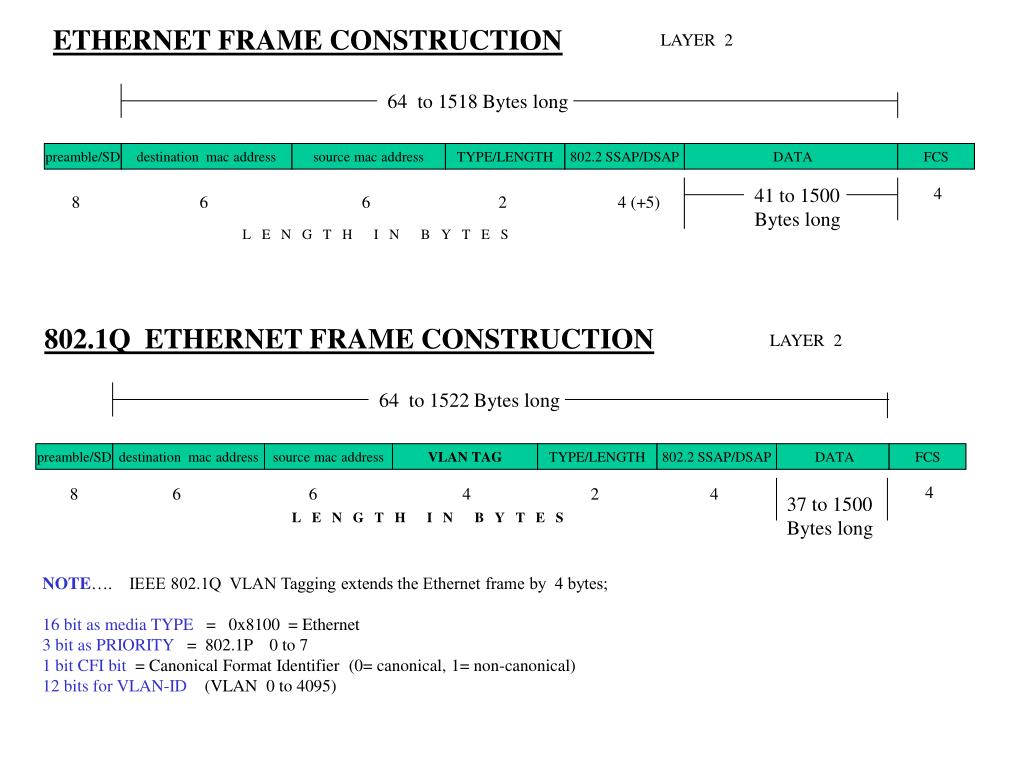

  2. ETHERNET FRAME CONSTRUCTION LAYER 2 64 to 1518 Bytes long preamble/SD destination mac address source mac address TYPE/LENGTH 802.2 SSAP/DSAP DATA FCS 41 to 1500 Bytes long 4 8 6 6 2 4 (+5) L E N G T H I N B Y T E S 802.1Q ETHERNET FRAME CONSTRUCTION LAYER 2 64 to 1522 Bytes long preamble/SD destination mac address source mac address VLAN TAG TYPE/LENGTH 802.2 SSAP/DSAP DATA FCS 4 8 6 6 4 2 4 37 to 1500 Bytes long L E N G T H I N B Y T E S NOTE…. IEEE 802.1Q VLAN Tagging extends the Ethernet frame by 4 bytes; 16 bit as media TYPE = 0x8100 = Ethernet 3 bit as PRIORITY = 802.1P 0 to 7 1 bit CFI bit = Canonical Format Identifier (0= canonical, 1= non-canonical) 12 bits for VLAN-ID (VLAN 0 to 4095)
