ch 3 lecture 1 simple bonding theory

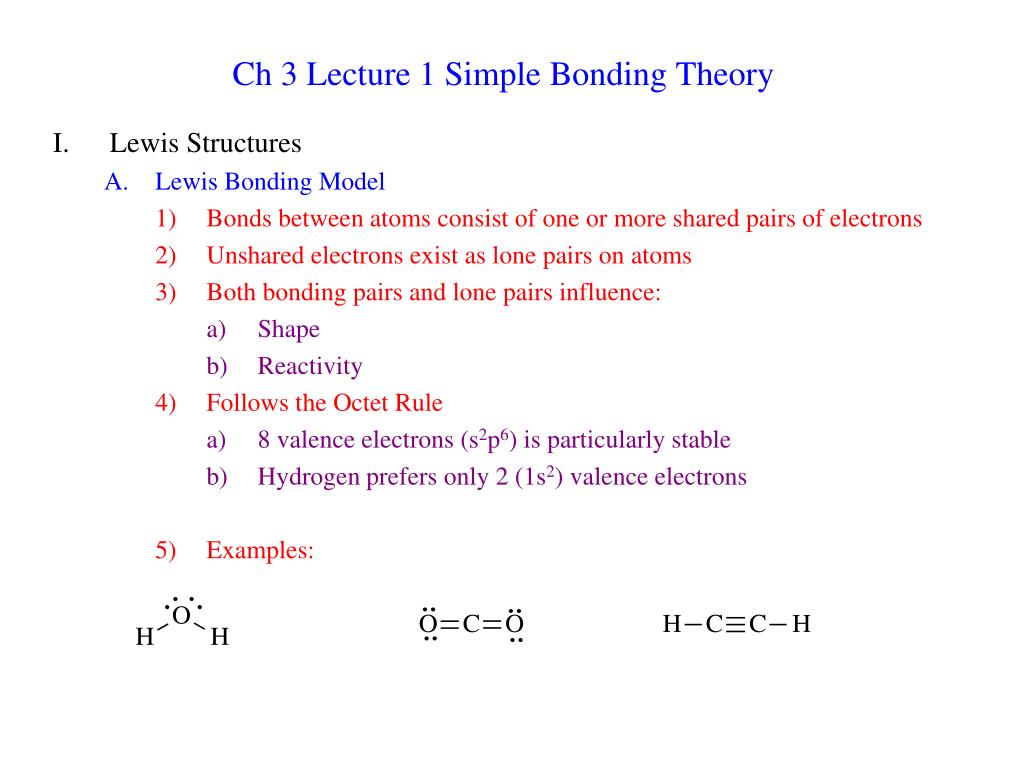

Ch 3 Lecture 1 Simple Bonding Theory
  • Lewis Structures
    • Lewis Bonding Model
      • Bonds between atoms consist of one or more shared pairs of electrons
      • Unshared electrons exist as lone pairs on atoms
      • Both bonding pairs and lone pairs influence:
        • Shape
        • Reactivity
      • Follows the Octet Rule
        • 8 valence electrons (s2p6) is particularly stable
        • Hydrogen prefers only 2 (1s2) valence electrons
      • Examples:
slide2

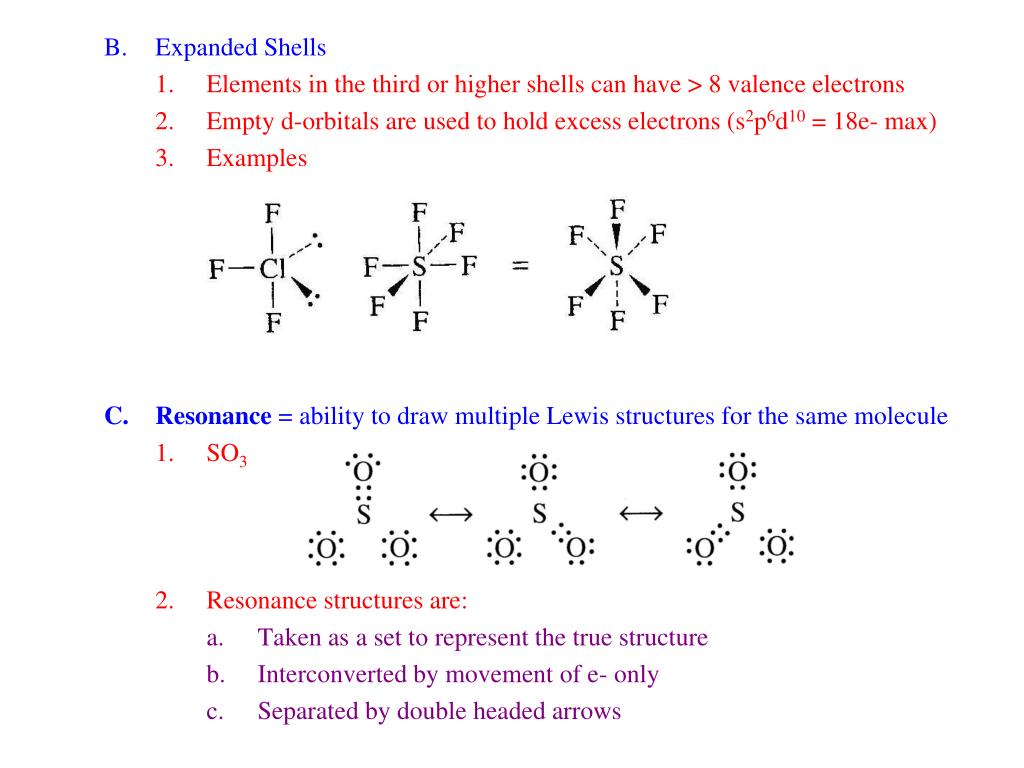

Expanded Shells
    • Elements in the third or higher shells can have > 8 valence electrons
    • Empty d-orbitals are used to hold excess electrons (s2p6d10 = 18e- max)
    • Examples
  • Resonance = ability to draw multiple Lewis structures for the same molecule
    • SO3
    • Resonance structures are:
      • Taken as a set to represent the true structure
      • Interconverted by movement of e- only
      • Separated by double headed arrows
slide3
Isoelectronic = resonance structures with identical electronic structures
      • SO3
      • CO32-
    • Resonance structures may be electronically different as well: amides
    • More resonance structures means a lower energy for the compound. Spreading the electrons over more atoms lets them occupy more space.
  • Polarity
    • Electronegativity = ability of an atom to attract shared electrons
      • Determines polarity of bonds
      • Will be discussed more later
      • Table 3-4 of your text lists electronegativities
      • Fluorine has the highest value
slide5

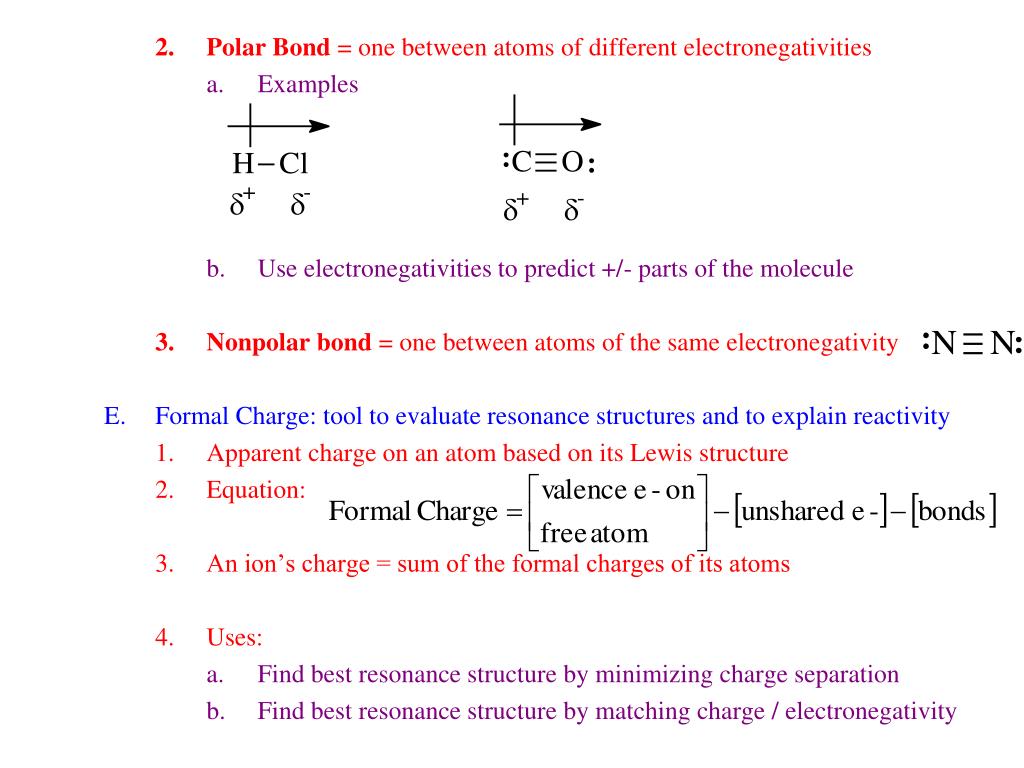

Polar Bond = one between atoms of different electronegativities
      • Examples
      • Use electronegativities to predict +/- parts of the molecule
    • Nonpolar bond = one between atoms of the same electronegativity
  • Formal Charge: tool to evaluate resonance structures and to explain reactivity
    • Apparent charge on an atom based on its Lewis structure
    • Equation:
    • An ion’s charge = sum of the formal charges of its atoms
    • Uses:
      • Find best resonance structure by minimizing charge separation
      • Find best resonance structure by matching charge / electronegativity
slide6

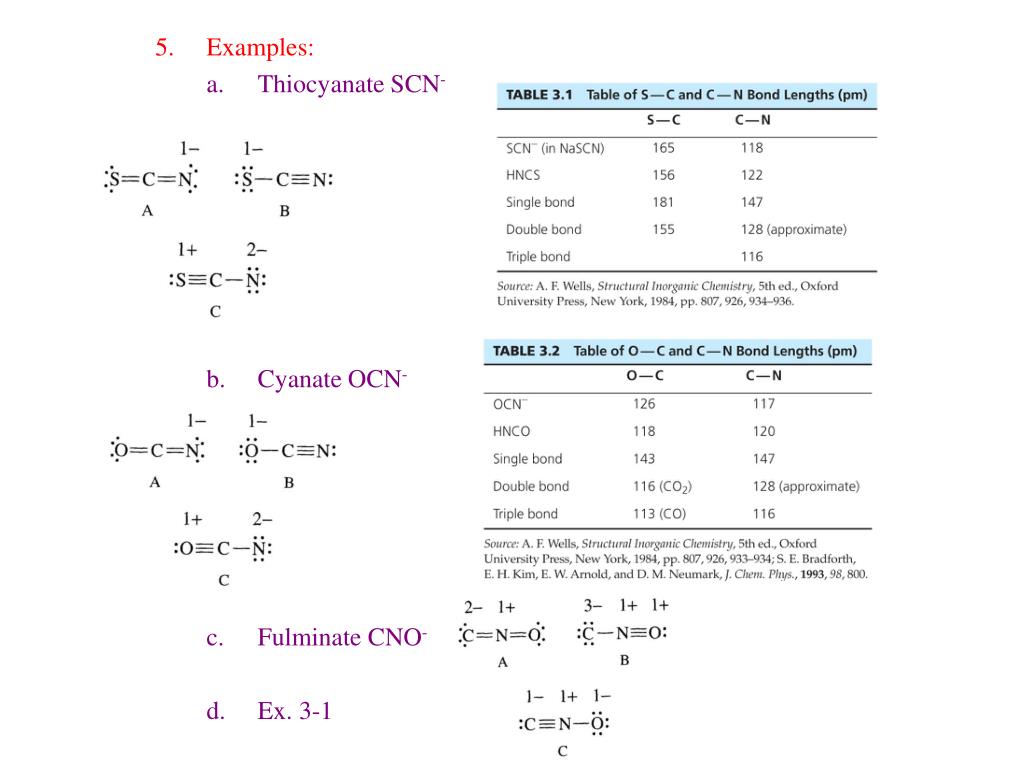

5. Examples:
  • Thiocyanate SCN-
  • Cyanate OCN-
  • Fulminate CNO-
  • Ex. 3-1
slide8

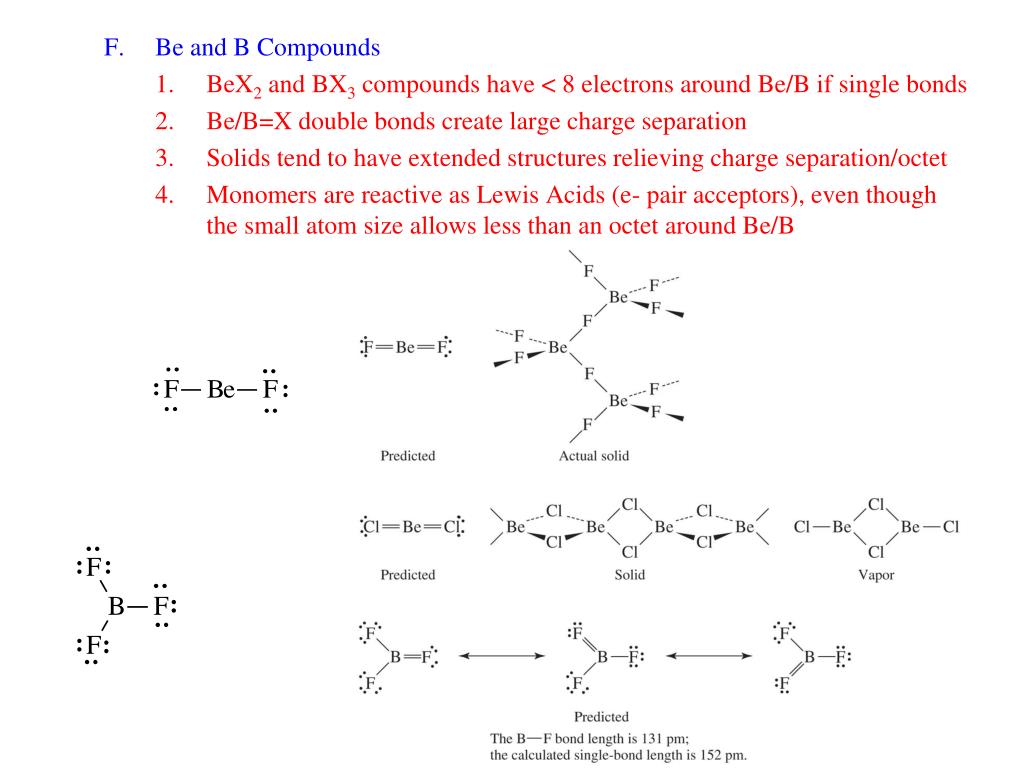

Be and B Compounds
    • BeX2 and BX3 compounds have < 8 electrons around Be/B if single bonds
    • Be/B=X double bonds create large charge separation
    • Solids tend to have extended structures relieving charge separation/octet
    • Monomers are reactive as Lewis Acids (e- pair acceptors), even though the small atom size allows less than an octet around Be/B
slide9

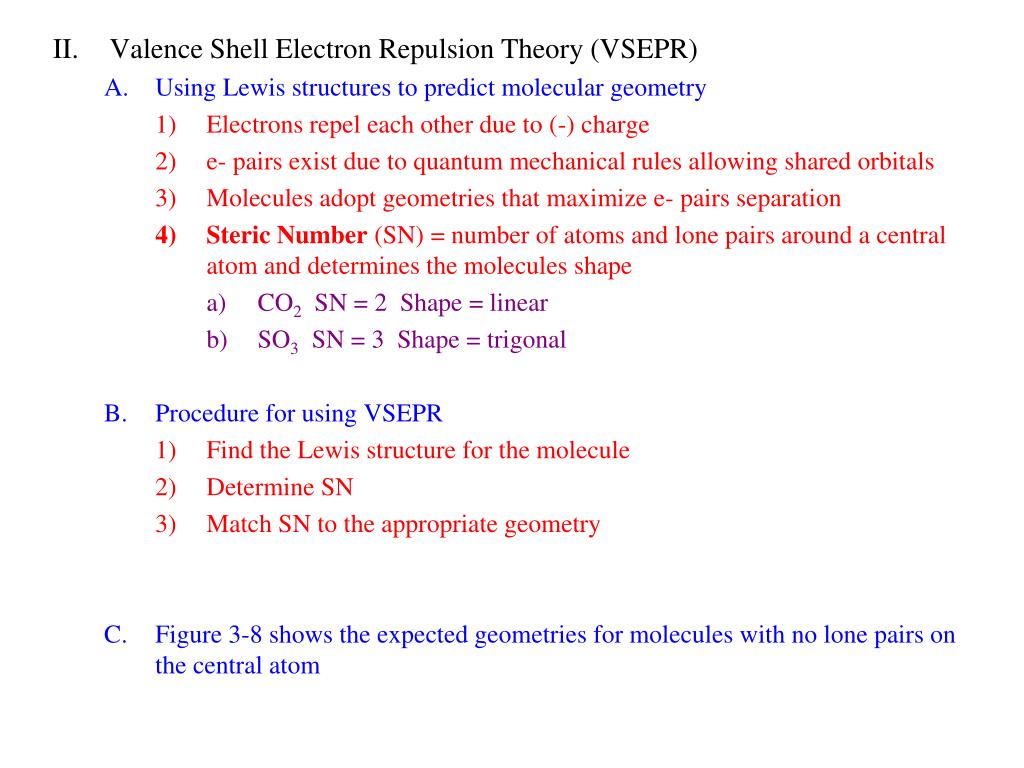

Valence Shell Electron Repulsion Theory (VSEPR)
    • Using Lewis structures to predict molecular geometry
      • Electrons repel each other due to (-) charge
      • e- pairs exist due to quantum mechanical rules allowing shared orbitals
      • Molecules adopt geometries that maximize e- pairs separation
      • Steric Number (SN) = number of atoms and lone pairs around a central atom and determines the molecules shape
        • CO2 SN = 2 Shape = linear
        • SO3 SN = 3 Shape = trigonal
    • Procedure for using VSEPR
      • Find the Lewis structure for the molecule
      • Determine SN
      • Match SN to the appropriate geometry
    • Figure 3-8 shows the expected geometries for molecules with no lone pairs on the central atom
slide11

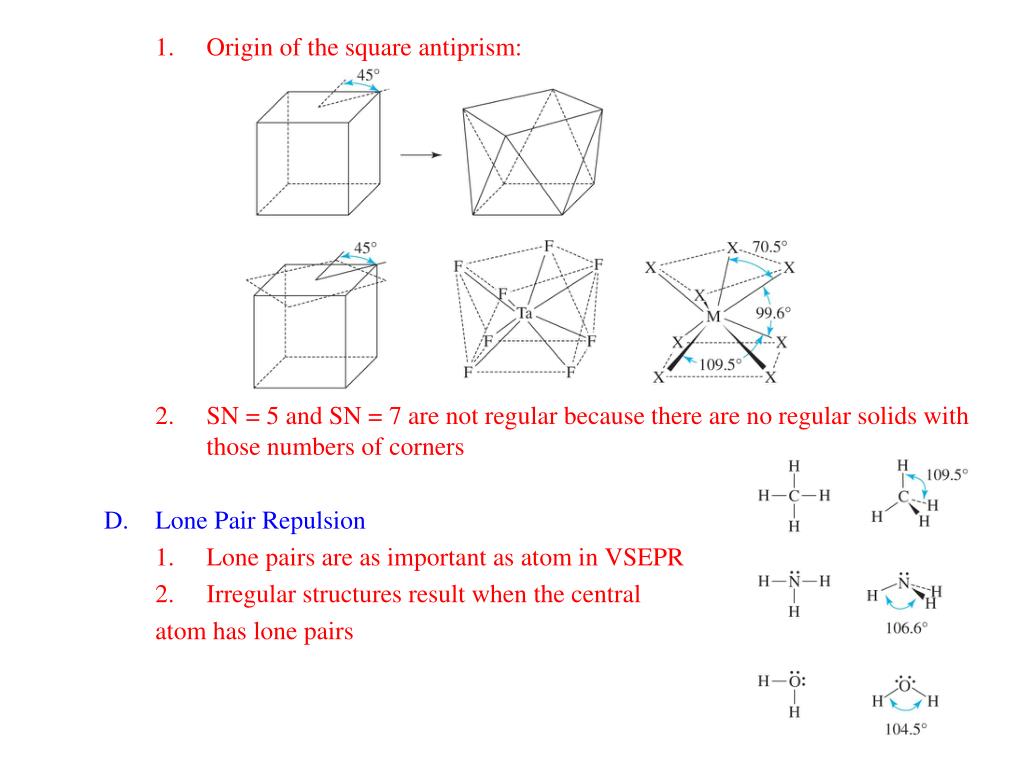

1. Origin of the square antiprism:
    • SN = 5 and SN = 7 are not regular because there are no regular solids with those numbers of corners
  • Lone Pair Repulsion
    • Lone pairs are as important as atom in VSEPR
    • Irregular structures result when the central

atom has lone pairs
