nanocomposites of cellulose for medical application

Nanocomposites of Cellulose For Medical Application

Asif Rasheed

Lecturer, Department of Chemistry

University of Wisconsin, Whitewater

800 West Main Street, Whitewater, WI 53190

rasheeda@uww.edu

cellulose
Cellulose:

The most abundant, biodegradable and biocompatible polymer

Applications include fiber, paper, membrane, polymer and paint industries

Tissue engineering

Nanocomposites

Strong intra and intermolecular hydrogen bonding hence difficult for processing

H - bonding is reduced by partial replacement of hydroxyl groups, this process involves complex multiple steps and uses toxic chemicals => Conern to Environment

Effect on Nano-filler

cellulose dissolution
Cellulose Dissolution
  • Ionic Liquid: Able to break down H-bonding in biopolymers, hence can dissolve biopolymers e.g. cellulose and silk

1-ethyl-3-methylimidazolium acetate (EMI acetate)

Cellulose pulp paper (Grade V-60) from Buckeye Technologies Inc.

Degree of Polymerization ~ 820

Control cellulose film regenerated from ionic liquid

slide4
Composites of cellulose and vapor grown carbon nanofiber (VGCNF) and carbon nanotubes
  • Composites of cellulose and hydroxyapatite (HAP)
slide5

1) Cellulose-CNT Nanocomposite

SWNT

MWNT

VGCNF

  • Young’s Modulus ~ 1 TPa
  • Electrical Conductivity
  • ~ 100 times Stronger than Steel at 1/6th of weight
  • Thermal Conductivity
previous experience with polyacrylonitrile pan vgcnf nanocomposites
Previous Experience with Polyacrylonitrile (PAN)/VGCNF Nanocomposites

Mechanical Properties

Electrical Conductivity

Thermal Stability

Experimental and theoretical specific modulus of various PAN/VGCNF composite films assuming the modulus of VGCNF to be 50 GPa. (a) Experimental modulus, (b) theoretical modulus assuming VGCNF length to be 0.2 m, (c) 1 m, (d) 10 m and (e) 100 m.

Electrical conductivity of PAN/VGCNF composite films.

Tan δ (below) as a function of temperature for (a) Control PAN, (b) PAN/5%VGCNF, (c) PAN/10%VGNCF, (d) PAN/20%VGCNF, (e) PAN/40%VGCNF and (f) PAN/90%VGCNF composite films.

Guo, H.; Rasheed, A.; Kumar, Satish J Mater Sci (2008) 43:4363-4369

slide7

Incorporation of a nano-filler (SWNT, MWNT, VGCNF) into cellulose matrix is expected to

    • Enhance tensile strength and tensile modulus
    • Impart thermal stability
    • Reduce shrinkage (dimensional stability)
    • Result in electrical conductivity in the nanocomposite
  • Electroactive paper
  • Actuators/sensors
  • Medical Devices

Cellulose+5%VGCNF

slide8

2) Cellulose/Hydroxyapatite Nanocomposites

  • Hydroxyapatite (HAP) Ca10(PO4)6(OH)2 finds many applications as bio-material
  • Filler to replace amputated bone
  • Coated to promote bone in-growth into prosthetic implants
  • Cellulose Hydroxyapatite composites have great potential to be used in bone tissue engineering
previous reports cellulose hap composites
Previous Reports: Cellulose/HAP Composites
  • Precipitated on cellulose in-situ from aqueous solution*
  • Deposition of HAP limited to surface
  • The process is extensively long (up to ~14 days) to prepare the composite

Current Approach

  • Homogenous dispersion of HAP in cellulose matrix
  • Fast processing
  • Composition of composite can be easily varied

Cellulose+10% HAP

Cellulose+60% HAP

*Materials Letters 60 (2006) 1710-1713

Hong, L.; Wang Y. L.; Jia, S. R.; Huang, C. G.; Wan, Y. Z. 2005. Hydroxyapatite/bacterial Cellulose Composites Synthesized via Biomimetic Route. Materials Letter. 60:1710-1713

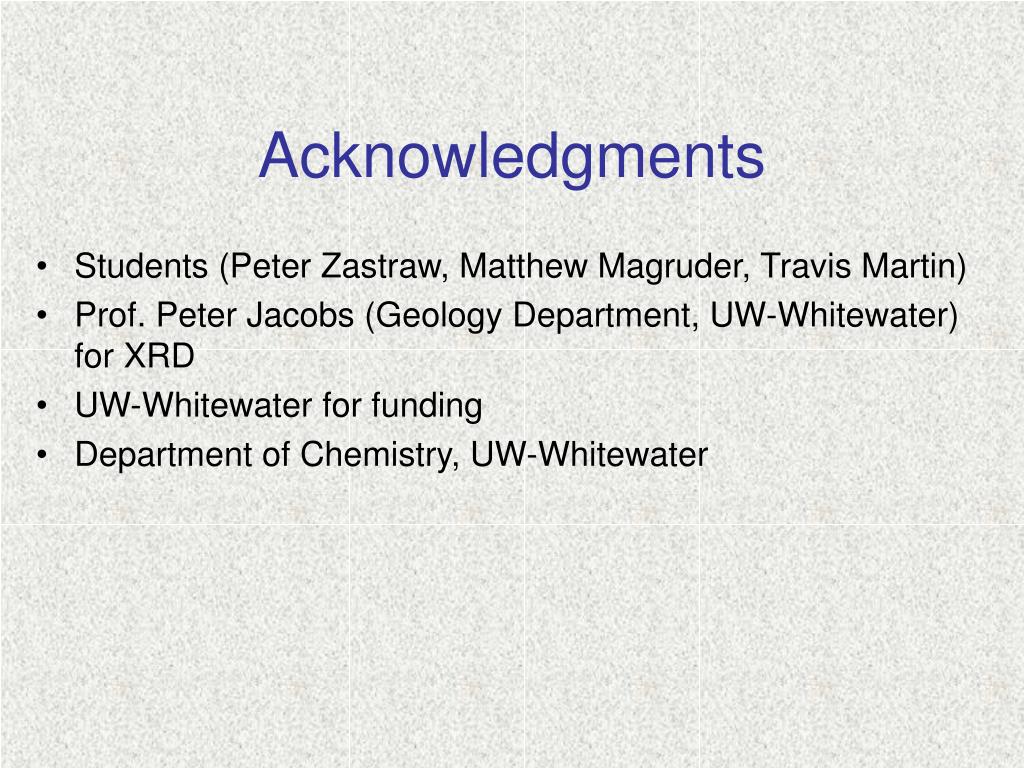

acknowledgments
Acknowledgments
  • Students (Peter Zastraw, Matthew Magruder, Travis Martin)
  • Prof. Peter Jacobs (Geology Department, UW-Whitewater) for XRD
  • UW-Whitewater for funding
  • Department of Chemistry, UW-Whitewater
slide12

Cellulose/HAP Composites: XRD

Testing for biocompatibility
