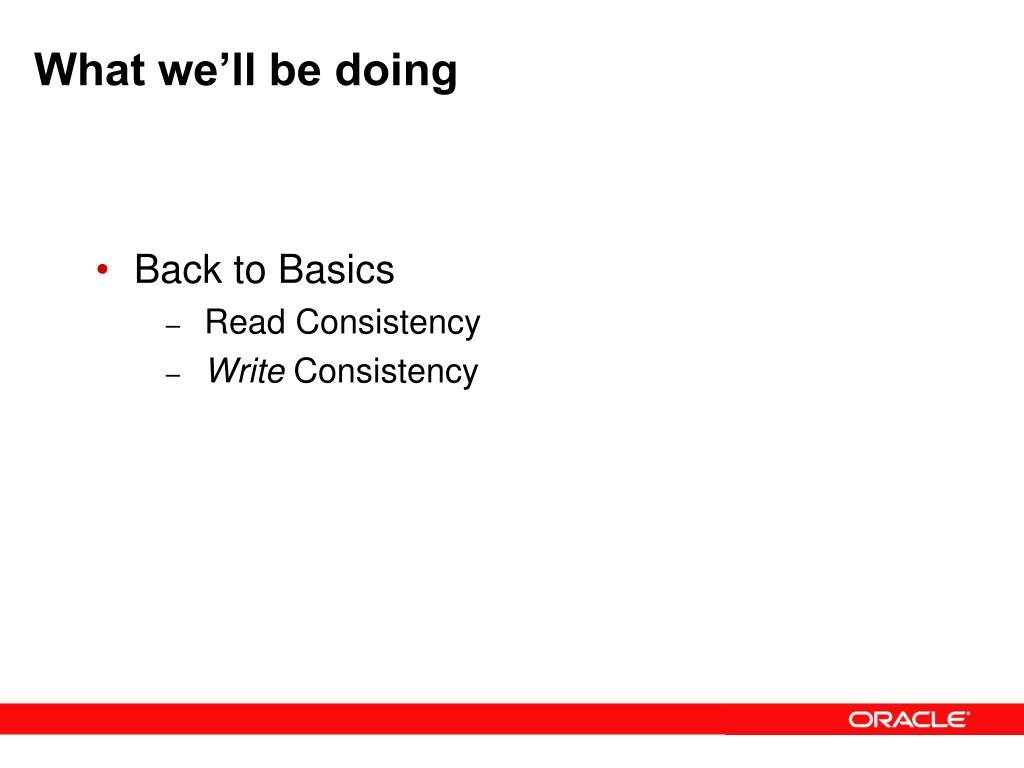

  1. What we’ll be doing • Back to Basics • Read Consistency • Write Consistency

  2. Multiversioning -- Just talk about it for a bit… • In my opinion the fundamental difference between Oracle and most of the rest • It can be the best feature • It can be the worst feature (if you don’t get it) • Non blocking reads • Writes only block writes • However… unless you understand it, you’re probably doing some transactions wrong in your system! (DIY RI is almost always wrong)

  3. Query Continues, SCN=200 This block is OK Query Continues, SCN=200 This block is not OK Query Continues, SCN=200 This block is OK Query Continues, SCN=200 This block is OK Query Begins, SCN=200 This block is OK Update happens This block is modified Block 1 scn:123 Block 3 scn:100 Block 4 scn:187 Block 3 scn:210 Block 2 scn:55 Block 3 scn:<=200 What does it do…

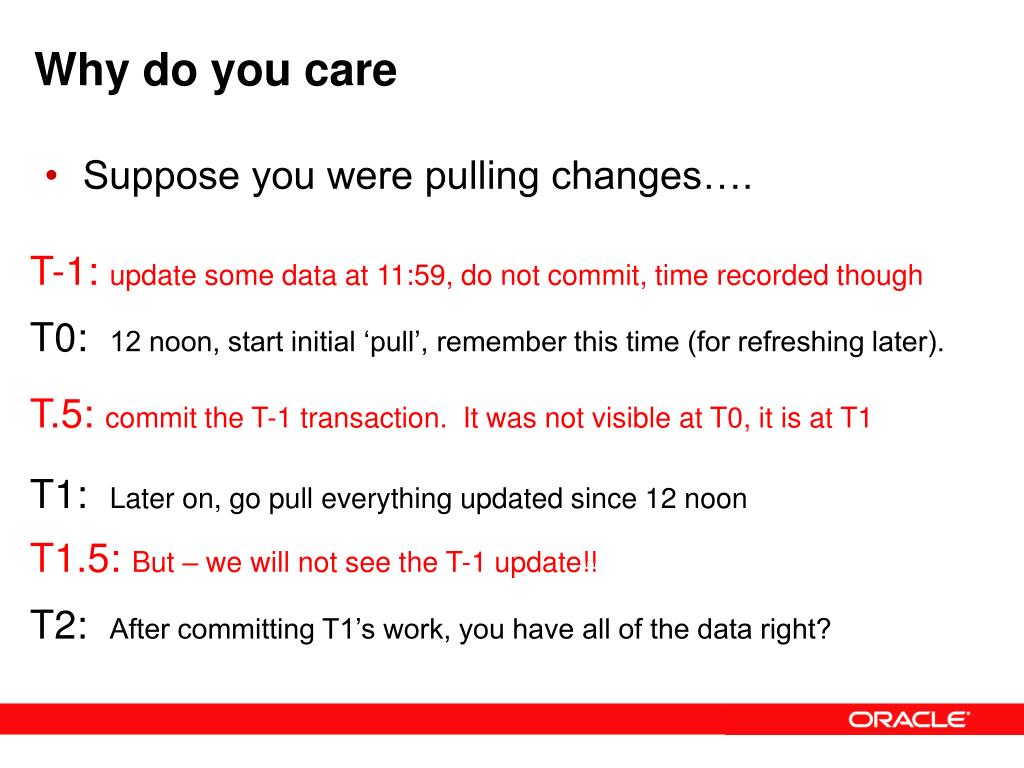

  4. Why do you care • Suppose you were pulling changes…. T-1: update some data at 11:59, do not commit, time recorded though T0: 12 noon, start initial ‘pull’, remember this time (for refreshing later). T.5: commit the T-1 transaction. It was not visible at T0, it is at T1 T1: Later on, go pull everything updated since 12 noon T1.5: But – we will not see the T-1 update!! T2: After committing T1’s work, you have all of the data right?

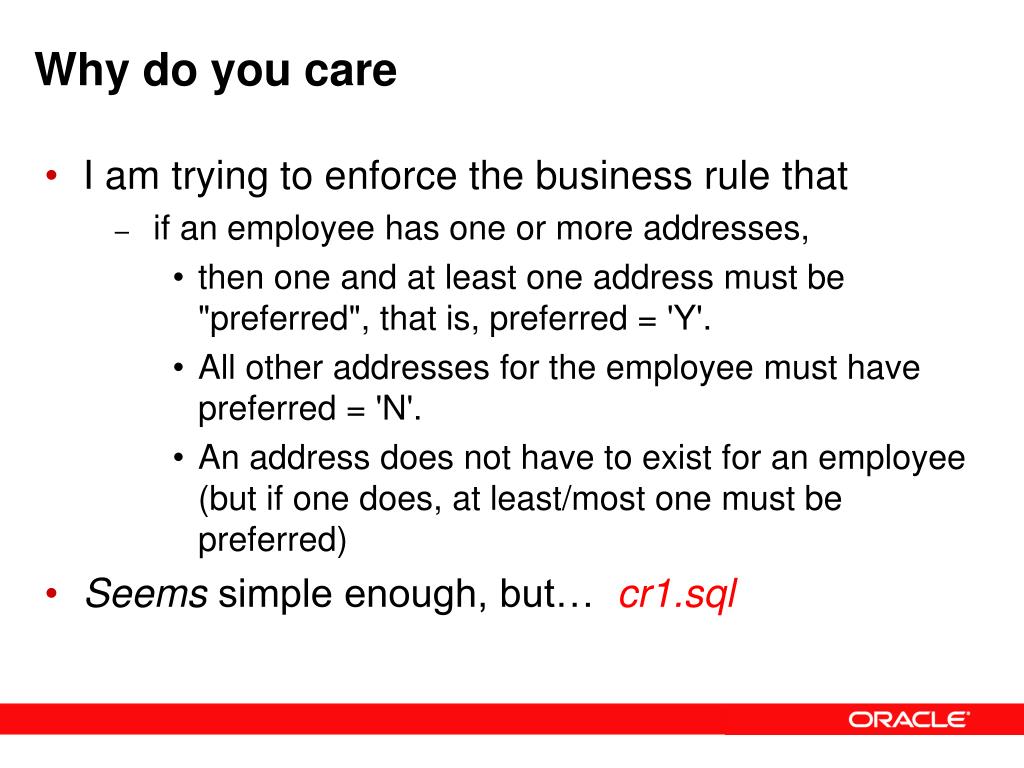

  5. Why do you care • I am trying to enforce the business rule that • if an employee has one or more addresses, • then one and at least one address must be "preferred", that is, preferred = 'Y'. • All other addresses for the employee must have preferred = 'N'. • An address does not have to exist for an employee (but if one does, at least/most one must be preferred) • Seems simple enough, but… cr1.sql

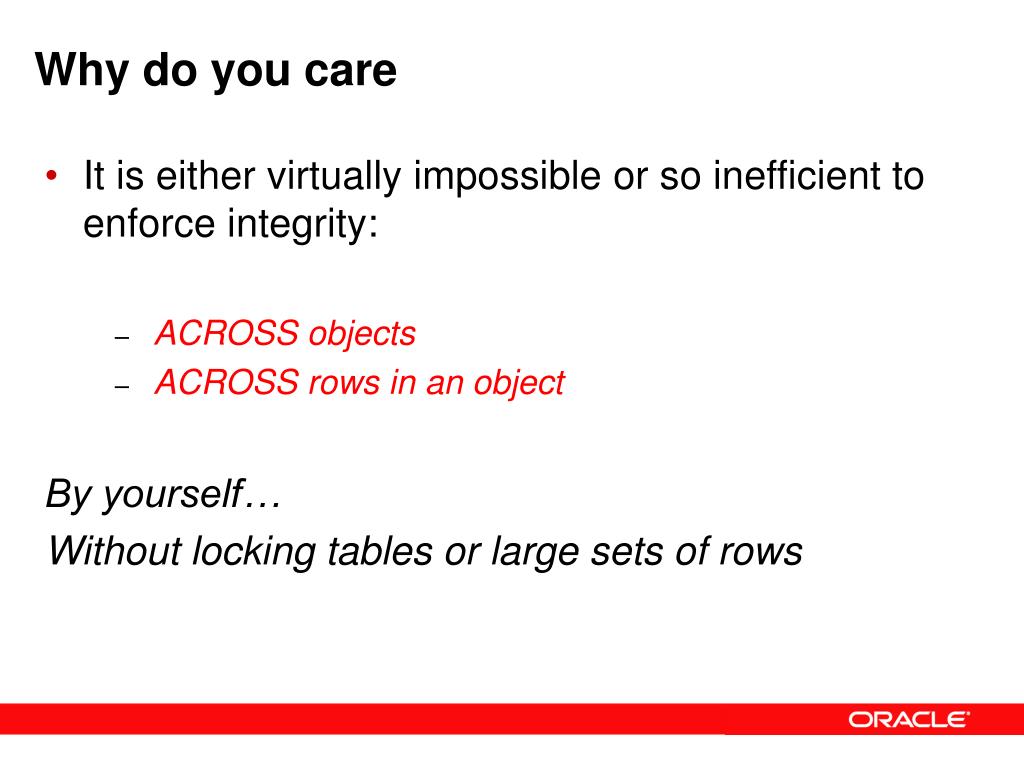

  6. Why do you care • It is either virtually impossible or so inefficient to enforce integrity: • ACROSS objects • ACROSS rows in an object By yourself… Without locking tables or large sets of rows

  7. Could it be part of your performance problem… • Long running queries against volatile tables • Queries against small “hot” table • Cr2.sql

  8. Write consistency • So, what happens when…. • You start updating lots of rows using a full scan • You hit a locked row near the end (you block) • The blocker commits • What happens there??

  9. Write consistency • So, what happens when…. • You start updating lots of rows using a full scan • You hit a locked row near the end (you block) • The blocker commits • What happens there?? • And what happens if some other transaction comes along and re-locks that row? • Cr3.sql • (remember to go forward a slide to recap observations)

  10. Write consistency • Observations • We updated row 5,000 and kept it locked • Started bulk update – it made 4,999 entries in the audit table and then blocked. Updated ids 1..4,999 • We committed the change – this caused the bulk update to rollback. • While it was busy rolling back, we locked row 10,000 in the other session • The bulk update blocked much faster this time – it was in select for update mode now. Did not really do the updates, just getting locks • It got blocked again (but had rows 1..9,999 all to itself) • We committed the blocking session • Bulk update finally went back and updated all of the rows. • End up with 4,999 + 2 + 10,000 trigger fires

  11. Write consistency • Real question (from the groups and asktom) Setup: create table accounts ( acc int primary key, amount int, pending int, cleared date ); Initially the table contains the following: ACC AMOUNT PENDING CLEARED ---------- ---------- ---------- --------- 1 10 -2 2 0 2 3 0 0 26-NOV-03

  12. Write consistency • Implied Business Rules (that no one is enforcing) • Sum(pending) where cleared is null = 0 • Pending = 0 when cleared is NOT NULL Initially the table contains the following: ACC AMOUNT PENDING CLEARED ---------- ---------- ---------- --------- 1 10 -2 2 0 2 3 0 0 26-NOV-03

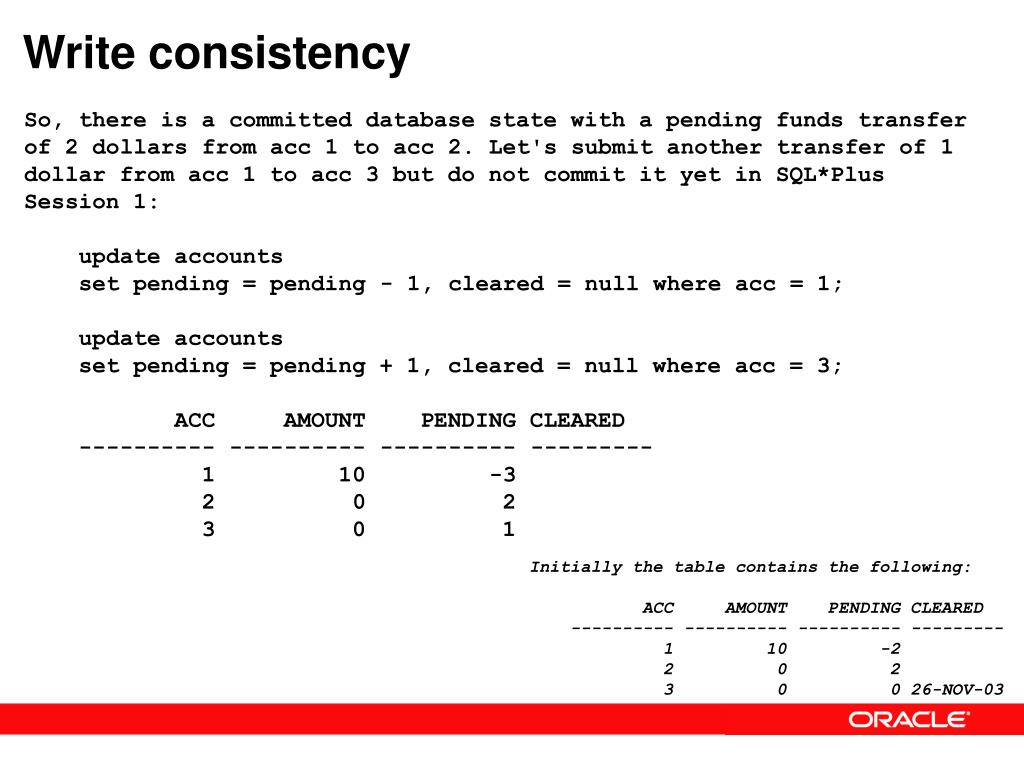

  13. Write consistency So, there is a committed database state with a pending funds transfer of 2 dollars from acc 1 to acc 2. Let's submit another transfer of 1 dollar from acc 1 to acc 3 but do not commit it yet in SQL*Plus Session 1: update accounts set pending = pending - 1, cleared = null where acc = 1; update accounts set pending = pending + 1, cleared = null where acc = 3; ACC AMOUNT PENDING CLEARED ---------- ---------- ---------- --------- 1 10 -3 2 0 2 3 0 1 Initially the table contains the following: ACC AMOUNT PENDING CLEARED ---------- ---------- ---------- --------- 1 10 -2 2 0 2 3 0 0 26-NOV-03

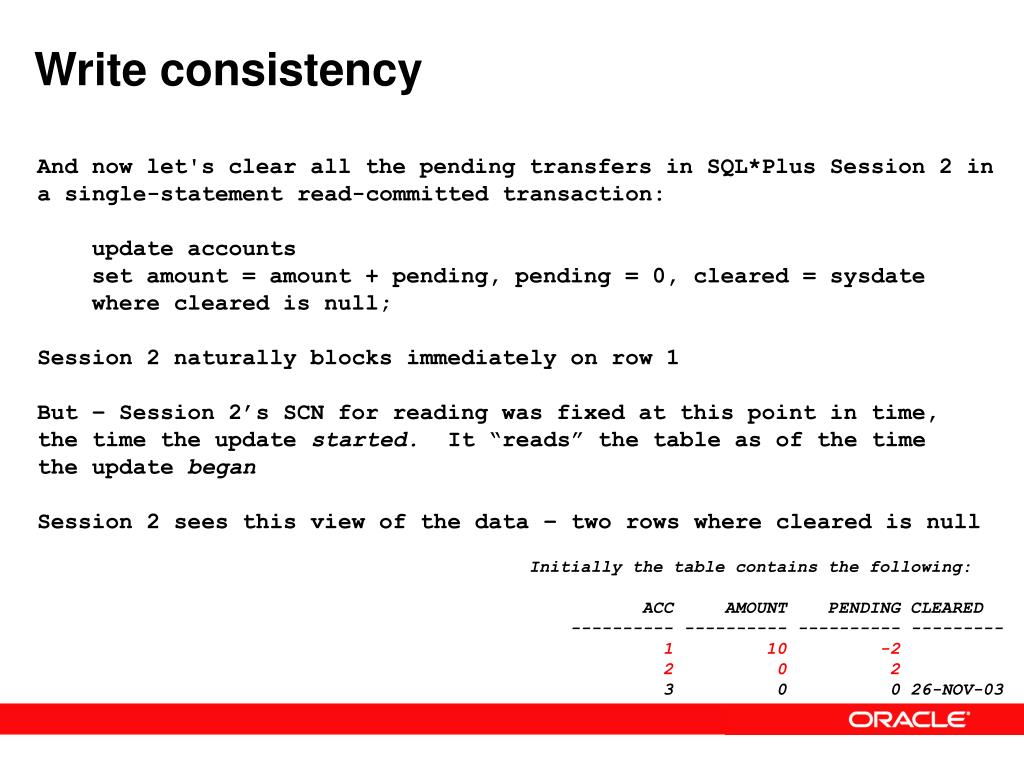

  14. Write consistency And now let's clear all the pending transfers in SQL*Plus Session 2 in a single-statement read-committed transaction: update accounts set amount = amount + pending, pending = 0, cleared = sysdate where cleared is null; Session 2 naturally blocks immediately on row 1 But – Session 2’s SCN for reading was fixed at this point in time, the time the update started. It “reads” the table as of the time the update began Session 2 sees this view of the data – two rows where cleared is null Initially the table contains the following: ACC AMOUNT PENDING CLEARED ---------- ---------- ---------- --------- 1 10 -2 2 0 2 3 0 0 26-NOV-03

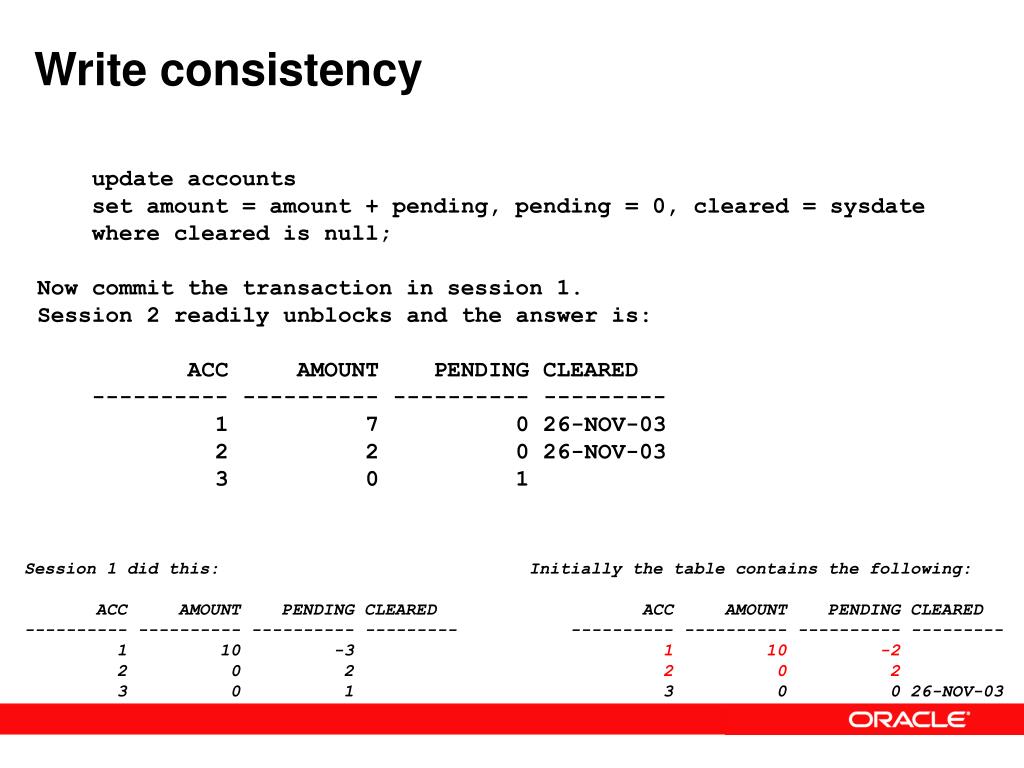

  15. Write consistency update accounts set amount = amount + pending, pending = 0, cleared = sysdate where cleared is null; Now commit the transaction in session 1. Session 2 readily unblocks and the answer is: ACC AMOUNT PENDING CLEARED ---------- ---------- ---------- --------- 1 7 0 26-NOV-03 2 2 0 26-NOV-03 3 0 1 Session 1 did this: ACC AMOUNT PENDING CLEARED ---------- ---------- ---------- --------- 1 10 -3 2 0 2 3 0 1 Initially the table contains the following: ACC AMOUNT PENDING CLEARED ---------- ---------- ---------- --------- 1 10 -2 2 0 2 3 0 0 26-NOV-03

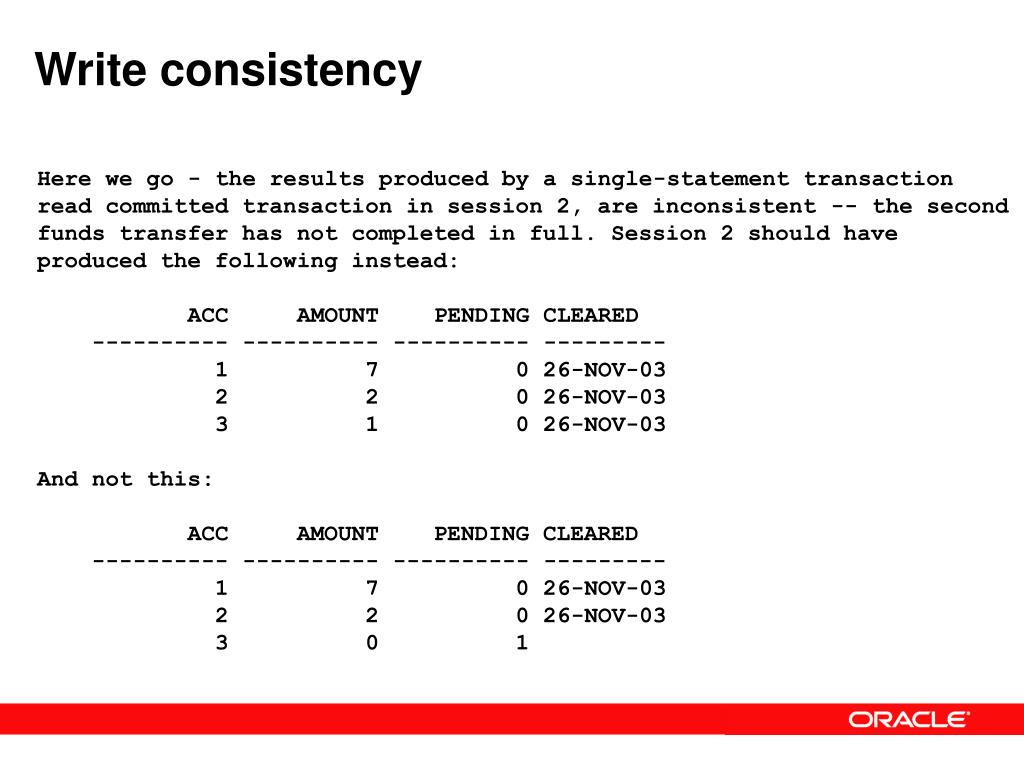

  16. Write consistency Here we go - the results produced by a single-statement transaction read committed transaction in session 2, are inconsistent -- the second funds transfer has not completed in full. Session 2 should have produced the following instead: ACC AMOUNT PENDING CLEARED ---------- ---------- ---------- --------- 1 7 0 26-NOV-03 2 2 0 26-NOV-03 3 1 0 26-NOV-03 And not this: ACC AMOUNT PENDING CLEARED ---------- ---------- ---------- --------- 1 7 0 26-NOV-03 2 2 0 26-NOV-03 3 0 1

  17. Write consistency • What we’ll discover is the set of rows to be updated (as defined by the predicate) is defined 99.99% by the predicate. • The rows to be modified were identified “as of the update submission time” in this case (only the rows that had CLEARED is NULL were updated) • That the observer observing can muck things up became readily apparent! (triggers are taken into consideration) • Cr4.sql it works as he expected it, why…. • Cr5.sql it works as he observed, why….. • If a trigger references :old.pending (but not :new)…. Cr6.sql toggle :new/:old • http://asktom.oracle.com/~tkyte/wc.html

  18. Q&A Questions and Answers
