    1. Exploitation of Path Diversity in Cooperative Multi-Hop Wireless Networks Dissertation Committee Candidate Chair : Jonghyun Kim : Dr. Bohacek Department of Electrical and Computing Engineering University of Delaware Dr. Cimini Dr. Cotton Dr. Shen Dr. Morris (ECE Department) (ECE Department) (CIS Department) (CERDEC)

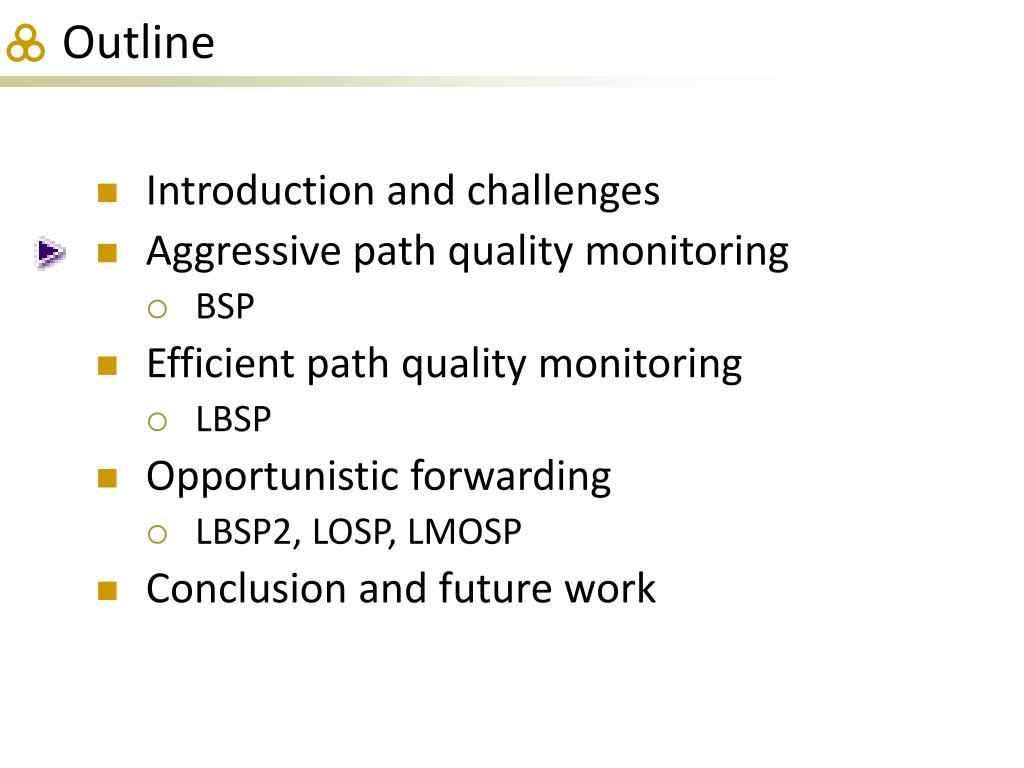

    2. Outline • Introduction and challenges • Aggressive path quality monitoring • BSP • Efficient path quality monitoring • LBSP • Opportunistic forwarding • LBSP2, LOSP, LMOSP • Conclusion and future work

    3. Introduction and challenges Channel Activity Analysis 2007 ~ 2009 1 paper Cooperative Path Diversity 2005 ~ present 4 papers User Perceptual Quality Evaluation 2008 ~ 2009 0 paper Research Mobility Modeling 2004 ~ 2009 4 papers Application Traffic Identification & Modeling 2008 ~ 2011 1 paper

    4. Proactive (e.g., OLSR) Reactive (e.g., AODV) Introduction and challenges Routing Technique

    5. Introduction and challenges • Proactive : Routing control packet transmission : No transmission

    6. Introduction and challenges • Reactive : Routing control packet transmission : No transmission

    7. Introduction and challenges • Reactive : data packet from transport layer

    8. Proactive (e.g., OLSR) Reactive (e.g., AODV) Single path (e.g., AODV) Multiple paths (e.g., AOMDV) Introduction and challenges Routing Technique

    9. Introduction and challenges • Single path B A

    10. Introduction and challenges • Multiple paths B A

    11. Proactive (e.g., OLSR) Reactive (e.g., AODV) Cooperative path diversity (BSP, LBSP, LOSP, LMOSP) Introduction and challenges Routing Technique Single path (e.g., AODV) Multiple paths (e.g., AOMDV)

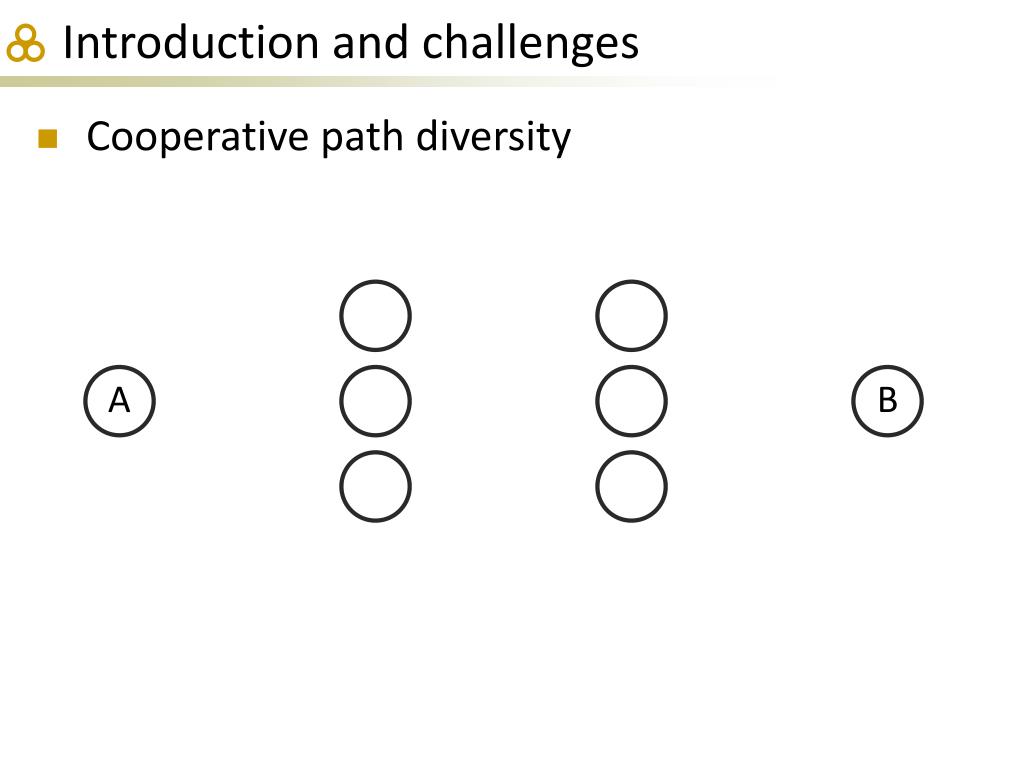

    12. Introduction and challenges • Cooperative path diversity A B

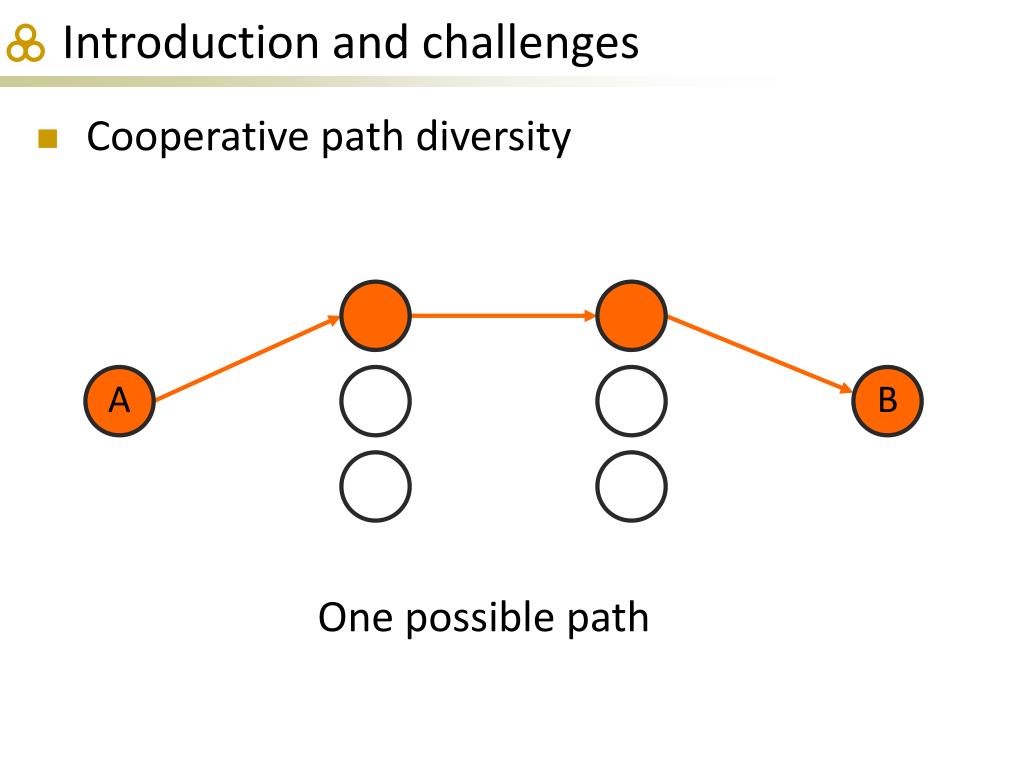

    13. Introduction and challenges • Cooperative path diversity A B One possible path

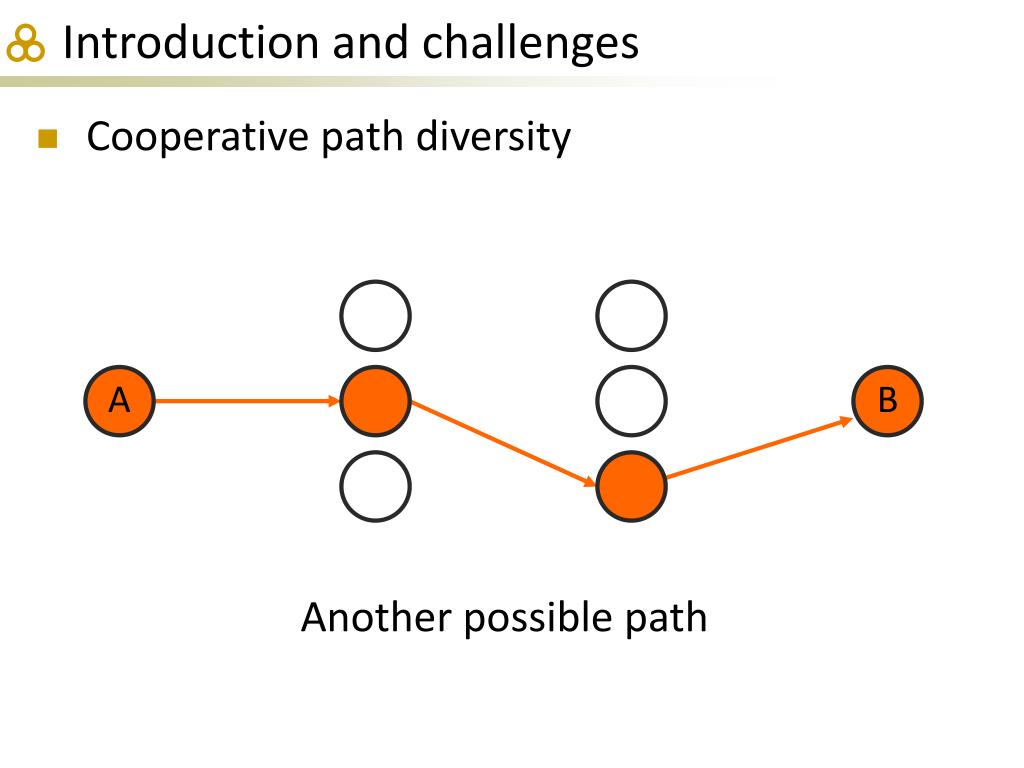

    14. Introduction and challenges • Cooperative path diversity A B Another possible path

    15. Introduction and challenges • Cooperative path diversity A B Many possible paths

    16. Introduction and challenges • Cooperative path diversity A B Best path

    17. Link quality varies Path quality varies Best path varies Introduction and challenges • Cooperative path diversity Nodes are moving

    18. Introduction and challenges • Challenges • How to define the path quality based on channel conditions? • How to monitor the time-varying path quality to determine the best path cooperatively?

    19. Aggressive path quality monitoring (BSP) Efficient path quality monitoring (LBSP) Opportunistic forwarding with path qualities (LOSP, LMOSP) Introduction and challenges • Overview Cooperative path diversity (BSP, LBSP, LOSP, LMOSP)

    20. Outline • Introduction and challenges • Aggressive path quality monitoring • BSP • Efficient path quality monitoring • LBSP • Opportunistic forwarding • LBSP2, LOSP, LMOSP • Conclusion and future work

    21. Aggressive path quality monitoring • Objectives • Define path quality • Monitor path quality aggressively/ideally to investigate maximally possible benefits offered by path diversity routing • Protocol proposed : BSP (best-select protocol)

    22. Aggressive path quality monitoring • Path quality • Depends on channel conditions • (e.g., channel loss, SNR, transmit power) • Depends on protocol designer’s routing objectives • Maximize the minimum SNR along the path • (max-min SNR) • Maximize delivery probability • Maximize throughput • Minimize end-to-end delay • Minimize total power • Minimize total energy

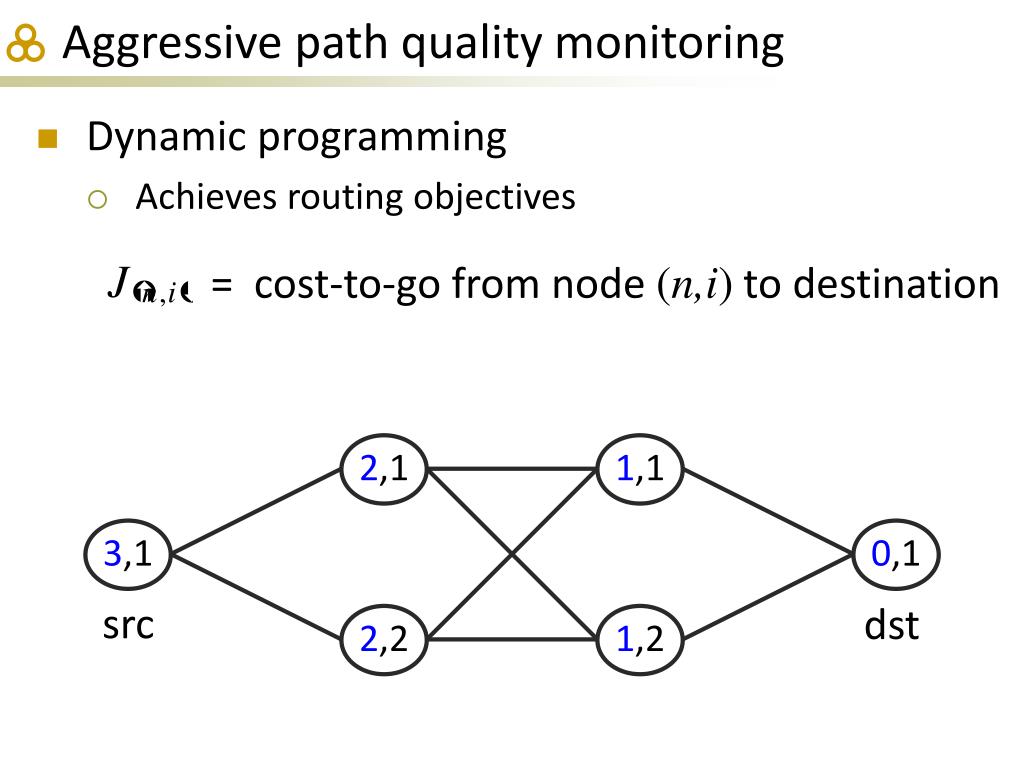

    23. Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination

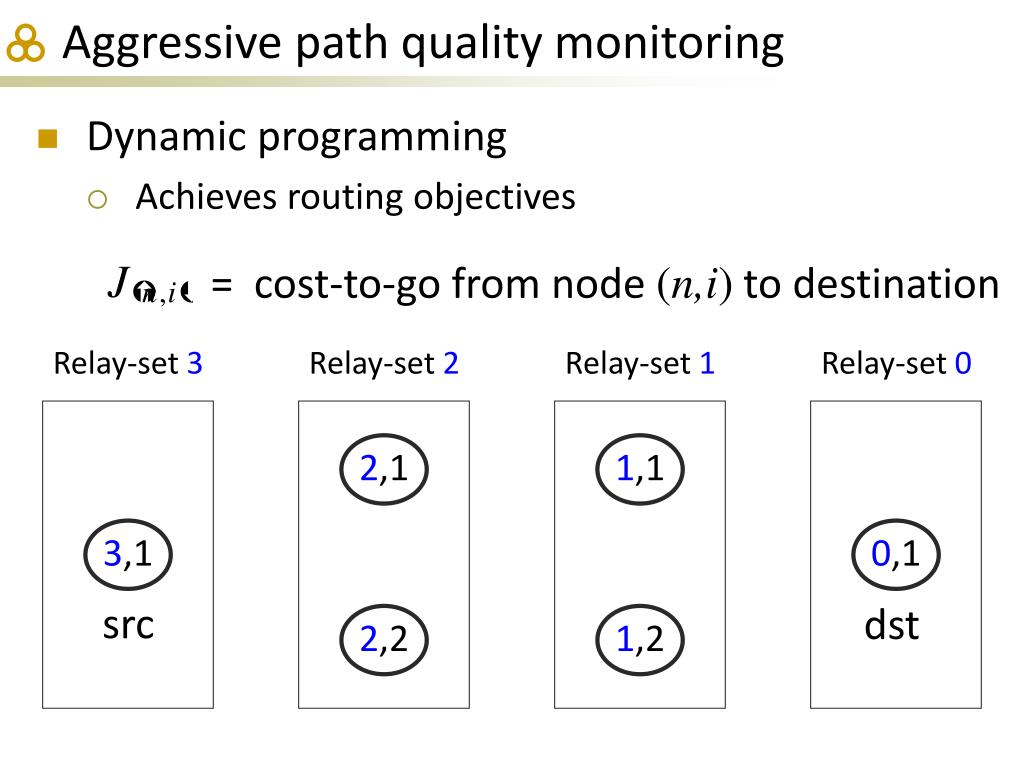

    24. Relay-set 3 Relay-set 2 Relay-set 1 Relay-set 0 Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination

    25. Relay-set 3 Relay-set 2 Relay-set 1 Relay-set 0 Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination 2,1 1,1 3,1 0,1 src dst 2,2 1,2

    26. Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination 2,1 1,1 3,1 0,1 src dst 2,2 1,2

    27. Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination J(1,1)= 30 2,1 1,1 30 3,1 0,1 20 2,2 1,2 J(1,2)= 20

    28. Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination J(1,1)= 30 J(2,1)= 20 20 2,1 1,1 30 3,1 0,1 20 2,2 1,2 J(1,2)= 20

    29. Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination J(1,1)= 30 J(2,1)= 20 20 2,1 1,1 30 J(2,1)= 10 3,1 0,1 10 20 2,2 1,2 J(1,2)= 20

    30. Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination J(2,1)= 20 20 2,1 1,1 30 3,1 0,1 10 20 2,2 1,2

    31. Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination J(2,1)= 20 20 2,1 1,1 30 3,1 0,1 10 20 2,2 1,2

    32. Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination 2,1 1,1 3,1 0,1 2,2 1,2

    33. Previous step’s cost-to-go Stage information Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination

    34. Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination J(1,1)= 30 20 2,1 1,1 3,1 0,1 J(1,2)= 20 10 2,2 1,2

    35. Aggressive path quality monitoring • Dynamic programming • Achieves routing objectives = cost-to-go from node (n,i) to destination J(1,1)= 30 20 2,1 1,1 3,1 0,1 J(1,2)= 20 10 2,2 1,2

    36. Aggressive path quality monitoring • Max-min SNR

    37. Aggressive path quality monitoring • Max delivery probability

    38. Aggressive path quality monitoring • Max delivery probability

    39. Aggressive path quality monitoring • Max delivery probability n-1,In-1(1) n,i n-1,In-1(2) n-1,In-1(3)

    40. Aggressive path quality monitoring • Max delivery probability n-1,In-1(1) n,i n-1,In-1(2) n-1,In-1(3)

    41. Aggressive path quality monitoring • Max delivery probability n-1,In-1(1) n,i n-1,In-1(2) n-1,In-1(3)

    42. Aggressive path quality monitoring • Max throughput

    43. Aggressive path quality monitoring • Min end-to-end delay

    44. Aggressive path quality monitoring • Min total power

    45. Aggressive path quality monitoring • Min total energy

    46. Aggressive path quality monitoring • Construction of relay-sets 2,1 1,1 3,1 0,1 2,2 1,2 AODV finds a traditional single path

    47. Aggressive path quality monitoring • Construction of relay-sets Relay-set 3 Relay-set 2 Relay-set 1 Relay-set 0 2,1 1,1 3,1 0,1 2,2 1,2

    48. Aggressive path quality monitoring • Construction of relay-sets Relay-set 3 Relay-set 2 Relay-set 1 Relay-set 0 2,1 1,1 3,1 0,1 2,2 1,2

    49. Aggressive path quality monitoring • Construction of relay-sets Relay-set 3 Relay-set 2 Relay-set 1 Relay-set 0 2,1 1,1 3,1 0,1 2,2 1,2

    50. Aggressive path quality monitoring • Construction of relay-sets Relay-set 3 Relay-set 2 Relay-set 1 Relay-set 0 2,1 1,1 3,1 0,1 2,2 1,2
