  1. Megapixel IP CameraIntroduction DKSolutions

  2. Why Megapixel IP Camera 1. Reducing the number of cameras deployed • Improved coverage • Allows digital PTZ with little loss of details 2. Increasing the quality of the video • Improved detection • Increased evidentiary acceptance 3. Operational Networks Advantages • Reduced cabling cost • POE • Easy citywide coverage • Flexible implementation and Scalability • Immediate deployment for emergency response

  3. Key Features Day & Night The DHEB Series provides clear monitoring images even in low light conditions using IR-cut filter. Superior Quality Image The DHEB Series is capable of providing the outstanding image quality with HDTV performance and profiles (High, Main and Baseline) in H.264 compression.

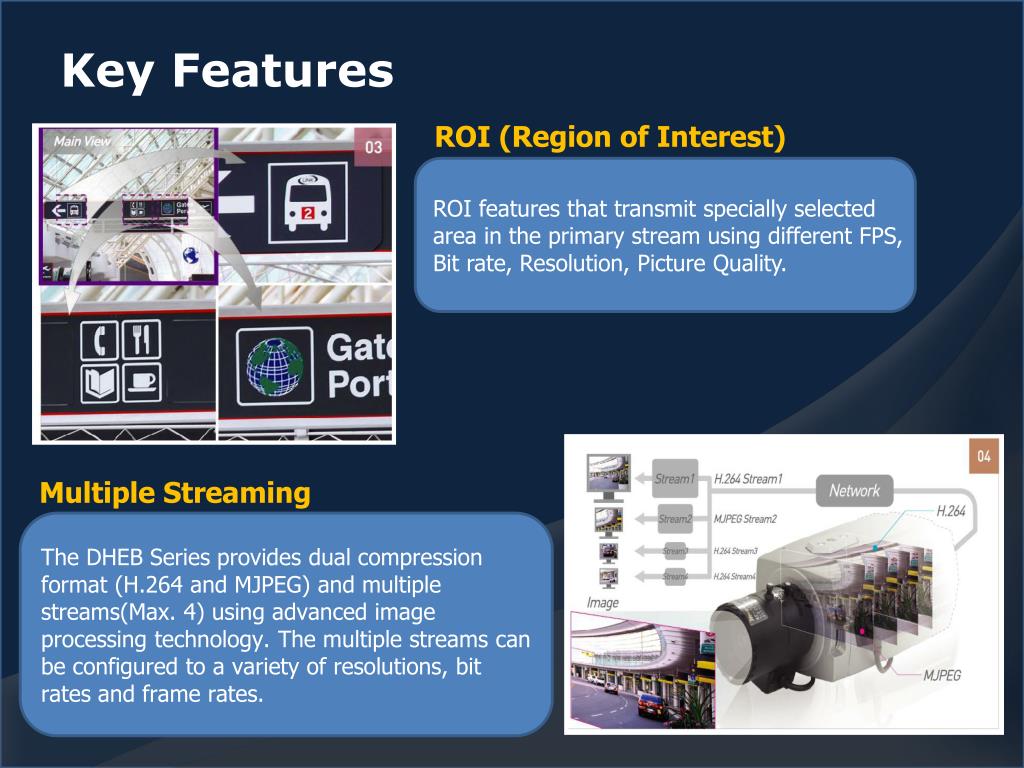

  4. Key Features ROI (Region of Interest) ROI features that transmit specially selected area in the primary stream using different FPS, Bit rate, Resolution, Picture Quality. Multiple Streaming The DHEB Series provides dual compression format (H.264 and MJPEG) and multiple streams(Max. 4) using advanced image processing technology. The multiple streams can be configured to a variety of resolutions, bit rates and frame rates.

  5. Key Features PoE (Power of Ethernet) PoE technology describes a system to transfer electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. The PoE compatible device will help to reduce the installation cost. Triple Power (PoE, DC 12V, AC 24V) Local Recording (SD Card) The DHEB Series provides local video recording function. When camera detects video motion or alarm events, it can record video stream by itself. The DHEB Series provides Power of Ethernet (PoE), DC 12V, AC 24V which supplies to the camera.

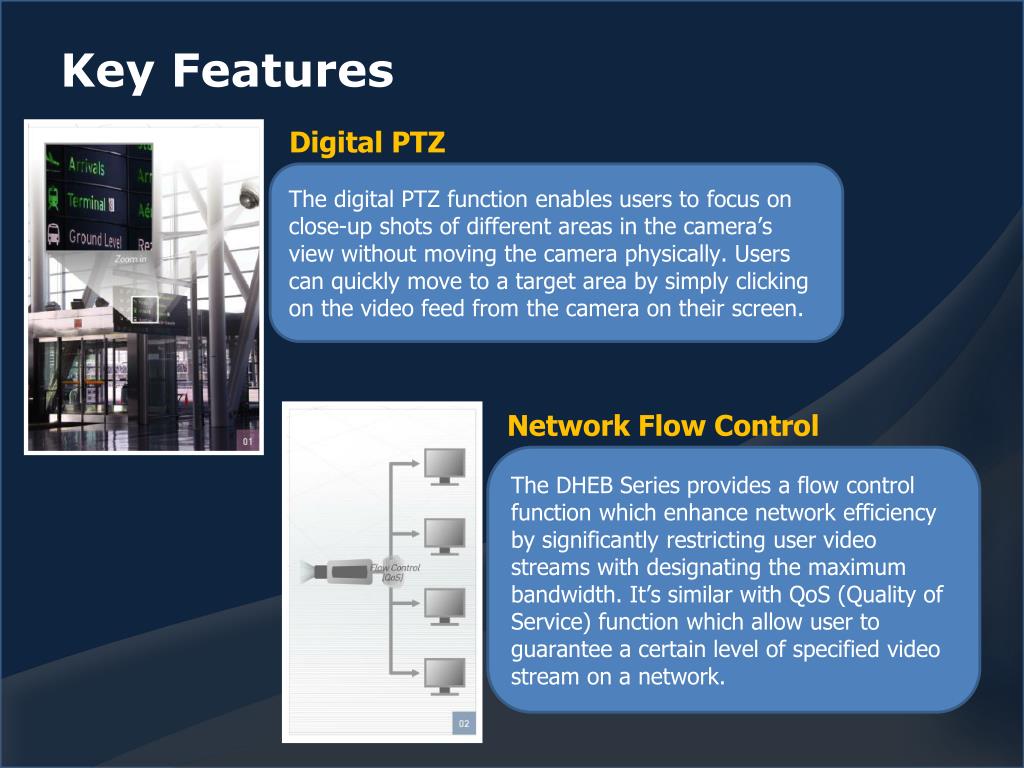

  6. Key Features Digital PTZ The digital PTZ function enables users to focus on close-up shots of different areas in the camera’s view without moving the camera physically. Users can quickly move to a target area by simply clicking on the video feed from the camera on their screen. Network Flow Control The DHEB Series provides a flow control function which enhance network efficiency by significantly restricting user video streams with designating the maximum bandwidth. It’s similar with QoS (Quality of Service) function which allow user to guarantee a certain level of specified video stream on a network.

  7. Key Features Video Alert Linked to Alarm Detection DHEB Series can play the audio file stored in the camera in synchronization with alarm detection by the sensor input or the motion detection function. Users can record audio files in your PC with the AREC utility applied and upload them up to three to the network camera. For example, this function is very useful when trying to notify pre-defined warning message automatically for detecting some object or person in restricted area. Intelligent Video Motion Detection The DHEB offers intelligent & sophisticated video motion detection for each multiple streams.

  8. Key Features Easy Focus • Easy focus helps to reduce the installation efforts especially video image focusing of the camera. The analog monitor will display digital zoom image for a few minutes after booting. ONVIF Certificate • The HEB series network camera complied with on ONVIF (Open Network Video Interface Forum) is an open industry forum for the development of a global standard for the interface of network video products.

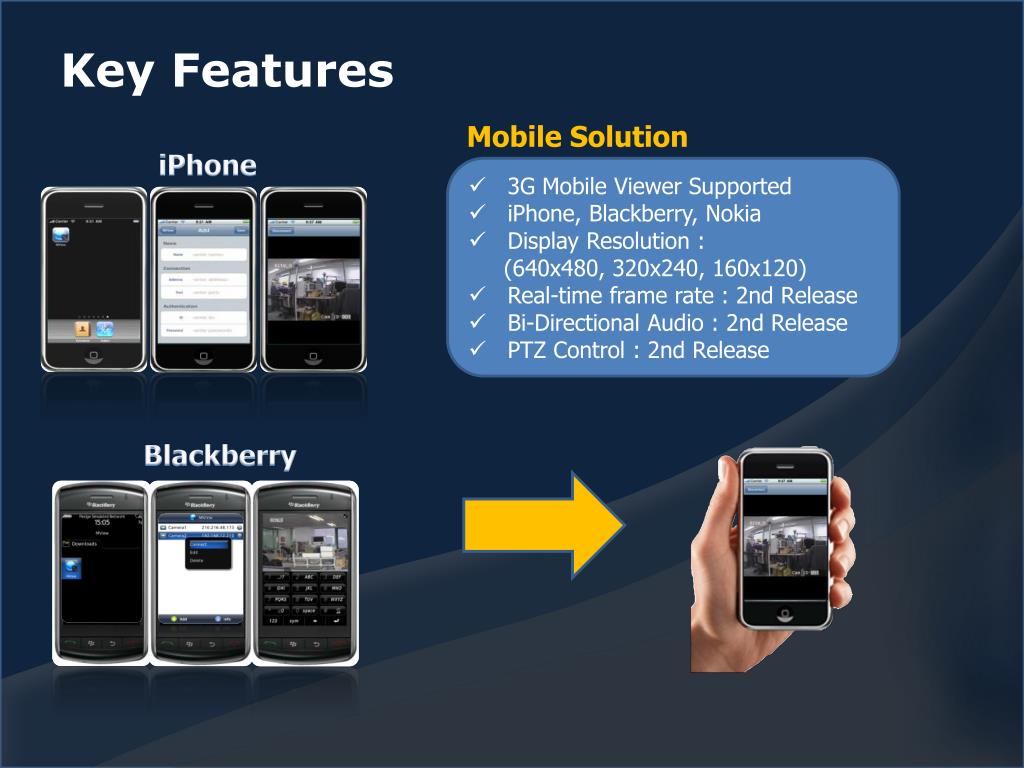

  9. Key Features Mobile Solution iPhone • 3G Mobile Viewer Supported • iPhone, Blackberry, Nokia • Display Resolution : • (640x480, 320x240, 160x120) • Real-time frame rate : 2nd Release • Bi-Directional Audio : 2nd Release • PTZ Control : 2nd Release Blackberry

  10. ADVANCDE2M Full HD IP CAMERA U l t r a H i g h R e s o l u t I o n Main Features • Full-HD Resolution Supported • (1080p, 720p, D1, VGA, QVGA) • WDR Supported • 3DNR (3 Dimensional Noise Reduction) • ONVIF, Milestone Supported • BLC (Back Light Compensation) • HSBLC (Highlight Suppression BLC) • DIS (Digital Image Stabilization) • Two-way Audio • SD Supported • Multiple Streaming • Cross Web-Browsing • Motion Adaptive Transmission • Dynamic Adjustable Bit Rate • Event Buffering • FTP Image Upload • Web Casting • Password Protection, IP Filtering • DDNS Supported • Auto Exposure (AE) • Auto White Balance (AWB) • Private Masking • Pre-record Voice Alert

  11. MID-RANGE2M Full HD IP CAMERA U l t r a H i g h R e s o l u t I o n Main Features • Full-HD Resolution Supported • (1080p, 720p, D1, Half D1, VGA, • QVGA, CIF, QCIF) • DNR (Digital Noise Reduction) • ONVIF, Milestone Supported • Micro SD Supported • Multiple Compression • (H.264, MPEG4, MJPEG) • Dual Streaming • Cross Web-Browsing • Motion Adaptive Transmission • Dynamic Adjustable Bit Rate • Event Buffering • FTP Image Upload • Web Casting • Password Protection, IP Filtering • DDNS Supported • Auto Exposure (AE) • Auto White Balance (AWB) • IP66 (Dome Model)

  12. 2M(1600x1200) HD IP CAMERA U l t r a H i g h R e s o l u t I o n Main Features • 2 Megapixel CMOS Color Sensor • H.264 & MJPEG compression • Max. Frame Rate: 15fps@1600x1200, • 30fps@1280x720 • Built-in Web Brower: ActiveX • Up to Max. 5 Multiple Streaming • ROI (Region of Interest) • ONVIF, Milestone Supported • Easy Focus • Digital Zoom • Digital PTZ • Video Motion Detection • NTSC/PAL Composite Video Output • Alarm I/O • Two-way Audio • Network Security Factions: SSL, IP Filtering • UPNP, DDNS, RTP/RTSP • Notify Event by FTP & E-Mail • Alarm Buffering • API/SDK Supported • Triple Power: • (DC12V, AC24V, POE(IEEE802.3af))

  13. 1M(1280x720) HD IP CAMERA U l t r a H i g h R e s o l u t I o n Main Features • 1 Megapixel CMOS Color Sensor • H.264 & MJPEG compression • Max. Frame Rate: 30fps@1280x720p • Built-in Web Brower: ActiveX • Up to Max. 5 Multiple Streaming • ROI (Region of Interest) • ONVIF, Milestone Supported • Easy Focus • Digital Zoom • Digital PTZ • Video Motion Detection • NTSC/PAL Composite Video Output • Alarm I/O • Two-way Audio • Network Security Factions: SSL, IP Filtering • UPNP, DDNS, RTP/RTSP • Notify Event by FTP & E-Mail • Alarm Buffering • API/SDK Supported • Triple Power: • (DC12V, AC24V, POE(IEEE802.3af))

  14. Thank you DKSolutions
