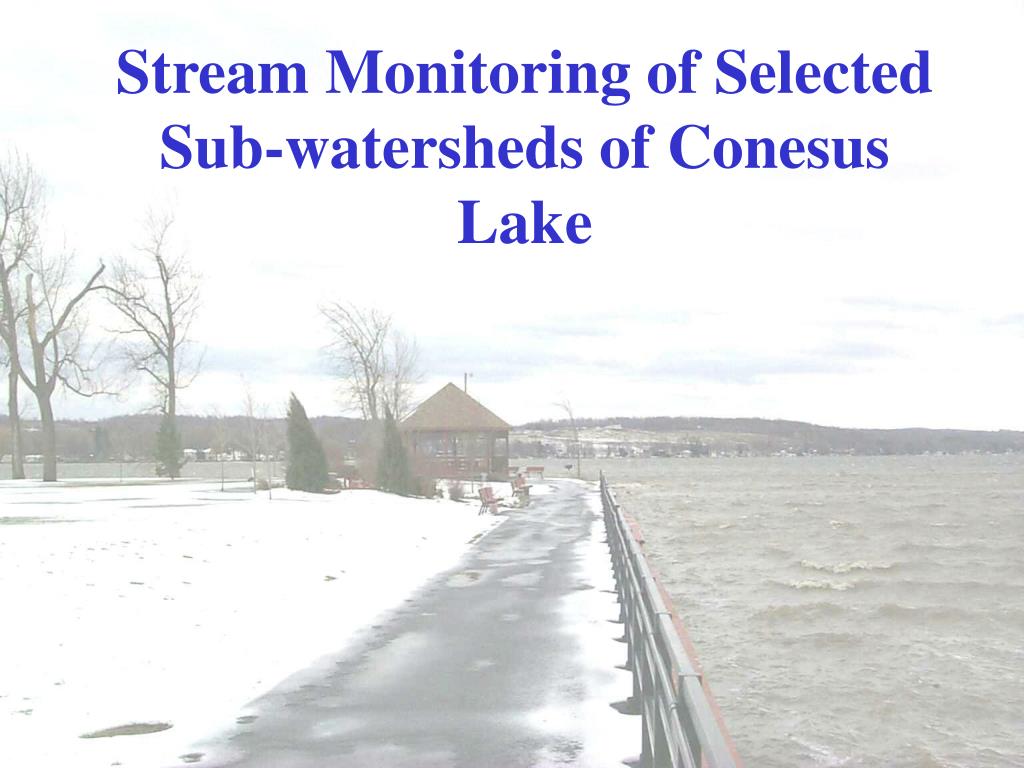

  1. Stream Monitoring of Selected Sub-watersheds of Conesus Lake

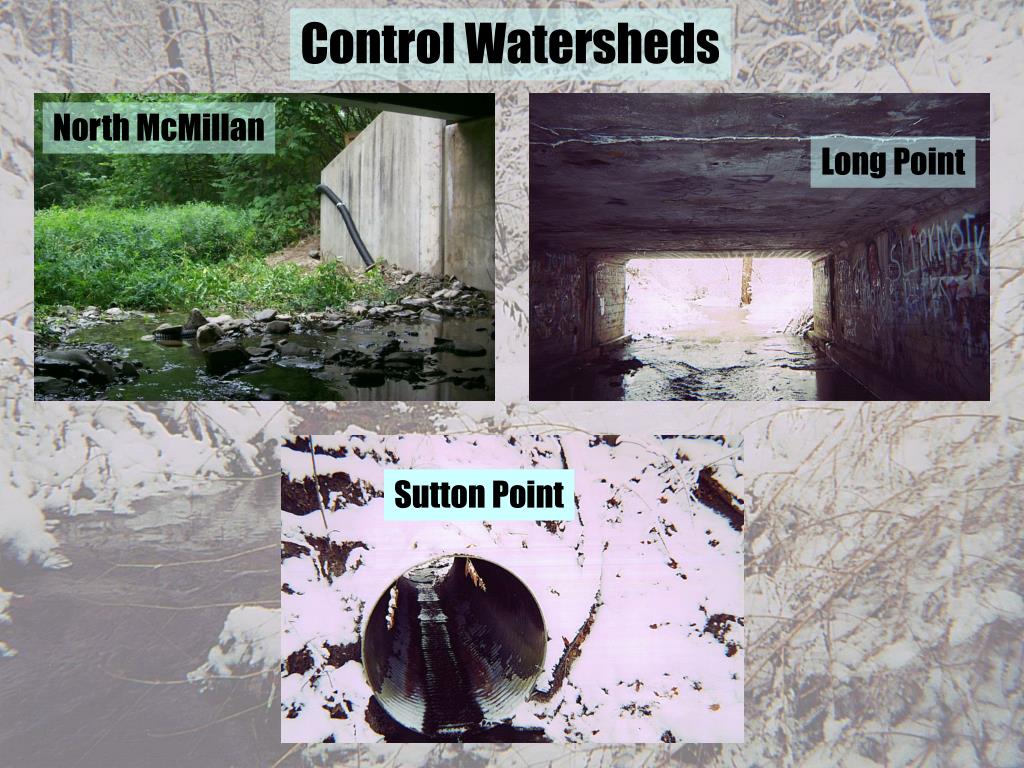

  2. Control Watersheds North McMillan Long Point Sutton Point

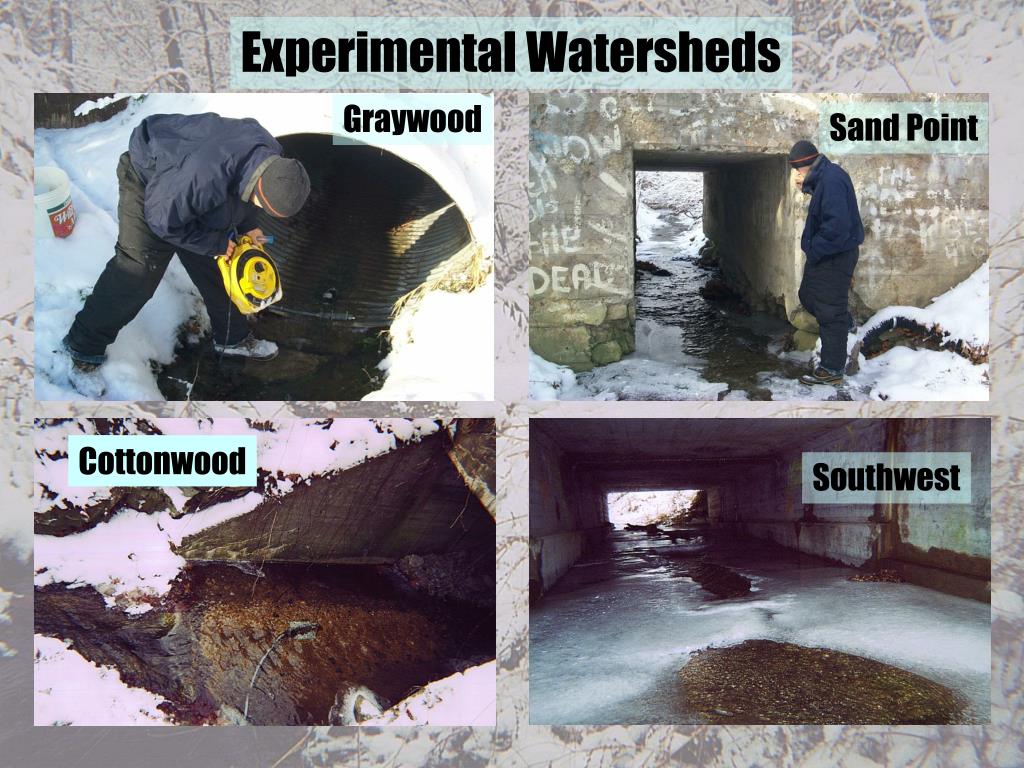

  3. Experimental Watersheds Graywood Sand Point Cottonwood Southwest

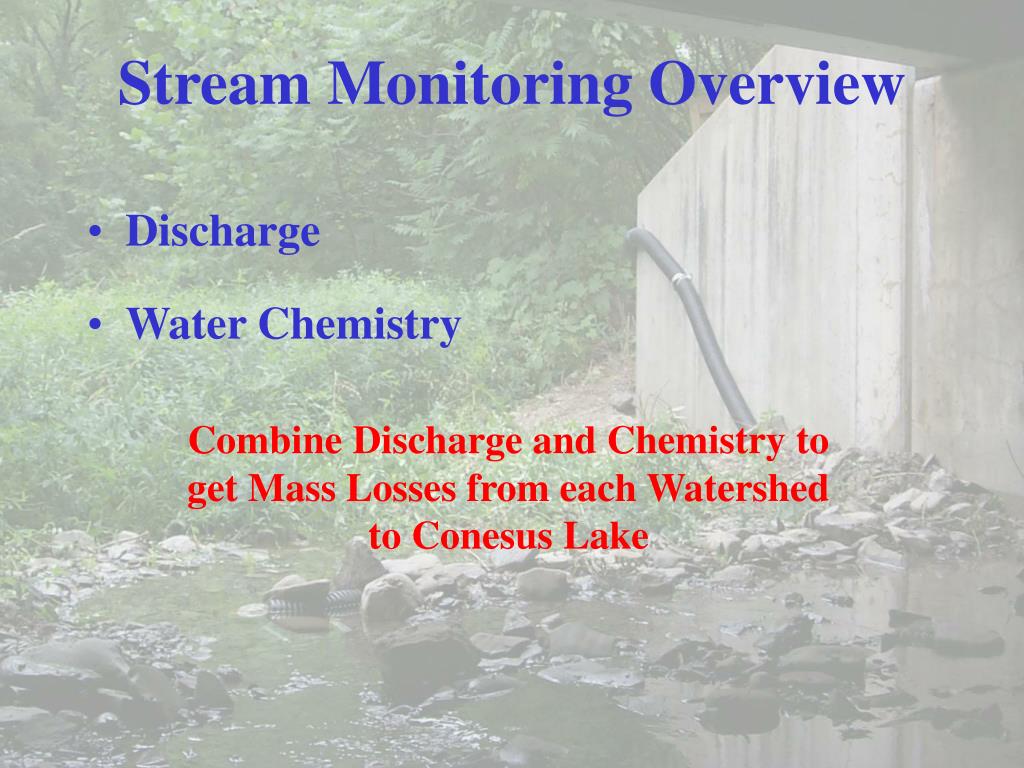

  4. Stream Monitoring Overview • Discharge • Water Chemistry Combine Discharge and Chemistry to get Mass Losses from each Watershed to Conesus Lake

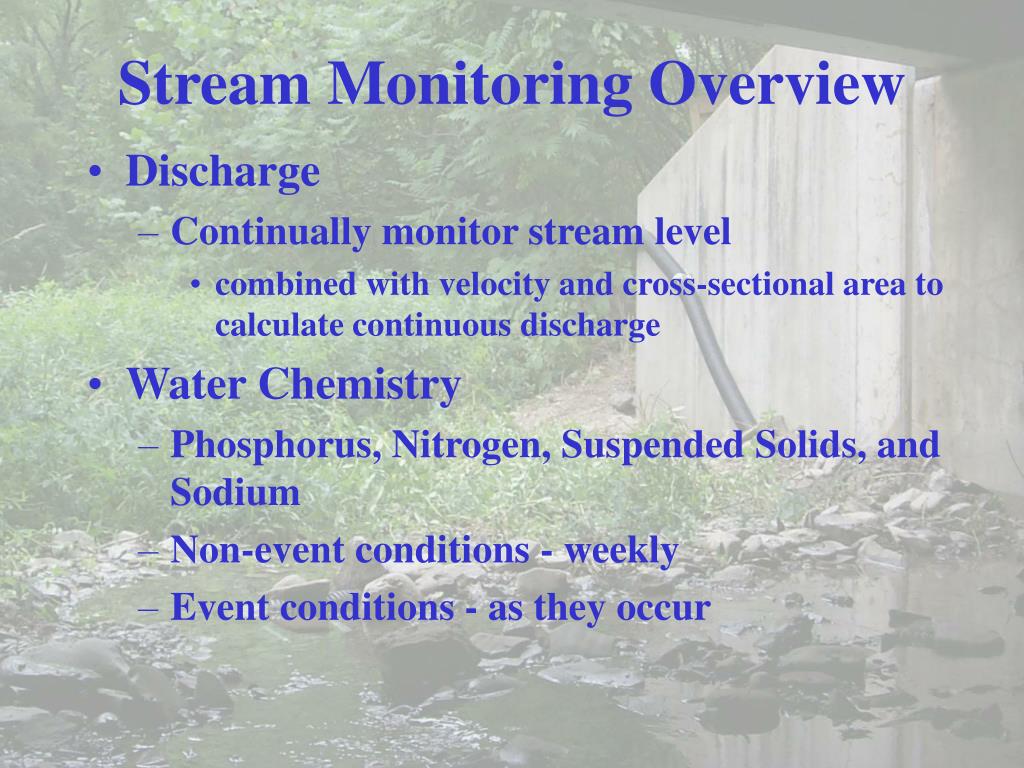

  5. Stream Monitoring Overview • Discharge • Continually monitor stream level • combined with velocity and cross-sectional area to calculate continuous discharge • Water Chemistry • Phosphorus, Nitrogen, Suspended Solids, and Sodium • Non-event conditions - weekly • Event conditions - as they occur

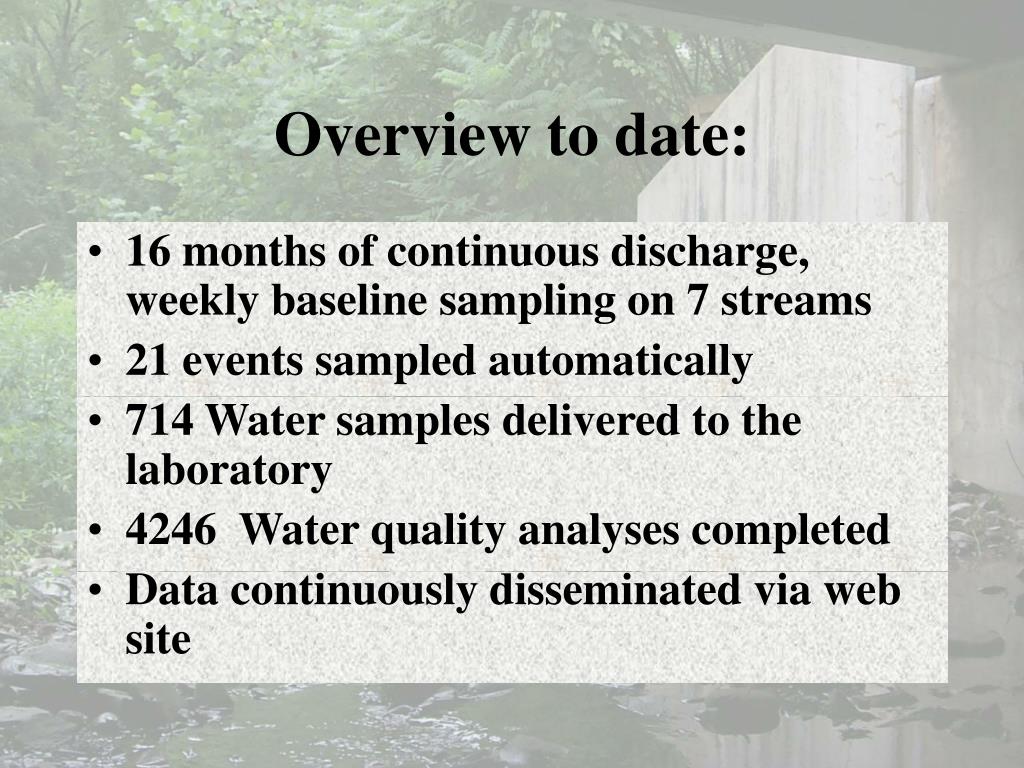

  6. Overview to date: • 16 months of continuous discharge, weekly baseline sampling on 7 streams • 21 events sampled automatically • 714 Water samples delivered to the laboratory • 4246 Water quality analyses completed • Data continuously disseminated via web site

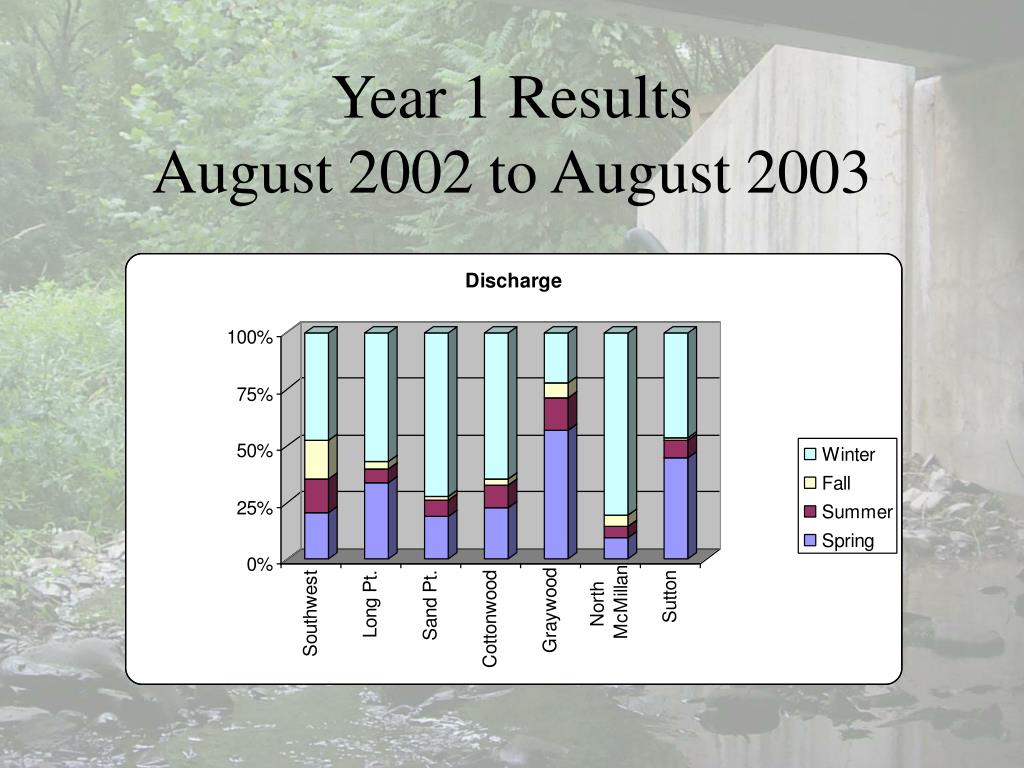

  7. Year 1 ResultsAugust 2002 to August 2003

  8. Initial attempts at BMP Evaluations September to December for each year

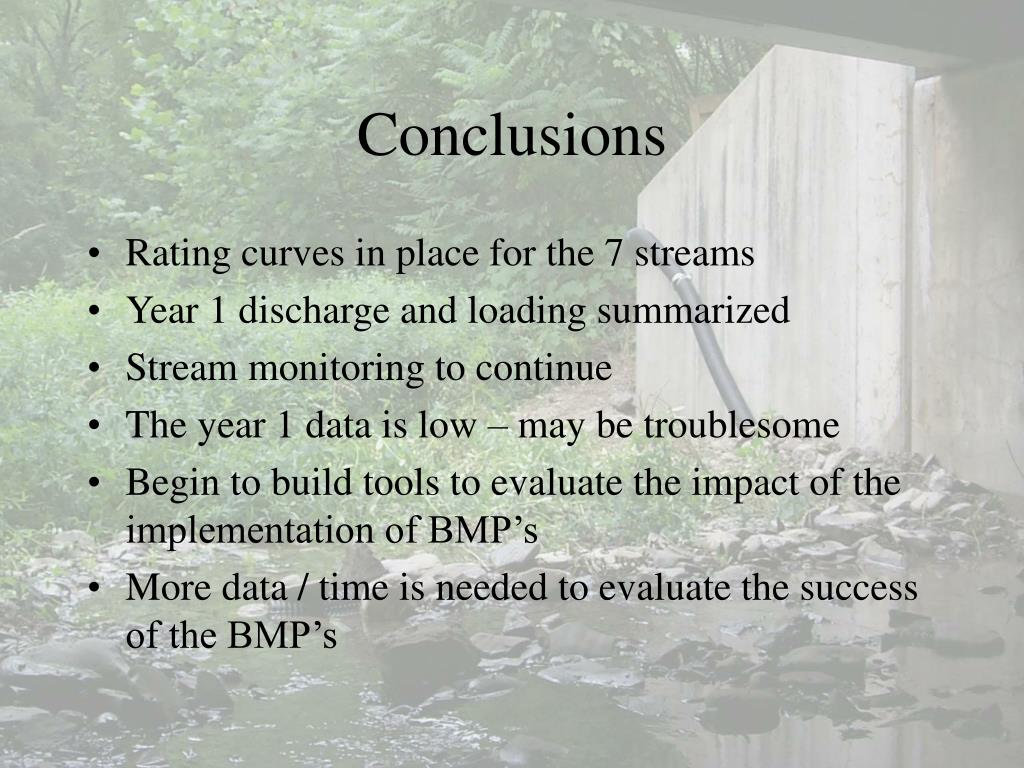

  9. Conclusions • Rating curves in place for the 7 streams • Year 1 discharge and loading summarized • Stream monitoring to continue • The year 1 data is low – may be troublesome • Begin to build tools to evaluate the impact of the implementation of BMP’s • More data / time is needed to evaluate the success of the BMP’s
