1. Tool-support for Invariant-based Specification, Synthesis, and Verification of Synchronization in Concurrent Java Programs M.S. Defense William Deng Department of Computing and Information Sciences Kansas State University http://www.cis.ksu.edu/saves

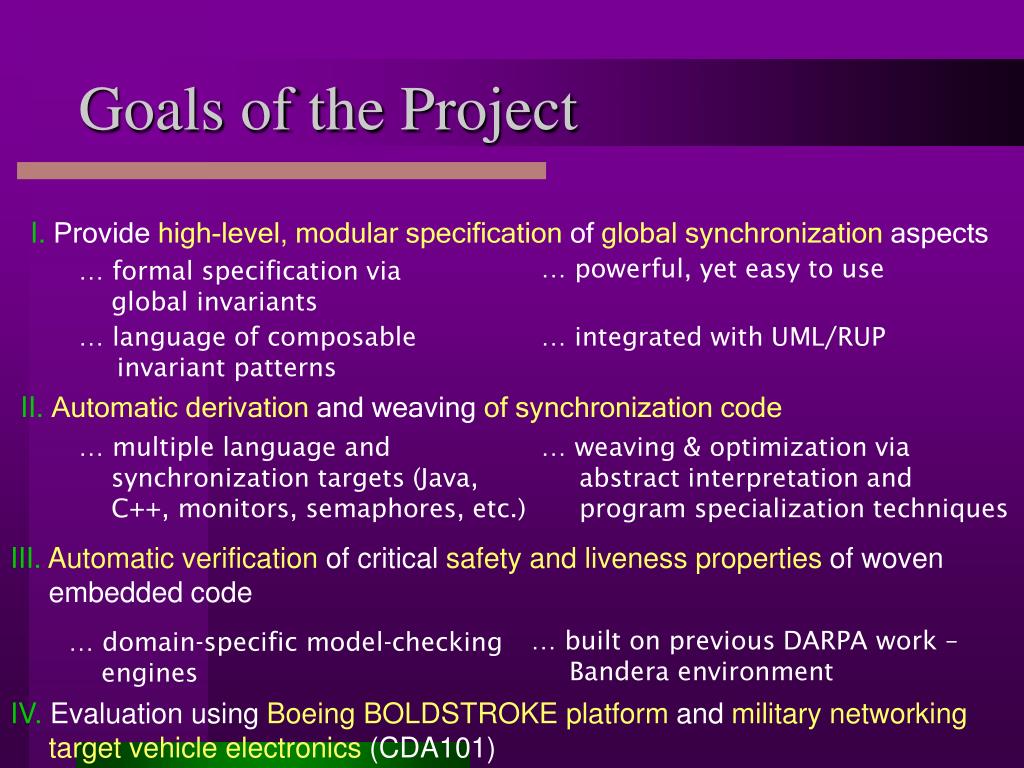

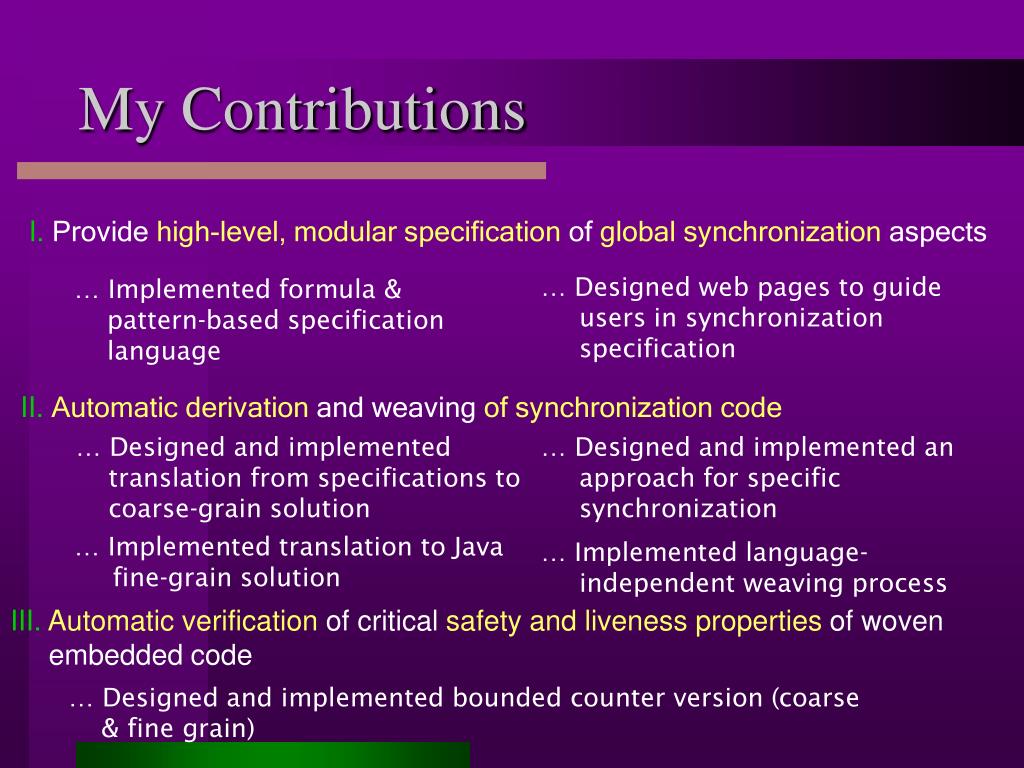

2. I.Provide high-level, modular specification of global synchronization aspects … powerful, yet easy to use … formal specification via global invariants … language of composable invariant patterns … integrated with UML/RUP II.Automatic derivation and weaving of synchronization code … multiple language and synchronization targets (Java, C++, monitors, semaphores, etc.) … weaving & optimization via abstract interpretation and program specialization techniques III. Automatic verification of critical safety and liveness properties of woven embedded code … built on previous DARPA work –Bandera environment … domain-specific model-checking engines Goals of the Project IV.Evaluation using Boeing BOLDSTROKE platform and military networking target vehicle electronics (CDA101)

3. I.Provide high-level, modular specification of global synchronization aspects … Designed web pages to guide users in synchronization specification … Implemented formula & pattern-based specification language II.Automatic derivation and weaving of synchronization code … Designed and implemented translation from specifications to coarse-grain solution … Designed and implemented an approach for specific synchronization … Implemented translation to Java fine-grain solution … Implemented language-independent weaving process III. Automatic verification of critical safety and liveness properties of woven embedded code … Designed and implemented bounded counter version (coarse & fine grain) My Contributions

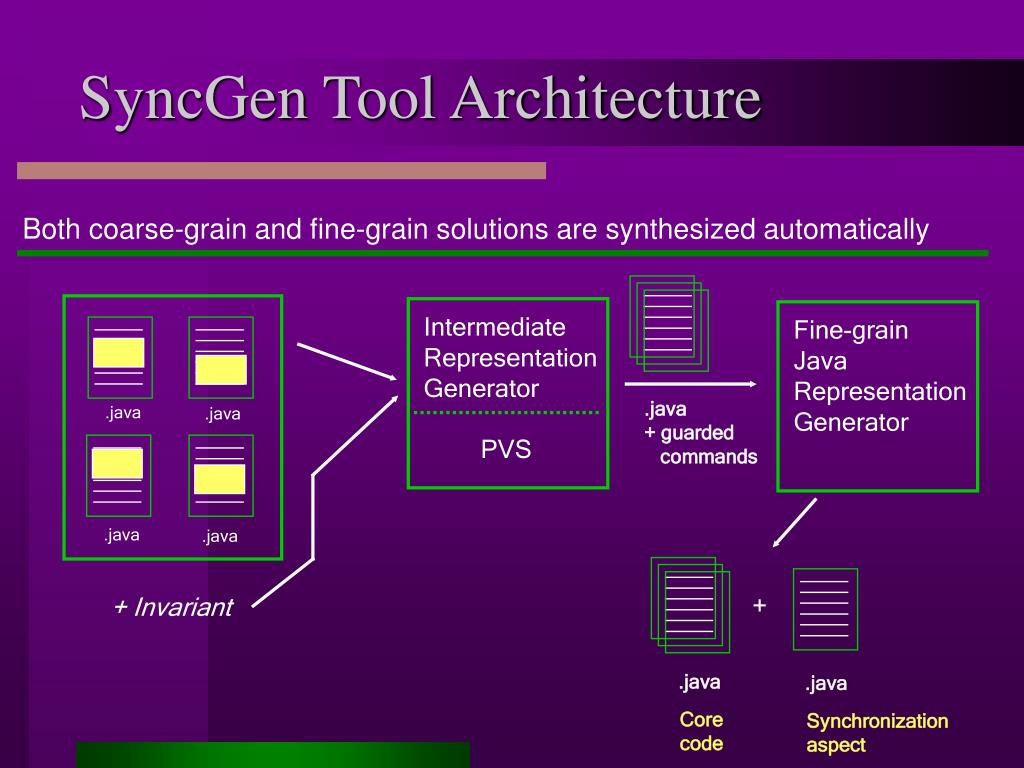

4. Intermediate Representation Generator Fine-grain Java Representation Generator .java + guarded commands .java .java PVS .java .java + .java .java Core code Synchronization aspect SyncGen Tool Architecture Both coarse-grain and fine-grain solutions are synthesized automatically + Invariant

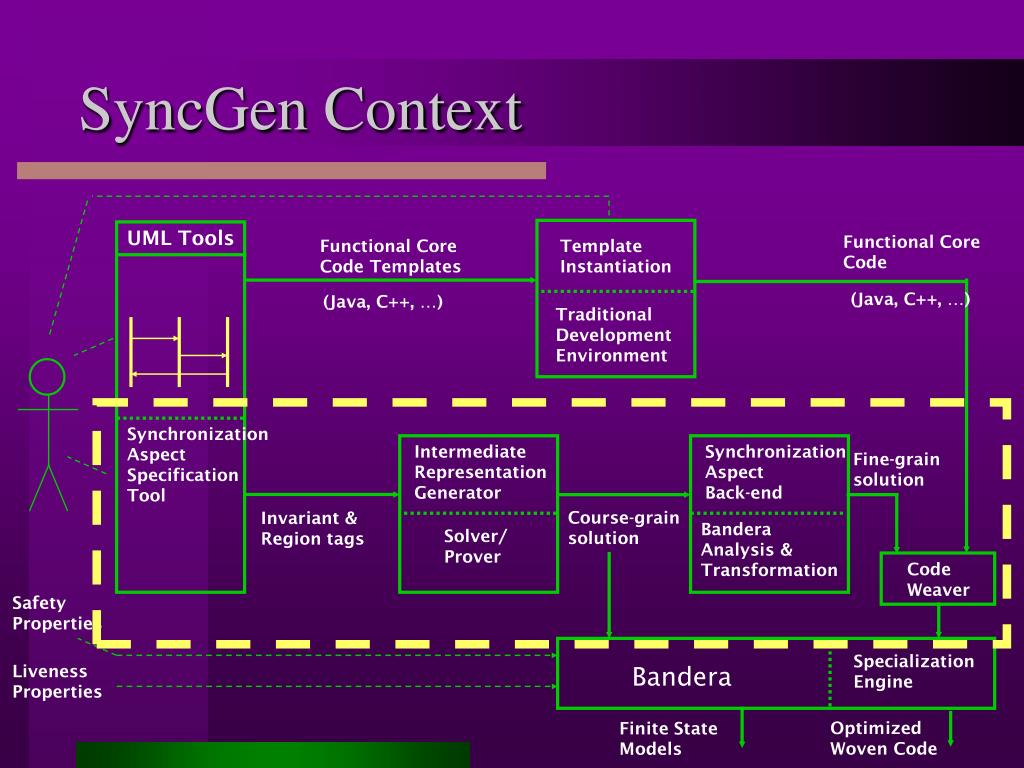

5. UML Tools Functional Core Code Functional Core Code Templates Template Instantiation Solver/ Prover (Java, C++, …) (Java, C++, …) Traditional Development Environment Synchronization Aspect Specification Tool Intermediate Representation Generator Synchronization Aspect Back-end Fine-grain solution Course-grain solution Invariant & Region tags Bandera Analysis & Transformation Code Weaver Safety Properties Specialization Engine Liveness Properties Bandera Optimized Woven Code Finite State Models SyncGen Context

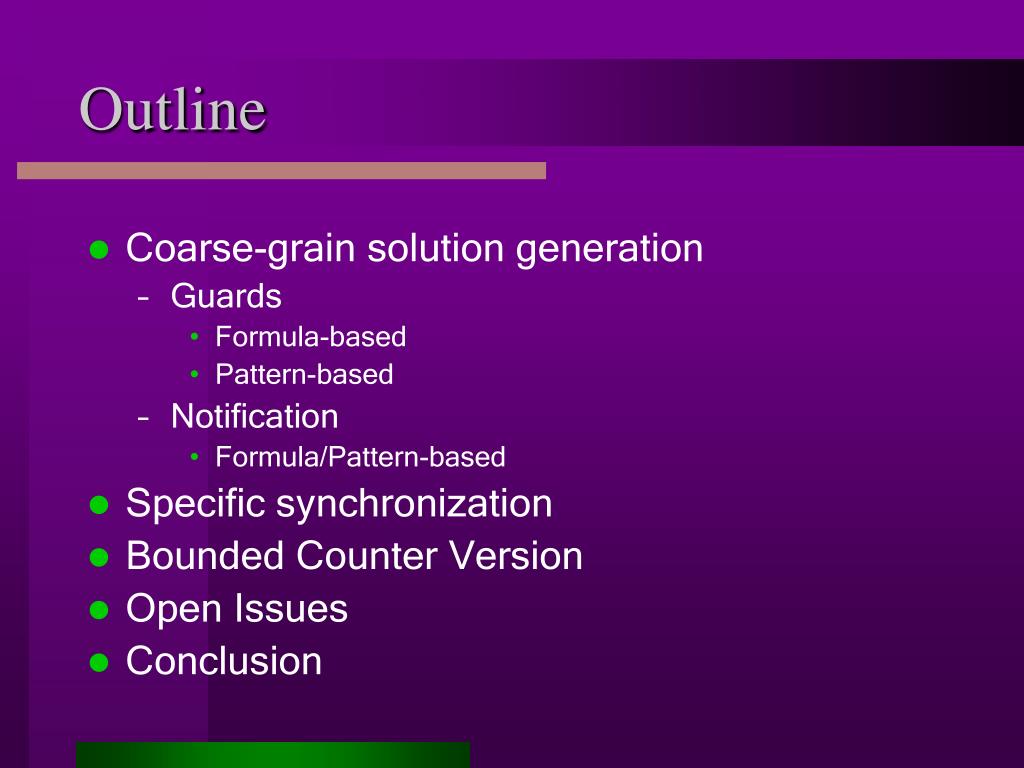

6. Outline • Coarse-grain solution generation • Guards • Formula-based • Pattern-based • Notification • Formula/Pattern-based • Specific synchronization • Bounded Counter Version • Open Issues • Conclusion

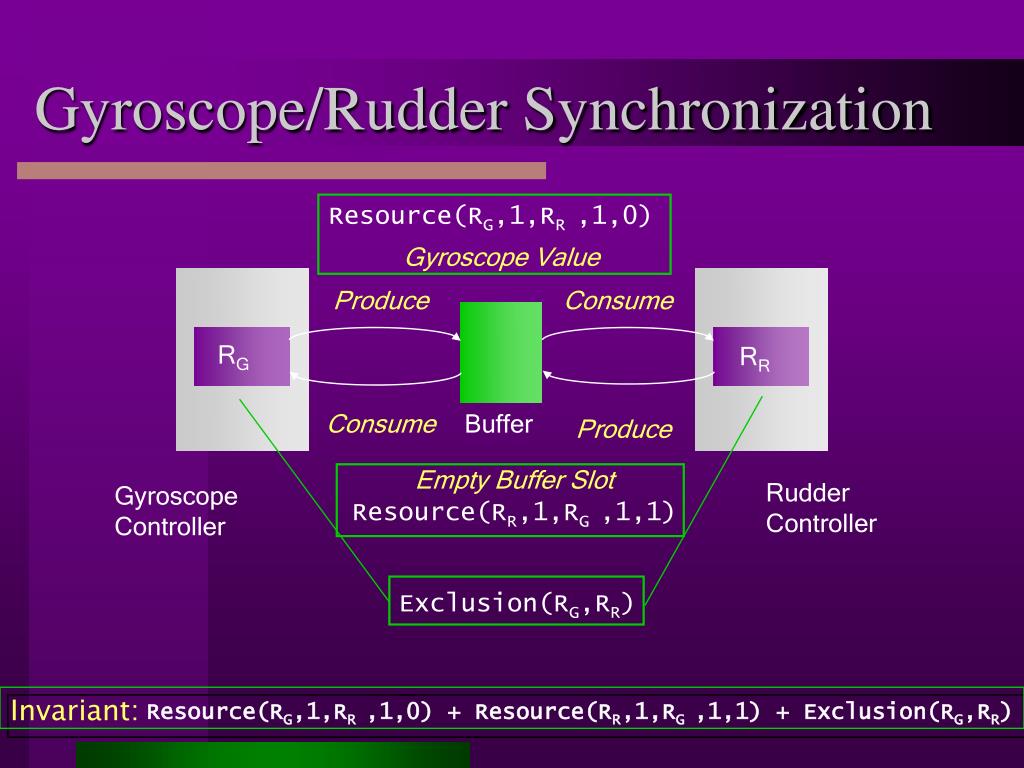

7. Resource(RG,1,RR ,1,0) Gyroscope Value Produce Consume Consume Produce Empty Buffer Slot Resource(RR,1,RG ,1,1) Exclusion(RG,RR) Gyroscope/Rudder Synchronization RG RR Buffer Rudder Controller Gyroscope Controller Invariant: Resource(RG,1,RR ,1,0) + Resource(RR,1,RG ,1,1) + Exclusion(RG,RR)

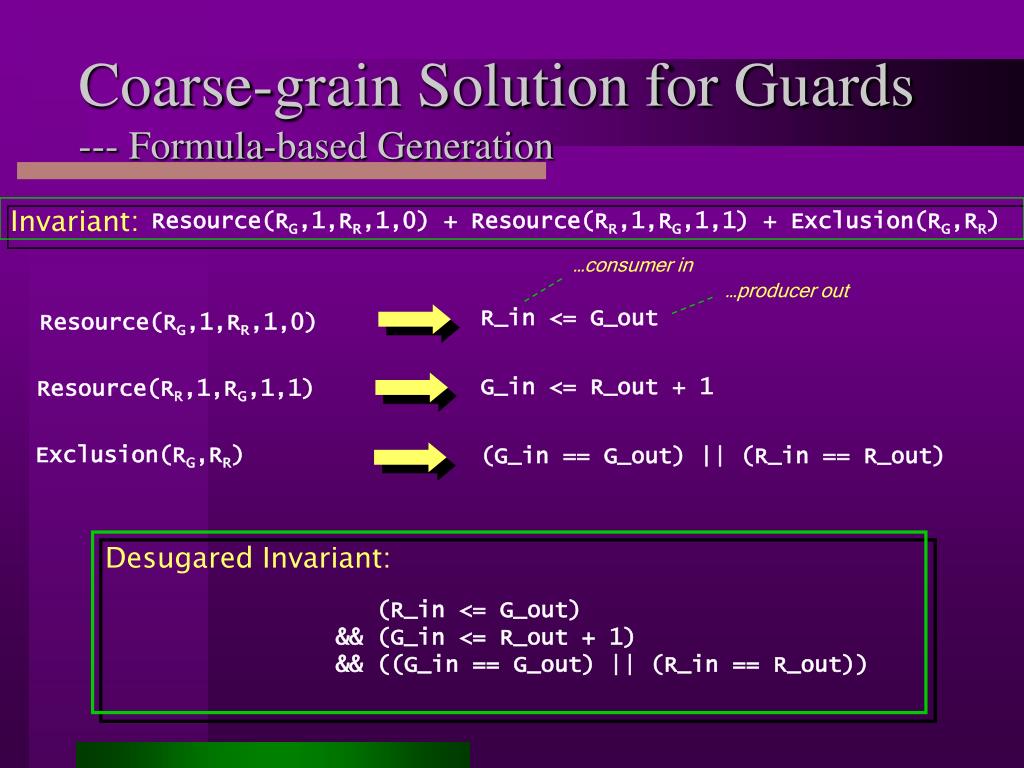

8. Invariant: Resource(RG,1,RR,1,0) + Resource(RR,1,RG,1,1) + Exclusion(RG,RR) …consumer in …producer out Desugared Invariant: (R_in <= G_out) && (G_in <= R_out + 1) && ((G_in == G_out) || (R_in == R_out)) Coarse-grain Solution for Guards--- Formula-based Generation R_in <= G_out Resource(RG,1,RR,1,0) G_in <= R_out + 1 Resource(RR,1,RG,1,1) Exclusion(RG,RR) (G_in == G_out) || (R_in == R_out)

9. <await B -> G_in++> Step 1: generate weakest-precondition(G_in++,I) Substitute G_in+1 for G_in Generating Coarse-grain Solution …invariantI holdshere G_in++ …want I to hold here Task: generate a condition B that ensures that I holds after counter increment. (R_in <= G_out) && (G_in <= R_out + 1) && ((G_in == G_out) || (R_in == R_out)) (R_in <= G_out) && (G_in+1 <= R_out + 1) && ((G_in+1 == G_out) || (R_in == R_out))

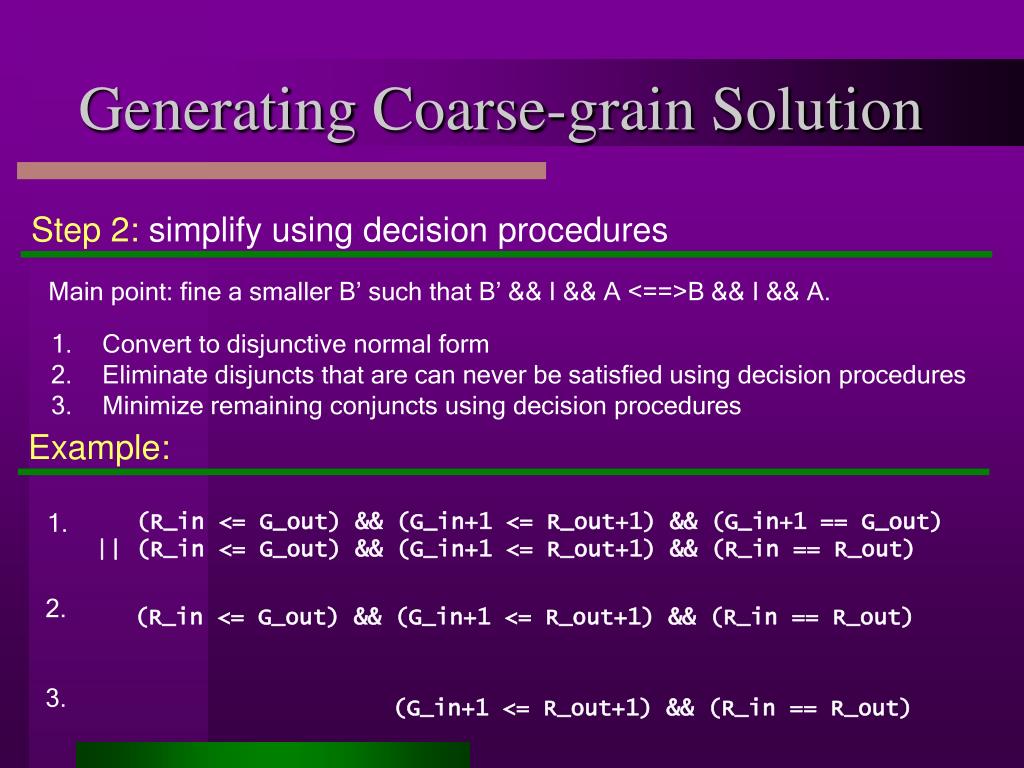

10. Example: 1. (R_in <= G_out) && (G_in+1 <= R_out+1) && (G_in+1 == G_out) || (R_in <= G_out) && (G_in+1 <= R_out+1) && (R_in == R_out) 2. (R_in <= G_out) && (G_in+1 <= R_out+1) && (R_in == R_out) 3. (G_in+1 <= R_out+1) && (R_in == R_out) Generating Coarse-grain Solution Step 2: simplify using decision procedures Main point: fine a smaller B’ such that B’ && I && A <==>B && I && A. • Convert to disjunctive normal form • Eliminate disjuncts that are can never be satisfied using decision procedures • Minimize remaining conjuncts using decision procedures

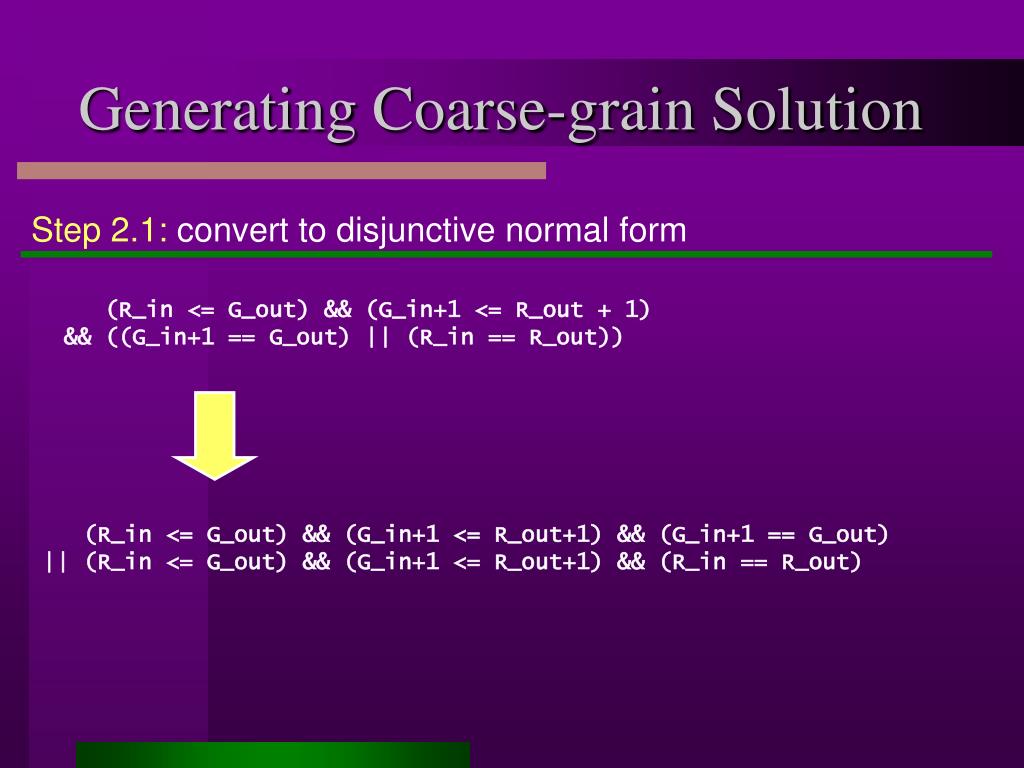

11. Generating Coarse-grain Solution Step 2.1: convert to disjunctive normal form (R_in <= G_out) && (G_in+1 <= R_out + 1) && ((G_in+1 == G_out) || (R_in == R_out)) (R_in <= G_out) && (G_in+1 <= R_out+1) && (G_in+1 == G_out) || (R_in <= G_out) && (G_in+1 <= R_out+1) && (R_in == R_out)

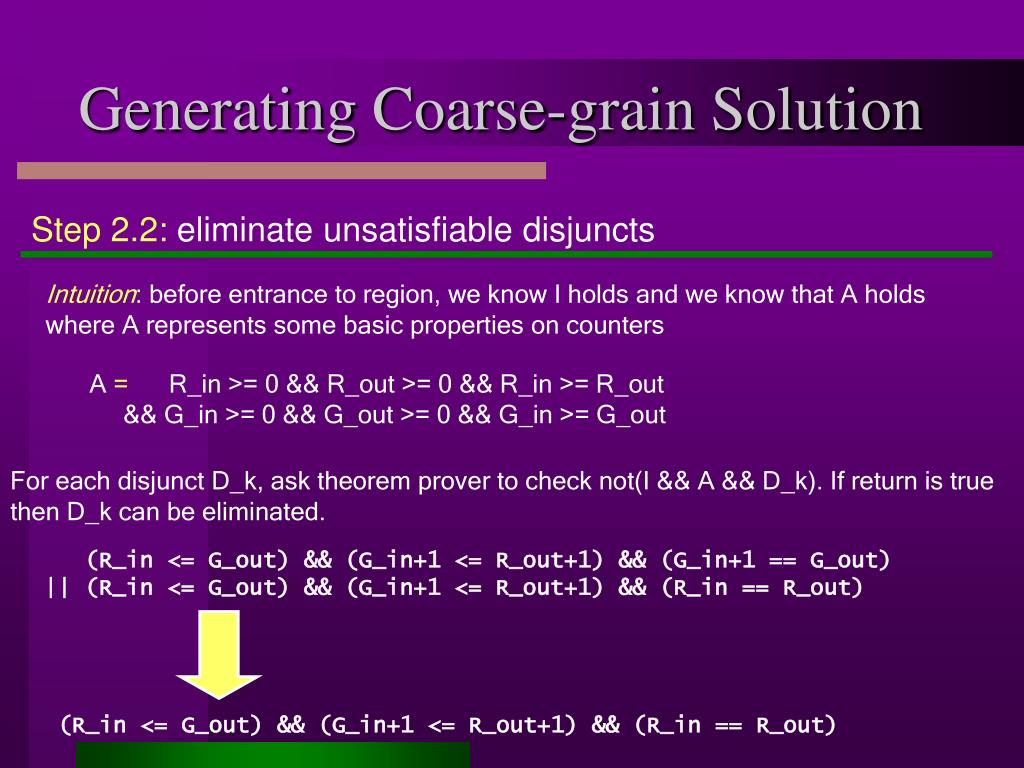

12. Generating Coarse-grain Solution Step 2.2: eliminate unsatisfiable disjuncts Intuition: before entrance to region, we know I holds and we know that A holds where A represents some basic properties on counters A = R_in >= 0 && R_out >= 0 && R_in >= R_out && G_in >= 0 && G_out >= 0 && G_in >= G_out For each disjunct D_k, ask theorem prover to check not(I && A && D_k). If return is truethen D_k can be eliminated. (R_in <= G_out) && (G_in+1 <= R_out+1) && (G_in+1 == G_out) || (R_in <= G_out) && (G_in+1 <= R_out+1) && (R_in == R_out) (R_in <= G_out) && (G_in+1 <= R_out+1) && (R_in == R_out)

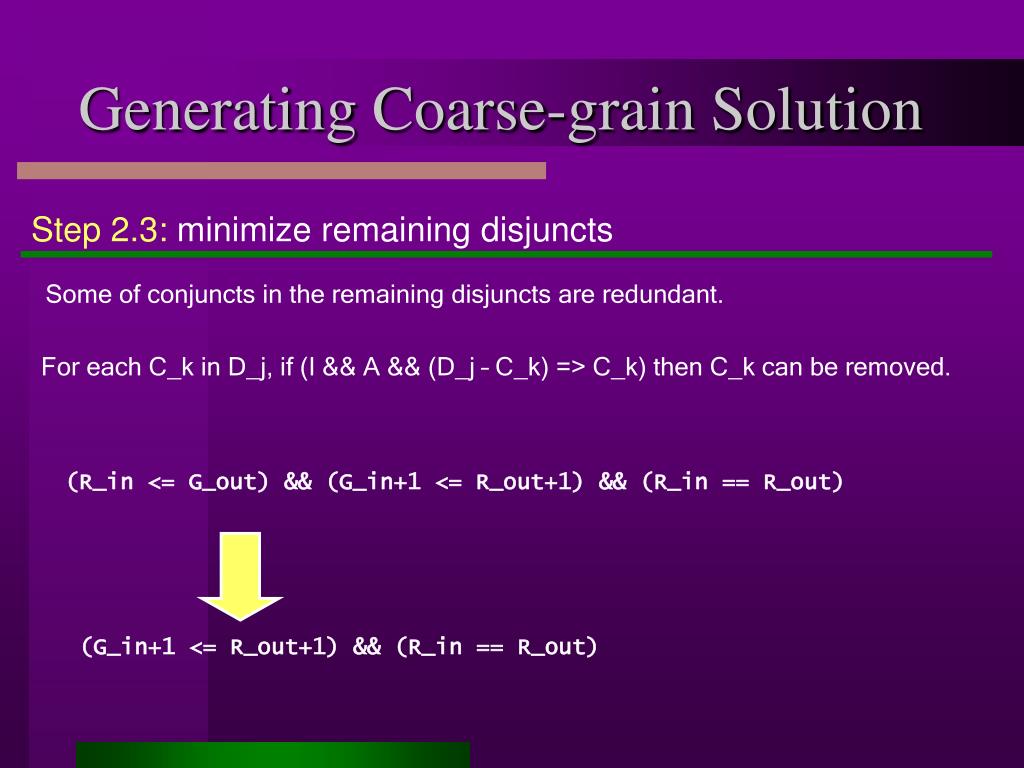

13. Generating Coarse-grain Solution Step 2.3: minimize remaining disjuncts Some of conjuncts in the remaining disjuncts are redundant. For each C_k in D_j, if (I && A && (D_j – C_k) => C_k) then C_k can be removed. (R_in <= G_out) && (G_in+1 <= R_out+1) && (R_in == R_out) (G_in+1 <= R_out+1) && (R_in == R_out)

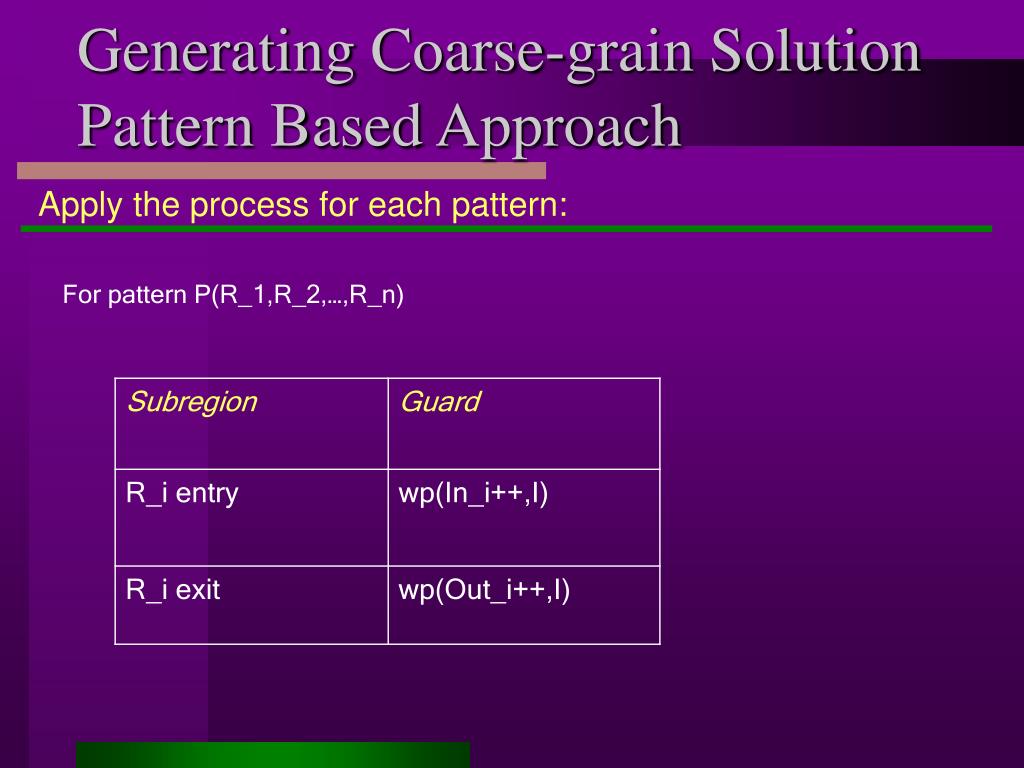

14. Generating Coarse-grain Solution Pattern Based Approach Apply the process for each pattern: For pattern P(R_1,R_2,…,R_n)

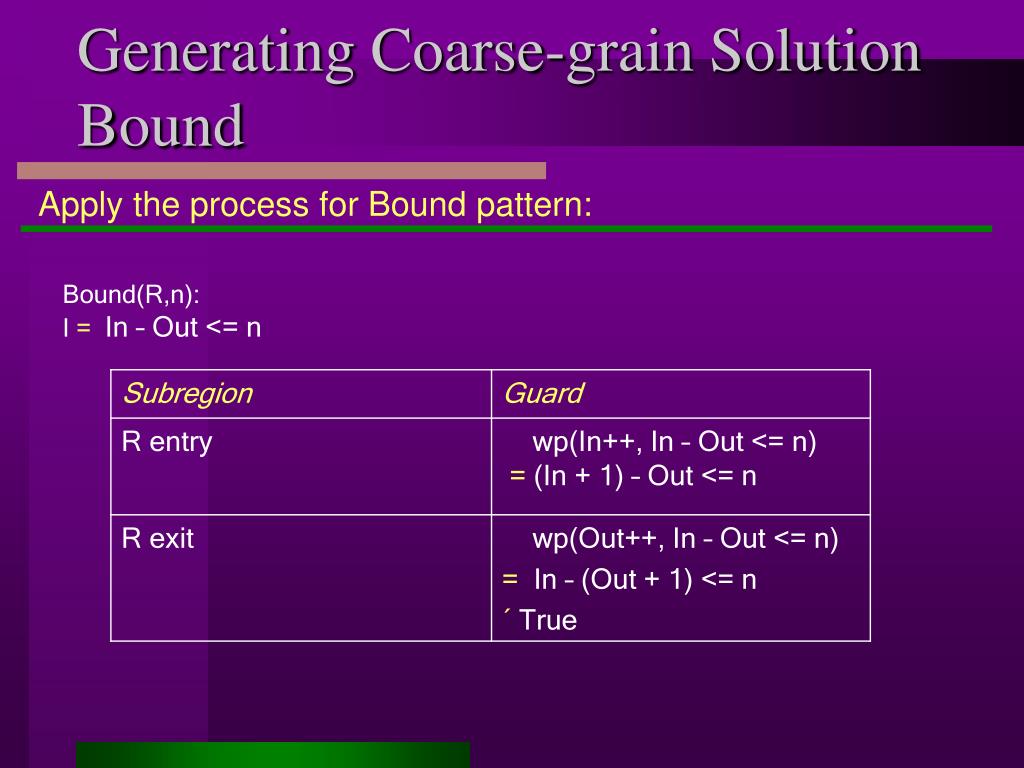

15. Generating Coarse-grain Solution Bound Apply the process for Bound pattern: Bound(R,n): I =In – Out <= n

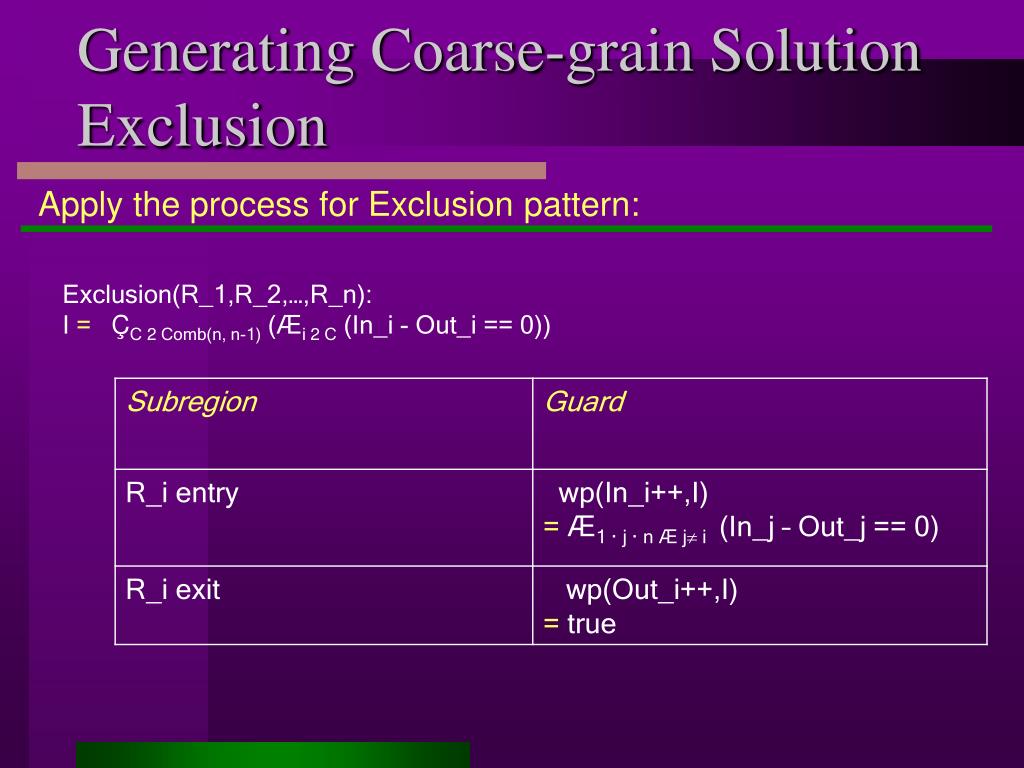

16. Generating Coarse-grain Solution Exclusion Apply the process for Exclusion pattern: Exclusion(R_1,R_2,…,R_n): I = ÇC 2 Comb(n, n-1) (Æi 2 C (In_i - Out_i == 0))

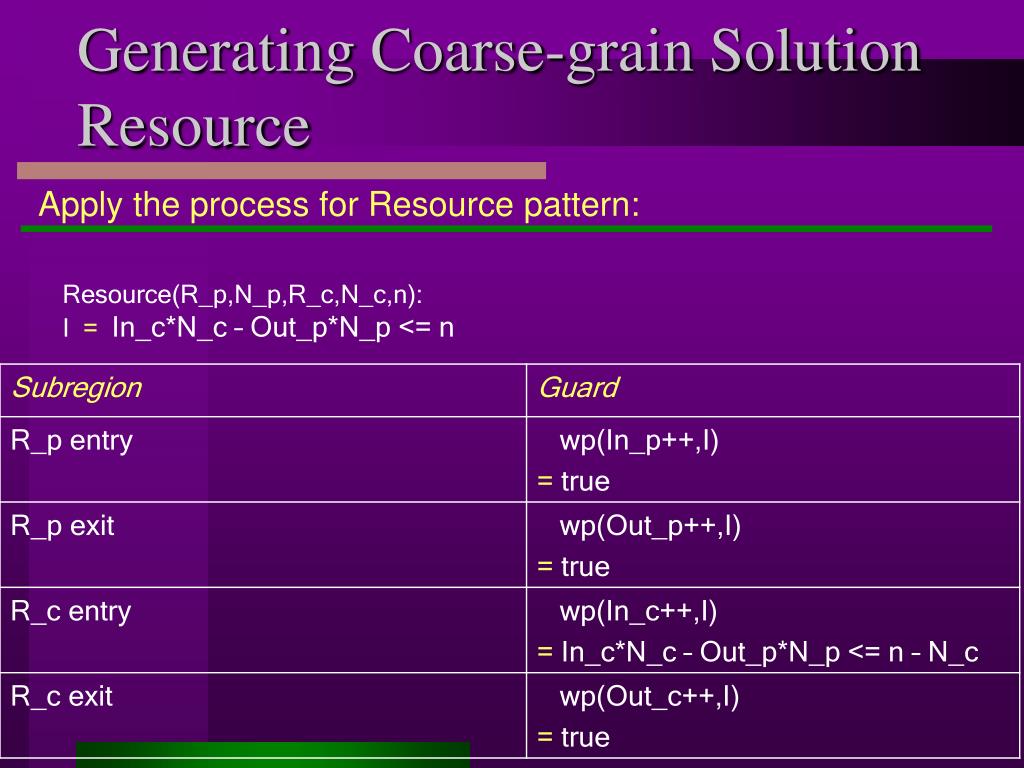

17. Generating Coarse-grain Solution Resource Apply the process for Resource pattern: Resource(R_p,N_p,R_c,N_c,n):I = In_c*N_c – Out_p*N_p <= n

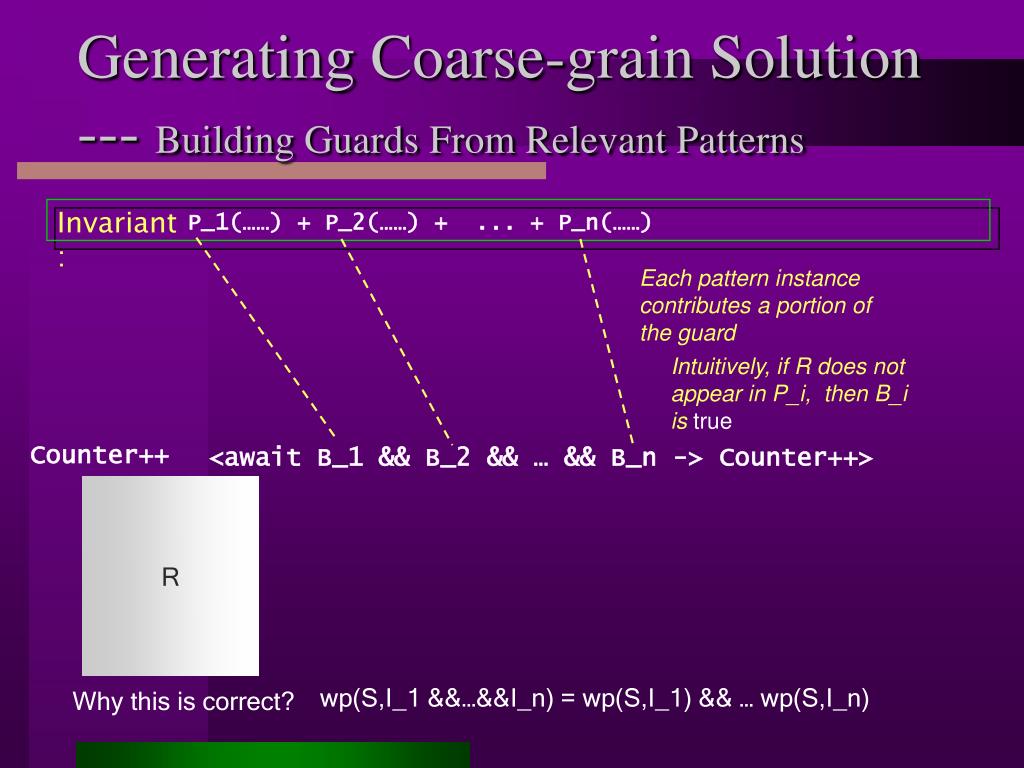

18. Invariant: P_1(……) + P_2(……) + ... + P_n(……) Generating Coarse-grain Solution--- Building Guards From Relevant Patterns Each pattern instance contributes a portion of the guard Intuitively, if R does not appear in P_i, then B_i is true Counter++ <await B_1 && B_2 && … && B_n -> Counter++> R wp(S,I_1 &&…&&I_n) = wp(S,I_1) && … wp(S,I_n) Why this is correct?

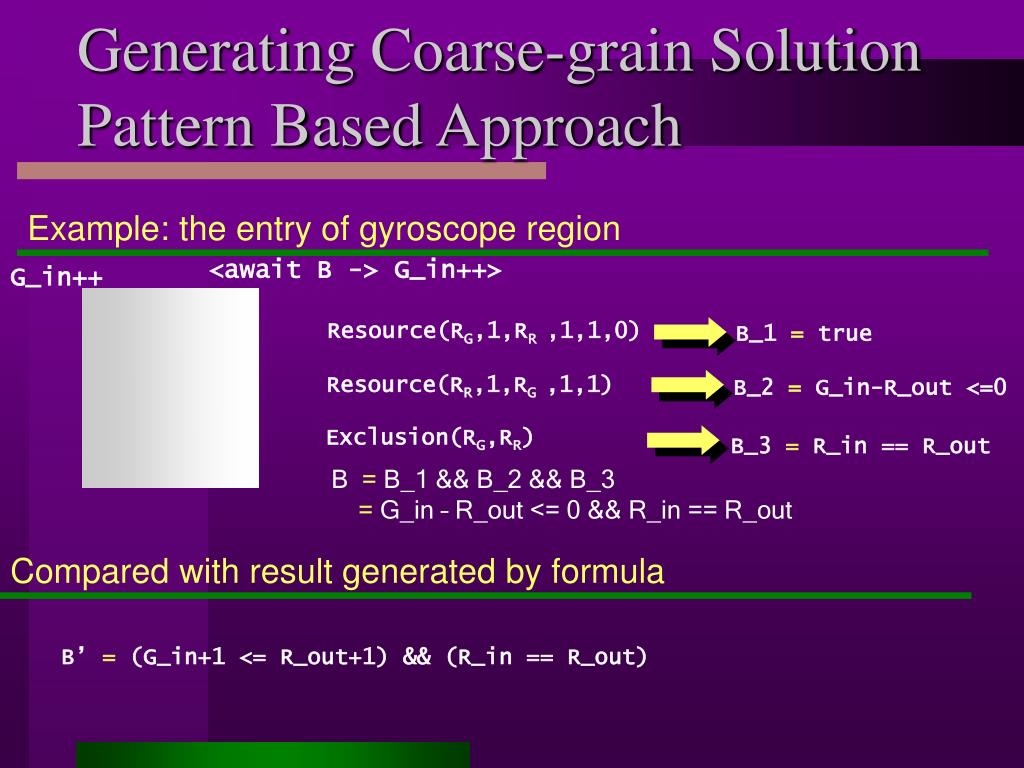

19. Compared with result generated by formula Example: the entry of gyroscope region B_1 = true B_2 = G_in-R_out <=0 B_3 = R_in == R_out Generating Coarse-grain Solution Pattern Based Approach <await B -> G_in++> G_in++ Resource(RG,1,RR ,1,1,0) Resource(RR,1,RG ,1,1) Exclusion(RG,RR) B = B_1 && B_2 && B_3 = G_in – R_out <= 0 && R_in == R_out B’ = (G_in+1 <= R_out+1) && (R_in == R_out)

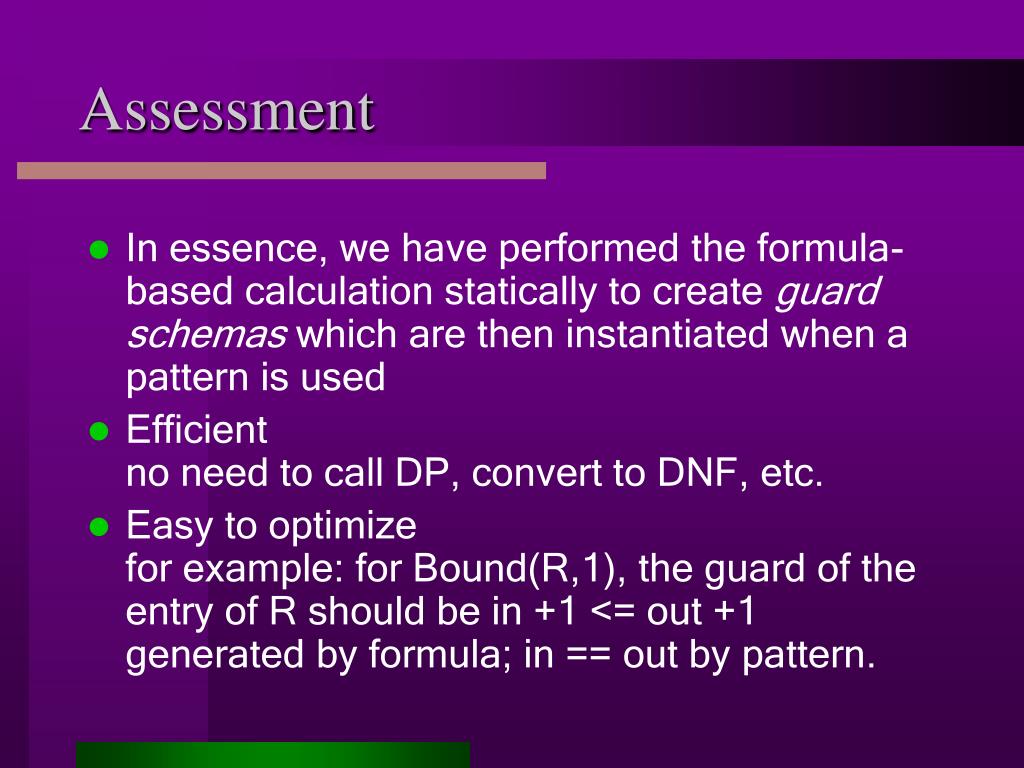

20. Assessment • In essence, we have performed the formula-based calculation statically to create guard schemas which are then instantiated when a pattern is used • Efficientno need to call DP, convert to DNF, etc. • Easy to optimizefor example: for Bound(R,1), the guard of the entry of R should be in +1 <= out +1 generated by formula; in == out by pattern.

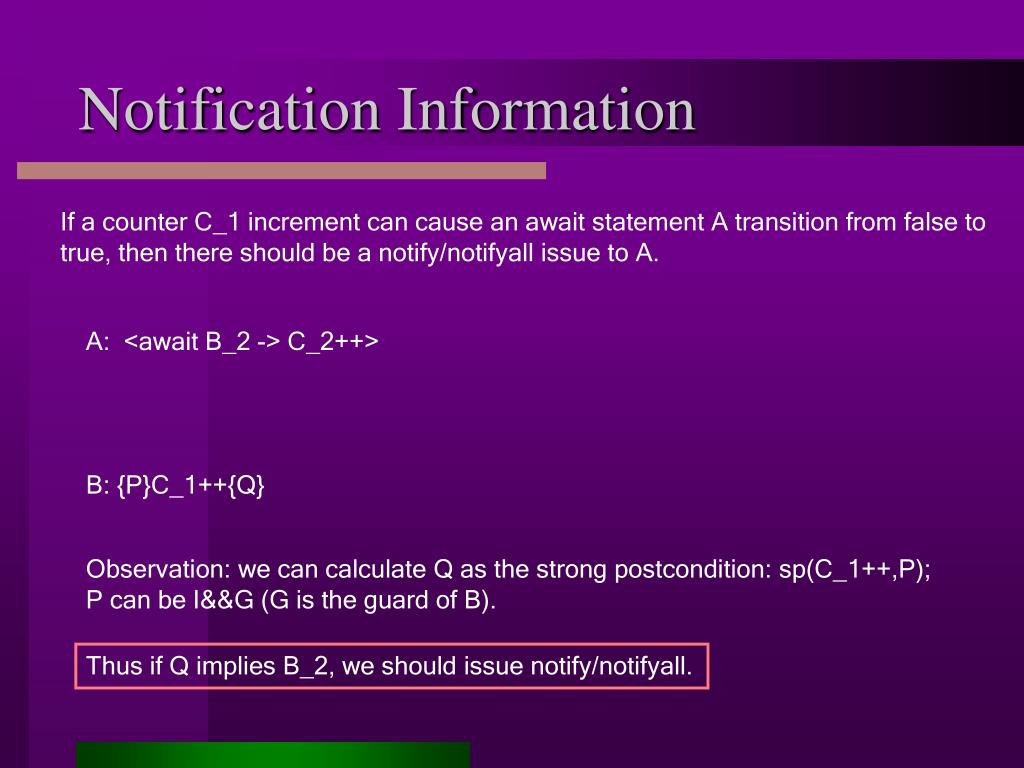

21. Notification Information If a counter C_1 increment can cause an await statement A transition from false to true, then there should be a notify/notifyall issue to A. A: <await B_2 -> C_2++> B: {P}C_1++{Q} Observation: we can calculate Q as the strong postcondition: sp(C_1++,P); P can be I&&G (G is the guard of B). Thus if Q implies B_2, we should issue notify/notifyall.

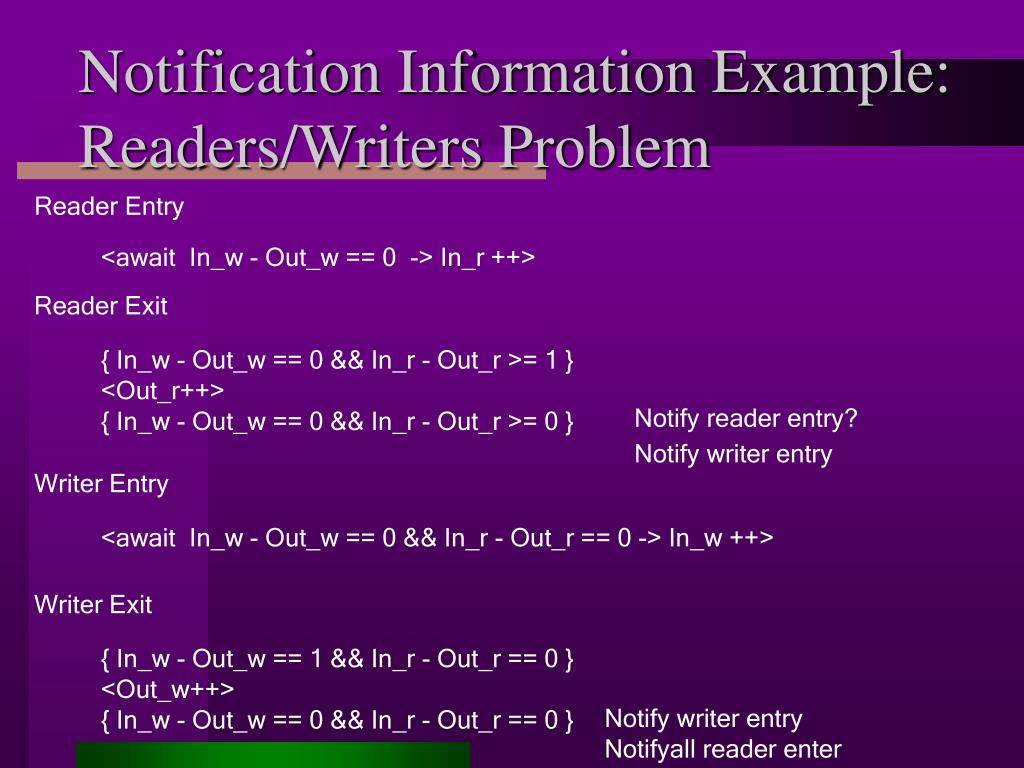

22. Notification Information Example: Readers/Writers Problem Reader Entry <await In_w - Out_w == 0 -> In_r ++> Reader Exit { In_w - Out_w == 0 && In_r - Out_r >= 1 } <Out_r++> { In_w - Out_w == 0 && In_r - Out_r >= 0 } Notify reader entry? Notify writer entry Writer Entry <await In_w - Out_w == 0 && In_r - Out_r == 0 -> In_w ++> Writer Exit { In_w - Out_w == 1 && In_r - Out_r == 0 } <Out_w++> { In_w - Out_w == 0 && In_r - Out_r == 0 } Notify writer entry Notifyall reader enter

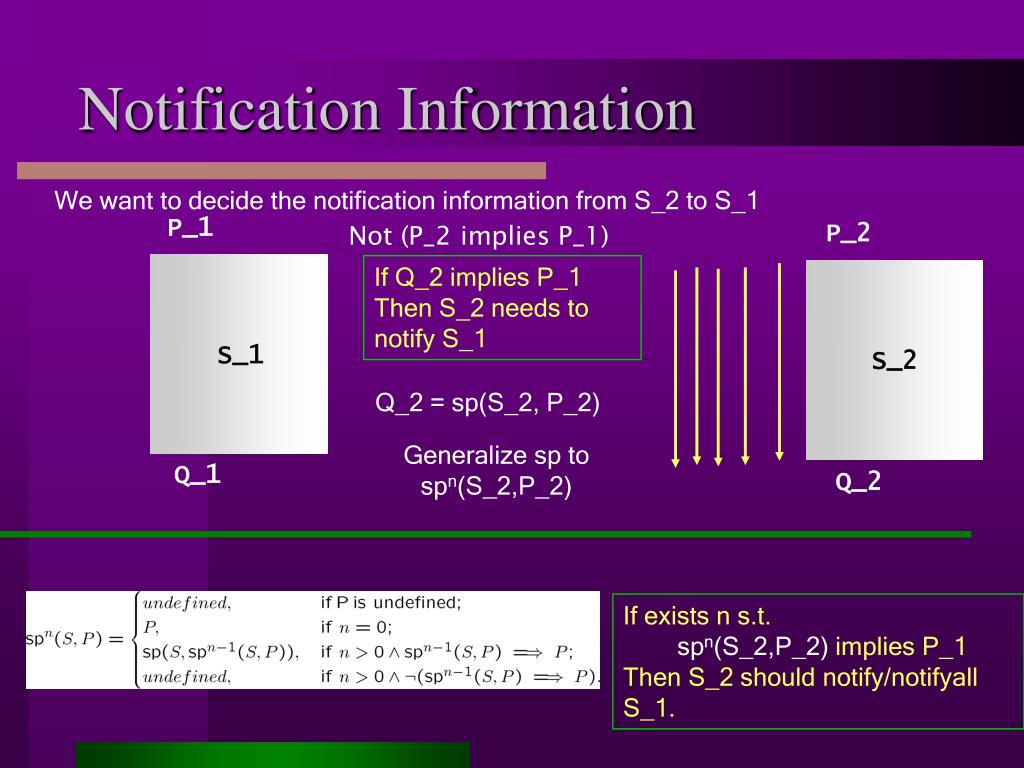

23. Notification Information We want to decide the notification information from S_2 to S_1 P_1 P_2 Not (P_2 implies P_1) If Q_2 implies P_1 Then S_2 needs to notify S_1 S_2 S_1 Q_2 = sp(S_2, P_2) Generalize sp to spn(S_2,P_2) Q_1 Q_2 If exists n s.t. spn(S_2,P_2) implies P_1 Then S_2 should notify/notifyall S_1.

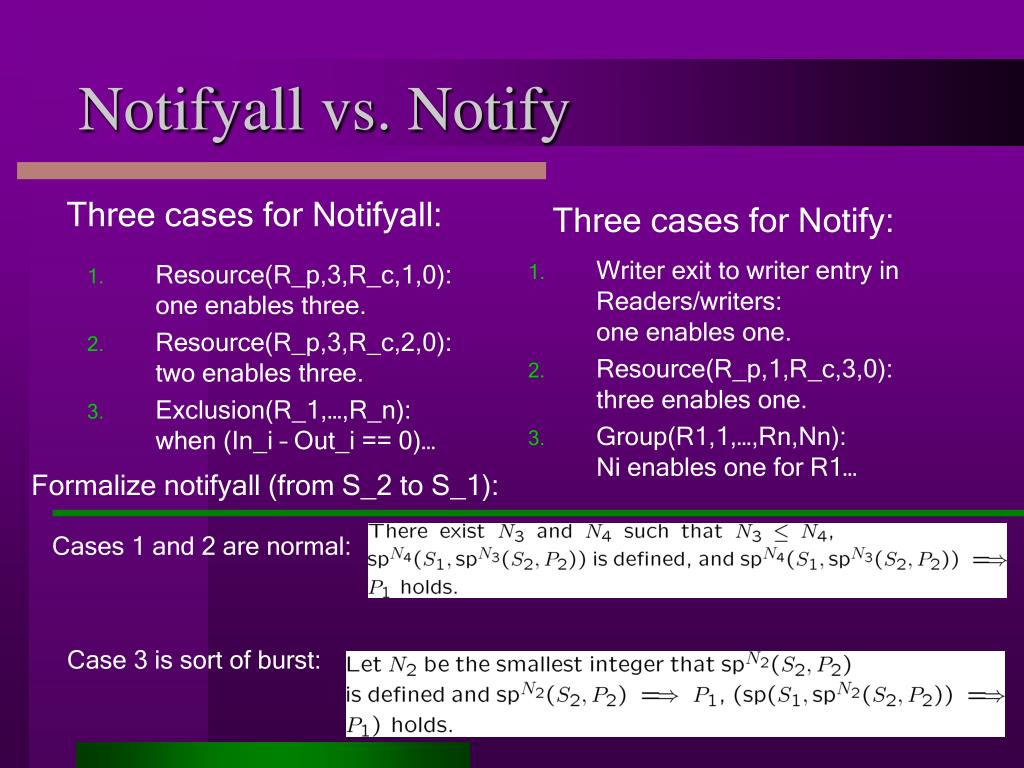

24. Formalize notifyall (from S_2 to S_1): Notifyall vs. Notify Three cases for Notifyall: Three cases for Notify: • Resource(R_p,3,R_c,1,0):one enables three. • Resource(R_p,3,R_c,2,0):two enables three. • Exclusion(R_1,…,R_n):when (In_i – Out_i == 0)… Writer exit to writer entry in Readers/writers:one enables one. Resource(R_p,1,R_c,3,0):three enables one. Group(R1,1,…,Rn,Nn):Ni enables one for R1… Cases 1 and 2 are normal: Case 3 is sort of burst:

25. Notification Information Generation for Bound Exit Entry P_1 = In_B–Out_B<=n-1 P_2 = In_B–Out_B<=n Out_B++ Not (P_2 implies P_1) In_B++ Q_2 implies P_1 Q_1 = In_B–Out_B<=n Q_2 = In_B–Out_B<=n-1 …belongs to the case 1 of notify (one out let one enter). Thus a notify from the exit to the entry.

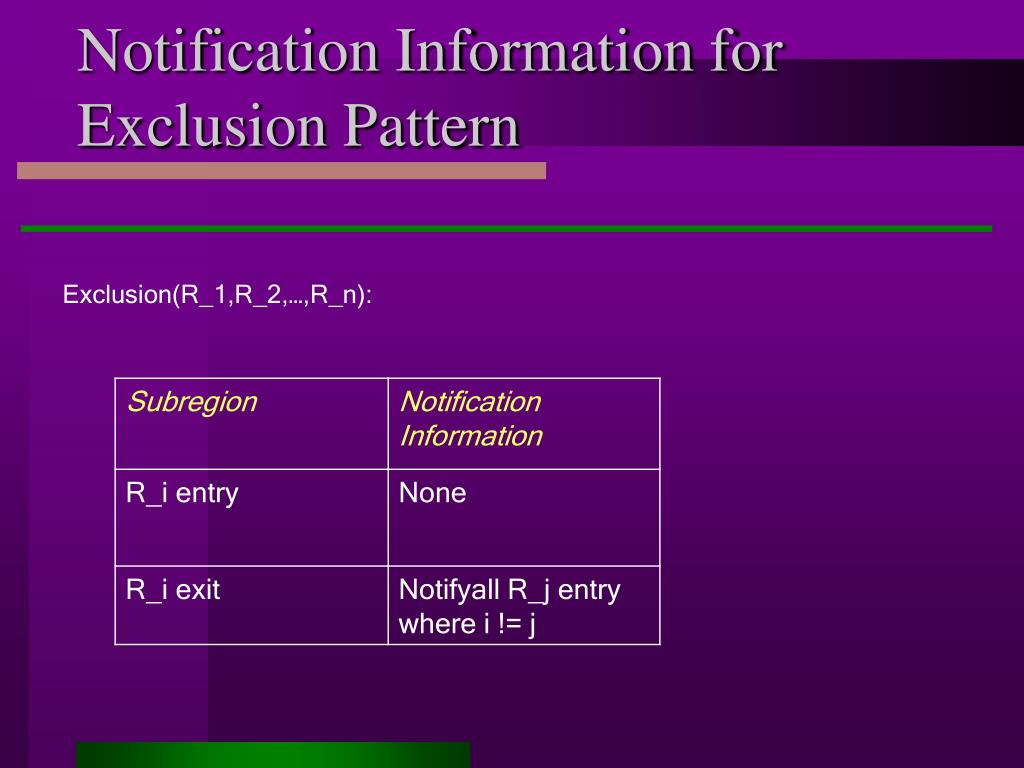

26. Notification Information for Exclusion Pattern Exclusion(R_1,R_2,…,R_n):

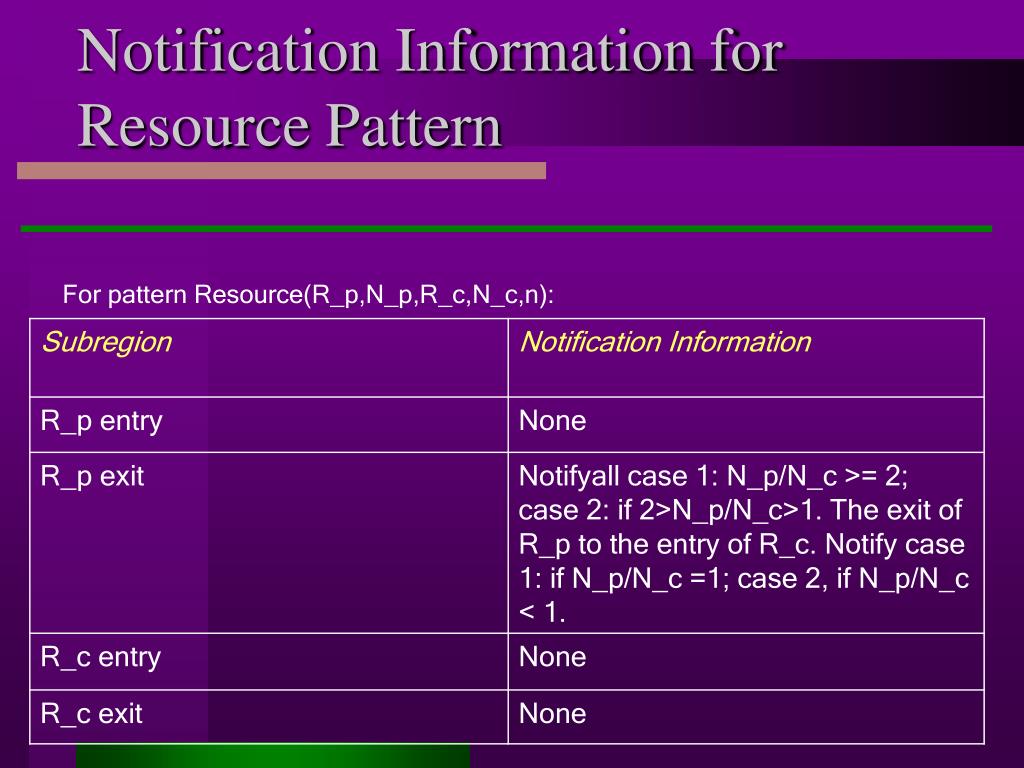

27. Notification Information for Resource Pattern For pattern Resource(R_p,N_p,R_c,N_c,n):

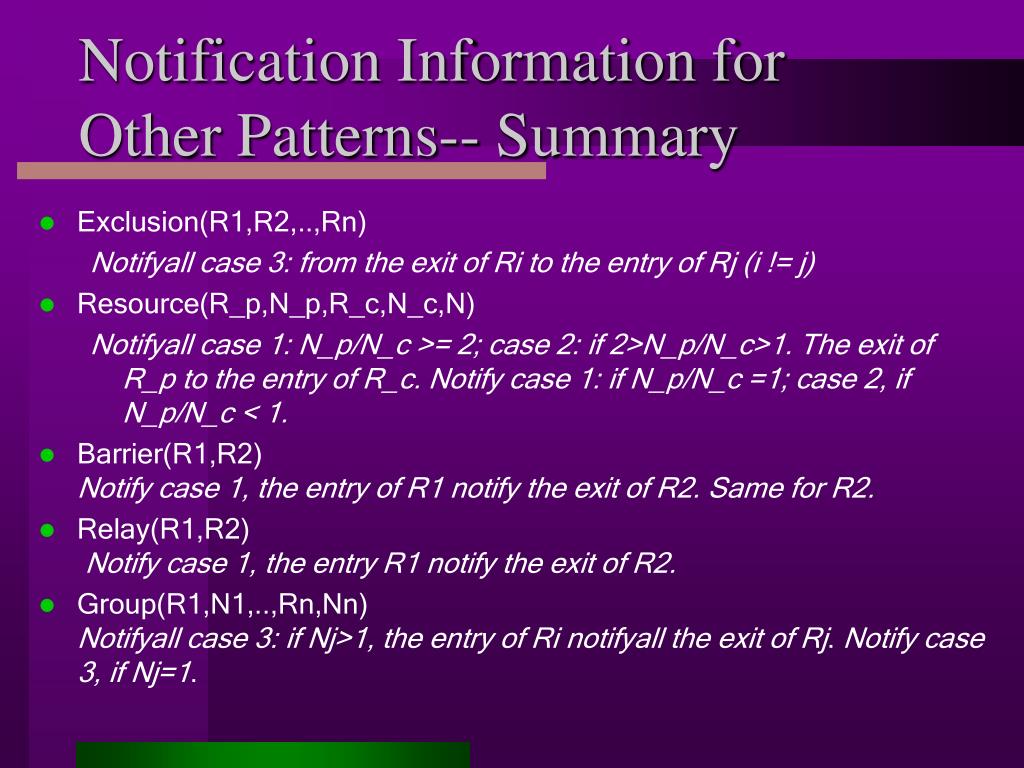

28. Notification Information for Other Patterns-- Summary • Exclusion(R1,R2,..,Rn) Notifyall case 3: from the exit of Ri to the entry of Rj (i != j) • Resource(R_p,N_p,R_c,N_c,N) Notifyall case 1: N_p/N_c >= 2; case 2: if 2>N_p/N_c>1. The exit of R_p to the entry of R_c. Notify case 1: if N_p/N_c =1; case 2, if N_p/N_c < 1. • Barrier(R1,R2)Notify case 1, the entry of R1 notify the exit of R2. Same for R2. • Relay(R1,R2)Notify case 1, the entry R1 notify the exit of R2. • Group(R1,N1,..,Rn,Nn)Notifyall case 3: if Nj>1, the entry of Ri notifyall the exit of Rj. Notify case 3, if Nj=1.

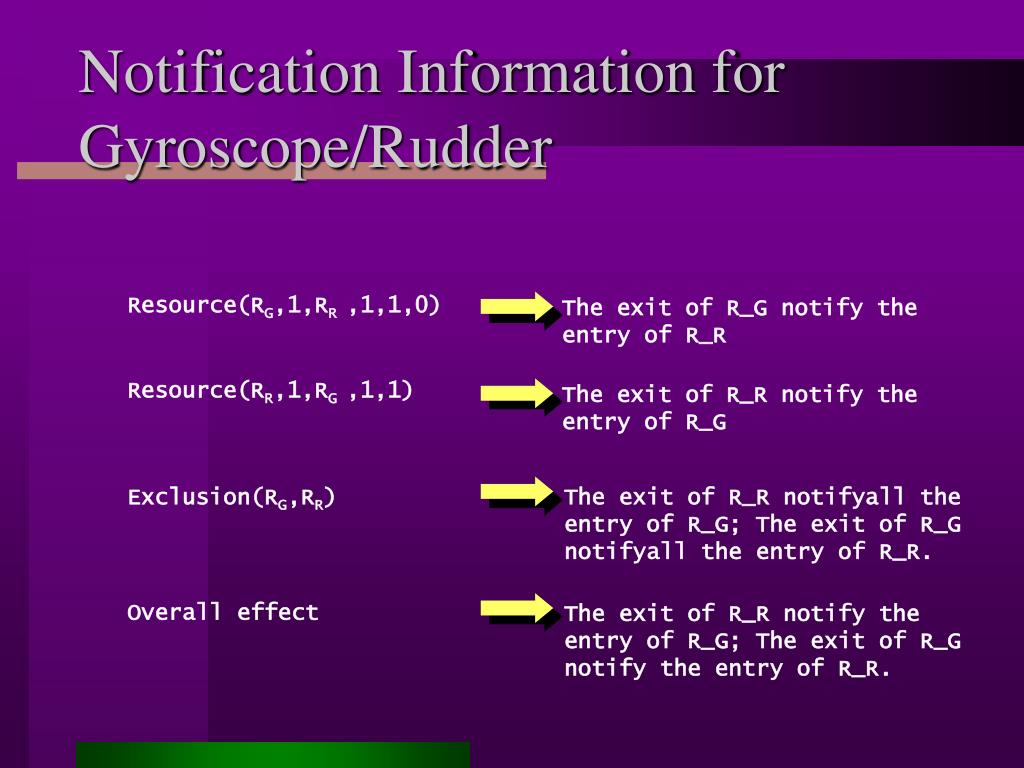

29. The exit of R_G notify theentry of R_R The exit of R_R notify theentry of R_G The exit of R_R notifyall theentry of R_G; The exit of R_Gnotifyall the entry of R_R. The exit of R_R notify theentry of R_G; The exit of R_Gnotify the entry of R_R. Notification Information for Gyroscope/Rudder Resource(RG,1,RR ,1,1,0) Resource(RR,1,RG ,1,1) Exclusion(RG,RR) Overall effect

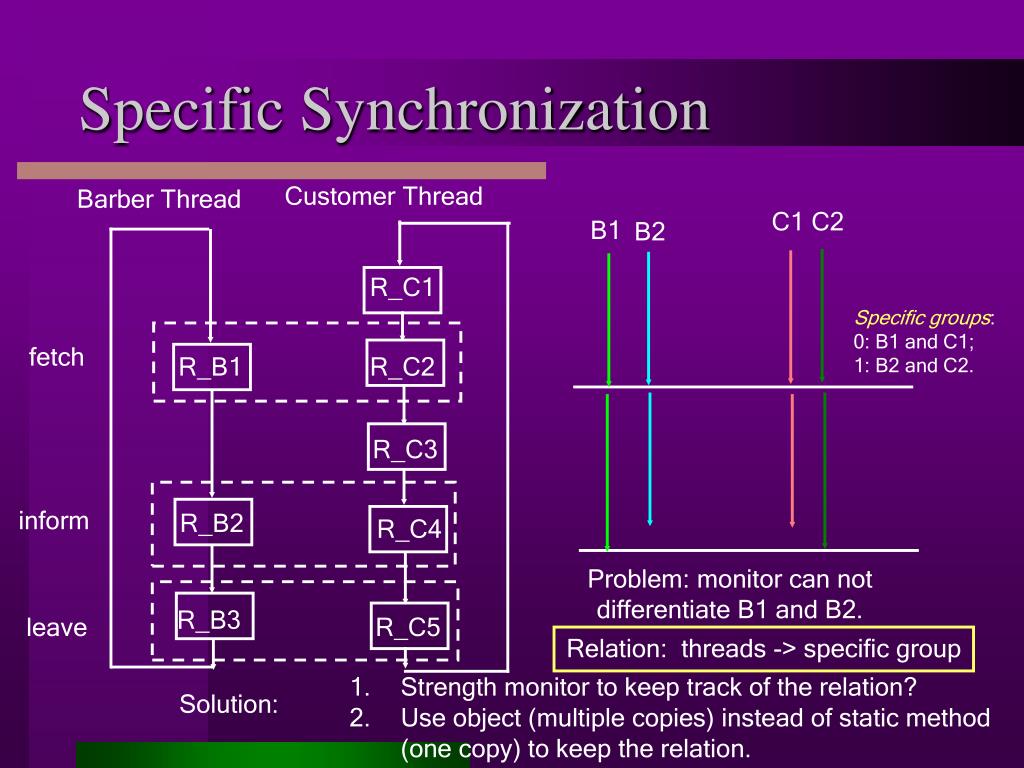

30. R_C1 R_B2 Specific Synchronization Customer Thread Barber Thread C1 C2 B1 B2 Specific groups:0: B1 and C1;1: B2 and C2. fetch R_B1 R_C2 R_C3 inform R_C4 Problem: monitor can not differentiate B1 and B2. R_B3 leave R_C5 Relation: threads -> specific group • Strength monitor to keep track of the relation? • Use object (multiple copies) instead of static method(one copy) to keep the relation. Solution:

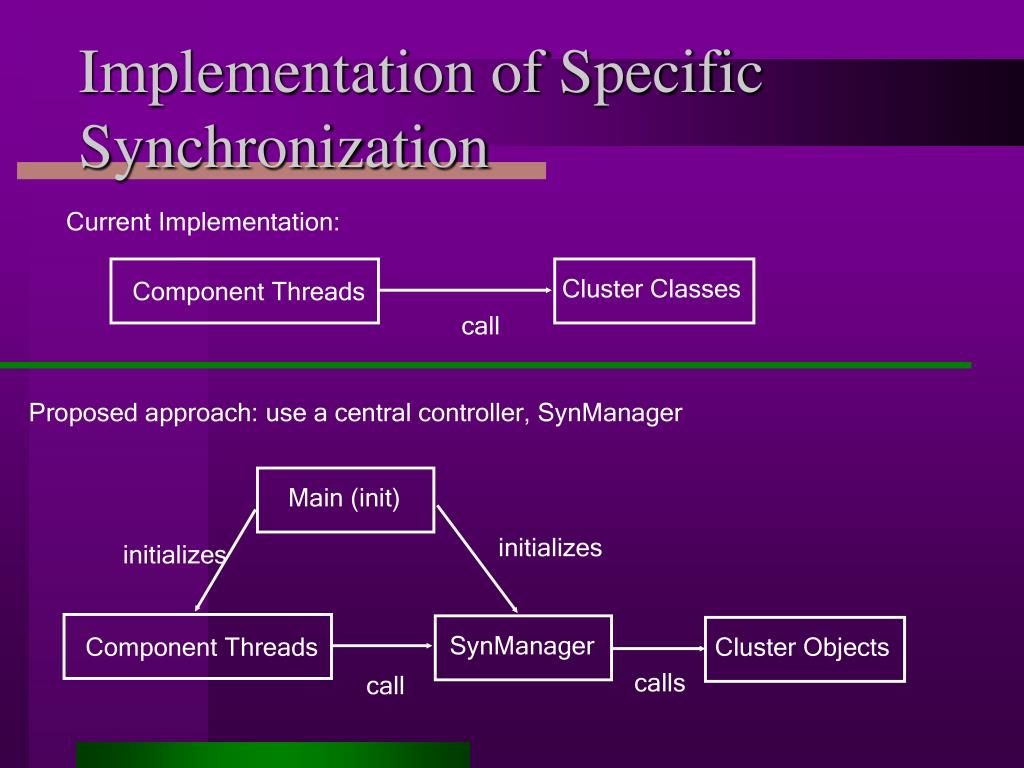

31. SynManager Main (init) call Proposed approach: use a central controller, SynManager Component Threads Component Threads Cluster Classes Cluster Objects initializes initializes calls call Implementation of Specific Synchronization Current Implementation:

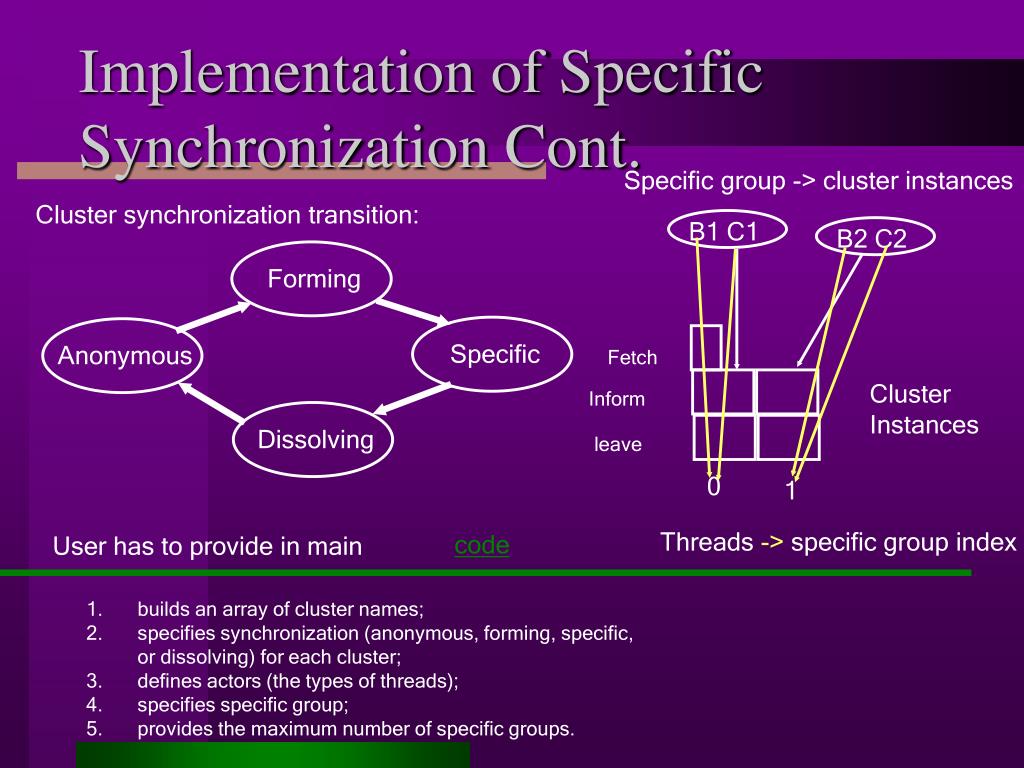

32. Specific group -> cluster instances B2 C2 B1 C1 Fetch Cluster Instances Anonymous Dissolving Forming Specific Inform leave 0 1 Threads -> specific group index User has to provide in main • builds an array of cluster names; • specifies synchronization (anonymous, forming, specific, or dissolving) for each cluster; • defines actors (the types of threads); • specifies specific group; • provides the maximum number of specific groups. Implementation of Specific Synchronization Cont. Cluster synchronization transition: code

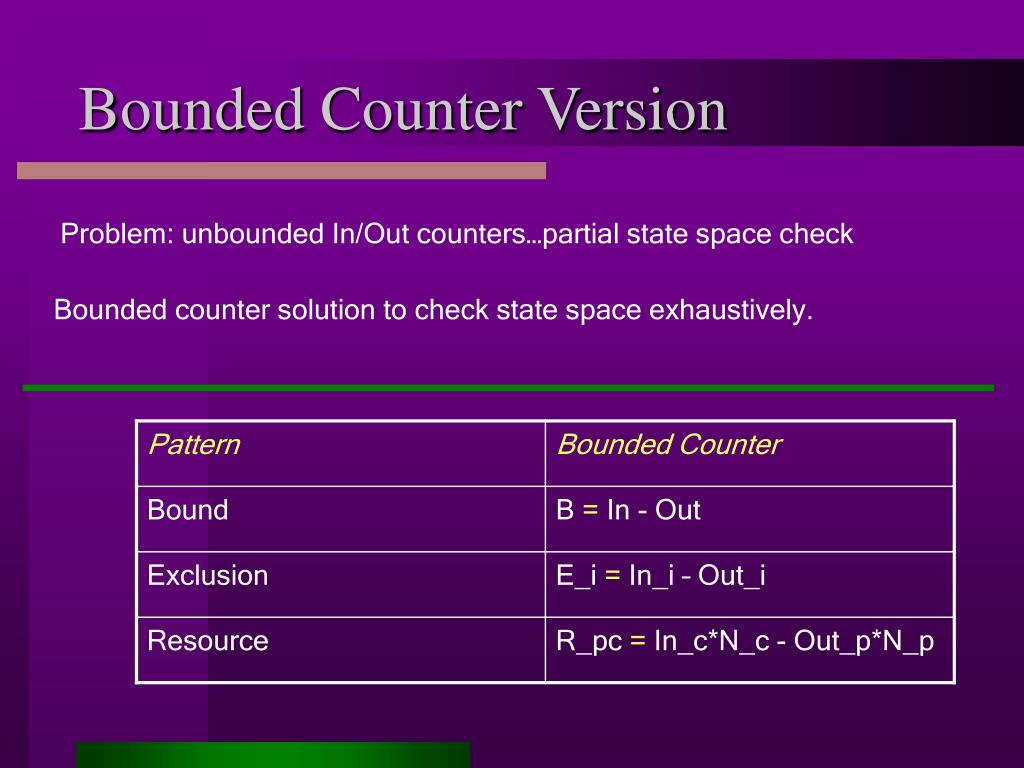

33. Bounded Counter Version Problem: unbounded In/Out counters…partial state space check Bounded counter solution to check state space exhaustively.

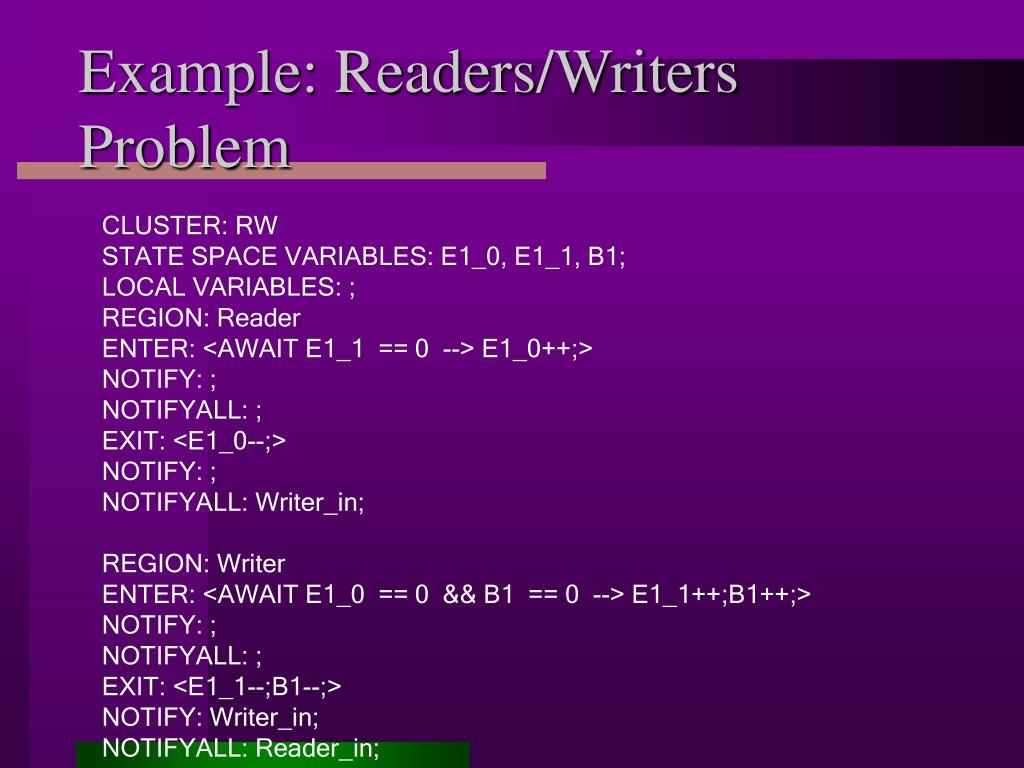

34. Example: Readers/Writers Problem CLUSTER: RW STATE SPACE VARIABLES: E1_0, E1_1, B1; LOCAL VARIABLES: ; REGION: Reader ENTER: <AWAIT E1_1 == 0 --> E1_0++;> NOTIFY: ; NOTIFYALL: ; EXIT: <E1_0--;> NOTIFY: ; NOTIFYALL: Writer_in; REGION: Writer ENTER: <AWAIT E1_0 == 0 && B1 == 0 --> E1_1++;B1++;> NOTIFY: ; NOTIFYALL: ; EXIT: <E1_1--;B1--;> NOTIFY: Writer_in; NOTIFYALL: Reader_in;

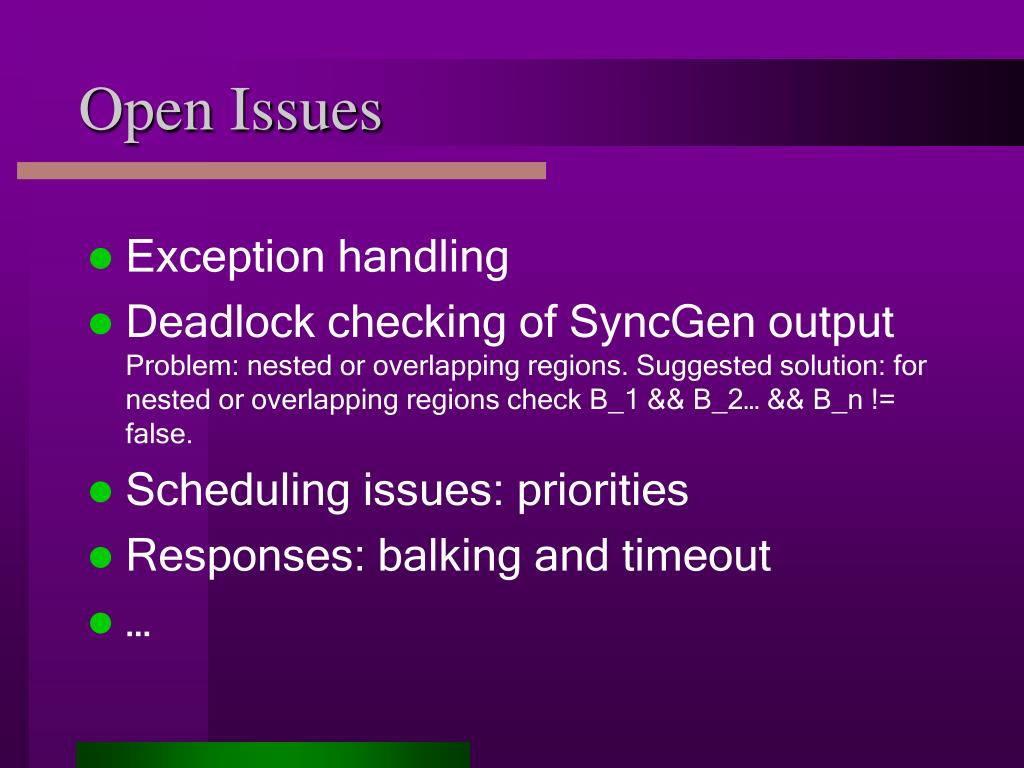

35. Open Issues • Exception handling • Deadlock checking of SyncGen outputProblem: nested or overlapping regions. Suggested solution: for nested or overlapping regions check B_1 && B_2… && B_n != false. • Scheduling issues: priorities • Responses: balking and timeout • …

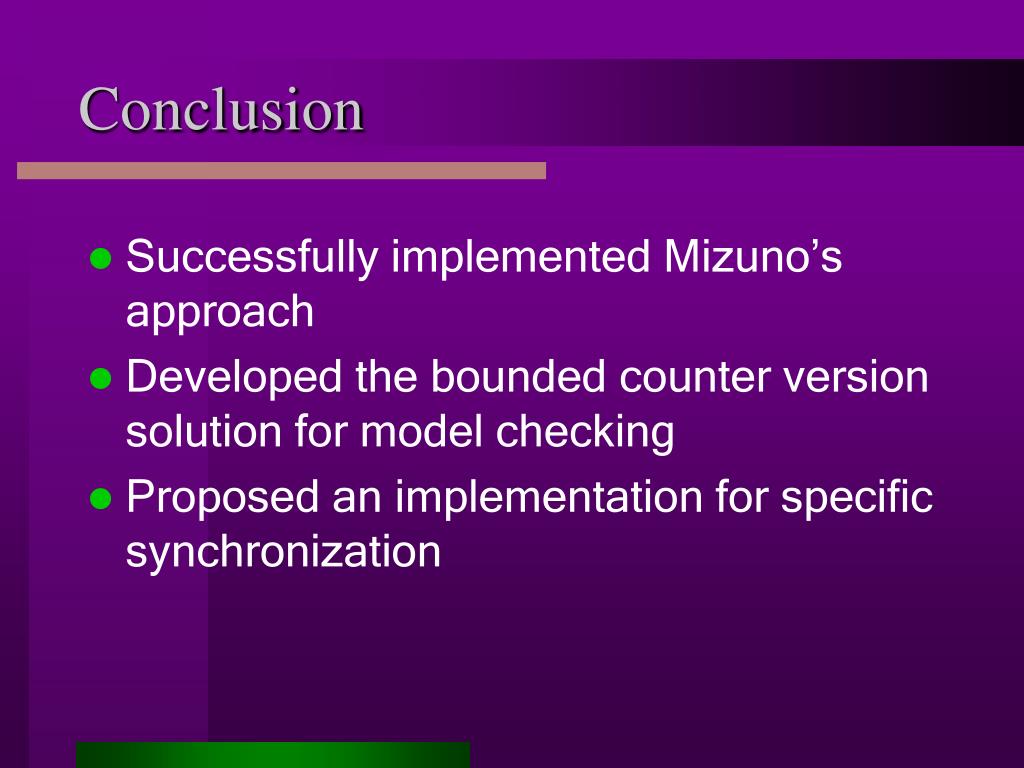

36. Conclusion • Successfully implemented Mizuno’s approach • Developed the bounded counter version solution for model checking • Proposed an implementation for specific synchronization

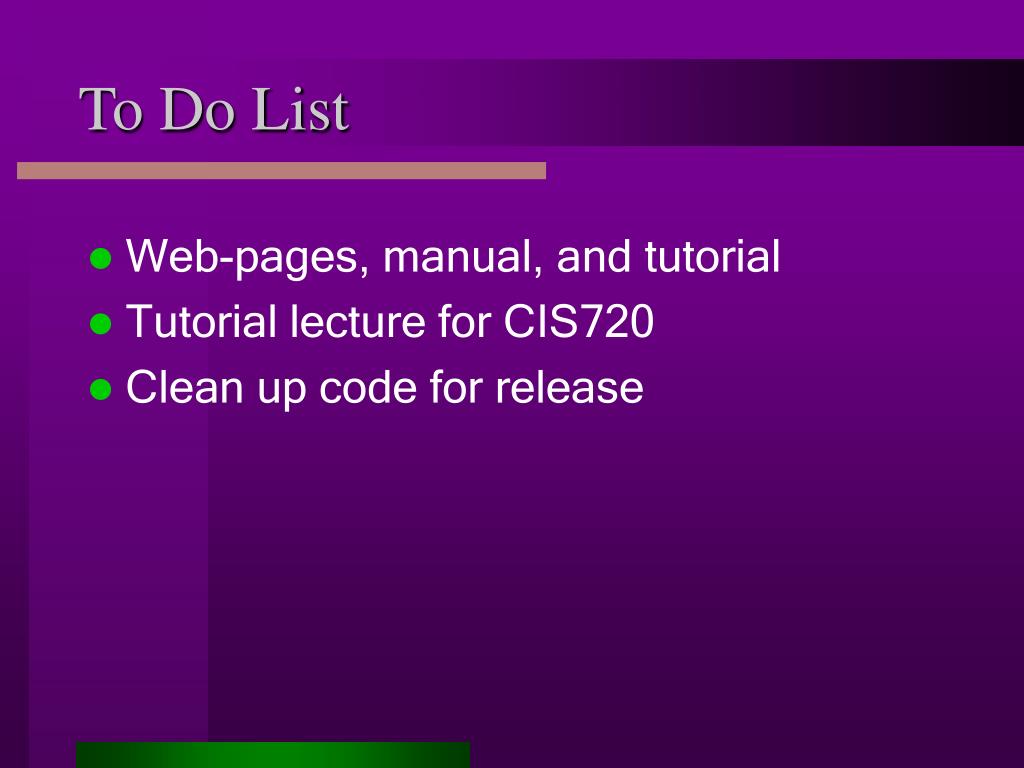

37. To Do List • Web-pages, manual, and tutorial • Tutorial lecture for CIS720 • Clean up code for release

38. Questions? Comments?
