csci 4717 5717 computer architecture

CSCI 4717/5717 Computer Architecture

Topic: Buses

Reading: Stallings, Sections 3.4, 3.5, and 7.7

b uses common characteristics
Buses – Common Characteristics
  • Multiple devices communicating over a single set of wires
  • Only one device can talk at a time or the message is garbled
  • Each line or wire of a bus can at any one time contain a single binary digit. Over time, however, a sequence of binary digits may be transferred
  • These lines may and often do send information in parallel
  • A computer system may contain a number of different buses
buses structure
Buses – Structure
  • Serial versus parallel
  • Around 50-100 lines although it's possible to have as few as 3 or 4
  • Lines can be classified into one of four groups
    • Data lines
    • Address Lines
    • Control Lines
    • Power
buses structure continued
Buses – Structure (continued)
  • Bus lines (parallel)
    • Data
    • Address
    • Control
    • Power
  • Bus lines (serial)
    • Data, address, and control are sequentially sent down single wire
    • There may be additional control lines
    • Power
buses structure continued5
Buses – Structure (continued)
  • Data Lines
    • Passes data back and forth
    • Number of lines represents width
  • Address lines
    • Designates location of source or destination
    • Width of address bus specifies maximum memory capacity
    • High order selects module and low order selects a location within the module
bus structure control lines
Bus Structure – Control lines
  • Because multiple devices communicate on a line, control is needed
  • Timing
  • Typical lines include:
    • Memory Read or Write
    • I/O Read or Write
    • Transfer ACK
    • Bus request
    • Bus grant
    • Interrupt request
    • Interrupt acknowledgement
    • Clock
    • Reset
operation sending data
Operation – Sending Data
  • Obtain the use of the bus
  • Transfer the data via the bus
  • Possible acknowledgement
operation requesting data
Operation – Requesting Data
  • Obtain the use of the bus
  • Transfer the data request via the bus
  • Wait for other module to send data
  • Possible acknowledgement
classic bus arrangement
Classic Bus Arrangement
  • All components attached to bus (STD bus)
  • Due to Moore's law, more and more functionality exists on a single board, so major components are now on same board or even the same chip
physical implementations
Physical Implementations
  • Parallel lines on circuit boards (ISA or PCI)
  • Ribbon cables (IDE)
physical implementations continued
Physical Implementations (continued)
  • Strip connectors on mother boards (PC104)
  • External cabling (USB or Firewire)
single bus problems
Single Bus Problems

Lots of devices on one bus leads to:

  • Physically long buses
    • Propagation delays – Long data paths mean that co-ordination of bus use can adversely affect performance
    • Reflections/termination problems
  • Aggregate data transfer approaches bus capacity
  • Slower devices dictate the maximum bus speed
multiple buses

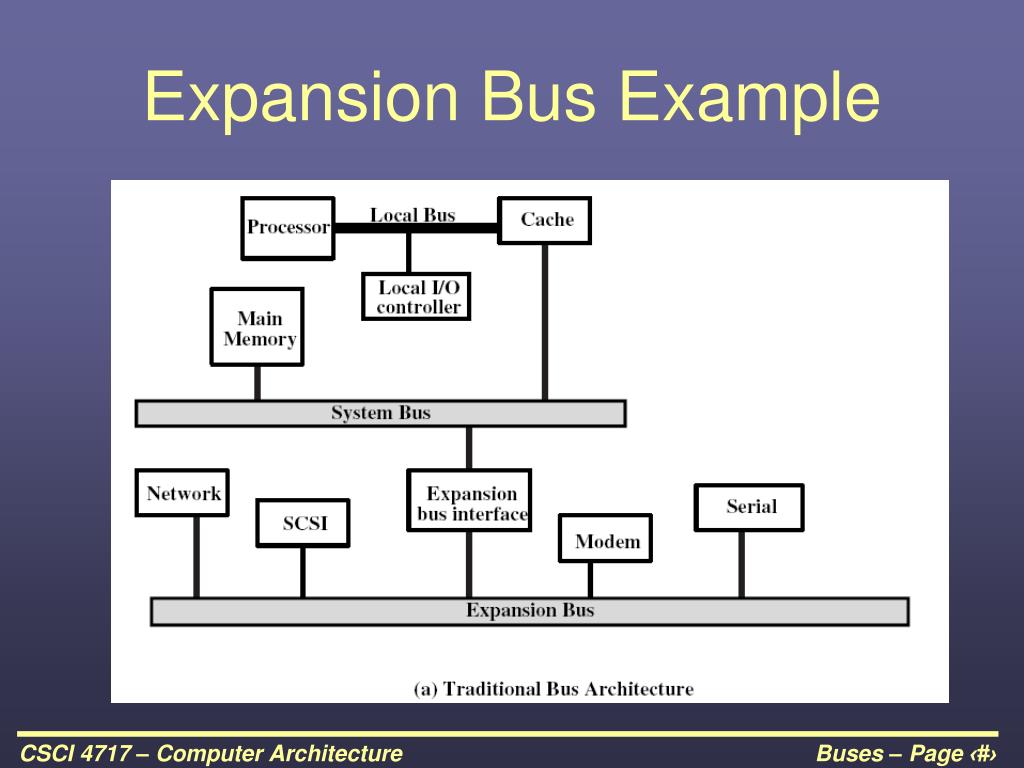

Multiple Buses
  • Most systems use multiple buses to overcome these problems
  • Requires bridge to buffer (FIFO) data due to differences in bus speeds
  • Sometimes I/O devices also contain buffering (FIFO)
multiple buses benefits
Multiple Buses – Benefits
  • Isolate processor-to-memory traffic from I/O traffic
  • Support wider variety of interfaces
  • Processor has bus that connects as direct interface to chip, then an expansion bus interface interfaces it to external devices (ISA)
  • Cache (if it exists) may act as the interface to system bus
mezzanine approach
Mezzanine Approach
  • Differences in I/O speeds demands separating devices.
  • Separate items that are high-speed and those that are not
  • An additional high-speed bus is added to communicate with the faster devices and also the slower expansion bus
  • Advantage is that high-speed devices are brought closer to processor
pentium example
Pentium Example


bus types dedicated vs time multiplexed
Bus TypesDedicated vs. Time Multiplexed
  • Dedicated
    • Separate data & address lines
  • Time multiplexed
    • Shared lines
    • Address valid or data valid control line
    • Advantage - fewer lines
    • Disadvantages
      • More complex control
      • Degradation of performance
bus types physical dedication
Bus TypesPhysical Dedication
  • Physically separating buses and controlling them with a "channel changer“
  • Advantages – faster
  • Disadvantages – physically larger
bus arbitration
Bus Arbitration
  • Listening to the bus is not usually a problem
  • Talking on the bus is a problem – need arbitration to allow more than one module to control the bus at one time
  • Arbitration may be centralised or distributed
centralised vs distributed arbitration

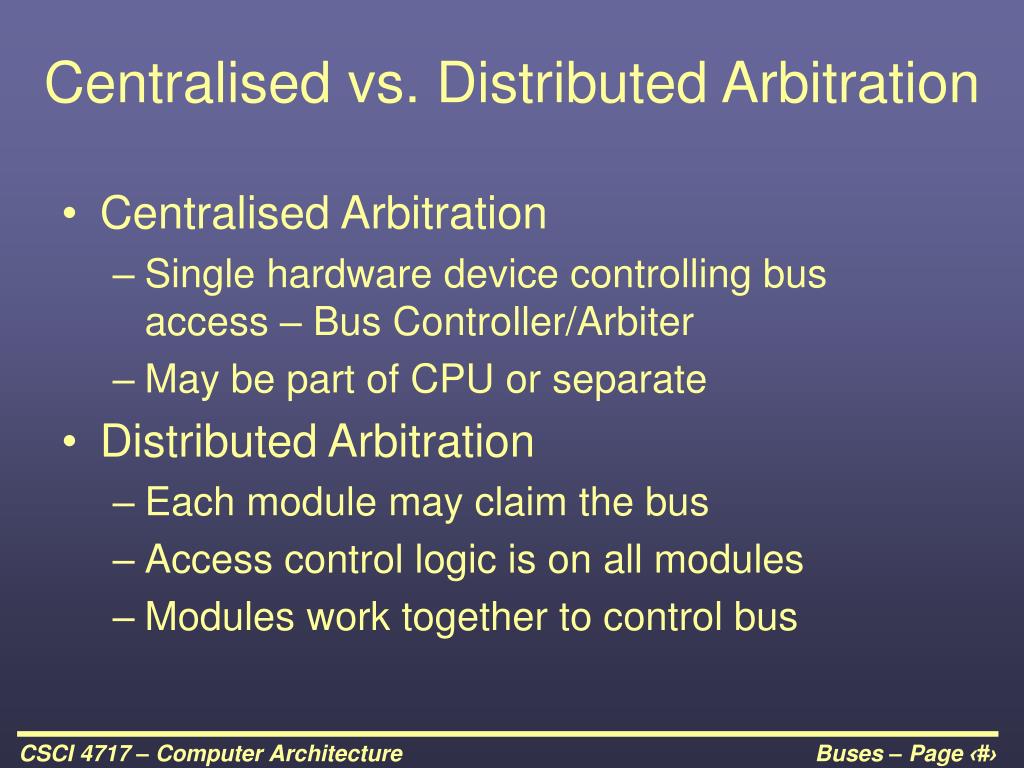

Centralised vs. Distributed Arbitration
  • Centralised Arbitration
    • Single hardware device controlling bus access – Bus Controller/Arbiter
    • May be part of CPU or separate
  • Distributed Arbitration
    • Each module may claim the bus
    • Access control logic is on all modules
    • Modules work together to control bus
bus timing
Bus Timing
  • Co-ordination of events on bus
  • Synchronous – controlled by a clock
  • Asynchronous – timing is handled by well-defined specifications, i.e., a response is delivered within a specified time after a request
synchronous bus timing
Synchronous Bus Timing
  • Events determined by clock signals
  • Control Bus includes clock line
  • A single 1-0 cycle is a bus cycle
  • All devices can read clock line
  • Usually sync on leading/rising edge
  • Usually a single cycle for an event
  • Analogy – Orchestra conductor with baton
  • Usually stricter in terms of its timing requirements
asynchronous timing
Asynchronous Timing
  • Devices must have certain tolerances to provide responses to signal stimuli
  • More flexible allowing slower devices to communicate on same bus with faster devices.
  • Performance of faster devices, however, is limited to speed of bus
bus width
Bus Width
  • Wider the bus the better the data transfer rate or the wider the addressable memory space
  • Serial “width” is determined by length/duration of frame
peripheral component interconnection pci bus
Peripheral Component Interconnection (PCI) Bus

Brief history

  • Original PC came out with 8-bit ISA bus which was slow, but had enormous amount of existing equipment.
  • For AT, IBM expanded ISA bus to 16-bit by adding connector
  • Many PC board manufacturers started making higher speed, proprietary buses
  • Intel released the patents to its PCI and this soon took over as the standard
pci bus continued
PCI Bus (continued)

Brief list of PCI 2.2 characteristics

  • General purpose
  • Mezzanine or peripheral bus
  • Supports single- and multi-processor architectures
  • 32 or 64 bit – multiplexed address and data
  • Synchronous timing
  • Centralized arbitration (requires bus controller)
  • 49 mandatory lines (see Table 3.3)
required pci bus lines table 3 3
Required PCI Bus Lines (Table 3.3)
  • Systems lines – clock and reset
  • Address & Data
    • 32 time multiplexed lines for address/data
    • Parity lines
  • Interface Control
    • Hand shaking lines between bus controller and devices
    • Selects devices
    • Allows devices to indicates when they are ready
required pci bus lines continued
Required PCI Bus Lines (continued)
  • Arbitration
    • Not shared
    • Direct connection to PCI bus arbiter
  • Error lines – parity and critical/system
optional pci bus lines
Optional PCI Bus Lines

There are 51 optional PCI 2.2 bus lines

  • Interrupt lines
    • Not shared
    • Multiple lines for multiple interrupts on a single device
  • Cache support
  • 64-bit Bus Extension
    • Additional 32 lines
    • Time multiplexed
    • 2 lines to enable devices to agree to use 64-bit transfer
  • JTAG/Boundary Scan – For testing procedures
pci commands
PCI Commands
  • Transaction between initiator (master) and target
  • Master claims bus
  • During address phase of write, 4 C/BE lines signal the transaction type
  • One or more data phases
pci transaction types
PCI Transaction Types
  • Interrupt acknowledge – prompts identification from interrupting device
  • Special cycle – message broadcast
  • I/O read – read to I/O address space
  • I/O write – write to I/O address space
  • Memory read – 1 or 2 data transfer cycles
  • Memory read line – 3 to 12 data transfer cycles
  • Memory read multiple – more than 12 data transfers
pci transaction types continued
PCI Transaction Types (continued)
  • Memory write – writing 1 or more cycles to memory
  • Memory write and invalidate – writing 1 or more cycles to memory allowing for cache write-back policy
  • Configuration read – reading PCI device's configuration (up to 256 configuration registers per device)
  • Configuration write – writing PCI device's configuration (up to 256 configuration registers per device)
  • Dual address cycle – indication of 64-bit addressing on 32 bit lines
higher performance external buses
Higher Performance External Buses
  • Historically, parallel has been used for high speed peripherals (e.g., SCSI, parallel port zip drives rather than serial port). High speed serial, however, has begun to replace this need
  • Serial communication also used to be restricted to point-to-point communications. Now there's an increasing prevalence of multipoint
ieee 1394 firewire
IEEE 1394 FireWire
  • Inexpensive alternative needed for SCSI
  • High performance serial bus
  • Serial implies cheaper cabling (fewer wires, less shielding, less synchronization)
  • Small connectors for smaller devices
  • Fast
  • Low cost
  • Easy to implement
  • Also being used in digital cameras, VCRs and TVs
firewire configuration
FireWire Configuration
  • Daisy chain/tree structure (Mac O/S Help indicates that daisy chain is preference for up to 16 devices)
  • Up to 63 devices on single port – really 64 of which one is the interface itself
  • Up to 1022 buses can be connected with bridges
  • Automatic configuration for addressing
  • No bus terminators
  • Hot swappable
firewire 3 layer stack physical layer
FireWire 3 Layer StackPhysical Layer
  • Transmission medium, electrical and signaling characteristics
  • Up to 400 Mbps
  • Arbitration – basic form
    • Fair arbitration
    • Urgent arbitration
  • Link layer packet transmission
    • Asynchronous
    • Isochronous
arbitration basic form
Arbitration – Basic form
  • Upon automatic configuration, each tree designates a root
  • Parent/child relationship forms tree topology
  • Root acts as central arbitrator
  • Requests are first-come-first-serve
  • Simultaneous requests are granted first to the closest node to the root and second to the lower ID number
  • Two additional functions are used to best allocate the use of the bus
    • Fair arbitration
    • Urgent arbitration
fair arbitration
Fair arbitration
  • Keeps one device from monopolizing the bus by allowing only one request during a set fairness interval
  • At beginning of interval, all devices set arbitration_enable flag
  • Each device may compete for bus access
  • If bus access is granted, arbitration_enable flag is cleared prohibiting bus access until next fairness interval
urgent arbitration
Urgent arbitration
  • Allows overriding of fairness interval by nodes configured as having an urgent priority
  • Provides support for devices with severe latency requirements or high throughput such as video
  • They may use the bus up to 75% of the time, i.e., for each non-urgent packet, three urgent packets may be sent
firewire 3 layer stack link layer
FireWire 3 Layer StackLink Layer
  • Transmission of data in packets
  • Two types of transmission supported:
    • Asynchronous
    • Isochronous

Packets contain

  • Variable amount of data
  • Several bytes of transaction layer information
  • Addressing information
  • Acknowledgement
asynchronous sequence continued
Asynchronous Sequence (continued)
  • Arbitration sequence – gives one device control of the bus
  • Packet transmission – packet contains source and destination IDs, type, CRC, and possible data
  • Acknowledgement gap – allows destination to receive and process message
  • Acknowledgement – destination sends packet containing source and destination IDs and code indicating action taken
  • Subaction gap – idle period between packets to avoid bus contention
  • Fixed packet size w/variable amount of data
  • Simplified addressing
  • No acknowledgement
  • Periodically, cycle_start packet is sent indicating period where only isochronous packets are transmitted
  • Transaction – Request-response protocol (This is what your code sees. It separates the programmer from the packet-level stuff)
