1 / 10

Characteristics of E2 Mechanism

Characteristics of E2 Mechanism. 4. E2 elimination requires that H and L be anti to occur.  In order for a  bond to form, how must the p orbitals be arranged? a. perpendicular b. coplanar c. 45  angle d. doesn’t matter. Characteristics of E2 Mechanism.

kael
Download Presentation

Characteristics of E2 Mechanism

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Characteristics of E2 Mechanism 4. E2 elimination requires that H and L be anti to occur.  In order for a  bond to form, how must the p orbitals be arranged? a. perpendicular b. coplanar c. 45 angle d. doesn’t matter

  2. Characteristics of E2 Mechanism The 2 transition states shown are in specific conformations.   (anti) staggered and eclipsed anti elimination syn elimination “backside displacement” “frontside displacement” Which transition state would you expect to be more stable? a. anti b. syn c. ~ same

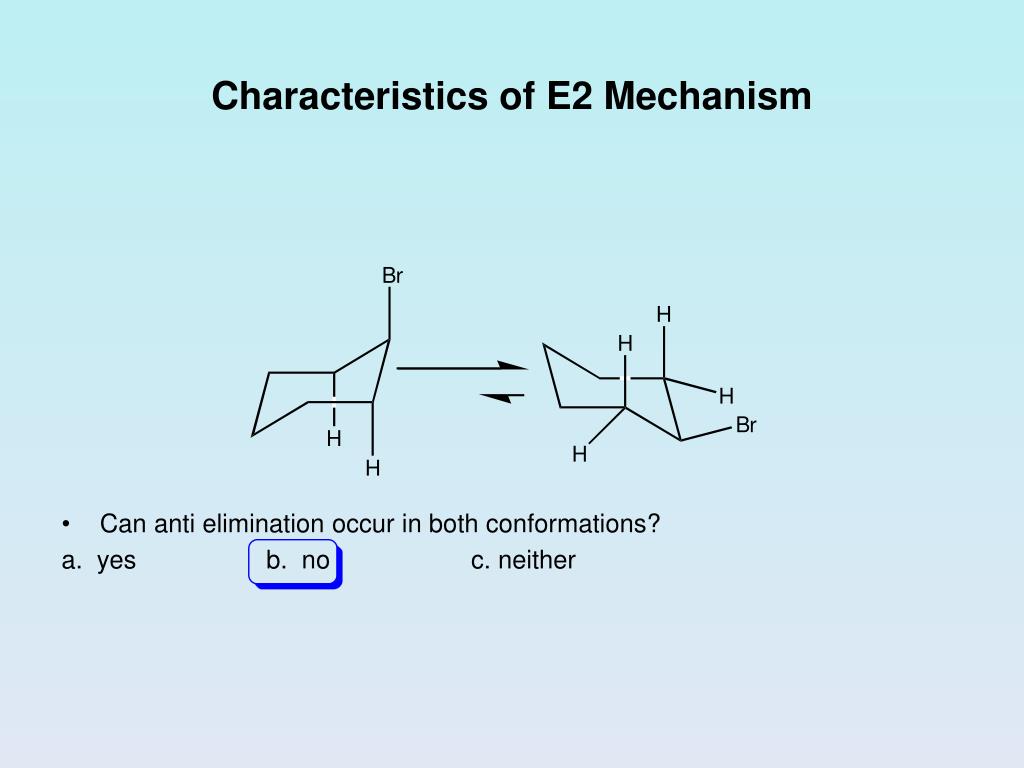

  3. Characteristics of E2 Mechanism • Can anti elimination occur in both conformations? a. yes b. no c. neither

  4. Note in the following slide that one can talk about the stability of the transition states and conduct a discussion on the products being both the kinetic and thermodynamic products. Also note that (d) is only partially correct because it doesn’t address why the more substituted alkenes form.

  5. Characteristics of E2 Mechanism • In the following reactions, it is possible for an H to be anti to give each of the products without difficulty. Why are these product ratios observed?  a. most stable alkene forms b. alkene forms from C with more H’s to lose (statistical) c. most volatile alkene forms d. alkene with least torsional strain forms

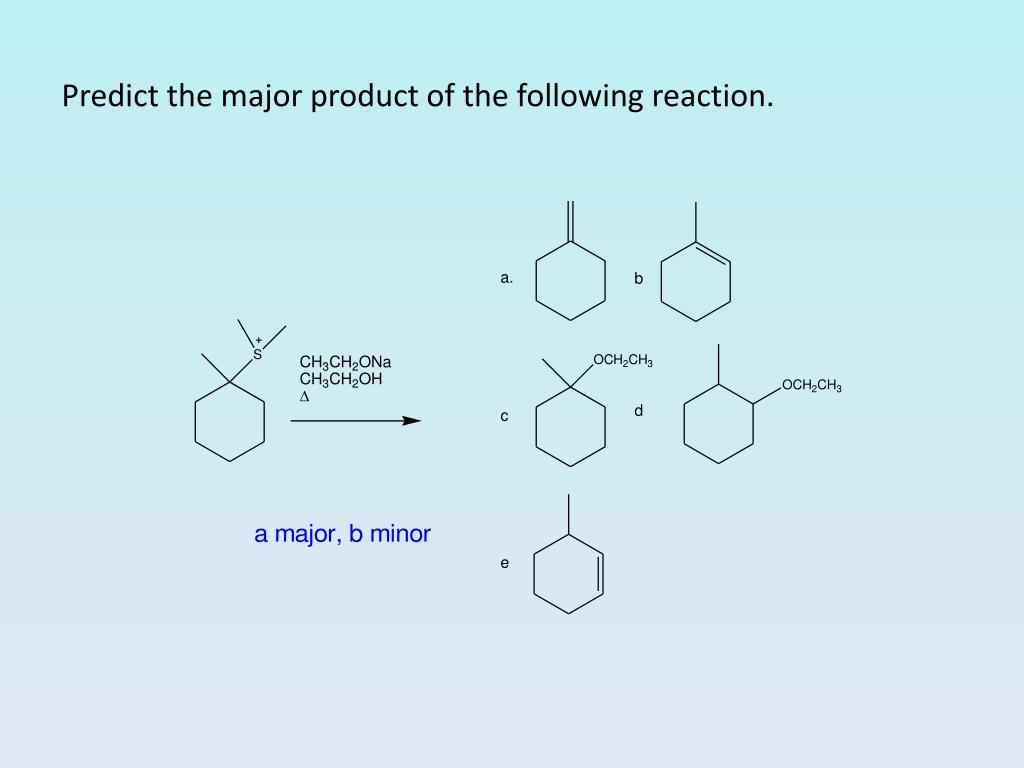

  6. Predict the major product of the following reaction.

  7. Predict the major product of the following reaction.

  8. Predict the major product of the following reaction.

  9. Predict the major product of the following reaction.

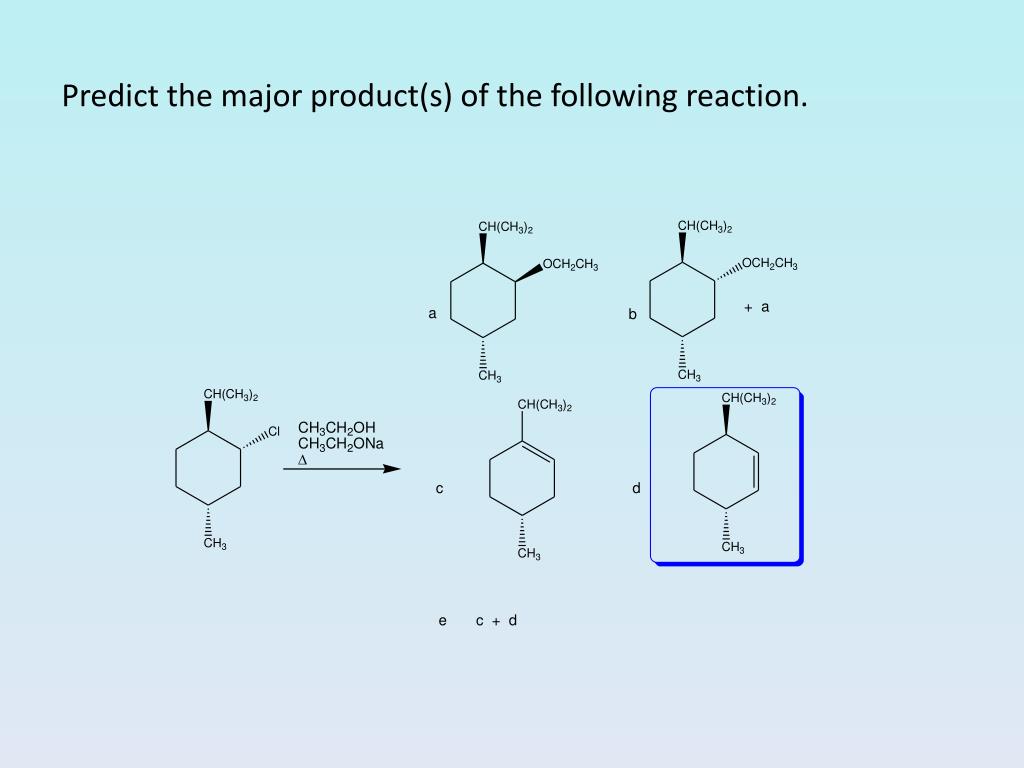

  10. Predict the major product(s) of the following reaction.
