un cefact forum wednesday 16 march 2005 lunch learn

UN/CEFACT ForumWednesday, 16 March 2005 Lunch & Learn

ATG XML NDR

Mark Crawford

ATG2 Chair

UN/CEFACT

UNITED NATIONS CENTRE FOR TRADE FACILITATION AND ELECTRONIC BUSINESS

Under the auspices of United Nations Economic Commission for Europe

outline
Outline
  • The Role of ATG
  • Supporting CEFACT Methodology
  • Maximizing Reuse
  • Managing Namespaces
  • Supporting Different Versions
  • Creating Reusable Components
  • Documentation
  • Standardizing the Instances
  • What About Codes and Identifiers
slide3
ATG
  • Creation and maintenance of the trade, business and administration document structures that are deployed by a specific technology or standard such as:
    • UN/EDIFACT
    • UN Layout Key
    • UN e-docs
    • XML
atg2 mission
ATG2 Mission
  • The mission of ATG2 is to create and maintain the trade, business and administration document structures that are deployed by XML
atg2 deliverables
ATG2 Deliverables
  • XML naming conventions and design rules, including XML syntax extension methodology and XML message assembly
  • XML schema for message structures and reusable components
  • XML schemas for describing Business Process and Information Models, to include Core Components and Business Information Entities, as stored in the Registry/Repository
  • XML syntax expression of the Core Component Technical Specification context constraint language
  • Technical Assessment Checklist for XML syntax deliverables
  • XSL Stylesheets as required
creating xsd

TBG_

TBG17

RSM, Models, Spreadsheets

Harmonization

XMI, RSM, Spreadsheets

Storage

ICG

XMI, RSM, Spreadsheets

Syntax Solution

TBG_/ATG

Creating XSD
outline7
Outline
  • The Role of ATG
  • Supporting CEFACT Methodology
  • Maximizing Reuse
  • Managing Namespaces
  • Supporting Different Versions
  • Creating Reusable Components
  • Documentation
  • Standardizing the Instances
  • What About Codes and Identifiers
supporting cefact methodology
Supporting CEFACT Methodology
  • Business Requirements
    • Provide XML that instantiates the TBG methodologies
    • Minimize requirements on TBG
  • Solution
    • Closely couple UN/CEFACT XML design rules with the ebXML Core Components Technical Specification
  • Approach
    • Generate schema from fully conformant Business Information Entities that are based on fully conformant Core Components as stored in the UN/CEFACT Library
    • Determine optimized use of Schema options and develop production rules
solution transformation rules
Solution – Transformation Rules

UN/CEFACT, March 2005

outline10
Outline
  • The Role of ATG
  • Supporting CEFACT Methodology
  • Maximizing Reuse
  • Managing Namespaces
  • Supporting Different Versions
  • Creating Reusable Components
  • Documentation
  • Standardizing the Instances
  • What About Codes and Identifiers
maximizing reuse
Maximizing Reuse
  • Business Requirements
    • Support domain specific requirements
    • Support context
    • Minimize maintenance requirements
    • Minimize cross-domain management issues while preserving cross-domain interoperability
    • Promote reuse
    • Maximize performance
  • Solution
    • Develop modularity approach that supports levels of aggregation
maximizing reuse12
Maximizing Reuse
  • Approach
    • Create a root schema for each business exchange
    • Create 4 levels of reuse that are chosen by process owner
      • Single process
      • Related processes
      • Cross functional processes
      • External components
    • Reuse individual schemas without having to import the entire CEFACT schema library
    • Allow each schema to define its own dependencies
    • Identify logical associations between schema modules
outline15
Outline
  • The Role of ATG
  • Supporting CEFACT Methodology
  • Maximizing Reuse
  • Managing Namespaces
  • Supporting Different Versions
  • Creating Reusable Components
  • Documentation
  • Standardizing the Instances
  • What About Codes and Identifiers
managing namespaces
Managing Namespaces
  • Business Requirements
    • Support the modularity model
    • Provide persistent, fixed namespace scheme that supports registry requirements
    • Optimize XML processor performance considerations
    • Ensure business partners can easily understand components of namespace string
  • Solution
    • Every schema module will have its own fully described namespace
      • Exception - limited reuse modules will be in the same namespace as the root schema
    • Use Uniform Resource Names vice Uniform Resource Locators
    • Include: Name, Token, Location, Versioning details
  • Approach
    • Define UN/CEFACT namespace scheme in conjunction with UN and UN/ECE
general namespace structure
General Namespace Structure
  • urn:un:unece:uncefact:<schematype>:<status>:<name>:<version>
    • Namespace Identifier (NID) = un
    • Namespace Specific String =
    • unece:uncefact:<schematype>:<status>:<name>:<version> with unece and uncefact as fixed value second and third level domains within the NID of un
    • schematype = a token identifying the type of schema module: data|process|codelist|identifierlist|documentation
    • status = the status of the schema as: draft|standard
    • name = the name of the module (using upper camel case)
    • version = <major>.<minor>.[<revision>]
    • major = The major version number. Sequentially assigned, first release starting with the number 1.
    • minor = The minor version number within a major release. Sequentially assigned, first release starting with the number 0. Not applicable for code list or identifier list schema.
    • revision = Sequentially assigned alphanumeric character for each revision of a minor release. Only applicable where status = draft. Not applicable for code list or identifier list schema.
outline19
Outline
  • The Role of ATG
  • Supporting CEFACT Methodology
  • Maximizing Reuse
  • Managing Namespaces
  • Supporting Different Versions
  • Creating Reusable Components
  • Documentation
  • Standardizing the Instances
  • What About Codes and Identifiers
versioning
Versioning
  • Business Requirements
    • Different trading partners will use different versions
    • Changes should minimize impact on systems
    • Versions should be clearly defined
  • Solution
    • Enable polymorphic processing
  • Approach
    • Define categories of changes for major and minor versions
major versions
Major Versions
  • Will be increased when incompatible changes occur
    • Removing or changing values in enumerations
    • Changing of element names, type names and attribute names
    • Changing the structures so as to break polymorphic processing capabilities
    • Deleting or adding mandatory elements or attributes
    • Changing cardinality from mandatory to optional
minor versions
Minor Versions
  • Minor versions will be increased when compatible changes occur
    • Adding values to enumerations
    • Optional extensions
    • Add optional elements
outline23
Outline
  • The Role of ATG
  • Supporting CEFACT Methodology
  • Maximizing Reuse
  • Managing Namespaces
  • Supporting Different Versions
  • Creating Reusable Components
  • Documentation
  • Standardizing the Instances
  • What About Codes and Identifiers
creating reusable components
Creating Reusable Components
  • Business Requirements
    • Users must be able to semantically understand constructs
    • Constructs should be consistently used and named
    • Processing should be optimized
  • Solution
    • Develop naming and design rules that optimize and standardize XSD constructs
  • Approach
    • Determine component management solution
    • Determine naming rules
    • Determine construct rules
component management solution global vs local
Component Management Solution:Global vs Local
  • All element declarations must be local except for a root element that must be declared globally
  • Impact:
    • We are managing by types, not by types and elements
    • Unlike typical local element schemes, all UN/CEFACT local elements will be strictly controlled (tied to a specific BBIE or ASBIE) to ensure that they can not be confused
  • But – We are exploring how to harmonize with UBL
component management solution types of naming conventions
Component Management Solution:Types of Naming Conventions
  • Schema Module Naming Conventions
    • Each UN/CEFACT internal Schema Module MUST be named: {ParentSchemaModuleName}{InternalSchemaModuleFunction}{Schema Module}
  • Element Naming Conventions
    • Explicitly derived from ISO 15000-5 BIE constructs (BIE Properties & ASBIEs)
  • Attribute Naming Conventions
    • Explicitly derived from ISO 15000-5 Supplementary Components
  • Type Naming Conventions
    • Explicitly derived from ISO 15000-5 BIE constructs, or
    • Explicitly derived from ISO 15000-5 Data Types
component management solution xsd construct rules

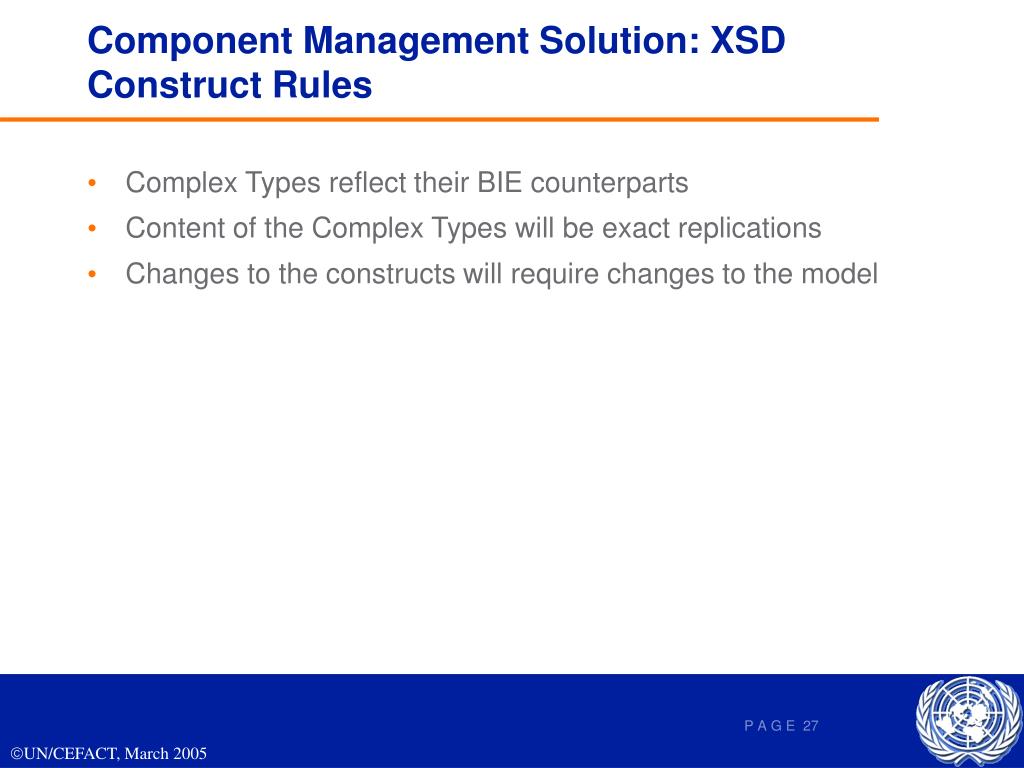

Component Management Solution: XSD Construct Rules
  • Complex Types reflect their BIE counterparts
  • Content of the Complex Types will be exact replications
  • Changes to the constructs will require changes to the model
outline28
Outline
  • The Role of ATG
  • Supporting CEFACT Methodology
  • Maximizing Reuse
  • Managing Namespaces
  • Supporting Different Versions
  • Creating Reusable Components
  • Documentation
  • Standardizing the Instances
  • What About Codes and Identifiers
documentation
Documentation
  • Business Requirements
    • Business Users must understand the details of each schema construct
    • Business users should not have to deal with different details in different syntaxes
    • TBG groups should not have to provide more documentation than is required by ISO 15000-5
  • Solution
    • Define standardized documentation sets for each construct
  • Approach
    • Use CCTS Section 7 as sole documentation requirement
outline30
Outline
  • The Role of ATG
  • Supporting CEFACT Methodology
  • Maximizing Reuse
  • Managing Namespaces
  • Supporting Different Versions
  • Creating Reusable Components
  • Documenting the Components
  • Standardizing the Instances
  • What About Codes and Identifiers
instance document rules
Instance Document Rules
  • Requirements
    • Business users should expect instances to be standard
    • Business users should trust that instances are complete
  • Solution
    • Provide instance rules
  • Approach
    • Character Encoding
    • Empty elements
instance document rules character encoding

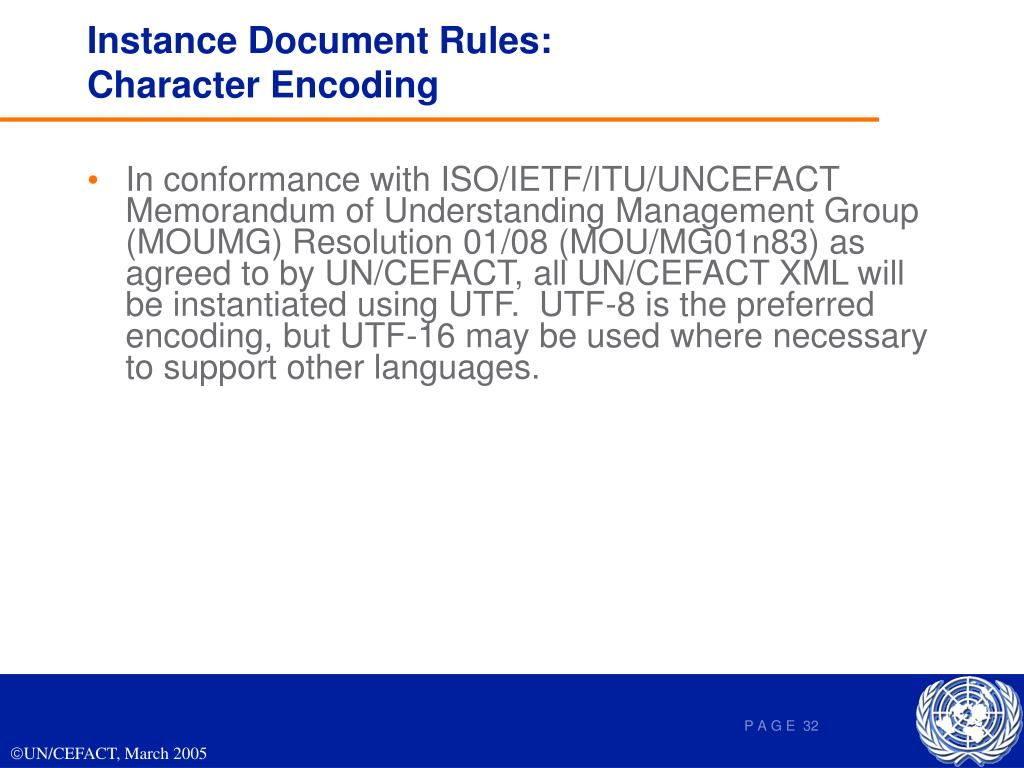

Instance Document Rules:Character Encoding
  • In conformance with ISO/IETF/ITU/UNCEFACT Memorandum of Understanding Management Group (MOUMG) Resolution 01/08 (MOU/MG01n83) as agreed to by UN/CEFACT, all UN/CEFACT XML will be instantiated using UTF. UTF-8 is the preferred encoding, but UTF-16 may be used where necessary to support other languages.
instance document rules empty content
Instance Document Rules:Empty Content
  • Empty elements do not provide the level of assurance necessary for business information exchanges and as such, will not be used.
  • UN/CEFACT conformant instance documents MUST NOT contain an element devoid of content.
  • The xsi:nil attribute MUST NOT appear in any conforming instance.
instance document rules substitution
Instance Document Rules:Substitution
  • The xsi:type attribute allows for substitution during an instantiation of a xml document. In the same way that substitution groups are not allowed, the xsi:type attribute is not allowed.
  • The xsi:type attribute MUST NOT be used.
outline35
Outline
  • The Role of ATG
  • Supporting CEFACT Methodology
  • Maximizing Reuse
  • Supporting Different Versions
  • Creating Reusable Components
  • Documenting the Components
  • Standardizing the Instances
  • What About Codes and Identifiers
code and identifiers list
Code and Identifiers List
  • Business Requirements
    • Some users require XML Processor validation
    • Some users only want application validation
    • Code and Identifier changes should not require new schema
    • Restrictions of Code Lists should be easy
    • Lists should only have to be created once
  • Solution
    • Establish code and identifier schema modules
    • Leverage external lists wherever possible
  • Approach
    • Define normative form schema module and negotiate with all external code list owners to adopt and publish
sample code list rules
Sample Code List Rules
  • All codes must be part of a UN/CEFACT or external maintained code list
  • External code lists must be used wherever possible
  • The Library may design and use an internal code list where an existing external code list needs to be extended, or where no suitable external code list exists
  • All UN/CEFACT maintained or used code lists must be enumerated using the UN/CEFACT code list schema module template
implementation verification
Implementation Verification

http://www.disa.org/cefact-groups/atg/downloads/index.cfm
