From the 4th DimensionAn introductory lecture that describes the mathematics behind Field Dynamics
  • What do you see?
  • Creating a 4D geometry
  • Thinking outside the 4D box
  • Field dynamics
slide2

What do you see?

Look at the stars. Where do they appear to be? They all appear to lie on a surface. You can’t distinguish between objects nearby and far away.

The signals that reach your eye come from very different times – some come from

many centuries ago.

slide3

What do you see?

In absence of relative spatial information, like color and texture, you don’t know where an object is.

slide4

What do you see?

Sometimes perception fools you…

slide6

What do you see?

An event occurs at time –t.

Age is measured in the negative t direction and time t moves in the positive t direction.

An event reaches your eye at time t’. The signal from the event travels towards you at speed c.

The relative time between the event and when you see it is t + t’. The distance traveled is

r = c (t + t’).

slide7

What do you see?

– t

t = 0

t’

ct

ct’

r

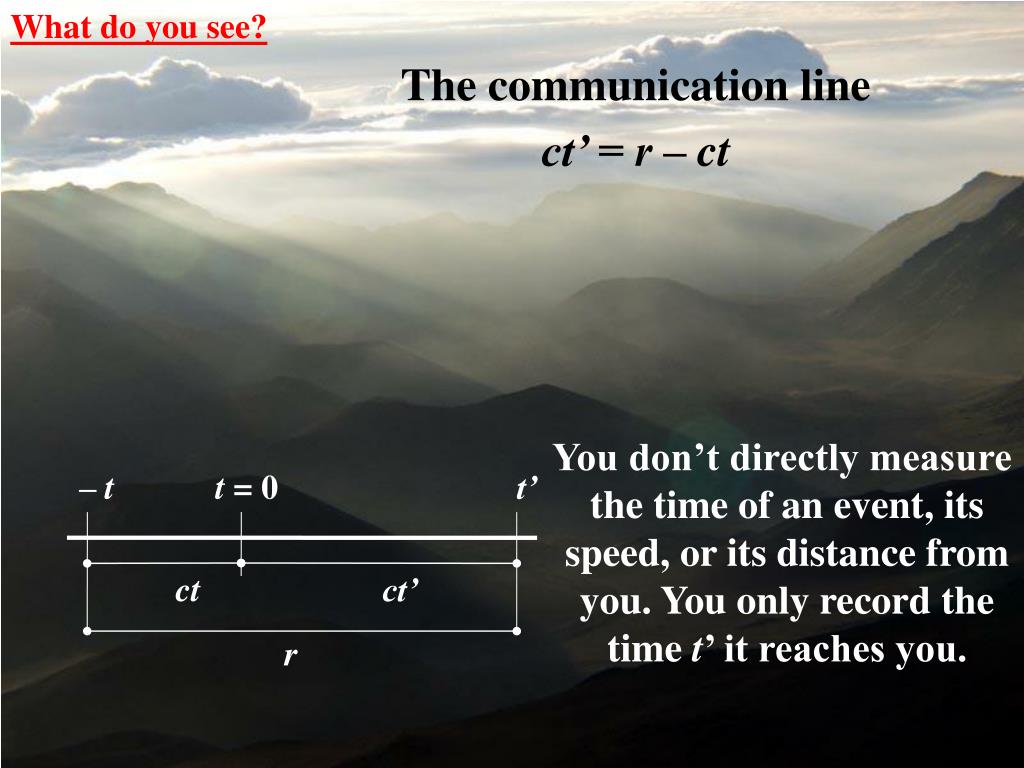

The communication line

ct’ = r – ct

You don’t directly measure the time of an event, its speed, or its distance from you. You only record the time t’ it reaches you.

creating a 4d geometry
Creating a 4D geometry

Goal:

To Create an Ordinary 4D Geometry

Question:

What is an Ordinary 4D geometry?

Answer:

A Geometry that Bases its Length

on the Pythagorean Theorem

slide9

Creating a 4D geometry

b

a – b

c

c2 = a2 + b2

a

The Pythagorean Theorem uses area = base x heightIt doesn’t make sense when a coordinate is temporal.

slide10

Creating a 4D geometry

The 4th dimension of an ordinary 4D geometry is created using the communication line.

The time t on the communication line is rotated 90 degrees to create a 4th perpendicular coordinate.

To do this, we first need to review complex numbers.

slide11

Creating a 4D geometry

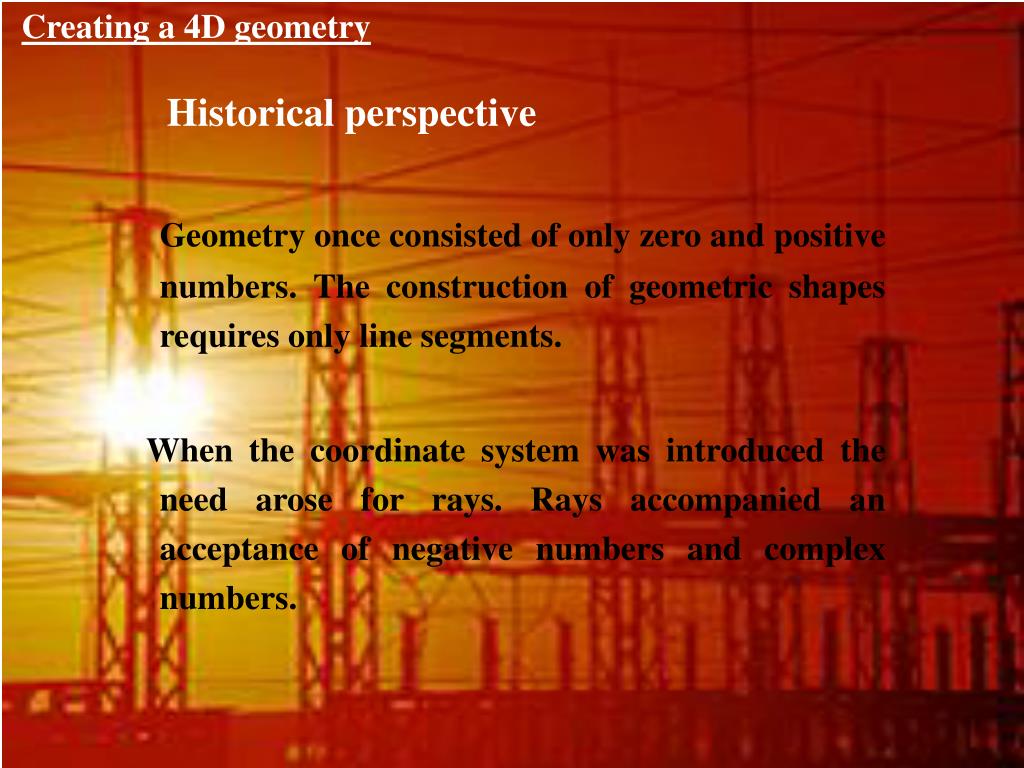

Historical perspective

Geometry once consisted of only zero and positive numbers. The construction of geometric shapes requires only line segments.

When the coordinate system was introduced the need arose for rays. Rays accompanied an acceptance of negative numbers and complex numbers.

slide12

Creating a 4D geometry

y

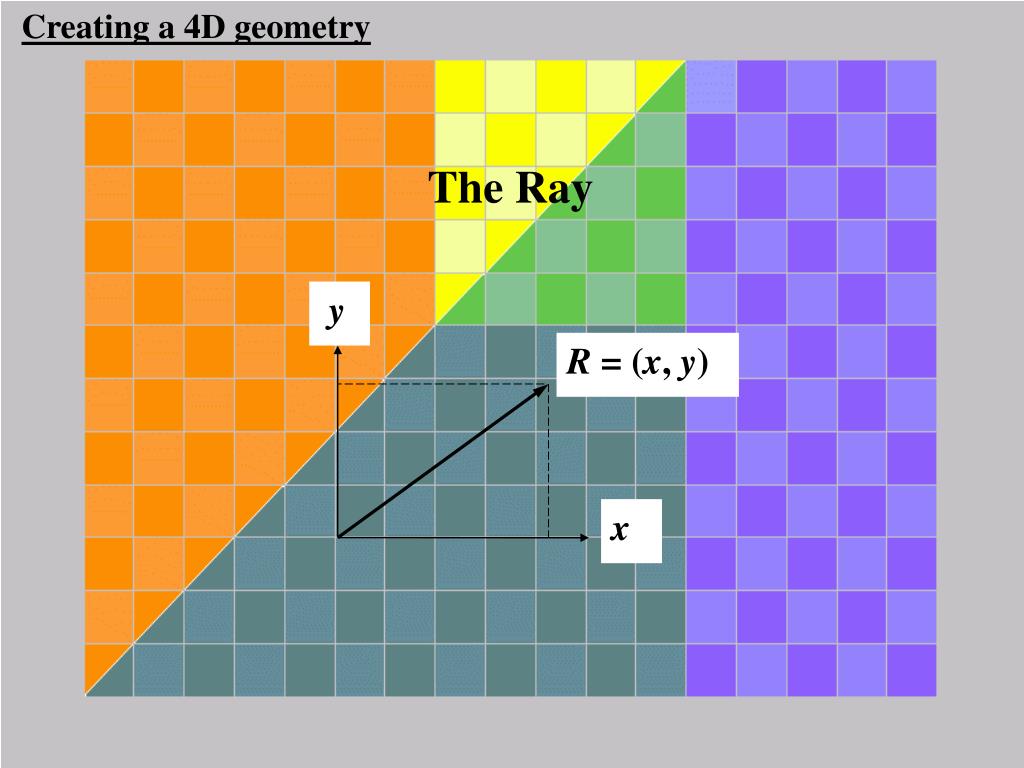

R = (x, y)

x

The Ray

slide13

Creating a 4D geometry

aR

R

R2

R

R1

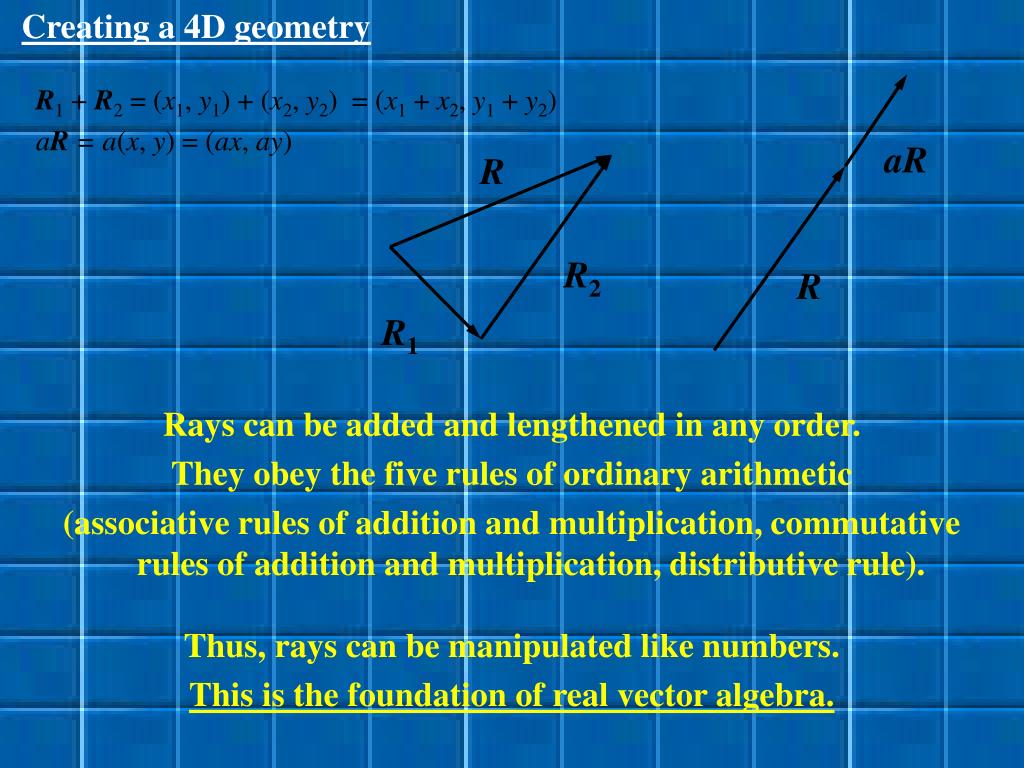

R1 + R2 = (x1, y1) + (x2, y2) = (x1 + x2, y1 + y2)

aR = a(x, y) = (ax, ay)

Rays can be added and lengthened in any order.

They obey the five rules of ordinary arithmetic

(associative rules of addition and multiplication, commutative rules of addition and multiplication, distributive rule).

Thus, rays can be manipulated like numbers.

This is the foundation of real vector algebra.

slide14

Creating a 4D geometry

iR = (–y, x)

y

R = (x, y)

x

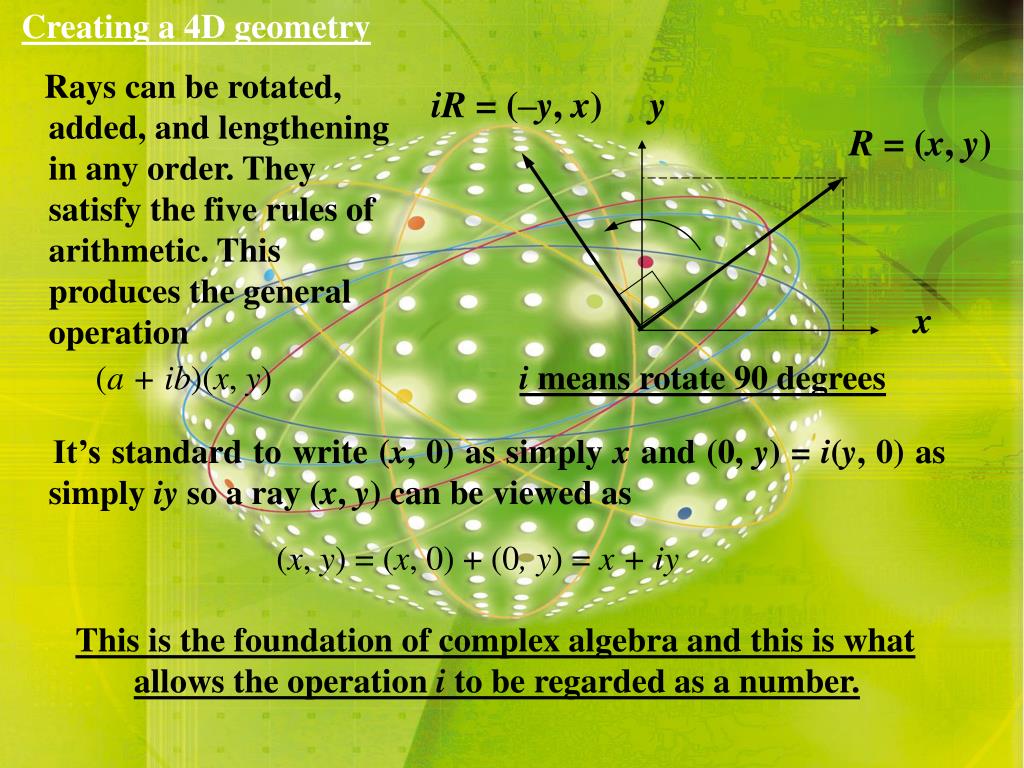

Rays can be rotated, added, and lengthening in any order. They satisfy the five rules of arithmetic. This produces the general operation

(a + ib)(x, y) i means rotate 90 degrees

It’s standard to write (x, 0) as simply x and (0, y) = i(y, 0) as simply iy so a ray (x, y) can be viewed as

(x, y) = (x, 0) + (0, y) = x + iy

This is the foundation of complex algebra and this is what allows the operation i to be regarded as a number.

slide15

Creating a 4D geometry

x4

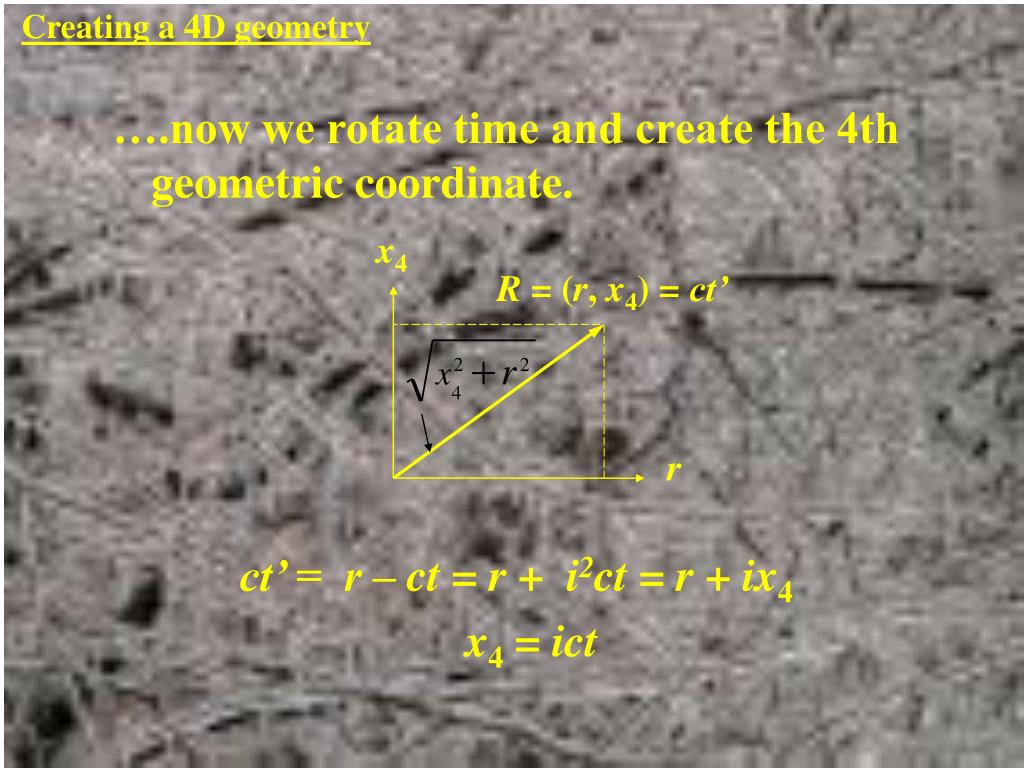

R = (r, x4) = ct’

r

….now we rotate time and create the 4th geometric coordinate.

ct’ = r – ct = r + i2ct = r + ix4

x4 = ict

slide16

Creating a 4D geometry

x4

R = (r, x4) = ct’

r

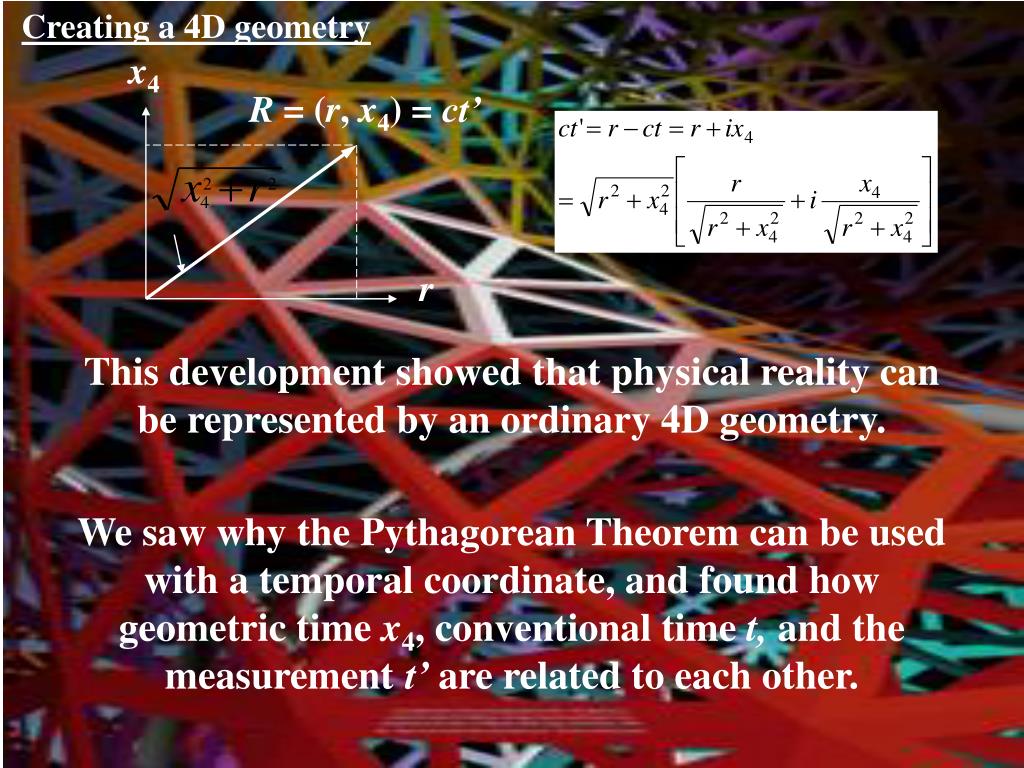

This development showed that physical reality can be represented by an ordinary 4D geometry.

We saw why the Pythagorean Theorem can be used with a temporal coordinate, and found how geometric time x4, conventional time t, and the measurement t’ are related to each other.

slide19

Thinking outside the 4D box

The faces of a 4D cube are 3D cubes. The faces consist of 8 3D cubes – a positive and negative cube for each axis.

slide20

Thinking outside the 4D box

The two most common 3D vector operations are the dot product and the cross product. The dot product works in 4D, too. Here’s how the right-hand rule and the cross product extend to 4D.

In 3D, the normal

to a surface is

In 4D, the normal

to a volume is

slide21

Field dynamics

The ordinary 4D geometry discussed in this talk is the

foundation of field dynamics.

the problem solving process in field dynamics

Field dynamics

The Problem-Solving Process inField Dynamics
  • Formulation

Set-up: A constitutive topology is set up.

    • particles, boundary conditions, types of interactions (electro-mechanical)
    • order-reduction (irreversible processes)

Transition: The system is drawn (free-body diagram).

  • Solution

Equation: Governing equations are listed.

Answer: Equations are solved.

Knowledge: Insight is gained.

slide23
