  1. Web Design Fundamental Session 2 Course : Web Programming Year : 2012

  2. Learning Outcomes In the end of session, students are expected to be able to : • Explain basic elements of web design • Create a simple static web page

  3. Outline Materials • Web Design Fundamental • HTML Basic • HTML Structure • Tags & Elements • Text Formatting • Lists, Hyperlinks, Images • Tables, Frames

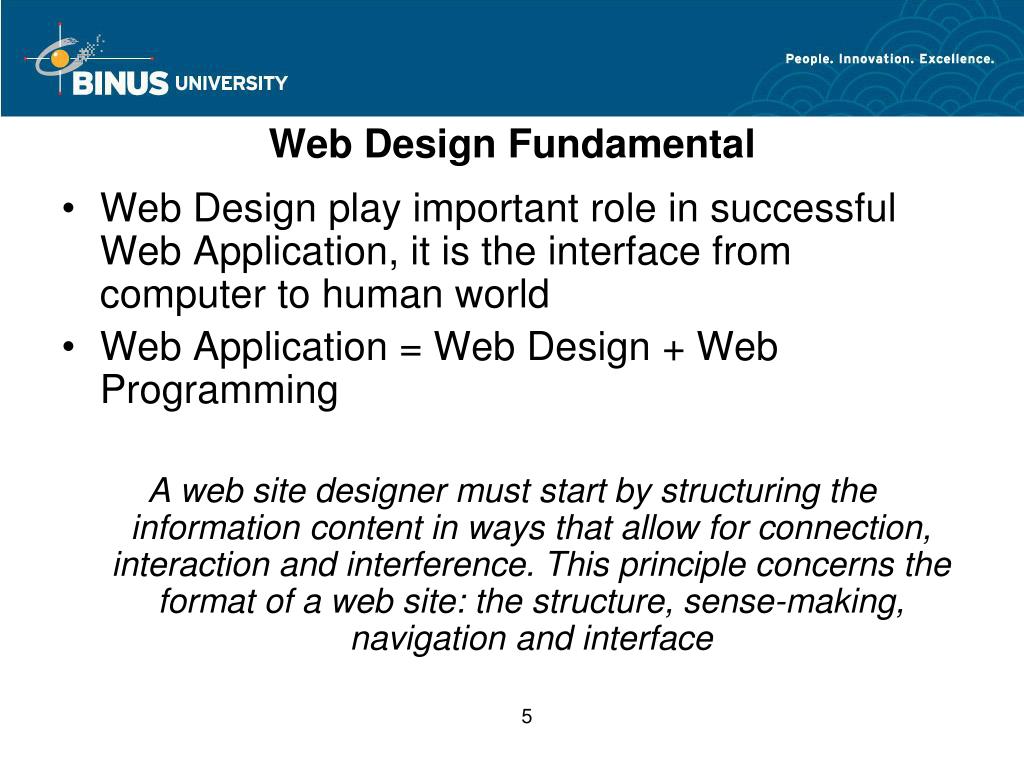

  4. Web Design Fundamental • Web Design play important role in successful Web Application, it is the interface from computer to human world • Web Application = Web Design + Web Programming A web site designer must start by structuring the information content in ways that allow for connection, interaction and interference. This principle concerns the format of a web site: the structure, sense-making, navigation and interface

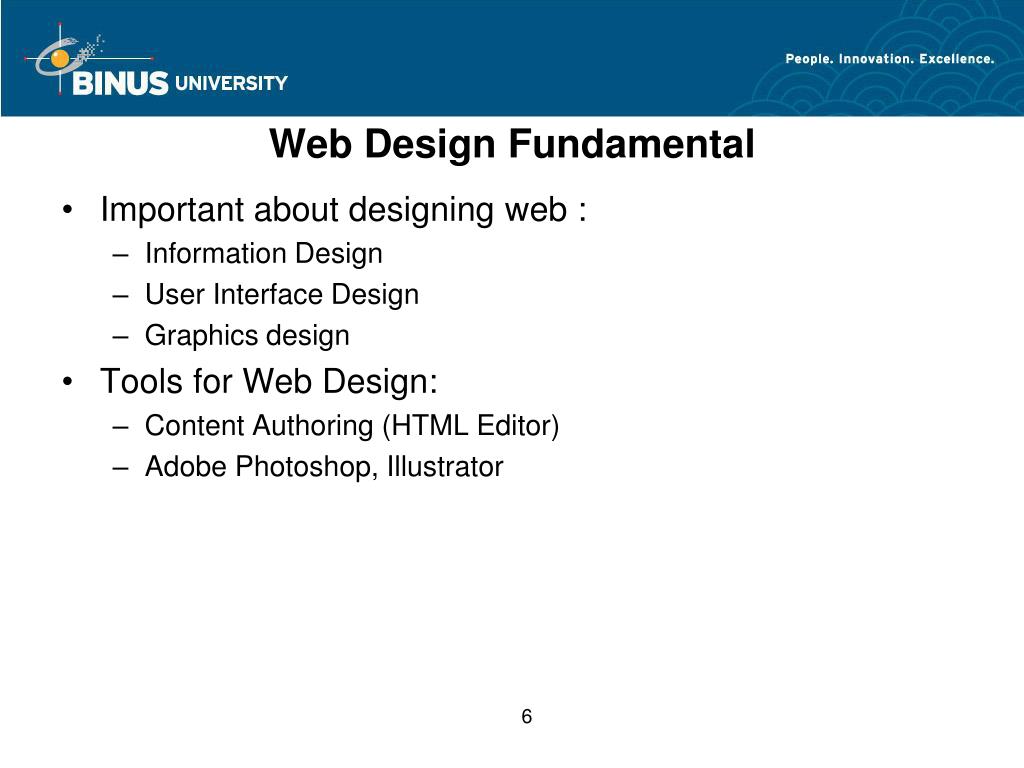

  5. Web Design Fundamental • Important about designing web : • Information Design • User Interface Design • Graphics design • Tools for Web Design: • Content Authoring (HTML Editor) • Adobe Photoshop, Illustrator

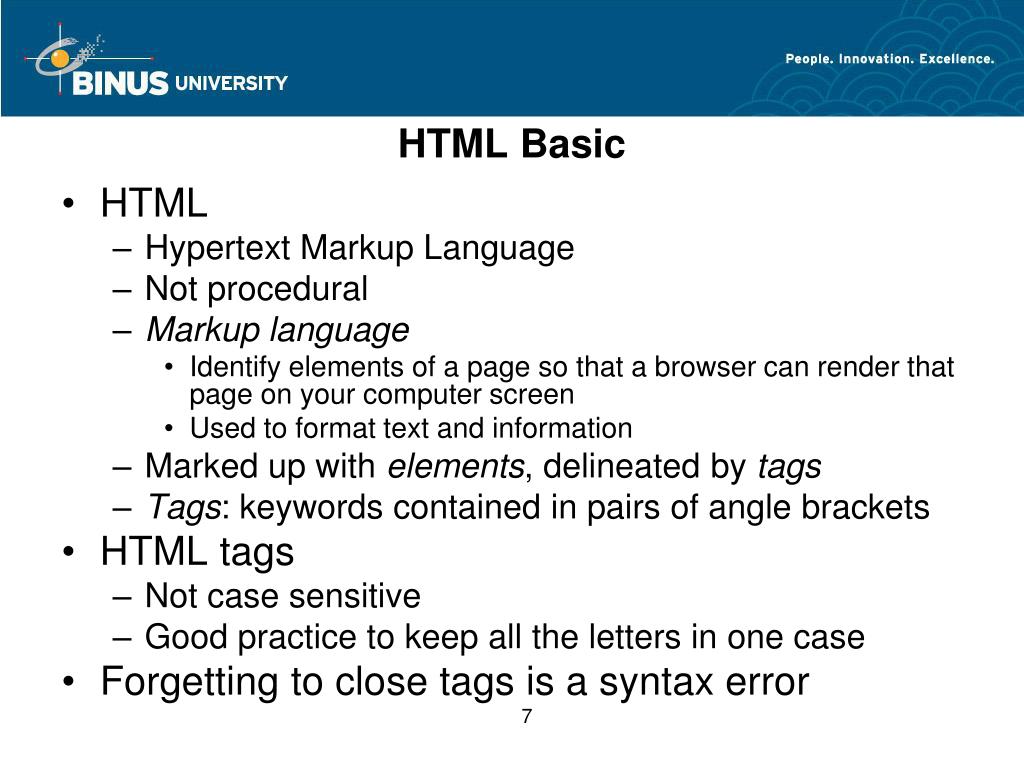

  6. HTML Basic • HTML • Hypertext Markup Language • Not procedural • Markup language • Identify elements of a page so that a browser can render that page on your computer screen • Used to format text and information • Marked up with elements, delineated by tags • Tags: keywords contained in pairs of angle brackets • HTML tags • Not case sensitive • Good practice to keep all the letters in one case • Forgetting to close tags is a syntax error

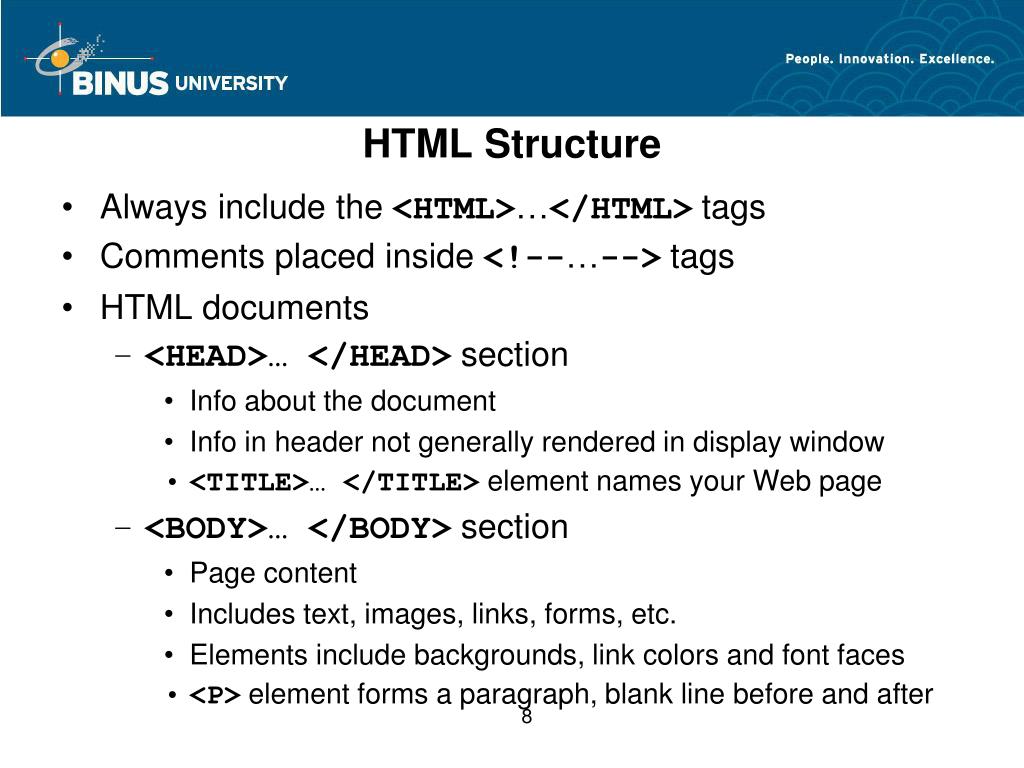

  7. HTML Structure • Always include the <HTML>…</HTML> tags • Comments placed inside <!--…--> tags • HTML documents • <HEAD>… </HEAD> section • Info about the document • Info in header not generally rendered in display window • <TITLE>… </TITLE> element names your Web page • <BODY>… </BODY> section • Page content • Includes text, images, links, forms, etc. • Elements include backgrounds, link colors and font faces • <P> element forms a paragraph, blank line before and after

  8. Simple HTML Pages <html> <head> <Title> Web Programming </Title> </head> <body bgcolor=silver> <font color=blue> <H2> I study at BINUS University</h2></font><br> <p> Welcome to my Website</p> </body> </html>

  9. Result

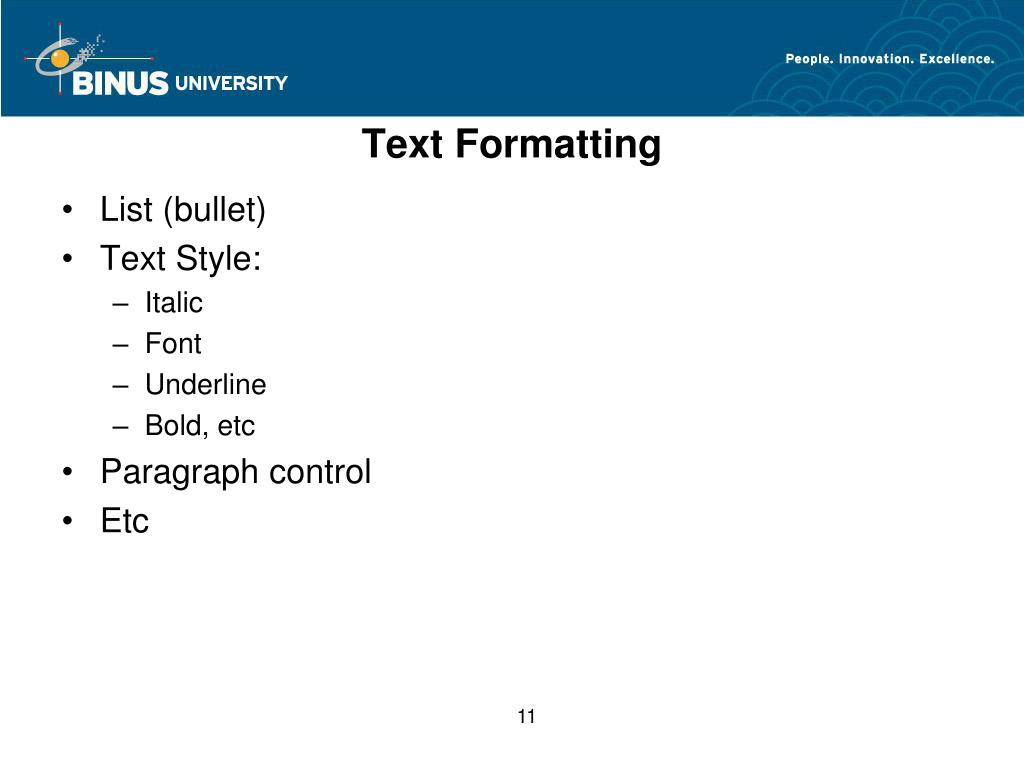

  10. Text Formatting • List (bullet) • Text Style: • Italic • Font • Underline • Bold, etc • Paragraph control • Etc

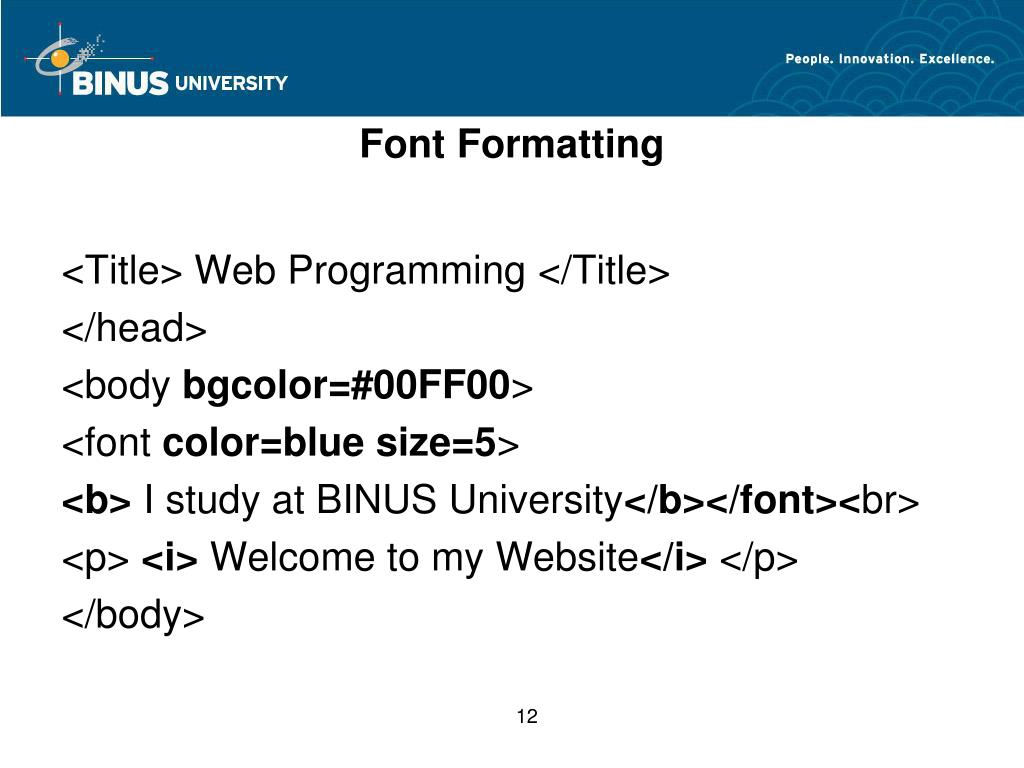

  11. Font Formatting <Title> Web Programming </Title> </head> <body bgcolor=#00FF00> <font color=blue size=5> <b> I study at BINUS University</b></font><br> <p> <i> Welcome to my Website</i> </p> </body>

  12. Result

  13. Marquee <title>Marquee Example</title> </head> <body bgcolor=yellow> <h3><font color=silver></font> <marquee behavior=alternate >UBinus Cute HomePage</marquee></font></h3> </body>

  14. Result

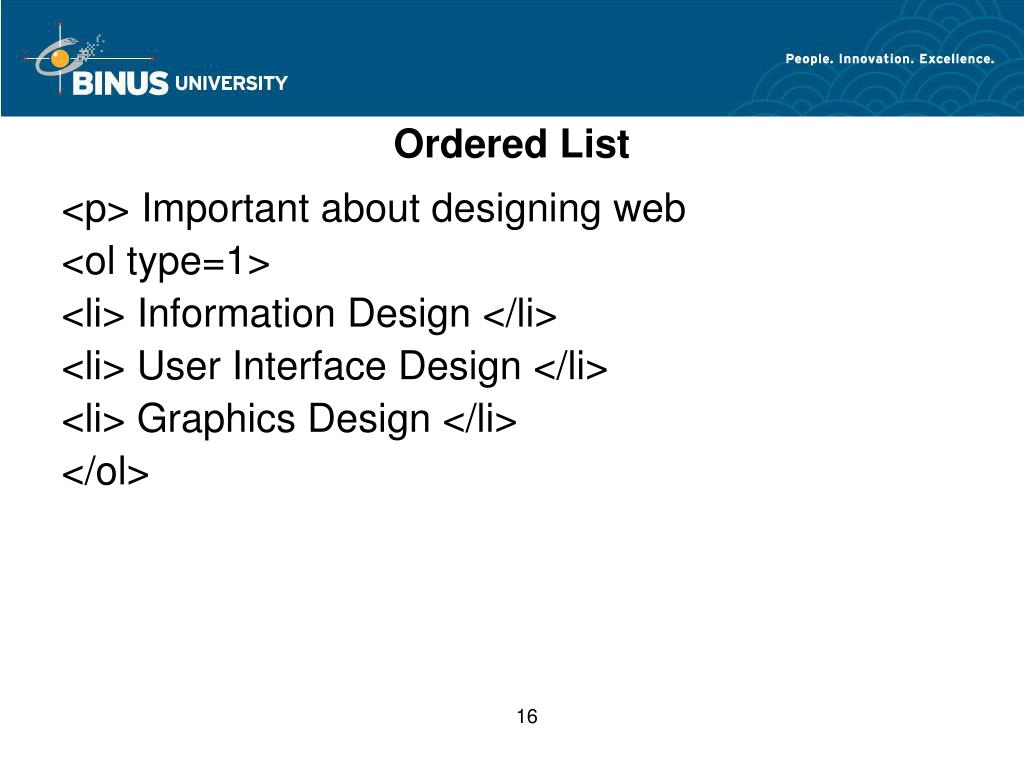

  15. Ordered List <p> Important about designing web <ol type=1> <li> Information Design </li> <li> User Interface Design </li> <li> Graphics Design </li> </ol>

  16. Unordered List <p>Tools for Web Design:</p> <ul> <li>Content Authoring (HTML Editor)</li> <li>Adobe Photoshop, Illustrator</li> </ul>

  17. Result

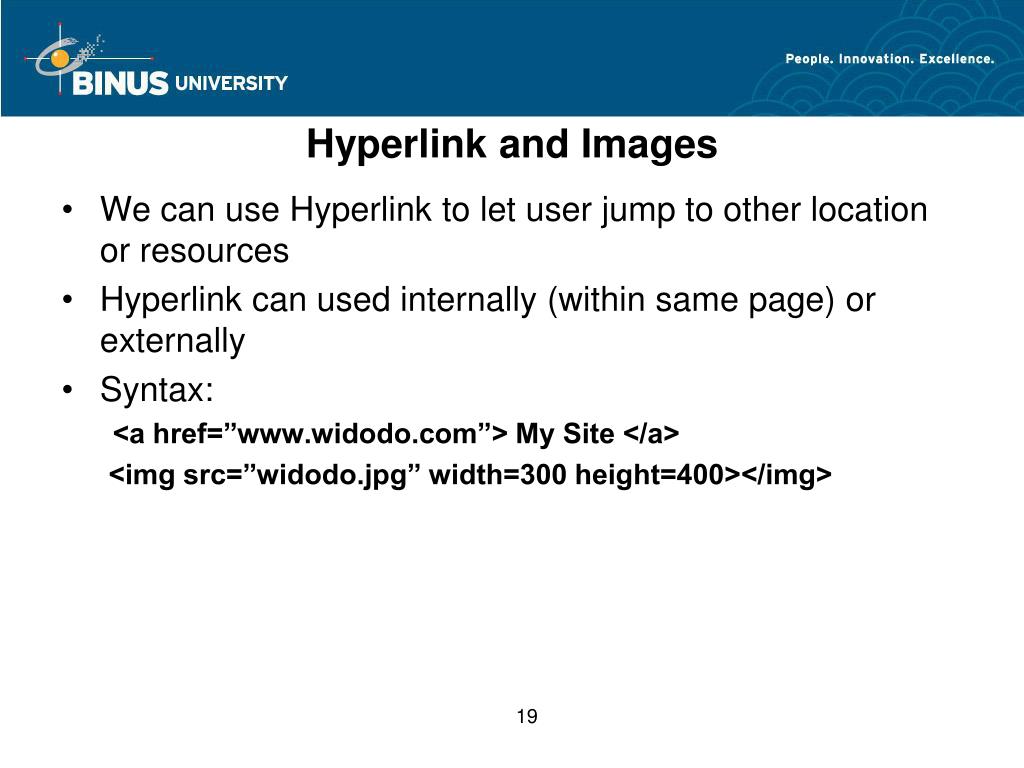

  18. Hyperlink and Images • We can use Hyperlink to let user jump to other location or resources • Hyperlink can used internally (within same page) or externally • Syntax: <a href=”www.widodo.com”> My Site </a> <img src=”widodo.jpg” width=300 height=400></img>

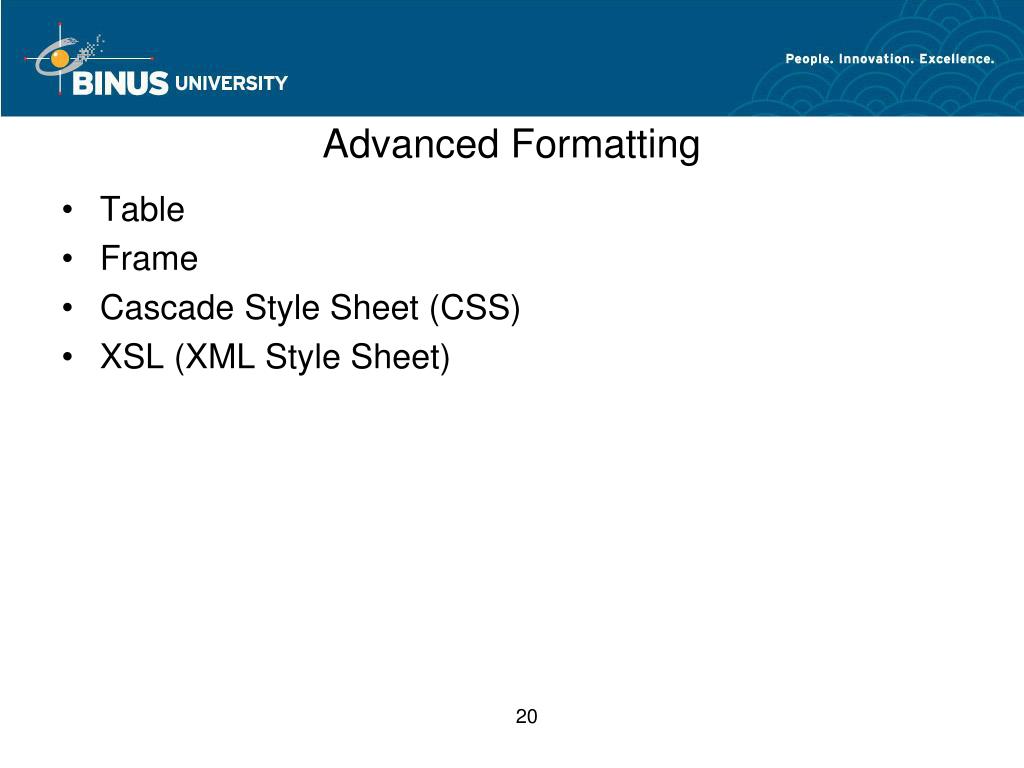

  19. Advanced Formatting • Table • Frame • Cascade Style Sheet (CSS) • XSL (XML Style Sheet)

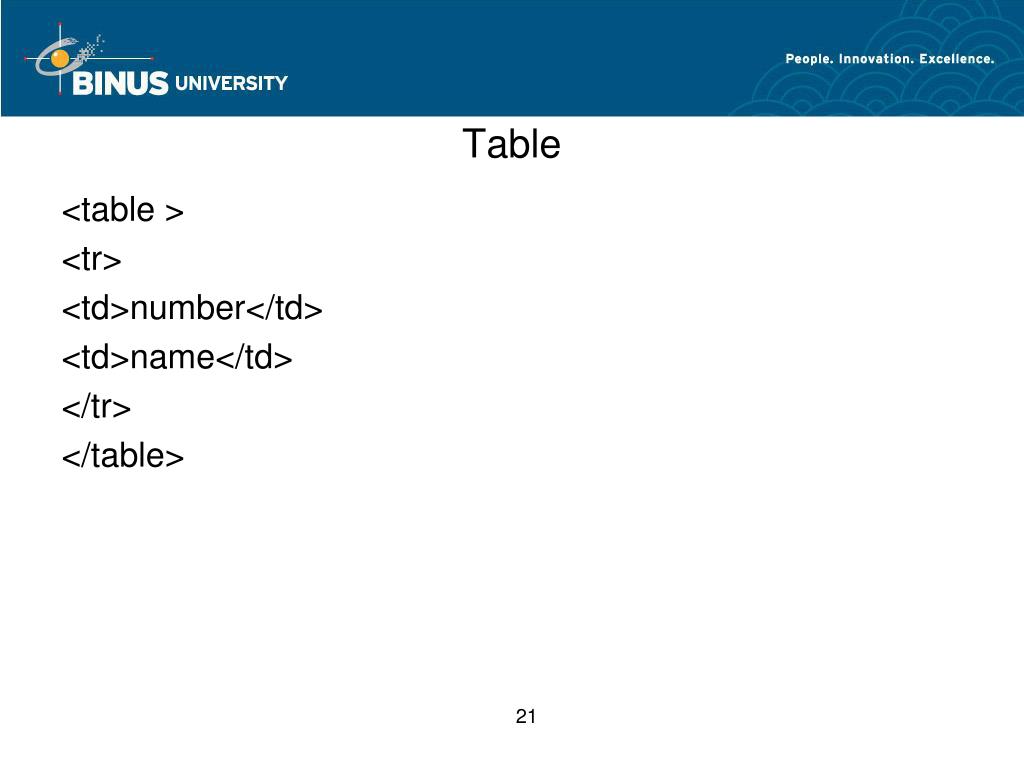

  20. Table <table > <tr> <td>number</td> <td>name</td> </tr> </table>

  21. Table <table border="1" cellpadding="0" cellspacing="0" bordercolor="#111111" > <tr> <td width="16%" bgcolor="#FFFF00"><b>Number</b></td> <td width="19%" bgcolor="#FFFF00"><b>Name</b></td> <td width="65%" bgcolor="#FFFF00"><b>Class</b></td> </tr> <tr> <td width="16%">1</td> <td width="19%">Iwan</td> <td width="65%">Web Programming</td>

  22. Result

  23. Inputbox and Password Inputbox and password areusefull for inserting data Input your name:<input name=name type=text size=20 maxlength=40><br> and Password :<input name=passwd type=password size=8 maxlength =8><br>

  24. Check and Radio Button Which country you want to visit: <br> <input type="Checkbox" name="cb value="1">Indonesia<br> <input type="checkbox" name=cb value="2" >New York<br> <input type="checkbox" name="cb value="3">Seoul<br> <input type="Checkbox" name=cb value="4" >Paris<br> Gender?<br> <input type="radio" name="cb value=“male">Male<br> <input type="radio" name=cb value=“female" >Female<br>

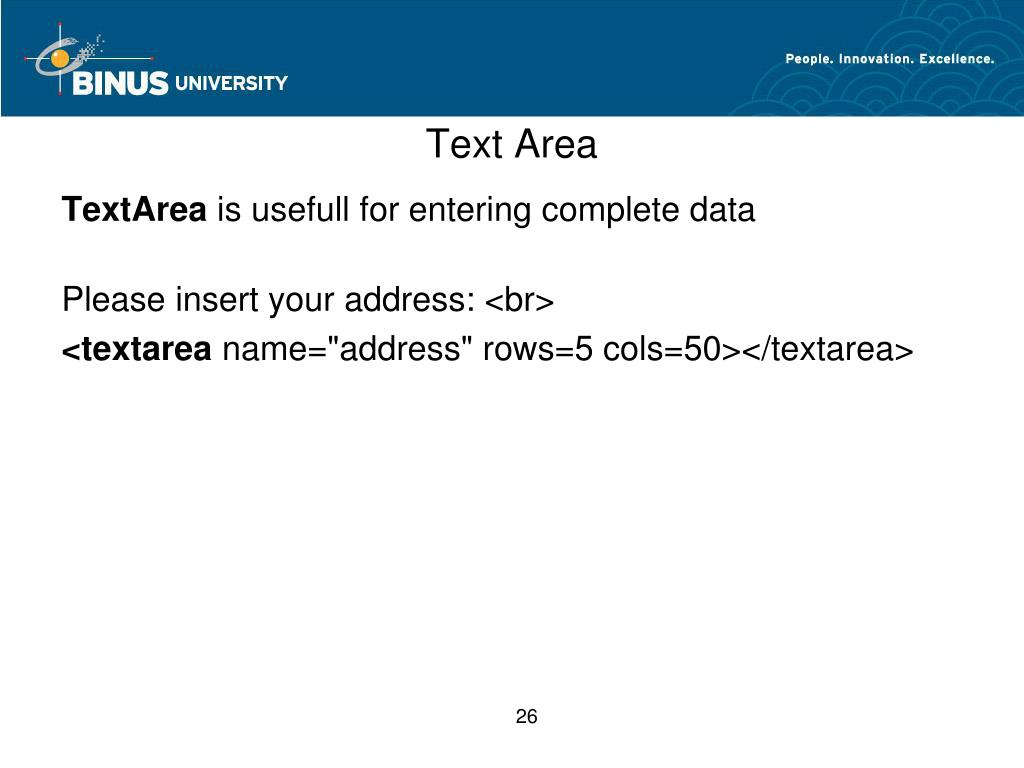

  25. Text Area TextArea is usefull for entering complete data Please insert your address: <br> <textarea name="address" rows=5 cols=50></textarea>

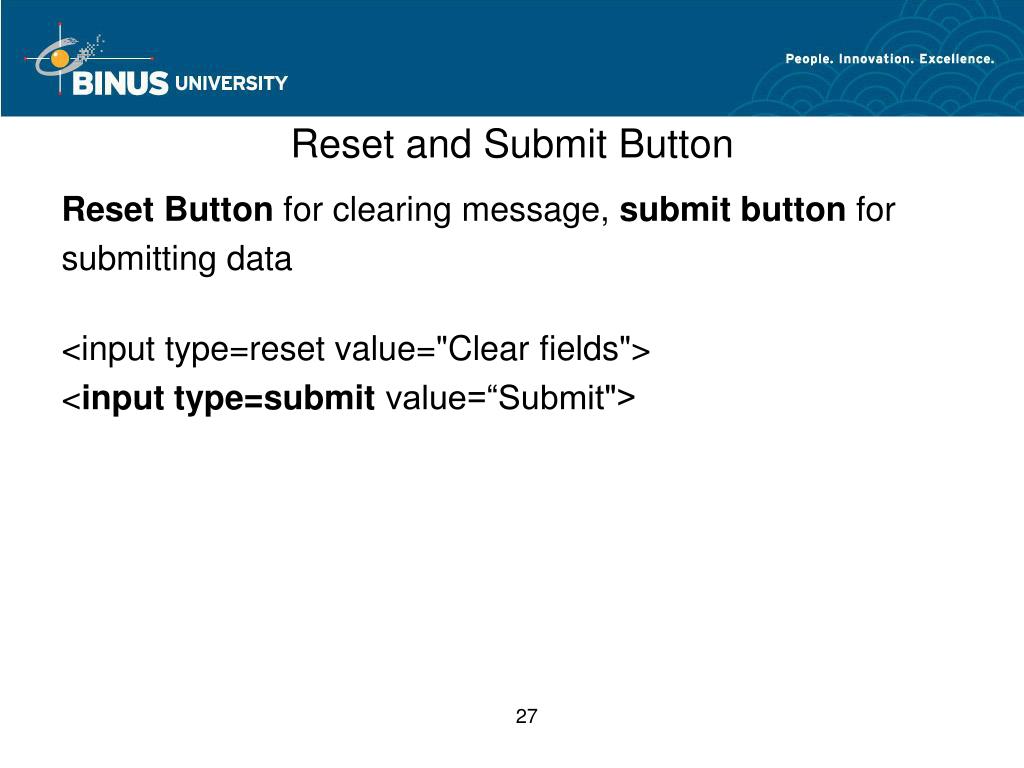

  26. Reset and Submit Button Reset Button for clearing message, submit button for submitting data <input type=reset value="Clear fields"> <input type=submit value=“Submit">

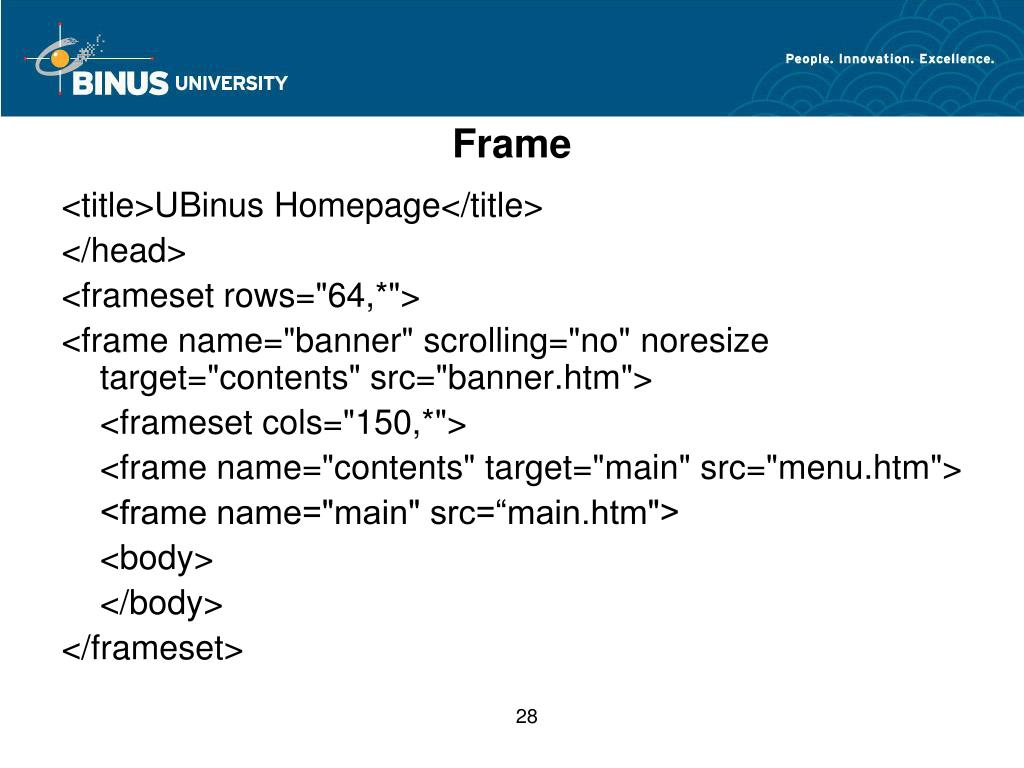

  27. Frame <title>UBinus Homepage</title> </head> <frameset rows="64,*"> <frame name="banner" scrolling="no" noresize target="contents" src="banner.htm"> <frameset cols="150,*"> <frame name="contents" target="main" src="menu.htm"> <frame name="main" src=“main.htm"> <body> </body> </frameset>

  28. TM1(Kelompok) • Desaindanbuat form Web untuk login, jikasukses login menampilkantabelmahasiswa yang bsdiedit, delete, tambahdan update menggunakan database MySQL, serta JSP. • BuatteoritentangServlet (2 halaman) DIKUMPUL Hardcopy DI PERT 6

  29. References • Internet & WWW How to Program, Deitel & Deitel • “Fundamental Web Design Principles”, http://ausweb.scu.edu.au/aw99/papers/turner/paper.html • “Introduction to Web Programming 4 days”: http://www.wdvl.com/Authoring/Scripting/Tutorial • Introduction to Web Design 3 days: http://www.wdvl.com/Authoring/HTML/Tutorial/index.html • http://www.w3schools.com
