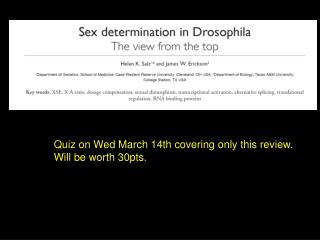

Quiz on Wed March 14th covering only this review. Will be worth 30pts.

Loading in 2 Seconds...

play fullscreen
1 / 34

Quiz on Wed March 14th covering only this review. Will be worth 30pts. - PowerPoint PPT Presentation


  • 133 Views
  • Uploaded on

Quiz on Wed March 14th covering only this review. Will be worth 30pts. SXL makes a functional protein in XX zygotes SXL makes a non-functional protein in XY zygotes. L is Late form made During cycle 14. E is Establisment form Made cycle 10. Where is RNA binding domain of SXL protein?.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Quiz on Wed March 14th covering only this review. Will be worth 30pts.' - juro


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide4

SXL makes a functional protein in XX zygotes

SXL makes a non-functional protein in XY zygotes

slide5

L is Late form made

During cycle 14

E is Establisment form

Made cycle 10

Where is RNA binding domain of SXL protein?

slide6

SXL makes a functional protein in XX zygotes

SXL makes a non-functional protein in XYzygotes

Event is initiated by Exons 1+ 4

No early form of protein, thus no SXL 1/2/4 form

SXL 1/2/4 form

slide9

~Cycle 9

Cycle10-14

Zygotic transcription starts

Cycle14-and up

slide10

KEY SLIDE…Know it.

Zygotic-X chromosome factors:XSEs

2x

1x

Gro-maternal

Dpn-Zygotic

2x difference

Maternal gro

Down regulated by

Zygotic XSE proteins

Zygotic deadpan

Represses SxlPe with

Maternal gro

Development

Development

sex determination in drosophila and c elegans
Sex Determination in Drosophila and C. elegans
  • The sex determination signal in both animals is the ratio of X chromosomes to autosomes. If the ratio is 1.0 or greater, the animal is a female; if the ratio is 0.5 or less, the animal is a male.CLASSIC Definition
  • But wrong
  • In Drosophila, the key genes in sex determination encode proteins that regulate RNA processing.
sex determination in drosophila
Sex Determination in Drosophila
  • Components of the sex-determination pathway include
    • A system to ascertain the X:A ratio ,
    • A system to covert this CONCEPTUAL ratio into a developmental signal, and
    • A system to respond to this signal by producing either male or female structures.
ascertaining the x a ratio

NOT CORRECT..from book

Ascertaining the X:A Ratio
  • The system that ascertains the X:A ratio involves interactions between maternally synthesized proteins in the egg cytoplasm and embryonically synthesized proteins encoded by several X-linked genes.
  • The X-linked gene products are called numerator elements and are twice as abundant in XX embryos as in XY embryos.
  • The autosomal gene products are called denominator elements and antagonize the products of the numerator elements- NONE FOUND.
the sex lethal sxl gene
The Sex-lethal (Sxl) Gene
  • Sxl is the mater regular of the sex determination pathway in Drosophila.
  • The X:A ratio is converted into a molecular signal that controls the expression of the X-linked Sxl gene.
function of sxl
Function of SXL
  • SXL regulates splicing of its own transcript to maintain SXL protein expression in XX embryos.
  • SXL also regulates splicing of the transformer (tra) gene.
differentiating in response to the signal
Differentiating in Response to the Signal
  • TRA, along with TRA2, regulate splicing of doublesex (dsx) and fruitless (fru).
  • In XX embryos, where TRA is present, dsx transcripts are processed to encode a DSX protein that represses the genes for male development.
  • In XY embryos, where TRA is absent, dsx transcripts are processed to encode a DSX protein that represses the genes for female development.
loss of function mutations in sex determination genes in drosophila
Loss-of-Function Mutations in Sex-Determination Genes in Drosophila
  • Mutations in Sxl prevent SXL protein from being made in males; homozygous mutants would develop into males but die as embryos.
  • Mutations in transformer and transformer2 cause both XX and XY animals to develop into males.
  • Mutations in dsx cause both XX and XY embryos to develop into intersexes.
key points
Key Points
  • In Drosophila the pathway that controls sexual differentiation involves some genes that ascertain the X:A ratio, some that convert this ratio into a developmental signal, and others that respond to the signal by producing either male or female structures.
  • The Sex-lethal (Sxl) gene plays a key role in Drosophila sexual development by regulating the splicing of its own transcript and that of another gene (tra).
splicing
Splicing
  • Removal of introns must be very precise.
  • Conserved sequences for removal of the introns of nuclear mRNA genes are minimal.
    • Dinucleotide sequences at the 5’ and 3’ ends of introns.
    • An A residue about 30 nucleotides upstream from the 3’ splice site is needed for lariat formation.
types of intron excision
Types of Intron Excision
  • The introns of tRNA precursors are excised by precise endonucleolytic cleavage and ligation reactions catalyzed by special splicing endonuclease and ligase activities.
  • The introns of nuclear pre-mRNA (hnRNA) transcripts are spliced out in two-step reactions carried out by spliceosomes.
the spliceosome
The Spliceosome
  • Five snRNAs: U1, U2, U4, U5, and U6
  • Some snRNAs associate with proteins to form snRNAs (small nuclear ribonucleoproteins)
slide33

Logo for

a) Splice acceptor

b) Splice Donor

c) Initiator Met

slide34

AG/GT

CAG/NT

exon 1 intron 1 exon 2
