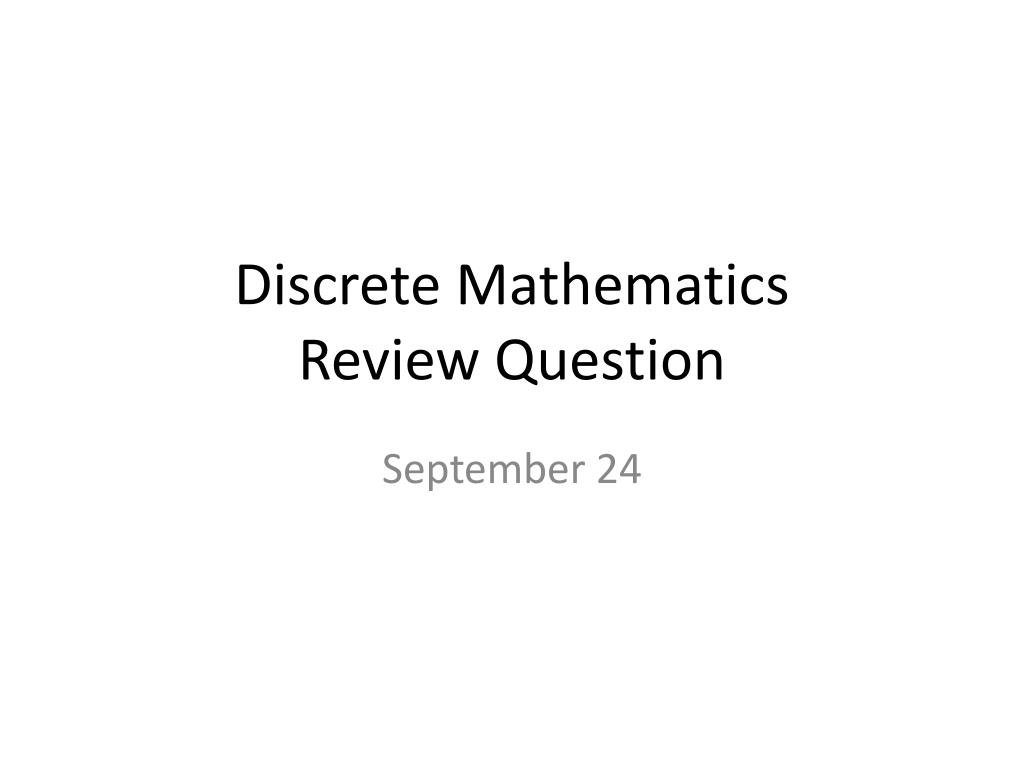

  1. Discrete MathematicsReview Question September 24

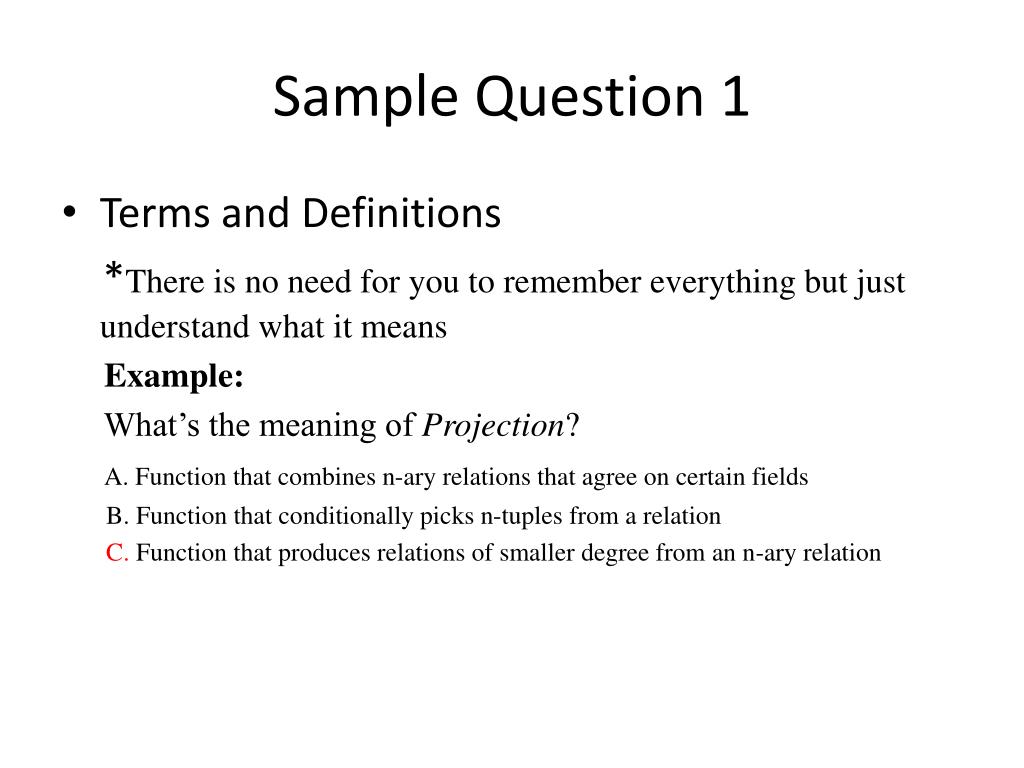

  2. Sample Question 1 • Terms and Definitions *There is no need for you to remember everything but just understand what it means Example: What’s the meaning of Projection? A. Function that combines n-ary relations that agree on certain fields B. Function that conditionally picks n-tuples from a relation C. Function that produces relations of smaller degree from an n-aryrelation

  3. Sample Question 2 • Combining Relations *Give you relations R1 and R2. Need you to define like … Example: R1 = {(a,b) on R2 | a > b} R2 = {(a,b) on R2| a < b}  {(a,b) on R2| a != b}  R2 For (a, c) to be in R1 R2 , we must find an element b such that (a, b) in R2 and (b, c) in R1 . This means that a < b and b > c. Clearly this can always be done simply by choosing b to be large enough. Therefore we have R1 R2 = R2 , the relation that always holds.

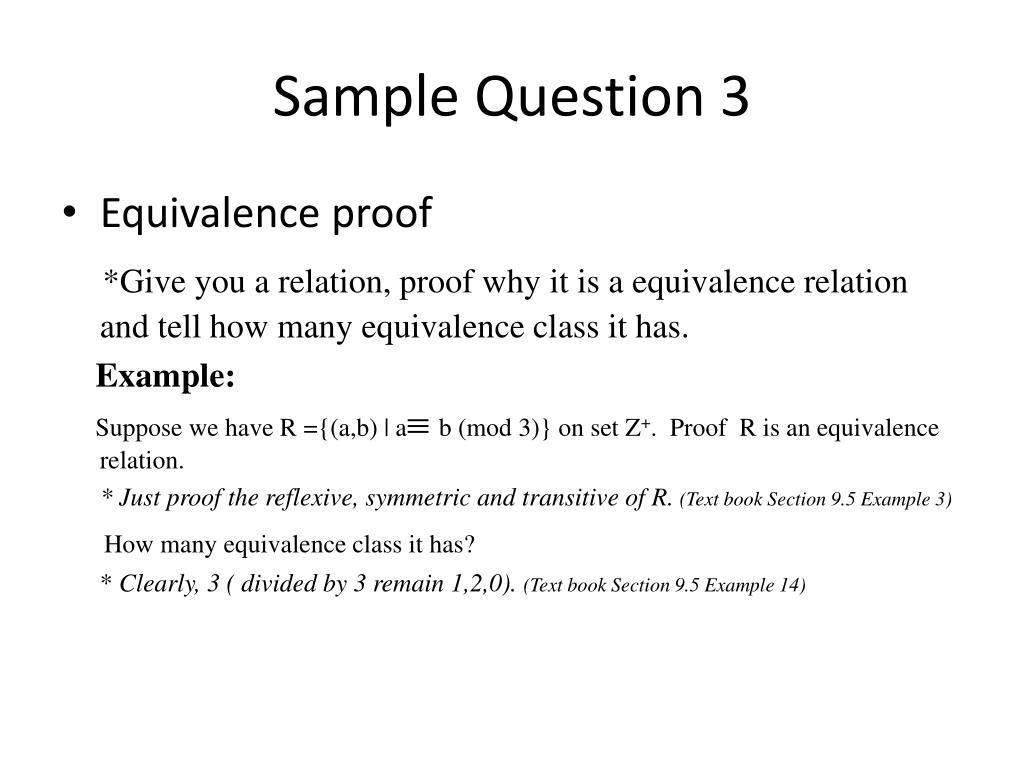

  4. Sample Question 3 • Equivalence proof *Give you a relation, proof why it is a equivalence relation and tell how many equivalence class it has. Example: Suppose we have R ={(a,b) | a b (mod 3)} on set Z+. Proof R is an equivalence relation. * Just proof the reflexive, symmetric and transitive of R. (Text book Section 9.5 Example 3) How many equivalence class it has? * Clearly, 3 ( divided by 3 remain 1,2,0). (Text book Section 9.5 Example 14)

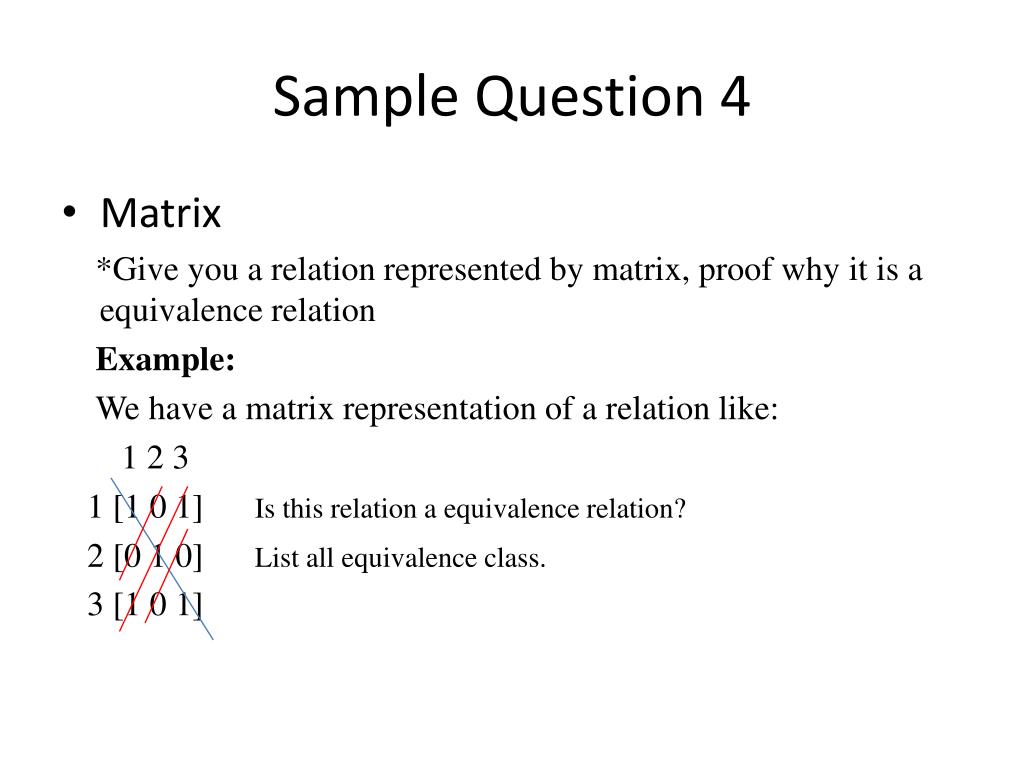

  5. Sample Question 4 • Matrix *Give you a relation represented by matrix, proof why it is a equivalence relation Example: We have a matrix representation of a relation like: 1 2 3 1 [1 0 1] Is this relation a equivalence relation? 2 [0 1 0] List all equivalence class. 3 [1 0 1]

  6. Ricky Gao email gxr116020@utdallas.edu • TA Office hour Mon & Wed 9:00am – 10:00am at ECSS 3.216
