  1. Advances in Molding Technology David Kazmer University of Massachusetts Lowell

  2. Introduction

  3. Who Is David Kazmer? 1985 1990 1995 2000 2005

  4. Opening Remarks • Product designs remain inefficient • Minority of applications leverage simulation • Wasting material, cycle time, added value… • Processes are thought of as “proscribed” • Significant opportunities exist • Better observability through sensor fusion • Multiple sensors with real-time analysis • Better controllability through process design • Control of initial & boundary conditions

  5. Vision: Gate-Level Control ofFlow Rates & Cavity Pressures • “Decoupled Molding” • Decouple the mold from the molding machine • Decouple the gates from each other • Decouple filling from the packing at each gate • Requires two major advances: • Real-time process simulation • Improved melt valves

  6. Real Time Process Simulation

  7. 1-D Flow In A Tube • Hagen-Poiseuille Flow • Viscous, laminar flow (constant viscosity) • Relates flow rate, pressure, and viscosity • Flow conductance, k, defined as:

  8. Flow Network Analysis • Consider a two-branched hot runner system • Geometry & flow conductance known • Develop flow conductance matrix

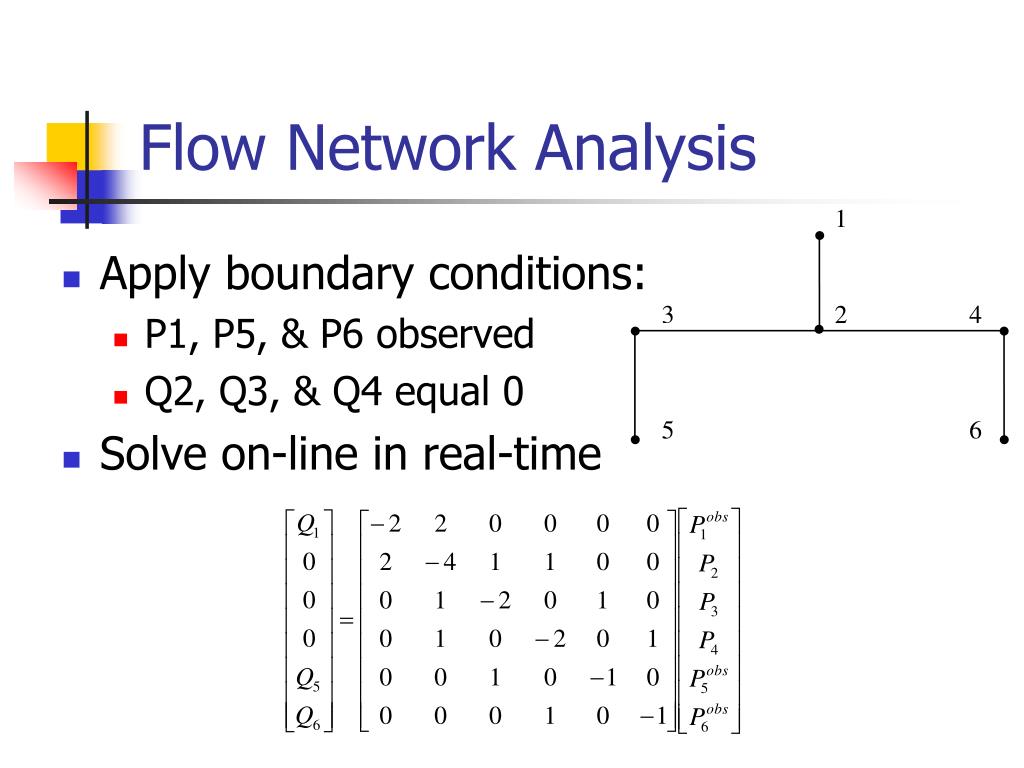

  9. Flow Network Analysis • Apply boundary conditions: • P1, P5, & P6 observed • Q2, Q3, & Q4 equal 0 • Solve on-line in real-time

  10. Notes • Previous approach is relatively easy • Hot runner geometry known • Constant viscosity assumed • “Newtonian” • Flow conductance matrix pre-computed and remains constant • Able to invert matrix in microseconds • Definitely feasible for 64+ cavities Not so accurate: ignores shear heating and shear thinning

  11. Rheological Modeling • Newtonian • Ellis Model • WLF Model

  12. Three levels of flow analysis • Newtonian: previously described • Fast but least accurate • Modified Ellis model • Analytical solutions for temperature & flow • Very fast solution • Full mold filling simulation • Simultaneous solution of differential eq’s • Iterative solution required • CPU intensive

  13. Ellis Solution:Temperature Field • Balance shear heating, heat conduction, and heat convection

  14. Ellis Solution:Flow Field • Temperature estimated at each portion of the hot runner • Viscosity computed in each flow segment • Conductance matrix formed at each time step • Flow conductance matrix established with analytical relation (rod)

  15. Mold Filling Analysis • Heat, mass, and momentum equations • Full spatial discretization • Iterative solution of equations Most accurate but CPU intensive.

  16. Approximate Execution Speed • Newtonian flow analysis • ~20,000 times/sec (2 cavities) • Feasible for 64 cavities + • Ellis model flow analysis • ~5,000 times/sec (2 cavities) • Feasible for up to 64 cavities • Mold filling simulation • ~1,000 times/sec (2 cavities) • Feasible for up to 8 cavities, possibly more

  17. System Development • Instrumented Mold • Valve gated hot runner • Cavity pressure transducers • Control system • Signal conditioners • Data acquisition • Real time flow analysis • User interface

  18. Simulation Outputs • Continuous feedback of • Cavity pressures • Flow rates • Prior to mold opening • Part weight / short / flash conditions • Part shrinkage • Melt viscosity estimates • Other quality attributes

  19. Demonstration

  20. Experimental Validation:Newtonian Analysis • Process changes definitely observed • Temperature effect is confounding • Newtonian model likely not enough       

  21. Current Status • Validation still on-going • Rheology & melt temperature are critical • ~15% mean error • ~70% accuracy on main effects • On-line calibration being developed • Small DOE to verify accuracy • Automatic correction for mass conservation or viscosity shifts • Very promising approach, though in infancy

  22. Inj Fwd Inj Fwd Data Ram position & hyd pressure P1 & P2 Display Info Process Settings C1 & C2 V1 & V2 U1 & U2 Objective:Real Time Control • Control of pressure and flow rate at each gate in real time • New valve designs desired Inj FwdConditioner Molding Machine DAQ Computer ChargeAmplifiers Mold Operator Valve Control Relays

  23. New Valve Designs

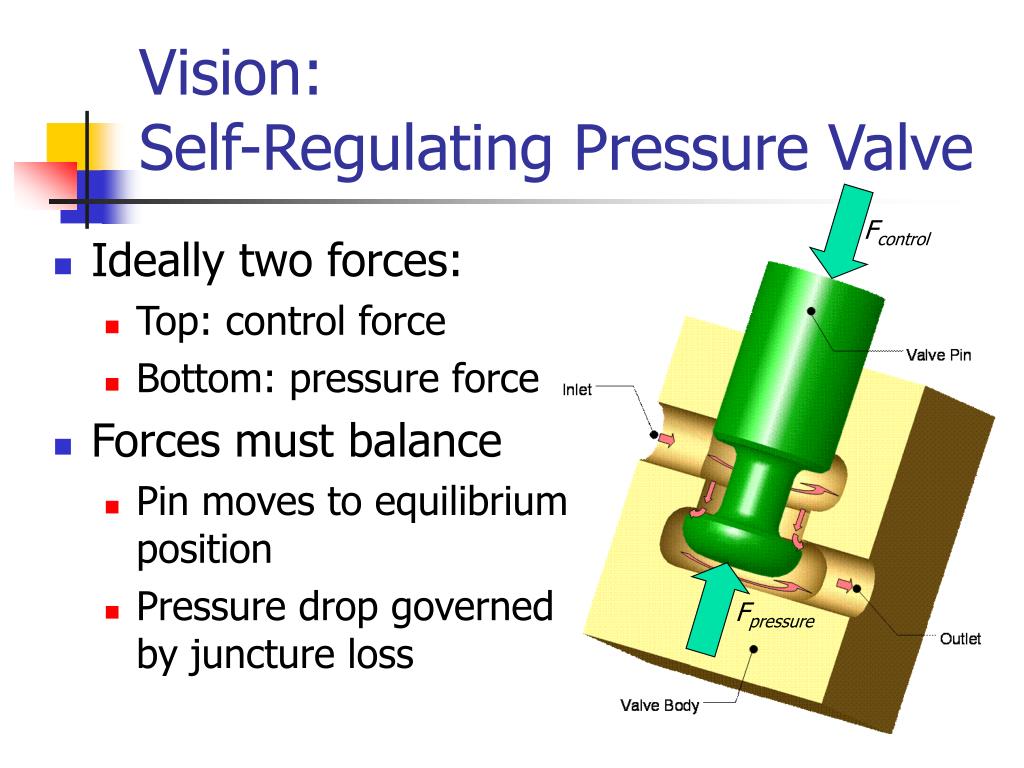

  24. Fcontrol Fpressure Vision: Self-Regulating Pressure Valve • Ideally two forces: • Top: control force • Bottom: pressure force • Forces must balance • Pin moves to equilibriumposition • Pressure drop governedby juncture loss

  25. Fcontrol Pout Pin time time time Animation • Outlet pressure proportional to control force • Pin position determined by inlet pressure and related pressure drop

  26. Newtonian Analysis:Sizing & Pressure Drops • All dimensions normalizedto inlet radius, R • aR: outer diameter • bR: inner diameter • cR: extension diameter • dR: annulus length • eR: valve pin position

  27. Analysis of Pressure & Shear Stress Loads • Load due to pressure drop across valve • Load due to shear stresses on valve • Juncture loss (empirical estimate)

  28. Valve can be sizedfor mass rate and DP Large annulus desired for good control Analysis Results StrengthLimit ControlLimit

  29. Advanced Analysis • Axisymmetric 2D numerical simulation developed including acceleration effects

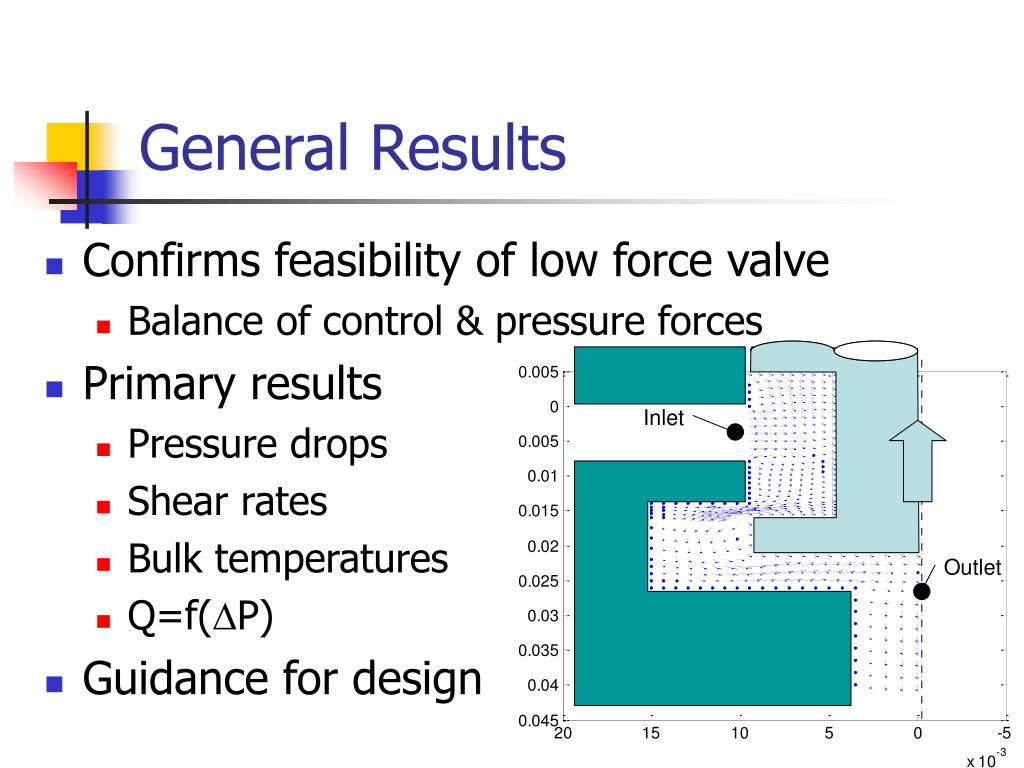

  30. General Results • Confirms feasibility of low force valve • Balance of control & pressure forces • Primary results • Pressure drops • Shear rates • Bulk temperatures • Q=f(DP) • Guidance for design

  31. Outlet Melt Pressure as a Function of Control Force Confirms closed loop meltpressure control withoutpressure feedback.

  32. Dynamic Response & Positionas a Function of Control Force Pin hovers near a closed position. Dynamics driven by resultant force.

  33. Outlet Bulk Temperature as a Function of Control Force Indicates limitson shear heating (sizing guidance)

  34. Melt pressure is proportional to pneumatic pressure Design and Implementation • Valve designed and built • Inlet diameter of 8 mm • In-line configuration • Pressure transducers • At inlet • Below valve pin • Control force provided bya pneumatic cylinder with varying pressure

  35. Transient Validation • Predicted response is fast & steady • Observed response is slower & oscillatory

  36. Hot Runner Implementation • Retrofit to valve-gated hot runner • Side entry toannular channel • Valve pin • 5 mm Diameter • Shear rates~10,000 1/sec

  37. Hot Runner Implementation

  38. Resulting Capability • Cavity pressure control without pressure transducers! • If cavity pressure transducers are used, then process simulation can provide flow rates and other quality estimates • Can measure load on extended valve pin to completely eliminate pressure transducers

  39. Conclusion

  40. Closing Statements • Vision is solid • Difficult work is done • Capability must be validated • This is “where rubber hits the road” • What is the best we can do? • Validation & specification nearly done • Commercial feasibility studies in 2005

  41. Two More Quick Projects Wireless Pressure Sensor The Alpha-Sigma Project

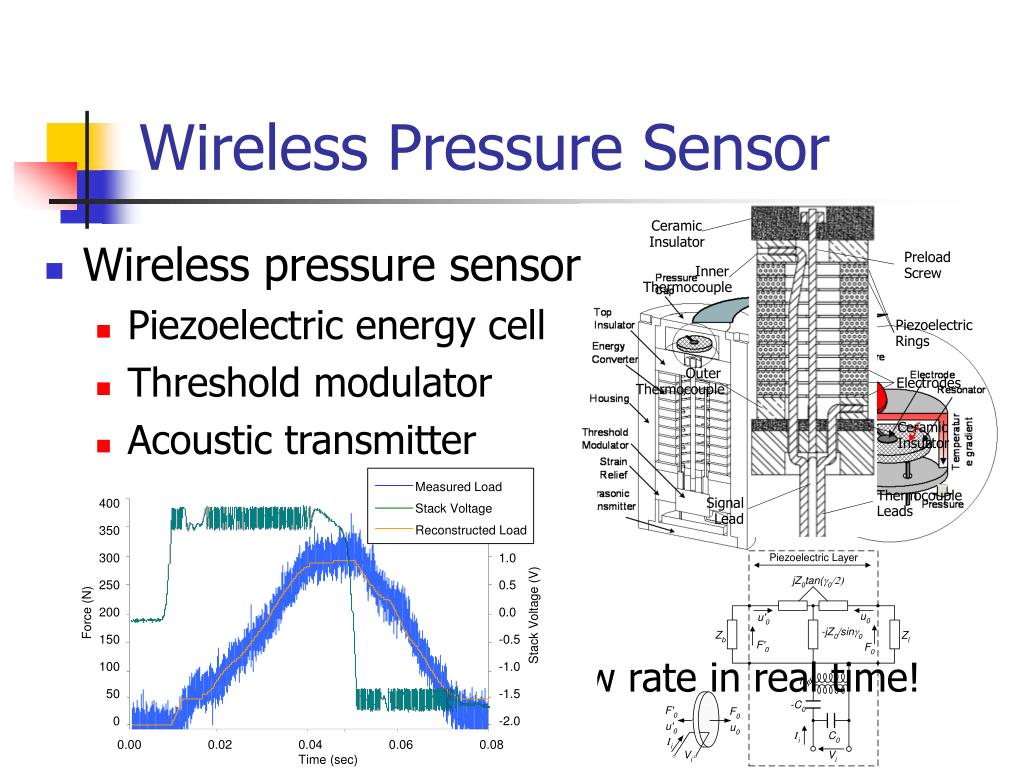

  42. Ceramic Insulator Preload Inner Screw Thermocouple Piezoelectric Rings Outer Electrodes Thermocouple Ceramic Insul a tor Therm ocouple Signal Leads Lead Wireless Pressure Sensor • Wireless pressure sensor • Piezoelectric energy cell • Threshold modulator • Acoustic transmitter • Next generation sensor • w=f(T) • Multiple sensor arrays • Pressure, temperature, flow rate in real time! • ~5-10 years out

  43. Alpha Sigma Pi: Confidence, Robustness, Performance • Given specifications & • Non-linear models • a confidence levels • s robustness requirements • Provides: • Process windows • Pareto optimal charts • SPC & SQC graphs • Taguchi/Axiomatic methods

  44. Graduate Students You are important! I want you to succeed!!

  45. Guidelines • How to address me? • Speaking to me: Dave • Speaking to other faculty: Prof. Kazmer • Speaking to other students: • Kazmer • #^&@@#^%

  46. Guidelines • How to work with me: • Respect and protect my time • Do high quality work • Have others check your work, especially thesis • Be proactive • You’re empowered: assume authority • Execute to plan • Commit and deliver

  47. Current Research FundingBy Sponsor ($ remaining of total) • Mold-Masters ($40k of 80k+ in-kind) • NSF Melt Valves ($120k of $210k) • NSF Sensing ($230k of $900k) • Available money: ~400k of $1200k • ~12 student-years + expenses • Enough for all your MS + 2 DEngs • No salary for Kazmer

  48. Current Research FundingBy Topic ($ remaining of total) • Advanced melt flow control ($80k of $150k) • On-line simulation ($120k of 150k) • Wireless pressure & temperature sensors ($110k of 420k)

  49. Melt flow control Vijay: Characterization Rahul: Hydrodynamics Other: Analysis On-line simulation Ranjan: Validation Hitesh: Quality Other: Extension Wireless sensing Other: Design Other: Testing Unassigned Peter Knepper Steven Johnston Kathy Garnivish OK to split topics Research Topics by Student
