6 Important Points to look for before choosing a Spinning Can

A good Spinning Can not only delivers a quality product but also lasts for a longer time giving economic viability to the investment. Here are 6 important points you should look for

jumac
Download Presentation

6 Important Points to look for before choosing a Spinning Can

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

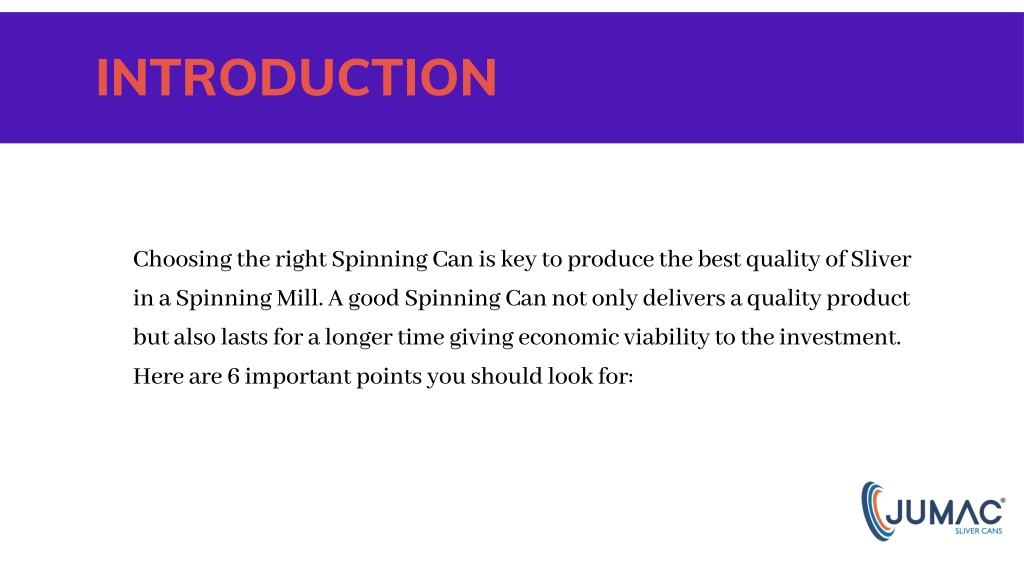

  1. INTRODUCTION Choosing the right Spinning Can is key to produce the best quality of Sliver in a Spinning Mill. A good Spinning Can not only delivers a quality product but also lasts for a longer time giving economic viability to the investment. Here are 6 important points you should look for:

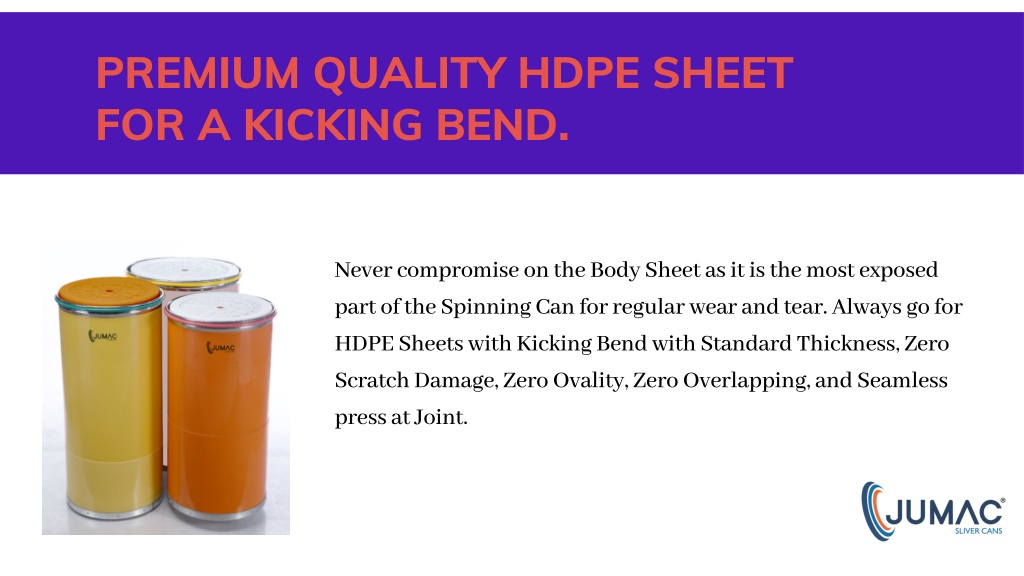

  2. PREMIUM QUALITY HDPE SHEET FOR A KICKING BEND. Never compromise on the Body Sheet as it is the most exposed part of the Spinning Can for regular wear and tear. Always go for HDPE Sheets with Kicking Bend with Standard Thickness, Zero Scratch Damage, Zero Ovality, Zero Overlapping, and Seamless press at Joint.

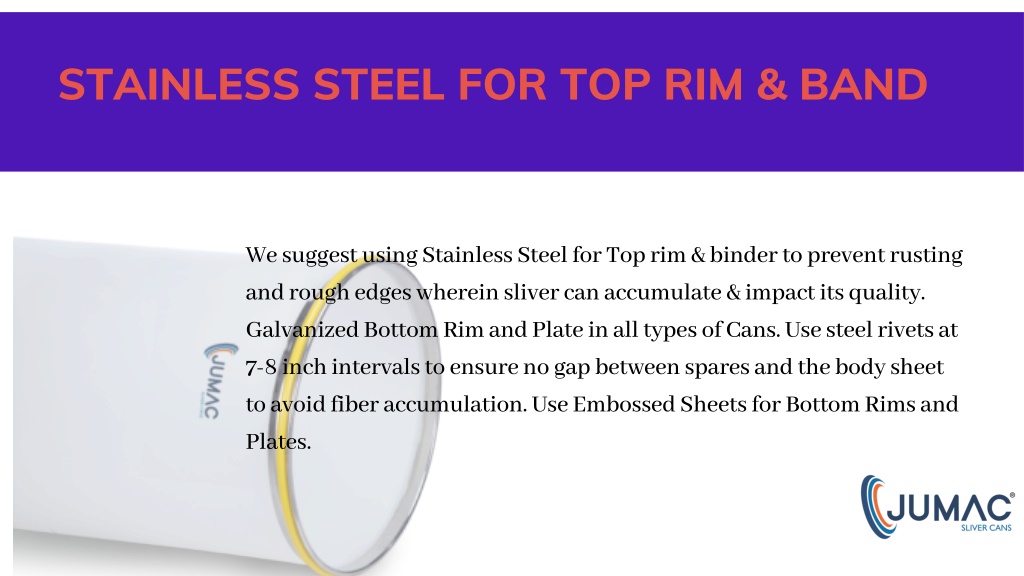

  3. STAINLESS STEEL FOR TOP RIM & BAND We suggest using Stainless Steel for Top rim & binder to prevent rusting and rough edges wherein sliver can accumulate & impact its quality. Galvanized Bottom Rim and Plate in all types of Cans. Use steel rivets at 7-8 inch intervals to ensure no gap between spares and the body sheet to avoid fiber accumulation. Use Embossed Sheets for Bottom Rims and Plates.

  4. SMOOTH 360-DEGREE CASTOR MOVEMENT Look for Ball Bearing Type 360-Degree Swiveling Castors, directly fixed to the bottom plate using nut bolts. Ensure no play in the castor movement and minimum gap from the floor.

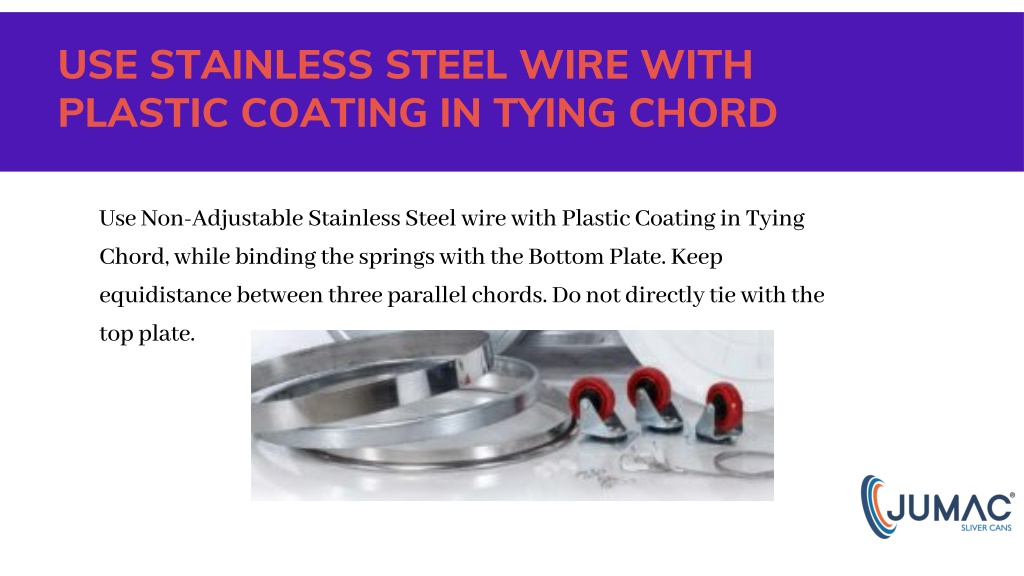

  5. USE STAINLESS STEEL WIRE WITH PLASTIC COATING IN TYING CHORD Use Non-Adjustable Stainless Steel wire with Plastic Coating in Tying Chord, while binding the springs with the Bottom Plate. Keep equidistance between three parallel chords. Do not directly tie with the top plate.

  6. SPRINGS ARE THE HEART OF THE CAN Use coated springs for your can and check the Spring Thrust as per specifications to avoid ununiformed movement and balance during operations. Proper Specification with pretension value must be filled in the specification sheet while asking from the supplier.

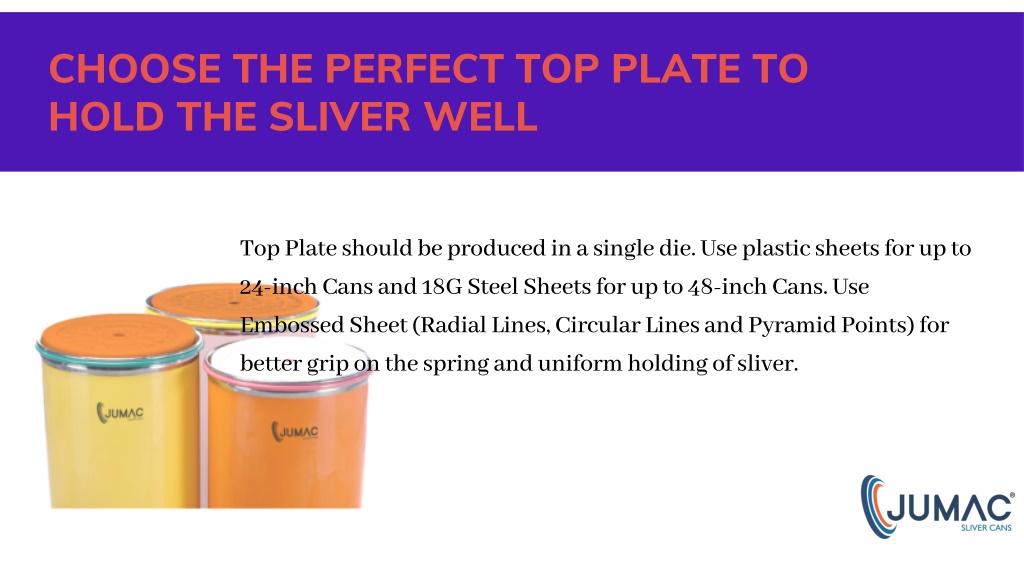

  7. CHOOSE THE PERFECT TOP PLATE TO HOLD THE SLIVER WELL Top Plate should be produced in a single die. Use plastic sheets for up to 24-inch Cans and 18G Steel Sheets for up to 48-inch Cans. Use Embossed Sheet (Radial Lines, Circular Lines and Pyramid Points) for better grip on the spring and uniform holding of sliver.

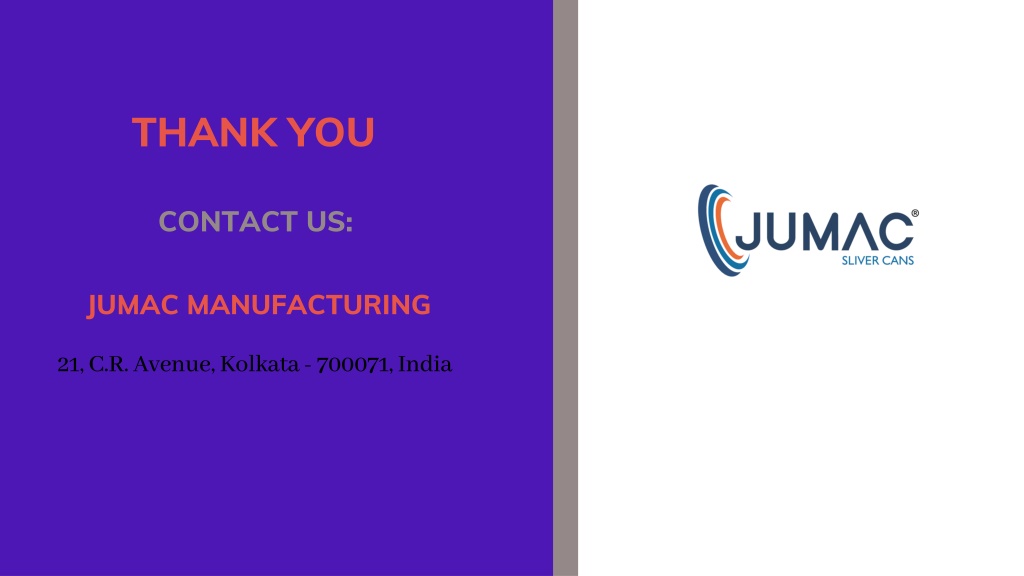

  8. THANK YOU CONTACT US: JUMAC MANUFACTURING 21, C.R. Avenue, Kolkata - 700071, India
