  1. Computer Security: Principles and Practice Chapter 1 – Overview First Edition by William Stallings and Lawrie Brown Lecturer: Ming Hour Yang

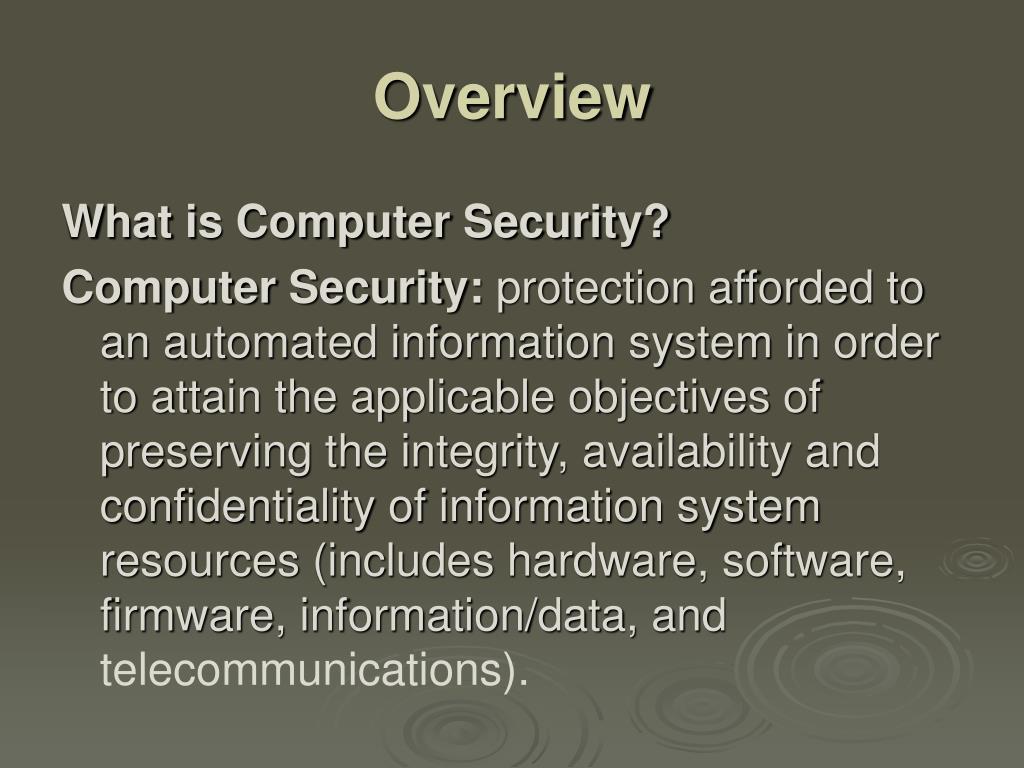

  2. Overview What is Computer Security? Computer Security: protection afforded to an automated information system in order to attain the applicable objectives of preserving the integrity, availability and confidentiality of information system resources (includes hardware, software, firmware, information/data, and telecommunications).

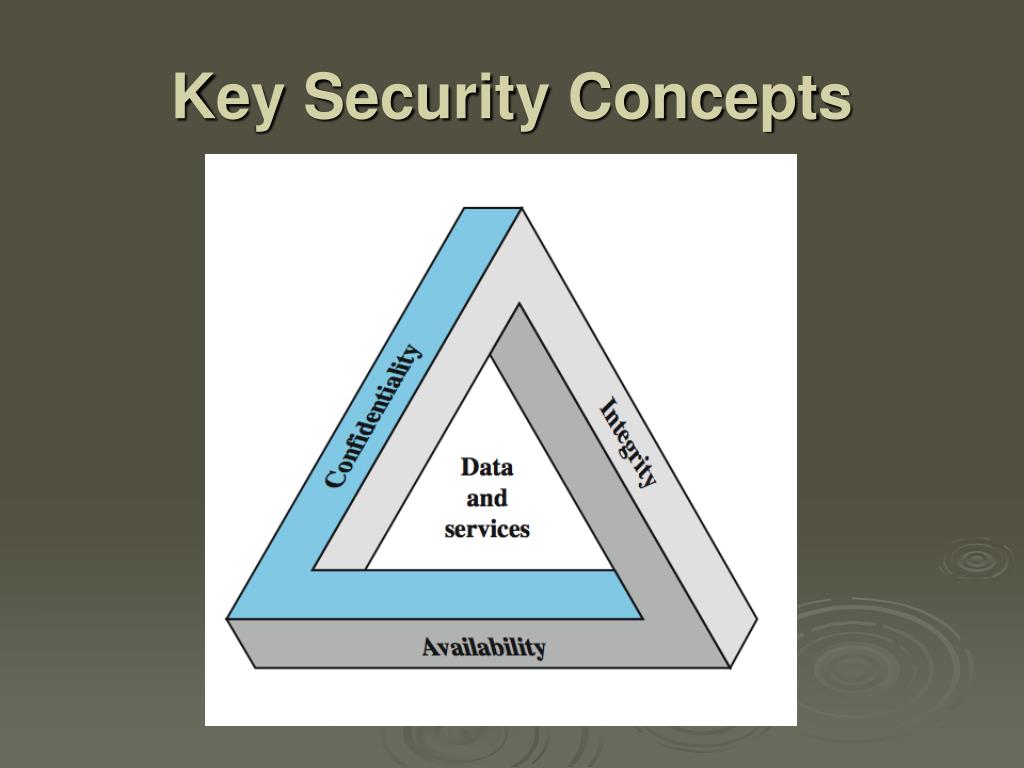

  3. Key Security Concepts

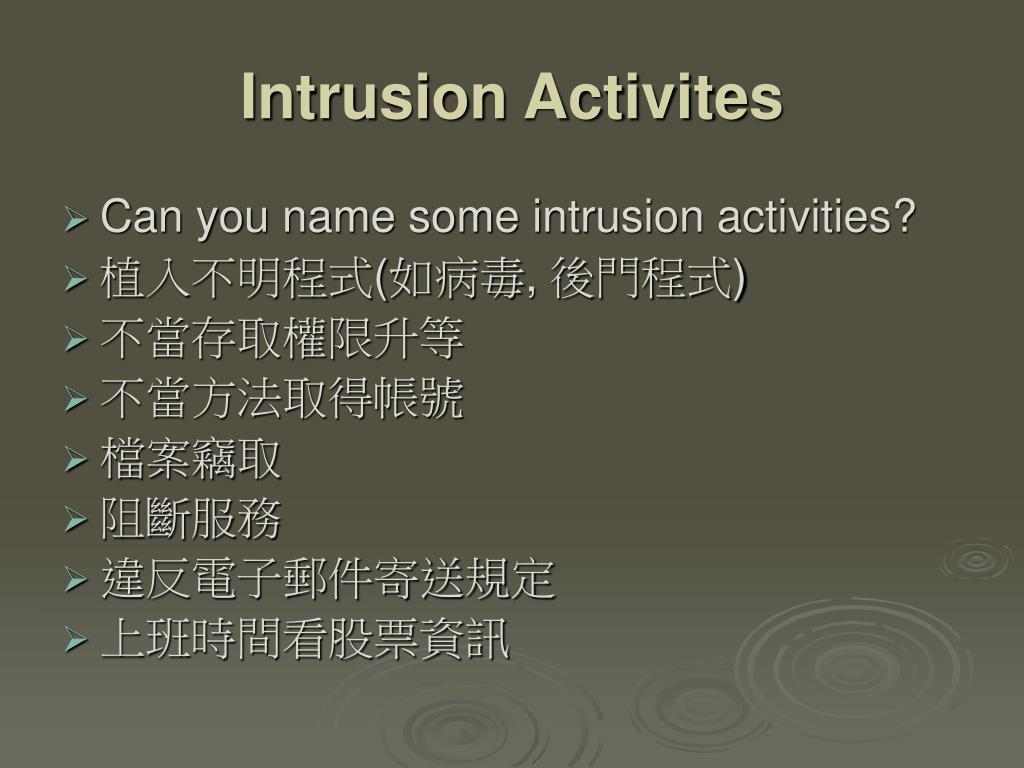

  4. Intrusion Activites • Can you name some intrusion activities? • 植入不明程式(如病毒, 後門程式) • 不當存取權限升等 • 不當方法取得帳號 • 檔案竊取 • 阻斷服務 • 違反電子郵件寄送規定 • 上班時間看股票資訊

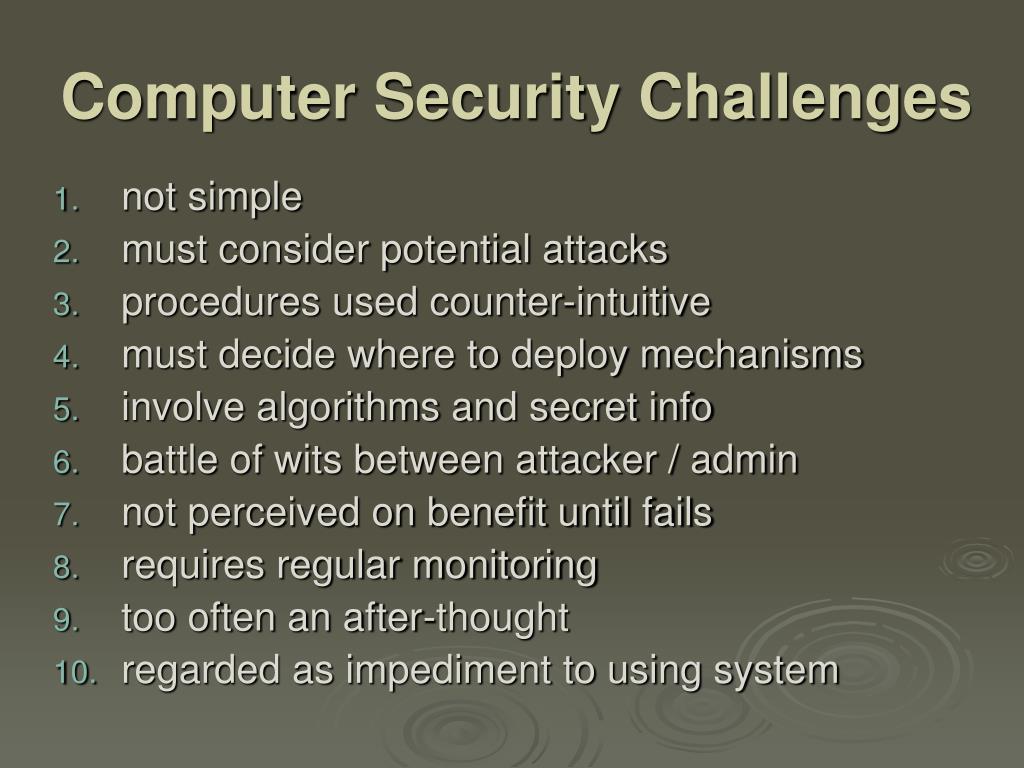

  5. Computer Security Challenges • not simple • must consider potential attacks • procedures used counter-intuitive • must decide where to deploy mechanisms • involve algorithms and secret info • battle of wits between attacker / admin • not perceived on benefit until fails • requires regular monitoring • too often an after-thought • regarded as impediment to using system

  6. Security Terminology

  7. Vulnerabilities and Attacks • system resource vulnerabilities may • be corrupted (loss of integrity) • become leaky (loss of confidentiality) • become unavailable (loss of availability) • attacks are threats carried out and may be • passive • active • insider • outsider

  8. Who launch attacks • Can you name some? • 駭客 • 對特殊目標具有特殊目的的人(竊取網路銀行帳號及密碼) • 離職員工, 離時雇員 • 練習中的新手 • And?

  9. Motivation of an attack • Try to give me some reason • 竊取資料, 偷頻寬 • 破壞 • 當攻擊跳板 • 中斷服務 • 練功, 玩 • 作戰 • Else?

  10. Taxonomy of Attacking • 搜尋攻擊目標相關資訊 • 確定對方系統資訊 • 通訊埠掃描 • 作業系統版本, 提供服務項目(telnet, ftp, web)及版本 • 弱點攻擊 • 取得管理者權限 • 植入程式 • Backdoor, trojan horse, sniffer • 隱藏蹤跡 • Rootkit • “有目的”的攻擊 • “沒目的”的攻擊

  11. Target of Attackers • 單位所有 IP addresses • 伺服器位置 • 人員, e-mail, 名字英文縮寫, 網域名稱查詢伺服器(DNS)位置, 撥接上網電腦所在位置…等 • 網管人員帳號 • 是否有撥接上網的電腦 • 是否有新成立的單位

  12. Collect Target Information • 取得管道 • 仔細閱讀對方網站內容 • 搜尋引擎(yahoo, google, dogpile, altivista, edgar) • 搜尋工具, 如Webferret, Nessus • 可同時搜尋 15 個搜尋引擎 • 紀錄搜尋結果 • 去除重複的結果(標題相同, 網址相同,…)

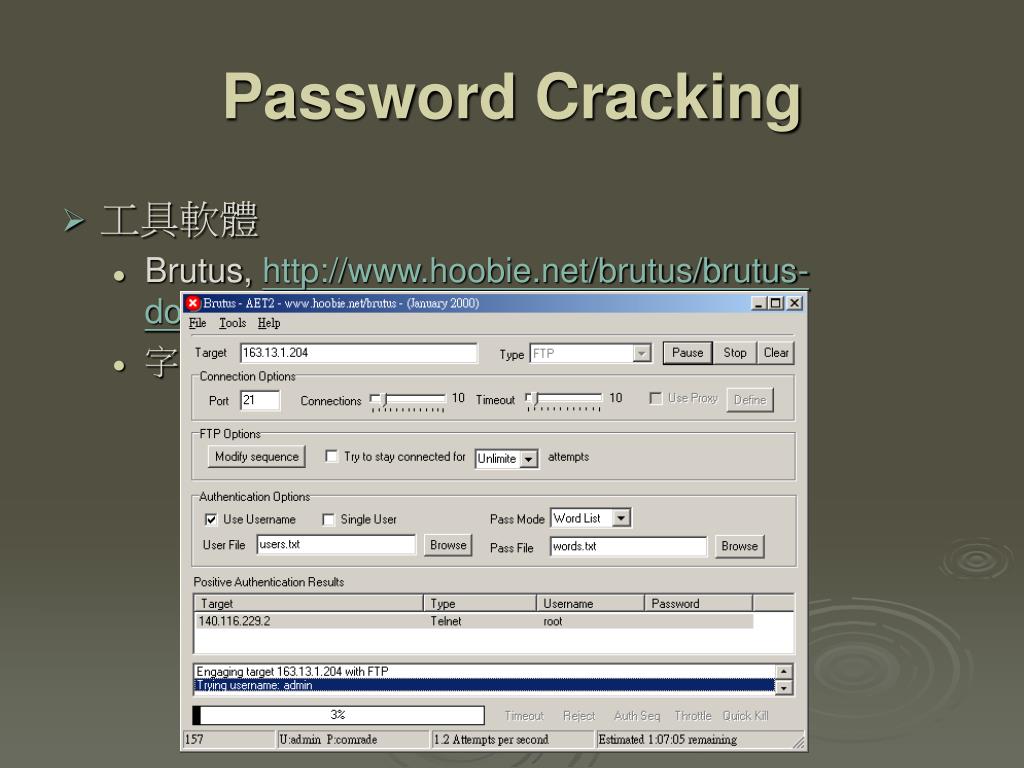

  13. Password Cracking • 工具軟體 • Brutus, http://www.hoobie.net/brutus/brutus-download.html • 字典檔

  14. Homework • Use Nessus to scan your computer, and find out the vulnerabilities in the computer • Read the Nessus report, and write a report to me to show me what you learned from the Nessus report • Your report needs a cover page which includes your name and ID • Due date 3/16 • Mail your report to me mhyang@cycu.edu.tw

  15. Countermeasures • means used to deal with security attacks • prevent • detect • recover • may result in new vulnerabilities • will have residual vulnerability • goal is to minimize risk given constraints

  16. Security Mechanisms/Tools • 弱點掃描工具軟體 • R-scanner • nessus • 網路架構 • 防火牆系統 • 入侵偵測系統

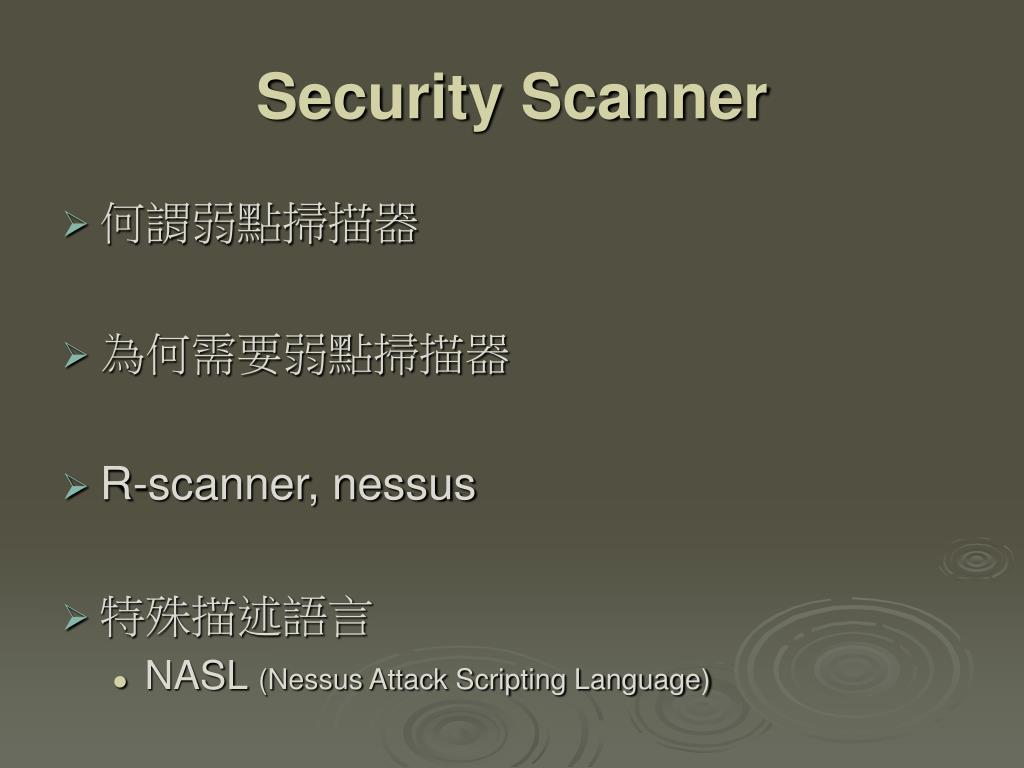

  17. Security Scanner • 何謂弱點掃描器 • 為何需要弱點掃描器 • R-scanner, nessus • 特殊描述語言 • NASL (Nessus Attack Scripting Language)

  18. 網際網路 企業內部網路 防火牆 Firewall • 在一個受保護的網路間, 用來強制執行企業安全政策的一個或一組系統 • 目的: • 謹慎的在一個控制 點上限制人們進出 網路 • 防止攻擊者接近 防禦物

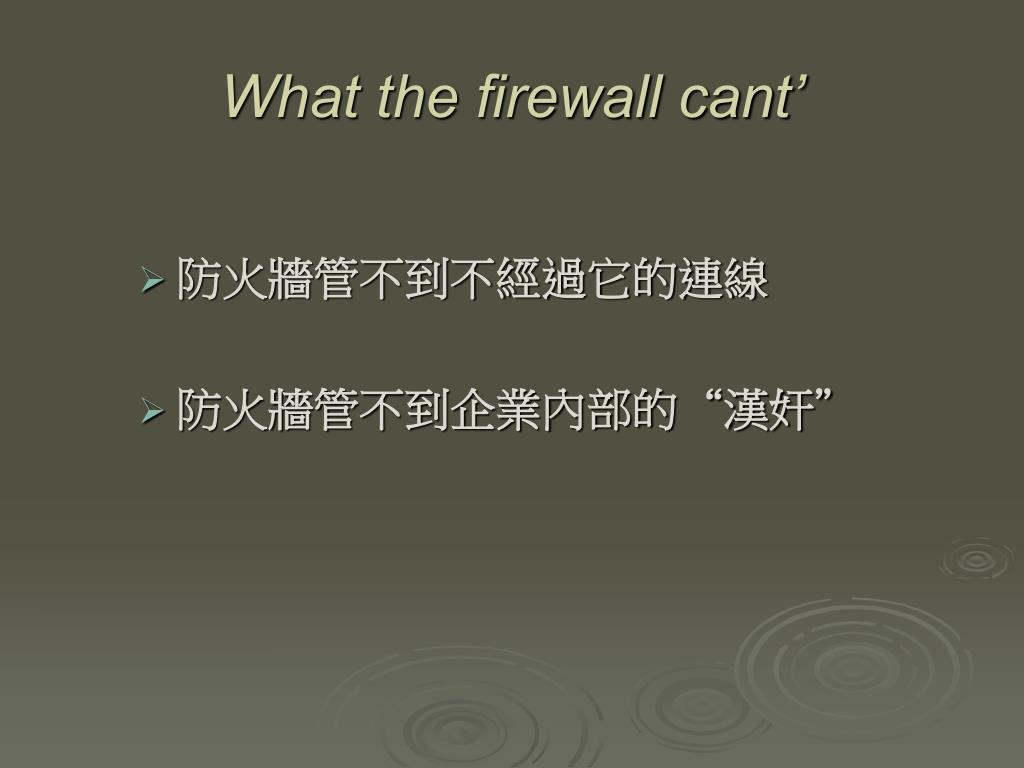

  19. What the firewall cant’ • 防火牆管不到不經過它的連線 • 防火牆管不到企業內部的“漢奸”

  20. Intrusion Detection System • 網路型入侵偵測系統 • Snort • 篩檢網路流通封包 • 本機型入侵偵測系統 • Agent based IDS • 保護重要檔案及系統檔

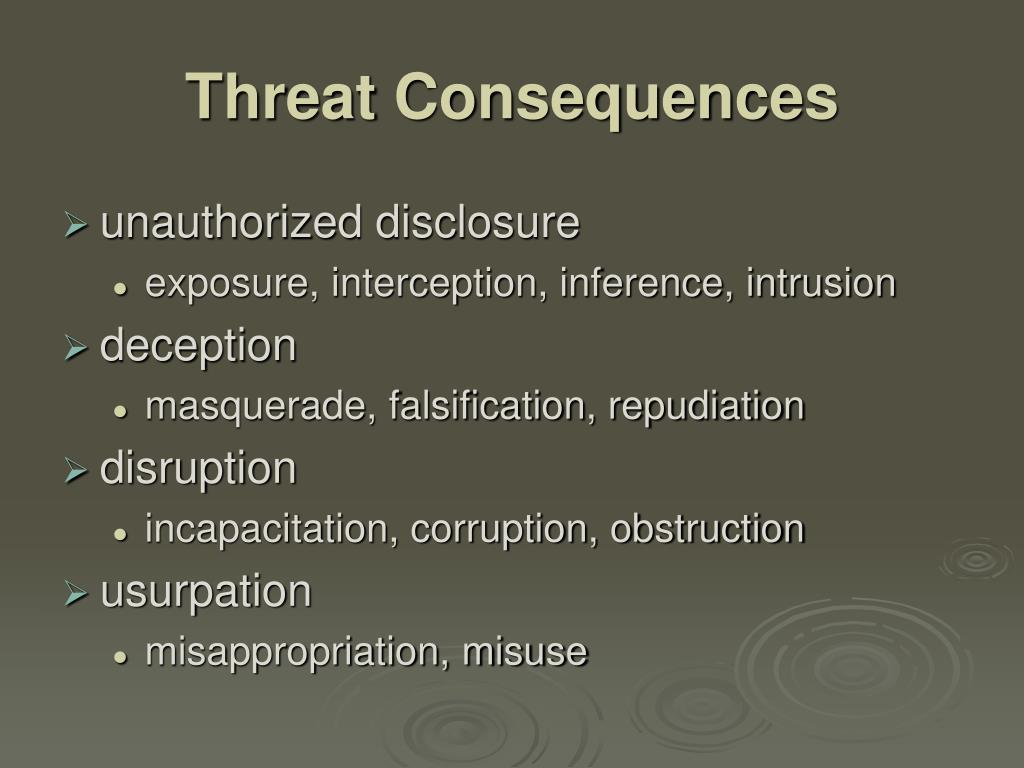

  21. Threat Consequences • unauthorized disclosure • exposure, interception, inference, intrusion • deception • masquerade, falsification, repudiation • disruption • incapacitation, corruption, obstruction • usurpation • misappropriation, misuse

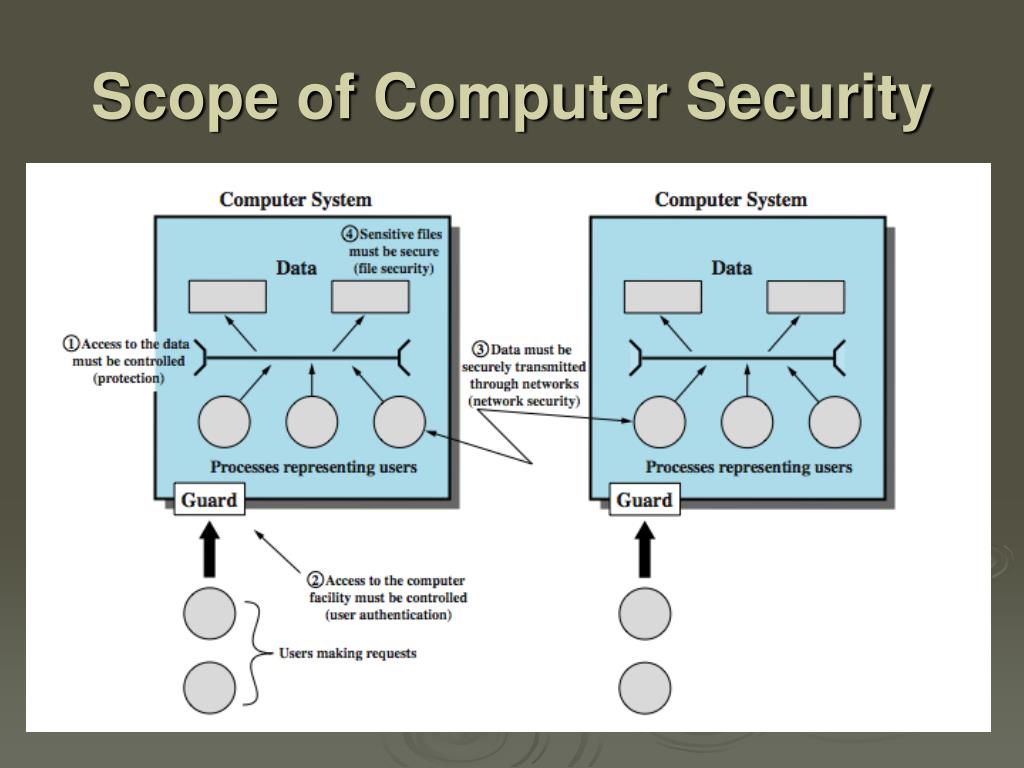

  22. Scope of Computer Security

  23. Network Security Attacks • classify as passive or active • passive attacks are eavesdropping • release of message contents • traffic analysis • are hard to detect so aim to prevent • active attacks modify/fake data • masquerade • replay • modification • denial of service • hard to prevent so aim to detect

  24. Security Functional Requirements • technical measures: • access control; identification & authentication; system & communication protection; system & information integrity • management controls and procedures • awareness & training; audit & accountability; certification, accreditation, & security assessments; contingency planning; maintenance; physical & environmental protection; planning; personnel security; risk assessment; systems & services acquisition • overlapping technical and management: • configuration management; incident response; media protection

  25. X.800 Security Architecture • X.800, Security Architecture for OSI • systematic way of defining requirements for security and characterizing approaches to satisfying them • defines: • security attacks - compromise security • security mechanism - act to detect, prevent, recover from attack • security service - counter security attacks

  26. Security Taxonomy

  27. Security Trends

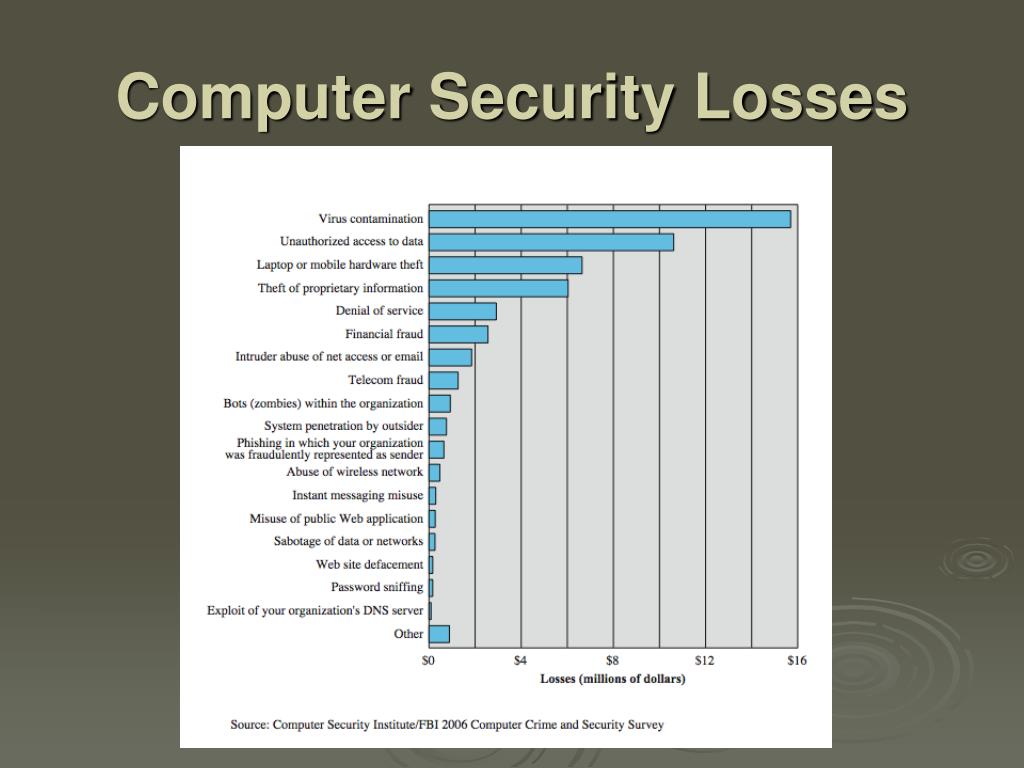

  28. Computer Security Losses

  29. Security Technologies Used

  30. Computer Security Strategy • specification/policy • what is the security scheme supposed to do? • codify in policy and procedures • implementation/mechanisms • how does it do it? • prevention, detection, response, recovery • correctness/assurance • does it really work? • assurance, evaluation

  31. Summary • security concepts • terminology • functional requirements • security architecture • security trends • security strategy

  32. Homework • Get an exploit • Attack a target in our testbed. • Use Snort to detect the attack and Use etheral to analyse the communications between the attacking and victim hosts. • Write the analysis report • Mail your report to nash@wns.ice.cycu.edu.tw • The deadline is 3/30
