  1. Evaluation of GaAs Power MESFET for Wireless Communication Li Xiang

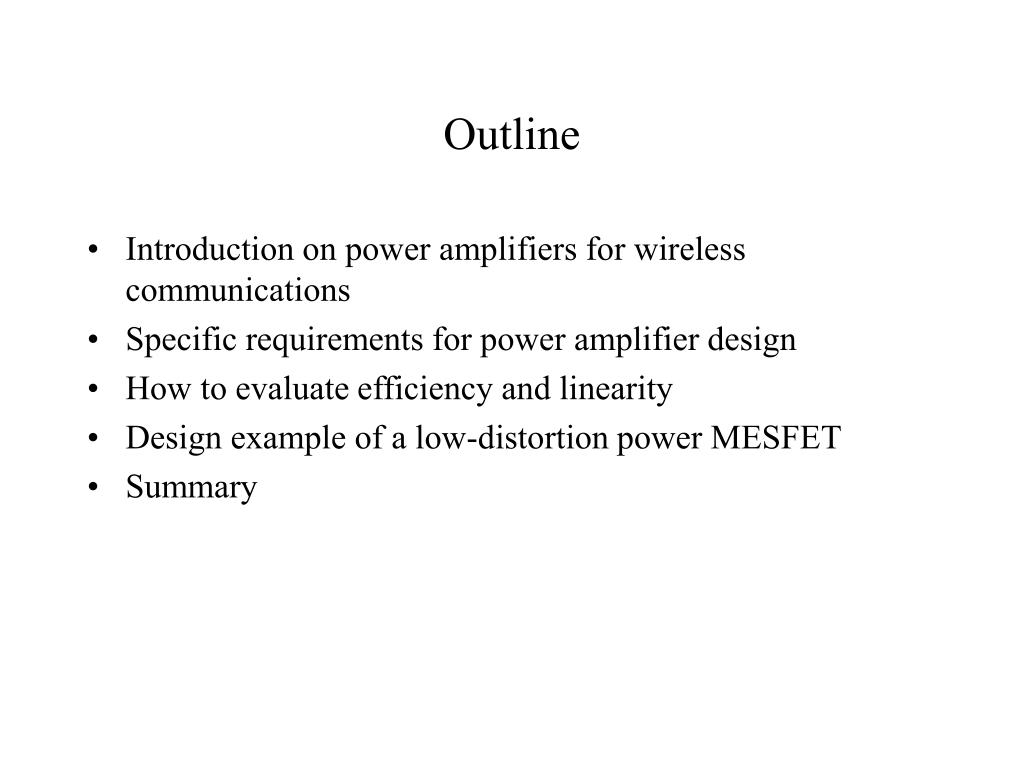

  2. Outline • Introduction on power amplifiers for wireless communications • Specific requirements for power amplifier design • How to evaluate efficiency and linearity • Design example of a low-distortion power MESFET • Summary

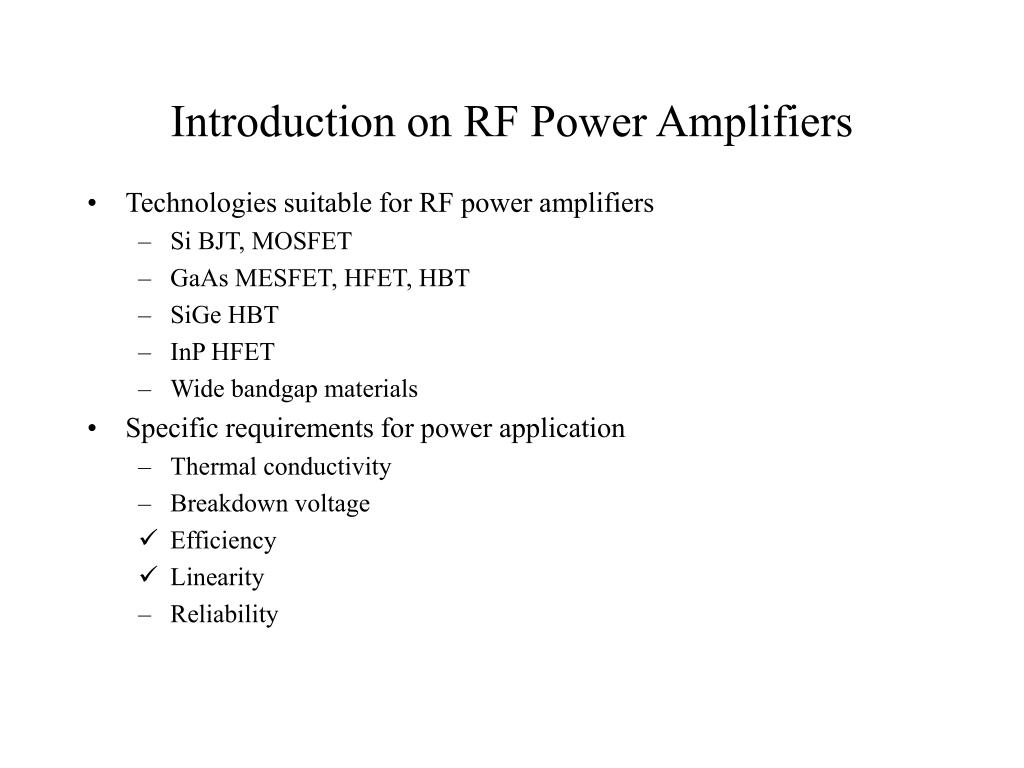

  3. Introduction on RF Power Amplifiers • Technologies suitable for RF power amplifiers • Si BJT, MOSFET • GaAs MESFET, HFET, HBT • SiGe HBT • InP HFET • Wide bandgap materials • Specific requirements for power application • Thermal conductivity • Breakdown voltage • Efficiency • Linearity • Reliability

  4. Efficiency • Two normally used definitions: • Drain efficiency: • Power-added efficiency • Methods to improve the efficiency • Suppress leakage • Schottkey gate leakage • Substrate leakage • Enhancement mode operation

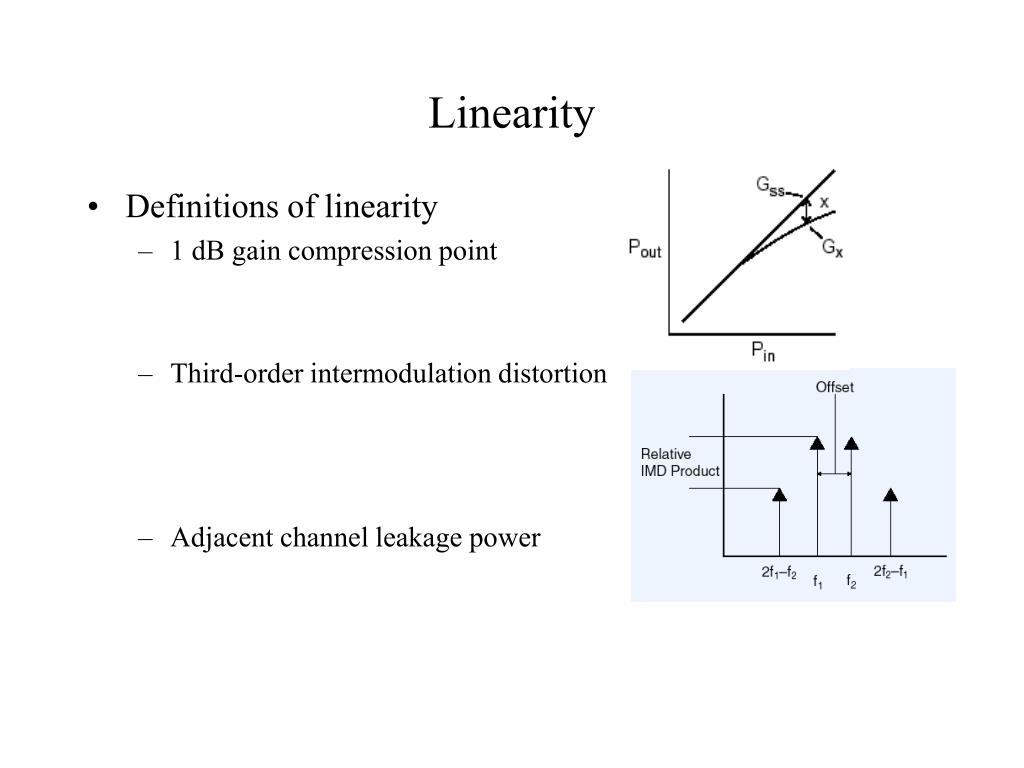

  5. Linearity • Definitions of linearity • 1 dB gain compression point • Third-order intermodulation distortion • Adjacent channel leakage power

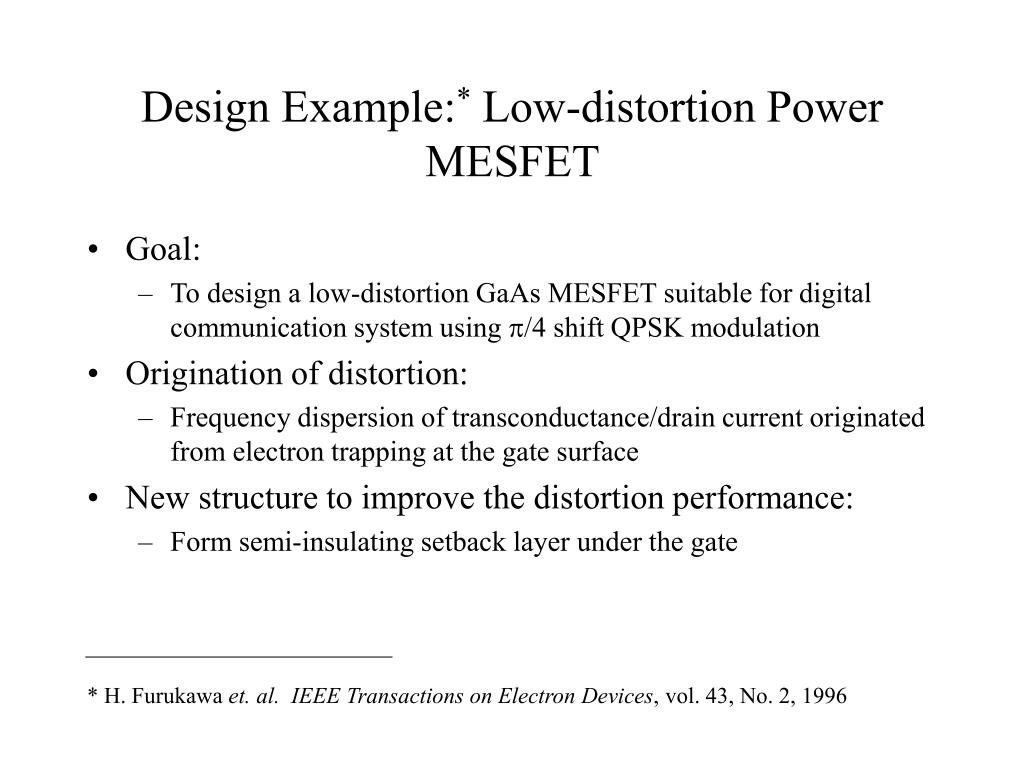

  6. Design Example:* Low-distortion Power MESFET • Goal: • To design a low-distortion GaAs MESFET suitable for digital communication system using /4 shift QPSK modulation • Origination of distortion: • Frequency dispersion of transconductance/drain current originated from electron trapping at the gate surface • New structure to improve the distortion performance: • Form semi-insulating setback layer under the gate * H. Furukawa et. al. IEEE Transactions on Electron Devices, vol. 43, No. 2, 1996

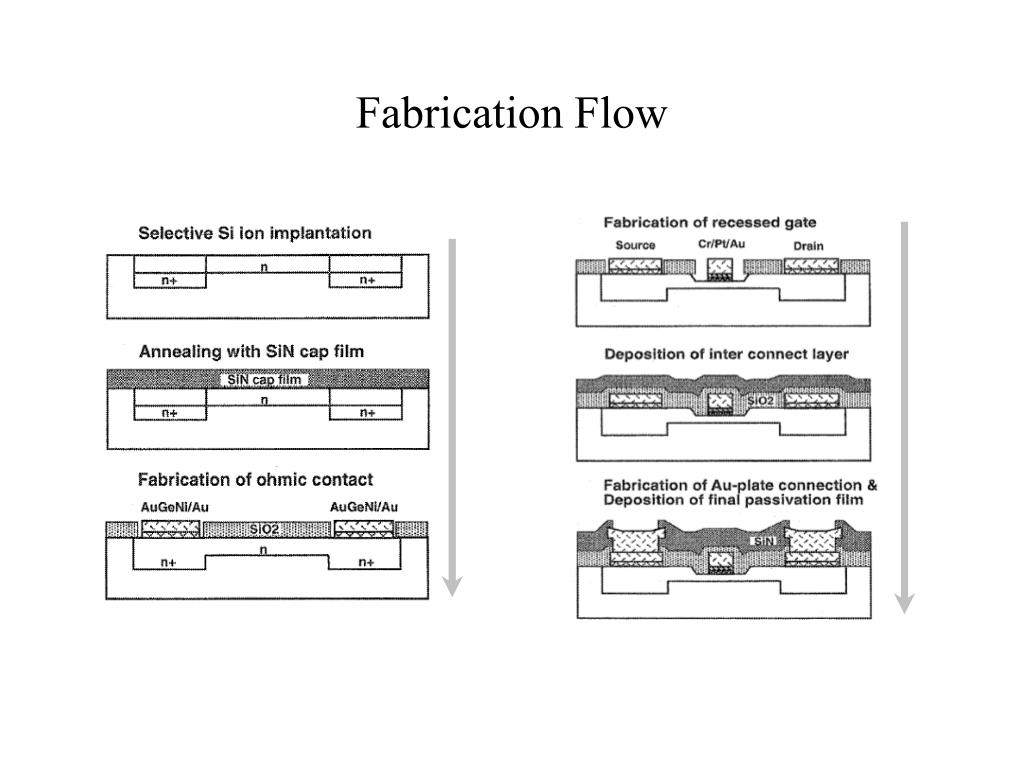

  7. Fabrication Flow

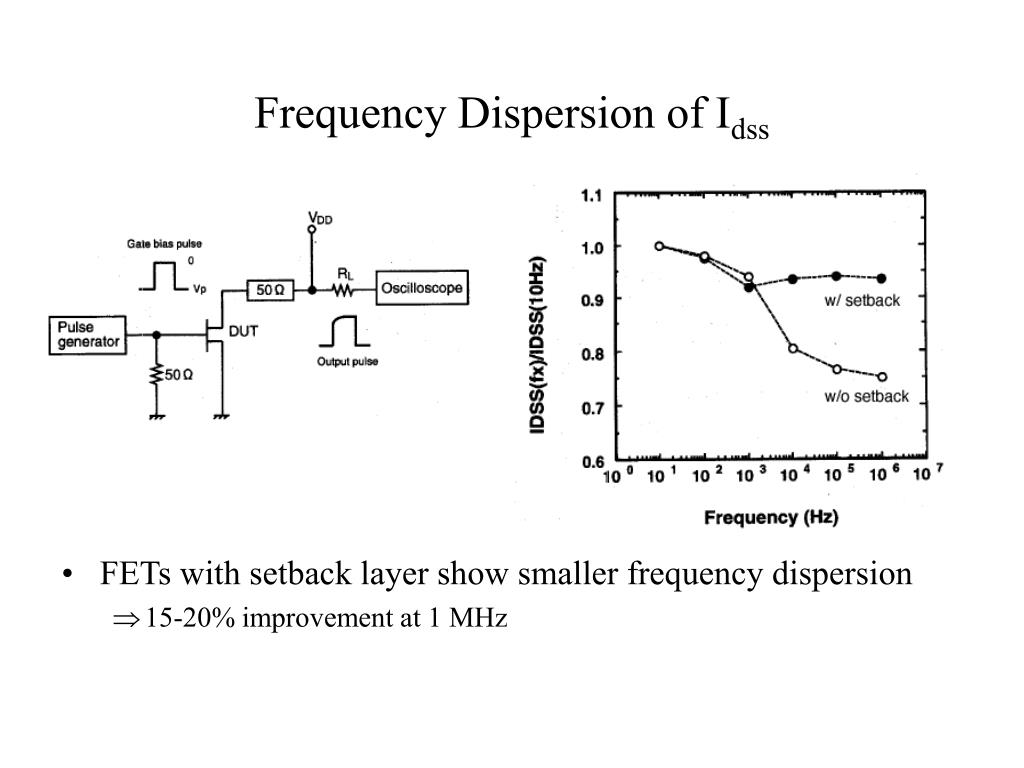

  8. Frequency Dispersion of Idss • FETs with setback layer show smaller frequency dispersion • 15-20% improvement at 1 MHz

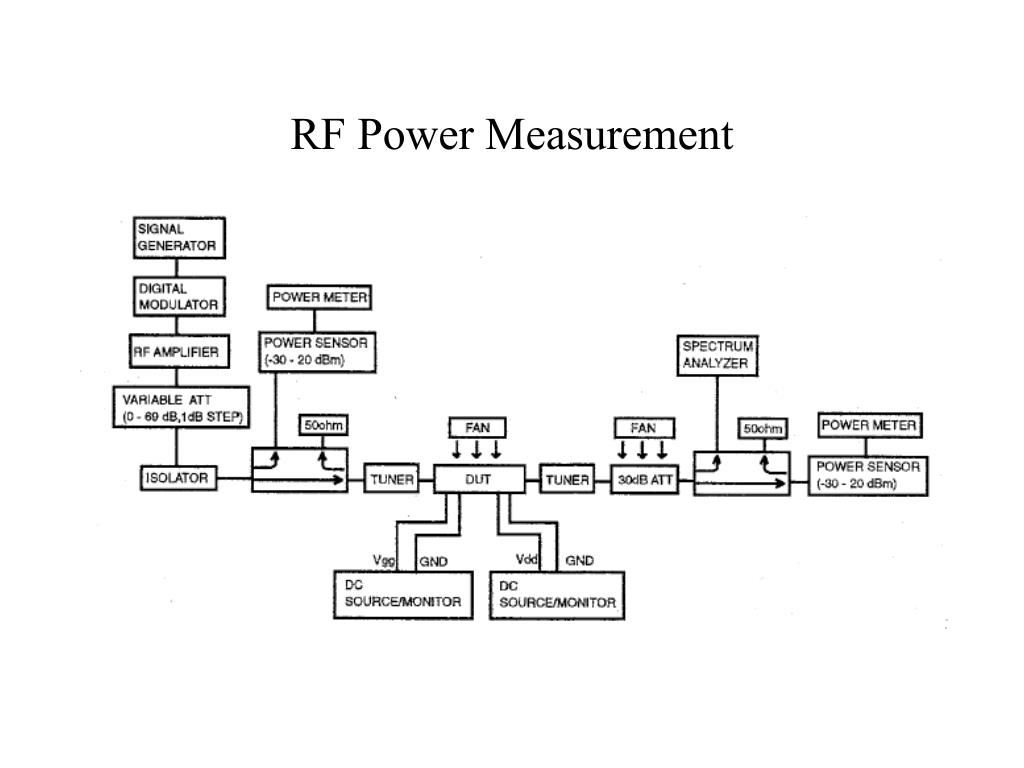

  9. RF Power Measurement

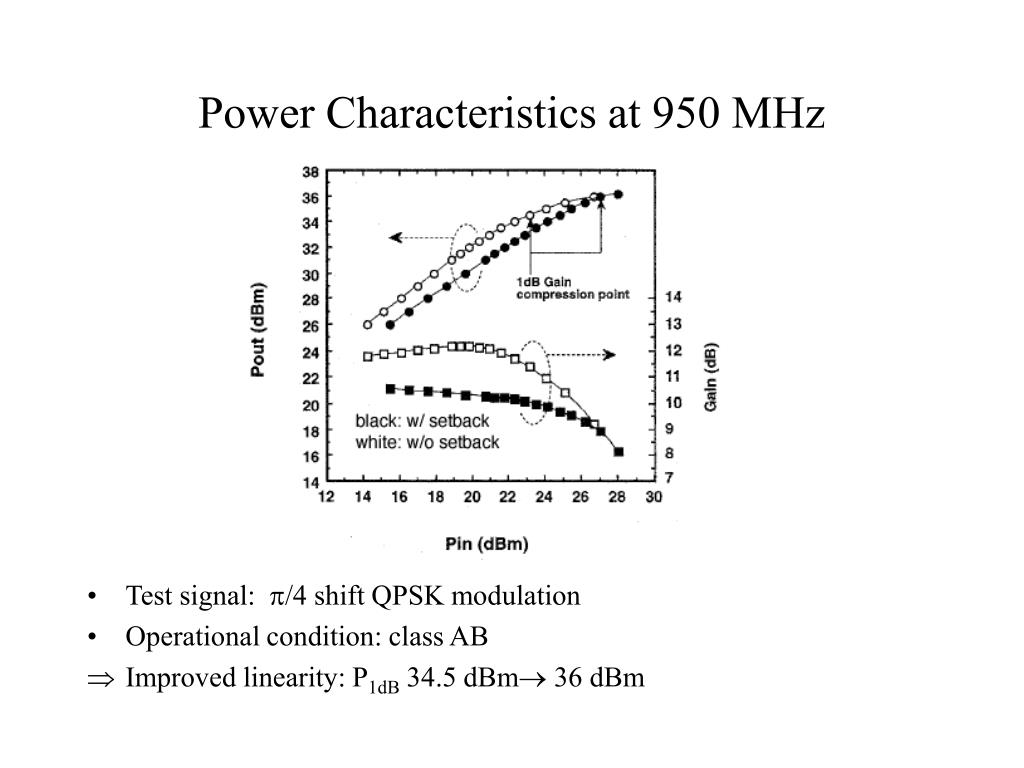

  10. Power Characteristics at 950 MHz • Test signal: /4 shift QPSK modulation • Operational condition: class AB • Improved linearity: P1dB 34.5 dBm 36 dBm

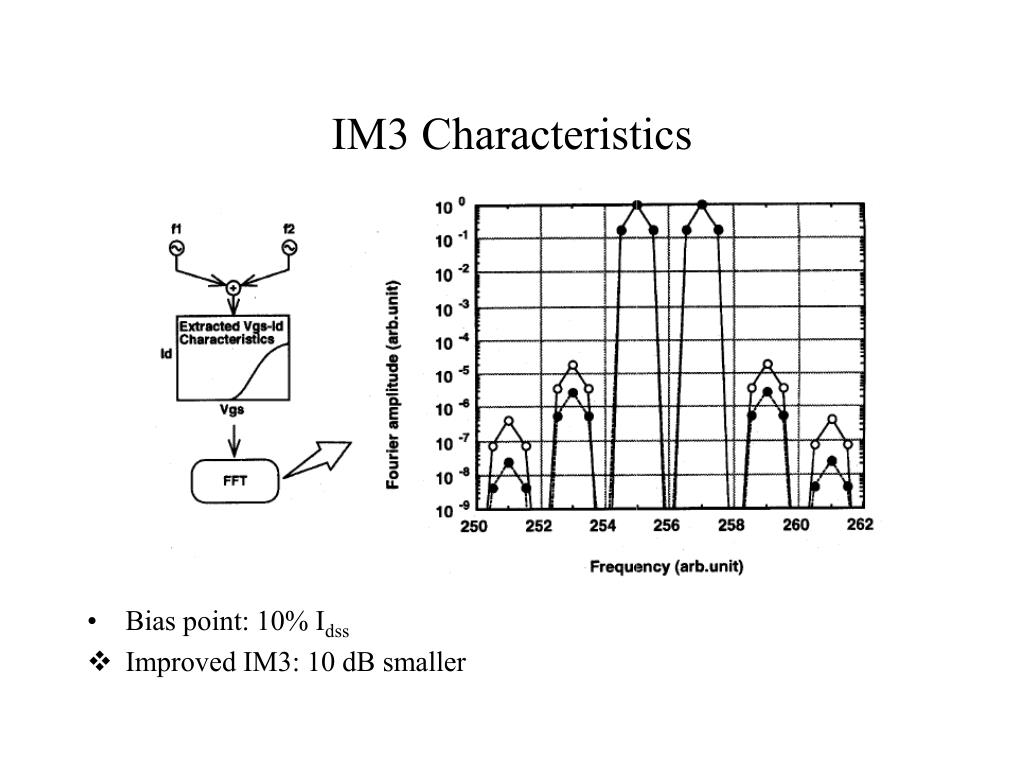

  11. IM3 Characteristics • Bias point: 10% Idss • Improved IM3: 10 dB smaller

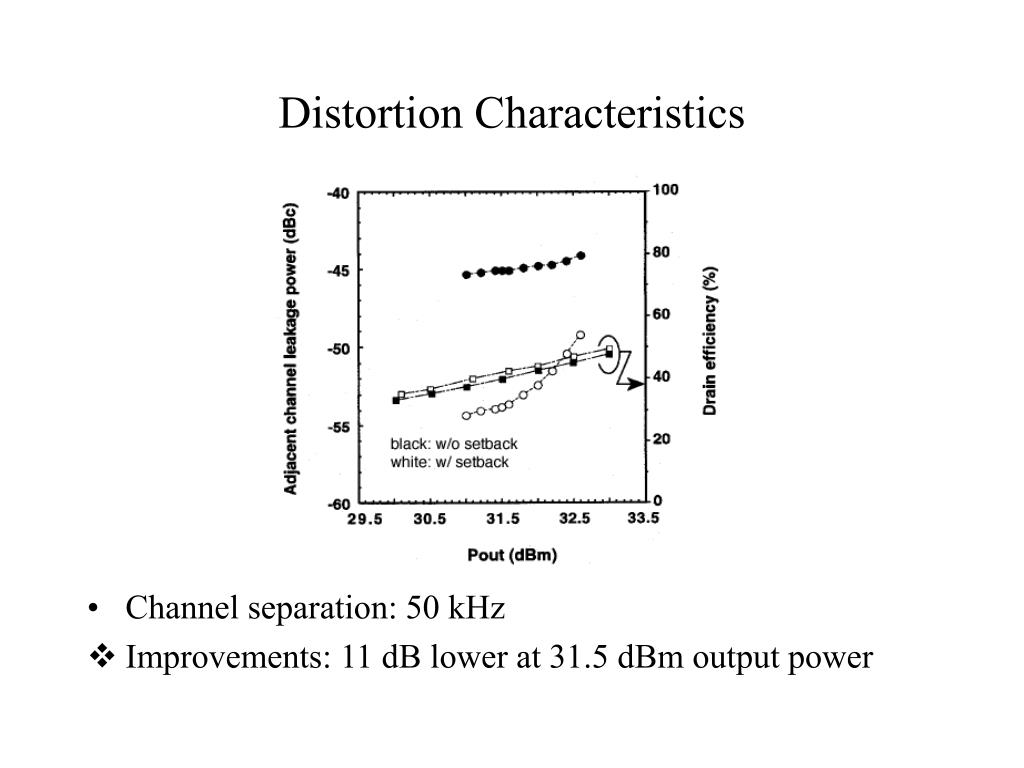

  12. Distortion Characteristics • Channel separation: 50 kHz • Improvements: 11 dB lower at 31.5 dBm output power

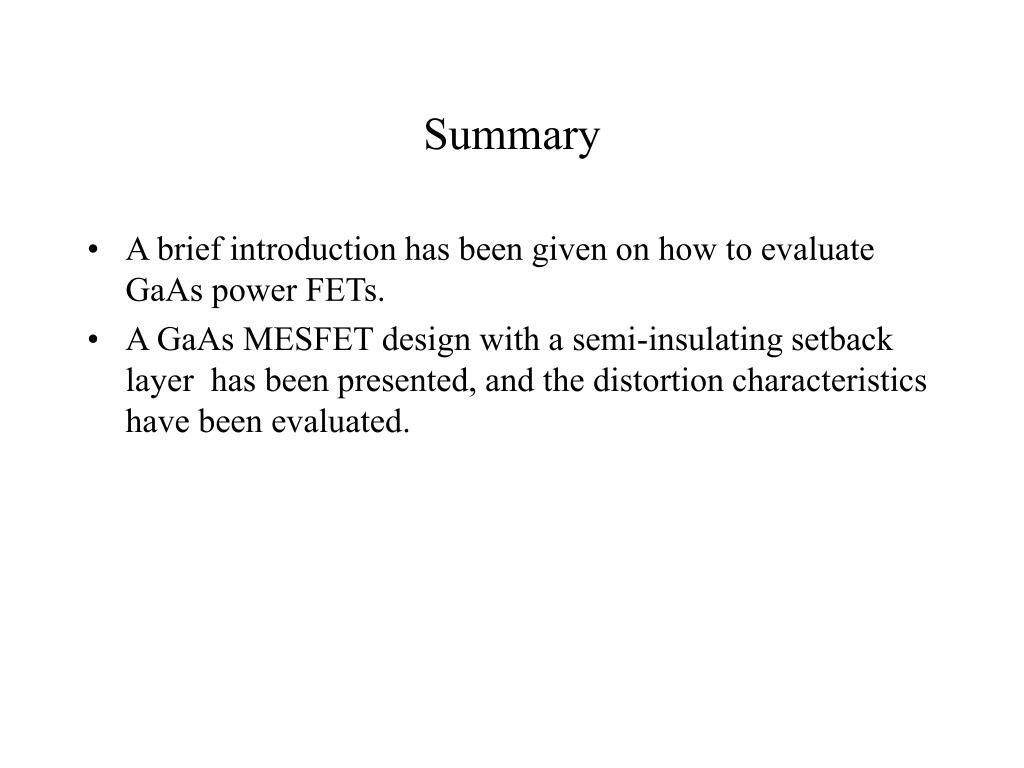

  13. Summary • A brief introduction has been given on how to evaluate GaAs power FETs. • A GaAs MESFET design with a semi-insulating setback layer has been presented, and the distortion characteristics have been evaluated.
