architectural design of a distributed application with autonomic quality requirements

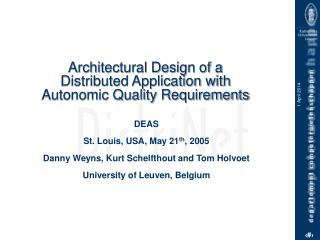

Architectural Design of a Distributed Application with Autonomic Quality Requirements

DEAS

St. Louis, USA, May 21th, 2005

Danny Weyns, Kurt Schelfthout and Tom Holvoet

University of Leuven, Belgium

traditional approach
Traditional approach
  • Centralized architecture
    • Server assigns transports to AGVs
    • Server plans routes etc.
    • Vehicles are controlled by central server
    • Low level control AGVs is handled by E’nsor software
  • Main non-functional properties
    • Configurability (server is central configuration point)
    • Predictability (server manages execution of functionality)
aiming for new quality requirements
Aiming for new quality requirements
  • AGVs are expected to be flexible and adapt their behavior autonomously with changing circumstances
    • Exploit opportunities
      • Switch jobs when driving to a load when a more interesting transport pops up
    • Anticipate possible difficulties
      • Prefer jobs near to a battery charging station when battery needs to be charged in the near future
    • Cope with particular situations
      • Choose the farthest load in the corridor
aiming for new quality requirements5

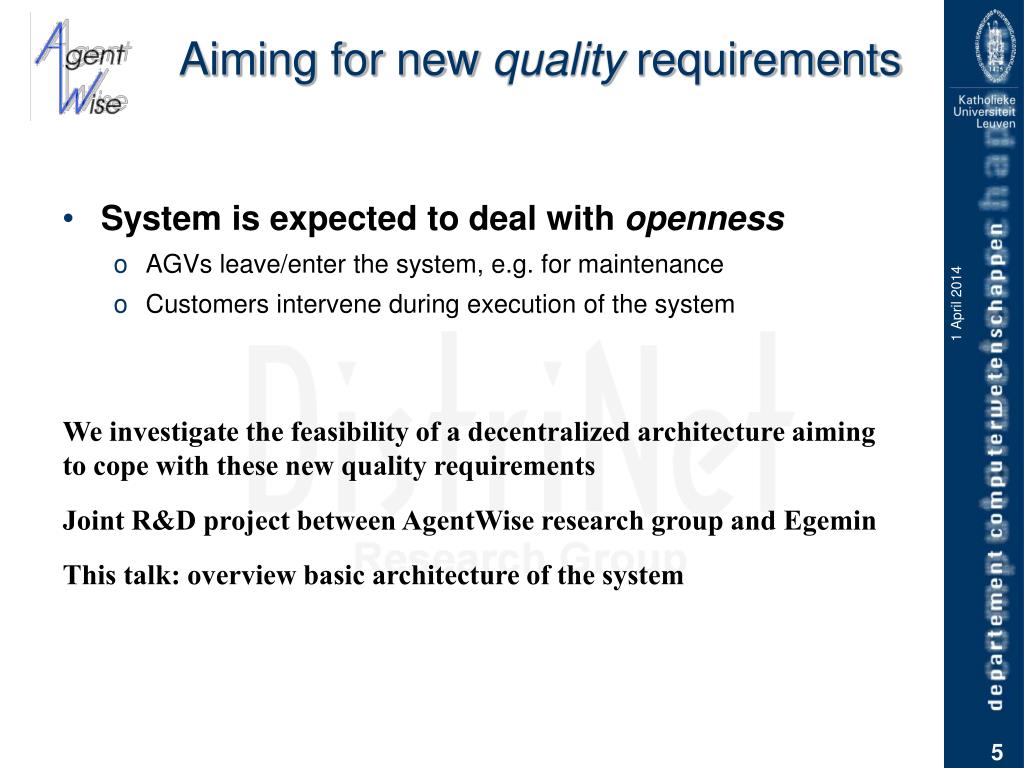

Aiming for new quality requirements
  • System is expected to deal with openness
    • AGVs leave/enter the system, e.g. for maintenance
    • Customers intervene during execution of the system

We investigate the feasibility of a decentralized architecture aiming to cope with these new quality requirements

Joint R&D project between AgentWise research group and Egemin

This talk: overview basic architecture of the system

overview
Overview
  • Situated multiagent systems for the AGV transportation system
  • A trace through the architectural design
  • Round-up
situated multiagent systems
Situated multiagent systems
  • What is a situated multiagent system (MAS)?
    • Set of autonomous entities (agents) explicitly situated in a shared structure (an environment)
    • Agents select actions “here and now”, they do not use long term planning (locality in time and space)
    • Interaction is at the core of problem solving (rather than individual capabilities)

Decentralized control

Adaptive behavior

Collective behavior

a situated mas for the agv transportation system
A situated MAS for the AGV transportation system
  • Motivations for situated MAS
    • Matching quality properties
      • Situated MAS are a promising approach to build flexible, adaptable, open systems
    • Matching characteristics
      • Locality in time and space: order assignment to idle AGV near to load, collision avoidance, etc.
      • Interaction at the core of problem solving: load manipulation, collision avoidance, etc.
reference architecture for situated mass
Reference architecture for situated MASs
  • Reference architecture as a guidance for architectural design
    • Embodies knowledge and experiences acquired during 4 years of research
    • Serves as a reusable architectural design artifact
    • We developed design guidelines for specific modules, e.g., decision making with free-flow architectures
overview11
Overview
  • Situated multiagent systems for the AGV transportation system
  • A trace through the architectural design
  • Round-up
slide14

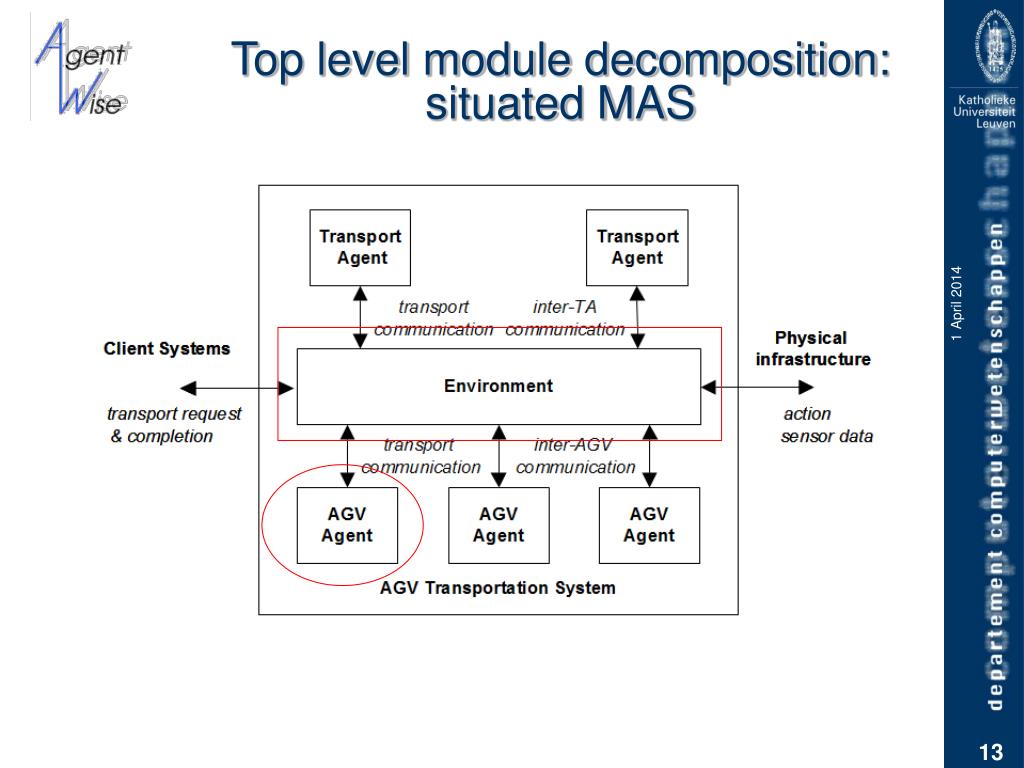

Module view of the environment: layers

  • Separate functionality, support reuse
the virtual environment
The virtual environment
  • Offers a medium to agents to exchange information and coordinate their behavior
  • Synchronizing state of the virtual environment
    • Virtual environment as software entity does not exist
      • Virtual environment is necessary distributed over the AGVs
      • ObjectPlaces middleware keeps state of local virtual environment synchronized with virtual environments of local AGVs
agv agents data repository
AGV agents:data repository
  • Separation of concerns, loose coupling
agv agents blackboard with sequential processing
AGV agents: blackboard with sequential processing
  • Decision making at different levels of abstraction, separation of concerns
  • Feedback for flexible decision making
overview21
Overview
  • Situated multiagent systems for the AGV transportation system
  • A trace through the architectural design
  • Round-up
the challenge continues
The challenge continues
  • Project status (after 1.2 of 2 years)
    • 2 real AGVs manipulate loads, drive around and avoid collisions in an industrial test set-up (basics for deadlock prevention)
    • The same for n AGvs in a simulated setup
  • Current work
    • Methodological evaluation of software architecture: ATAM planned June
    • Order assignment and deadlock avoidance
  • Next challenges
    • Explore and validate flexibility, adaptability, scalability
    • Give guarantees about global behavior
lessons learned
Lessons learned
  • We learned the real value of our research by applying it in real-world application
    • We experienced what “application-driven research” is about
  • The reference architecture serves as an excellent guidance for the architectural design
  • Stakeholders not involved in the daily development tend to overestimate the agent metaphor
