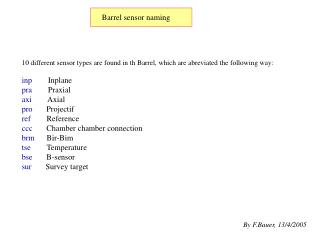

  1. Barrel sensor naming 10 different sensor types are found in th Barrel, which are abreviated the following way: inp Inplane pra Praxial axi Axial pro Projectif ref Reference ccc Chamber chamber connection brm Bir-Bim tse Temperature bse B-sensor sur Survey target By F.Bauer, 13/4/2005

  2. Inplane The name of the inplane lines are: inp_<chamber name>_<ext> <ext> is the mask number starting at h=0. A C Example: inp_bml1a07_3 inp_bml1a07_2 inp_bog3a12_7 BML1A07 BML1C07 BOG3A12 8 7 6 5 4 3 2 1 4 3 2 1 1 2 3 4

  3. Praxial The name of the praxial optical lines are: pra_<ccd chamber name>_ <mask chamber name>_<ext> The <ext> indicates the chamber side: HV or RO side HV Example: pra_bis3c04_bis4c04_hv pra_bis4c04_bis3c04_ro BIS3C04 BIS4C04 RO

  4. Axial The name of the axial optical lines are: axi_<ccd chamber name>_ <mask chamber name>_<ext> <ext> is a combination of: 1) the chamber side (HV or RO) 2) and if the line is the outermost or innermost line ( i or o). 4 combination are possible ihv, iro, ohv or oro. HV Example: axi_bol3c11_bol2c11_oro axi_bol3c11_bol2c11_ihv axi_bol4c11_bol3c11_ohv BOL2C11 BOL3C11 BOL4C11 RO

  5. Projectif The name of the projectif lines are: pro_<ccd chamber name>_ <mask chamber name>_<ext> <ext> indicates the chamber side: HV or RO BOL BML Example: pro_bol1c05_bil1c05_hv pro_bol6c05_bil6c05_hv BIL Sector 5, Side C, HV side

  6. Reference C The name of the reference lines are: ref_<ccd plate name>_ <mask chamber/plate name>_<ext> <ext> indicates the f side of the plate (next sector) and is only used for lines within the same coil PLA2C14 PLA1C14 Example: ref_pla1a14_pla1a12 ref_pla2c14_pla1c14_15 ref_pla1a14_pla2a14_13 ref_pla1a12_bml3a13 PLA1A12 PLA1A14 BML3A13 PLA1A12 PLA2A12 PLA2A14 PLA2A12 A BT12 BT12 BT14

  7. Chamber Chamber Connections The name of the chamber chamber connection lines are: ccc_<ccd chamber name>_ <mask chamber name> Example: ccc_bos5a04_bol6a05 BOS5A04 BOL6A05 BOS6A04

  8. Bir-Bim The name of the Bir-Bim lines are: brm_<ccd chamber name>_ <mask chamber name>_<ext> <ext> give the number of the mask starting from h=0. Example: brm_bir2a15_bim1a15_3 brm_bir5a15_bim5a15_2 1 2 3 4 1 2 1 2 BIM1A15 BIM4A15 BIM5A15 BIR2A15 BIR1A15 BIR5A15 Sector 15, Side A

  9. Temperature The name of the temperature sensors are: tse_<chamber name>_<ext> The <ext> is a running number going from 1-20. The exact positions of the sensors has been left to the phantasy of each constructor. Thus it varies from chamber type to chamber type. Chaotic situation. ? Example: tse_bms3c16_2

  10. B-sensors The name of the B sensors are: bse_<chamber name>_<ext> The <ext> indicates the chamber side: HV or RO side For BEE chambers 4 sensors are in use. Here <ext> is a combination of 1) the chamber side (HV or RO) 2) and the z-side (A or C) Here the combination are ahv, aro, chv, cro. HV BMS3C16 HV Example: bse_bms3c16_hv bse_bee1c12_aro BEE1C12 A-side C-side RO RO

  11. Survey-tags The name of the survey tags are: sur_<chamber name>_<ext> The <ext> indicates the chamber side: 1) the chamber side (HV or RO) 2) and the z-side (A or C) Here the combination are ahv, aro, chv, cro. HV HV Example: bse_bms6c10_chv bse_bos3c16_aro BOS3C16 BMS6C10 A-side A-side C-side C-side RO RO
