voiding dysfunction in children

Voiding Dysfunction in Children

By

Dr.TurkyK. Al-Mouhissen

Urology Chief Resident - WR

King Abdulaziz Medical Center - WR

normal bladder function in infants children
Normal Bladder Function in Infants & Children:
  • The bladder is an abdominal organ
  • Detrusor consists of meshwork of smooth m. which has the ability to elicit maximal active tension over a wide range of length
  • This allows the bladder to be filled at low pressure (compliance)
  • Reservoir function determined by activity of detrusor m. and bladder outlet
  • Bladder sphincter plays a major role in urinary continence by closure of bladder neck & proximal urethra
slide3
Literature suggests that
    • Immature detrusor-sphincter coordination, manifested as detrusor hypercontractility and interrupted voiding, commonly occurs in 1st1-2 years causing a degree of functional bladder outflow obstruction

(Sillen et al,1992;Yeung et al,1998)

  • Some found significant age related differences in the histologic structure of the sphincter compared to adults
  • Activation, coordination, and integration of various parts of the bladder-sphincter complex involves central, somatic & autonomic nervous system through
    • Sacral parasympathatic (pelvic n.)
    • Thoracolumbar symp. (hypogastric & sympathatic chain)
    • Sacral somatic n. (pudendal n.)
slide4
Parasymp. N. fibers run in pelvic n. (S2-S4) to supply the pelvic and vesical plexuses before entering the bladder
  • Symp. n. arises from (T10-L2) to inferior mesenteric ganglion hypogastric n. to the pelvic plexus & bladder
    • There is also symp. innervation from T10-L2 supplying the detrusor and urethral sphincter
  • The somatic nervous system (pudendal n.) supplies the periurethral pelvic floor muscles
  • The sensory & motor n. carried by all 3 nerves innervate the bladder and urethral sphincter
slide6
Symp. supply causes
    • Detrusor relaxation (B receptors)
    • Smooth m contraction at trigone & bladder neck (alpha receptors)
  • Parasymp. supply causes detrusor contraction (muscarinic receptors)
  • Pudendal supply causes striated sphincter contraction
  • Within the spinal cord, information from bladder afferents integrated with other sources and projected to brain stem centers to coordinate with mic. centers
development of normal bladder function and micturition control
Development of Normal Bladder Function and Micturition Control
  • CMG studies on normal infants showed
    • bladder function in young children is very different from adults
  • During the 1st 2-3 years of life
    • There is progressive development from initially indiscriminate infants voiding pattern to more socially conscious and voluntary (adult) type of micturition
slide8

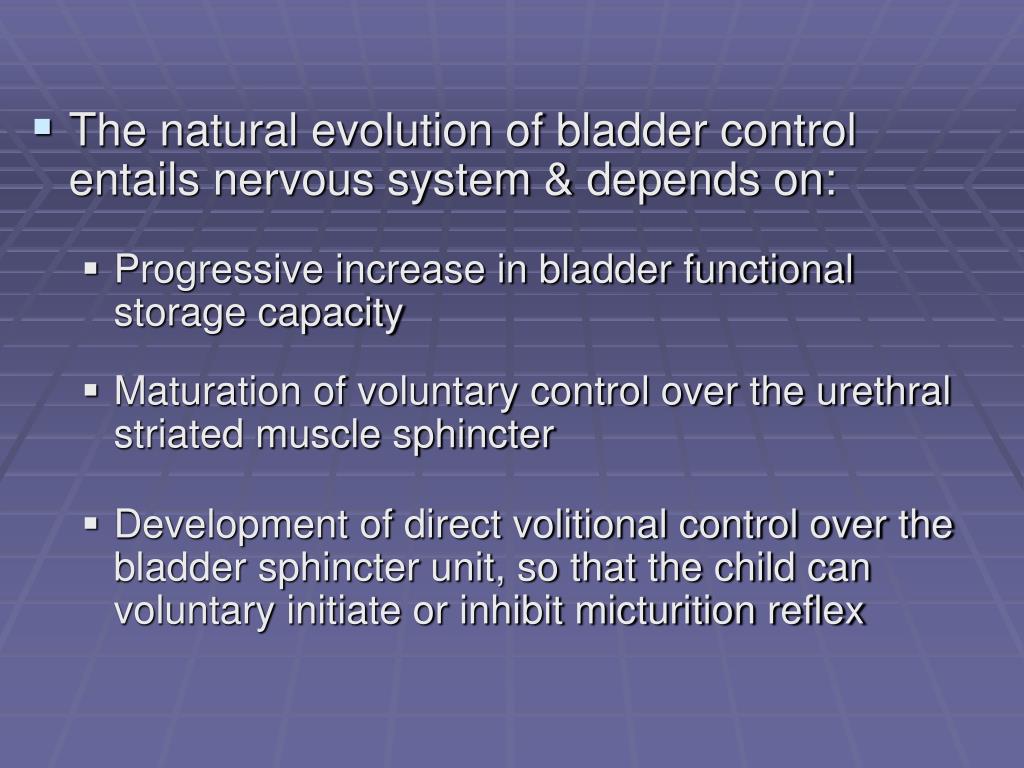

The natural evolution of bladder control entails nervous system & depends on:
    • Progressive increase in bladder functional storage capacity
    • Maturation of voluntary control over the urethral striated muscle sphincter
    • Development of direct volitional control over the bladder sphincter unit, so that the child can voluntary initiate or inhibit micturition reflex
change in bladder function parameters
Change in bladder function parameters
  • Voiding frequency
    • During the 3rd trimester, the fetus voids at rate 30 times/24 hrs
    • Immediately after birth, this drops for the 1st days only
    • Increases again after 1st 1/52 to reach a peak by 2-4 /52 to an average once/hour
    • This rate declines to 10-15 times/day at 6-12 mo.
    • 8-10 times/day by 2-3 years
slide10
This reduction in voiding frequency observed during the 1st years of life related mainly to an increase in bladder capacity parallel to body growth
  • By the age of 12, voiding pattern is very similar to that in adult ( 4-6 voids / day )
slide11
Bladder capacity
    • An adequate reservoir function of urine storage is necessary to meet the increase rate of urine production and decreased voiding frequency in the growing child

Bladder capacity can be estimated

For young infants:

Bladder capacity (ml) = 38 + 2.5 * age (mo)

For children:

Bladder capacity (ml) = (age [yr] + 2) * 30 koff’s formula

Bladder capacity (ml) = 30 + (age [yr] * 30 Hijalma’s formula

slide12
In parallel to increase in bladder capacity, the mean voided volume of each micturation increases with age
  • CMG studies showed that most infants with incomplete maturation of det.- sphin. coordination before the age 1, are still able to have satisfactory emptying (>80)
  • There are limited studies on detr. pressure at voiding in infants due techn. difficulties
slide13
Limited data documented higher maximum detr. pressure with mict. than in adults
    • Male infants voided significantly higher pressure than females (mean Pdetmax 118 vs. 75cm H20, P<.03)
  • Studies showed that high detrusor pressures noted during micturition were mainly observed only during the 1st year of life & decreased progressively with age
evolution of normal micturition control
Evolution of Normal Micturition Control
  • Traditionally, it has been assumed that micturition occurs by simple spinal reflex with no mediation by higher neural centers
  • Recent studies showed that even in full term fetuses and newborns, mict. Is modulated by higher centers
  • Further extensive modulation occurs during the postnatal period
slide15
During the 2nd & 3rd year of life, there is a progressive development toward a socially conscious continence and a more voluntary (adult) type mict.
  • The final steps usually achieved at 3-4 yrs
    • Most develop the adult pattern of urinary control & will be dry day & night
  • The child has learned to inhibit a mict. Reflex and postpone voiding and voluntarily initiate mict. At socially acceptable time & place
slide16
Neurologic control of normal mic. occurs at different levels of CNS from the spinal cord (sacral mic. centers) to the brain stem (pontine mic. Centers)
      • Cerebellum, basal ganglion, limbic system, thalamus and hypothalamus, and cerebral cortex
  • bladder is unique among other visceral organs
    • its function is under control of somatic and autonomic n. system
  • Beside acetylcholine & NE, other neurotransmitters involved during bladder stimulation
    • PG substance P, Opioid, vasoactive intestinal peptide, neuropeptide Y
transitory detrusor sphincter discoordination in infancy
Transitory Detrusor-Sphincter Discoordination in Infancy
  • Studies showed that all children may transiently display some degree of abnormal bladder-sphincter function
  • Urodynamic findings show association of high voiding pressures and interruption of flow BUT noimpairment of overall bladder empting
  • This type of dysfunction resolved with a period of successful toilet training, transient or intermittent, and does not persist
slide19
Reported 15 % of 6-year old children suffer from Non-Neuogenic B.S.Dysfunction
  • Dysfunctional voiding may
    • starts with detrusor instability with sphincter & pelvic floor overactivity
    • then develops gradually fractionated voiding with increasing PVR
    • Finally, develops bladder decompensation and the lazy bladder syndrome
  • Distinction between Neuropathic & Non-neuropathic bladder dysfunctions may not be clear
slide20
The term non-neuropathic is based purely on the fact that no obvious and identifiable neurologic lesions can be identified
  • In adults, lower urinary tract function has been well understood and standardization of terminology has been established
  • In contrast, neural control over the bladder-sphincter unit in children is age dependent and is much more variable and complex
etiologic classification of bladder dysfunction
Etiologic Classification of Bladder Dysfunction
  • Derangement of Nervous Control:
    • Congenital malformation of CNS, e.g.:
      • myelomeningocele, spina bifida, caudal regression synd., tethered cord
    • Developmental disturbances, e.g.,:
      • Mental retardation, dysfunctional voiding, urge synd.
    • Acquired conditions, e.g.:
      • CP, progressive degenerative diseases of CNS, transverse myelitis, MS, vascular malformations, trauma of spinal cord
slide22
Disorders of Detrusor & Sphincteric Muscle function:
    • Congenital conditions
      • Muscular dystophy, neuronal dyplasia
    • Acquired conditions
      • Chronic bladder distension, fibrosis of detrusor & bladder wall
  • Structural abnormalities
    • Congenital conditions
      • Bladder extrophy, epispadias, cloacal anomoly, uretroceles, PUV, prune belly syndrome
    • Acquired conditions
      • Traumatic stricture, damage to sphincter or urethra
  • Other unclassified conditions
    • Giggle incontinence
    • Hinman syndrome
    • Ochoa syndrome (urofacial syndrome)
functional classification of bladder dysfunction
Functional classification of bladder dysfunction

based on functional state of the bladder-sphincter complex with respect of

detrusor activity

bladder sensation

bladder compliance and function

urethral function

during the filling & voiding phase of CMG

slide24
During the filling phase:
    • Detrusor activity
      • Normal or stable
      • Overactive : phasic involuntary detrusor contractions which occur spontaneously or provoked by alteration of posture, coughing, walking, jumping
        • Unstable: contraction unrelated to underlying neurologic disorder
        • Detrusor hyperreflexia : overactivity related disturbance of neural control mechanism
slide25
Bladder sensation during filling phase:
    • Normal / hypersensitive / hyposensitive / absent
  • Bladder capacity
    • normal/ / high / low
  • Compliance
    • Normal / high / low
  • Urethral function
    • Normal / incompetent
slide26
During the voiding phase
    • Detrusor activity
      • Normal: Voiding achieved by voluntarily initiated detrusor contractions that is sustained and cannot usually suppressed voluntarily until after 4 year old
      • Underactive
      • Acontractile
    • Urethral function
      • Normal
      • obstructive
bladder sphincter dysfunction during filling
Bladder-Sphincter dysfunction during filling
  • Overactive (unstable) bladder, urge syndrome, urge incontinence
    • Traditionally the infant bladder has been described as unstable or uninhibited
    • Recent studies showed that bladder is normally quiescent and stable even in newborn
    • Clinically, the condition of (unstable bladder) is best exhibited by URGE SYNDROME with or without urge incontinence
slide28
Urge syndrome characterized frequent attacks of sudden and imperative sensations of urge due to detrusor overactivity during filling (girls>boys)
  • The unstable contractions are often counteracted by voluntary contractions in the pelvic floor muscles to externally compress the urethra (hold maneuvers) exhibited as squatting in many cases
  • Urge incontinence consists of small quantities of urine loss
    • More in afternoon when the child plays and is not alert enough to contract the pelvic floor in response to the urge sensation
slide29
Functional urinary incontinence
    • Defined as involuntary loss of urine due to failure of control of bladder sphincter unit, frequent enough to cause social or hygienic problem with the absence of underlying anatomic causes
    • Stress incontinence represents involuntary leakage of urine occurring when the intravesical pressure exceeds the bladder outlet or urethral pressure in the absence of measurable detrusor contractions
      • Unlike adults, true stress incont. Extremlely uncommon in neurologically normal children and generally not associated with abnormal CMG
slide30
Giggle incontinence:
    • Involuntary and typically unpredictable wetting during giggling or laughter
    • In contrast to stress incontinence, it produces much larger volume of urine leak amounting to complete bladder emptying
    • CMG may be normal or occasionally demonstrate some detrusor overactivity
    • Rx is difficult bt sometimes a course of anticholinergic drugs may help
    • Some suggested that it’s centrally mediated and hereditary disorder that may respond to CNS stimulants as methylphenidate
bladder sphincter dysfunction during bladder emptying
Bladder-Sphincter dysfunction during bladder emptying
  • Dysfunctional voiding
    • Characterized by incomplete relaxation or overactivity of the pelvic floor muscles during voiding
    • Can manifest in different patterns depending on the degree of outflow obstruction caused and the status of the detrusor activity
slide32
Staccato and fractionated voiding
    • In staccato voiding the urinary stream is often delayed after the onset of detrusor contraction and is typically interrupted resulting in a few small squirts of urine passed in quick sensation
    • Interrupted voiding caused by periodic bursts of pelvic floor muscle activities during micturition resulting in characteristic abrupt elevation of voiding pressure coinciding with paradoxical cessation of urinary flow
    • Flow time usually prolonged and bladder emptying incomplete
slide33
Fractionated voiding is characterized by infrequent & incomplete emptying secondary to detrusor inactivity
    • Micturition occurs in several small discontinuous fractions due to poor detrusor contractions
    • Significant PVR
    • Abdominal straining usually evident to improve emptying
    • Straining paradoxically counteracted by reflex increase in pelvic floor muscles that is triggered by increase in intravesical pressure
slide34
Infrequent voiding and (lazy bladder) syndrome
    • Described together as they represent a spectrum of diseases that are more commonly occurs in girls
    • The lazy bladder syndrome is generally regarded as the endpoint of long standing dysfunctional voiding occurring in a fully decompensated system
    • Due to chronic functional outflow obst., there is gradual deterioration in detrusor contractility and emptying efficiency
    • PVR & bladder capacity increase progressively with inefficient emptying
slide35
Bcs urge sensation is either absent or diminished, voiding is very infrequent and occasionally the child may not void for 8-10 hrs or longer if engaged in activity
  • Typical presentation, the mother always complains that the child never voids unless told to do so
  • Other presentations
    • Recurrent UTI, Overflow incontinence, constipation
  • CMG findings
    • Large bladder capacity, very high compliance on filling, absent detrusor contractions, voiding associated with increased abdominal pressures
slide36
Hinman’s Syndrome & Occult Neuropathic bladder
    • Different names:
      • Nonneurogenic neurogenic bladder / subclinical neurogenic bladder / Hinman syndrome / occult neuropathic bladder
    • Acquired form of bladder-sphincteric dysfunction in children
    • characterized by a combination of bladder decompensation with incontinence, poor emptying, and recurrent UTI
    • Most children have significant bowel dysfunction
    • Has all the clinical & CMG features of neuropathic dysfunction but NO neuologic pathology
    • CMG shows marked sphincteric overactivity with abrupt contractions of pelvic floor
slide37
Ochoa (urofacial) syndrome:
    • Children have all classic features of dysfunctional voiding, including urinary incontinence, recurrent UTI, constipation, reflux, Upper tract damage + peculiar painful or apparently crying facial expression during smiling
    • Autosomal recessive, located on chromosome 10
    • CMG shows sustained contraction of external sphincter during voiding
slide38
Of 66 children reported by Ochoa:
    • 33% renal functional impairment
    • 26% HTN
    • 24% ESRD
  • Bcs neural ganglion controlling the facial muscles are situated very close to the pontine micturition centers
    • A small genetically predetermined congenital neurologic lesion in this area may be responsible for both the peculiar facial expression & bladder dysfunction
slide39
Postvoid dibbling
    • Involuntary leakage of urine immediately after voiding
    • Refers to post toilet trained girls who dribble soon after standing up after a void and otherwise normal with no other urinary symptoms
    • May be result of vesicovaginal reflux where urine is trapped in the vagina during voiding & once the child stands, the urine dribble out
    • When in doubt, can be confirmed by MCUG
    • Harmless, tends to resolve with age
    • Child may be taught to empty her vagina by simply voiding with her thigh apart & leaning forward after voiding before getting up
dysfunctional elimination syndrome constipation bladder dysfunction
Dysfunctional Elimination Syndrome, Constipation, & Bladder Dysfunction
  • DES refers to broad spectrum of functional disturbances that may affect the urinary tract including that of functional bowel disturbances
  • The close proximity of the rectum to posterior bladder wall make it possible that
    • gross distension of the rectum by impacted feces can result in mechanical compression of the bladder & bladder neck leading to urinary obstruction
slide41
Classified as :
    • Functional disorder of filling
      • Overactive, overdisteded, insensate bladder, may be associated with fecal impaction or rectal distension with infrequent call to stool
    • Functional disorder of emptying
      • Over recruitment of pelvic floor activity during voiding causing interrupted / incomplete emptying, with defecation difficulties due to nonrelaxation of puborectalis or pain on defecation
slide42
DES influenced the clinical outcome of ureteric reimplantation surgery for VUR
  • Children with constipation had the highest likehood of developing breakthrough UTI & requires surgery
  • DES had an adverse effect on the rate of spontaneous reflux resolution requiring an average 1.6 years longer to outgrow reflux than in children without DES
  • After successful Rx of constipation
    • 89% of those with daytime incontinence and 63% of nighttime incontinence became dry Loening-Baucke et al (1997)
  • Management of the underlying dysfunction should be given priority in the treatment protocol of children with conditions such as VUR / incontinence / UTI bsc successful Rx may significantly improve outcome
relationship betw bladder sphincter dysfunction vur recurrent uti
Relationship Betw. Bladder Sphincter Dysfunction, VUR, & Recurrent UTI
  • Impairment in the function of lower tract often coexists with recurrent UTI & VUR without neurologic pathology
  • The most common abnormalities of lower tract coexist with VUR are
    • Detrusor overactivity
    • Uncoordinated detrusor sphincter during voiding
  • Reflux may be worsened by detrusor instability
slide44
Studies showed that infants with UTI & VUR have high prevalence of high voiding detrusor pressure
  • Male refluxers have higher maximum detrusor pressure > female
    • May be due to high urethral resistance of the longer male urethra and smaller urethral meatus with anatomic difference in the external urethral sphincter
  • Spontaneous resolution of VUR may be delayed in presence of abnormal dynamics of the bladder
  • Successful Rx of underlying bladder dysfunction result in marked increase in the rate of spontaneous resolution of reflux & recurrent UTI
evaluation of non neurogenic bladder sphincter dysfunction
Evaluation of Non-Neurogenic Bladder Sphincter Dysfunction
  • History
    • Majority present after toilet training with symptoms of nighttime / daytime urinary incontinence or both
    • May present earlier with UTI or VUR
    • Hx should include questions to exclude neurologic & congenital abnormalities
    • Bowel dysfunction can coexist in the form of encorpresis, constipation and fecal impaction
    • Urinary Hx should include symptoms of storage & voiding of urine
slide47
Physical examination:
    • Usually normal
    • Careful examination is required
    • Occasionally, palpable bladder may be found
    • External genitalia examination
    • Abnormalities of lower spine
      • Neural tubal defect
      • Asymmetrical gluteal folds
      • Hairy patch
      • Dermovascular malformation
      • Lipomatous abnormality of sacral region
    • Rectal exam. may reveal impacted stool
slide48
Laboratory
    • Not routinely required
    • Urine analysis may be performed to R/O bacteruria & glucosuria
    • Serum & urine osmolarity may be looked in case of nocturnal enuresis
slide49
Ultrasound
    • 1st line investigation
    • Simple, reliable, available, & noninvasive tool
    • Provides anatomical & functional problems
    • Recently used to measure bladder parameters used in calculating bladder volume & wall thickness index (BVWI)
    • BVWI classified into normal / thick / thin
    • Studies showed these classifications corresponded closely to CMG findings of bladder dysfunctions
    • This classification can act as reliable tool to guide for further invasive investigations
slide50
Other imaging studies:
    • Radiologic examination of the spine may be necessary to exclude neuologic causes
    • MCUG may be needed to R/O VUR & to assess the status of the urethra
  • Urodynamics studies:
    • To describe the physiologic parameters involved in bladder mechanics during filling & voiding
slide51
Urodynamics (cont.)
    • Uroflow
      • In children, normal flow rate are different from adults
      • Usually there is poor correlation betw. Qmax & outflow resistance
        • Bcs the detrusor is able to exert much stronger contractions to counteract any increased resistance
      • Pattern of flow curve is important
slide52
Patterns of uroflow curve:
    • Bell shape : normal
    • Tower shape : produced by explosive voiding contractions which is seen in overactive bladder
    • Low plateau : representative of outlet obstruction
    • Staccato pattern : seen with sphincteric overactivity during voiding with peak and throughs throughtout voiding
    • Interrupted voiding : seen in a contractile or underactive bladder
slide53
Urodynamics (cont.)
    • Conventional fill urodynamic studies
      • Bladder catheter introduced transurethrally or suprapubically
      • The use of SPC has been suggested as a better alternative to transurethral catheterization
    • Natural fill urodynamic studies
        • The child is asked to drink to allow the bladder to fill up on its own rate
        • Artificial filling may inhibit the detrusor response and attenuate its maximum contractile potential, making detrusor instability less pronounced & undetectable
        • Natural fill cystometry is the preferred technique in children
        • The combined use of artificial & natural filling CMG is helpful to accurately delineate the underlying bladder dysfunction
management of non neuropathic bladder sphincter dysfunction
Management of Non-Neuropathic Bladder-Sphincter Dysfunction
  • Behavior Modification & standard Urotherapy
    • Urotherapy is a nonpharmacologic nonsurgical combination of cognitive, behavioural, & physical therapy to normalize micturiton pattern & prevent functional disturbances of lower tract
    • Children & parents education on proper voiding mechanics
    • Instructions how and when to void
    • Teaching children correct positions during voiding
slide56
Behavior Modification & standard Urotherapy (cont.)
  • Teaching how to relax the pelvic floor and avoid straining
  • Modification of drinking and voiding habits to include proper hydration with timed voiding
  • Assessment of their bowel function
slide58
Biofeedback and pelvic floor rehabilitation
    • Biofeedback is based on the concept of building self perception on detrusor contractions and pelvic floor relaxation in the pt
    • By combining uroflow with real time monitoring, child is able to see how well he / she is voiding
    • Biofeedback is proven to be highly effective either on its own or in combination with standard urotherapy
slide60
Neuromodulation
    • Recent studies reported that transcutaneous electrical nerve stimulation (TENS) is simple, cost effective, noninvasive treatment modality
    • The use of low frequency electrical current to inhibit detrusor activity in adults is common
      • Appears to modulate excitatory & inhibitory components of bladder control
slide61
Bowel management
    • Principles include rectal emptying of impacted stool and maintenance of regular soft stools
    • Oral laxatives or rectal enemas
    • Dietary modification
    • Correct toilet posture & correct recruitment of abdominal muscles in the defecation process
    • Parental education
slide62
Medications
    • Antimuscarinic agents
      • These agents are the gold standard in Rx of overactive bladder
      • Muscarinic receptors are found in detrusor muscle
      • Bladder contractions are initiated by stimulation of these receptors with the release of Ach from cholinergic n.
      • Main action of antimuscarinic drugs on M1 & M3 receptor subtypes, thought to be responsible of detrusor overactivity
slide63
Antimuscarinic agents (cont.)
    • Antimuscarinic, such as Oxybutynin, act by reducing the frequency & intensity of involuntary contractions causing increase in functional bladder capacity
    • The nonselective pattern of activity and penetration of BBB are known to induce systemic & central S/E
slide64
Alpha adrenergic blockers
    • The density of the noradrenergic nerves increases markedly toward the bladder neck particularly in males
    • The normal response to NE is relaxation & contraction of the bladder neck
    • Alpha blockers used in pts with evidence of bladder neck dysfunction for relaxation of bladder neck
slide65
Other medications
    • Tricyclic antidepressents
      • E.g. impiramine
      • Effective in increasing urine storage by decreasing detrusor contractility & increasing outlet resistance
      • Precise mechanism is not clear
      • Possible effect on bladder by inhibition of NE reuptake, producing alpha adrenergic stimulation
      • Associated with high S/E
slide66
Beta-Adrenergic agonists
    • Can cause significant increase in bladder capacity
    • Bt can also cause significant CVS S/E
  • Parasympathicomimetics / Ca antagonists / K Ch. Openers / PG inhibitors
    • Rarely used in children due to unfavorable S/E or to lack of proven efficacy
slide67
Clean intermittent Catheterization
    • Necessary in pts with decompensated bladders or lazy bladder syndrome
    • Regular emptying of the bladder to achieve low pressure emptying which improves detrusor contractility & bladder emptying function
    • Some of these children may be able to eventually be weaned from use of this procedure
slide68
Surgery
    • Indicated when conservative management with nonpharmacologic & pharmacologic Rx fails
    • Bladder augmentation may be performed to produce low pressure system with increased bladder capacity
    • Augmentation using intestinal segments such as colon / ileum / stomach
    • Augmentation has its metabolic complications
slide69
Surgery (cont.)
    • Surgical means has been employed to reduce urethral / sphincteric pressure as alternative to alpha blockers
    • Ballon dilatation of bladder neck & botulinum A toxin injection into the sphincter has been used
      • Requires repeated attempts
      • ? Long term effect & efficacy
slide70
Neuropathic Dysfunction of Lower Urinary Tract
neuropathic dysfunction of lower urinary tract
Neuropathic Dysfunction of Lower Urinary Tract
  • Neurospinal dysraphisms
    • Myelodysplasia
    • Lipomeningocele & other spinal dysraphisms
  • Sacral agenesis
  • Central nervous system insults
    • Cerebral palsy
  • Traumatic injuries to the spine
neurospinal dysraphisms
Neurospinal dysraphisms
  • Myelodysplasia
    • The most common cause of neurogenic bladder dysfunction in children
    • Formation of spinal cord & vertebral column begins at 18th day of gestation
    • Closure of canal proceeds in caudal direction
    • Closure complete at 35 days
    • ? Mechanism that results in closure and wt produces dysraphism
slide73
Incidence reported 1 / 1000 births
  • Incidence increases with more than one member affected
  • The medical Research Council Vitamin Study Group recommends that women of childbearing age take 4mg/d of folic acid beginning at least 2/12 before pregnancy
  • Folate deficiency can lead to myelodysplastic abnormality
slide75
Myelodysplasia
    • various abnormal conditions of the vertebral column that affect spinal cord function
  • Meningocele
    • Occurs when just the meninges ( no neual elements ) extend beyond the confines of vertebral canal
  • Myelomeningocele
    • Neural tissue, either nerve root or portions of spinal cord has evaginated with the meningocele
  • Lipomyelomeningocele
      • Fatty tissue has developed with the cord structures and both extend with the protruding sac
slide76
Myelomeningocele accounts for > 90% of all open spinal dysraphic states
  • Most spinal defects at lumber vertebrae
slide78
Usually, the meningocele is made of flimsy covering of transparent tissue
  • It may be opened with CSF leak
    • For this reason, urgent repair is necessary
    • Sterile precautions showed be applied after birth till time of repair
  • 85 % associated with Arnold-Chiari malformation
    • Cerebral tonsils herniate down through the foramen magnum
    • Herniation causes obstruction of the 4th ventricle & preventing the CSF from entering the subarchnoid space
slide79
It’s possible that leakage of CSF from the open spinal column accounts for herniation of posterior brain stem down the foramen magnum hydrocephalus
  • Neurologic lesion produced by this condition varies
    • Depending on what neural element have everted with the meningocele sac
  • The bony vertebral level often provides little or no clue to the exact neurologic lesion produced
  • 10% of newborn with MM exhibit no abnormality in CMG
  • 24% of children with normal lower tract at birth, develop upper motor neuron changes over time
slide80
Newborn assessment
    • Renal U/S with measurement of post void residual is performed as early as possible after birth
      • Before / after closure of spinal defect
  • CMG is delayed until it’s safe to transport the child to the urodynamic suit and place him on the back or side for the test
  • If the infant cannot empty the bladder after spontaneous void or with Crede maneuver, CIC is begun even before CMG is done
  • If Crede maneuver is effective in emptying the bladder, it’s performed at regular basis instead of CIC until lower tract is fully evaluated
slide81
The normal bladder capacity in newborn is 10-15ml
    • Residual urine of <5 ml is acceptable
  • Other tests should be performed
    • Urinanalysis & culture
    • Serum creatinine
    • Careful neurologic examination of LL
  • Once spinal closure has healed sufficiently
    • Renal U/S & renal scan for reassessment of upper tract
    • VCUG
    • CMG
slide82
Findings
    • 15-20% of newborns have abnormal urinary tract on radiological exam. when first evaluated
      • 3% have hydro 2ndry to spinal shock, probably from spinal canal closure
      • 15% have abnormalities that develop in utero as result of abnormal lower tract due to outlet obstruction
    • CMG in newborn showed that 63% have bladder contractions
    • A combination of bladder contractility & external sphincter activity results in
      • synergic (26%)
      • Dyssynergic with / out poor detrusor compliance (37%)
      • Complete denervation (36%)
slide83
This categorization of lower tract function has been useful bcs it reveals
    • Which child is at risk for urinary tract changes
    • Who should be treated prophylactically
    • Who needs close surveillence
    • Who can be monitored at great intervals
  • It appears that outlet obstruction is a major contributor to the development of urinary tract deterioration
slide84
Recommendations
    • Expectant management revealed that infants with outlet obst. in the form of DSD are at considerable risk for urinary tract deterioration
    • These pts should be treated prophylactically
    • CIC alone OR in combination with anticholinergic when
      • Detrusor filling pressures > 40 cm H2O
      • Voiding pressures > 80-100 cm H2O
      • Resulted in an incidence of urinary tract deterioration of only 8-10%
slide85
Oxybutynin hydrochloride administered in a dose of 1 mg / year of age BID
  • In neonates & children < 1year, dose < 1mg & increase proportionally as the age reaches 1 year
  • On rare occasions when overactive or poor compliant bladder fails to respond, augmentation cystoplasty may be needed
slide86
Neurologic findings & recommendations
    • Neurologic lesion in myelodysplasia is a dynamic disease process in which changes take place throughout childhood
    • When a change is noted on neurologic, orthopedic, or urodynamic assessment, radiologic investigation of the CNS often reveals
      • Tethering of the spinal cord
      • A syrinx or hydromyelia of the cord
      • Increased intracranial pressure due shunt malfunction
      • Partial herniation of the brain stem and cerebellem
slide87
MRI is the test of choice as it reveals anatomic details of the spinal column & CNS
  • Sequential urodynamics testing on yearly basis beginning in the newborn period and continuing until 5 yrs old
  • It may be necessary to repeat CMG if upper tract dilates 2ndry to impaired drainage from a poor compliant detrusor
slide89
Management of VUR
    • VUR occurs in 3-5 % of newborns with myelodysplasia
    • Usually associated with poor detrusor compliance, detrusor overactivity or DSD
    • If untreated, incidence of VUR in these infants at risk increases with time until 30-40% affected by 5 years of age
slide90
VUR grade 1-3 who void spontaneously or who have complete lesions with little or no outlet resistance with good bladder emptying
    • Prophylactic Abx only
  • High grade reflux
    • CIC to ensure complete emptying
  • Children who cannot empty their bladder spontaneously regardless of the grade
    • Treated with CIC
  • Children with poor detrusor compliance with / out hydro
    • To add anticholenergic drugs to lower intravesical pressure and ensure adequate upper tract decompensation
slide91
Bacteriuria occurs in 56% of children with CIC & not harmful
    • Except in presence of high grade reflux
    • Symptomatic UTI & renal scarring rarely occurs in lesser grades of reflux
  • Crede maneuver should be avoided in children with reflux, especially those with reactive external sphincter
    • In results in a reflex response in external sphincter that increases urethral resistance & raises the pressure needed to expel urine from bladder
    • Aggravating the degree of reflux & accentuating its watter hammer effect on kidneys
slide92
Vesicostomy drainage rarely required today but indicated in
    • Infants who has severe reflux that CIC & anticholenergic fail to improve upper tract drainage
    • Parents cannot adapt to catheterization program
    • Who are not good candidates for augmentation cystoplasty
slide93
The indications of antireflux surgery are not very different from those with normal bladder
    • Recurrent symptomatic UTI while receiving adequate Abx therapy & appropriate CIC techniques
    • Persistent hydro despite effective emptying of the bladder & lowering of intravesical pressure
    • Severe reflux with anatomic abnormality at the UVJ
    • Reflux that persists into puberty
    • Presence of reflux in any child undergoing surgery to increase outlet resistance
slide94
Antireflux surgery can be very effective in children with neurogenic bladder dysfunction as long as it’s combined with measures to ensure complete bladder emptying
  • Since the advent of CIC, success rate for antireflux surgery approached 95 %
  • The endoscopic injection of Deflux has altered the management of reflux in children with MM
  • Its long term effects are yet to be appreciated
slide95
Continence
    • Initial attempts at achieving continence include CIC & drug therapy to maintain low intravesical pressure
    • Drugs
      • Glycopyrrolate (Robinol) : most potent oral anticholenergic drug available today same other S/E
      • Tolteradine (Detrol): newly approved, equally effective as oxybutynin with fewer S/E
      • Hyoscyamine (levsin) : potency less, fewer S/E
      • Intravesical oxybutynin : fewer S/E compared to oral
slide96
Botulinum roxin A injected into the detrusor muscle has been effectively used
    • Paralyzes the bladder for varying period of time
    • May become viable Rx in the future
  • Alpha sympathomimetic agents
    • If CMG reveals that urethral resistance is inadequate to maintain continence
    • Phenylpropanolamine is the most effective agent
slide97
Surgery
    • Viable option when drug therapy fails to achieve continence
    • Generally intervention is delayed till 5 yrs old
    • Enterocystoplasty using sigmoid, cecum & small intestine
    • If bladder neck or urethral resistance is insufficient to allow adequate storage, bladder neck reconstruction is considered
slide98
Currently, Deflux injections at the bladder neck are being advocated
    • enhances outlet resistance
    • Alternative to bladder neck reconstruction
    • No long term data
  • Continent urinary diversion with closure of bladder neck has been used to provide better quality of life for intractable urethral incompetence
slide99
Sexuality
    • In several studies, 28-40% of MM had one or more sexual encounters
    • All of them had a desire to marry & to bear children
    • In one study, 72% of male subjects have erection, 2/3 were able to ejeculate
    • Other studies revealed 70-80% of MM women were able to become pregnant
slide100
The degree of sexuality is inversely proportional to the level of neuologic dysfunction
  • Boys reach puberty at age similar to normal boys
  • In MM Girls, breast development & menarche start 2 yrs earlier than usual normal girls
slide101
Bowel function
    • The external anal sphincter in innervated by the same nerves that modulate the external urethral sphincter
    • The internal anal sphincter is influenced by more proximal n. from sympathatic nervous system
    • The internal sphincter reflexively relaxes in response to anal distension
    • Consequently, bowel incontinence is frequently unpredictable
    • Incontinence not associated with the attainment of urinary incontinence
lipomeningocele other spinal dysraphism
Lipomeningocele & other Spinal dysraphism
  • Group of congenital defects that affects the formation of spinal column but do not result in open vertebral canal
  • Incidence of lipomeningocele in families 0.043%
  • Lesion have no obvious outward signs
slide104
>90% have cutaneous abnormalities overlying the spines
    • Small dimple
    • Skin tag to a tuft of hair
    • Dermal vascular malformation
    • Very noticeable subcutaneous lipoma
    • Asymmetrically curving gluteal cleft
  • Careful inspection of the legs may show high arched foot / alterations in the configuration of the toes / discrepancy in muscle size / shortness / decreased strength in one leg typically the ankle / gait abnormality
slide105
Small lipomeningocele

Hair patch

dimple

Dermal vascular malformation

Abnormal gluteal cleft

slide106
Absent perineal sensation / back pain / secondary incontinence may be noted
  • Abnormal lower tract function in 40-90%
    • Abnormality increase with age
    • Difficulty with toilet training
    • Urinary incontinence after period of dryness
    • Recurrent UTI
    • Fecal soiling
slide107
Majority perfectly normal neurologic examination
  • CMG
    • Abnormal lower tract function in 1/3 of infants < 18/12
    • Most likely abnormality is UMN lesion characterized by overactive bladder &/or hyperactive sacral reflexes
    • Rarely, mild form of DSD
    • LMN signs occurs in 10% only
slide108
All children > 3 yrs who have not been operated on OR whom occult dysraphism has been lately diagnosed
    • Have upper or lower lesion or in combination on CMG (92%) within 2 yrs
    • When observed expectantly from infancy after Dx was made, 58% deteriorate
slide109
Pathogenesis
    • Various occult spinal dysraphic lesions produces different neuologic findings, Reasons:
      • Compression on the cauda equina or sacral n. roots by expanding lipoma or lipomeningocele
      • Tension on the cord from tethering 2ndry to differential growth rates in bony vertebrae and neural elements while the lower end of the cord is held in place by lipoma or thickened filum terminale
      • Fixation of the split lumbosacral cord by intervertebral bony specule or fibrous band
slide110
Normally, the conus medullaris ends just below the L2 vertebraae at birth and recedes upward to T12 by adulthood
  • When the cord does not rise or fixed in place bcs of these lesions, ischemic injury may ensue
  • Correction of the lesion in infancy result not only in stabilization, bt also in improvement in the neurologic pictures in many instances
slide111
Recommendations
    • MRI
    • Spinal U/S in children < 3/12
      • At this age, vertebral bones have not ossified
      • Useful screening tool for visualization of spinal canal
  • Currently, most NS advocates laminectomy & removal of the intraspinal process as completely as possible, without injuring nerve roots or cord to release the tether and prevent further injury from subsequent growth
sacral agenesis
Sacral Agenesis
  • The absence of part or all of 2 or more lower vertebral bodies
  • Teratogenic factors play a role
  • IDDM mothers have 1% of giving birth to a child with sacral agenesis
  • 16% of children with sacral agenesis have a mother with IDDM
  • Maternal insulin-Ab complexes noted to cross the placenta
slide113
Deletion of chr.7q36 has a role
  • Maternal drug exposure (Minoxidil) reported to cause sacral agenesis
  • Familial cases if sacral agenesis associated with Curarino syndrome
    • Presacral mass
    • Sacral agenesis
    • Anorectal malformation
    • Deletion in chr.7, leading to HLXB9 genetic mutation
  • Association with VACTERL syndrome reported
slide114
Diagnosis of sacral agenesis
    • Presentation bimodal
      • ¾ at early infancy
      • Remainder at 4-5 yrs
    • can be Dx parentally due to frequent use of U/S
    • If not detected prenatally or at birth, Dx is delayed
    • May present with failed attempts at toilet training
    • Sensation intact & lower limb function is normal usually
slide115
The only clue beside the high index of suspicion is
    • Flattened buttocks
    • Low gluteal cleft
  • Palpation of the coccyx is used to detect absent vertebrae
  • Dx confirmed with a lateral film of lower spine
  • MRI is diagnostic
slide116
Gluteal crease is short
  • and seen only inferiorly
slide118
Findings
    • CMG
      • UMNL - 35%
      • LMNL - 40%
      • No signs of denervation at all - 25%

UMNL

      • Overactive detrusor
      • Exaggerated sacral reflexes
      • Absence of voluntary control over sphincter function
      • DSD no sphincteric deenervation
      • Bladder is thick wall (or trabeculated), with closed bladder neck on VCUG or U/S
slide119
LMN
    • Acontractile detrusor
    • Partial or complete denervation of external sphincter
    • Diminished or absent sacral reflexes
    • Bladder smooth and small with opened bladder neck
  • The presence or absence of bulbocavernous reflex is an indicator of an UMNL / LMNL respectively
  • UTI present in 75% over time
  • VUR occurs in UMNL (75%) and in LMNL (40%)
slide120
Recommendations
    • CMG / Ultrasound / VCUG or nuclear cystography
    • UMNL
      • Anticholinergic
      • +/- CIC
      • If anticholinergic ineffective in controlling overactive detrusor, augmentation cystoplasty required
slide121
LMNL
    • CIC & alpha sympathomimetics drugs for those who cannot empty the bladders or stay dry between CIC
    • Injection of bulking agents
    • Artificial urinary sphincter implantation

+ Rx bowel dysfunction

slide122
Associated conditions with sacral agenesis

Imperforate anus

      • Alone or part of anomalies ( VATER / VACTERL )
      • Male > female 1.5:1
      • Sacral agenesis occurs with spectrum of hindgut abnormalities in Currarino syndrome
      • Associattion with fistula to the lower tract is common
      • Most common findings on CMG
        • UMNL with overactive bladder
        • And or DSD
cns insults
CNS insults
  • Cerebral palsy
    • Nonprogressive injury of the brain occurring in the perinatal period that produces either a neuromuscular disability, a specific symptom complex, or cerebral dysfunction
    • Incidence is 1.5 / 1000 births
    • Lesions classified according to which extremities involved and wt kind of dysfunction
    • Spastic diplegia is the most common
slide125
Most children has total urinary control
  • 23.5% has persistent incontinence
  • The presence of incontinence is often related to the extent of physical impairment
  • Abnormal bladder & urethral sphincter function was found in almost all
slide129
Recommendations
    • Overactive bladder treated with anticholinergic
    • +/- CIC
    • Dorsal rhizotomy in selected group of children who fail to respond to less invasive measures
traumatic injuries to the spine
Traumatic injuries to the spine
  • Rarely encountered in children
  • Pts with upper thoracic or cervical lesion are likely to have autonomic dysreflexia with spontaneous discharge of alpha1 stimulants during bladder filling & with contraction of detrusor
  • Monitoring of BP & availability of alpha blockers are mandatory during VCUG or CMG
slide131
Management
    • If retention immediately after trauma, foley catheter is inserted and kept in place as short time as possible
      • Until the pt is stable and aseptic CIC can be started safely on regular basis
    • The goal is balanced voiding at pressures < 40 cmH2O, which reduces the 30% risk of urinary tract deterioration seen in poorly managed pts
    • If cannot be achieved, CIC is continued
slide132
Anticholinergic drugs (P.O. or intavesically) added as they are effective in reducing overactive bladder
  • Alternative Rx
    • External urethral sphincterotomy
    • Urethral stent placement
    • Injection of botulinum A toxin (Botox) into the external sphincter
    • Continent catheterizable abdominal urinary stoma in pts with low cervical or upper thoracic lesions who cannot easily catheterize themselves
ad
